BEDIENUNGSANLEITUNG Fly Creek 2 Platinum Big Agnes

FLY CREEK PLATINUM SET UP INSTRUCTIONS

1. Remove contents from stuff sack. Spread tent body out on ground.
2. Assemble the pole. To ensure each pole section is fully seated insert each pole section into the next by hand, instead of allowing the shock cord to snap them together.
3. Insert the pole tips into the grommets at the front corners and foot of the tent.
4. Attach the H Clip to the underside of the S Stopper.
5. Attach all Twist Clips to the pole.
6. Stake out the two cord loops at the head of the tent and the three loops at the foot.
7. Drape the rainfly over the tent so that the door on the fly lines up with the door on the body.
8. On the underside of the fly are two clips sewn into the seam. Clip these to the corresponding webbing loop sewn into the tent body. The loop is located where the floor of the tent meets the side wall.
9. Make sure the webbing at the corners of the rainfly is completely slackened. Attach the buckles on the rainfly to those on the tent body.
10. Attach the two cord loops at the rear of the fly to the stakes that you used for the tent body.
11. Stake out the vestibule.
12. Evenly tension the webbing on each corner as needed to keep the rainfly taut.
13. Stake out all guylines.

Separate 6", large diameter pole segment included for emergency field repair. Slide repair pole over the break to act as a splint.

FAST FLY SET UP INSTRUCTIONS

If you purchase the optional Big Agnes footprint for your Fly Creek Platinum tent it will enable you to pitch a shelter while leaving the tent body behind. The Fast Fly configuration requires the footprint, rainfly, poles and stakes.

1. Lay the footprint on the ground and stake out.
2. Assemble the pole.
3. Insert the pole ends into the grommets at the front corners and rear of the footprint.
4. Drape the rainfly over the tent.
5. Make sure the webbing at the corners of the rainfly is completely slackened. Attach the buckles on the rainfly to those on the footprint.
6. Attach the two cord loops at the rear of the fly to the stakes that you used for the footprint.
7. Stake out the vestibule.
8. Evenly tension the webbing on each corner as needed to keep the rainfly taut.
9. Stake out all guylines.

3D wireframe diagram of a rectangular container with a curved top and bottom edge, no text or symbols present

Tent Body

Pure geometric line drawing of a 3D prism-like structure without any text, numbers, or symbols

Tent with Fly

DAC
Hardware:

Twist Clip

H Clip

Stopper

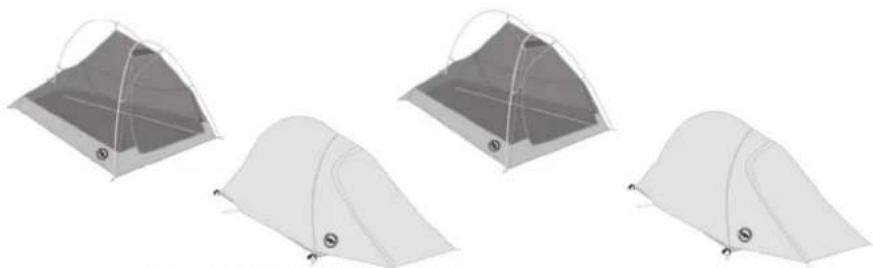

Four identical grayscale images of a tent-like structure with no text or symbols, shown in different angles (no visible text or symbols)

Fly Creek 1 Platinum Fly Creek 2 Platinum

Thanks for choosing a Big Agnes tent!

Please feel free to contact us if you have any questions or comments.

[e-mail]

HELPFUL HINTS FOR TENT SET UP

- Our tents are easy to set up but we suggest you practice once at home before using them for the first time to avoid late night bickering with tent mates while fumbling around in the dark.

• Before pitching tent, clear campsite of debris that may pierce tent floor.

- Big Agnes tents are all freestanding, but we recommend staking them out to increase space and keep your tent from becoming a tumbleweed.

- Hang onto your stuff sacks or they'll blow away and create backcountry litter.

- Pull on the pole sleeve fabric when inserting poles to avoid any bunching in the material.

- Push rather than pull poles through pole sleeves.

TENT CARE

Storage

Always make sure your tent is dry and free of debris before storing. Stuff or fold your tent a different way each time to avoid permanent creases. Store in a cool, dry place. Never leave your tent in hot temperatures (such as a car trunk or attic space), as it will damage the material coatings. Storing your tent damp can result in mildew growth, which may cause your tent to smell, leak or delaminate. Mildew damage is not covered under warranty.

Cleaning

For light cleaning, you can sponge the tent with warm water. If it's necessary to wash the entire tent, always use cleaners recommended specifically for tents. We recommend McNett Mirazyme cleaner, or Nikwax Tech Wash. Do not dry clean or machine-wash your tent. Detergents and dry cleaning solvents will damage the fabric and ruin waterproofing. Never use hot water, bleach, liquid detergents or dishwashing liquids.

Seam Sealing

Seam tape alone is durable enough to prevent water leakage. Any seams that have been taped do not need to be seam sealed with a liquid sealer unless you want extra protection. Make sure the seam-sealer is completely dry before re-packing your tent. Damage caused by misapplication may void warranty.

Zippers

Keeping your zippers clean will help keep the coils and sliders from wearing out. If filled with dirt, vacuum or brush zippers before storing tent. Try to avoid liquid lubricants because they attract dirt.

Repairs and Warranty

All Big Agnes tents are guaranteed against manufacturing or material defect. We do not warranty products damaged from normal wear and tear, alteration made by owner, misuse, accidents or damages caused by uses other than intended. Damage due to misuse, normal wear and tear, or improper care may be repaired, at the discretion of Big Agnes, at a reasonable charge. Tents returned for repair must be clean and free of debris.

For more information on Tent Care or our Warranty and Return policy, see www.bigagnes.com or call 970-367-4400.

P.O. Box 773072 • Steamboat Springs, Colorado • 80477

Toll Free: 877.554.8975 • www.bigagnes.com
