INTRODUCTION

The Infresco has been designed specifically to work with Infra Red Heaters, with a rating of 2 kW it will allow you to control a

variety of heating and lighting solution.

The Infresco has a 1 to 10 step setting allowing you to find the optimum comfort setting in you specific area. With energy

saving a major factor in the design brief, once the Infresco is switched on it will automatically manage the heating system.

With a built in temperature sensor only allowing the unit to switch on when required and a PIR that will detect a requirement

for the heater to switch on only when needed. An optional remote control allows for the unit to be fitted out of the way so

safety is paramount. The Infresco has a built in soft start function which will add up to an additional 30% life to your heater

lamp.

APPLICATIONS

Any application were high inrush current is an issue or control is required. Typical use is for Infra Red Heating lamps, Garden lighting

FEATURES

• Single hole fixing
• Energy Saving.
  • Simple Installation
• Extended Lamp life.
• Reduced Maintenance
• Short Payback time

INFRESCO

Installation & Users' Manual 2kW IR Control

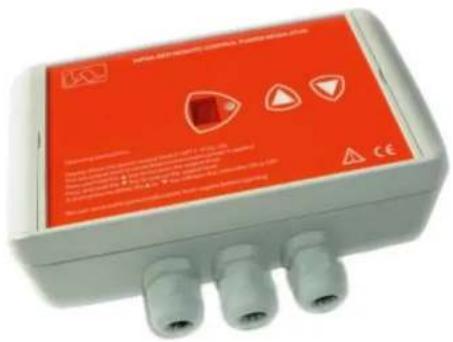

Product photo of a medical device with red label and warning symbols, showing three white connectors and a red warning symbol.

RoHS Compliant Directive 2002/95/EC

SPECIFICATIONS

Supply Voltage 230vAC +/- 10%

Maximum Load 2 kW

Operating Temperature -20°C to 30°C

IP Rating IP65

Gland Diameter Max Cable Entry 2.5mm²(Line & Load)

Temperature Set point 5°C to 25°C

FUSING

It is recommended to use an appropriately

rated mains fuse or D Type Breaker for

protection. On initial 'switch on' some loads

may Increased Factor of Safety (F or S) for

Unit and/or Device protection. See SRA Data sheet for further information

CE MARKING

This family carries a "CE" marking. These phase angle controllers need a suitable remote filter. For

more information see rec section and contact our sales desk. (See Declaration of Conformity)

RECOMMENDATIONS

Other documents available on request, which may be appropriate for your application:

CODE IDENTITY DESCRIPTION

X10229 RFI Single Phase Filtering recommendations - addressing EMC Directive

X10213 ITA Interaction, uses for phase angle and for burst fire control.

X10255 SRA Safety requirements - addressing the Low Voltage Directive

(LVD) including: - Thermal data/cooling; "Live" parts warning & Earth

requirements; Fusing recommendations.

AP02/4 COS UAL Conditions of sale

NOTE It is recommended that installation and maintenance of this equipment

should be done wi

edition of the I.E.E. wiring regulations (BS7671) by suitably qualified/trained personnel.

The regulations contain important requirements regarding safety of electrical equipment

(

I.E.C/ directive IEC 950).

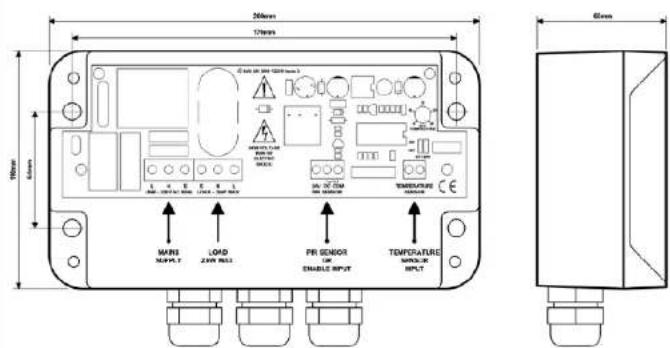

20mm 10mm 50mm 40mm MARE LOAD PR SENIOR TEMPERATURE MINI-IR ENABLE INPUT TOLERATURE MINI-IR RPLCT Green

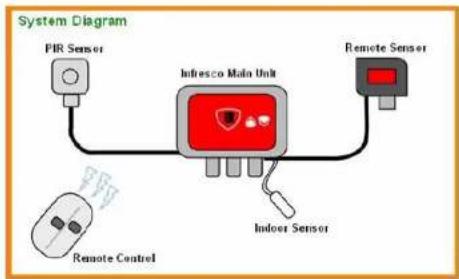

System Diagram PIR Sensor Infresco Main Unit Remote Sensor Indoor Sensor Remote Control
