| Produkttyp | Temperaturregler für Infrarot-Heizungen |
| Modell | 4kW IR Control |
| Marke | Infresco |
| Netzspannung | 230 V~ ±10%, 50 Hz |
| Maximale Last | 4 kW bei 20 °C Umgebungstemperatur |
| Leistungsaufnahme | 50 mA |
| PIR-Zeiteinstellung | 5 Minuten (voreingestellt) |
| Temperatureinstellbereich | 5 °C bis 25 °C |
| Werksseitige Temperatureinstellung | 20 °C |
| Schutzart | IP65 |
| Maximale Kabeldurchführung | 2,5 mm² |
| Betriebstemperatur | -20 °C bis 30 °C |
| Maximale Gerätetemperatur | 65 °C |
| Abmessungen (B x T x H) | 280 mm x 200 mm x 80 mm |
| PIR-Bewegungssensor (optional) | Betriebsspannung 12 V DC, Erfassungsbereich 18 m, Richtung 90° einstellbar |
| Außentemperatursensor (optional) | Abmessungen 115 x 110 x 55 mm |
| Sanftanlauf | Verlängert die Lampenlebensdauer um bis zu 30 % |
| Energiesparfunktion | Automatisches System: Heizt nur bei Bedarf |
| Temperaturüberwachung | Schaltet sich ab, wenn Raumtemperatur oberhalb der eingestellten Schwelle liegt |
| Installation | Direkt an 13A-Stecker bis 3 kW Last, für höhere Lasten festverdrahtet |
| Empfohlene Montagehöhe | Ca. 2,5 m über Boden |
| Nicht montieren | Direkt im Lampenstrahl, auf reflektierenden Flächen, in der Nähe von Heizkörpern, in offenen Türen |
| Reinigung | Gehäuse mit feuchtem Tuch reinigen, keine aggressiven Reinigungsmittel |
| Sicherheitshinweise | Installation nur durch qualifiziertes Personal, nicht auf brennbarem Material montieren, Kühlkörperabstand einhalten |
Häufig gestellte Fragen - 4kW IR Control Infresco
Benutzerfragen zu 4kW IR Control Infresco
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Temperaturregler kostenlos im PDF-Format! Finden Sie Ihr Handbuch 4kW IR Control - Infresco und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. 4kW IR Control von der Marke Infresco.
BEDIENUNGSANLEITUNG 4kW IR Control Infresco
INTRODUCTION
The Infresco has been designed specifically to work with Infra Red Heaters, with a rating of 4kW it will allow you to control a variety of heating and lighting solution.
The Infresco has a 1 to 10 step setting allowing you to find the optimum comfort setting in your specific area. With energy saving a major factor in the design brief, once the Infresco is switched on it will automatically manage the heating system. With a built in temperature sensor only allowing the unit to switch on when required and a PIR that will detect a requirement by the heater to switch on only when needed. An optional remote control allows for the unit to be fitted out of the ways safety is paramount. The Infresco has a built-in soft start function which will add up to an additional 30% life to your heater lamp.
APPLICATIONS
Any application were high inrush current is an issue or control is required. Typical use is for Infra Red Heating lamps. Garden lighting
FEATURES
Soft Start-up to 30% extended life of Lamp
Variable Control - Ability to find comfort level
Simple Installation – Ability to plug directly in 13A Plug with up to 3kW load
Energy Saving – Automated system. (Only heat when required)
Temperature Monitoring – If ambient temperature is above preset the Infresco unit remains
switched off
SAFETY FIRST
Please read these instructions before installing and operating this product. (See warning for additional information).
Installation
The ideal site for the PIR to be mounted is approximately 2.5+ Meters of the floor. Ceiling mounting is preferred but not essential
The PIR must not be mounted.
Directly in line of the lamps output
Highly reflective surfaces
Radiators or other thermostatically controlled heaters
Open door ways with people walking past
Commission Inq
NOTE: On switch on the PIR takes 60 seconds to set before detection takes place
NOTE: The PIR continues to monitor the area and will reset to the set time every time it detects movement.
Before testing ensure the wiring is correct. The temperature trip point has already been preset at
the factory. The timer is preset to 5 minutes.
The expected detection area can now be "walked tested" using a diagram shown in mind. The
area should be crossed in various directions to ensure coverage is as expected.
Display Features
Display shows
Display shows 'F'
Display decimal point pulses
Display decimal point fully on
- Display, 3. Display, 4. Display, 5. Display
The Infresco is turned OFF as the ambient temperature
is above the trip level set by TEMP. SET.
The Infresco is set to FULL output.
The PIR input is waiting to be enabled i.e. no movement
The Infresco is in Standby mode pressing the remote
control POWER button will toggle the power ON and OFF.
You can check the remote control is transmitting by observing the decimal point flashing rapidly.
INFRESCO
Installation & Users' Manual 4kW IR Control


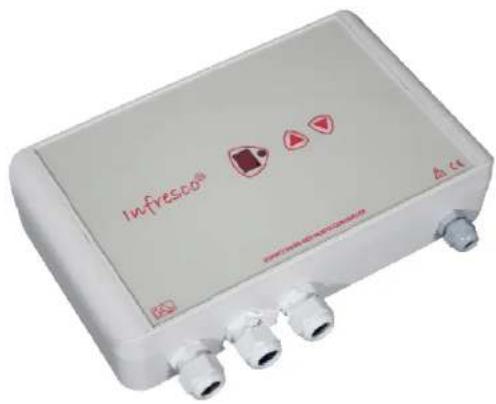

Infresco Main Unit
Mains Voltage 230Vac +/-10% 50 Hz
Max load at 20°C ambient 4 kW
Power Consumption 50mA
PIR Set Time Period 5 Minutes
Temperature Set point 5°C to 25°C
Factory Set Temperature trip point 20°C
IP Rating 65
Gland Diameter Max Cable Entry 2.5mm²

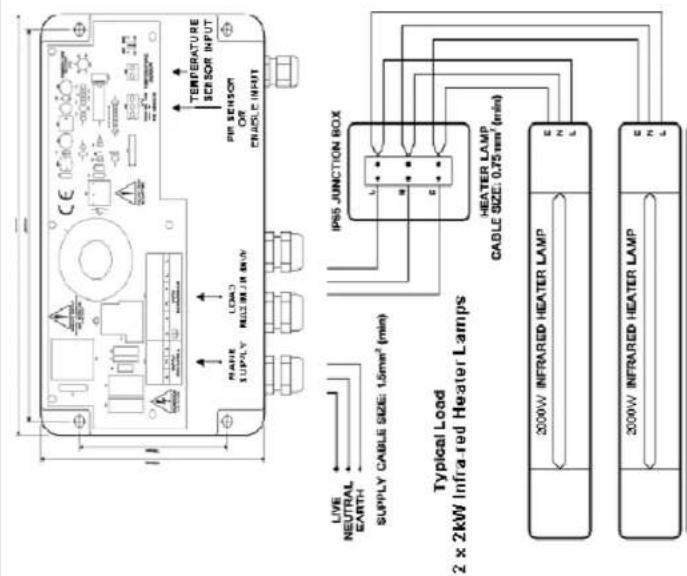

2 Lamp Installation Must be fitted in Parallel
Operating Temperature -20°C to 30°C
IP Rating IP65
Max Unit Operating Temperature 65°C
Dimensions W=280mm D=200mm H=80mm
'D' inclusive of Glands
PIR Movement Sensor (optional)
Operating Voltage 12V dc
Direction 90°Adjustable
Detect 18 Metres
Outdoor Temperature Sensor (optional)
Dimensions W=115mm D=110mm H=55mm
WARNING
It is important that the Infresco IR is not mounted directly to any flammable material i.e. wood.
It is recommended that the heatsink be spaced off any the mounting wall using pillars to aid in
heat
dissipation
It is recommended that installation and maintenance of this equipment should be done with
reference to the current edition of the I.E.E. wiring regulations (BS7671) by suitably
qualified/trained personnel.
These regulations contain important requirements regarding safety of electrical equipment (for
International Standards refer to I.E.C/ directive IEC950).
UIJTHOVEN INFRAROOD
Uijthoven Infrarood
Nijverheidstraat 31
4261 TK Wijk en Aalburg The Netherlands
Phone: 00 31 416 532724
Fax: 00 31 416 532719
E-mail: info@uithoven.nl
Web: www.terrastopper.nl
