BEDIENUNGSANLEITUNG MP 4025 TITAN

27531 / MP 4025
TILT & SWING WALL MOUNT
INSTRUCTION MANUAL
PARTS CHECKLIST


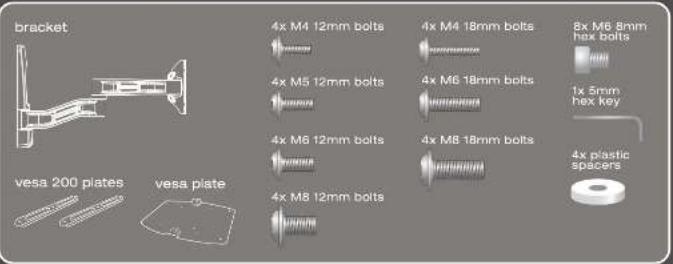

bracket 4x M4 12mm bolts 4x M4 18mm bolts 8x M6 8mm hex bolts 4x M5 12mm bolts 4x M6 18mm bolts 1x 5mm hex key 4x M6 12mm bolts 4x M8 18mm bolts 4x plastic spacers vesa 200 plates vesa plate


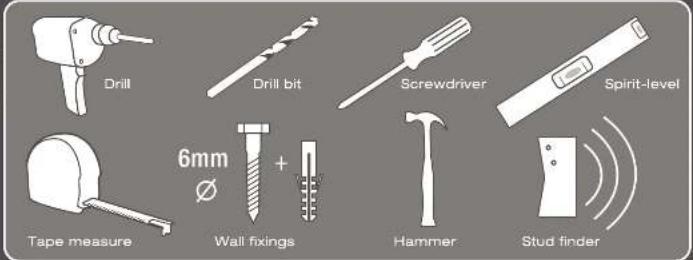

Drill Drill bit Screwdriver Spirit-level Tape measure 6mm Wall fixings Hammer Stud finderMASONRY/CEMENT
WALL FIXING


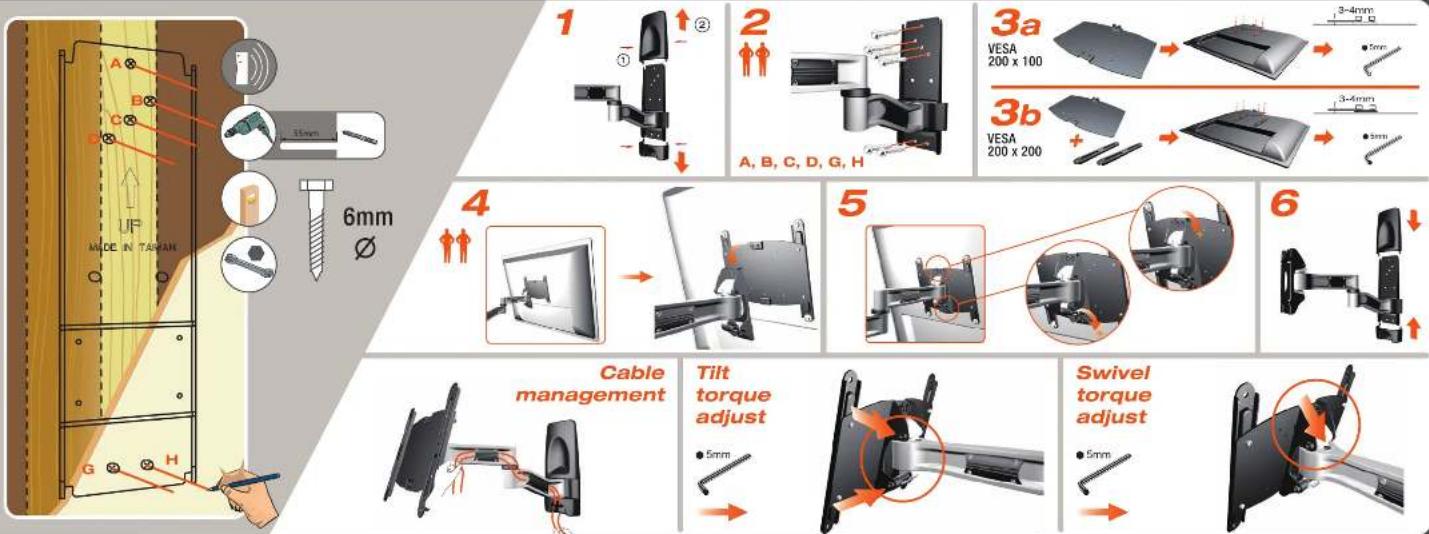

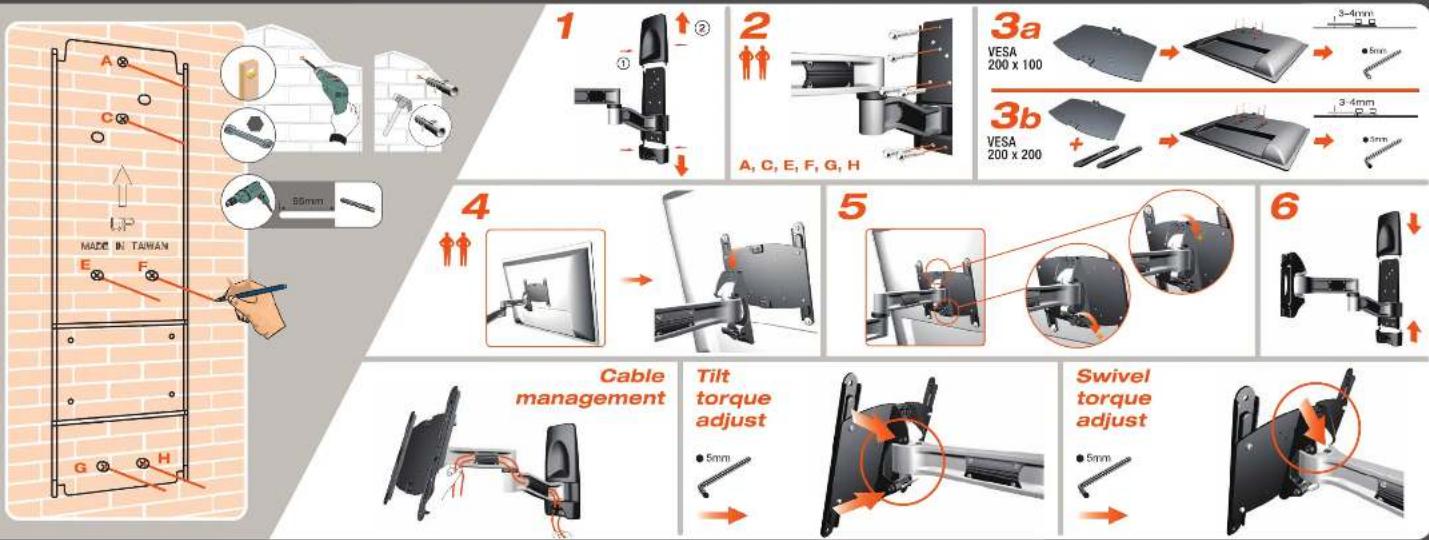

Made in TAIWAN A C E F G H 55mm 1 ① ② 2 A, C, E, F, G, H 3a VESA 200 x 100 3b VESA 200 x 200 3-4mm 5mm 3-4mm 5mm 4 Cable management Tilt torque adjust ● 5mm 5 Swivel torque adjust ● 5mmSTUD-WALL
FIXING
