BEDIENUNGSANLEITUNG MP 6350 TITAN

26939 / MP 6350
TILT & SWING WALL MOUNT
INSTRUCTION MANUAL


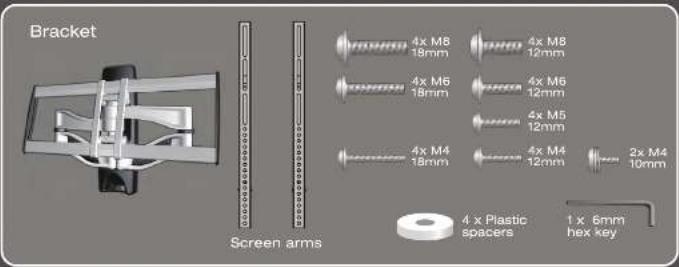

Close-up of a black wall-mounted mechanical component with multiple blades (no visible text or symbols)PARTS CHECKLIST


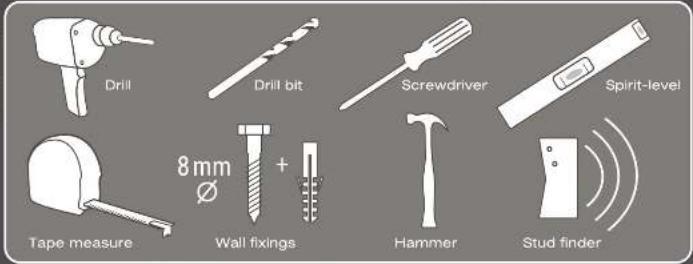

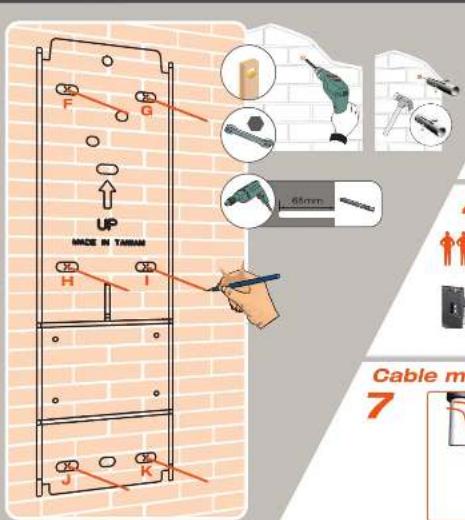

Drill Drill bit Screwdriver Spirit-level Tape measure 8mm Wall fixings Hammer Stud finderMASONRY/CEMENT
WALL FIXING

2

3

Cable management

5

Tilt torque adjust
8


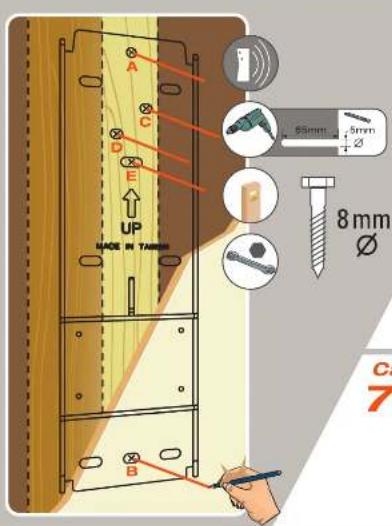

9 Hex key (8mm)STUD-WALL
FIXING

2

3


5

Tilt torque adjust
8

