BEDIENUNGSANLEITUNG Paulina (100x40x96.5) JYSK
Paulina 6 Drawer
Paulina Kommode 6 Schubladen
Cómoda Paulina 6 cajónes
Commode Paulina 6 tiroirs
Cassettiera Paulina 6 cassetti
Cómoda Paulina 6 cajónes
725-137-1002
725-137-1003


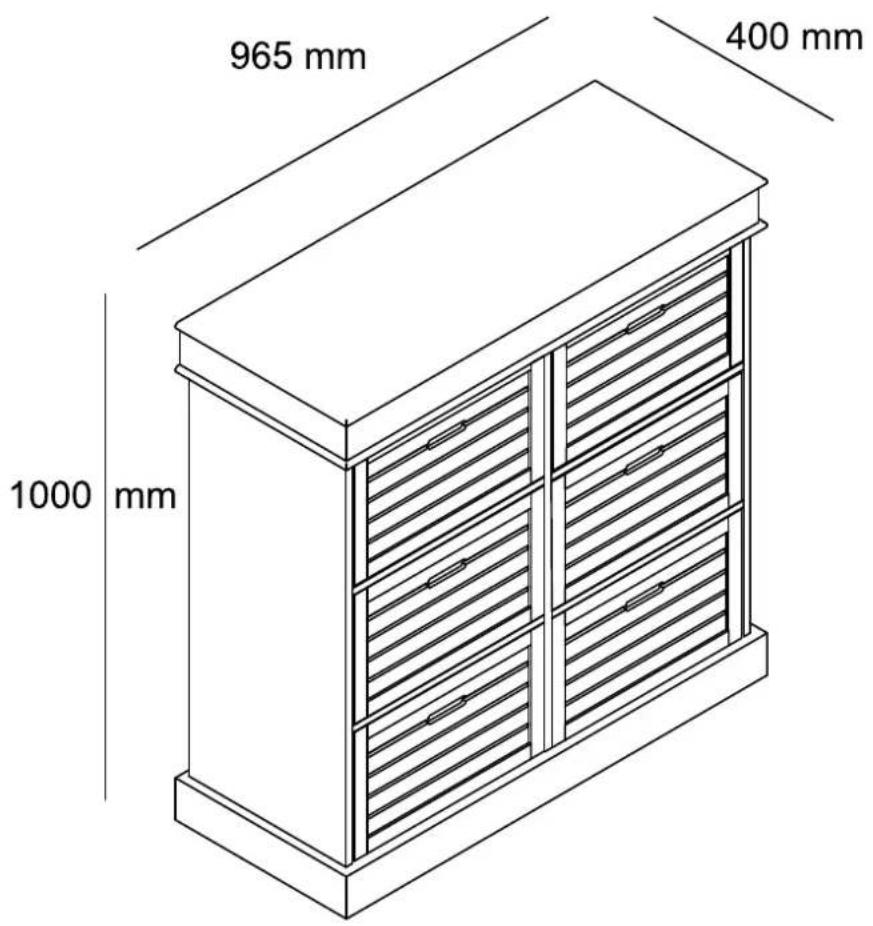

965 mm 400 mm 1000 mm
30 min


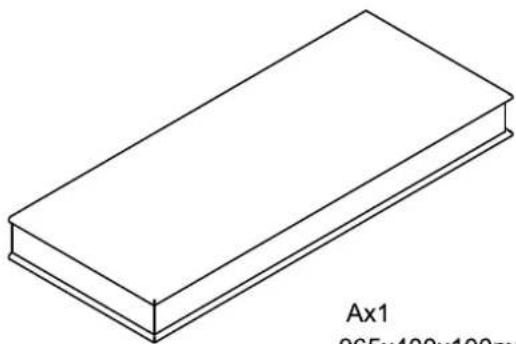

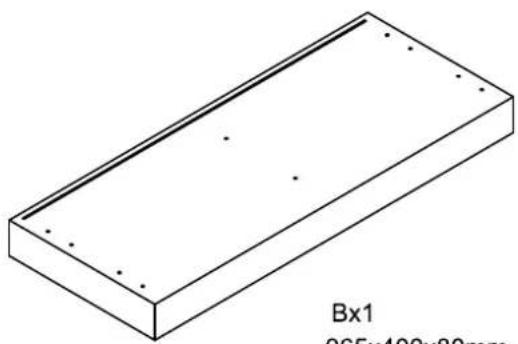

Two identical human gender symbols with crosshairs, no text or labels present| 1 | A | 965x400x100 mm |
| 1 | B | 965x400x80 mm |
| 4 | C | 450x360x15 mm |
| 2 | D | 820x380x15 mm |
| 1 | E | 820x360x15 mm |
| 3 | F | 922x275x3 mm |


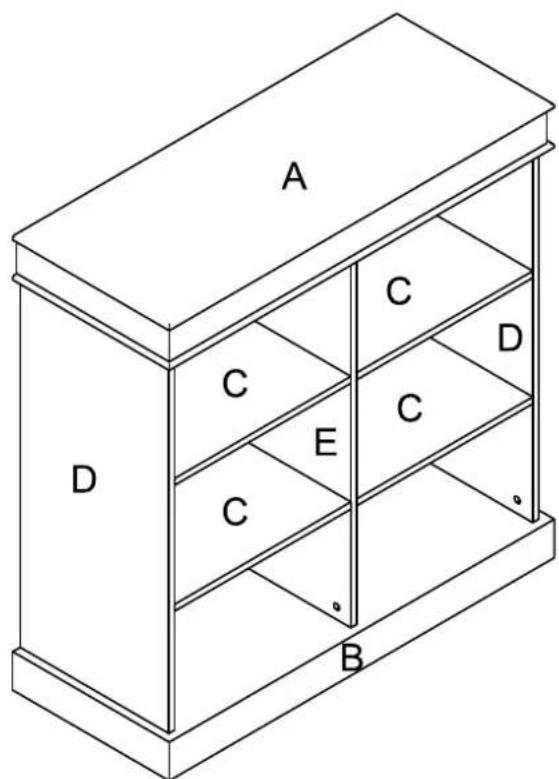

A C D C E C D B
725-137-1002
725-137-1003

30 min


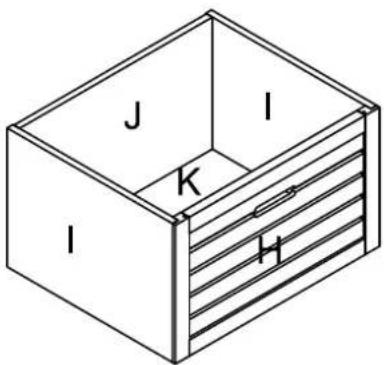

Two identical human gender symbols with crosshairs, no text or labels present| 6 | H | 445x258x18 mm |
| 12 | I | 352x258x12 mm |
| 6 | J | 421x258x12 mm |
| 6 | K | 427x334x3 mm |
Hx6445x258x18 mm | Ix12352x258x12 mm |
Jx6421x258x12 mm | Kx6427x334x3 mm |
Rx723x30mm | |
| 1 OK | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| 1 OK |

725-137-1002
725-137-1003
3- 10
√
965x400x100mm | 965x400x80mm | ||
Cx4450x360x15mm | Dx2820x380x15mm | ||
Ex1820x360x15mm | Fx3922x275x3mm | ||
Lx208x30mm | Mx48x50mm | NXZUØ6x35mm | D0x1mm |
Px28Ø15x11.5mm | Qx63x12mm | 7x4Ø3x13mm | Sx416x16x11mm |
725-137-1003
1


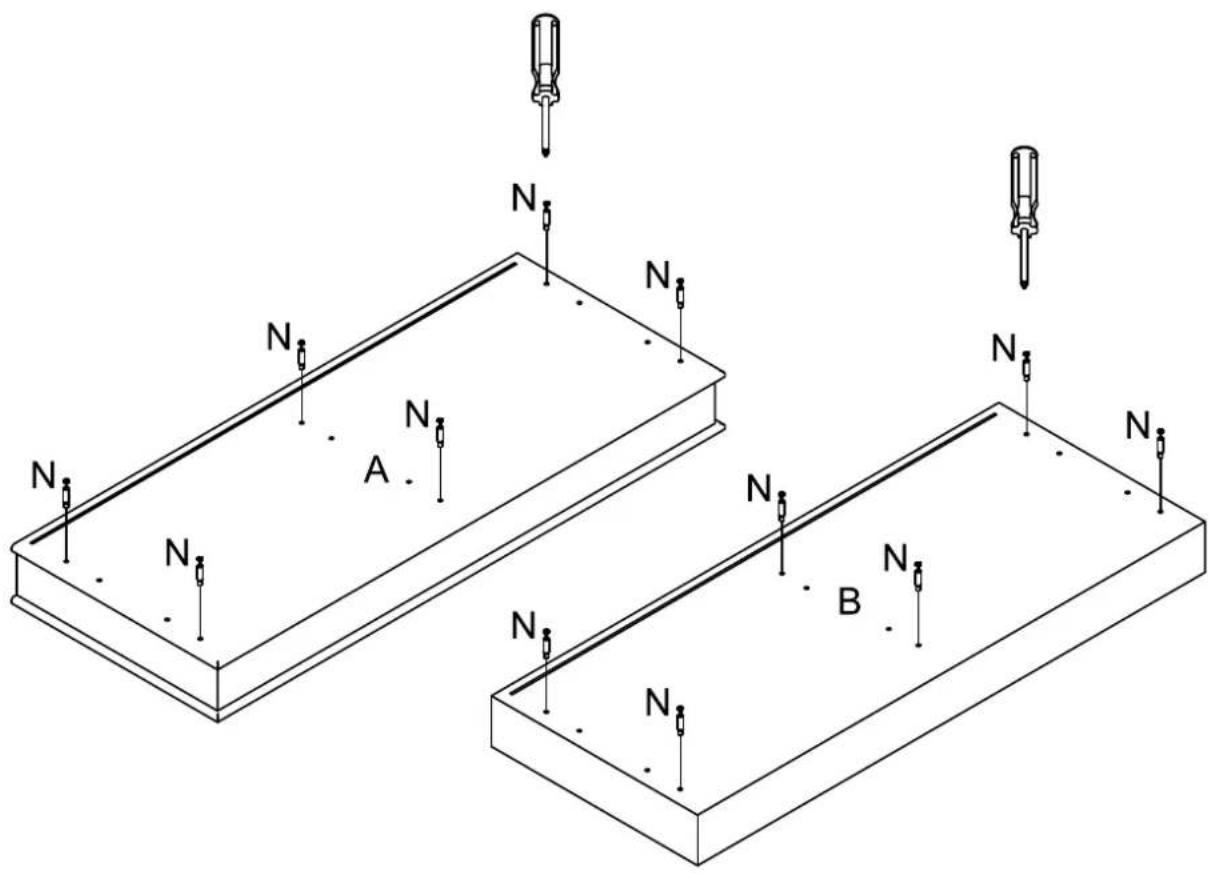

N N N A N N N N B N N2


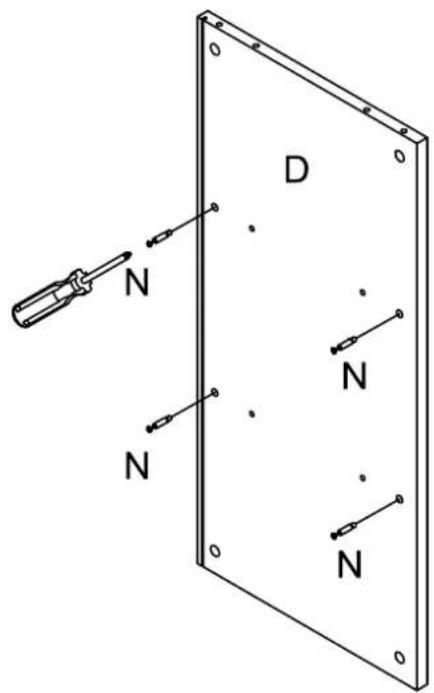

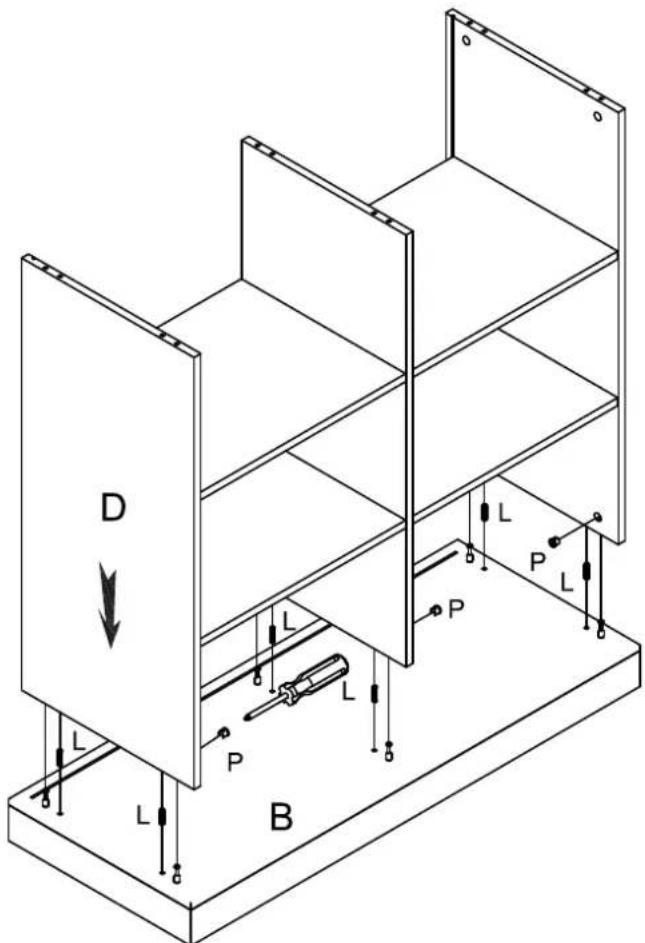

N D N N Nx2
725-137-1002
725-137-1003
5- 10
3


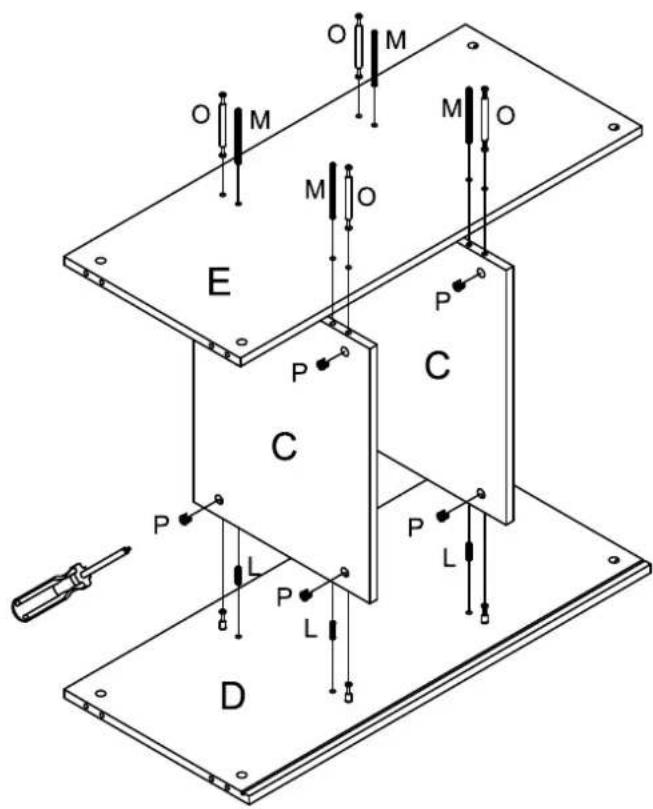

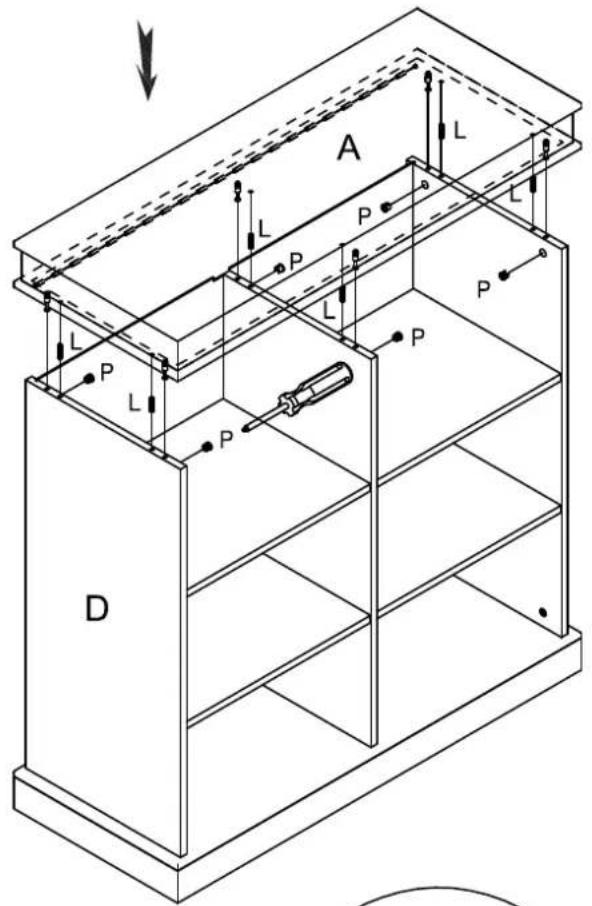

O M O M O E P C C P L P L D4
725-137-1003
6- 10
5


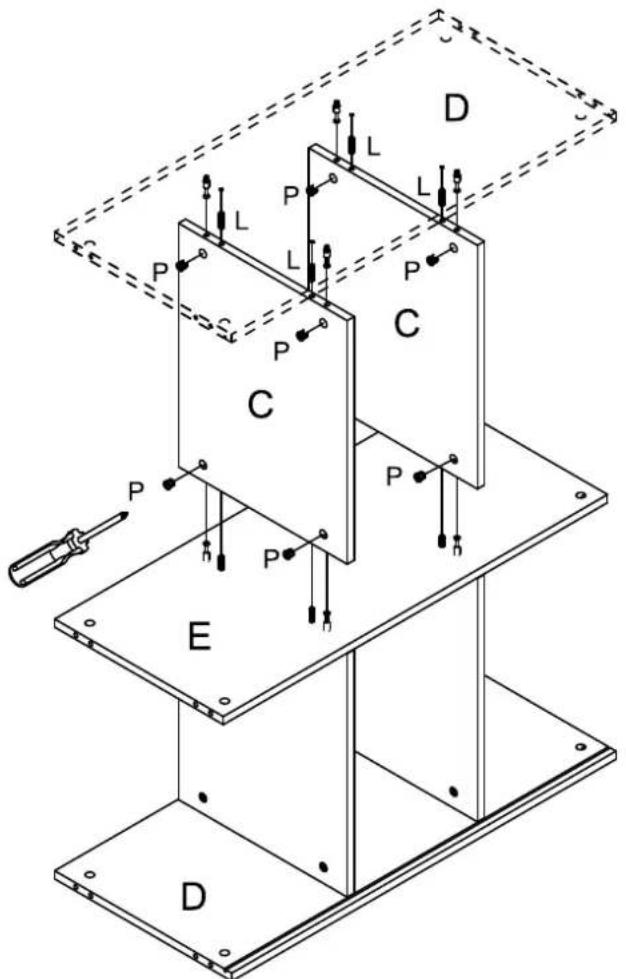

D L P L P L L P B6


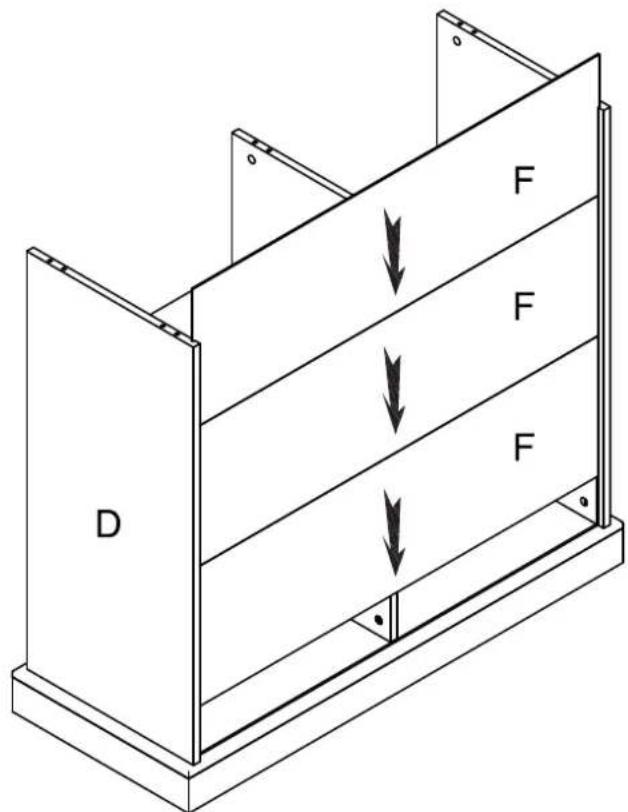

F F F D725-137-1002
725-137-1003
7- 10
7


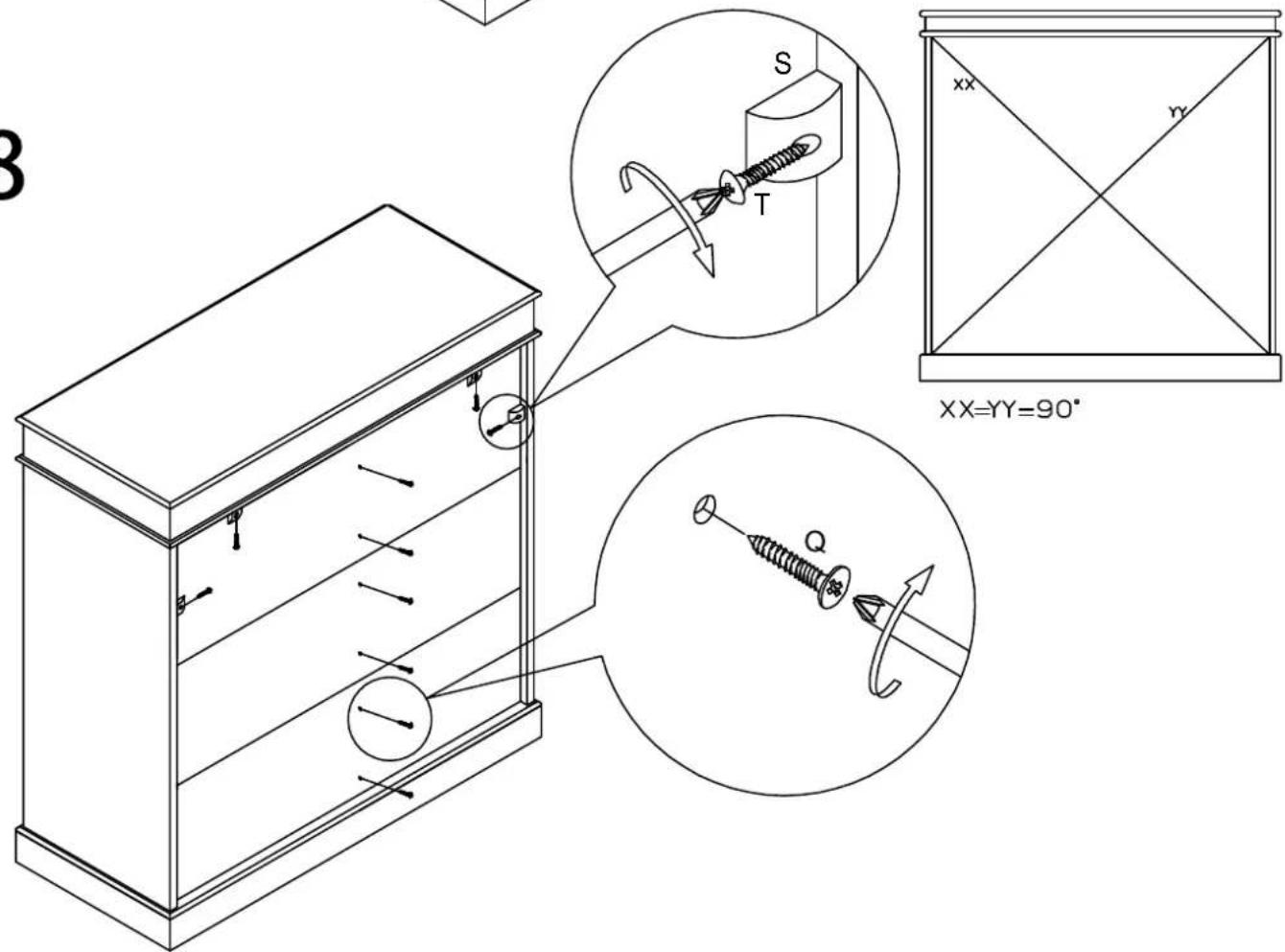

3 S T xx n XX=YY=90° Q725-137-1002
725-137-1003
8- 10
9


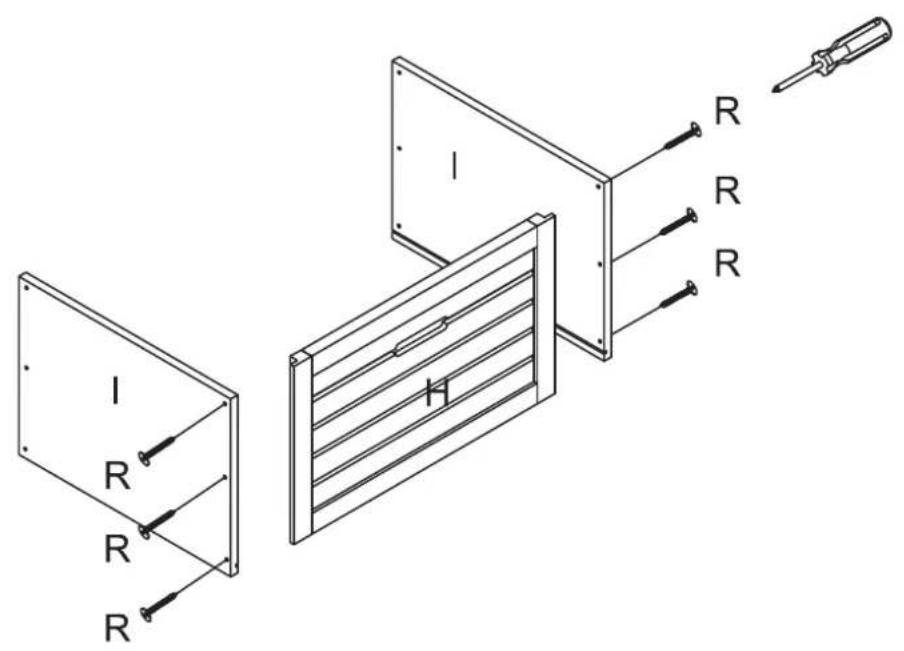

I R R R H R R R10


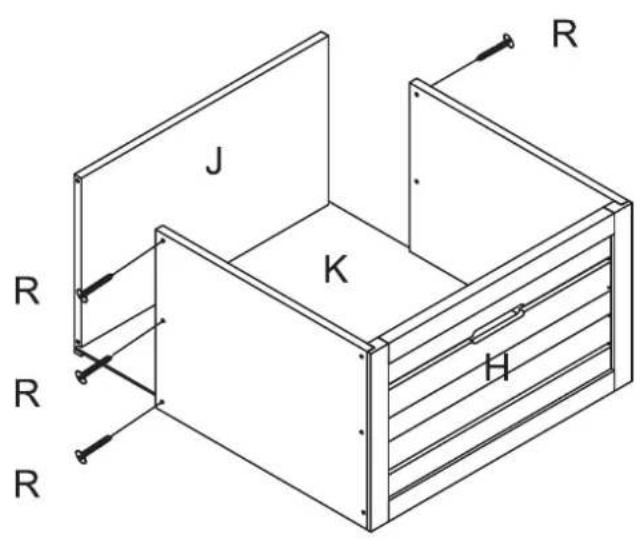

J K H R R R R725-137-1002
725-137-1003
9- 10
11


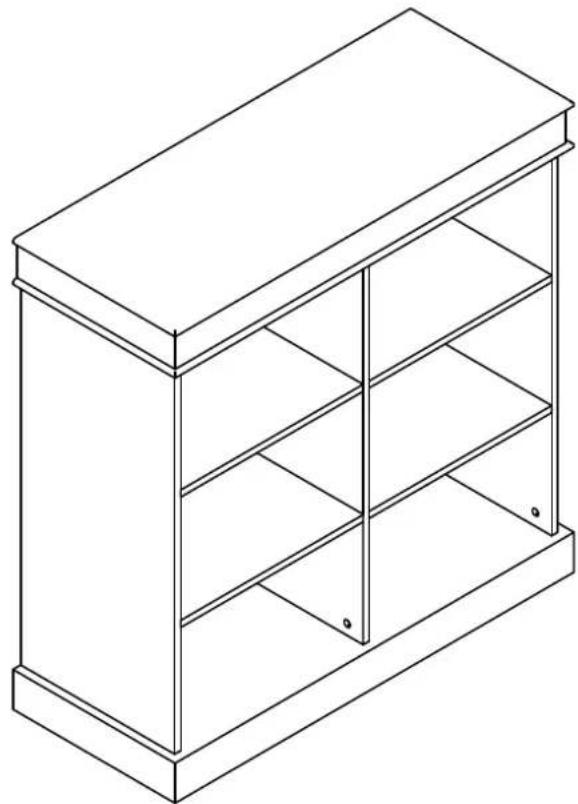

Isometric line drawing of a multi-level cabinet or storage unit with shelves and legs (no text or symbols)


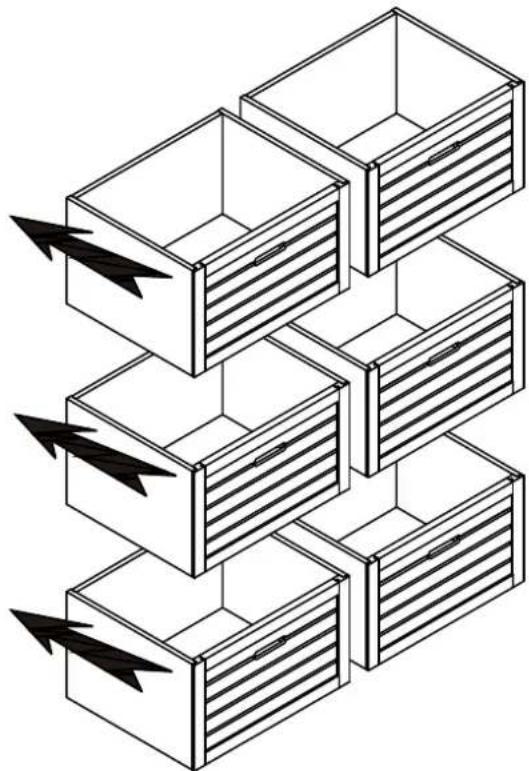

Isometric line drawing of stacked rectangular compartments with arrows indicating direction (no text or symbols)725-137-1002
725-137-1003
10- 10
Hx6445x258x18 mm
Ix12352x258x12 mm
Jx6421x258x12 mm
Kx6427x334x3 mm
Rx723x30mm
965x400x100mm
965x400x80mm
Cx4450x360x15mm
Dx2820x380x15mm
Ex1820x360x15mm
Fx3922x275x3mm
Lx208x30mm
Mx48x50mm
NXZUØ6x35mm
D0x1mm
Px28Ø15x11.5mm
Qx63x12mm
7x4Ø3x13mm
Sx416x16x11mm
