BEDIENUNGSANLEITUNG Paulina (72x40x50) JYSK
Paulina 2


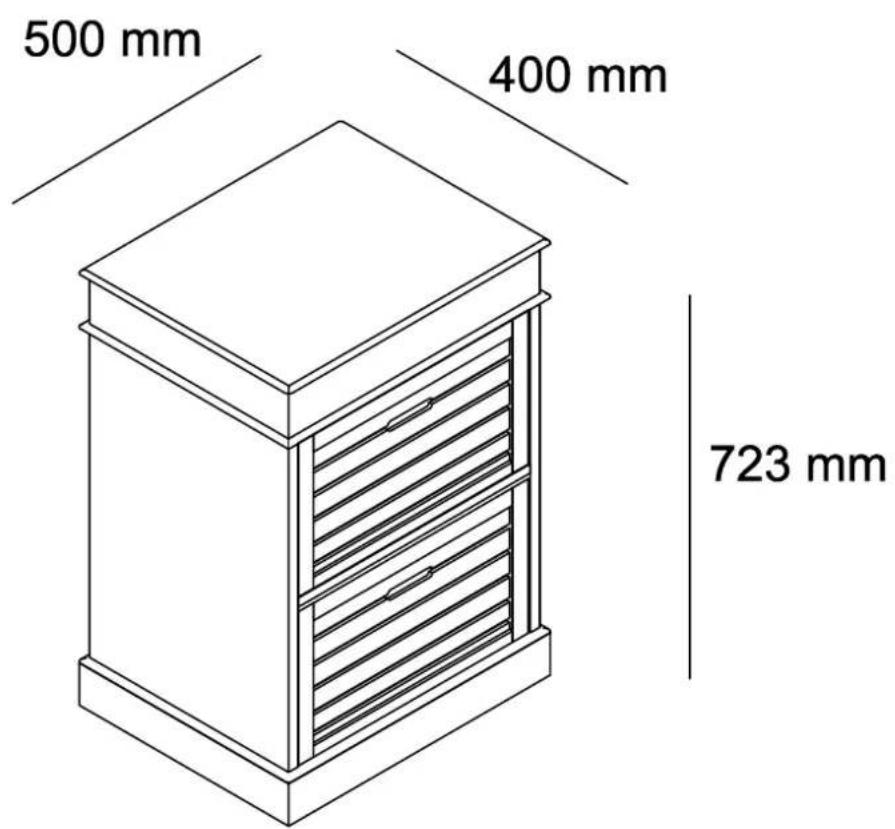

500 mm 400 mm 723 mm1-9

30 min


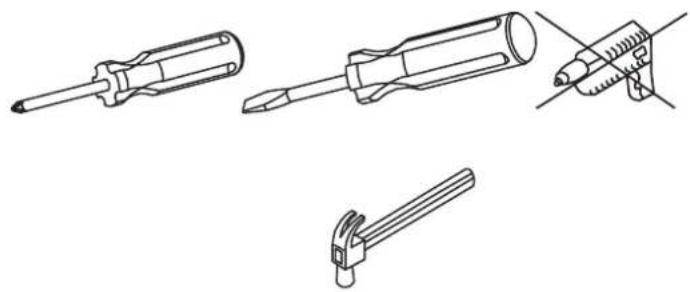

Line drawings of four different screwdriver tools and a hand holding a pen, shown in various orientations (no text or labels)
| 1 | A | 500X400X100mm |
| 2 | B | 543X380X15mm |
| 1 | C | 500X400X80mm |
| 1 | D | 450X380X15mm |
| 2 | E | 460X270X3mm |
| 2 | F | 445X258X17mm |
| 4 | G | 356X256X11mm |
| 2 | H | 423X256X11mm |
| 2 | I | 431X341X3mm |


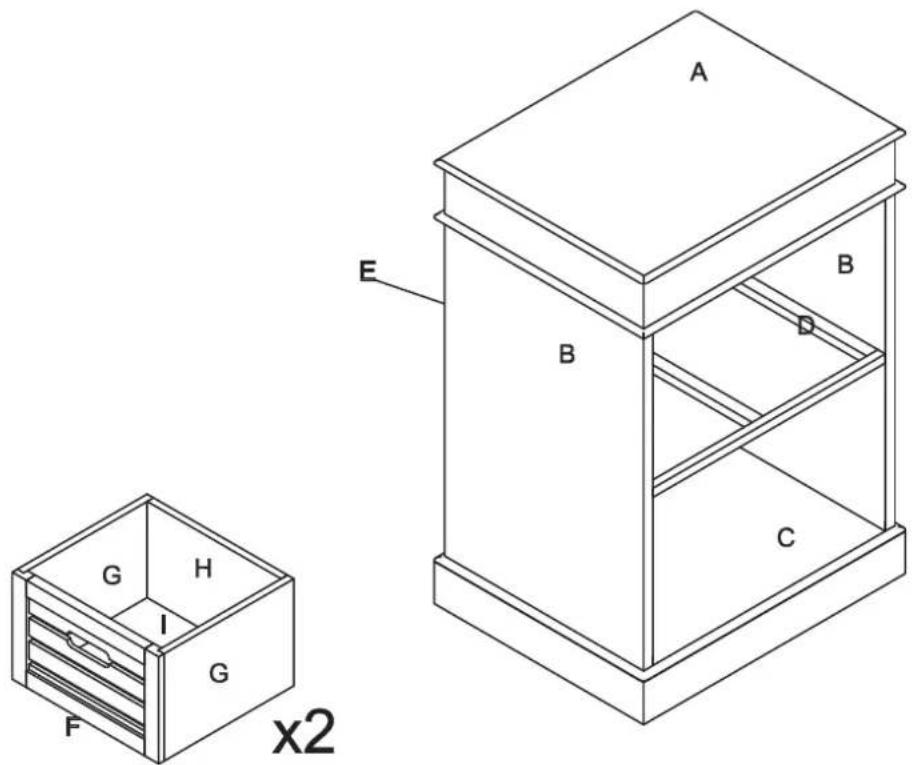

A E B B D C G H I G F x2

B2x8∅6x35mm | C2x9∅3x15mm | D2x24∅3x25mm | E2X14∅8x30mm |
L1X816x16x11mm | A3X8∅15x11mm | M1x1250x25mm | N1x1∅9x1mm |


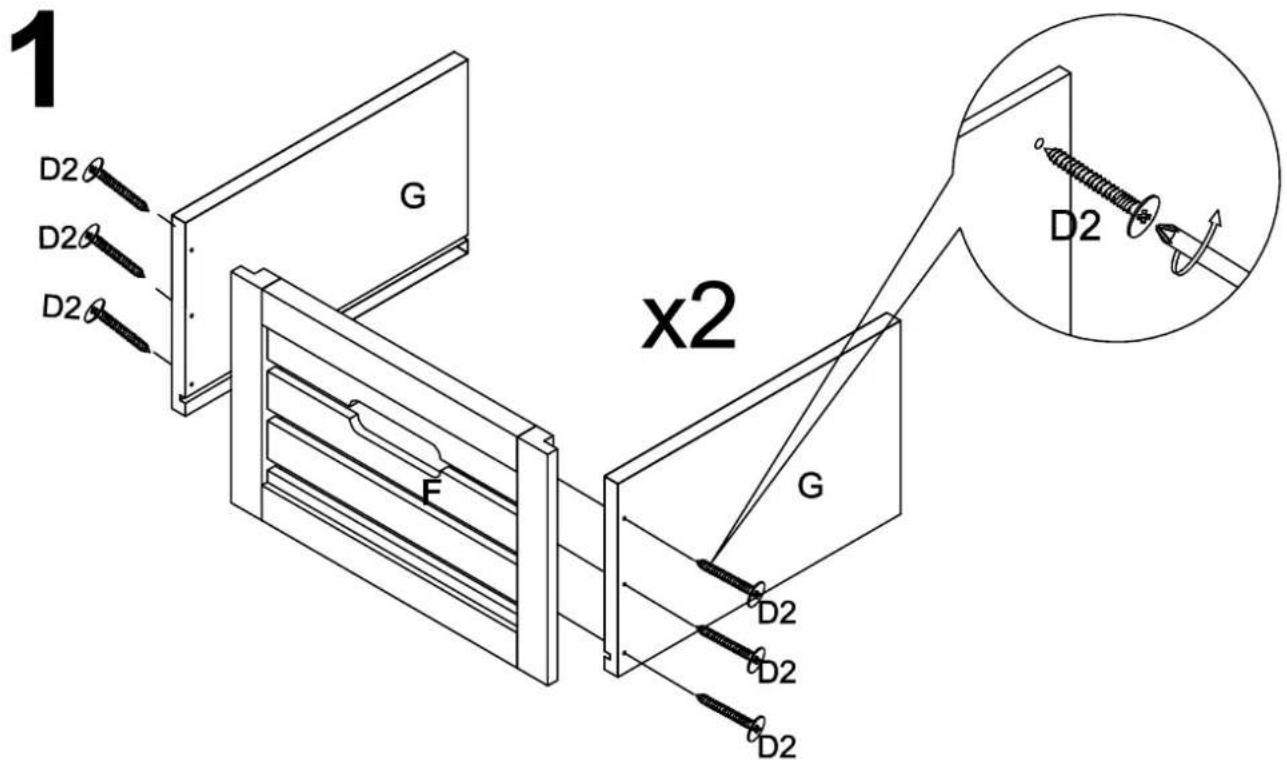

1 D2 D2 D2 G x2 F G D2 D2 D22


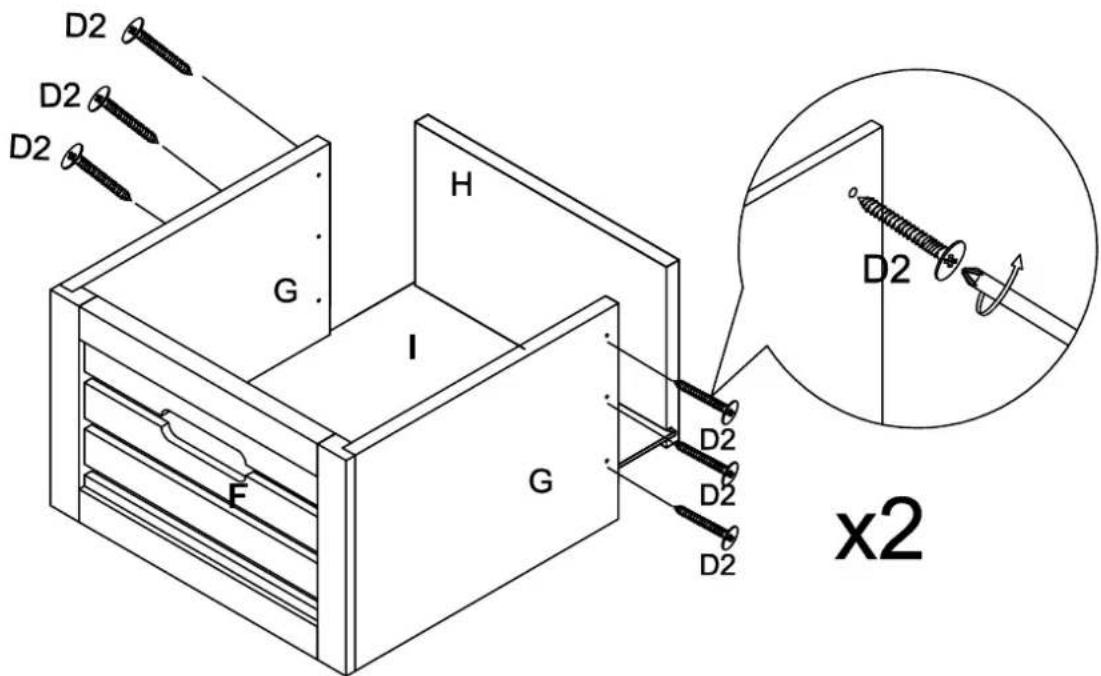

D2 D2 D2 G H I F G D2 D2 D2 x24-9
3


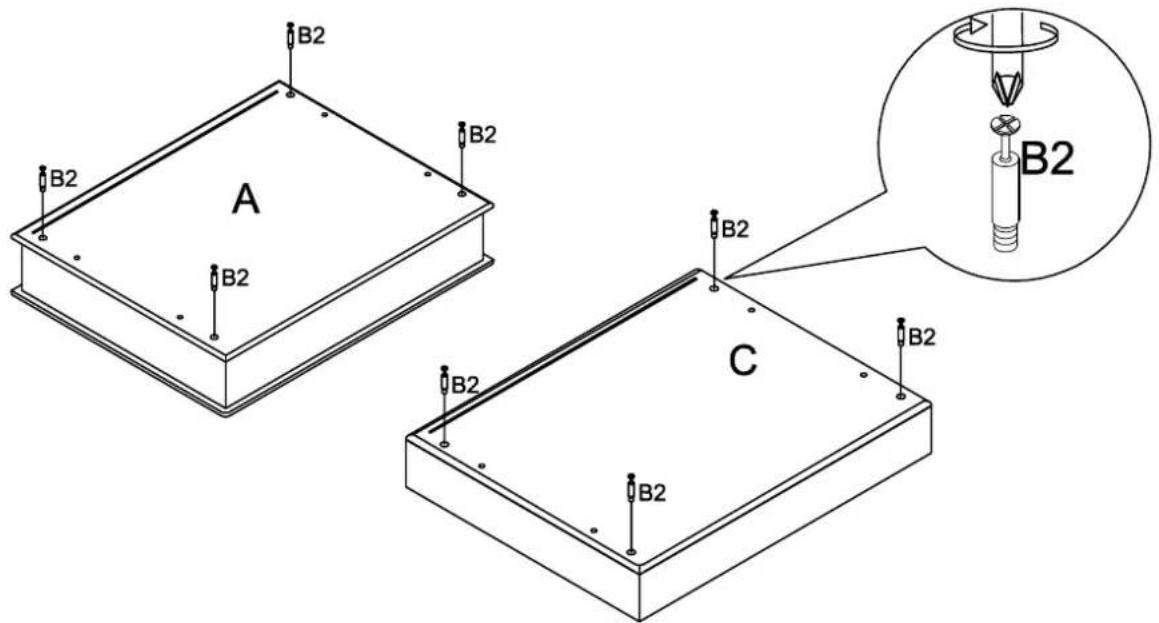

B2 A B2 B2 B2 C B2 B2 B24


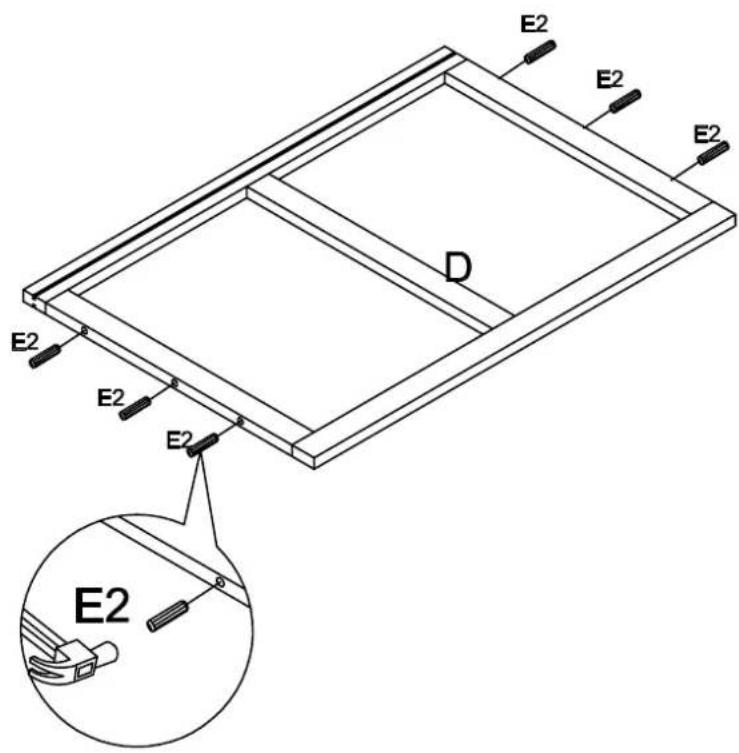

E2 E2 E2 D E2 E2 E2 E25-9
5


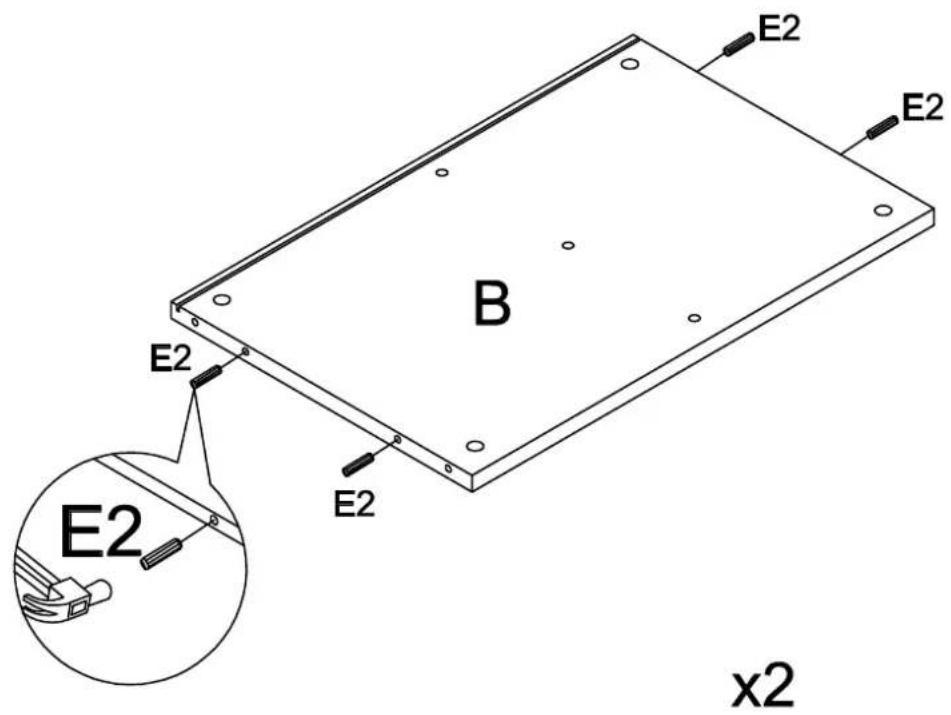

E2 E2 E2 B E2 E2 x26


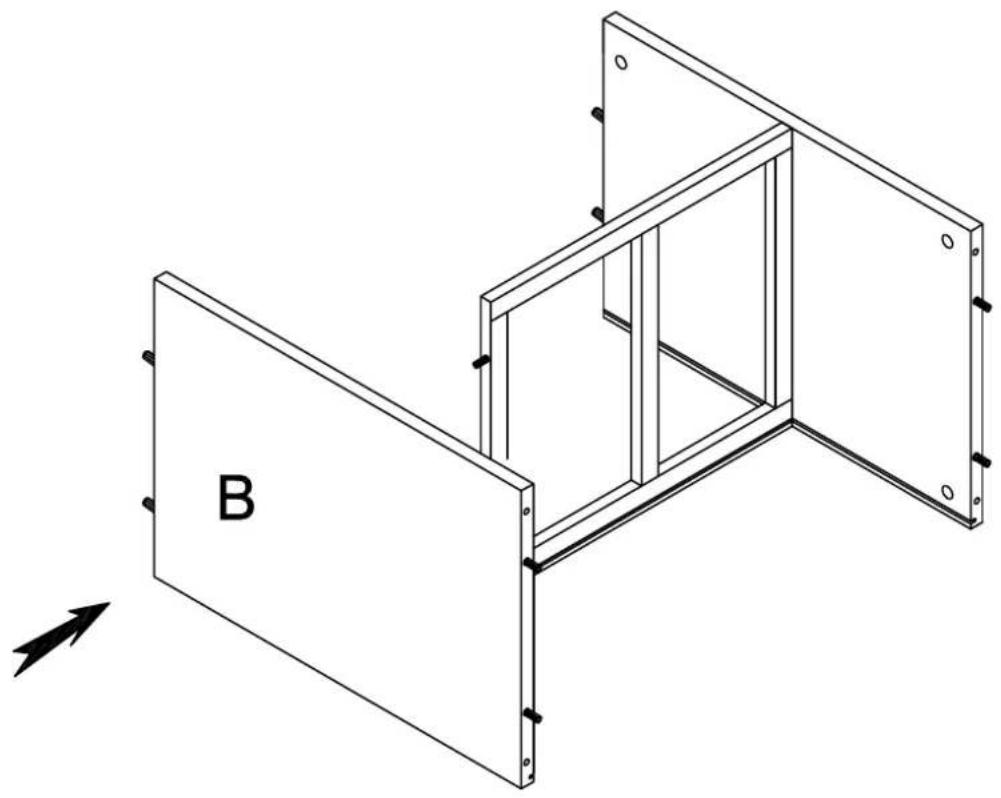

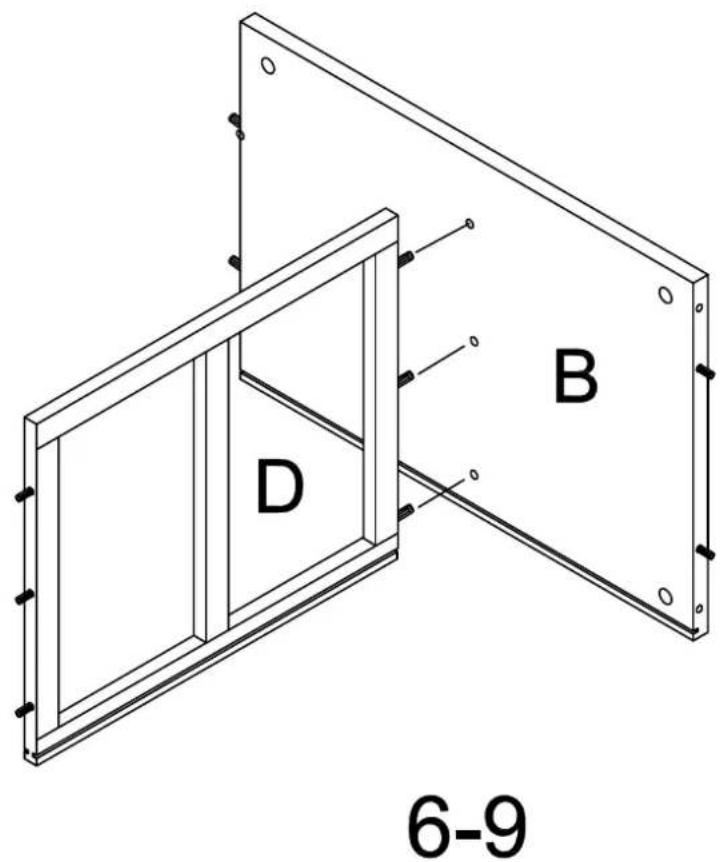

D B 6-97


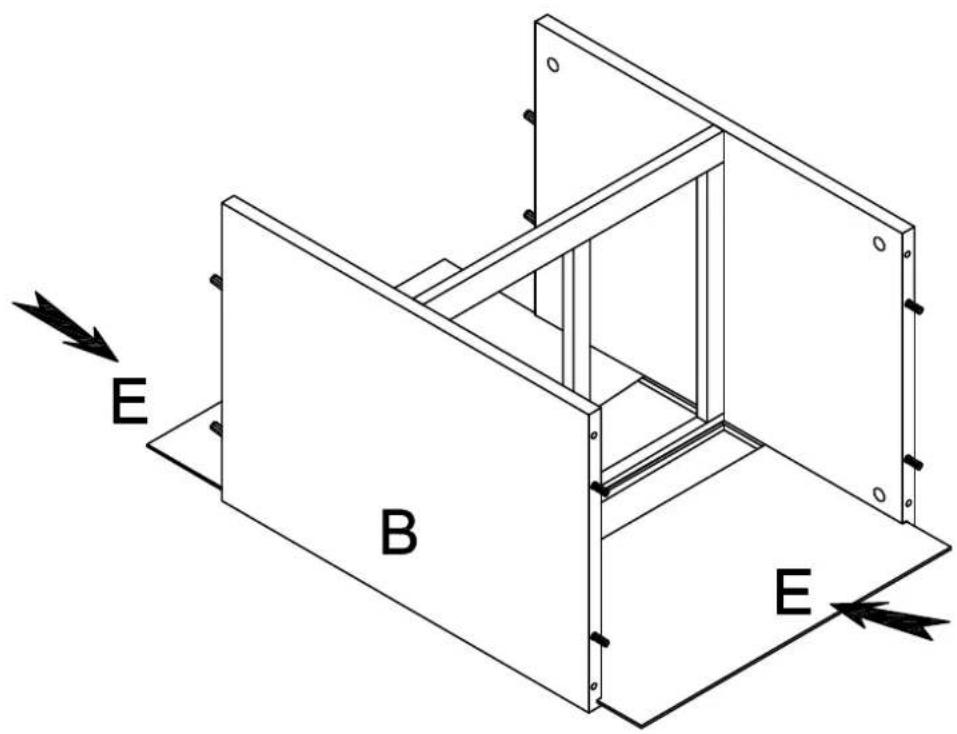

Isometric line drawing of a structural frame with labeled component 'B' and directional arrow (no text or symbols beyond label)8
9


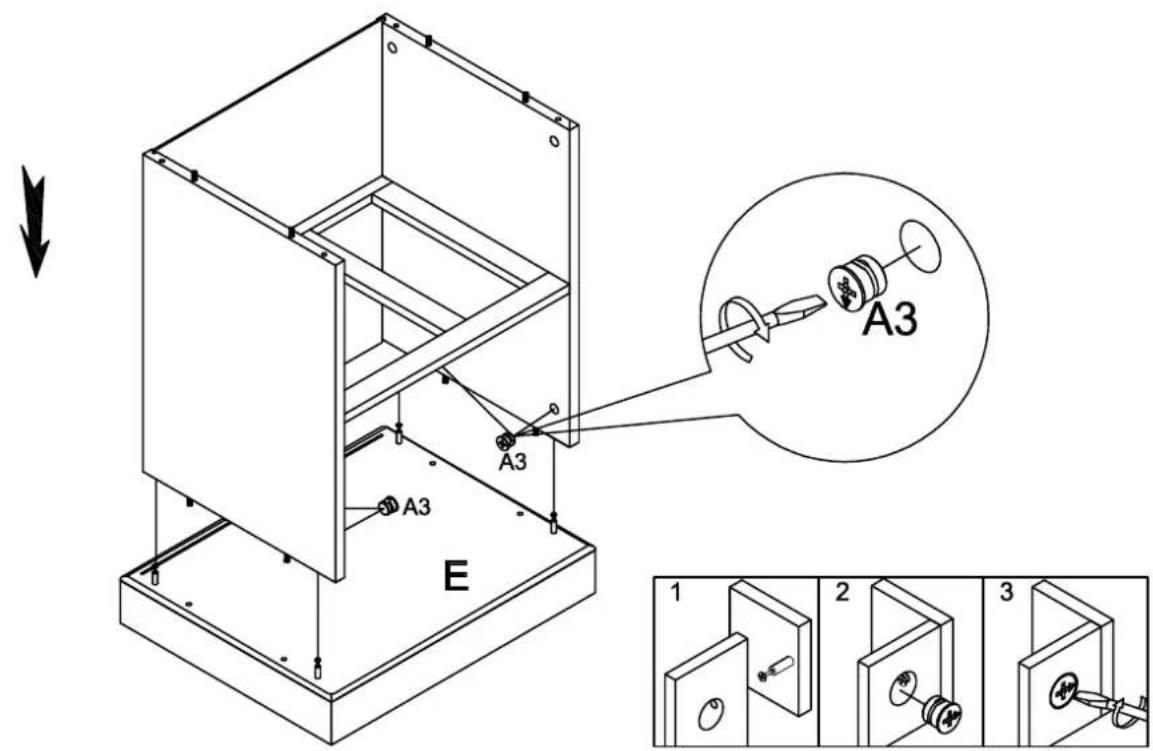

A3 A3 A3 E 1 2 310


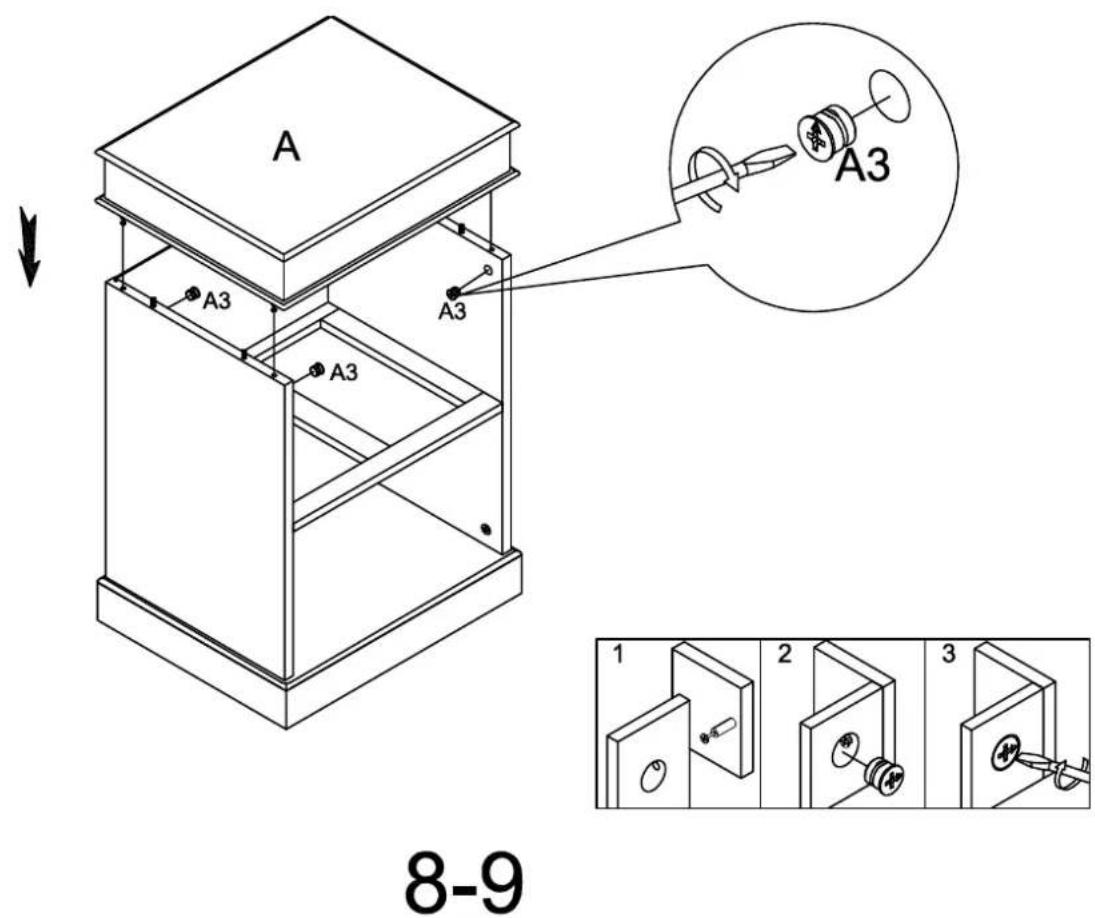

A A3 A3 A3 8-9 1 2 311


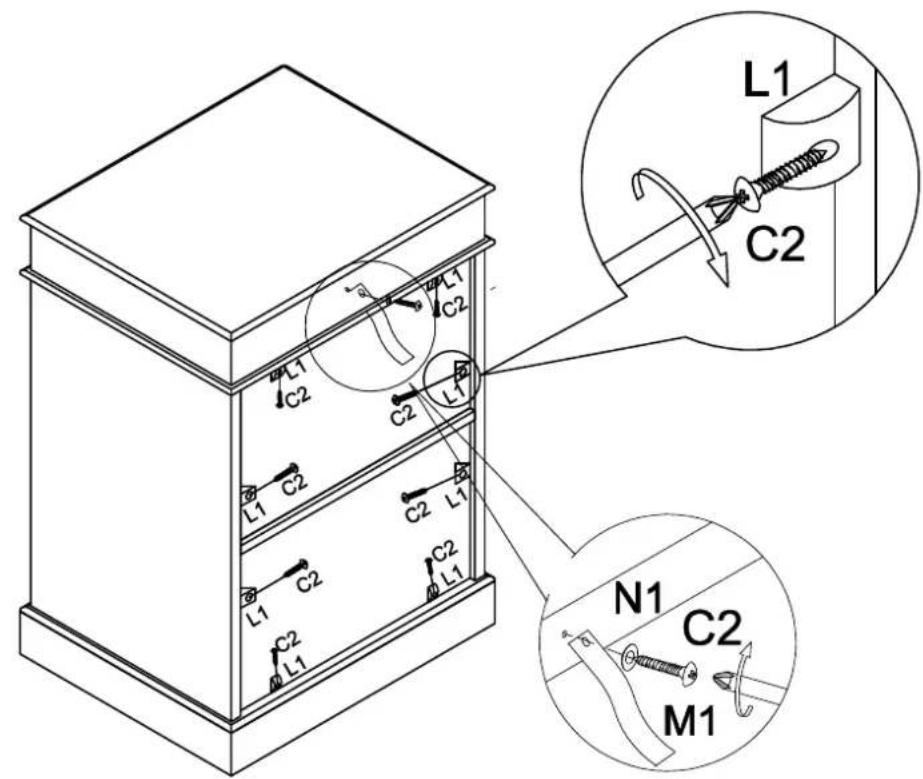

L1 C2 L1 C2 L1 C2 L1 C2 L1 C2 N1 C2 M112


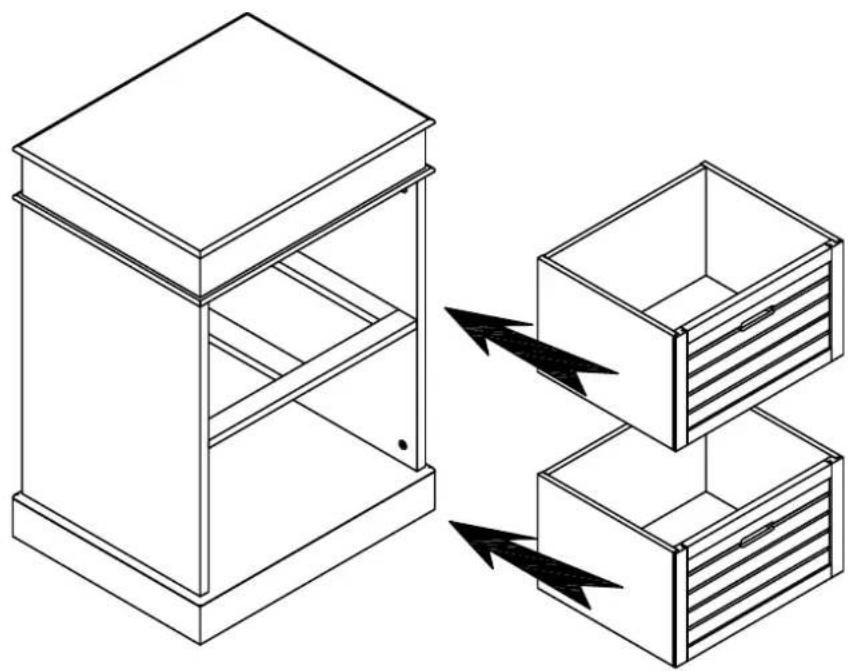

Line drawing of a two-compartment cabinet with drawers, showing structural change and movement arrows (no text or symbols)9- 9
B2x8∅6x35mm
C2x9∅3x15mm
D2x24∅3x25mm
E2X14∅8x30mm
L1X816x16x11mm
A3X8∅15x11mm
M1x1250x25mm
N1x1∅9x1mm
