Produkttyp	Tri-Mode RAID-Adapter (voll ausgestattet)
Modell	RSP3TD160F
Marke	Intel
Anzahl interner Ports	16
RAID-Level	0, 1, 10, 5, 50, 6, 60
Cache-Speicher	4 GB DDR4 (2133 MT/s)
Cache-Backup	Wartungsfreie Cache-Sicherung (SuperCapacitor Kit, optional)
Selbstverschlüsselnde Laufwerke	Optional (Schlüssel AXXRPFKDE2)
I/O-Prozessor	Avago SAS3516 ROC
PCIe-Schnittstelle	x8 PCI Express 3.0
Unterstützte Laufwerkstypen	PCIe NVMe, SAS (12 Gbit/s und niedriger), SATA (6 Gbit/s und niedriger)
Max. physikalische Geräte (SAS/SATA)	64 oder 255 (firmwareabhängig)
Max. direkt angeschlossene NVMe-Geräte	4
Max. Array-Volumes (SAS/SATA)	64 oder 255 (firmwareabhängig)
Max. Array-Volumes (NVMe)	64
Betriebstemperatur	max. 65 °C (55 °C mit MFBU-Option)
Formfaktor	Low-Profile MD2 PCIe-Erweiterungskarte
Abmessungen (ca.)	167 mm x 64 mm (Low-Profile)
Gewicht (ca.)	100 g
Garantie	3 Jahre (optional AWR)
Kompatible Betriebssysteme	Microsoft Windows, VMware, Linux (SLES, RHEL), Solaris, FreeBSD
Daten Schutzfunktionen	Hintergrundkonsistenzprüfung, Verteilte Reserve, Hot-Spare, Online-Kapazitätserweiterung, Patrol Read, Write Back Cache
Reinigung	Mit Druckluft oder trockenem Tuch; Vermeidung von statischer Entladung
Sicherheitshinweise	ESD-Vorsichtsmaßnahmen bei der Handhabung; keine besonderen Risiken
Reparatur und Ersatzteile	Keine reparierbaren Komponenten; Ersatz durch komplette Karte

Häufig gestellte Fragen - RSP3TD160F INTEL

Was ist der Intel RSP3TD160F?

Der Intel RSP3TD160F ist ein Tri-Mode RAID-Adapter (voll ausgestattet) von Intel. Er unterstützt NVMe-, SAS- und SATA-Laufwerke und bietet Hardware-RAID mit 16 internen Ports.

Welche RAID-Level werden vom RSP3TD160F unterstützt?

Der Controller unterstützt die RAID-Level 0, 1, 10, 5, 50, 6 und 60 sowie JBOD-Modus (firmwareabhängig).

Wie viel Cache hat der RSP3TD160F?

Er verfügt über 4 GB DDR4-Cache mit einer Geschwindigkeit von 2133 MT/s und optionaler wartungsfreier Cache-Sicherung über ein SuperCapacitor-Kit (AXXRMFBU7).

Unterstützt der RSP3TD160F NVMe-Laufwerke?

Ja, der Controller ist ein Tri-Mode-Controller und unterstützt PCIe NVMe-Laufwerke direkt. Es können bis zu 4 NVMe-Geräte direkt angeschlossen werden.

Wie viele Laufwerke können an den RSP3TD160F angeschlossen werden?

Maximal 64 oder 255 physikalische SAS/SATA-Geräte (firmwareabhängig) und bis zu 4 NVMe-Geräte. Die Anzahl der Array-Volumes beträgt bis zu 64 oder 255 für SAS/SATA und 64 für NVMe.

Welche Betriebssysteme werden unterstützt?

Der RSP3TD160F unterstützt Microsoft Windows, VMware, Linux (SLES, RHEL), Solaris und FreeBSD.

Benötigt der RSP3TD160F eine Batterie für den Cache?

Nein, der Controller verwendet eine wartungsfreie Cache-Sicherung auf Basis eines SuperCapacitors (optionales Kit AXXRMFBU7), was den Austausch von Batterien überflüssig macht.

Kann der RSP3TD160F mit SAS- und SATA-Laufwerken verwendet werden?

Ja, der Controller unterstützt SAS (12 Gbit/s und niedriger) und SATA (6 Gbit/s und niedriger) sowie PCIe NVMe in einem einzigen Adapter.

Was ist der Unterschied zwischen RAID-Modulen und RAID-Adaptern?

RAID-Module (RMSP3) sind für Server-Mezzanine-Steckplätze konzipiert und belegen keinen PCIe-Steckplatz, während RAID-Adapter (RSP3) als Standard-PCIe-Karten im Low-Profile-Formfaktor ausgeführt sind und flexibel in beliebigen Systemen eingesetzt werden können.

Wie installiere ich den Intel RSP3TD160F?

1. Schalten Sie den Server aus und erden Sie sich. 2. Stecken Sie die Karte in einen freien PCIe x8-Steckplatz. 3. Befestigen Sie die Karte mit der Halterung. 4. Schließen Sie die Laufwerke über die internen Mini-SAS-HD-Anschlüsse an. 5. Schalten Sie den Server ein und installieren Sie die Treiber. Details finden Sie in der Bedienungsanleitung.

BEDIENUNGSANLEITUNG RSP3TD160F INTEL

Tri-mode Intel® RAID Controllers bring PCIe\* NVMe\* to Hardware RAID

Close-up of a green circuit board with cooling fins and heat sinks (no visible text or symbols)

Intel® RAID Modules

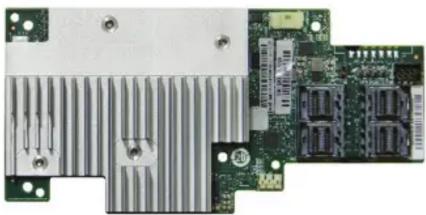

Pictured: RMSP3AD160F

RMSP3CD080F

RMSP3HD080E

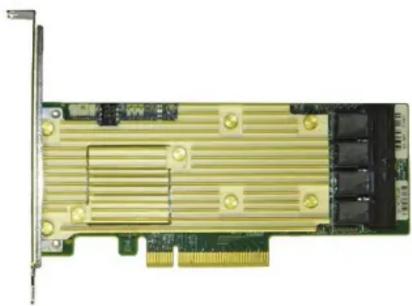

Close-up of a golden PCI expansion card with visible cooling fins and gold contacts (no text or symbols)

Intel® RAID Adapters

RSP3DD080F

RSP3MD088F

Pictured: RSP3TD160F

RSP3WD080E

Intel ^® RAID Controllers for Select Intel ^® Xeon ^® Processor Based Server Solutions

As big data continues to get bigger, so does the need for high-performance RAID solutions. Content and Web Hosting Appliances, Security Appliances, Financial Institutions, Cloud Service Providers, and Enterprise IT Customers are seeking high-uptime RAID solutions for mass storage, with maximum reliability and data integrity. Minimizing downtime and eliminating data loss are major priorities for these high-intensity workloads. The tri-mode family of Intel® RAID Controllers includes modules and adapters, all of which support NVMe*.

Intel® RAID Controllers: Modules (RMSP3) vs. Adapters (RSP3)

• Intel® RAID Modules are designed for select 2U Intel® Xeon® processor-based server solutions, affording up to 16 ports of PCIe*/SAS/SATA connectivity without taking up a standard add-in card PCIe slot, for a highly integrated configuration.
• Intel® RAID Adapters come in a low-profile MD2 standard PCIe form-factor, and are PCIe compliant for flexibility of configuration and use in any system.

Support for the NVMe\* Ecosystem

Tri-mode Intel RAID Controllers bring PCIe NVMe to hardware RAID. With tri-mode Intel RAID, data centers can deploy high-performance NVMe storage solutions with the reliability of hardware RAID, as well as SAS and SATA storage solutions at high IOPS, high throughput, and low latency.

Key Features

• Support for NVMe, SAS, and SATA
- RAID levels: 0/1/10/5, plus RAID levels 50/6/60 for cards ending in "F"
- 4GB DDR4 Cache Backup (for cards ending in "F")
- SuperCapacitor Kit enables Maintenance-Free Cache Backup, reducing maintenance costs due to regular battery replacement (for cards ending in "F")
- Optional Self-Encrypting Drive Support enables hardware disk encryption services on capable drives (for cards ending in "F")

Tri-mode Intel® RAID Modules RMSP3 Family

Close-up of a green CPU socket with cooling fins and an attached circuit board (no visible text or symbols)

Intel® RAID Module RMSP3AD160F
- Full-Featured
• 16 Internal Ports

Close-up of a computer motherboard with cooling fan and circuit board (no visible text or symbols)

Intel® RAID Module RMSP3CD080F
- Full-Featured
- 8 Internal Ports

Close-up of a green electronic circuit board with cooling elements and a close-up of its printed circuit board (no visible text or symbols)

Intel® RAID Module RMSP3HD080E
- Entry-Level
- 8 Internal Ports

Full-featured vs. Entry-level RAID

Full-featured RAID Supports RAID levels 0/1/10/5/50/6/60, maintenance-free cache backup and optional premium features.

Entry-level RAID supports RAID levels 0/1/10/5.

Tri-mode Intel® RAID Adapters RSP3 Family

Close-up of a computer RAM card showing internal circuitry and ventilation slots (no text or symbols visible)

Intel® RAID Adapter RSP3TD160F
- Full-Featured
• 16 Internal Ports

Close-up of a green PCI expansion card with visible internal circuitry and ports (no text or symbols)

Intel® RAID Adapter RSP3DD080F
- Full-Featured
- 8 Internal Ports

Close-up of a computer motherboard with visible circuitry and gold bonding pads (no text or symbols)

Intel® RAID Adapter RSP3MD088F
- Full-Featured
- 8 Internal Ports, 8 External Ports

Close-up of a green PCI RAM module with visible circuitry and connectors (no text or symbols)

Intel® RAID Adapter RSP3WD080E
- Entry-Level
- 8 Internal Ports

INTEL® RAID MODULE SPECIFICATIONS

	RMSP3AD160F RMSP3CD080F RMSP3HD080E
I/O Processor	Avago*SAS3516 ROC	AvagoSAS3508† ROC	AvagoSAS3408† IOC
RAID Levels 0/1/10/5/50/6/60 0/1/10/5
JBOD Mode Firmware Dependent Yes
Cache Memory 4GB 2133 MT/s DDR4 N/A
Mini-SAS-HD (SFF8643) connectors 4 internal 2 internal		2 internal
Operating Temperature	Maximum ambient: 65C (55C with MFBU option)		Maximum ambient: 65C
Maximum Physical Devices (SAS/SATA)	64 or 255 (Firmware Dependent)		63
Maximum Direct-Attach NVMe* Devices	4	2	2
PCIe Switch Support	Future		Future
Maximum Array Volumes (SAS/SATA)	64 or 255 (Firmware Dependent)		32
Maximum Array Volumes (NVMe)	64		32
Maintenance Free Backup Unit	AXXRMFBU7 (backup unit sold separately)		N/A
Self-Encrypting Drive Support (enables hardware disk encryption services on capable drives)	AXXRPFKDE2 (upgrade key sold separately)		N/A

†May use Avago* 3516 series ROC

TRI-MODE INTEL® RAID MODULES
Form Factor Mezzanine
PCIe* Interface x8 PCI Express* 3.0
Drive Types PCIe* NVMe*, SAS 12Gb/s and lower, SATA 6Gb/s and lower
Operating System/Driver Support Microsoft Windows*, VMWare*, Linux* (SLES*, RHEL*), Solaris*, FreeBSD*
Warranty 3 years standard (AWR optional)

DATA PROTECTION FEATURES	RMSP3AD160F	RMSP3CD080F	RMSP3HD080E
Background Consistency Checking √√√
Distributed Sparing √√√
Enclosure Management	√√√
Expander Support	√√√
Hot-Spare Support, Global & Dedicated	√√√
Intel® RAID management software	√√√
On-line Capacity Extension	√√
Patrol Read for Media Functionality	√√
Pre-boot RAID Support	√√√
S.M.A.R.T Support	√√√
Write Back Cache with optional Protection	√√

INTEL® RAID ADAPTER SPECIFICATIONS

	RSP3TD160F	RSP3DD080F	RSP3MD088F	RSP3WD080E
I/O Processor	Avago*SAS3516 ROC	AvagoSAS3508 ROC	AvagoSAS3516 ROC	AvagoSAS3408 IOC
RAID Levels	0/1/10/5/50/6/60			0/1/10/5
JBOD Mode	Firmware Dependent			Yes
Cache Memory	4GB 2133 MT/s DDR4			N/A
Mini-SAS-HD (SFF8643) connectors	4 internal	2 internal	2 internal/2 external	2 external
Operating Temperature	Maximum ambient: 65C (55C with MFBU option)			Maximum ambient: 65C
Maximum Physical Devices (SAS/SATA)	64 or 255 (Firmware Dependent)			63
Maximum Direct-Attach NVMe* Devices	4	2	4	2
PCIe Switch Support	Future			Future
Maximum Array Volumes (SAS/SATA)	64 or 255 (Firmware Dependent)			32
Maximum Array Volumes (NVMe)	64			32
Maintenance Free Backup Unit	AXXRMFBU7 (backup unit sold separately)			N/A
Self-Encrypting Drive Support (enables hardware disk encryption services on capable drives)	AXXRPFKDE2 (upgrade key sold separately)			N/A

TRI-MODE INTEL® RAID ADAPTERS
Form Factor Low-Profile MD2 PCIe* Add-In Card
PCIe* Interface x8 PCI Express* 3.0
Drive Types PCIe* NVMe, SAS 12Gb/s and lower, SATA 6Gb/s and lower
Operating System/Driver Support Microsoft Windows*, VMware*, Linux* (SLES*, RHEL*)	, Solaris*, FreeBSD*
Warranty 3 years standard (AWR optional)

DATA PROTECTION FEATURES	RSP3TD160F	RSP3DD080F	RSP3MD088F	RSP3WD080E
Background Consistency Checking √ √ √ √
Distributed Sparing √ √ √ √
Enclosure Management	√ √ √ √
Expander Support	√ √ √ √
Hot-Spare Support, Global & Dedicated	√ √ √ √
Intel® RAID management software	√ √ √ √
On-line Capacity Extension	√ √ √
Patrol Read for Media Functionality	√ √ √
Pre-boot RAID Support	√ √ √ √
S.M.A.R.T Support	√ √ √ √
Write Back Cache with optional Protection	√ √ √

ORDER CODES

INTEL SKU	DESCRIPTION
RMSP3AD160F	Tri-mode SAS/SATA/PCIe* Full-Featured RAID Mezzanine Module with 16 Internal Ports
RMSP3CD080F	Tri-mode SAS/SATA/PCIe Full-Featured RAID Mezzanine Module with 8 Internal Ports
RMSP3HD080E	Tri-mode SAS/SATA/PCIe Entry-Level RAID Mezzanine Module with 8 Internal Ports
RSP3TD160F	Tri-mode SAS/SATA/PCIe Full-Featured RAID Adapter (PCIe AIC) with 16 Internal Ports
RSP3DD080F	Tri-mode SAS/SATA/PCIe Full-Featured RAID Adapter (PCIe AIC) with 8 Internal Ports
RSP3MD088F	Tri-mode SAS/SATA/PCIe Full-Featured RAID Adapter (PCIe AIC) with 8 Internal Ports / 8 External Ports
RSP3WD080E	Tri-mode SAS/SATA/PCIe Entry-Level RAID Adapter (PCIe AIC) with 8 Internal Ports

For additional RAID modules and add-in-cards, visit intel.com/RAID

For more information on Intel® Server Products and Solutions, visit: intel.com/serverproducts

For product specifications visit: ark.intel.com

For compatibility information please visit www.intel.com/support.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation. Performance varies depending on system configuration. No computer system can be absolutely secure. Check with your system manufacturer or retailer or learn more at intel.com. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
