WASHING MACHINE TWIN TUB SEMI AUTOMATIC

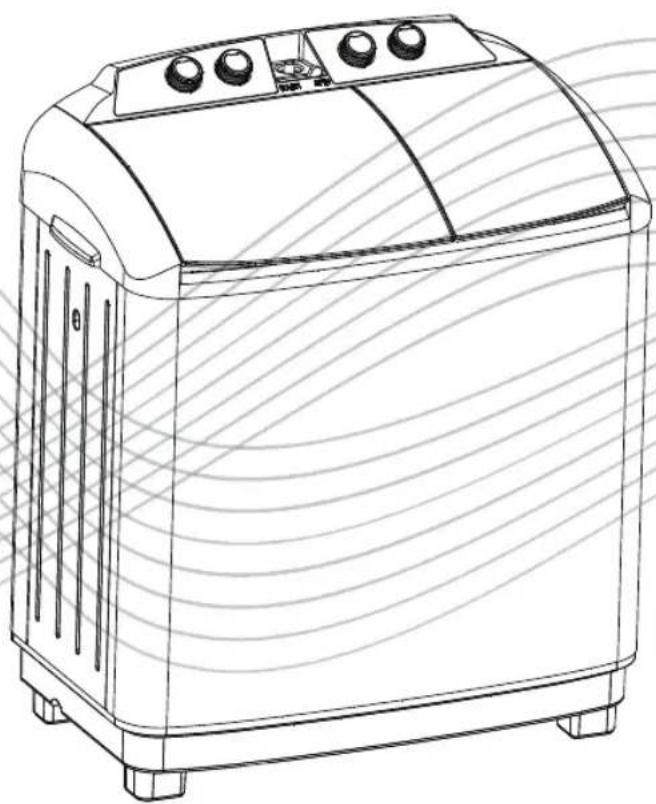

Line drawing of a portable washing machine with control panel and fan (no text or symbols)

LWMS78L | LWMS85L
INSTRUCTION MANUAL Please read this manual carefully before operating the machine

CONTENTS

BEFORE USING THE MACHINE

NAME OF PARTS....1

SPECIFICATION....2

POINT OF ATTENTION....3

IN OPERATION

PREPARATION BEFORE WASH....4

WASHING PROCEDURES....5-6

MAINTENANCE....7

TROUBLESHOOTING....9

WARRANTY CARD....10-11

NAME OF PARTS

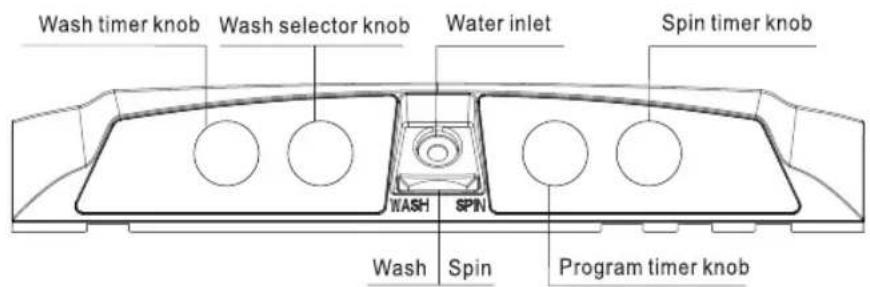

Wash timer knob Wash selector knob Water inlet Spin timer knob WASH SPIN Wash Spin Program timer knob

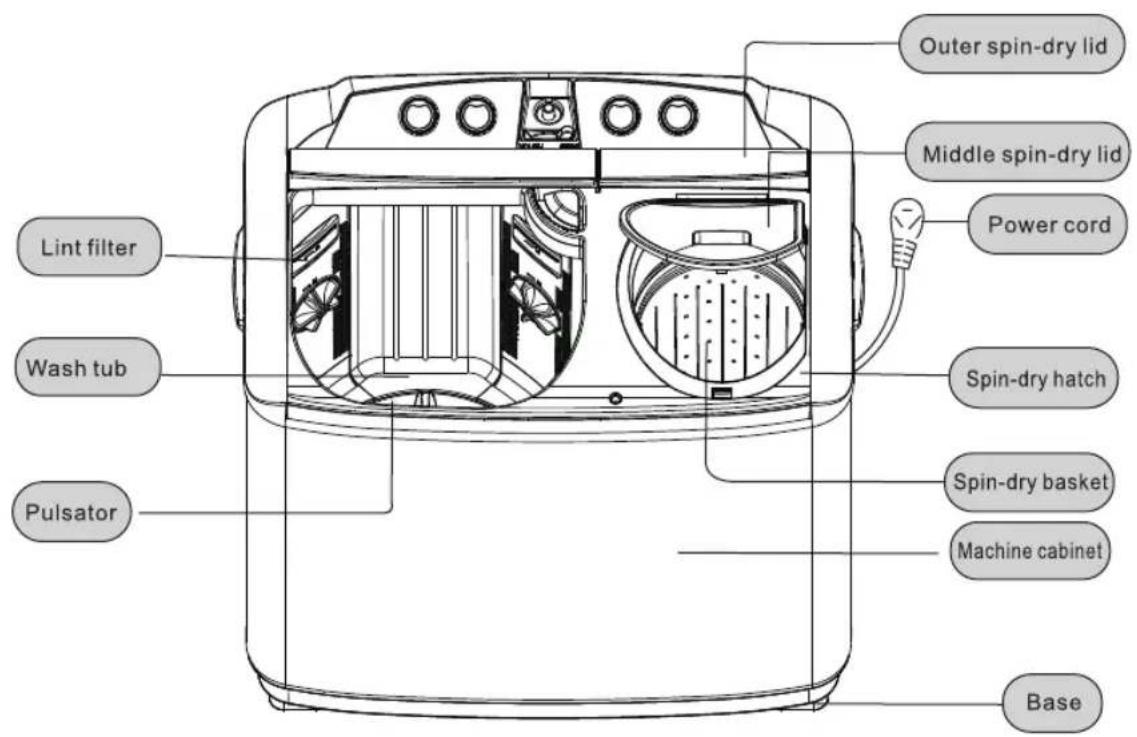

Outer spin-dry lid Middle spin-dry lid Power cord Lint filter Spin-dry hatch Wash tub Spin-dry basket Pulsator Machine cabinet Base

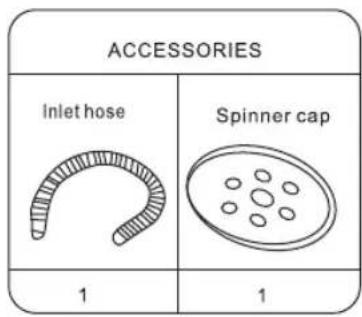

ACCESSORIES Inlet hose Spinner cap 1 1

SPECIFICATION

Model	LWMS78L	LWMS85L
Max. Rated Capacity	7.8 kg	8.5 kg
Power Supply	230 V / 50Hz	230 V / 50Hz
Washing Input	490 W	490 W
Spinning Input	200 W	200 W
Net Dimension in mm (WXDXH)	816 x 476 x 1004	876x496x1012
Castor	Yes	Yes
Buzzer	Yes	Yes
Soak	Yes	Yes

In view of the Lloyd policy of continuous development, these features, specifications and colours are subject to change without notice.

POINTS OF ATTENTION

Do not expose the washing machine to a direct sun light or rain.	Do not install the washing machine around a damp place.	Do not sprinkle water over switches.
Let water drain away from the drain hose thoroughly.	When plugging out the power cord, do not hold the wire.	Keep children away from the washing machine.
Keep the washing machine away from fire or heat source.	Do not wipe the washer with the volatile material, gasoline, etc.	Do not pour over 50°C water into the tub.

This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

NOTE REGARDING INSTALLATION

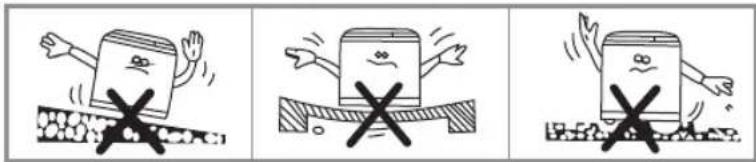

Locate at a stable surface level

• Locate washing machine at a stable, level surface, (allow maximum oblique angle to 2°)
• Keep the washing machine more than 5cm from the wall to prevent a noisy sound while spinning.
  A carpet must not obstruct the ventilation openings.

Three-panel comic strip showing a character with a sad expression and a cross symbol, likely illustrating a social or emotional reaction.

Cartoon illustration of a smiling washing machine with arms raised and legs pointing, labeled 5cm (no text or symbols on the machine itself)

Connect the drain hose

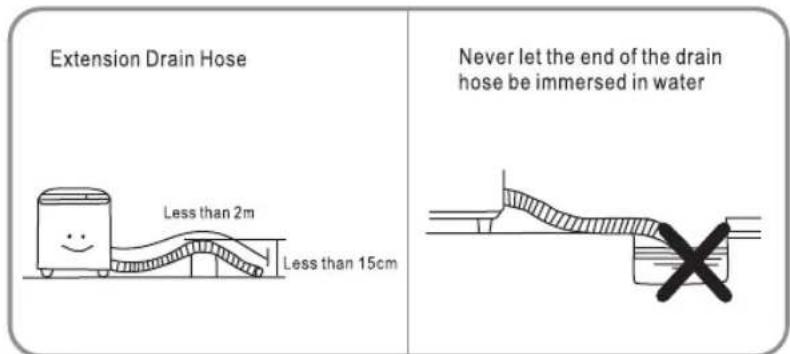

Extension Drain Hose Never let the end of the drain hose be immersed in water Less than 2m Less than 15cm

Connecting power and grounding

■ Washer earth wire is connected to the power plug. Don't alter it.
■ The power socket must install earth wire secured.
■ The appliance must be positioned where the plug is accessible.

Diagram showing a person kneeling beside a washing machine with a water tap, indicating a water level or discharge condition.

CAUTION

■ Never connect the earth wire to a gas pipe, a water tap pipe, a phonewire or lightning rod.
Do not use it in the case, the power cord or plug have been damaged. So as to avoid electric shock and fire risk.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified person in order to avoid a hazard.

PREPARATION BEFORE WASH

Diagram showing a key crossed over a coin with 'M' and 'K' symbols, indicating a crossed-out or blocked mechanism.

■ Be sure to remove things such as keys, pins and coins from the laundry.

Simple line drawing of a cylindrical container with handle and side panel (no text or symbols)

■ Wash oily or dyed laundry separately.

Simple line drawing of a sock with arrows indicating rotation or movement (no text or symbols)

■ Wash fuzzy laundry by its inner side.

Line drawing of a woven bag with a handle and patterned skirt (no text or symbols)

■ Wash delicate clothes, wrapping them in a nylon net.

Simple line drawing of a smiling washing machine with pipes and a wall-mounted power outlet (no text or symbols)

■ Insert the power plug completely.

Take down the drain hose.

Connect the inlet hose.

Maintenance

■ Remove the power plug after washing.

■ Wipe the washer with a piece of clean and dry with a soft cloth.

Take down the lint filter for cleaning.

■ Must clean tubs after bleaching or starching, otherwise, some deposit will be created.

Illustration of a hand holding a finger with an arrow indicating upward motion (no text or symbols)

OPERATING INSTRUCTIONS

Washing

1. Set the "WASH SELECTOR" to its "Normal" position.
2. Turn on the water tap, let water flow into the tub in accordance with the amount of clothing to be washed. (The marks H. M. L in tub are high, medium, low water level.)
3. Add the proper amount of detergent.
4. Put clothes in the wash tub, one article at a time.
5. Turn the "WASH SELECTOR" to select the water flow in accordance with the fabric type of the clothes.
6. Turn the "WASH TIMER" knob to the desired wash time clockwise, the washing action will start.
7. After washing is completed, drain the water by setting the "WASH SELECTOR" to the "Drain" position.

PROGRAM SELECTOR

PROGRAM

WASH ACTION	Gentle	Normal	Powerful
FABRIC TYPE	Synthetics fabrics Wools	Linen Cotton Work clothes	Very dirty clothing
WASHING TIME	3-5min	5-12min	10-15min

WATER FLOW SELECTOR

WASH TIMER

Spin drying

1. Transfer the clothing to the spin-dry tub and place the spinner cap on top of the clothing.
2. Close the inner and outer spin-dryer lids.
3. Turn the" SPIN TIMER" knob to the desired dry time clockwise, the spin-dry will begin.

Type of the clothes	Spin-drying time
Shirts (synthetic)	1 -2 min
Undershirt	3 -5 min
Work clothes	5 min

Any modification will not advice afterwards.

With pump

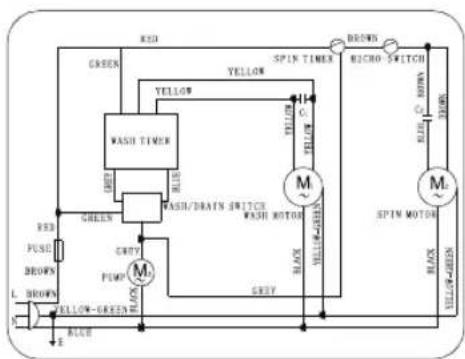

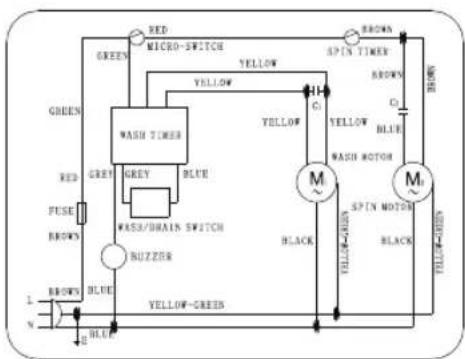

RED GREEN MICRO-SWITCH YELLOW GREEN WASH TIMER RED GREY BLUE FUSE RED BROWN M BLUE NUZZER YELLOW-GREEN M SPIN MOTOR SPIN MOTOR M YELLOW-GREEN YELLOW C1 YELLOW C2 BROWN C3 BROWN TILLI-DRAGON SPIN MOTOR SPIN MOTOR TILLI-DRAGON TILLI-DRAGON

No pump

TROUBLE SHOOTING

Troubles	Check up
No washing	Is the wash timer knob at the “O” position?	ver failure?Fuse blown?	Do the pulsator clogged?
No spinning	Is the spin timer knob at the “O” position?	Is the lid closed?	Is the laundry uneven-ly balanced?
No drain	Is the drain hose kept down?	Whether the drain hose is twisted?Or whether the threshold is too high?	Whether drain hose is frozen?
Washing is forceless		Is the clothes too much?Is the V belt too loose?Is the voltage too low?

Notes for spinning

Distribute clothing evenly in tub

X

0

Putting the spinner cap in place

Spinner cap

Spin-dry

O

X

X

X

Do not put hands into the rotating tub

Disposal of this unit

Product should not be damaged, dismantled or thrown in municipal waste. It should be packed and handed over to authorised re-cycler."

LLOYD

LIVE THE FUTURE

Imported & Marketed By:

LLOYD ELECTRIC & ENGINEERING LIMITED

159, Okhla Industrial Estate Phase-III, New Delhi - 110020

Correspondence Address

Plot-2, Industrial Area, Kalkaji, New Delhi - 110019

Email: [e-mail]

Customer Care Toll Free No.

Gujarat:1800-2582-583 ? Maharashtra:1800-1024-212

Punjab/Himachal/J&K:1800-1377-781? South India:1800-1200-666

Orissa, West? Bengal, Bihar, Jharkhand, North? East-1800-2121-666 Rest of India: 1800-1020-666
