BEDIENUNGSANLEITUNG M425029XX Align
MR25 LOST AIRCRAFT FINDER MANUAL
MR25尋機器使用說明
ALIGN
FEATURES 功能介紹
- Built-in 5 audio and music options for choosing from App interface.
- Allow to compose your own stylish music melody on App interface. Allow to setup low voltage alarm range on App interface.
- The failsafe alarm will be activated when aircraft is out-of-control, crash.
-
Once the motor throttle is been closed, but not power off MR25 more than 0.5 to 3 minutes, the system will automatically emit loud audible warning sound for MR25 searching.
-
内建 5 種音效與音樂，可由APP介面中選擇。
-
可透過APP編曲專屬自己獨有的音樂。並在APP中設定低電壓警報數值。
-
當NO控、摔機時會啟動失控警報。
4.油門關閉超過0.5\~3分鐘將啟動尋機警報。
SPECIFICATION 規格表
| Sound Pressure Level音量 | >85dB at 100cm |
| Input Voltage輸入電壓 | 5V |
| Size尺寸 | 9 x 12 x 120 mm |
| Weight重量 | 2.4g |
STEP1 步跟1

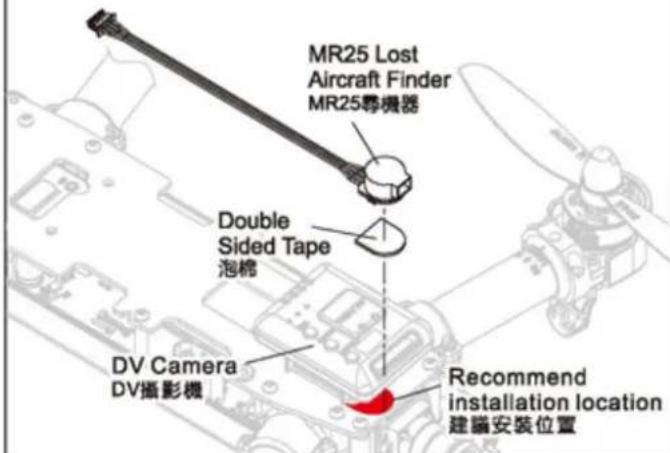

Recommend to stick MR25 lost aircraft finder under DV camera, located on top of the MRS flight control circuit board. Or it's able to stick another foam under DV camera to expend the room for MR25 lost aircraft finder assembly. If MR25 lost aircraft finder is still unable to be mounted under DV camera, please find another place on MR25 for proper assembly.
建議將MR25尋機器貼附在DV攝影機下方，位於MRS飛控電路板上的安裝位置。若MR25尋機器無法貼附在建議安裝位置，可自行DV攝影機下方的加貼泡棉增高增加空間以利安裝或選擇其他位置安裝。


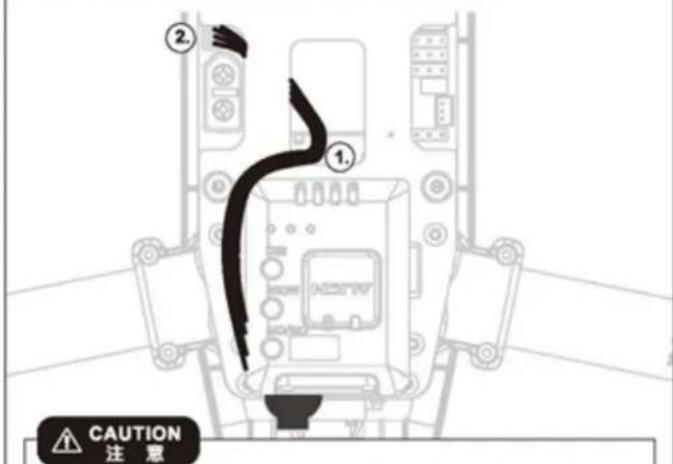

Please install MR25 lost aircraft finder at the specified location ①. following shown, and cross under the battery of MRS flight control circuit board gap to connect wires to the specified location ②.
請依圖示方向正確安裝 MR25尋機器於指定位置①，穿越電池下方 MRS飛控電路板的空隙將接線連接至指定位置②中。
組裝MR25尋機器時，請謹慎小心使用勿彎折到訊號線，否則易造成訊號線損毀故障無法作用。
STEP 3 步驟 3
Please make sure wires and connections are inserted correctly and firmly after MR25 lost aircraft finder is installed. And put on the canopy to complete installation.
MR25尋機器組裝好後，請檢查線路及其他配線是否安插穩固。裝回機身即完成。
Please scan QR Code to download the latest MRS Multicopter Flight Control System. APP MR25 lost aircraft finder function must be used with MR25 firmware V1.4 and APP V1.4 or later.
請掃描QR Code下載最新的MRS多軸飛控系統。APP的MR25尋機器設定功能必須搭配MR25 V1.4版本以上主程式與V1.4版本以上APP。
