BEDIENUNGSANLEITUNG ARZ 904 H/BR WHIRLPOOL


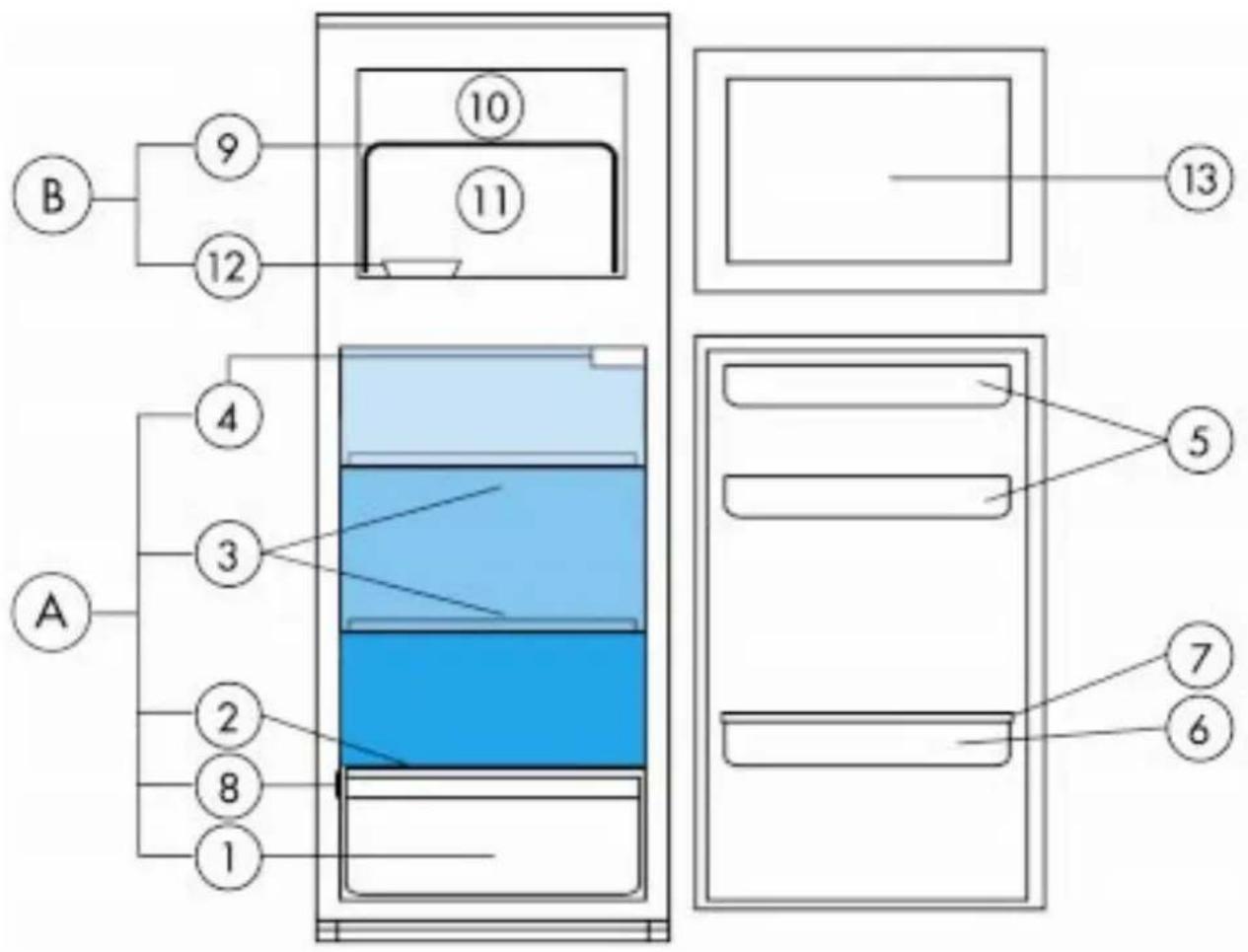

B 9 12 10 11 13 4 3 A 2 8 1 5 7 6A. Refrigerator compartment
- Crisperdrawer
- Covercrisper
3.Shelves/shelfarea - Thermostat control knob/light
5.Doortrays
6.Bottleshelf - Removablebottleretainer
- Ratingplate(atsideofcrisperdrawer)

coolzone
intermediatetemperature
coldzone
B.Freezercompartment

9.Rack
10. Area for fast freezing off fresh food products
11. Storage area for frozen or deep-frozen food
12. Ice cubetray
13.Freezercompartmentinnerdoorpanel.
Note: thenumberofshelvesandthedesignofaccessoriesmayvarydependingonthemodel. Shelvesanddoortraysareallremovable.
Warning: refrigerator accessories are not dishwasher-resistant.

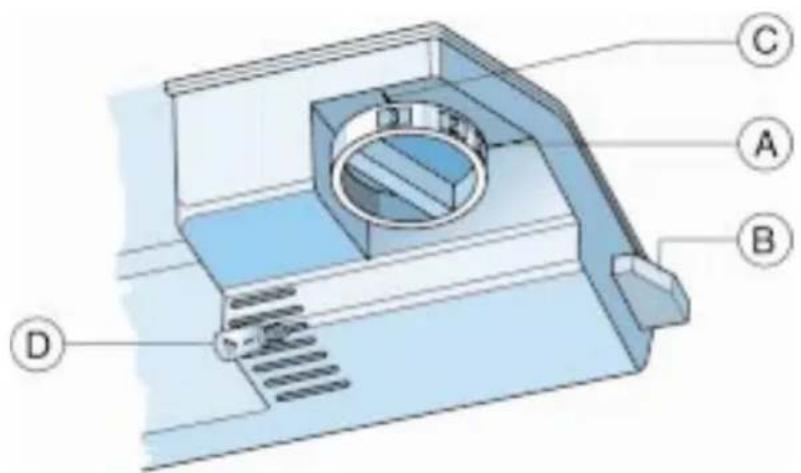

Controls
B.Lightswitch
C. Thermostatsetting index
D.Bulb(15Wmax.)
Thermostatsetto ●:refrigeratorandlightsoff
Thermostat set to 1: warmest internal temperature
Thermostat set to 7: coldest internal temperature
Itisadvisabletosethethermostattopositions2-3
Note: external air temperature, the frequency with which the door is opened and the position of the appliancemayaffecttheinternaltemperatureoftherefrigerator.Setthethermostataccordingly.
Freezing
For best results, turn the thermostat knob A half a notch towards the lower numbers when storing foodinthefreezercompartment.

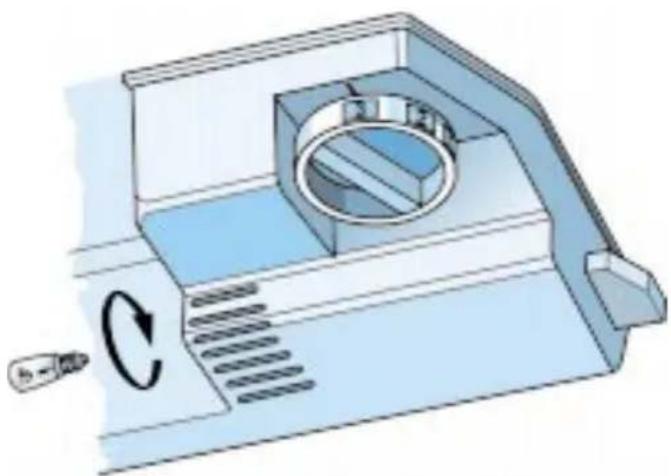

Removingthelight

