BEDIENUNGSANLEITUNG NSS300 (2013) Honda

HONDA

NSS300 / A

NSS300D

NSS300Ad

PARTS CATALOGUE

1

© Honda Motor Co., Ltd. 2013

FOREWORD INDEX

1

ENGINE GROUP

2

FRAME GROUP

3

PART NUMBER INDEX

4

PART NAME INDEX

5

Instruction for use of parts catalogue

• This parts catalogue has been created as of April 10, 2013.

• Since this date, the sales practice for repair parts may have been changed or the parts may have been eliminated (listed for those not for sale).
• The modified information is reflected on the latest Electronic Parts Catalogue (EPC). Also, refer to the parts catalogue news for any change.
  • See the parts catalogue news for any revision that is made after April 10, 2013.

• Always specify the part number when ordering a part.

• Check the model, type, serial numbers, color, maker, and the size as needed before ordering a part.
• Note that the illustrations (part drawings) can differ from the actual parts in shape. They are given just to help you to refer to the parts.

- When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time, with successively progressing revision numbers on the cover. We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether a parts catalogue revision has been issued, please contact your Honda distributor.

Initial version issue date

April 10, 2013

Honda Motor Co., Ltd.

B 1

CONTENTS

• Instruction for use of parts catalogue .... 1 B 1
• How to refer to the part information ...... 2 B 2
  ● Part catalogue structure .... 3 B 3
• When the parts were revised....4 B 4
• Abbreviations used in the parts catalogue....4 B 4
• Part block and serial number check ....5 B 5
  ● Color label attachment position check....5 B 5
• Models, parts catalogue codes and applicable serial numbers 6 B 6
  ● Color label 7 B 7
  ● Color chart....8 B 8
• Fuel hose, general purpose hoses and vinyl hose.... 12 B12
  ● FLAT RATE SERVICE TIME.... 16 B16

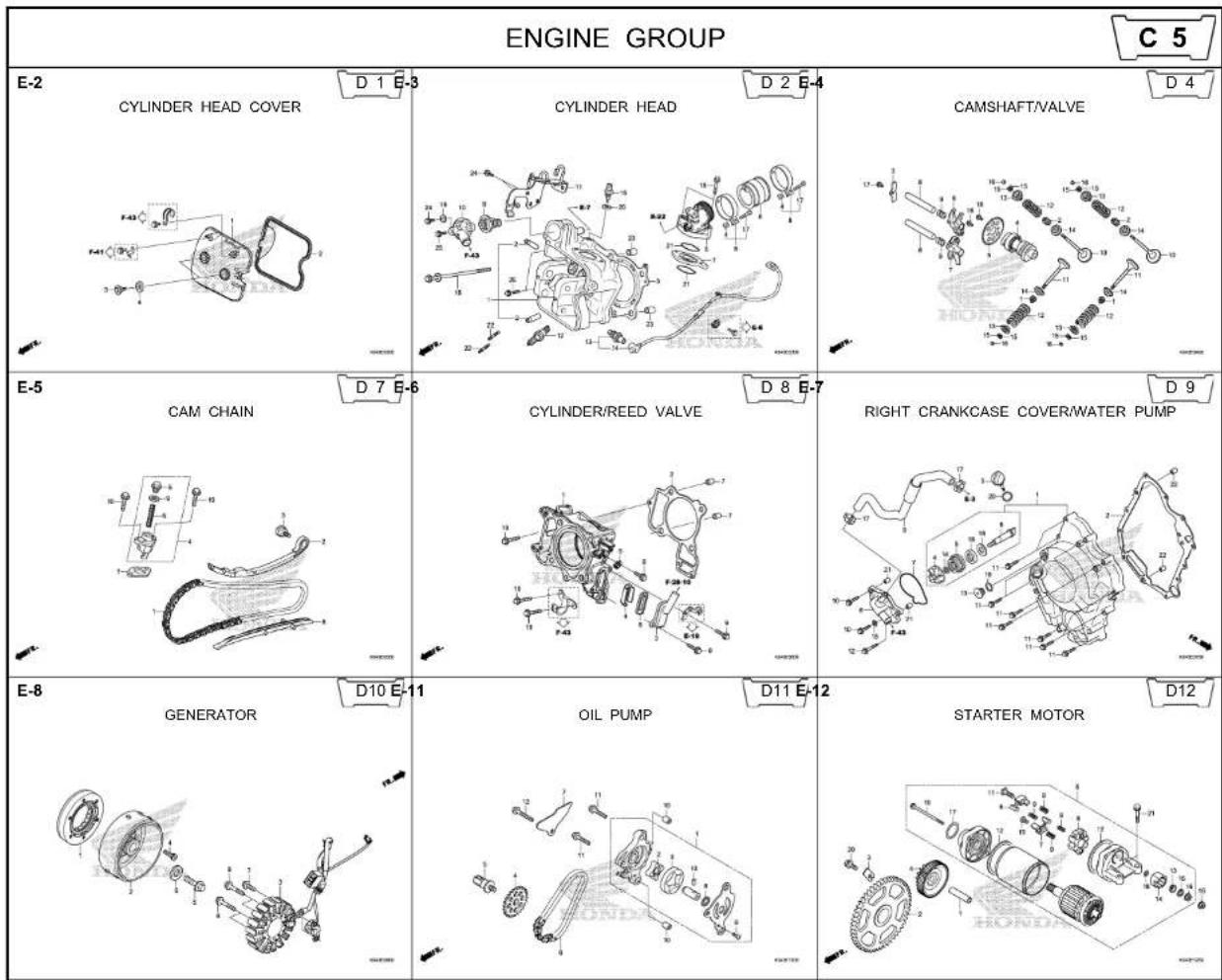

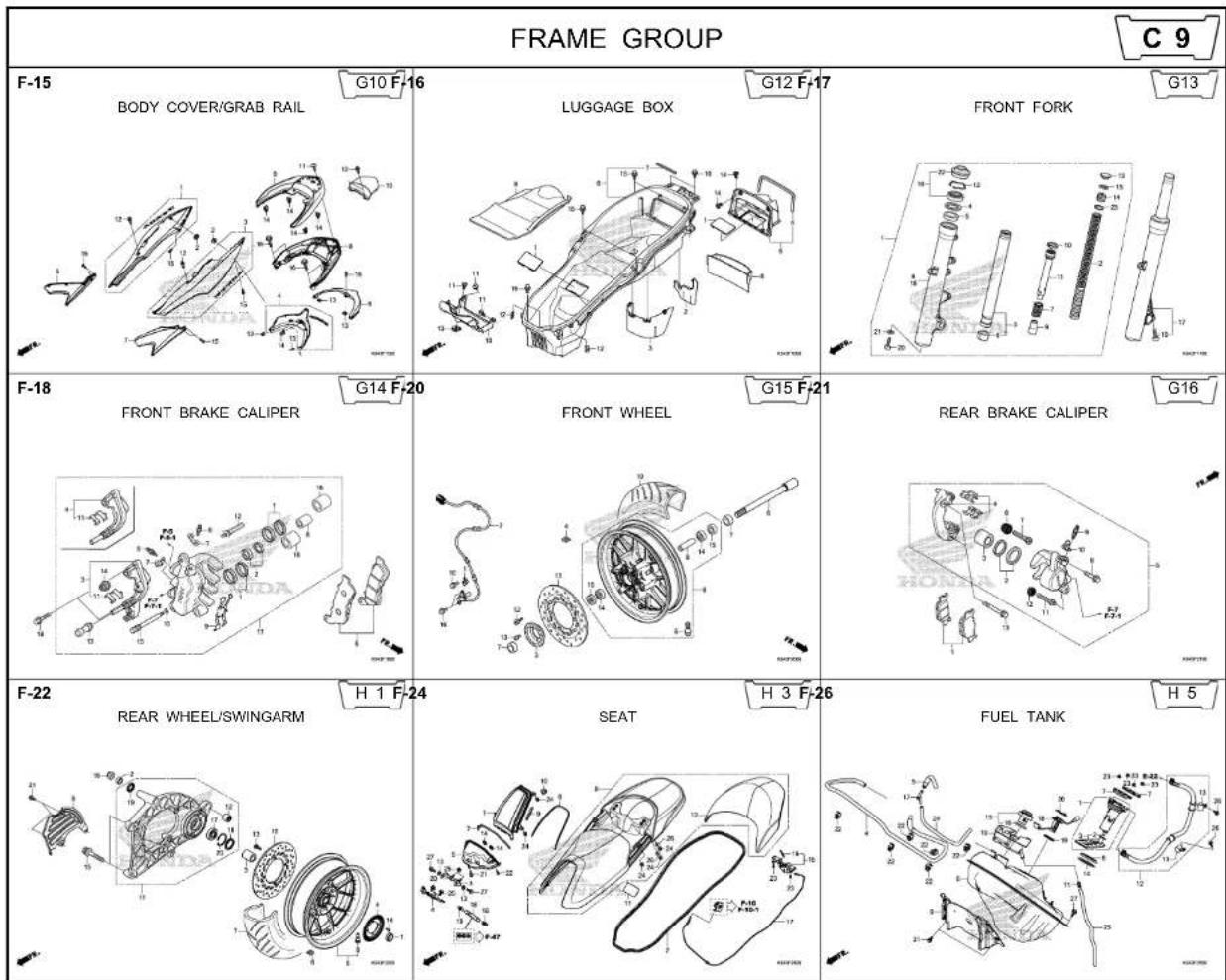

• Illustrated index 21 C 5

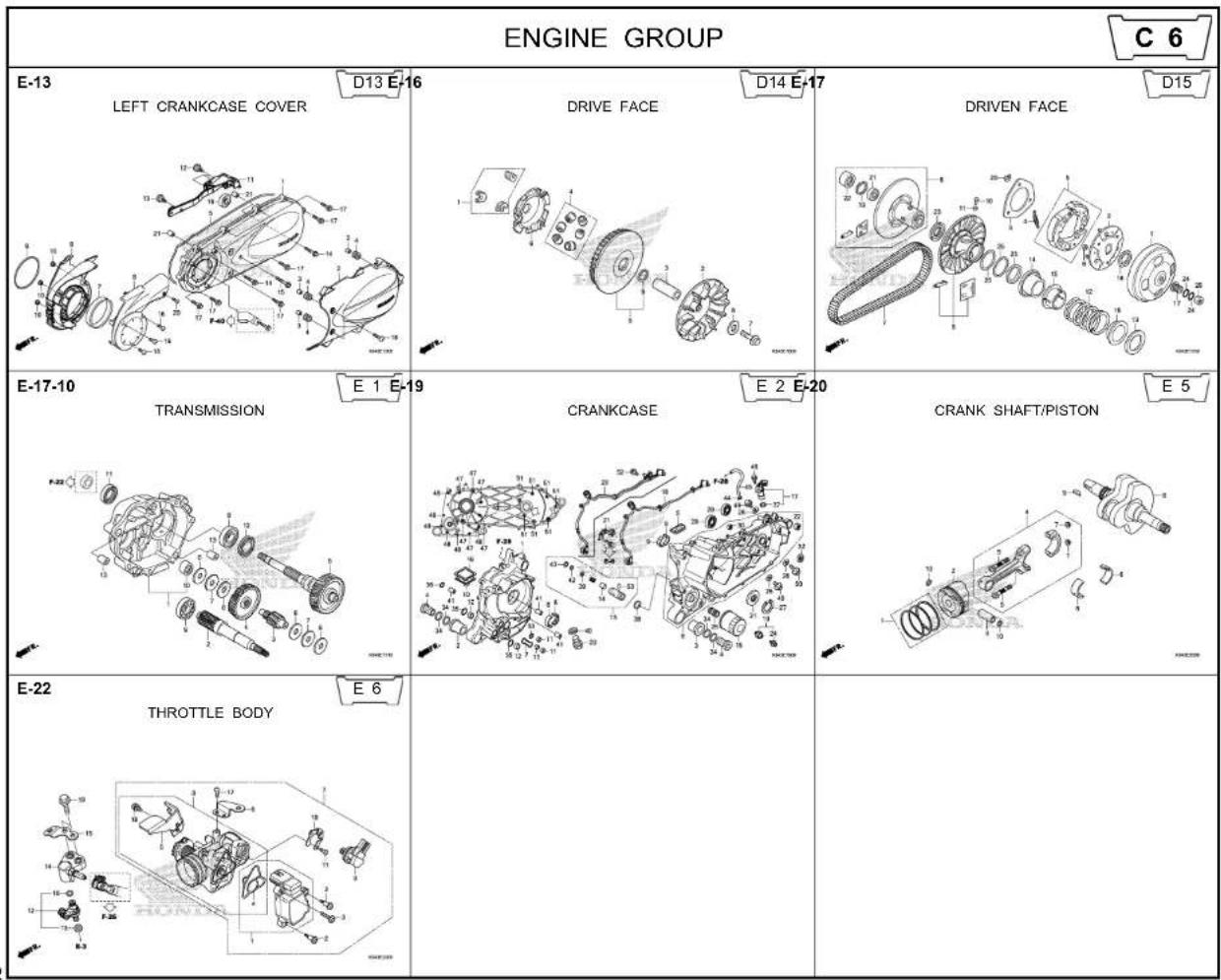

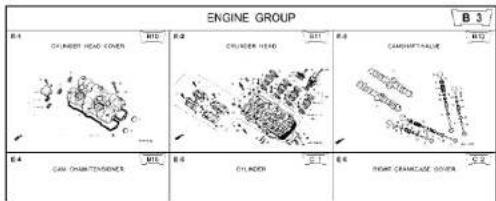

  ● ENGINE GROUP.... 28 D 1

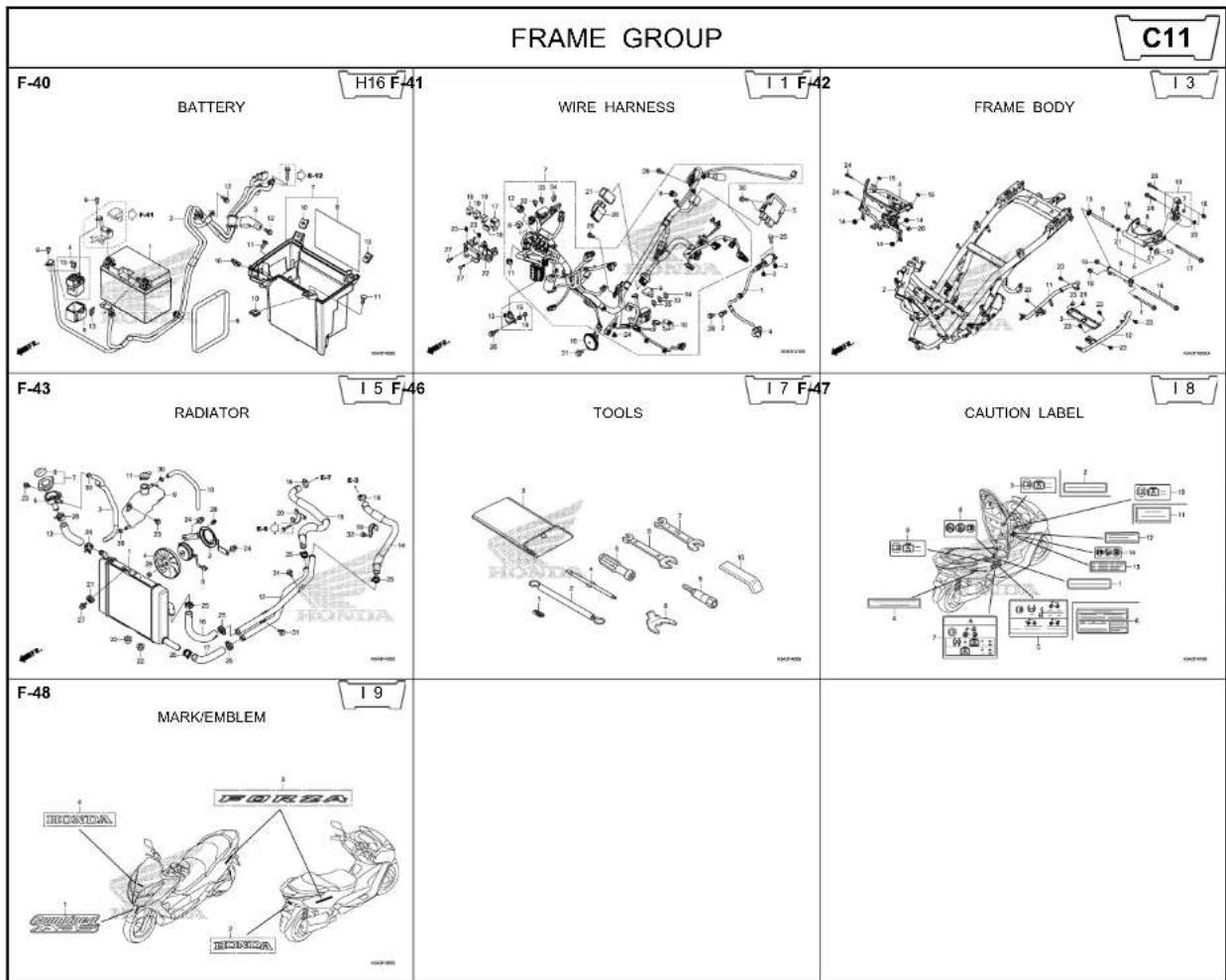

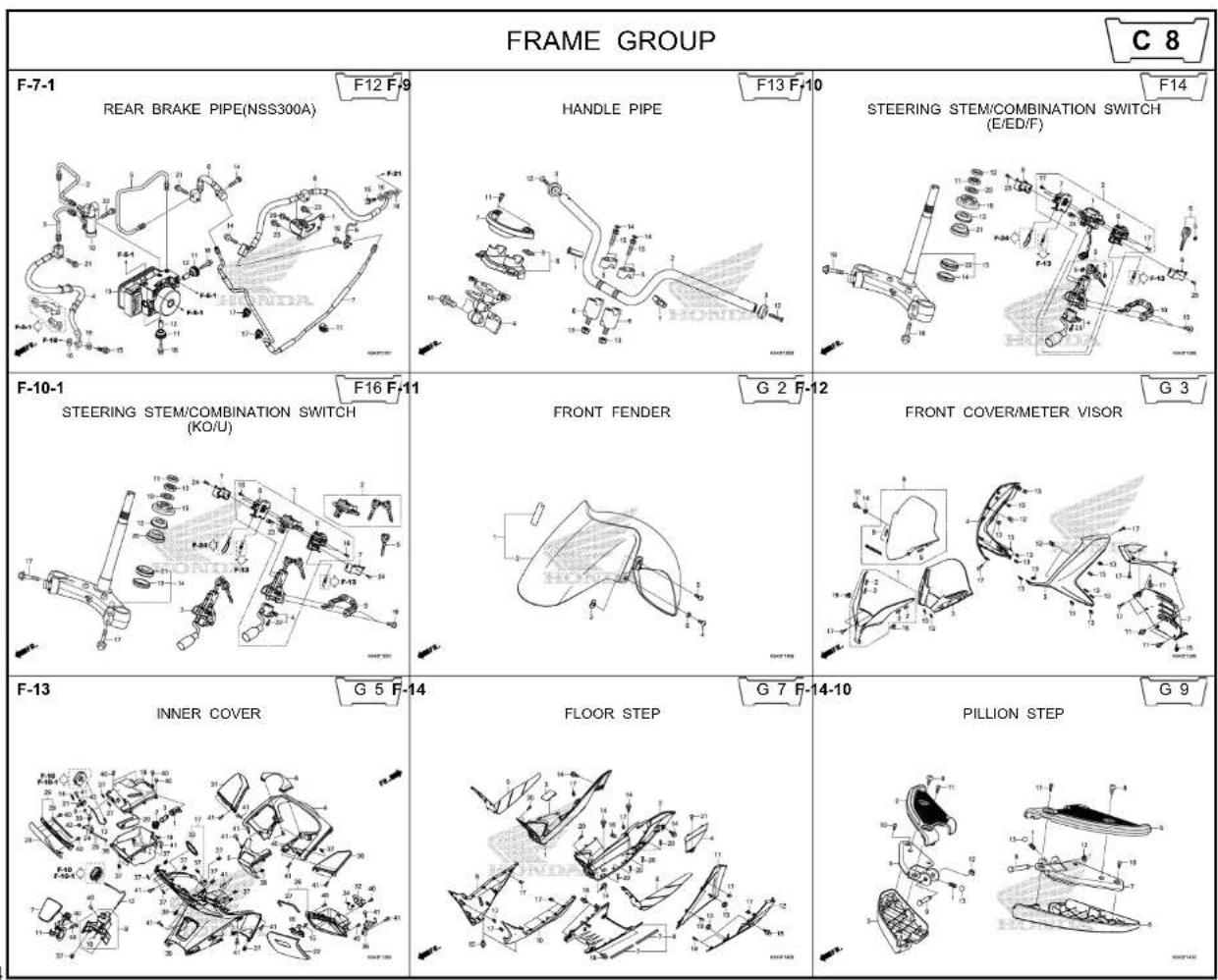

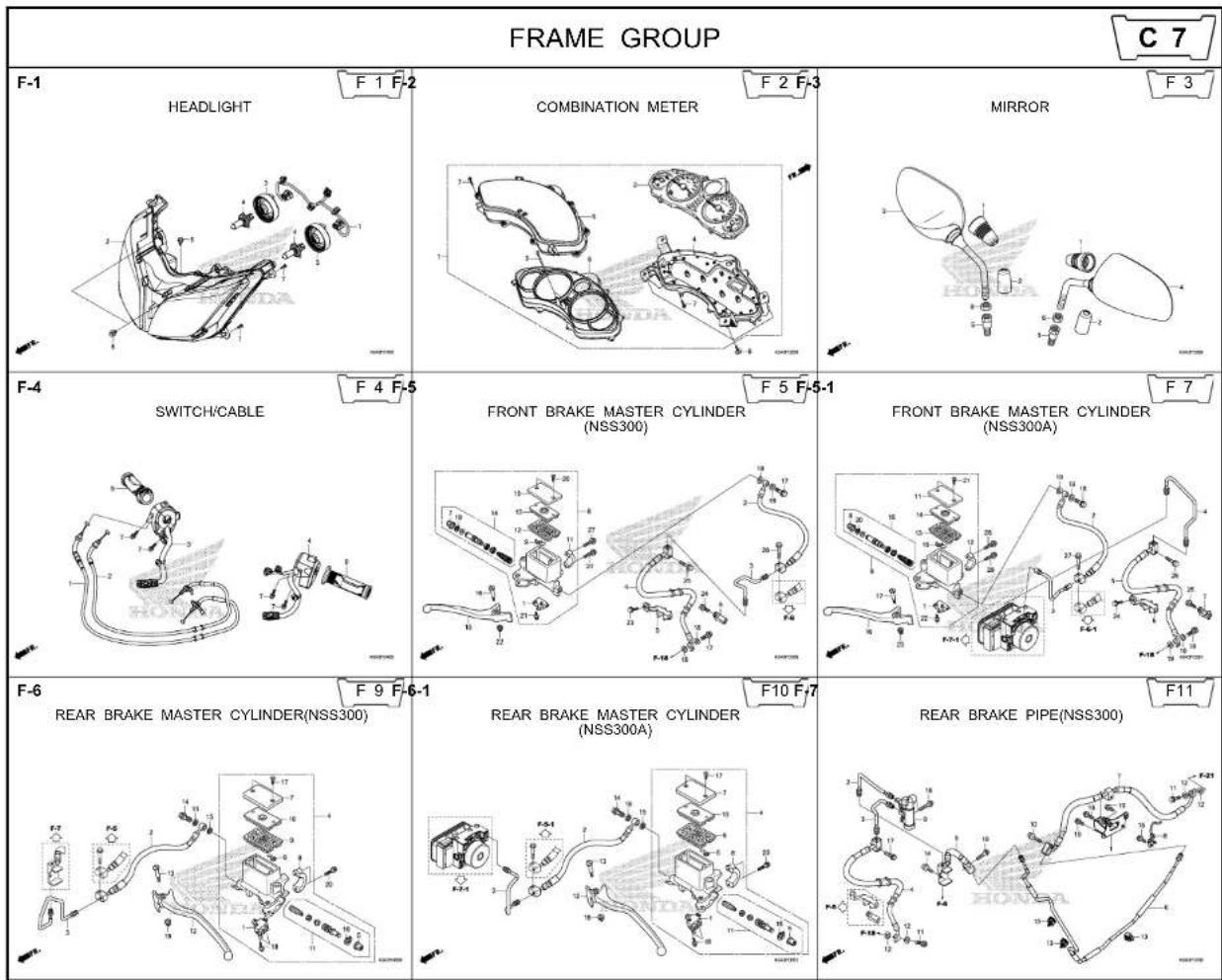

• FRAME GROUP.... 50 F 1
  ● PART NO. INDEX.... 107 J 1
  ● PART NAME INDEX.... 112 K 1

B 2

How to refer to the part information

Ⓐ Reference with "Illustrated index"

ENGINE GROUP B 3 CHANGER HEAD COVER B 2 CHANGER HEAD B 0 CAM CHAMTACHINER B 4 CAM CHAMTACHINER B 6 CYLINDER B 8 RONT CRANCADE COVER

B Reference with "Part number index"

PART NO. INDEX
Past Numbers	Address	Page No	Past Numbers	Address	Page No	1
04000			13523-HW-751	C12	28	10	16/92
			13524-HW-751	C12	28	15	16/95
04011-ME-000	C10	26	13539-HW-751	C12	28	16	16/93
06000			13327-HW-751	C12	28	10	16/93
			14000
06045-IRF-500	F15	67	34/00-HW-200	B15	13	2	16/91
06045-IRF-510	F13	67	34/00-HW-200	B15	13	2	16/91
06142-IRF-560	F2	56	14/00-HW-200	B15	13	3	16/93
06142-IRF-570	F18	55	14/00-HW-200	B16	16	4	16/93
06457-14th-423	F13	51	14/01-HW-2025	B16	16	5	16/93
06545-44th-423	F1	51	14/01-HW-2025	B16	16	4	16/94
06545-44th-423	F1	51	14/01-HW-2025	B16	16	4	16/94
06455-RE-036	F13	51	14/03-HW-490	B16	16	6	16/94
			14/03-HW-490	B16	16	7	16/94
Y1000			14629-HW-591	B16	16	8	16/94
			14711-HW-300	B13	13	4	16/94
Y1212-HW-200	C9	25	14723-HW-300	B13	8	8	16/94
Y1330-HW-503	C2	18	14721-HW-300	B13	8	8	16/94
Y1330-HW-503	C9	22	14722-HW-300	B13	8	8	16/94
Y1330-HW-503	C2	18	14730-HW-300	B13	8	8	16/94
Y1360-HW-200	C7	25	14731-HW-300	B15	8	9	16/95
Y1360-HW-200	C7	25	14732-HW-300	B15	8	9	16/95
Y1396-HW-200	C2	25	14733-HW-300	B15	8	9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 9, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8

© Reference with "Part name index"

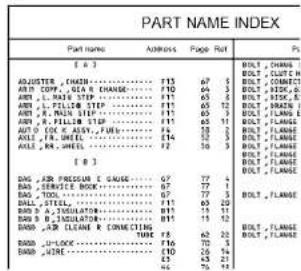

PART NAME INDEX Part name Address Page Roll Ps E 3) ADJUSTER CHASE F13 67 $ BOLT CHANS ABT CORP, GLA R CHANGE F10 64 3 CLT CLNT C ARPT, L.MATE STEP F11 65 3 BLT CONNECT ARPT, L.PILLIQ STEP F11 65 12 FLAME ARPT, R.MALL Step F11 65 3 BLT FLANGE ARPT, R.PILLIIN STEP F11 65 12 FLAME AUTO COC E ASSY, FUE F14 58 2 FLAMBE AXL F.R. GREEN F14 52 3 FLAME AXL R.R. SWEEL F12 50 3 FLAME E B BAN JER PRESTAN GUAGE F7 77 4 FLAME BAS SERVICE ORDER F7 77 1 FLAME BAS TOOL F7 77 3 FLAME BALD LEAVES F11 69 20 FLAME BAS B A, SINGULATOR B11 15 11 FLAME BAS B R, SINGULATOR B11 15 12 FLAME BAS B/R CLEANER CONNECTING TURE 62 22 FLAME BAS B UL-LOCK TURE 70 5 FLAME BAS B WIRE C10 26 4 FLAME BAS B ZICK TURE C12 43 21 FLAME

Address No

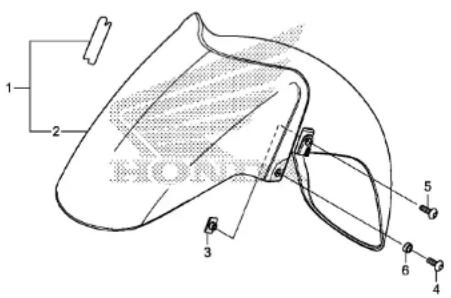

F-7 FRONT FENDER E11 Block No. Ref No. Ref No Part No Description Req. QTY (min 32" QTY) Signal No Parts catalogue code 1 #5156-MCE-000 CLAPPER, R. FR. BRAKE HOSE -- 1 1 2 #5157-MCE-000 CLAPPER, L. FR. BRAKE HOSE -- 1 1 3 #1100-MCE-GOCCA FEDER COP., FR. 4#4110+ORCE SILVER RETALLIC 1 ---- 3/4) 5 #1100-MCE-GOGER #P2024C*, ....../DRY PHOBLIX BLUE 1 ---- 1/2/ 6 #1101-MCE-000 PLATE, FR. FEDER ---- 2 2 ---- 100000 7 #1101-MCE-010 ---- 2 2 100001 8 #1102-MCE-300 CIRCIONL FR. FEDER ---- 2 2 9 #1103-MCE-300 STAY (R. FEDER MOUNTING ... 2 2 10 #1107-MCE-300 COLLAR (L.D.) ---- 4 4 11 #6607-6x620-00 BOLT, FLANGE, 6x23 ---- 4 4

Page No.

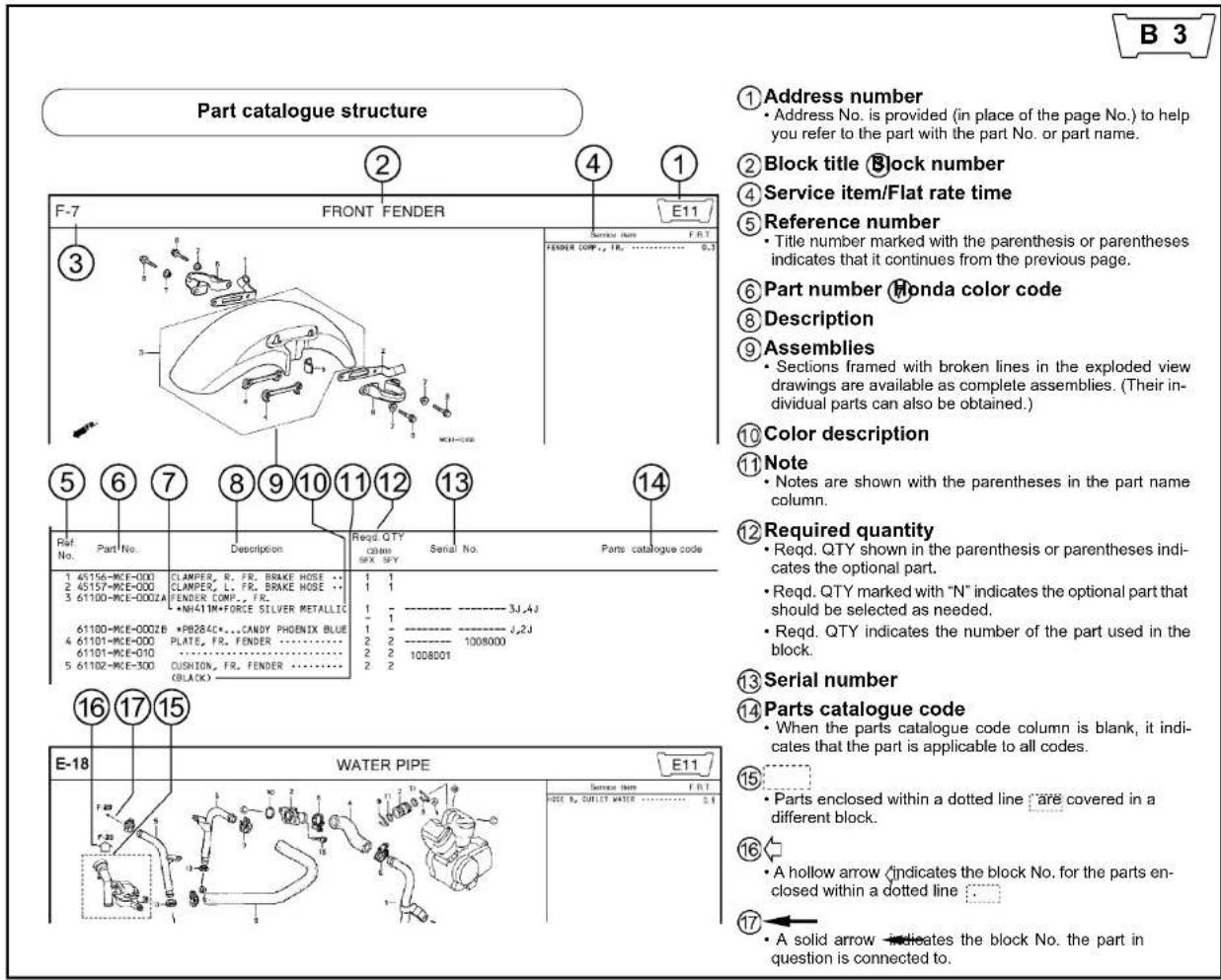

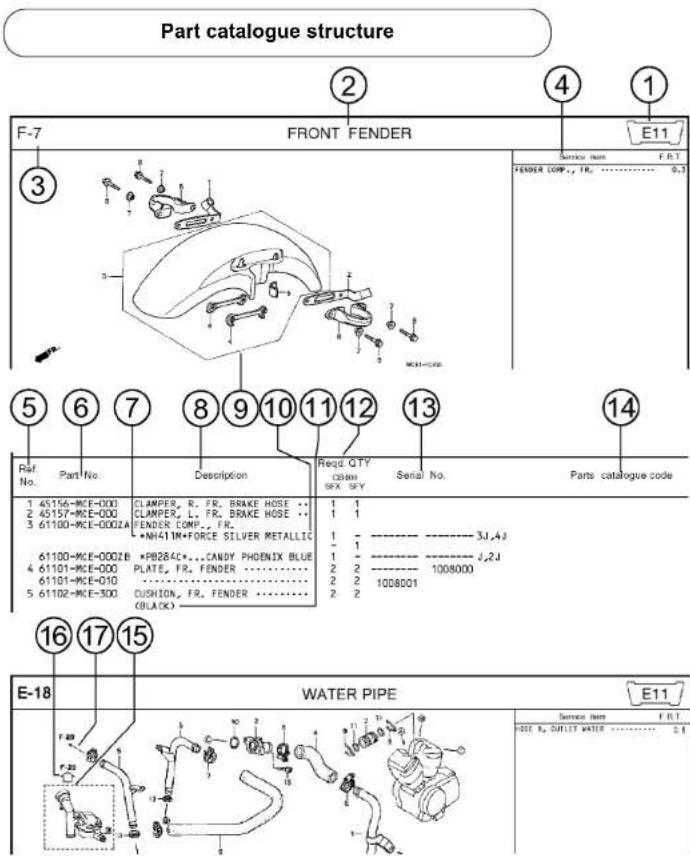

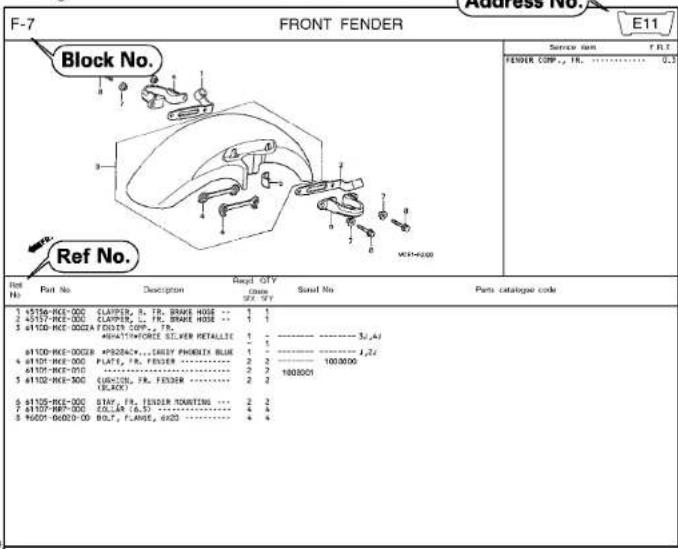

Part catalogue structure F-7 FRONT FENDER E11 ② ④ ① ③ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ Ref. No. Part No. Description Reqd. QTY CSDN SRX STY Serial No. Parts catalogue code 1 45156-MCE-000 CLAMPER, R. FR. BRAKE HOSE 2 45157-MCE-000 CLAMPER, L. FR. BRAKE HOSE 3 61100-MCE-000ZA FENDER COMP., FR. *MH41M+FORCE SILVER METALLIC 61100-MCE-000ZB *PB284C*...CANDY PHOENIX BLUE 4 61101-MCE-000 PLATE, FR. FENDER 61101-MCE-010 5 61102-MCE-300 CUSHION, FR. FENDER (BLACK) E-18 WATER PIPE E11 ①Address number • Address No. is provided (in place of the page No.) to help you refer to the part with the part No. or part name. ②Block title Block number ④Service item/Flat rate time ⑤Reference number • Title number marked with the parenthesis or parentheses indicates that it continues from the previous page. ⑥Part number Honda color code ⑧Description ⑨Assemblies • Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their individual parts can also be obtained.) ⑩Color description ⑪Note • Notes are shown with the parentheses in the part name column. ⑫Required quantity • Reqd. QTY shown in the parenthesis or parentheses indicates the optional part. • Reqd. QTY marked with "N" indicates the optional part that should be selected as needed. • Reqd. QTY indicates the number of the part used in the block. ⑬Serial number ⑭Parts catalogue code • When the parts catalogue code column is blank, it indicates that the part is applicable to all codes. ⑮Parts enclosed within a dotted line are covered in a different block. ⑯A hollow arrow indicates the block No. for the parts enclosed within a dotted line. ⑰A solid arrow indicates the block No. the part in question is connected to.

Part catalogue structure F-7 FRONT FENDER E11 ③ ④ ① ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ Ref. Part No. Description Regd. QTY Serial No. Parts catalogue code 3 45156-MCE-000 CLAMPER, R. FR. BRAKE HOSE .. 1 1 2 45157-MCE-000 CLAMPER, L. FR. BRAKE HOSE .. 1 1 3 61100-MCE-000ZA FENDER COMP., FR. *NH41M+FORCE SILVER METALLIC 61100-MCE-0002B +P9284C*...CANDY PHOENIX BLUE 4 61101-MCE-000 PLATE, FR. FENDER ...... 61101-MCE-010 ...... 5.61102-MCE-300 CUSHION, FR. FENDER ...... (BLACK) ...... ⑯ ⑰ ⑱ E-18 WATER PIPE E11 F-23 F-22 #2 2 1 #3 2 1 #4 2 1 #5 2 1 #6 2 1 #7 2 1 #8 2 1 #9 2 1 #10 2 1 #11 2 1 #12 2 1 #13 2 1 #14 2 1 #15 2 1 #16 2 1 #17 2 1 #18 2 1

①Address number

- Address No. is provided (in place of the page No.) to help you refer to the part with the part No. or part name.

② Block title ③ Block number

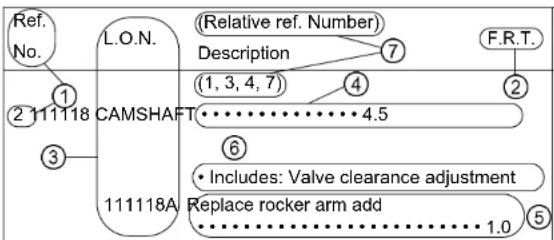

④Service item/Flat rate time

⑤ Reference number

- Title number marked with the parenthesis or parentheses indicates that it continues from the previous page.

⑥Part number Honda color code

⑧ Description

⑨Assemblies

- Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their individual parts can also be obtained.)

⑩ Color description

⑪Note

- Notes are shown with the parentheses in the part name column.

⑫Required quantity

- Reqd. QTY shown in the parenthesis or parentheses indicates the optional part.

- Reqd. QTY marked with "N" indicates the optional part that should be selected as needed.

- Reqd. QTY indicates the number of the part used in the block.

⑬ Serial number

⑭ Parts catalogue code

- When the parts catalogue code column is blank, it indicates that the part is applicable to all codes.

⑮

- Parts enclosed within a dotted line are covered in a different block.

⑯

- A hollow arrow indicates the block No. for the parts enclosed within a dotted line

⑰

- A solid arrow indicates the block No. the part in question is connected to.

When the parts were revised

Be sure to check the serial number!! But change

Ref. No.	Part No.	Description	Reqd. QTY		Serial No.
			CB400
			SPX	SFY
1	45156-MCE-000	CLAMPER, R. FR. BRAKE HOSE ...	1	1
2	45157-MCE-000	CLAMPER, L. FR. BRAKE HOSE ...	1	1
3	61100-MCE-000ZA	FENDER COMP., FR. *NH41M*FORCE SILVER METALLIC	1	-	3J,4J
			-	1
61100-MCE-000ZB		*PB284C*...CANDY PHOENIX BLUE	1	-	J,2J
4	61101-MCE-000	PLATE, FR. FENDER (###)....	2	2
61101-MCE-010		......	2	2	1008000
5	61102-MCE-300	CUSHION, FR. FENDER .... (BLACK)	2	2
6	61105-MCE-000	STAY, FR. FENDER MOUNTING ...	2	2
7	61107-MR7-000	COLLAR (6.5) ......	4	4
8	96001-06020-D0	BOLT, FLANGE, 6X20 ......	4	4

The number has been used from the initial model without revision. When shown at the left side, it is applicable to the models of No.1008001 and the subsequent numbers. When shown at the right side, it is applicable to the models of No.1008000.

- The parts listed with "###" at the end of the parts name have limited supply period (parts not for sale).

Abbreviations used in the parts catalogue

RIGHT is abbreviated as "R." "L." stands for LEFT

* "L." or "R." in the description of a part stands for the LEFT hand side or the RIGHT hand side. Determine the left or right as if you were in the motorcycle seat.

- The following abbreviations are used in this parts catalogue.

A ...... Ampere

ABS ..... Anti-lock brake system

A.C. ..... Alternating current

A.M. ..... Attaching mark

ASSY. .... Assembly

C.D.I. ..... Capacitive discharge ignition

COMP. ... Complete

D.C. ..... Direct current

EX. .... Exhaust

FR. ...... Front

G ...... Gram

HEX. ..... Hexagonal

IN. ...... Inlet

KPH ..... Kilometers per hour

L. ....Left

L (100L) .Link (100 Links)

L.E.D. .....Light emitted diode

MM ......Millimeter

MPH .....Miles per hour

R. ......Right

RR. ....Rear

STD. .....Standard

T (22T) ...Tooth (22 Teeth)

TCS .....Traction control

system

T.M. .....Transcript mark

V .....Volt

W ....Watt

WL ......With labelling

WOL .....Without labelling

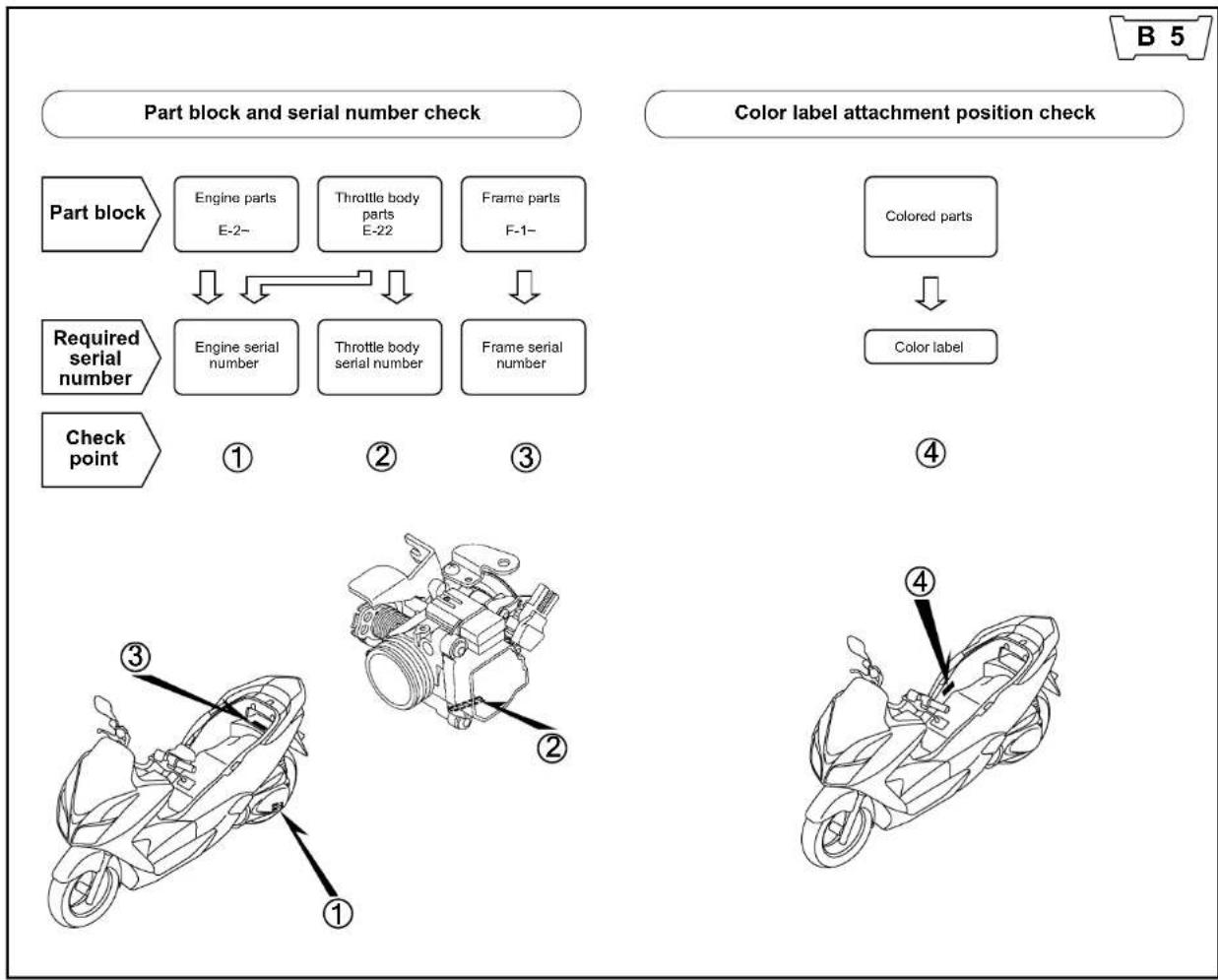


Models, parts catalogue codes and applicable serial numbers

Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows. Parts with parts catalogue codes are exclusive for models destined for countries designated. If no area codes are listed, parts are for common use.

Model	Area code	Type	Applicable engine serial No.	Applicable frame serial No.	Applicable throttle body identification No.
NSS300D NF	E England		a n	MLHNF04A*D5000001~c e	GQBHA A
	ED	European direct sales
	F04E20000	01~ F r
	KO Korea	MLHNF04K*D5000001~
	U Australia	MLHNF04U*D5000001~
NSS300AD NF	E England		a n	MLHNF04B*D5000001~c e	GQBHA A
	ED	European direct sales
	F04E20000	01~ F r
	KO Korea	MLHNF04K*D5000001~
	U Australia	MLHNF04U*D5000001~

* Of carburetor/throttle body identification numbers, only the portions underlined in the example below are used for registration.

GQBHA AKC ア

B 7

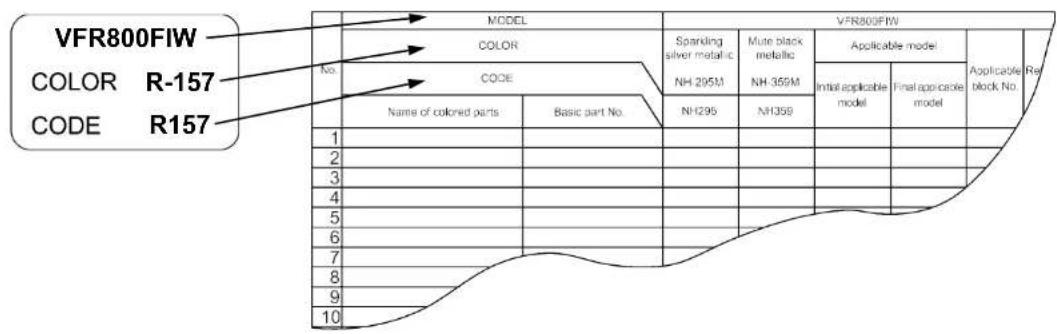

Color label

• When ordering parts, check the model name, main color, and code by observing the "COLOR LABEL" on the vehicle.
• When ordering a colored part, use the color chart in the instruction for use of parts catalogue.

VFR800FIW COLOR R-157 CODE R157 No. MODEL COLOR CODE Name of colored parts Basic part No. Spanding silver metallic NH-295M NH-356M NH-295 NH-356 VFR800FIW Mute black metallic Applicable model Initial applicable model Final applicable model Applicable block No. Re

B 8

Color chart

- When ordering a colored part, refer to the chart below and use a part number consisting of the relevant basic part number to which has been added a part color code.

NSS300 (NSS300D)

No. N	MODEL		NSS300D
	COLOR		Asteroid black metallic NH-A35M N	Pearl himalayas white H-A87P NH-A14M	Seal silver metallic	Applicable model		Applicable block No.	Ref. No.
	CODE
	name of colored parts Basic part No. NHA35 N	HA87 NHA14				Initial applicable model	Final applicable model
1 B	ACKREST ASSY. 77210-K04-930 ZA	ZA ZA F-24 12
2	COVER SET, L. BODY	83650-K04-930	ZD	ZC	ZA			F-15	3
3	COVER SET, R. BODY	83550-K04-930	ZD	ZC	ZA			F-15	1
4	COVER SET, RR. BODY LOWER	83660-K04-930	ZD	ZC	ZA			F-15	4
5	COVER, GRAB RAIL CENTER	84160-K04-930	ZC	ZB	ZD			F-15	10
6	COVER, L. FR. SIDE	64502-K04-930	ZC	ZB	ZD			F-12	5
7	COVER, L. SIDE	64432-K04-930	ZC	ZB	ZD			F-14	10
8	COVER, R. FR. SIDE	64501-K04-930	ZC	ZB	ZD			F-12	4
9	COVER, R. SIDE	64431-K04-930	ZC	ZB	ZD			F-14	9
10	COVER, RR. BODY UPPER	83751-K04-930	ZC	ZB	ZD			F-15	6
11	COVER, RR. GARB RAIL	84150-K04-930	ZC	ZB	ZD			F-15	9
12	EMBLEM	86831-K04-930	ZA	ZA	ZA			F-48	3
13	EMBLEM, HONDA	86101-K04-930	ZA	ZA	ZA			F-48	2
14	FENDER, FR.	61100-K04-930	ZC	ZB	ZD			F-11	2
15	GARNISH SET, SCREEN	64300-K04-930	ZD	ZB	ZF			F-12	1

B 9

NSS300 (NSS300D)

No. N	MODEL		NSS300D
	COLOR		Asteroid black metallic NH-A35M	Pearl himalayas white NH-A87P	Seal silver metallic 4M	Applicable model		Applicable block No.	Ref. No.
	CODE
	Name of colored parts Basic part No. NHA35 NHA87 NHA14					Initial applicable model	Final applicable model
16 H	OLDER, HANDLE PIPE UPPER 531		31-K20-900 ZB ZB	ZB F-9 5
17 M	MARK, HONDA 87125-MCN-850 ZA ZA ZA F-48 4
18	PANEL, L. FLOOR SIDE		83801-K04-930	ZC	ZB	ZD			F-15
19	PANEL, R. FLOOR SIDE		83701-K04-930	ZC	ZB	ZD			F-15
20	SEAT COMP., DOUBLE		77200-K04-930	ZA	ZA	ZA			F-24
21 W	ISOR SET, METER		67100-K04-700 ZA	ZA	ZA F-12 8
22	WHEEL SUB ASSY., FR.		44650-K04-930	ZA	ZA	ZA			F-20
23 W	WHEEL SUB ASSY., RR.		42650-K04-930 ZA	ZA ZA F-22 5

B10

NSS300A (NSS300AD)

No. N	MODEL		NSS300AD
	COLOR		Asteroid black metallic NH-A35M	Pearl himalayas white NH-A87P	Seal silver metallic 14M	Applicable model		Applicable block No.	Ref. No.
	CODE
	Name of colored parts Basic part No. NHA35 N	HA87 NHA14				Initial applicable model	Final applicable model
1 B	ACKREST ASSY. 77210-K04-930 ZA	ZA ZA F-24 12
2 C	OVER SET, L. BODY 83650-K04-930	ZD ZC ZA F-15 3
3 C	OVER SET, R. BODY	83550-K04-930 ZD	ZC ZA F-15 1
4 C	OVER SET, RR. BODY LOWER 836	60-K04-930 ZD ZC	ZA F-15 4
5 C	OVER, GRAB RAIL CENTER	84160-K04-930 ZC	ZB ZD			F-15 10
6 C	OVER, L. FR. SIDE	64502-K04-930 ZC	ZB ZD			F-12 5
7 C	OVER, L. SIDE	64432-K04-930 ZC	ZB ZD			F-14 10
8 C	OVER, R. FR. SIDE	64501-K04-930 ZC	ZB ZD			F-12 4
9 C	OVER, R. SIDE	64431-K04-930 ZC	ZB ZD			F-14 9
10	COVER, RR. BODY UPPER	83751-K04-930	ZC	ZB	ZD			F-15	6
11	COVER, RR. GARB RAIL	84150-K04-930	ZC	ZB	ZD			F-15	9
12	EMBLEM	86831-K04-930 ZA	ZA ZA			F-48 3
13	EMBLEM, HONDA	86101-K04-930	ZA	ZA	ZA			F-48	2
14	FENDER SET, FR.	61000-K04-970	ZL	ZK	ZH			F-11	1
15	GARNISH SET, SCREEN	64300-K04-930	ZD	ZB	ZF			F-12	1
16	HOLDER, HANDLE PIPE UPPER	53131-K20-900	ZB	ZB	ZB			F-9	5

B11

NSS300A (NSS300AD)

No. N	MODEL		NSS300AD
	COLOR		Asteroid black metallic NH-A35M	Pearl himalayas white NH-A87P	Seal silver metallic 4M	Applicable model		Applicable block No.	Ref. No.
	CODE
	Name of colored parts Basic part No. NHA35 NHA87 NHA14					Initial applicable model	Final applicable model

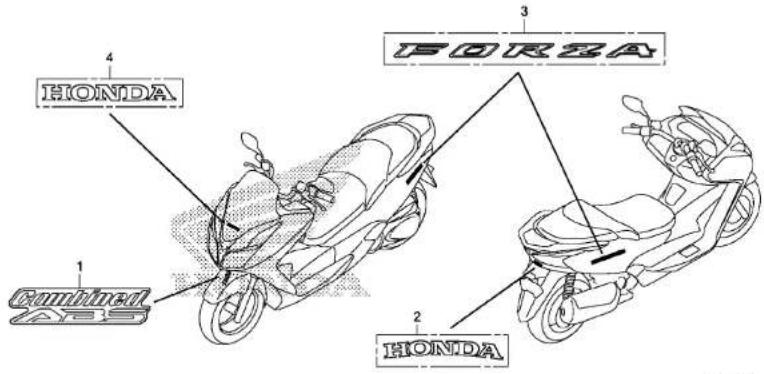

17	MARK, COMBINED ABS 61105-KVZ-660 ZA ZB ZA F-48 1
18	MARK, HONDA 87125-MCN-850 ZA ZA ZA F-48 4
19	PANEL, L. FLOOR SIDE	83801-K04-930	ZC	ZB	ZD			F-15	7
20	PANEL, R. FLOOR SIDE	83701-K04-930	ZC	ZB	ZD			F-15	5
21	SEAT COMP., DOUBLE	77200-K04-930	ZA	ZA	ZA			F-24	8
22	VISOR SET, METER	67100-K04-700	ZA	ZA	ZA			F-12	8
23	WHEEL SUB ASSY., FR.	44650-K04-970	ZA	ZA	ZA			F-20	9
24	WHEEL SUB ASSY., RR.	42650-K04-970	ZA ZA ZA F-22 5

B12

Fuel hose, general purpose hoses and vinyl hose

- The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part.

- When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalogue in brackets ( ) underneath the part name, or use the catalogue below.

(The bulk part standard length is 1 m, however, those displayed in the catalogue < > are available in 3 m and 8 m lengths.)

- When exchanging the hose, cut and use at the specified length as mentioned in the part name.

(For the method of cutting the bulk part, and method of filling out orders etc., please refer to the service manual and the instructions issued with the bulk part.)

• The list below is a catalogue of the standard part numbers and bulk part numbers. Note that those numbers are applicable to the listed replacement parts only.

Fuel hoses/Tubes
Standard part No.	Bulk part No.	Bulk part
		Inner diameter (mm)	Length (m)
95001-30xxx-2x	95001-30001-20M 3.0 1
95001-30xxx-3x	95001-30001-30M 3.0 1
95001-30xxx-4x	95001-30001-40M 3.0 1
95001-35xxx-2x	95001-35001-50M <95001-35003-50M>	3.5	13
95001-35xxx-3x	95001-35001-60M <95001-35003-60M>	3.5	13
95001-35xxx-4x	95001-35001-60M <95001-35003-60M>	3.5	13
95001-35xxx-5x	95001-35001-50M <95001-35003-50M>	3.5	13
95001-35xxx-6x	95001-35001-60M <95001-35003-60M>	3.5	13
95001-45xxx-2x	95001-45001-50M <95001-45003-50M>	4.5	13
95001-45xxx-3x	95001-45001-60M <95001-45003-60M> <95001-45008-60M>	4.5	138
95001-45xxx-4x	95001-45001-60M <95001-45003-60M> <95001-45008-60M>	4.5	138
95001-45xxx-5x	95001-45001-50M <95001-45003-50M>	4.5	13
95001-45xxx-6x	95001-45001-60M <95001-45003-60M> <95001-45008-60M>	4.5	138
95001-55xxx-2x	95001-55001-50M <95001-55003-50M> <95001-55008-50M>	5.5	138

Fuel hoses/Tubes
Standard part No.	Bulk part No.	Bulk part
		Inner diameter (mm)	Length (m)
95001-55xxx-3x	95001-55001-60M<95001-55003-60M><95001-55008-60M>	5.5	138
95001-55xxx-4x	95001-55001-60M<95001-55003-60M><95001-55008-60M>	5.5	138
95001-55xxx-5x	95001-55001-50M<95001-55003-50M><95001-55008-50M>	5.5	138
95001-55xxx-6x	95001-55001-60M<95001-55003-60M><95001-55008-60M>	5.5	138
95001-75xxx-2x	95001-75001-50M<95001-75003-50M>	7.5	13
95001-75xxx-3x	95001-75001-60M<95001-75003-60M><95001-75008-60M>	7.5	138
95001-75xxx-4x	95001-75001-60M<95001-75003-60M><95001-75008-60M>	7.5	138
95001-75xxx-5x	95001-75001-50M<95001-75003-50M>	7.5	13
95001-75xxx-6x	95001-75001-60M<95001-75003-60M><95001-75008-60M>	7.5	138
95001-80xxx-2x 95001-80001-50M 8.0 1
95001-80xxx-3x 95001-80001-60M 8.0 1
95001-80xxx-4x 95001-80001-60M 8.0 1
95001-80xxx-5x 95001-80001-50M 8.0 1
95001-80xxx-6x 95001-80001-60M 8.0 1

Vinyl tube
Standard part No.	Bulk part No.	Bulk part
		Inner dia-meter (mm)	Outer dia-meter (mm)	Length (m)
95003-01xxx-3x	95003-01001-60M<95003-01003-80M>	2.9 6.8		13
95003-01xxx-60	95003-01001-60M<95003-01003-80M>	2.9 6.8		13
95003-03xxx-3x	95003-03001-60M<95003-03003-80M>	3.0 6.0		13
95003-03xxx-60	95003-03001-60M<95003-03003-80M>	3.0 6.0		13
95003-05xxx-3x	95003-05001-60M<95003-05003-80M<95003-05008-80M>	3.5 6.5		138
95003-05xxx-60	95003-05001-60M<95003-05003-80M<95003-05008-80M>	3.5 6.5		138
95003-07xxx-1x	95003-07001-10M<95003-07003-10M<95003-07008-10M>	4.0 7.0		138
95003-07xxx-20	95003-07001-10M<95003-07003-10M<95003-07008-10M>	4.0 7.0		138
95003-07xxx-3x	95003-07001-60M<95003-07003-80M<95003-07008-80M>	4.0 7.0		138
95003-07xxx-60	95003-07001-60M<95003-07003-80M<95003-07008-80M>	4.0 7.0		138
95003-07xxx-7x	95003-07001-70M<95003-07003-10M<95003-07008-10M>	4.0 7.0		138
95003-08xxx-1x	95003-08001-10M<95003-08003-10M<95003-08008-10M>	4.5 6.5		138
95003-09xxx-3x	95003-09001-60M<95003-09003-80M>	4.5 6.0		13
95003-09xxx-60	95003-09001-60M<95003-09003-80M>	4.5 6.0		13
95003-10xxx-1x	95003-10001-10M<95003-10003-10M>	5.0 6.0		13
95003-10xxx-20	95003-10001-10M<95003-10003-10M>	5.0 6.0		13
95003-10xxx-3x	95003-10001-60M<95003-10003-80M>	5.0 6.0		13
95003-10xxx-60	95003-10001-60M<95003-10003-80M>	5.0 6.0		13
95003-11xxx-3x	95003-11001-60M<95003-11003-80M<95003-11008-80M>	5.0 9.0		138
95003-11xxx-60	95003-11001-60M<95003-11003-80M<95003-11008-80M>	5.0 9.0		138
95003-12xxx-1x	95003-12001-10M<95003-12003-10M<95003-12008-10M>	5.0 7.0		138
95003-12xxx-20	95003-12001-10M<95003-12003-10M<95003-12008-10M>	5.0 7.0		138

Vinyl tube
Standard part No.	Bulk part No.	Bulk part
		Inner dia-meter (mm)	Outer dia-meter (mm)	Length (m)
95003-14xxx-1x	95003-14001-10M<95003-14003-10M>	6.0 9.0		13
95003-14xxx-20	95003-14001-10M<95003-14003-10M>	6.0 9.0		13
95003-14xxx-3x	95003-14001-60M<95003-14003-60M>	6.0 9.0		13
95003-17xxx-1x	95003-17001-10M<95003-17003-10M>	7.0 9.0		13
95003-19xxx-1x	95003-19001-10M<95003-19003-10M> <95003-19008-10M>	7.0 11.0		13B
95003-19xxx-20	95003-19001-10M<95003-19003-10M> <95003-19008-10M>	7.0 11.0		13B
95003-19xxx-3x	95003-19001-60M<95003-19003-60M> <95003-19008-60M>	7.0 11.0		13B
95003-19xxx-60	95003-19001-60M<95003-19003-60M> <95003-19008-60M>	7.0 11.0		13B
95003-21xxx-1x	95003-21001-10M<95003-21003-10M>	8.0 9.0		13
95003-21xxx-20	95003-21001-10M<95003-21003-10M>	8.0 9.0		13
95003-23xxx-1x	95003-23001-10M<95003-23003-10M>	8.0 12.0		13
95003-23xxx-20	95003-23001-10M<95003-23003-10M>	8.0 12.0		13
95003-23xxx-3x	95003-23001-60M<95003-23003-60M> <95003-23008-60M>	8.0 12.0		13B
95003-23xxx-60	95003-23001-60M<95003-23003-60M> <95003-23008-60M>	8.0 12.0		13B
95003-25xxx-1x	95003-25001-10M<95003-25003-10M>	9.0 11.0		13
95003-25xxx-20	95003-25001-10M<95003-25003-10M>	9.0 11.0		13
95003-25xxx-3x	95003-25001-60M<95003-25003-60M>	9.0 11.0		13
95003-25xxx-7x	95003-25001-70M<95003-25003-70M>	9.0 11.0		13
95003-27xxx-1x	95003-27001-10M<95003-27003-10M>	9.0 13.0		13
95003-27xxx-20	95003-27001-10M<95003-27003-10M>	9.0 13.0		13
95003-27xxx-3x	95003-27001-60M<95003-27003-60M>	9.0 13.0		13
95003-27xxx-60	95003-27001-60M<95003-27003-60M>	9.0 13.0		13
95003-33xxx-1x	95003-33001-10M<95003-33003-10M>	10.0 14.D		13
95003-33xxx-20	95003-33001-10M<95003-33003-10M>	10.0 14.D		13

Vinyl tube
Standard part No.	Bulk part No.	Bulk part
		Inner dia-meter (mm)	Outer dia-meter (mm)	Length (m)
95003-36xxx-1x	95003-36001-10M<95003-36003-10M> <95003-36008-10M>	11.0 13.0		138
95003-36xxx-20	95003-36001-10M<95003-36003-10M> <95003-36008-10M>	11.0 13.0		138
95003-37xxx-3x	95003-37001-80M<95003-37003-50M>	11.0 15.0		13
95003-37xxx-50	95003-37001-80M<95003-37003-60M>	11.0 15.0		13
95003-38xxx-1x	95003-38001-10M<95003-38003-10M>	12.0 13.0		13
95003-38xxx-20	95003-38001-10M<95003-38003-10M>	12.0 13.0		13
95003-39xxx-1x	95003-39001-10M<95003-39003-10M>	12.0 14.0		13
95003-39xxx-20	95003-39001-10M<95003-39003-10M>	12.0 14.0		13
95003-40xxx-20	95003-40001-10M<95003-40003-10M>	12.0 16.0		13
95003-40xxx-3x	95003-40001-80M<95003-40003-60M>	12.0 16.0		13
95003-40xxx-60	95003-40001-80M<95003-40003-60M>	12.0 16.0		13
95003-43xxx-1x	95003-43001-10M<95003-43003-10M> <95003-43008-10M>	13.0 15.0		138
95003-43xxx-20	95003-43001-10M<95003-43003-10M> <95003-43008-10M>	13.0 15.0		138
95003-45xxx-1x	95003-45001-10M<95003-45003-10M> <95003-45008-10M>	14.0 18.0		138
95003-45xxx-20	95003-45001-10M<95003-45003-10M> <95003-45008-10M>	14.0 18.0		138
95003-50xxx-1x	95003-50001-10M<95003-50003-10M>	16.0 19.0		13
95003-50xxx-20	95003-50001-10M<95003-50003-10M>	16.0 19.0		13
95003-50xxx-3x	95003-50001-80M<95003-50003-60M>	16.0 19.0		13
95003-55xxx-1x	95003-55001-10M<95003-55003-10M>	17.5 20.5		13
95003-55xxx-20	95003-55001-10M<95003-55003-10M>	17.5 20.5		13
95003-60xxx-1x	95003-60001-10M<95003-60003-10M>	22.0 27.0		13
95003-60xxx-20	95003-60001-10M<95003-60003-10M>	22.0 27.0		13
95003-60xxx-3x	95003-60001-80M<95003-60003-60M>	22.0 27.0		13
95003-60xxx-50	95003-60001-80M<95003-60003-60M>	22.0 27.0		13

B14

General purpose hoses
Standard part No.	Bulk part No.	Bulk part
		Inner diameter (mm)	Length (m)
95005-11xxx-3x 950	05-11001-30M 11.0 1
95005-11xxx-5x 950	05-11001-50M 11.0 1
95005-12xxx-1x	95005-12001-10M<95005-12003-10M>	12.0	13
95005-12xxx-2x 950	05-12001-20M 12.0 1
95005-12xxx-3x 950	05-12001-30M 12.0 1
95005-12xxx-5x 950	05-12001-50M 12.0 1
95005-14xxx-1x 950	05-14001-10M 14.0 1
95005-14xxx-2x	95005-14001-20M<95005-14003-20M>	14.0	13
95005-14xxx-3x 950	05-14001-30M 14.0 1
95005-14xxx-5x 950	05-14001-50M 14.0 1
95005-17xxx-1x 950	05-17001-10M 17.0 1
95005-17xxx-2x 950	05-17001-20M 17.0 1
95005-17xxx-3x 950	05-17001-30M 17.0 1
95005-17xxx-5x 950	05-17001-50M 17.0 1
95005-30xxx-3x 950	05-30001-30M 3.0 1
95005-30xxx-5x 950	05-30001-50M 3.0 1
95005-35xxx-1x	95005-35001-10M<95005-35003-10M>	3.5	138
	<95005-35008-10M>
95005-35xxx-2x 950	05-35001-20M 3.5 1
95005-35xxx-3x 950	05-35001-30M 3.5 1
95005-35xxx-4x	95005-35001-10M<95005-35003-10M>	3.5	138
	<95005-35008-10M>
95005-35xxx-5x 950	05-35001-50M 3.5 1
95005-45xxx-1x	95005-45001-10M<95005-45003-10M>	4.5	138
	<95005-45008-10M>
95005-45xxx-2x 950	05-45001-20M 4.5 1
95005-45xxx-3x 950	05-45001-30M 4.5 1

General purpose hoses
Standard part No.	Bulk part No.	Bulk part
		Inner diameter (mm)	Length (m)
95005-45xxx-4x	95005-45001-10M<95005-45003-10M><95005-45008-10M>	4.5	138
95005-45xxx-5x 950	05-45001-50M 4.5 1
95005-50xxx-3x	95005-50001-30M<95005-50003-30M>	5.0	13
95005-50xxx-5x 950	05-50001-50M 5.0 1
95005-55xxx-1x	95005-55001-10M<95005-55003-10M><95005-55008-10M>	5.3	138
95005-55xxx-2x	95005-55001-20M<95005-55003-20M>	5.3	13
95005-55xxx-4x	95005-55001-10M<95005-55003-10M><95005-55008-10M>	5.3	138
95005-65xxx-1x	95005-65001-10M<95005-65003-10M>	6.5	13
95005-65xxx-2x 950	05-65001-20M 6.5 1
95005-70xxx-3x	95005-70001-30M<95005-70003-30M>	7.0	13
95005-70xxx-5x 950	05-70001-50M 7.0 1
95005-75xxx-1x	95005-75001-10M<95005-75003-10M>	7.3	13
95005-75xxx-2x 950	05-75001-20M 7.3 1
95005-80xxx-1x	95005-80001-10M<95005-80003-10M>	8.0	13
95005-80xxx-2x 950	05-80001-20M 8.0 1
95005-80xxx-3x 950	05-80001-30M 8.0 1
95005-80xxx-5x 950	05-80001-50M 8.0 1
95005-91xxx-3x 950	05-91001-30M 12.0 1
95005-91xxx-5x 950	05-91001-50M 12.0 1
95005-92xxx-3x 950	05-92001-30M 12.0 1
95005-92xxx-5x 950	05-92001-50M 12.0 1

NOTE: X is displayed to represent the omitted numerals and letters of the roman alphabet.

☐ CAUTION: It is DANGEROUS to confuse the fuel hose with the general purpose hose or vinyl hose.

Never use a general purpose hose or vinyl hose in place of a fuel hose or vice versa. Always use the correct bulk part in the parts catalogue, according to the service manual or the instructions issued with the bulk part.

B15

- Bulk part number of fuel hose, general purpose hose and vinyl hose.

(Example)

95001-75001-50M

Bulk part number: Refers to the bulk part.

Marking code (hose type): (fuel hose and general purpose hose)

Change code (for added hose): (Vinyl hose)

- Indicates number mark or change sequence, however, the code for the bulk part must be strictly

0 (zero).

Types of code:

• Fuel hose 2: Red outside braid

(3 mm inside dia. only)

5: Black inside braid

3: Red (3 mm inside dia. only)

4: Ash gray with red stripe

(3 mm inside dia. only)

6: Black

Lengths: 001: 1 m (standard)

003: 3 m

008: 8 m

I.D code: (fuel hose and general purpose hose)

30: 3.0 mm 11: 11 mm

35: 3.5 mm 91: 12 mm (outside dia, 15) mm

45: 4.5 mm 92: 12 mm (outside dia. 16) mm

50: 5.0 mm 12: 12 mm (outside dia. 17) mm

55: 5.3 mm, 5.5 mm 14: 14 mm

65: 6.5 mm 17: 17 mm

70° 7.0 mm

75: 7.3 mm 7.5 mm

15:7.5 mm 80: 8.0 mm

ID./OD. code: (vinyl hose)

01: ID 29 OD 6.8 mm 14: ID 6.0 OD 9.0 mm 37: ID 11.0 OD 15.0 mm

03: ID, 3.0, OD, 6.0 mm 17: ID, 7.0, OD, 9.0 mm 28: ID, 12.0, OD, 13.0 mm

05: ID. 3.5, OD. 6.5 mm 19; ID. 7.0, OD. 9.0 mm 38; ID. 12.0, OD. 13.0 mm 05; ID. 3.5, OD. 6.5 mm 19; ID. 7.0, OD. 11.0 mm 39; ID. 12.0, OD. 14.0 mm

1. ID: 3.5, OD: 6.5 mm 19. ID: 7.0, OD: 11.0 mm 39. ID: 12.0, OD: 14.0 mm 07. ID: 4.0, OD: 7.0 mm 31. ID: 8.0, OD: 9.0 mm 40. ID: 12.0, OD: 16.0 mm

07: ID. 4.0, OD. 7.0 mm 21: ID. 8.0, OD. 9.0 mm 40: ID. 12.0, OD. 16.0 mm

08: ID. 4.5, OD. 6.5 mm 23: ID. 8.0, OD. 12.0 mm 43: ID. 13.0, OD. 15.0 mm

09: ID. 4.5, OD. 8.0 mm 25: ID. 9.0, OD. 11.0 mm 45: ID. 14.0, OD. 18.0 mm

12: ID. 5.0, OD. 7.0 mm 27: ID. 9.0, OD. 13.0 mm 50: ID. 16.0, OD. 19.0 mm

10: ID. 5.0, OD. 8.0 mm 33; ID. 10.0, OD. 14.0 mm 55; ID. 17.5, OD. 20.5 mm

11: ID. 5.0, OD. 9.0 mm 36; ID. 11.0, OD. 13.0 mm 60; ID. 22.0, OD. 27.0 mm

Hose type: 1: Fuel hose

3: Vinyl hose

5: General hose

FLAT RATE SERVICE TIME

Flat rate service time (FRT) means the standard time required to service a MC, which is listed in this manual to help the dealers control the actual working process and calculate the service charge by using it as a guide.

FRT setting system

Net service time

Removal, Disassembly/reassembly, Installation

Inspection, Measurement, Adjustment, Confirmation

Diagnosis/troubleshooting (Electric system)

Completion inspection

Float time

Preparation

(Process check, Confirmation arrangement for necessary tools)

Related work (Transfer of vehicles)

* Float time is set by multiplying the net service time by a given coefficient.

Editorial style

The service items shown in the text are listed with the exchange work time for the repair sales parts as the subject. Other representative service items not using repair parts (removal/installation, adjustment, inspection/measuring, and other work) are listed collectively in the list in the preface, classified according to the work.

FRT setting standard

• Decimal system (in unit of 0.1) is adopted to set FRT as it is convenient to calculate the wage.
  Example: (0.1) 6 minutes, (0.2) 12 minutes
  [Labor cost per hour] x [FRT] = [Wage]

• FRT is set with a hand tool.

- Service items and FRT can be subject to change depending on development of tools and service equipment and improvement in service procedure.

C 1

Work procedure

• As the work procedure is set with the work time according to the method in the separate Service Manual, refer to this Manual as required.
• Work methods permitting servicing in the shortest time still permitting assurance of safe work and product warranty are used for the setting of service items not listed in the Service Manual.
• Work basically is to be performed by one person, and when two or more people are required, setting is done as the total time for the number of people.
• The set value for the technological level of the workers uses a person with three years of experience in the repair of Honda vehicles as the standard.
• Special tools and service equipment used to set FRT are those specified or recommended in Service Manual.

Service item whose FRT is not presented

• Accessories and service parts that are not listed to use in this manual.
• Locations with little aging deterioration or breakage during normal use.
  • Service work that can be finished by one touch.
• Service work that is seldom done (i.e. extremely small causes of trouble and service frequency).
  * When FRT is not presented, please calculate wages based on appropriate actual work time

Operation not included of FRT

• Oil and coolant water draining, Waiting time for warming up operation and etc..
  • Additional operation that involves removal/installation of standard exterior equipment.
• Indirect time spent for service by visiting the customer, trade-in, and delivery of a MC.
• Indirect time required for ordering and delivery of parts.
• Cost for grease, adhesive agent, etc. used for service work.

Explanation of FRT by using an example (The example may differ from the actual presented items)

Ref. No. L.O.N. (Relative ref. Number) Description (1, 3, 4, 7) (1, 3, 4, 7) (1, 3, 4, 7) F.R.T. ① ② 111118 CAMSHAFT ③ ④ ⑥ ⑤ Includes: Valve clearance adjustment Replace rocker arm add 111118A 1.0

①Reference No. of the illustration of part that shows location of the replacement work.

②FRT is an abbreviation of Flat Rate Time indicating the standard service time required for the replacement.

③LON is an abbreviation of Labor Operation Number, and it is a classification of the service items by the work unit code.

The same operation code is used regardless of the models.

Standard operation is indicated with 6 digits code, and additional operation is indicated with 7 digits code.

④Indicating the camshaft replacement and FRT4.5.

⑤Indicating FRT1.0 that will be added when additional operation (replace rocker arm) is done in association with camshaft replacement.

⑥Indicating work contents that are included in the service item.

⑦Indicating a reference No. whose operation and time are the same as FRT4.5 for the camshaft.

(The application range is limited to the service items without an LON setting within a same block.)

How to refer to the service item by using the sample (camshaft replacement)

Open to the page of the block where the camshaft's spare part illustration is shown.

Look for the camshaft illustration, and refer to the service item and FRT that agree with the reference No.

Indication mark for the listing of service items that continues to the following page

Ref.No.	L.O.N.	(Relative ref. Number)Description	F.R.T.
2	111118	CAMSHAFT·········································································································································································································	4.5
	·	·	·
	·	·	·
+

Mark indicated at the last line.

Indication of the block with no setting of FRT

Ref. No.	L.O.N.	(Relative ref. Number) Description	F.R.T.
NO INFORMATION ·······

- LON code system

a) Category code...... Engine
b) Location/function code...... Engine upper
c) Operation code...... Replace
d) Operation sequence number (Unit code can be shown with alphabet)
...... camshaft
(No regular rule of code)
e) Additional code ...... replace rocker arm
(No regular rule of code)

C 3

a) Category codes and classification

Code	Category
1	Engine
2	Transmission
3	Fuel & Exhaust
4	F r a m e & B
5	Steering/Suspension
6	Electrical
7	Wheels/Brakes
8	Controls/instrument
9	-
0	-

c) Operation codes and classification

Code	Operation category
1	Replace, Removal/Installation, Change
2	Overhaul
3	Adjust, Balance
4	(Paint-related work: Top-coat)
5	Test, Inspect/diagnose, Measurement, Check
6	(Overhaul-related work: Rebore)
7	(Overhaul-related work: Reseal)
8	(Resurface)
9	(Paint-related work: Refinish)
0	Repair, Cleaning, Air bleeding

Major service items without using spare parts

(1) Removal/Installation, (2) Adjustment,
(3) Inspection/Measurement, (5) Other work

E: Engine, F: Frame

\* OPERATIONS OTHER THAN REPLACING PARTS

(1) Removal and installation

Set for the configuration with the parts removed from the vehicle.

	LON DESCRIPTION FRT
E	1101E5	TILTING ENGINE ASSEMBLY-REMOVAL/INSTALLATIONINCLUDES: All necessary adjustment	2.4
	1111K0	CYLINDER HEAD ASSEMBLY-REMOVAL/INSTALLATION	2.5

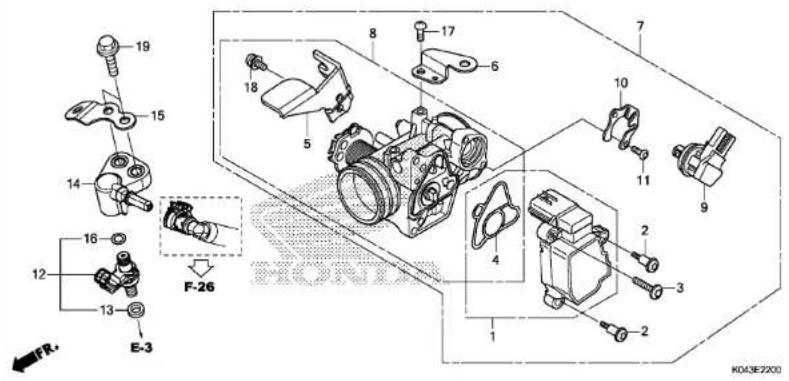

	3111D5	THROTTLE BODY ASSEMBLY-REMOVAL/INSTALLATION	0.7
	1101E6	CRANKCASE SEPARATIONINCLUDES: Engine removal and installation	4.8
F 1	151E6	RADIATOR ASSEMBLY-REMOVAL/INSTALLATION	1.2

(2) Adjustment

	LON DESCRIPTION FRT
E	6143A1	SPARK PLUG-ADJUSTMENT/CLEANING 0.1
	1113A0	VALVE CLEARANCE-ADJUSTMENTNOTE: For 1 vehicle	0.9
F	6163A0	HEADLIGHT-AIMING 0.1
	7103A1	FRONT WHEEL-BALANCE 0.5
	7103A2	REAR WHEEL-BALANCE 0.6
	3113A3	THROTTLE OPERATION-ADJUSTMENT 0.1

C 4

(3) Inspection, Measurement

	LON	DESCRIPTION FRT
E	1115A0	COMPRESSION PRESSURE-MEASUREMENT 0.1
	6145A0	IGNITION TIMING-INSPECTION 0.2
F 6	105A0	BATTERY-CHECKING OF ELECTROLYTE LEVEL & CHARGE	0.2

(5) Other work

	LON DESCRIPTION FRT
E	1130A1	OIL FILTER SCREEN-CLEANING	1.4
F	7110A0	FRONT BRAKE-AIR BLEEDING	0.2
	7110A1	REAR BRAKE-AIR BLEEDING	0.5
	1151E7	RADIATOR COOLANT-CHANGE	0.7
	6145A2	HISS MEMORIZATION	0.3

ENGINE GROUP C 5 E-2 CYLINDER HEAD COVER D 1 E-3 CYLINDER HEAD D 2 E-4 CAMSHAFT/VALVE D 4 E-5 CAM CHAIN D 7 E-6 CYLINDER/REED VALVE D 8 E-7 RIGHT CRANKCASE COVER/WATER PUMP D 9 E-8 GENERATOR D10 E-11 OIL PUMP D11 E-12 STARTER MOTOR D12

ENGINE GROUP C 6 E-13 LEFT CRANKCASE COVER D13 E-16 DRIVE FACE D14 E-17 DRIVEN FACE D15 E-17-10 TRANSMISSION E 1 E-19 CRANKCASE E 2 E-20 CRANK SHAFT/PISTON E 5 E-22 THROTTLE BODY E 6

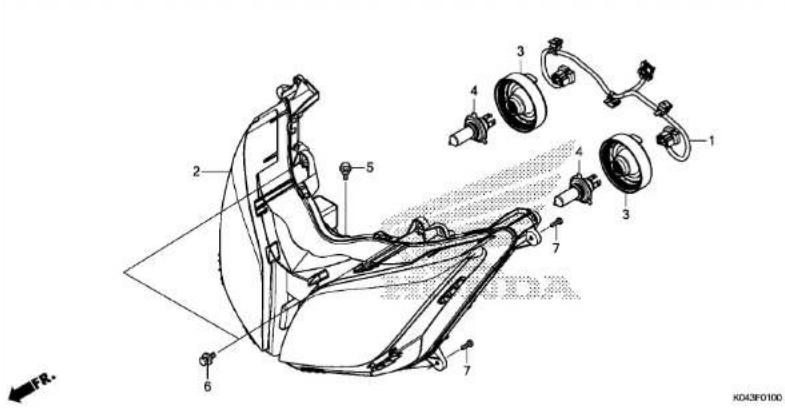

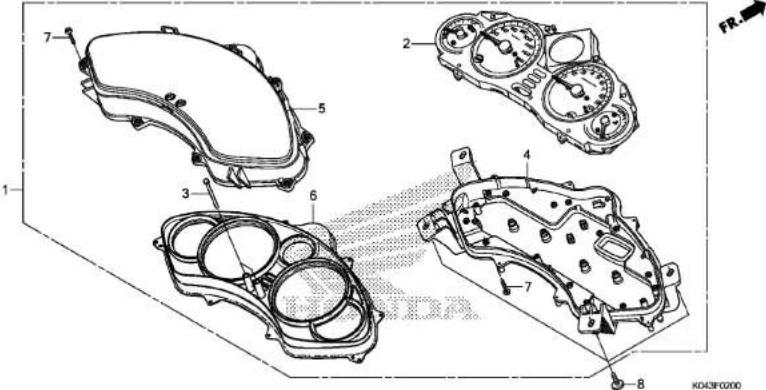

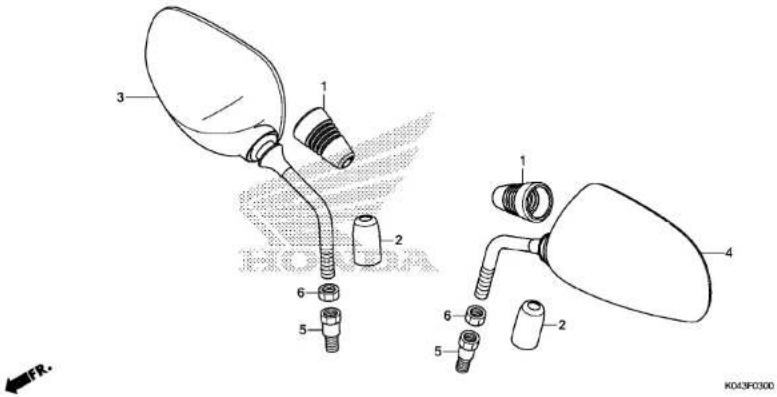

FRAME GROUP C 7 F-1 HEADLIGHT F 1 F-2 COMBINATION METER F 2 F-3 MIRROR F 3 F-4 SWITCH/CABLE F 4 F-5 FRONT BRAKE MASTER CYLINDER (NSS300) F 5 F-5-1 FRONT BRAKE MASTER CYLINDER (NSS300A) F 7 F-6 REAR BRAKE MASTER CYLINDER(NSS300) F 9 F-6-1 REAR BRAKE MASTER CYLINDER (NSS300A) F10 F-7 REAR BRAKE PIPE(NSS300) F11

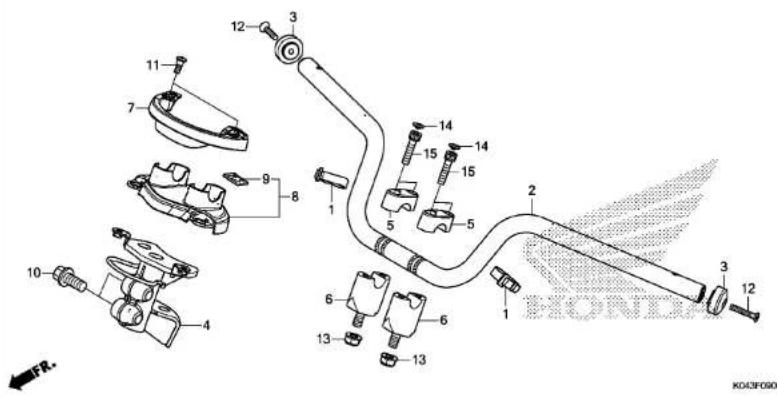

FRAME GROUP C 8 F-7-1 REAR BRAKE PIPE(NSS300A) F12 F-9 HANDLE PIPE F13 F-10 STEERING STEM/COMBINATION SWITCH (E/ED/F) F14 F-10-1 STEERING STEM/COMBINATION SWITCH (KO/U) F16 F-11 FRONT FENDER G 2 F-12 FRONT COVER/METER VISOR G 3 F-13 INNER COVER G 5 F-14 FLOOR STEP G 7 F-14-10 PILLION STEP G 9

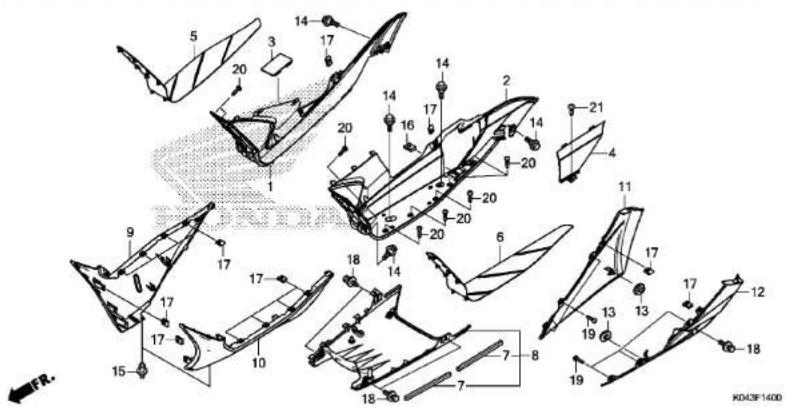

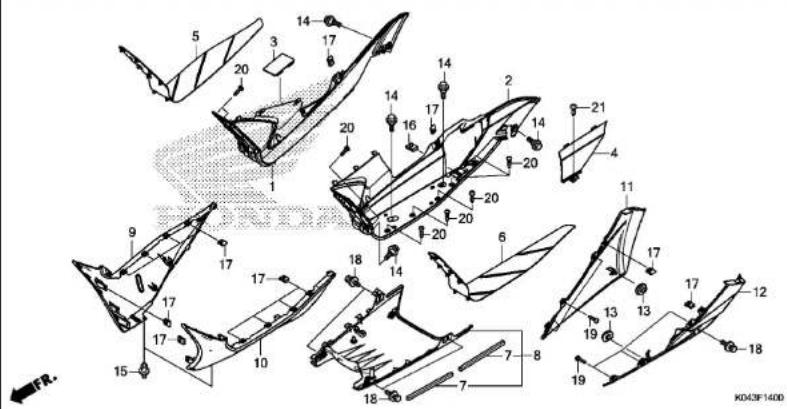

FRAME GROUP C 9 F-15 BODY COVER/GRAB RAIL G10 F-16 LUGGAGE BOX G12 F-17 FRONT FORK G13 F-18 FRONT BRAKE CALIPER G14 F-20 FRONT WHEEL G15 F-21 REAR BRAKE CALIPER G16 F-22 REAR WHEEL/SWINGARM H 1 F-24 SEAT H 3 F-26 FUEL TANK H 5

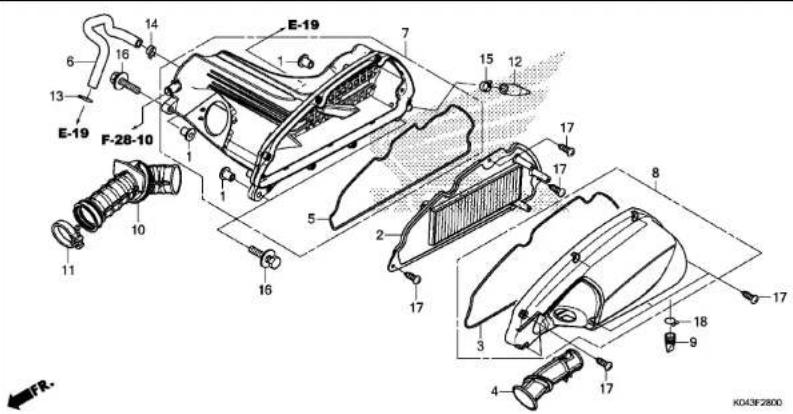

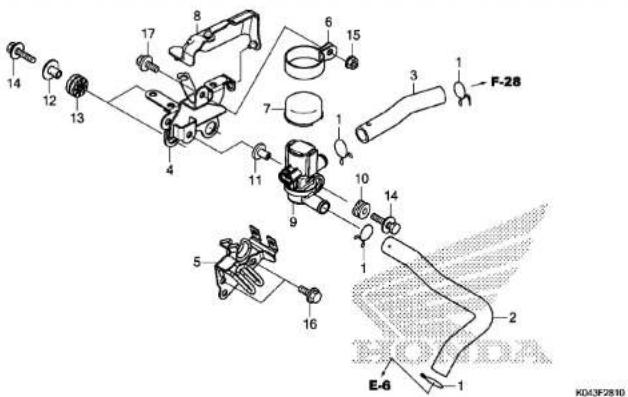

FRAME GROUP C10 F-28 AIR CLEANER H 7 F-28-10 AIR INJECTION SOLENOID VALVE H 8 F-30 EXHAUST MUFFLER H 9 F-35 STAND H10 F-36 REAR CUSHION H11 F-37-10 FRONT WINKER H12 F-38-10 REAR COMBINATION LIGHT H13 F-39 REAR FENDER(E/ED/F/U) H14 F-39-1 REAR FENDER(KO) H15

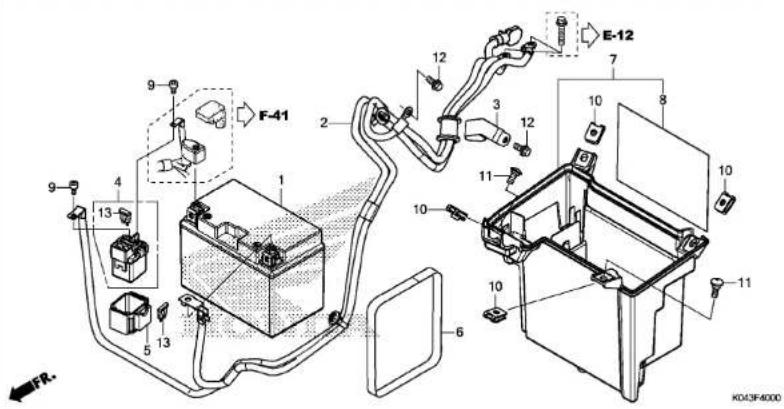

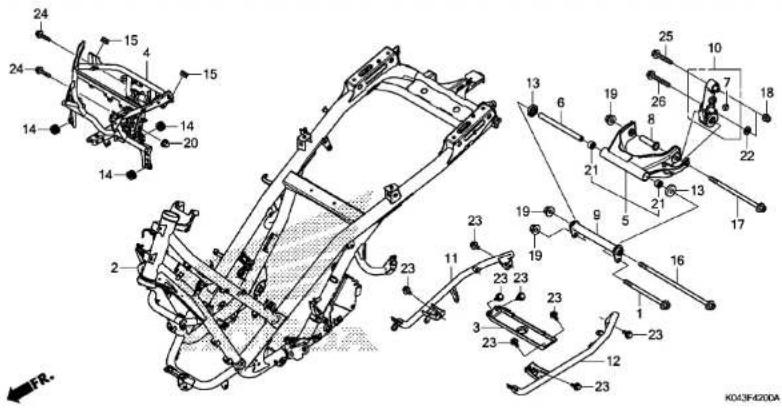

FRAME GROUP C11 F-40 BATTERY H16 F-41 WIRE HARNESS I 1 F-42 FRAME BODY I 3 F-41 RADIATOR I 5 F-46 TOOLS I 7 F-47 CAUTION LABEL F-48 MARK/EMBLEM I 9 HONDA HONDA HONDA

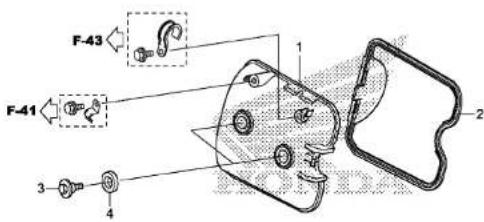

E-2 CYLINDER HEAD COVER D 1
KOADER000		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		1 1111C4 COVER, CYLINDER HEAD ...... 0.62 1111DZ GASKET, CYLINDER HEAD COVER -- 0.6
Ref. No. Part No. Description	Reqd. QTY NSS NSS 300 300A D D Serial No. Parts catalogue code
1 12311-K04-93D COVER, CYLINDER HEAD ...... 1 12 12391-K04-93D GASKET, HEAD COVER ...... 1 13 90002-MEB-67D BOLT, HEAD COVER ...... 2 24 90543-MV9-67D RUBBER, MOUNTING ...... 2 2

Ref.No. Part No. Description		Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
1 12200-K04-931 HEAD COMP., CYLINDER ......	1	1
2 12204-KTW-P00 GUIDE, VALVE(O.S.) ......	4	4
3 12251-KTW-901 GASKET, CYLINDER HEAD ......	1	1
4 16222-MV4-300 NUT, SQUARE, 5MM ......	2	2
5 17111-K04-930 PIPE, IN. ......	1	1
6 17112-KTW-900 INSULATOR, THROTTLE BODY ......	1	1
7 17119-KTW-900 INSULATOR, IN. PIPE ......	1	1
8 17256-KTW-900 BAND, INSULATOR ......	2	2
9 19300-KGF-911 THERMOSTAT ......	1	1
10 19315-KD4-930 COVER, THERMOSTAT ......	1	1
11 31331-KD4-930 STAY, WIRE HARNESS ......	1	1
12 31908-KTW-901 PLUG, SPARK(LMAR8A-9) ......	1	1
13 36531-KD4-931 SENSOR, OXYGEN ......	1	1
14 36533-KD4-931 CORD COMP., OXYGEN SENSOR ......	1	1
15 37870-MBG-003 SENSOR ASSY., WATER TEMP ......	1	1
16 90004-GHB-710 BOLT, FLANGE, 6X40(NSHF) ......	2	2
17 90005-MEJ-000 BOLT, RECESSED, 5X22 ......	2	2
18 90007-MCT-000 BOLT-WASHER, 9X155 ......	4	4
19 90441-7D6-000 WASHER, SEALING, 6MM ......	1	1
20 90454-MC7-000 WASHER, SPECIAL, 12MM ......	1	1
21 91302-KVZ-631 0-RING, IN. PIPE ......	2	2
22 92900-D8022-0E BOLT, STUD, BX22 ......	2	2
23 94301-12200 DOWEL PIN, 12X20 ......	2	2
24 95701-D6012-00 BOLT, FLANGE, 6X12 ......	3	3
25 95701-D6020-00 BOLT, FLANGE, 6X20 ......	2	2
26 95701-D6028-00 BOLT, FLANGE, 6X28 ......	2	2

2013.04.10 E

E-3 CYLINDER HEAD		D 3
	Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
	10 1141B3 COVER, THERMOSTAT 1.0 12 614130 PLUG, SPARK 0.1 13 617121 SENSOR, OXYGEN 0.7 14 6111P8 SUB CORD, OXYGEN SENSOR 0.6 15 6171A9 SENSOR, WATER TEMP 1.0

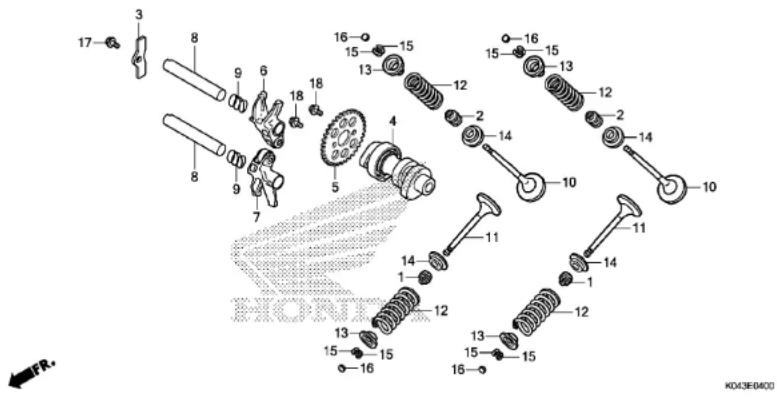

E-4 CAMSHAFT/VALVE
				Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
				4 111118 CAMSHAFT ..... 1.1.INCLUDES: Valve adjustment5 1111Q4 SPROCKET, CAM ..... 0.86 (8,9)1111K8 ARM, INTAKE VALVE ROCKER(ONE) ..... 1.0.INCLUDES: Valve adjustment7 (8,9)1111K9 ARM, EXHAUST VALVE ROCKER(ONE) ..... 1.0.INCLUDES: Valve adjustment1111L8 ARM, VALVE ROCKER :FOR 1 VEHICLE ..... 1.0.INCLUDES: Valve adjustment10 1111NO VALVE, INTAKE(ONE) ..... 3.0.INCLUDES: Refacing1111NOA .Replace all intake valve add 0.211 1111N1 VALVE, EXHAUST(ONE) ..... 3.0.INCLUDES: Refacing1111N1A .Replace all exhaust valve add 0.2111P0 VALVE :FOR 1 VEHICLE ..... 3.6.INCLUDES: Refacing12 (1,2,13,14,15)1111P2 INTAKE VALVE SPRING AND/OR STEM SEAL(ONE) ..... 2.8+ 1111P2A .Replace all intake spring add 0.1
Ref. No. Part No. Description	Reqd. QTY			Parts catalogue code
	NSS 300 D	NSS 300A D	Serial No.
1 12208-MLD-721 SEAL, EX. VALVE STEM(ARAI) ..	2	2
2 12209-MLD-722 SEAL, VALVE STEM(ARAI) .....	2	2
3 12321-KVZ-63D PLATE, CAM STOPPER .....	1	1
4 14100-KD4-93D CAMSHAFT COMP. .....	1	1
5 14321-KD4-93D SPROCKET, CAM(34T) .....	1	1
6 14430-KWR-000 ARM COMP., IN. VALVE ROCKER .	1	1
7 14440-KWR-000 ARM COMP., EX. VALVE ROCKER .	1	1
8 14451-KVZ-63D SHAFT, ROCKER ARM .....	2	2
9 14642-KTW-900 SPRING, ROCKER ARM SIDE .....	2	2
10 14711-KTW-900 VALVE, IN. .....	2	2
11 14721-KWR-000 VALVE, EX. .....	2	2
12 14751-KTW-901 SPRING, VALVE .....	4	4
13 14771-KW3-900 RETAINER, VALVE SPRING .....	4	4
14 14775-KD4-930 SEAT, VALVE SPRING .....	4	4
15 14781-MLO-720 COTTER, VALVE .....	8	8
16 14901-KT7-013 SHIM, TAPPET(1.200) .....	4	4
14902-KT7-013 SHIM, TAPPET(1.225) .....	4	4
14903-KT7-013 SHIM, TAPPET(1.250) .....	4	4
14904-KT7-013 SHIM, TAPPET(1.275) .....	4	4
14905-KT7-013 SHIM, TAPPET(1.300) .....	4	4
14906-KT7-013 SHIM, TAPPET(1.325) .....	4	4
14907-KT7-013 SHIM, TAPPET(1.350) .....	4	4
14908-KT7-013 SHIM, TAPPET(1.375) .....	4	4
14909-KT7-013 SHIM, TAPPET(1.400) .....	4	4
14910-KT7-013 SHIM, TAPPET(1.425) .....	4	4
14911-KT7-013 SHIM, TAPPET(1.450) .....	4	4

E-4 CAMSHAFT/VALVE D 5
	Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
	+12 1111P3 EXHAUST VALVE SPRING AND/OR STEM SEAL(ONE) 2.81111P3A .Replace all exhaust spring add 0.1111Q2 VALVE SPRING AND/OR STEM SEAL :FOR 1 VEHICLE 3.1
Ref. No. Part No. Description Req'd. QTY NSS NSS Serial No. Parts catalogue code
16) 14912-KT7-013 SHIN, TAPPET(1.475) 4 414913-KT7-013 SHIN, TAPPET(1.500) 4 414914-KT7-013 SHIN, TAPPET(1.525) 4 414915-KT7-013 SHIN, TAPPET(1.550) 4 414916-KT7-013 SHIN, TAPPET(1.575) 4 414917-KT7-013 SHIN, TAPPET(1.600) 4 414918-KT7-013 SHIN, TAPPET(1.625) 4 414919-KT7-013 SHIN, TAPPET(1.650) 4 414920-KT7-013 SHIN, TAPPET(1.675) 4 414921-KT7-013 SHIN, TAPPET(1.700) 4 414922-KT7-013 SHIN, TAPPET(1.725) 4 414923-KT7-013 SHIN, TAPPET(1.750) 4 414924-KT7-013 SHIN, TAPPET(1.775) 4 414925-KT7-013 SHIN, TAPPET(1.800) 4 414926-KT7-013 SHIN, TAPPET(1.825) 4 414927-KT7-013 SHIN, TAPPET(1.850) 4 414928-KT7-013 SHIN, TAPPET(1.875) 4 414929-KT7-013 SHIN, TAPPET(1.900) 4 414930-KT7-013 SHIN, TAPPET(1.925) 4 414931-KT7-013 SHIN, TAPPET(1.950) 4 414932-KT7-013 SHIN, TAPPET(1.975) 4 414933-KT7-013 SHIN, TAPPET(2.000) 4 414934-KT7-013 SHIN, TAPPET(2.025) 4 414935-KT7-013 SHIN, TAPPET(2.050) 4 414936-KT7-013 SHIN, TAPPET(2.075) 4 414937-KT7-013 SHIN, TAPPET(2.100) 4 414938-KT7-013 SHIN, TAPPET(2.125) 4 414939-KT7-013 SHIN, TAPPET(2.150) 4 414940-KT7-013 SHIN, TAPPET(2.175) 4 4

E-4 CAMSHAFT/VALVE D 6
Ref.No.	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
			NSS300D	NSS300AD
16)	14941-KT7-013	SHIM, TAPPET(2.200)	4	4
	14942-KT7-013	SHIM, TAPPET(2.225)	4	4
	14943-KT7-013	SHIM, TAPPET(2.250)	4	4
	14944-KT7-013	SHIM, TAPPET(2.275)	4	4
	14945-KT7-013	SHIM, TAPPET(2.300)	4	4
	14946-KT7-013	SHIM, TAPPET(2.325)	4	4
	14947-KT7-013	SHIM, TAPPET(2.350)	4	4
	14948-KT7-013	SHIM, TAPPET(2.375)	4	4
	14949-KT7-013	SHIM, TAPPET(2.400)	4	4
	14950-KT7-013	SHIM, TAPPET(2.425)	4	4
	14951-KT7-013	SHIM, TAPPET(2.450)	4	4
	14952-KT7-013	SHIM, TAPPET(2.475)	4	4
	14953-KT7-013	SHIM, TAPPET(2.500)	4	4
	14954-KT7-013	SHIM, TAPPET(2.525)	4	4
	14955-KT7-013	SHIM, TAPPET(2.550)	4	4
	14956-KT7-013	SHIM, TAPPET(2.575)	4	4
	14957-KT7-013	SHIM, TAPPET(2.600)	4	4
	14958-KT7-013	SHIM, TAPPET(2.625)	4	4
	14959-KT7-013	SHIM, TAPPET(2.650)	4	4
	14960-KT7-013	SHIM, TAPPET(2.675)	4	4
	14961-KT7-013	SHIM, TAPPET(2.700)	4	4
	14962-KT7-013	SHIM, TAPPET(2.725)	4	4
	14963-KT7-013	SHIM, TAPPET(2.750)	4	4
	14964-KT7-013	SHIM, TAPPET(2.775)	4	4
	14965-KT7-013	SHIM, TAPPET(2.800)	4	4
	14966-KT7-013	SHIM, TAPPET(2.825)	4	4
	14967-KT7-013	SHIM, TAPPET(2.850)	4	4
	14968-KT7-013	SHIM, TAPPET(2.875)	4	4
	14969-KT7-013	SHIM, TAPPET(2.900)	4	4
17	90004-GHB-620	BOLT, FLANGE, 6X14(NSHF)	1	1
18	90083-KTW-900	BOLT, KNOCK, 6MM	2	2

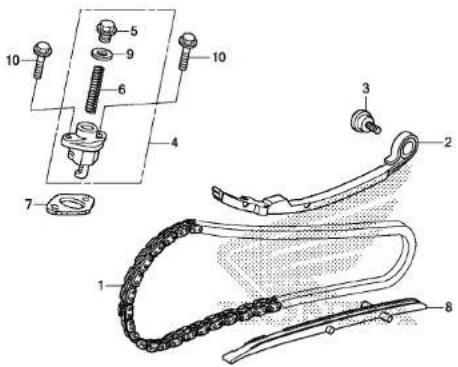

E-5 CAM CHAIN D 7
KO43E0500		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		1 110140 CHAIN, CAM ......2 111130 TENSIONER, CAM CHAIN ......4 (7)111133 LIFTER, TENSIONER ......8 111139 GUIDE, CAM CHAIN ......	3.22.70.62.5
Ref.No. Part No. Description	Reqd. QTYNSS NSS300 300AD Serial No.Parls catalogue code
1 14401-KFB-751 CHAIN, CAM(104L)(BORG WARNER)2 14510-KD4-930 TENSIONER, CAM CHAIN ......3 14531-KTW-900 BOLT, TENSIONER PIVOT ......4 14550-KVZ-631 ADJUSTER, CAM CHAIN ......5 14552-KVZ-631 PLUG, ADJUSTER ......6 14553-KVZ-631 SPRING, CAM CHAIN ADJUSTER ..7 14555-KD4-931 GASKET, CAM CHAIN ADJUSTER ..8 14610-KTW-901 GUIDE, CAM CHAIN ......9 90421-KAB-003 WASHER, SEALING, 11X19X2 ....10 95701-06022-00 BOLT, FLANGE, 6X22 ......	1 11 1111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

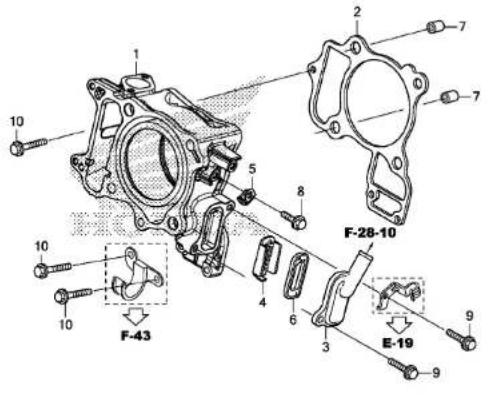

E-6 CYLINDER/REED VALVE D 8
KD03E000			Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
			1 1111A5 CYLINDER 2.92 111102 GASKET, CYLINDER 2.86 (4)314125 VALVE, PAIR CHECK 0.3
Ref.No. Part No. Description Req. QTY NSS NSS Serial No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No	Reqd. QTYNSS NSS Serial No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No	No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.	Parts catalogue code
1 12100-K04-930 CYLINDER COMP. 1 12 12191-KTW-901 GASKET, CYLINDER 1 13 12315-K04-930 COVER, REED VALVE 1 14 12341-MAT-750 PLATE, PORT(AI) 1 15 16106-KW7-900 CLIP B, TUBE 1 16 18601-K04-931 VALVE COMP., REED 1 17 94301-12200 DOWEL PIN, 12X20 2 28 95701-06012-00 BOLT, FLANGE, 6X12 1 19 95701-06020-00 BOLT, FLANGE, 6X20 2 210 95701-06028-00 BOLT, FLANGE, 6X28 3 3

2013.04.10 E

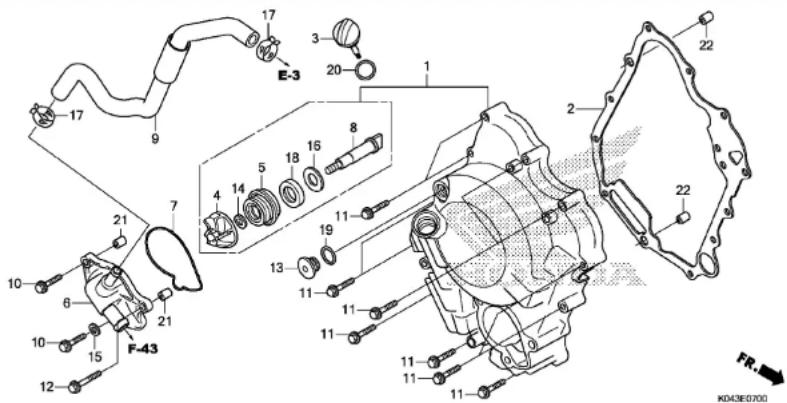

E-7

RIGHT CRANKCASE COVER/WATER PUMP

D 9

E-3 17 3 20 1 22 2 18 16 8 4 14 5 11 19 13 11 11 11 11 11 11 10 6 21 21 F-43 FR. KD43E0700

Ref. No.

L.O.N.

(Relative ref. Number) Description

F.R.T.

1 110159 COVER, CRANKCASE :RIGHT ...... 1.5

2 110158 GASKET, CRANKCASE COVER :RIGHT 1.4

4 114105 IMPELLER, WATER PUMP 1.0

5 114110 MECHANICAL SEAL, WATER PUMP -- 1.7

6 1141BU COVER, WATER PUMP 0.9 7 11/41B1 CASKET HATER RUMP COVER 0.9

7 1141BT GASKET, WATER PUMP COVER ..... 0.9 8 11/157 SHAFT, WATER DUMP ..... 1.6

8 1141E7 SHAFT, WATER PUMP 1.8 9 1141B4 HOSE, WATER BYPASS 1.0

Ref. No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS 300 D	NSS 300A D
1	11300-K04-931 COVER ASSY., R.	1	1
2	11394-KTW-901 GASKET, R. CRANKCASE COVER	1	1
3	15651-K04-930 GAUGE, OIL LEVEL	1	1
4	19215-KTW-900 IMPELLER, WATER PUMP	1	1
5	19217-MAL-300 SEAL, MECHANICAL	1	1
6	19220-K04-930 COVER COMP., WATER PUMP	1	1
7	19226-KTW-900 GASKET, WATER PUMP COVER	1	1
8	19241-K04-930 SHAFT, WATER PUMP	1	1
9	19527-KTW-900 HOSE, WATER BYPASS	1	1
10	90010-K04-930 BOLT, FLANGE, 6X32(NSHF)	2	2
11	90011-K04-930 BOLT, FLANGE, 6X40(NSHF)	11	11
12	90013-K04-930 BOLT, FLANGE, 6X75(NSHF)	1	1
13	90084-KWA-930 CAP, 14MM	1	1
14	90423-KJ9-000 WASHER, 7.2X13X1.2	1	1
15	90441-706-000 WASHER, SEALING, 6MM	1	1
16	90599-767-C10 WASHER, THRUST, 12X23X2	1	1
17	90678-MR1-690 CLIP, HOSE	2	2
18	91202-KTW-901 OIL SEAL, 12X26X5	1	1
19	91303-377-000 O-RING, 13.8X2.5	1	1
20	91307-035-000 O-RING, 18X3	1	1
21	94301-08140 DOWEL PIN, 8X14	2	2
22	94301-10160 DOWEL PIN, 10X16	2	2

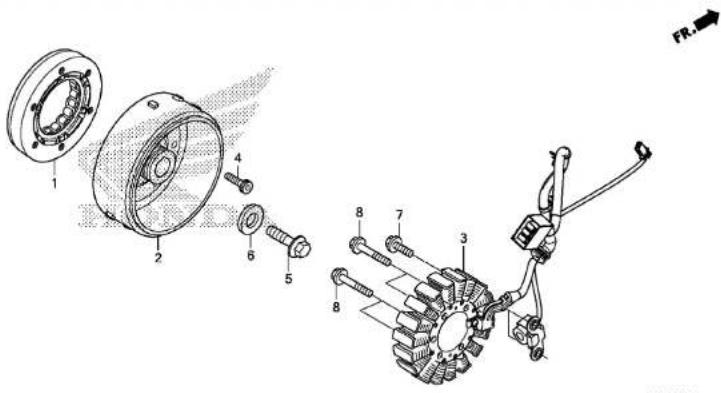

E-8 GENERATOR D10
KD3E000		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		1 612131 OUTER, STARTING CLUTCH ...... 1.82 613105 ROTOR OR FLYWHEEL ...... 1.83 6131A3 STATOR ...... 1.8
Ref.No. Part No. Description	Reqd. QTYNSS NSS300 300AD Serial No.Parls catalogue code
1 28125-HN5-671 OUTER COMP., STARTING CLUTCH 1 12 31110-KD4-931 FLYWHEEL COMP.(MITSUBA) ...... 1 13 31120-KD4-931 STATOR COMP.(MITSUBA) ...... 1 14 90002-KV2-630 BOLT, SOCKET, 6MM ...... 6 65 90023-MV9-670 BOLT, FLANGE, 10MM ...... 1 16 90402-KTW-900 WASHER, 10MM ...... 1 17 96001-06016-00 BOLT, FLANGE, 6X16 ...... 2 28 96001-06032-00 BOLT, FLANGE, 6X32 ...... 4 4

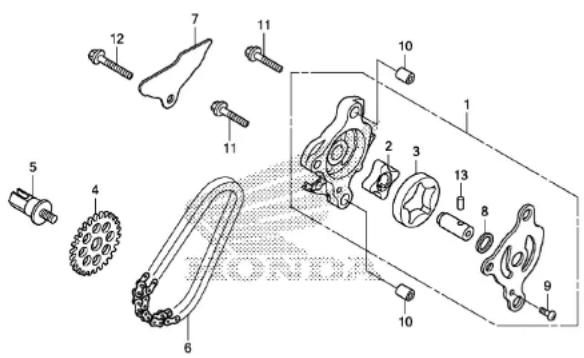

E-11 OIL PUMP D11
K043E1100		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		1 (2,3) 113105 PUMP ASSY., OIL 2.0 4 113111 SPROCKET, OIL PUMP DRIVEN 1.5 6 113122 CHAIN, OIL PUMP DRIVE 3.3
Ref. No. Part No. Description	Reqd. QTY NSS NSS 300 300A Serial No. Parts catalogue code
1 15100-KTW-900 PUMP ASSY., OIL 1 1 2 15121-MG3-000 ROTOR, INNER 1 1 3 15122-MG3-000 ROTOR, OUTER 1 1 4 15134-K04-930 SPROCKET, OIL PUMP DRIVEN(26T) 1 1 5 15135-K04-930 BOLT, SPECIAL OIL PUMP 1 1 6 15141-K04-931 CHAIN, OIL PUMP(54L)(DAIDO) 1 1 7 15711-KTW-900 PLATE, OIL SEPARATOR 1 1 8 90456-333-000 WASHER, THRUST, 11MM 1 1 9 93500-03008-0A SCREW, PAN, 3X8 1 1 10 94301-08140 DOWEL PIN, 8X14 2 2 11 95701-06030-00 BOLT, FLANGE, 6X30 2 2 12 95701-D6050-00 BOLT, FLANGE, 6X50 1 1 13 96220-40158 ROLLER, 4X15.8 1 1

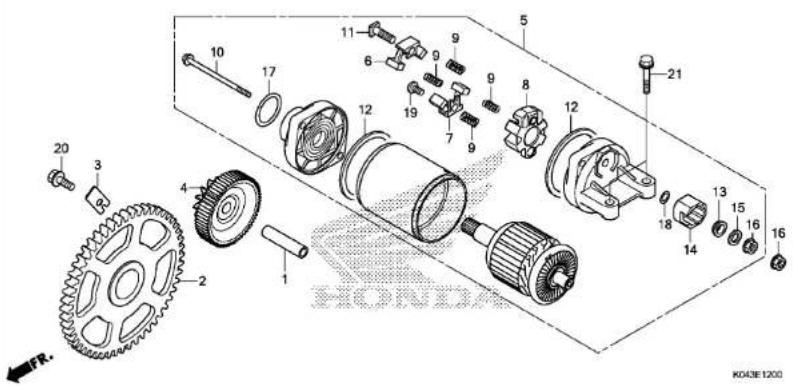

E-12 STARTER MOTOR D12
				Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
				2 612120 GEAR, STARTER DRIVEN ...... 1.64 612125 GEAR, STARTER REDUCTION ...... 1.65 (17)612105 MOTOR, STARTING ...... 0.96 (7,8,9,12)6121A4 TERMINAL, BRUSH(STARTER) ...... 1.0.NOTE: Same time for two units
Ref. No. Part No. Description	Reqd. QTY			Parts catalogue code
	NSS300D	NSS300AD	Serial No.
1 28102-ME9-000 PIN, 10X44 ......	1	1
2 28110-K04-93D GEAR COMP., STARTER DRIVEN(52T)	1	1
3 28115-KTW-90D GUIDE, STARTING DRIVEN GEAR ·	1	1
4 28131-K04-93D GEAR, STARTER REDUCTION(62T/13T)	1	1
5 31200-KTW-B01 MOTOR ASSY., STARTER ......	1	1
6 31201-MEW-921 BRUSH SET A, CARBON ......	1	1
7 31202-MEW-921 BRUSH SET B, CARBON ......	1	1
8 31203-MEW-921 HOLDER, BRUSH ......	1	1
9 31204-MEW-921 SPRING, CARBON BRUSH ......	4	4
10 31205-HP5-601 BOLT, SETTING ......	2	2
11 31206-MEW-921 BOLT, TERMINAL ......	1	1
12 31207-HP5-601 RING ......	2	2
13 31208-MEW-921 INSULATOR ......	1	1
14 31209-MEW-921 STOPPER, TERMINAL ......	1	1
15 31210-MEW-921 WASHER ......	1	1
16 90071-MBO-000 NUT-WASHER, 6MM ......	2	2
17 91309-425-003 O-RING, 24.4X3.1(ARAI) ......	1	1
18 91320-MBO-000 O-RING, 4X2 ......	1	1
19 93892-05012-08 SCREW-WASHER, 5X12 ......	1	1
20 95701-D6014-00 BOLT, FLANGE, 6X14 ......	1	1
21 95701-D6025-00 BOLT, FLANGE, 6X25 ......	2	2

Ref.No. Part No. Description		Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
1 11341-K04-931 COVER, L. ......	1	1
2 11350-K04-930 COVER COMP., L. SIDE OUTER ..	1	1
3 11355-KWN-700 COLLAR, L. SIDE OUTER COVER .	3	3
4 11356-KWN-700 RUBBER, L. SIDE OUTER COVER .	3	3
5 11395-KTW-900 GASKET, L. CRANKCASE COVER ..	1	1
6 19411-K04-930 DUCT COMP., BELT COVER ......	1	1
7 19412-KTW-900 ELEMENT, BELT COVER DUCT ......	1	1
8 19414-KTW-901 CAP, DUCT COVER ......	1	1
9 19415-KTW-900 SEAL, BELT COVER DUCT ......	1	1
10 19416-KEY-900 COLLAR ......	3	3
11 32112-K04-930 PROTECTOR, SPEED SENSOR ......	1	1
12 90001-K04-930 BOLT, SOCKET, 6X18 ......	3	3
13 90002-K04-930 BOLT, SOCKET, 6X22 ......	1	1
14 90004-GHB-710 BOLT, FLANGE, 6X40(NSHF) ......	2	2
15 90004-GHB-730 BOLT, FLANGE, 6X50(NSHF) ......	1	1
16 90006-K04-930 BOLT, SPECIAL, 6X18 ......	3	3
17 90007-K04-930 BOLT, FLANGE, 6X32(NSHF) ......	8	8
18 90085-K04-930 BOLT, SPECIAL, 6X22 ......	3	3
19 91008-K04-931 BEARING, RADIAL BALL, 6004UU	1	1
20 93903-34480 SCREW, TAPPING, 4X16 ......	1	1
21 94301-D8140 DOWEL PIN, 8X14 ......	2	2

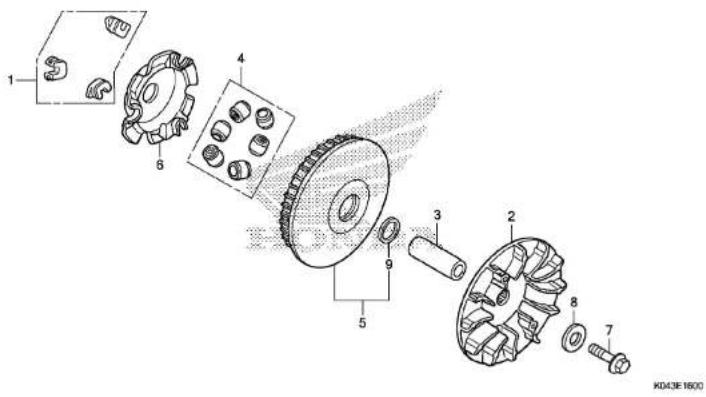

E-16 DRIVE FACE D14
		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		2 2111A0 FACE, DRIVE 0.64 (1,6)2111A4 ROLLER, WEIGHT 0.65 2111A1 FACE, MOVABLE DRIVE 0.6
Ref.No. Part No. Description	Reqd. QTYNSS NSS300 300AD Serial No.	Parts catalogue code
1 22011-K04-930 PIECE SET, SLIDE 1 12 22102-KTW-900 FACE, DRIVE 1 13 22104-KSV-J20 BOSS B, DRIVE FACE 1 14 22123-KVZ-640 ROLLER SET, WEIGHT 1 15 22130-KTW-901 FACE COMP. B, MOVABLE DRIVE 1 16 22131-KTW-900 PLATE, RAMP 1 17 90023-MV9-670 BOLT, FLANGE, 10MM 1 18 90401-KTW-900 WASHER, 10.5X29X4 1 19 91203-KSV-J21 OIL SEAL, 30X37X3.5 1 1

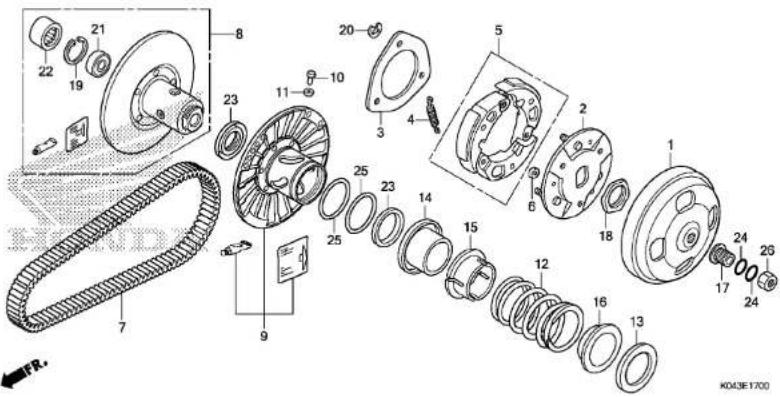

E-17DRIVEN FACED15
			Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
			1 2121A0 OUTER, CLUTCH 0.55 (2,4)2121A6 WEIGHT SET, CLUTCH 1.07 2111B2 BELT, DRIVE 0.68 (10,11,14)2111A2 FACE, DRIVEN 0.99 (23,25)2111A3 FACE, MOVABLE DRIVEN 1.012 (15,16)2111A7 SPRING, DRIVEN FACE 0.822 (21)2111A8 BEARING, DRIVEN FACE 1.12111A8A .Replace 1 bearing add 0.1
Ref.No.	Part No. Description	Reqd. QTY		Serial No.
		NSS300D	NSS300AD
1	22100-KFG-000 OUTER COMP., CLUTCH	1	1
2	22350-KFG-000 PLATE COMP., DRIVE	1	1
3	22361-KFG-000 PLATE, CLUTCH SIDE	1	1
4	22401-KEY-900 SPRING, CLUTCH	3	3
5	22535-KVZ-630 WEIGHT SET, CLUTCH	1	1
6	22804-GB2-000 RUBBER, CLUTCH DAMPER	3	3
7	23100-K04-931 BELT, DRIVE(MITSUBOSHI)	1	1
8	23205-KTW-900 FACE SET, DRIVEN	1	1
9	23224-KTW-900 FACE SET, MOVABLE DRIVEN	1	1
10	23225-KM1-010 PIN, ROLLER GUIDE	4	4
11	23226-KM1-010 ROLLER, GUIDE	4	4
12	23233-KTW-900 SPRING, DRIVEN FACE	1	1
13	23236-KSV-J10 SEAT, DRIVEN FACE SPRING	1	1
14	23237-KSV-J10 COLLAR, SEAL	1	1
15	23238-KSV-J10 COLLAR A, SPRING GUIDE	1	1
16	23239-KSV-J10 COLLAR B, SPRING GUIDE	1	1
17	23415-KVZ-K10 COLLAR, DRIVE SHAFT	1	1
18	90202-KM1-000 NUT, SPECIAL, 30MM	1	1
19	90603-KSV-J10 CIRCLIP, INTERNAL, 28MM	1	1
20	90605-166-720 CIRCLIP, 7MM	3	3
21	91002-GA7-701 BEARING, RADIAL BALL, 6902U(NTN)	1	1
	91002-GA7-702 BEARING, RADIAL BALL, 6902U(FUJIKOSHI)	1	1
22	91002-KPB-003 BEARING, NEEDLE, 25x33x18 ...	1	1

E-17DRIVEN FACED16
Ref. No. Part No. Description	Reqd. QTY		Parts catalogue code
	NSS300D	NSS300AD Serial No.
23 91211-KM1-005 SEAL, DRIVEN FACE, 40X47X4	2	2
24 91301-K04-930 O-RING, 16.5X1.5	2	2
25 91352-KM1-003 O-RING, 47X1.9(NOK)	2	2
91352-KM1-005 O-RING, 47X1.9(ARAI)	2	2
26 94001-12200-0S NUT, HEX., 12MM	1	1

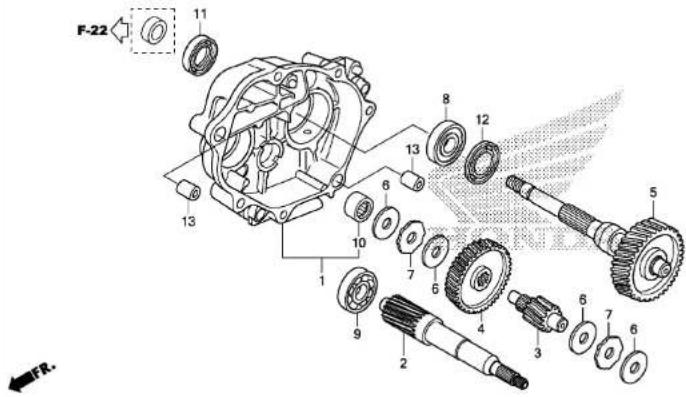

E-17-10 TRANSMISSION E 1
			Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
			1 2101A2 CASE, TRANSMISSION ...... 1.62 2101E9 SHAFT, DRIVE ...... 1.63 210142 COUNTERSHAFT, TRANSMISSION ... 1.34 2101A5 GEAR, COUNTER ...... 1.35 210170 SHAFT, FINAL GEAR ...... 1.38 (11,12)2101E6 BEARING, FINAL GEAR SHAFT :RIGHT ...... 1.52101J0 BEARING, FINAL GEAR SHAFT :BOTH ...... 1.69 2101F1 BEARING, DRIVESHAFT :RIGHT ... 1.52101J1 BEARING, DRIVESHAFT :BOTH .... 1.710 2101C8 BEARING, COUNTERSHAFT :RIGHT - 1.52101C9 BEARING, COUNTERSHAFT :BOTH .. 1.6
K043E1710
Ref.No.	Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 300AD D Serial No.Parls catalogue code
1	21300-K04-930 CASE COMP., MISSION ......	1		1
2	23411-K04-930 SHAFT, DRIVE(18T) ......	1		1
3	23421-K04-930 SHAFT, COUNTER(12T) ......	1		1
4	23422-K04-930 GEAR, COUNTER(44T) ......	1		1
5	23430-K04-930 GEAR COMP., FINAL(37T) ......	1		1
6	90411-KTW-B00 WASHER, 14X42X1 ......	4		4
7	90412-K04-930 WASHER, SIDE, 14MM ......	2		2
8	91006-KAB-004 BEARING, RADIAL BALL,6205-2NSG	1		1
9	91007-K04-931 BEARING, RADIAL BALL, 6302 ...	1		1
10	91106-KM1-013 BEARING, NEEDLE, 14X22X16 ...	1		1
11	91251-KSV-J11 DUST SEAL, 34X46X8 ......	1		1
12	91253-KM1-0D3 OIL SEAL, 34X52X5(NOK) ......	1		1
13	94301-12160 PIN A, DOWEL, 12X16 ......	2		2
Ref.No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
1	11100-K04-932	CRANKCASE COMP., R.	1	1
2	11103-K04-930	BUSH, R. OUTER ENGINE HANGER	1	1
3	11104-K04-930	BUSH, L. OUTER ENGINE HANGER	1	1
4	11105-KTW-900	BUSH, INNER ENGINE HANGER ...	2	2
5	11110-KTW-901	VALVE COMP., REED	1	1
6	11200-K04-931	CRANKCASE COMP., L.	1	1
7	11205-KTW-900	GASKET, OIL PATH	1	1
8	13312-KTW-901	BEARING A, CRANKSHAFT R. SIDE(BLUE)	2	2
	13313-KTW-901	BEARING B, CRANKSHAFT R. SIDE(BLACK)	2	2
	13314-KTW-901	BEARING C, CRANKSHAFT R. SIDE(BROWN)	2	2
	13315-KTW-901	BEARING D, CRANKSHAFT R. SIDE(GREEN)	2	2
	13316-KTW-901	BEARING E, CRANKSHAFT R. SIDE(BLUE/BLUE)(O.S.)	(2)	(2)
	13317-KTW-901	BEARING F, CRANKSHAFT R. SIDE(BLACK/BLACK)(O.S.)	(2)	(2)
	13318-KTW-901	BEARING G, CRANKSHAFT R. SIDE(BROWN/BROWN)(O.S.)	(2)	(2)
	13319-KTW-901	BEARING H, CRANKSHAFT R. SIDE(GREEN/GREEN)(O.S.)	(2)	(2)
9	13322-KTW-901	BEARING A, CRANKSHAFT L. SIDE(BLUE)	2	2
	13323-KTW-901	BEARING B, CRANKSHAFT L. SIDE(BLACK)	2	2

2013.04.10 E

Ref.No. Part No. Description		Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
(9) 13324-KTW-901 BEARING C, CRANKSHAFT L. SIDE(BROWN) 2 213325-KTW-901 BEARING D, CRANKSHAFT L. SIDE(GREEN) 2 213326-KTW-901 BEARING E, CRANKSHAFT L. SIDE(BLUE/BLUE)(O.S.) (2) (2)13327-KTW-901 BEARING F, CRANKSHAFT L. SIDE(BLACK/BLACK)(O.S.) (2) (2)13328-KTW-901 BEARING G, CRANKSHAFT L. SIDE(BROWN/BROWN)(O.S.) (2) (2)13329-KTW-901 BEARING H, CRANKSHAFT L. SIDE(GREEN/GREEN)(O.S.) (2) (2)10 15153-HN7-000 STRAINER, OIL ........ 1 111 15155-300-000 COLLAR, O-RING ........ 3 312 15155-HPO-ADO COLLAR, O-RING ........ 2 213 15220-KTW-900 VALVE ASSY., RELIEF ........ 1 114 15231-413-020 VALVE, RELIEF ........ 1 115 15410-MFJ-D01 CARTRIDGE, OIL FILTER(TOYO ROKI) 1 116 15421-K04-930 SCREEN, OIL FILTER ........ 1 117 28810-R90-013 PICK UP ASSY.(TOYO) ........ 1 118 32105-K04-930 SUB CORD, ENGINE ........ 1 -19 35500-MEH-661 SWITCH ASSY., OIL PRESSURE(DENSO) 1 120 38510-K04-971 SENSOR, RR. WHEEL SPEED ....... - 1
E-19 CRANKCASE E 4
Ref. No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
21	38515-KTW-900 GUIDE, OIL PRESSURE SWITCH	CORD	1	1
22	52108-KTW-B00 BUSH, DAMPER	1	1
23	90002-KTW-900 BOLT, DRAIN PLUG, 12MM	1	1
24	90002-PA6-003 BOLT-WASHER, 4X8(DENSO)	1	1
25	90019-MGZ-J00 BOSS, OIL FILTER	1	1
26	90474-333-000 WASHER, SEALING, 8MM	3	3
27	90601-K04-930 CIRCLIP, INTERNAL, 65	1	1
28	91005-KPB-003 BEARING, RADIAL BALL, 6205SPL	1	1
29	91102-GE1-711 BEARING, RADIAL BALL, 6204(TOYO)	1	1
30	91105-KTW-901 BEARING, NEEDLE, 14X22X20	1	1
31	91201-K04-931 OIL SEAL, 33X64X7	1	1
32	91251-KPB-003 OIL SEAL, 25X35X5	1	1
33	91303-K04-930 O-RING, 14.8X2.4(NOK)	1	1
34	91304-K04-930 O-RING, 15.8X2.4	4	4
35	91305-K04-930 O-RING, 16.5X2.5	2	2
36	91307-K04-930 O-RING, 9.8X2.4	1	1
37	91309-PX4-003 O-RING, 16X2.1(NOK)	1	1
38	91313-K04-930 O-RING, 14.7X2.2	1	1
39	94101-05800 WASHER, PLAIN, 5MM	1	1
40	94109-12000 WASHER, DRAIN PLUG, 12MM	1	1
41	94301-10160 DOWEL PIN, 10X16	3	3
42	94520-12000 CIRCLIP, INTERNAL, 12MM	1	1
43	94601-16000 CLIP, PISTON PIN, 16MM	1	1
44	95002-41000-08 CLAMP, TUBE(D10)	1	1
45	95005-55120-20 TUBE, 5.3X120(95005-550D1-20M)	1	1
46	95701-D6016-00 BOLT, FLANGE, 6X16	1	1
47	95701-D6055-00 BOLT, FLANGE, 6X55	6	6
48	95701-D6080-00 BOLT, FLANGE, 6X80	6	6
49	95701-D8012-00 BOLT, FLANGE, 8X12	2	2
50	95701-D8025-00 BOLT, FLANGE, 8X25	1	1
51	95701-D8060-00 BOLT, FLANGE, 8X60	7	7
52	96001-D6016-07 BOLT, FLANGE, 6X16	-	2
53	96220-30178 ROLLER, 3X17.8	1	1

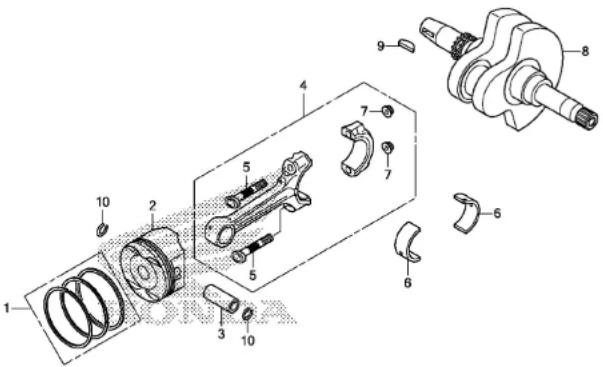

E-20 CRANK SHAFT/PISTON E 5
K043E2000		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		2 (1,3,10)111103 PISTON RING AND/OR PISTON(ONE) 3.04 (6)110145 ROD, CONNECTING(ONE)......5.1INCLUDES: Engine removal and installation8 1101B5 CRANKSHAFT......5.7INCLUDES: Engine removal and installation
Ref. No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 D 300A D	Parts catalogue code
1 13011-KTW-90D RING SET, PISTON(STD.) ...... 1 113021-KTW-90D RING SET, PISTON(O.S. 0.25) . (1) (1)13031-KTW-90D RING SET, PISTON(O.S. 0.5D) . (1) (1)2 13101-K04-93D PISTON(STD) ...... 1 113102-K04-93D PISTON(O.S. 0.25) ...... (1) (1)13103-K04-93D PISTON(O.S. 0.5D) ...... (1) (1)3 13111-K04-93D PIN, PISTON ...... 1 14 13210-KTW-901 ROD ASSY., CONNECTING ...... 1 15 13213-ML7-020 BOLT, CONNECTING ROD ...... 2 2
6 13214-MM4-000 BEARING A, CONNECTING ROD (BLUE) 2 213215-MM4-000 BEARING B, CONNECTING ROD (BLACK) 2 213216-MM4-000 BEARING C, CONNECTING ROD (BROWN) 2 213217-MM4-000 BEARING D, CONNECTING ROD (GREEN) 2 213218-MM4-000 BEARING E, CONNECTING ROD (YELLOW) 2 27 13215-ML7-000 NUT, CONNECTING ROD ...... 2 28 13310-KTW-900 CRANKSHAFT ...... 1 19 90741-HN5-670 KEY, SPECIAL WOODRUFF, 25X14 1 110 94601-17000 CLIP, PISTON PIN, 17MM ...... 2 2E-22 THROTTLE BODY E 6
		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		1 (4)617115 SENSOR, THROTTLE ...... 0.67 311132 BODY ASSY., THROTTLE ...... 0.78 311130 BODY, THROTTLE ...... 0.89 3111N5 VALVE, IDLE AIR CONTROL ...... 0.612 (13,14,16)311145 INJECTOR, FUEL ...... 0.7
Ref.No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 D 300A D		Parts catalogue code
1 16060-GFZ-003 SENSOR SET ......	1	1
2 16081-KPH-701 SCREW, TORX, 5X8.7 ......	2	2
3 16082-KPH-701 SCREW, TORX, 5X17 ......	1	1
4 16083-KTR-941 O-RING, THROTTLE BODY ......	1	1
5 16169-K04-931 STAY, WIRE ......	1	1
6 16196-KTW-901 STAY, HARNESS CLAMPER ......	1	1
7 16400-K04-931 THROTTLE BODY ASSY.(GQBHA A)	1	1
8 16410-K04-931 BODY SET ......	1	1
9 16430-KTW-911 VALVE ASSY., IDLE AIR CONTROL	1	1
10 16432-GFM-901 PLATE, IDLE AIR CONTROL VALVE	1	1
11 16433-HN8-A61 SCREW, TORX ......	2	2
12 16450-MGC-021 INJECTOR ASSY., FUEL ......	1	1
13 16472-KPC-050 RING, SEAL ......	1	1
14 17565-K04-930 JOINT COMP., INJECTOR ......	1	1
15 17571-K04-930 STAY, HARNESS ......	1	1
16 91301-GGL-J01 O-RING, 6.3X2.2 ......	1	1
17 93500-05010-1H SCREW, PAN, 5X10 ......	1	1
18 93892-05012-18 SCREW-WASHER, 5X12 ......	1	1
19 95701-06025-00 BOLT, FLANGE, 6X25 ......	2	2

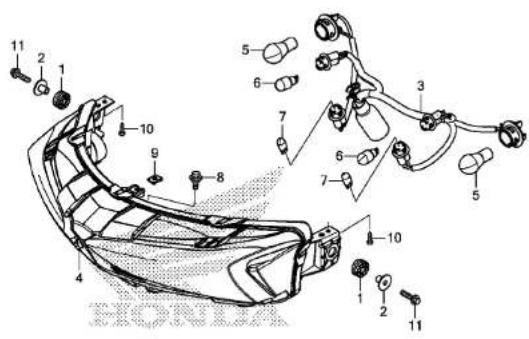

F-1 HEADLIGHT F 1
		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		1 6161H5 SUB CORD, HEADLIGHT ...... 0.72 6161A7 HEADLIGHT UNIT ...... 1.14 (3)6161F7 BULB, HEADLIGHT :LEFT ...... 0.16161F8 BULB, HEADLIGHT :RIGHT ...... 0.16161H4 BULB, HEADLIGHT :BOTH ...... 0.1
Ref. No. Part No. Description Reqd. QTY NSS NSS Serial No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No
1 32102-K04-930 SUB CORD, HEADLIGHT ...... 1 12 33102-K04-931 HEADLIGHT UNIT ...... 1 13 33112-KWR-003 COVER, RUBBER ...... 2 24 34901-KZL-841 BULB, HEADLIGHT(12V 35/35W) . 2 25 90123-K04-930 BOLT, HEADLIGHT(6MM) ...... 1 16 93404-06014-00 BOLT-WASHER, 6X14 ...... 2 27 93903-35320 SCREW, TAPPING, 5X16 ...... 4 4
Ref. No. Part No. Description	Reqd. QTY			Parts catalogue code
	NSS 300 D	NSS 300A D	Serial No.
1 37100-K04-911 METER ASSY., COMBINATION(MPH/KPH) 1 - E37100-K04-931 METER ASSY., COMBINATION(KPH) 1 - ED,F37100-K04-701 1 - KO37100-K04-A31 1 - U37100-K04-951 METER ASSY., COMBINATION(MPH/KPH) - 1 - E37100-K04-971 METER ASSY., COMBINATION(KPH) - 1 - ED,F37100-K04-711 1 - KO37100-K04-A81 1 - U2 37110-K04-911 METER COMP., COMBINATION 1 - E37110-K04-931 1 - ED,F37110-K04-701 1 - KO37110-K04-A31 1 - U37110-K04-951 1 - E37110-K04-971 1 - ED,F37110-K04-711 1 - KO37110-K04-A81 1 - U3 37202-KSV-J20 ROD, SWITCH EXTENSION 2 24 37211-KSV-J20 CASE, LOWER 1 15 37212-KSV-J21 LENS ASSY. 1 16 37213-K04-931 PLATE ASSY., REFLECTING 1 17 93903-22420 SCREW, TAPPING, 3X16 21 218 93903-35320 SCREW, TAPPING, 5X16 4 4

F-3 MIRROR F 3
		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		NO INFORMATION········
Ref. No. Part No. Description Req'd. QTY NSS NSS Serial No. No. D D Parls catalogue code
1 88114-KWN-900 BOOT, MIRROR········2 22 88115-KWN-900 CAP, LOCK NUT········2 23 8821D-K04-930 MIRROR COMP., R.········1 14 8822D-K04-930 MIRROR COMP., L.········1 15 90103-KZR-701 BOLT B, ADAPTER, 10MM········2 26 90302-KZR-701 NUT, HEX., 10MM(LEFT HAND THREAD) 2 2

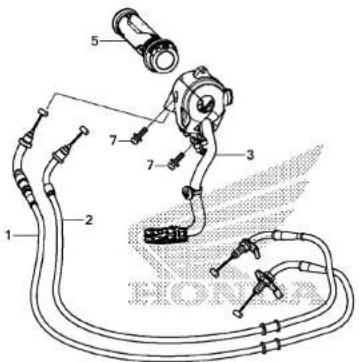

F-4 SWITCH/CABLE F 4
KD03F0400			Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
			1 (2)811100 CABLE, THROTTLE ...... 2.2NOTE: Same time for two units3 615120 SWITCH, STARTER KILL ...... 1.34 615118 SWITCH, WINKER ...... 1.25 810150 GRIP, THROTTLE ...... 0.26 8101CO GRIP, HANDLE :LEFT ...... 0.1
Ref.No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 300A D D		Paris catalogue code
1 17910-K04-931 CABLE COMP. A, THROTTLE ...... 1 12 17920-K04-931 CABLE COMP. B, THROTTLE ...... 1 13 35130-K04-931 SWITCH ASSY., ENGINE STOP ... 1 14 35200-K04-931 SWITCH ASSY., WINKER ...... 1 135200-K04-901 ...... 1 15 53140-KYJ-900 GRIP COMP., THROTTLE ...... 1 16 53166-KYJ-900 GRIP, L. HANDLE ...... 1 17 93892-05D20-07 SCREW-WASHER, 5X20 ...... 4 4

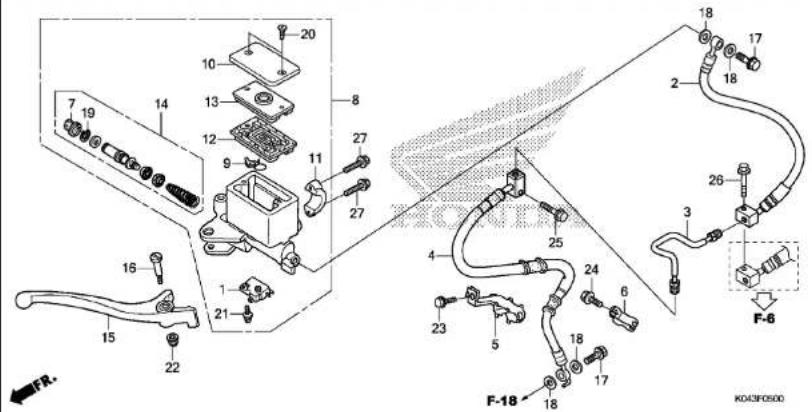

F-5

FRONT BRAKE MASTER CYLINDER(NSS300)

F 5

Technical diagram of a mechanical assembly with numbered components and labeled parts like F-6, F-18, and FR.

Ref.No.	L.O.N.	(Relative ref. Number)Description	F.R.T.
1	6151B2	SWITCH, FRONT STOP ......	0.1
	6151B6	SWITCH, STOP :BOTH ......	0.2
2	712127	HOSE A, FRONT BRAKE ......	1.2
		. INCLUDES: Bleed brakes
3	7121C8	PIPE B, FRONT BRAKE ......	1.2
		. INCLUDES: Bleed brakes
4	7121V3	HOSE E, FRONT BRAKE ......	1.3
		. INCLUDES: Bleed brakes
8	712105	CYLINDER, FRONT BRAKE MASTER -	0.4
		. INCLUDES: Bleed brakes
12	712166	DIAPHRAGM, FRONT BRAKE MASTERCYLINDER ......	0.
14	7121G9	PISTON SET, FRONT BRAKE MASTER......	0.4
		. INCLUDES: Bleed brakes
15	8101C7	LEVER, HANDLE :RIGHT ......	0.1
	8101F5	LEVER, HANDLE :BOTH ......	0.2

Ref. No.	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
			NSS 300 D	NSS 300A D
1	35340-MGS-D31	SWITCH ASSY., FR. STOP ......	1	-
2	45125-KD4-931	HOSE COMP. A, FR. BRAKE ......	1	-
3	45126-KD4-930	PIPE COMP. B, FR. BRAKE ......	1	-
4	45128-KD4-931	HOSE COMP. E, FR. BRAKE ......	1	-
5	45135-KVZ-630	CLAMPER A, BRAKE HOSE ......	1	-
6	45161-KVZ-630	CLAMPER B, BRAKE HOSE ......	1	-
7	45504-410-003	BOOT COMP. ......	1	-
8	45510-KD4-931	CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN)	1	-
9	45512-MA6-006	PROTECTOR ......	1	-
10	45513-KK1-771	CAP, MASTER CYLINDER ......	1	-
11	45517-166-006	HOLDER, MASTER CYLINDER ......	1	-
12	45520-MG7-006	DIAPHRAGM ......	1	-
13	45521-HA2-006	PLATE, DIAPHRAGM ......	1	-
14	45530-KVY-911	CYLINDER SET, MASTER ......	1	-
15	53175-KD4-931	LEVER, R. HANDLE ......	1	-
16	90114-MA5-671	BOLT, HANDLE LEVER PIVOT ......	1	-
17	90145-MS9-612	BOLT, OIL, 10X22 ......	2	-
18	90545-300-000	WASHER, OIL BOLT ......	4	-
19	90651-MA5-671	CIRCLIP ......	1	-
20	93600-04012-16	SCREW, FLAT, 4X12 ......	2	-
21	93893-04012-17	SCREW-WASHER, 4X12 ......	1	-
22	94050-06000 NUT, FLANGE, 6MM ......	1	-
23	95701-06012-07	BOLT, FLANGE, 6X12 ......	1	-
24	95701-06016-07	BOLT, FLANGE, 6X16 ......	1	-

F-5

FRONT BRAKE MASTER CYLINDER(NSS300)

F 6

Technical diagram of automotive component assembly with numbered parts and labeled connectors

Ref.No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
25	95701-06025-08 BOLT, FLANGE, 6x25	1	-
26	95701-06040-08 BOLT, FLANGE, 6x40	1	-
27	96001-06022-07 BOLT, FLANGE, 6x22	2	-

2013.04.10 E

Ref. No. Part No. Description Reqd. QTY NSS NSS 300 300A D D Serial No. Parts catalogue code
1 35340-MGS-031 SWITCH ASSY., FR. STOP ...... 2 45125-K04-971 HOSE COMP. A, FR. BRAKE ...... 3 45126-K04-970 PIPE COMP. B, FR. BRAKE ...... 4 45127-K04-970 PIPE COMP. C, FR. BRAKE ...... 5 45128-K04-931 HOSE COMP. E, FR. BRAKE ...... 6 45135-KVZ-660 CLAMPER COMP. A, BRAKE HOSE ... 7 45160-KVZ-660 CLAMPER COMP. B, BRAKE HOSE ... 8 45504-410-003 BOOT COMP. ...... 9 45510-K04-931 CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) - 1 10 45512-MA6-006 PROTECTOR ...... 11 45513-KK1-771 CAP, MASTER CYLINDER ...... 12 45517-166-006 HOLDER, MASTER CYLINDER ...... 13 45520-MG7-006 DIAPHRAGM ...... 14 45521-HA2-006 PLATE, DIAPHRAGM ...... 15 45530-KVY-911 CYLINDER SET, MASTER ...... 16 53175-K04-931 LEVER, R. HANDLE ...... 17 90114-MA5-671 BOLT, HANDLE LEVER PIVOT ...... 18 90145-MS9-612 BOLT, OIL, 10X22 ...... 19 90545-300-000 WASHER, OIL BOLT ...... 20 90651-MA5-671 CIRCLIP ...... 21 93600-D4012-16 SCREW, FLAT, 4X12 ...... 22 93893-D4012-17 SCREW-WASHER, 4X12 ...... 23 94050-D6000 NUT, FLANGE, 6MM ...... 24 95701-D6012-07 BOLT, FLANGE, 6X12 ......	Ref. L.O.N. (Relative ref. Number) No. Description F.R.T. 1 6151B2 SWITCH, FRONT STOP ...... 6151B6 SWITCH, STOP :BOTH ...... 2 712127 HOSE A, FRONT BRAKE ...... .INCLUDES: Bleed brakes 3 7121C8 PIPE B, FRONT BRAKE ...... .INCLUDES: Bleed brakes 4 7121C9 PIPE C, FRONT BRAKE ...... .INCLUDES: Bleed brakes 5 7121V3 HOSE E, FRONT BRAKE ...... .INCLUDES: Bleed brakes 9 712105 CYLINDER, FRONT BRAKE MASTER . . . .INCLUDES: Bleed brakes 13 7121G6 DIAPHRAGM, FRONT BRAKE MASTER CYLINDER ...... 15 7121G9 PISTON SET, FRONT BRAKE MASTER . . . .INCLUDES: Bleed brakes 16 8101C7 LEVER, HANDLE :RIGHT ...... 8101F5 LEVER, HANDLE :BOTH ...... 0.1 0.4 0.1 0.2

2013.04.10 E

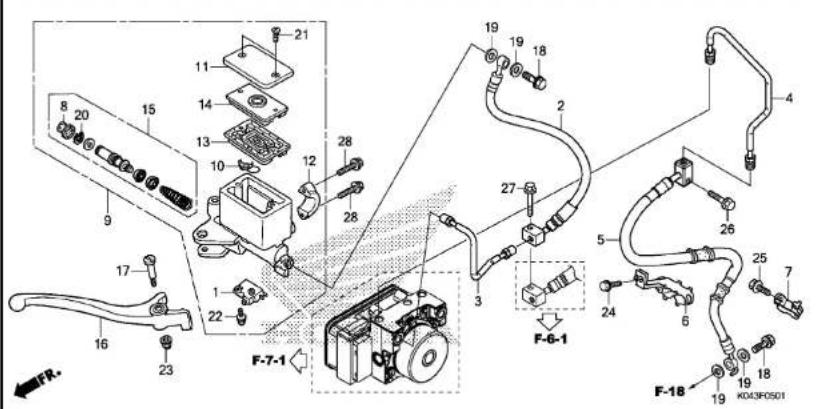

F-5-1

FRONT BRAKE MASTER CYLINDER(NSS300A)

F 8

Technical diagram of automotive component assembly with numbered parts and labeled parts like F-7-1, F-6-1, and KDO3F0501.

Ref.No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300AD
25	95701-D6016-07 BOLT, FLANGE, 6X16	-	1
26	95701-D6025-08 BOLT, FLANGE, 6X25	-	1
27	95701-D6040-08 BOLT, FLANGE, 6X40	-	1
28	96001-D6022-07 BOLT, FLANGE, 6X22	-	2

2013.04.10 E

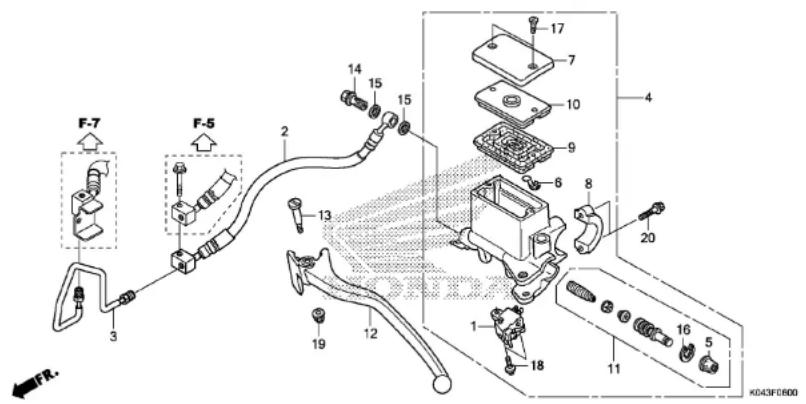

REAR BRAKE MASTER CYLINDER(NSS300)

F 9

						Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
						1 6151B3 SWITCH, REAR STOP :LEVER SIDE 0.16151B6 SWITCH, STOP :BOTH ...... 0.22 712180 HOSE A, REAR BRAKE ...... 1.4.INCLUDES: Bleed brakes3 7121D8 PIPE B, REAR BRAKE ...... 1.34 712125 CYLINDER, REAR BRAKE MASTER .. .INCLUDES: Bleed brakes9 7121G7 DIAPHRAGM, REAR BRAKE MASTERCYLINDER ...... 0.111 7121H0 PISTON SET, REAR BRAKE MASTER 0.6.INCLUDES: Bleed brakes12 8101C6 LEVER, HANDLE :LEFT ...... 0.18101F5 LEVER, HANDLE :BOTH ...... 0.2
Ref.No.	Part No. Description	Reqd. QTYNSS NSS Serial No.NSS D 300A D				Parts catalogue code
1	35340-KFG-000 SWITCH ASSY., FR. STOP ......	1	-
2	43311-K04-931 HOSE COMP. A, RR. BRAKE ......	1	-
3	43312-K04-930 PIPE COMP. B, RR. BRAKE ......	1	-
4	43510-K04-931 CYLINDER SUB ASSY., RR. BRAKEMASTER(NISSIN)	1	-
5	45504-410-003 BOOT COMP. ......	1	-
6	45512-MA6-006 PROTECTOR ......	1	-
7	45513-KK1-771 CAP, MASTER CYLINDER ......	1	-
8	45517-166-006 HOLDER, MASTER CYLINDER ......	1	-
9	45520-MG7-006 DIAPHRAGM ......	1	-
10	45521-HA2-006 PLATE, DIAPHRAGM ......	1	-
11	45530-471-831 CYLINDER SET, MASTER ......	1	-
12	53178-K04-931 LEVER, L. HANDLE ......	1	-
13	90114-MA5-671 BOLT, HANDLE LEVER PIVOT ......	1	-
14	90145-MS9-612 BOLT, OIL, 10X22 ......	1	-
15	90545-300-000 WASHER, OIL BOLT ......	2	-
16	90651-MA5-671 CIRCLIP ......	1	-
17	93600-04012-16 SCREW, FLAT, 4X12 ......	2	-
18	93893-04012-17 SCREW-WASHER, 4X12 ......	2	-
19	94050-06000 NUT, FLANGE, 6MM ......	1	-
20	96001-06022-07 BOLT, FLANGE, 6X22 ......	2	-

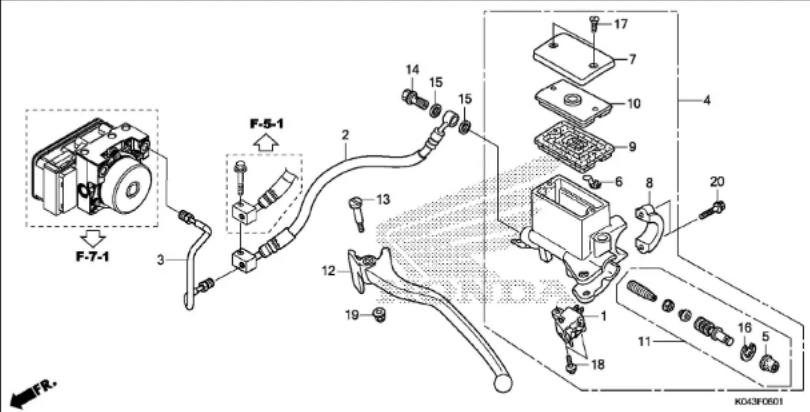

F-6-1

REAR BRAKE MASTER CYLINDER(NSS300A)

F10

F-7-1 F-5-1 2 13 12 19 14 15 15 17 7 10 9 6 8 20 1 11 16 5 18 KF.

Ref. No.	L.O.N.	(Relative ref. Number) Description	F.R.T.
1	6151B3	SWITCH, REAR STOP :LEVER SIDE	0.1
	6151B6	SWITCH, STOP :BOTH ......	0.2
2	712180	HOSE A, REAR BRAKE ......	1.4
		.INCLUDES: Bleed brakes
3	7121D8	PIPE B, REAR BRAKE ......	1.3
		.INCLUDES: Bleed brakes
4	712125	CYLINDER, REAR BRAKE MASTER ..	0.6
		.INCLUDES: Bleed brakes
9	7121G7	DIAPHRAGM, REAR BRAKE MASTER CYLINDER ......	0.
11	7121H0	PISTON SET, REAR BRAKE MASTER......	0.6
		.INCLUDES: Bleed brakes
12	8101C6	LEVER, HANDLE :LEFT ......	0.1
	8101F5	LEVER, HANDLE :BOTH ......	0.2

Ref. No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS 300 D	NSS 300A D
1	35340-KFG-000 SWITCH ASSY., FR. STOP	-	1
2	43311-K04-971 HOSE COMP. A, RR. BRAKE	-	1
3	43312-K04-970 PIPE COMP. B, RR. BRAKE	-	1
4	43510-K04-931 CYLINDER SUB ASSY., RR. BRAKE MASTER(NISSIN)	-	1
5	45504-410-003 BOOT COMP.	-	1
6	45512-MA6-006 PROTECTOR	-	1
7	45513-KK1-771 CAP, MASTER CYLINDER	-	1
8	45517-166-006 HOLDER, MASTER CYLINDER	-	1
9	45520-MG7-006 DIAPHRAGM	-	1
10	45521-HA2-006 PLATE, DIAPHRAGM	-	1
11	45530-471-831 CYLINDER SET, MASTER	-	1
12	53178-K04-931 LEVER, L. HANDLE	-	1
13	90114-MA5-671 BOLT, HANDLE LEVER PIVOT	-	1
14	90145-MS9-612 BOLT, OIL, 10X22	-	1
15	90545-300-000 WASHER, OIL BOLT	-	2
16	90651-MA5-671 CIRCLIP	-	1
17	93600-04012-16 SCREW, FLAT, 4X12	-	2
18	93893-04012-17 SCREW-WASHER, 4X12	-	2
19	94050-06000 NUT, FLANGE, 6MM	-	1
20	96001-06022-07 BOLT, FLANGE, 6X22	-	2

Ref.No. Part No. Description		Reqd. QTYNSS NSS300 300AD D Serial No.		Parts catalogue code
1 18654-K04-930 STAY COMP., RR. BRAKE HOSE ..		1	-
2 43313-K04-930 PIPE COMP. C, RR. BRAKE ....		1	-
3 43314-K04-930 PIPE COMP. D, RR. BRAKE ....		1	-
4 43315-K04-931 HOSE E, RR. BRAKE ....		1	-
5 43317-K04-931 HOSE COMP. G, RR. BRAKE ....		1	-
6 43318-K04-930 PIPE COMP. H, RR. BRAKE ....		1	-
7 43319-K04-931 HOSE COMP. J, RR. BRAKE ....		1	-
8 43470-K04-930 GUIDE COMP., RR. BRAKE HOSE .		1	-
9 46300-MGS-D81 VALVE ASSY., DELAY ....		1	-
10 90050-KFL-850 BOLT, SPECIAL FLANGE, 6X25 ..		2	-
11 90145-MS9-612 BOLT, OIL, 10X22 ....		2	-
12 90545-300-000 WASHER, OIL BOLT ....		4	-
13 90661-MGS-D71 CLAMP, BRAKE PIPE(7.0) ....		3	-
14 95701-06012-08 BOLT, FLANGE, 6X12 ....		1	-
15 95701-06016-07 BOLT, FLANGE, 6X16 ....		1	-
16 95701-06018-07 BOLT, FLANGE, 6X18 ....		1	-
17 95701-06025-08 BOLT, FLANGE, 6X25 ....		1	-
18 95701-06032-08 BOLT, FLANGE, 6X32 ....		2	-
19 95801-06014-08 BOLT, FLANGE, 6X14 ....		2	-
Ref. No. Part No. Description		Reqd. QTY NSS 300 D NSS 300A D Serial No.		Parts catalogue code
1 18654-K04-93D STAY COMP., RR. BRAKE HOSE ..	-	1
2 43313-K04-97D PIPE COMP. C, RR. BRAKE ....	-	1
3 43314-K04-93D PIPE COMP. D, RR. BRAKE ....	-	1
4 43315-K04-93D HOSE E, RR. BRAKE ....	-	1
5 43316-K04-97D PIPE COMP. F, RR. BRAKE ....	-	1
6 43317-K04-971 HOSE COMP. G, RR. BRAKE ....	-	1
7 43318-K04-93D PIPE COMP. H, RR. BRAKE ....	-	1
8 43319-K04-931 HOSE COMP. J, RR. BRAKE ....	-	1
9 43470-K04-93D GUIDE COMP., RR. BRAKE HOSE .	-	1
10 46300-MGS-D81 VALVE ASSY., DELAY ....	-	1
11 57101-MER-D21 RUBBER, MOUNTING ....	-	3
12 57103-SDA-003 COLLAR ....	-	3
13 57110-K04-971 MODULATOR ASSY., ABS ....	-	1
14 90050-KFL-850 BOLT, SPECIAL FLANGE, 6X25 ..	-	2
15 90145-MS9-612 BOLT, OIL, 10X22 ....	-	2
16 90545-300-000 WASHER, OIL BOLT ....	-	4
17 90661-MGS-D71 CLAMP, BRAKE PIPE(7.0) ....	-	3
18 93404-06025-00 BOLT-WASHER, 6X25 ....	-	3
19 95701-06016-07 BOLT, FLANGE, 6X16 ....	-	1
20 95701-06018-07 BOLT, FLANGE, 6X18 ....	-	1
21 95701-06025-08 BOLT, FLANGE, 6X25 ....	-	2
22 95701-06032-08 BOLT, FLANGE, 6X32 ....	-	2
23 95801-06014-08 BOLT, FLANGE, 6X14 ....	-	2

2013.04.10 E

F-9 HANDLE PIPE F13
			Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
			2 810100 PIPE, STEERING HANDLE ...... 0.63 8101B3 WEIGHT, HANDLE :LEFT ...... 0.18101B4 WEIGHT, HANDLE :RIGHT ...... 0.18101B5 WEIGHT, HANDLE :BOTH ...... 0.14 5101C8 POST, HANDLE ...... 1.46 8101B9 HOLDER, HANDLE :LOWER ...... 1.28101B9A .Replace 1 handle holder add · 0.17 4131B5 COVER, HANDLE :FRONT ...... 0.18 4131B6 COVER, HANDLE :REAR ...... 0.24131U1 COVER, HANDLE :BOTH ...... 0.2
Ref. No. Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
	NSS 300 D	NSS 300A D
1 32161-367-690 BAND, WIRE ......	2	2
2 53100-K04-930 PIPE, STEERING HANDLE ......	1	1
3 53104-K04-930 WEIGHT, HANDLE ......	2	2
4 53110-K04-930 POST COMP., HANDLE ......	1	1
5 53131-K20-9002B HOLDER, HANDLE PIPE UPPER *NH1*......BLACK	2	2
6 53132-K04-930 HOLDER, HANDLE UNDER ......	2	2
7 53205-K04-930 COVER, FR. HANDLE ......	1	1
8 53255-K04-930 COVER SET, RR. HANDLE ......	1	1
9 86150-GFC-901 EMBLEM, PRODUCT(MARUI) ......	1	1
86150-GFC-902 EMBLEM, PRODUCT(UEHARA) ......	1	1
10 90102-MCT-000 BOLT, FLANGE, 12X35 ......	2	2
11 90107-K04-930 SCREW, PAN, 6X17 ......	2	2
12 90107-MCT-771 SCREW, OVAL, 6X35 ......	2	2
13 90304-GE8-003 NUT, U, 10MM(FUSE RASHI) ......	2	2
14 91456-371-770 CAP, SOCKET BOLT ......	4	4
15 96600-08032-00 BOLT, SOCKET, 8X32 ......	4	4

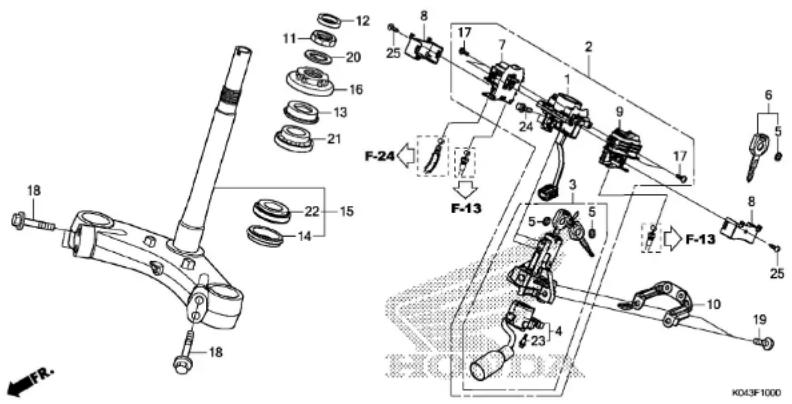

Ref. No. Part No. Description	Reqd. QTY			No.	Description F.R.T.
	NSS 300 D	NSS 300A D	Serial No.	Parts catalogue code
1 30430-K04-305	RECEIVER UNIT SET	1	1	E,ED,F
2 35014-K04-305	KEY SET(IMMOBI)	1	1	E,ED,F
3 35100-K04-931	SWITCH ASSY., COMBINATION &LOCK	1	1	E,ED,F
4 35101-K04-931	BASE COMP., CONTACT	1	1	E,ED,F
5 35113-MFJ-001	EMBLEM, KEY	4	4	E,ED,F
		(2)	(2)	E,ED,F
6 35121-K04-305	KEY, BLANK(IMMOBI)	(1)	(1)	E,ED,F
7 35190-K27-V01	SWITCH ASSY., FUEL LID & SEAT	1	1	E,ED,F
8 35191-K27-V01	COVER, CABLE	2	2	E,ED,F
9 35195-K04-931	SWITCH ASSY., L. LID OPENER	1	1	E,ED,F
10 50211-K04-930	STAY COMP., INNER	1	1	E,ED,F
11 50306-GN5-900	NUT, STEERING STEM LOCK	1	1	E,ED,F
12 53113-MCT-010	SEAL, HANDLE POST	1	1	E,ED,F
13 53213-MB4-771	DUST SEAL, STEERING UPPER(ARAI)	1	1	E,ED,F
14 53214-MR7-003	DUST SEAL, STEERING HEAD(ARAI)	1	1	E,ED,F
15 53219-K04-930	STEM SUB ASSY., STEERING	1	1	E,ED,F
16 53220-KYJ-900	THREAD COMP., STEERING HEADTOP	1	1	E,ED,F
17 90101-MT4-000	SCREW, SCREEN SETTING	4	4	E,ED,F
18 90102-KVZ-630	BOLT, FLANGE, 10X45	4	4	E,ED,F
19 90107-MBG-000	BOLT, ONE-WAY, BMM	2	2	E,ED,F
20 90506-MCT-000	WASHER, LOCK NUT	1	1	E,ED,F

F-10 STEERING STEM/COMBINATION SWITCH(E/ED/F) F15
Ref. Part No. Description Req. QTY NSS NSS Serial No. Parts catalogue codeNo. 300 300A D D
21 91D15-KT8-005 BEARING, HEAD PIPE UPPER(KOYO) 1 1 ---- E,ED,F22 91D16-MR7-003 BEARING, HEAD PIPE(NTN) .... 1 1 ---- E,ED,F23 91D59-KY2-711 SCREW, TAPPING, 3x16 .... 3 3 ---- E,ED,F24 93403-D6012-00 BOLT-WASHER, 6x12 .... 2 2 ---- E,ED,F25 93901-24320 SCREW, TAPPING, 4x12 .... 2 2 ---- E,ED,F

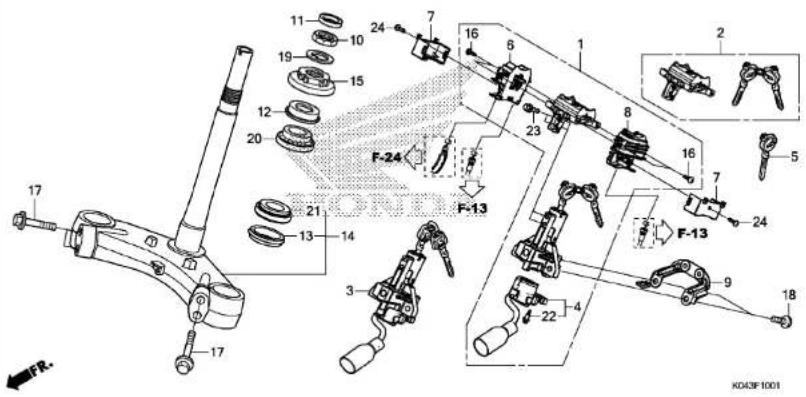

Ref. No.	Part No. Description	Reqd. QTY			Parts catalogue code
		NSS 300 D	NSS 300A D	Serial No.
1	35010-K04-900 KEY SET	1	1	---- KO,U
2	35011-K04-305 KEY SET, SHUTTER	1	1	---- KO,U
3	35100-K04-901 SWITCH ASSY., COMBINATION & LOCK	1	1	---- KO,U
4	35101-K04-931 BASE COMP., CONTACT	1	1	---- KO,U
5	35121-KYE-900 KEY, BLANK (90KEYTOP2REPODER)	(1)	(1)	---- KO,U
6	35190-K27-V01 SWITCH ASSY., FUEL LID & SEAT OPENER	1	1	---- KO,U
7	35191-K27-V01 COVER, CABLE	2	2	---- KO,U
8	35195-K04-931 SWITCH ASSY., L. LID OPENER	1	1	---- KO,U
9	50211-K04-930 STAY COMP., INNER	1	1	---- KO,U
10	50306-GN5-900 NUT, STEERING STEM LOCK	1	1	---- KO,U
11	53113-MCT-010 SEAL, HANDLE POST	1	1	---- KO,U
12	53213-MB4-771 DUST SEAL, STEERING UPPER (ARAI)	1	1	---- KO,U
13	53214-MR7-003 DUST SEAL, STEERING HEAD (ARAI)	1	1	---- KO,U
14	53219-K04-930 STEM SUB ASSY., STEERING	1	1	---- KO,U
15	53220-KYJ-900 THREAD COMP., STEERING HEAD TOP	1	1	---- KO,U
16	90101-MT4-000 SCREW, SCREEN SETTING	4	4	---- KO,U
17	90102-KVZ-630 BOLT, FLANGE, 10X45	4	4	---- KO,U
18	90107-MBG-000 BOLT, ONE-WAY, 8MM	2	2	---- KO,U
19	90506-MCT-000 WASHER, LOCK NUT	1	1	---- KO,U
20	91015-KT8-005 BEARING, HEAD PIPE UPPER(KOYO)	1	1	---- KO,U

F-10-1 STEERING STEM/COMBINATION SWITCH(KO/U) G 1
Ref. No. Part No. Description Req. QTY NSS NSS Serial No. Parts catalogue codeNSS 300 300A D D
21 91016-MR7-0D3 BEARING, HEAD PIPE(NTN) ...... 1 1 ---- K0,U22 91059-KY2-711 SCREW, TAPPING, 3x16 ...... 3 3 ---- K0,U23 93403-D6012-00 BOLT-WASHER, 6x12 ...... 2 2 ---- K0,U24 93901-24320 SCREW, TAPPING, 4x12 ...... 2 2 ---- K0,U
F-11 FRONT FENDER G 2
KD03F1100				Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
				1 (2)4131B7 FENDER, FRONT 0.1
Ref.No. Part No. Description Reqd. QTY NSS NSS Serial No. Parts catalogue code
1 61000-K04-970ZH FENDER SET, FR.(WL)*TYPE4*....- 1----E,ED,F,K0
61000-K04-97DZK *TYPE2*....- 1
61000-K04-97DZL *TYPE1*....- 1
2 61100-K04-930ZD FENDER, FR.*NHA14M*.SEAL SILVER METALLIC 1 - ----E,ED,F,K0
61100-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 -
61100-K04-930ZC *NHA35M*
ASTEROID BLACK METALLIC 1 -
3 61304-958-003 NUT, SPECIAL, 6X7 2 2
4 90108-K04-930 BOLT, SPECIAL, 6X17 2 2
5 90118-MEL-000 SCREW, PAN, 6X20 2 2
6 90507-KRP-980 COLLAR, M6 2 2

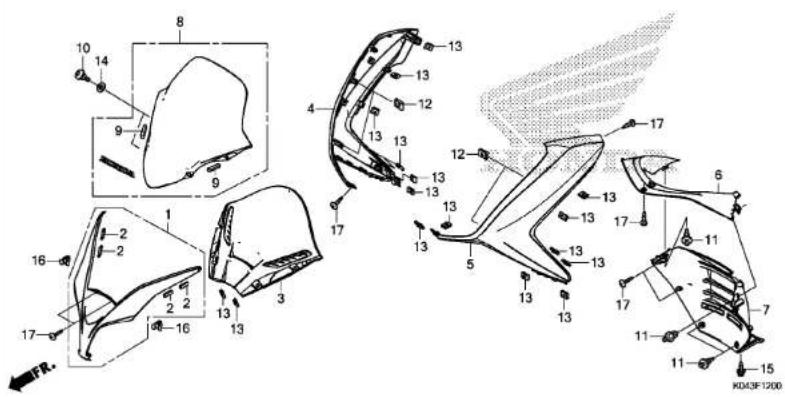

Ref.No.	Part No. Description	Reqd. QTY			Parts catalogue code
		NSS300D	NSS300AD	Serial No.
1	64300-K04-930ZF GARNISH SET, SCREEN*NHA14M*.SEAL SILVER METALLIC	1	1	--------E,ED,F,KO
	64300-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE	1	1
	64300-K04-930ZD *NHA35M*ASTEROID BLACK METALLIC	1	1
2	64306-K04-930 RUBBER, GARNISH ....	4	4
3	64336-K04-930 PANEL, FR. METER ....	1	1
4	64501-K04-930ZD COVER, R. FR. SIDE*NHA14M*.SEAL SILVER METALLIC	1	1	--------E,ED,F,KO
	64501-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE	1	1
	64501-K04-930ZC *NHA35M*ASTEROID BLACK METALLIC	1	1
5	64502-K04-930ZD COVER, L. FR. SIDE*NHA14M*.SEAL SILVER METALLIC	1	1	--------E,ED,F,KO
	64502-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE	1	1
	64502-K04-930ZC *NHA35M*ASTEROID BLACK METALLIC	1	1
6	64510-K04-930 COVER, FR. CENTER ....	1	1
7	64520-K04-930 COVER, FR. LOWER ....	1	1
8	67100-K04-700ZA VISOR SET, METER(WL)*TYPE1*....	1	1
9	67103-K04-700 RUBBER, VISOR ....	2	2
10	90111-K04-930 BOLT, SCREEN STAY ....	4	4
11	90116-SPO-003 CLIP, BUMPER SEAL ....	4	4
12	90302-6GE-900 NUT, SPRING(M5) ....	4	4
13	90302-KWW-AD0 NUT, SPRING, 4MM ....	17	17
14	90501-K04-930 WASHER, SCREEN SETTING(A) ....	4	4

F-12 FRONT COVER/METER VISOR G 4
Ref. No. Part No. Description Req'd. QTY NSS NSS 300 D Serial No. Parts catalogue code
15 90601-PV3-003 CLIP, AIR INTAKE DUCT PUSH 1 1
16 90601-SJA-003 CLIP, SNAP FITTING 2 2
17 93903-34480 SCREW, TAPPING, 4X16 9 9

F-13 INNER COVER G 5
		Ref. No. L.O.N. (Relative ref. Number) Description F.R.T.
		3 8121A0 SOCKET, ACCESSORY ...... 1.24 (6)812102 VISOR, METER ...... 1.05 (30,31)8121G2 COVER, METER PANEL ...... 0.17 3101B8 LID, FUEL ...... 0.19 3101B7 LOCK, FUEL LID ...... 1.711 4131V0 HINGE, FUEL LID ...... 1.712 8111B6 CABLE, FUEL LID ...... 1.713 8111C4 CABLE, INNER POCKET OPENER ...... 1.717 411150 PANEL, INNER ...... 1.819 (18)4111B8 POCKET, COWL :LEFT ...... 1.121 411130 LOCK, POCKET LID ...... 1.022 4111F3 COVER, POCKET :RIGHT ...... 0.823 (29)4111F2 COVER, POCKET :LEFT ...... 1.14111M4 COVER, POCKET :BOTH ...... 1.226 4111B9 POCKET, COWL :RIGHT ...... 0.8
Ref.No. Part No. Description Reqd. QTY		Serial No. Parts catalogue code
1 32107-K04-930 COVER, ACCESSORY SOCKET ...... 1 12 3962D-K04-931 CAP ASSY.(ACCESSORY) ...... 1 13 39624-K04-931 SOCKET ASSY.(ACCESSORY) ...... 1 14 64337-K04-930 PANEL, RR. METER ...... 1 15 64338-K04-930 COVER, METER PANEL(A) ...... 1 164338-K04-900 ...... 1 16 64339-K04-930 COVER, METER PANEL(B) ...... 1 17 64405-K04-930 LID, FUEL ...... 1 18 64422-K04-930 COLLAR, LOCK PIN ...... 1 19 64440-K04-930 PIN ASSY., FUEL LID LOCK ...... 1 110 64443-KVG-900 CAP, FUEL LID LOCK ...... 1 111 64450-K04-930 HINGE ASSY., FUEL LID ...... 1 112 64455-K04-931 CABLE, FUEL LID ...... 1 113 64485-K04-931 CABLE, L. LID OPENER ...... 1 114 77234-KYZ-900 SPRING, SEAT LOCK ...... 1 115 77504-SJ6-013 SPRING, GLOVE BOX ...... 1 116 77507-K04-930 LOCK, R. DOCUMENT ...... 1 117 81110-K04-930 COVER ASSY., INNER ...... 1 118 81140-K04-930 POCKET, L. UPPER ...... 1 119 81150-K04-930 POCKET, L. LOWER ...... 1 120 81151-K04-930 PLATE, L. LOWER POCKET ...... 1 121 81160-K04-930 LOCK, L. LID ...... 1 122 81240-K04-930 LID, R. OUTER ...... 1 123 81241-K04-930 LID, L. OUTER ...... 1 124 81243-K04-930 PLATE, L. HINGE ...... 1 1
F-13 INNER COVER G 6
Ref. No. Part No. Description	Reqd. QTY		Serial No. Parts catalogue code
	NSS 300 D	NSS 300A D
25 81244-K04-930 SHAFT, L. LID INNER	1	1
26 81245-K04-930 LID ASSY., R. INNER	1	1
27 81248-K04-930 SEAL, R. LID INNER	1	1
28 81249-K04-930 SEAL, L. LID INNER	1	1
29 81255-K04-930 LID ASSY., L. INNER	1	1
30 81280-K04-930 PANEL, R. FR.	1	1
31 81281-K04-930 PANEL, L. FR.	1	1
32 81288-K04-930 COVER, SPRING	1	1
33 81291-K04-930 SEAL, INNER COVER	1	1
34 81293-K04-930 SPRING, POCKET	1	1
35 81360-K04-930 STAY, FUSE	1	1
36 83534-K04-931 DAMPER, L. LID	1	1
37 90302-KW-A00 NUT, SPRING, 4MM	19	19
38 90601-SJA-003 CLIP, SNAP FITTING	1	1
39 93404-06012-00 BOLT-WASHER, 6X12	5	5
40 93903-34380 SCREW, TAPPING, 4X12	24	24
41 93903-34480 SCREW, TAPPING, 4X16	25	25
42 94021-05070-0S NUT, CAP, 5MM	1	1
43 94103-04000 WASHER, PLAIN, 4MM	1	1

2013.04.10 E

F-14 FLOOR STEP G 7
			Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
			1 4131V3 STEP, FLOOR :RIGHT 0.42 4131V2 STEP, FLOOR :LEFT 0.44131V4 STEP, FLOOR :BOTH 0.85 4151A1 MAT, FLOOR :RIGHT 0.16 4151A0 MAT, FLOOR :LEFT 0.14151B7 MAT, FLOOR :BOTH 0.18 4131B4 COVER, UNDER 0.49 (11)4111A6 SKIRT, FLOOR :RIGHT 0.210 (12)4111A5 SKIRT, FLOOR :LEFT 0.24111N5 SKIRT, FLOOR :BOTH 0.3
Ref.No. Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
	NSS300D	NSS300AD
1 64311-K04-930 STEP, R. FLOOR 1 12 64321-K04-930 STEP, L. FLOOR 1 13 64322-K04-930 LID, RESERVE TANK MAINTENANCE 1 14 64323-K04-930 LID, PLUG MAINTENANCE 1 15 64325-K04-930 MAT, R. FLOOR 1 16 64326-K04-930 MAT, L. FLOOR 1 17 64351-K04-930 RUBBER, UNDER COVER 2 28 64360-K04-930 COVER COMP., UNDER 1 19 64431-K04-930ZD COVER, R. SIDE*NHA14M*.SEAL SILVER METALLIC 1 164431-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 164431-K04-930ZC *NHA35M*ASTEROID BLACK METALLIC 1 110 64432-K04-930ZD COVER, L. SIDE*NHA14M*.SEAL SILVER METALLIC 1 164432-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 164432-K04-930ZC *NHA35M*ASTEROID BLACK METALLIC 1 1
11 64441-K04-930 COVER, R. RR. SIDE 1 112 64442-K04-930 COVER, L. RR. SIDE 1 113 83551-GE2-000 GROMMET, AIR CLEANER CASE 2 214 90116-KVB-900 BOLT, FLANGE, 6MM 8 815 90116-SPO-003 CLIP, BUMPER SEAL 2 216 90302-6GE-900 NUT, SPRING(M5) 1 117 90302-KWW-ADO NUT, SPRING, 4MM 14 1418 93404-D6012-00 BOLT-WASHER, 6X12 5 5
[F-14]FLOOR STEPG 8
Ref. No.Part No. DescriptionReqd. QTYNSS NSS300 D Serial No.Parls catalogue code
19 93903-34380 SCREW, TAPPING, 4x12 ...... 6 620 93903-34480 SCREW, TAPPING, 4x16 ...... 18 1821 93903-35380 SCREW, TAPPING, 5x16 ...... 1 1

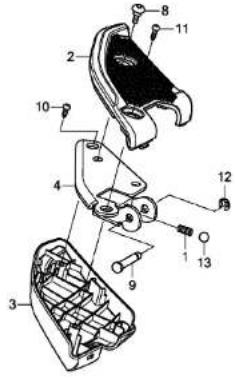

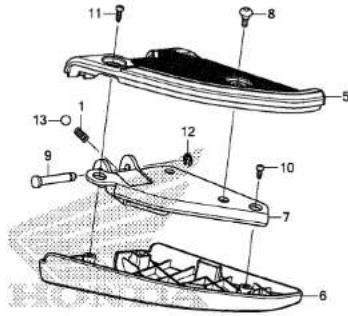

F-14-10 PILLION STEP G 9
K03F1410			Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
			4 (2,3)4101C8 BAR, PILLION STEP :RIGHT ...... 0.17 (5,6)4101C7 BAR, PILLION STEP :LEFT ...... 0.14101P4 BAR, PILLION STEP :BOTH ...... 0.2
Ref.No. Part No. Description	Reqd. QTYNSS NSS300 300AD Serial No.Parls catalogue code
1 28333-300-000 SPRING, KICK STARTER STOPPER 2 22 50711-K04-930 COVER, R. PILLION STEP UPPER 1 13 50712-K04-930 COVER, R. PILLION STEP LOWER 1 14 50713-K04-930 PLATE, R. PILLION STEP ...... 1 15 50721-K04-930 COVER, L. PILLION STEP UPPER 1 16 50722-K04-930 COVER, L. PILLION STEP LOWER 1 17 50723-K04-930 PLATE, L. PILLION STEP ...... 1 18 90106-MM4-000 SCREW, PAN, 6X14 ...... 2 29 90131-K04-930 PIN, PILLION STEP ...... 2 210 93903-35180 SCREW, TAPPING, 5X10 ...... 2 211 93903-35280 SCREW, TAPPING, 5X12 ...... 2 212 94540-D4018 E-RING, 4MM ...... 2 213 96211-D8000 BALL, STEEL, #8(1/4) ...... 2 2

Ref. No. Part No. Description	Reqd. QTY			Serial No.	Parts catalogue code
	NSS 300 D	NSS 300A D
1 83550-K04-93DZA COVER SET, R. BODY(WL) *TYPE4*....	1	1	--------E,ED,F,KO
83550-K04-93DZC *TYPE2*....	1	1
83550-K04-93DZD *TYPE1*....	1	1
2 83551-GE2-00D GROMMET, AIR CLEANER CASE ...	2	2
3 83650-K04-93DZA COVER SET, L. BODY(WL) *TYPE4*....	1	1	--------E,ED,F,KO
83650-K04-93DZC *TYPE2*....	1	1
83650-K04-93DZD *TYPE1*....	1	1
4 83660-K04-93DZA COVER SET, RR. BODY LOWER(WL) *TYPE4*....	1	1	--------E,ED,F,KO
83660-K04-93DZC *TYPE2*....	1	1
83660-K04-93DZD *TYPE1*....	1	1
5 837D1-K04-93DZD PANEL, R. FLOOR SIDE *NHA14M*.SEAL SILVER METALLIC	1	1	--------E,ED,F,KO
837D1-K04-93DZB *NHA87P*PEARL HIMALAYAS WHITE	1	1
837D1-K04-93DZC *NHA35M* ASTEROID BLACK METALLIC	1	1
6 83751-K04-93DZD COVER, RR. BODY UPPER *NHA14M*.SEAL SILVER METALLIC	1	1	--------E,ED,F,KO
83751-K04-93DZB *NHA87P*PEARL HIMALAYAS WHITE	1	1
83751-K04-93DZC *NHA35M* ASTEROID BLACK METALLIC	1	1
7 838D1-K04-93DZD PANEL, L. FLOOR SIDE *NHA14M*.SEAL SILVER METALLIC	1	1	--------E,ED,F,KO
838D1-K04-93DZB *NHA87P*PEARL HIMALAYAS WHITE	1	1
838D1-K04-93DZC *NHA35M* ASTEROID BLACK METALLIC	1	1

F-15BODY COVER/GRAB RAILG11
Ref.No.	Part No. Description	Reqd. QTY		Serial No.Parls catalogue code
		NSS300D	NSS300AD
8 84100-K04-930 RAIL, RR. GRAB 19 84150-K04-930ZD COVER, RR. GARB RAIL*NHA14M*.SEAL SILVER METALLIC 1 184150-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 184150-K04-930ZC *NHA35M*ASTEROID BLACK METALLIC 1 110 84160-K04-930ZD COVER, GRAB RAIL CENTER*NHA14M*.SEAL SILVER METALLIC 1 184160-K04-930ZB *NHA87P*PEARL HIMALAYAS WHITE 1 184160-K04-930ZC *NHA35M*ASTEROID BLACK METALLIC 1 111 90104-K04-930 SCREW, SPECIAL, 5MM 1 112 90116-SPO-003 CLIP, BUMPER SEAL 4 413 90302-KWW-000 NUT, SPRING, 4MM 4 414 90601-SJA-003 CLIP, SNAP FITTING 5 515 93903-34480 SCREW, TAPPING, 4X16 7 716 95701-08030-00 BOLT, FLANGE, 8X30 4 4
Ref.No. Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
	NSS300D	NSS300AD
1 64322-K04-930 LID, RESERVE TANK MAINTENANCE	2	2
2 80103-K04-930 GUARD B, SPLASH	1	1
3 80104-K04-930 GUARD, SPLASH	1	1
4 80121-K04-930 SEAL, TOOL BOX	1	1
5 80130-K04-930 BOX ASSY., TOOL	1	1
6 81260-K04-930 BOX COMP., LUGGAGE	1	1
7 81262-K04-930 SEAL, LUGGAGE BOX	1	1
8 81264-K04-930 BOX, OWNERS MANUAL	1	1
9 81272-K04-930 MAT, LUGGAGE BOX(RR.)	1	1
10 81300-K04-930 LID COMP., BATTERY	1	1
11 90112-K04-930 SCREW, BATTERY LID	3	3
12 90302-KWW-ADO NUT, SPRING, 4MM	2	2
13 90305-GEE-710 NUT, CLIP, 6MM	1	1
14 90683-GAZ-0D3 CLIP, TRIM	4	4
15 93404-06012-08 BOLT-WASHER, 6X12	6	6
16 95701-06012-08 BOLT, FLANGE, 6X12	2	2

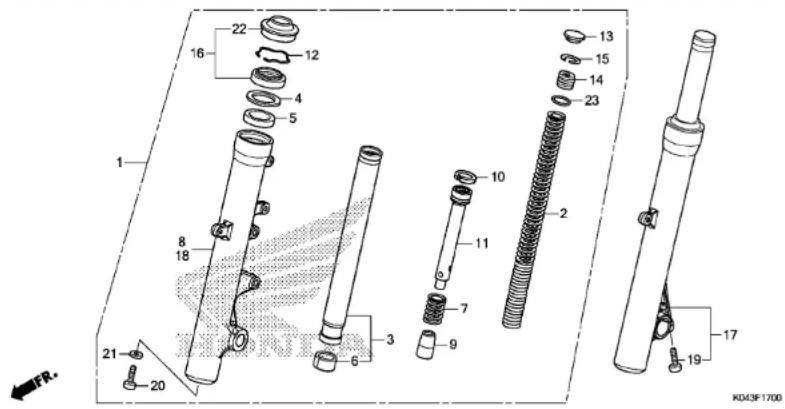

Ref. No. Part No. Description	Reqd. QTY			Parts catalogue code
	NSS 300 D	NSS 300A D	Serial No.
1 51400-K04-931 FORK ASSY., R. FR.(SHOWA) ...	1	1
2 51401-K04-931 SPRING, FR. FORK ......	2	2
3 51410-K04-931 PIPE COMP., FR. FORK ......	2	2
4 51412-422-003 RING, BACK UP ......	2	2
5 51414-MBV-711 BUSH, GUIDE ......	2	2
6 51415-MBV-711 BUSH, SLIDER ......	2	2
7 51416-461-003 SPRING, REBOUND ......	2	2
8 51420-K04-931 CASE, R. FR. BOTTOM ......	1	1
9 51432-MJ6-003 PIECE, OIL LOCK ......	2	2
10 51437-461-003 RING, PISTON ......	2	2
11 51440-K04-931 PIPE, SEAT ......	2	2
12 51447-KTW-9D2 RING, OIL SEAL STOPPER ......	2	2
13 51449-KTW-9D1 CAP, FR. FORK TOP ......	2	2
14 51455-KTW-9D2 SEAT B, SPRING ......	2	2
15 51456-KTW-9D1 RING, STOPPER ......	2	2
16 51490-K04-931 SEAL SET, FR. FORK ......	2	2
17 51500-K04-931 FORK ASSY., L. FR.(SHOWA) ...	1	1
18 51520-K04-931 CASE, L. FR. BOTTOM ......	1	1
19 90105-MA6-750 BOLT, SOCKET, 8X28 ......	1	1
20 90116-KTW-9D1 BOLT, SOCKET, 8X20 ......	2	2
21 90544-283-000 WASHER, SPECIAL, 8MM(SHOWA) -	2	2
22 91254-434-003 DUST SEAL, 35MM(SHOWA) ......	2	2
23 91356-KTW-9D1 O-RING, 26.2X2.4 ......	2	2

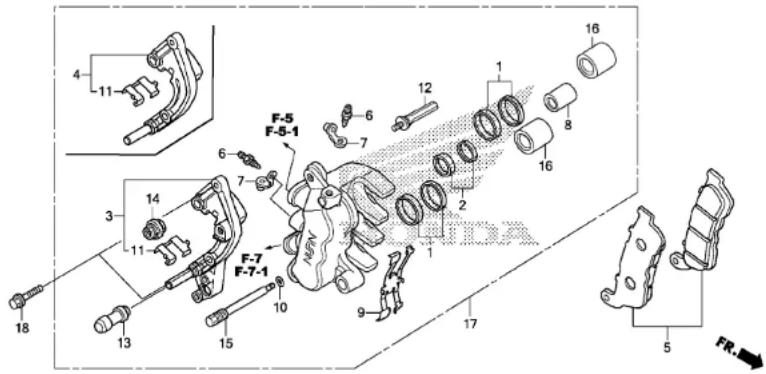

					Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
					3 (4)7111G0 BRACKET, FRONT CALIPER ...... 0.25 711115 SHOE(PAD) SET, BRAKE :FRONT -- 0.18 (1,2,16)7111D1 PISTON, FRONT BRAKE CALIPER -- 0.7.INCLUDES: Bleed brakes.NOTE: Same time for two unitsor more17 711130 CALIPER, FRONT BRAKE ...... 0.5.INCLUDES: Bleed brakes
Ref.No.	Part No. Description	Reqd. QTY			Parts catalogue code
		NSS300D	NSS300AD	Serial No.
1	06431-MA3-405 SEAL SET, PISTON ......	2	2
2	06451-MZ2-405 SEAL SET, PISTON ......	1	1
3	06453-KVZ-661 BRACKET SUB ASSY., R. FR. ...	-	1
4	06453-MCW-H01 BRACKET SUB ASSY., R. FR. ...	1	-
5	06455-K04-931 PAD SET, FR.(NISSIN) ......	1	1	---- E,ED,F
06455-K04-701	**********	1	1	---- KO,U
6	43352-568-003 SCREW, BLEEDER(NISSIN) ......	2	2
7	43353-461-771 CAP, BLEEDER ......	2	2
8	45107-MAJ-641 PISTON A, 22X27 ......	1	1
9	45108-MBT-D52 SPRING, PAD ......	1	1
10	45111-MAJ-641 RING, STOPPER ......	1	1
11	45112-MZ2-006 RETAINER, BRACKET ......	1	1
12	45131-ML7-921 BOLT A, PIN ......	1	1
13	45132-166-016 BOOT, PIN BUSH(NISSIN) ......	1	1
14	45133-MA3-006 BOOT B ......	1	1
15	45215-MBT-D51 PIN, HANGER ......	1	1
16	45218-MAJ-641 PISTON B, 27X35 ......	2	2
17	45250-KVZ-631 CALIPER SUB ASSY., R. FR.(NISSIN) ......	1	-
45250-KVZ-661	**********	-	1
18	90107-MT3-003 BOLT, FLANGE, 8X32 ......	2	2

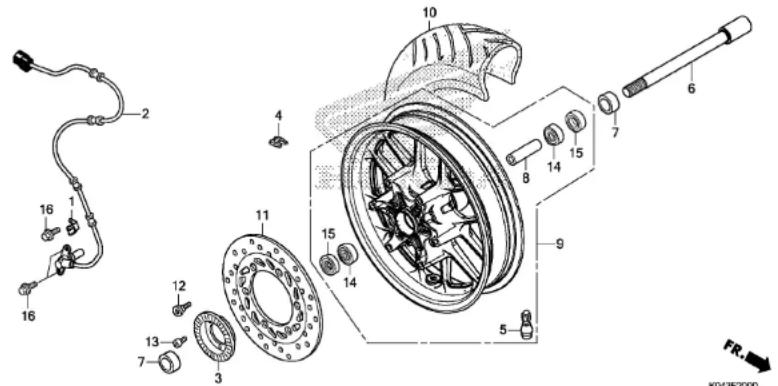

F-20 FRONT WHEEL G15
		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		2 617196 SENSOR, WHEEL SPEED :FRONT ... 0.23 7101BO RING, PULSER :FRONT ...... 0.34 7101A6 WEIGHT, BALANCE :FRONT ...... 0.56 (15)710151 AXLE, FRONT WHEEL ...... 0.29 710104 FRONT WHEEL ...... 0.9. INCLUDES: Balance10 710139 FRONT TIRE(ONE) ...... 0.8. INCLUDES: Balance11 711120 DISC, FRONT BRAKE ...... 0.314 710115 BEARING, FRONT WHEEL(ONE) ...... 0.4710115G .Replace 1 bearing add ...... 0.1
Ref.No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 300AD D	Parts catalogue code
1 38515-KSV-J4D GUIDE, SENSOR CORD ...... - 12 3852D-K04-971 SENSOR, FR. WHEEL SPEED ...... - 13 42515-MBT-D5D RING, RR. PULSER ...... - 14 42704-MER-DDO WEIGHT, BALANCE(10G) ...... N N42705-MER-DDO WEIGHT, BALANCE(20G) ...... N N42706-MER-DDO WEIGHT, BALANCE(30G) ...... N N5 42753-KWF-901 VALVE, RIM(TRITON) ...... 1 16 44301-K04-930 AXLE, FR. WHEEL ...... 1 17 44311-K04-930 COLLAR, FR. WHEEL SIDE ...... 2 28 44620-K04-930 COLLAR, FR. AXLE DISTANCE ... 1 19 44650-K04-930ZA WHEEL SUB ASSY., FR.*NH303M*MAT AXIS GRAY METALLIC 1 -44650-K04-970ZA *NH303M*MAT AXIS GRAY METALLIC - 110 44711-K04-931 TIRE, FR.(DUN)(120/70-14 M/C 55P) 1 111 45251-K04-931 DISK, FR. BRAKE(NHK PRECISION) 1 112 90105-KL8-741 BOLT, FR. DISK, 8X24(SAGA) -- 6 690105-MBB-DDO BOLT, BRAKE DISK, 8X24 ...... 6 613 90131-KPB-751 BOLT, TORX, 5X10 ...... - 314 91051-MGZ-J01 BEARING, RADIAL BALL, 6303UU(FUJIKOSHI) 2 291054-MT6-831 BEARING, RADIAL BALL, 6303UU(NSK) 2 215 91253-KZJ-901 OIL SEAL, 25X47X6.5(ARAI) ... 2 216 96001-D6014-07 BOLT, FLANGE, 6X14 ...... - 3

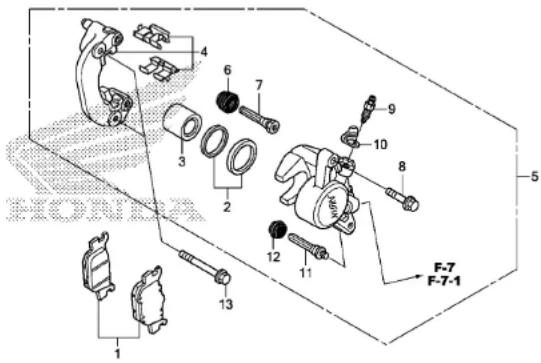

F-21 REAR BRAKE CALIPER G16
K043F2100		Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
		1 711140 SHOE(PAD) SET, BRAKE :REAR ... 0.33 (2)7111D5 PISTON, REAR BRAKE CALIPER ... 0.7.INCLUDES: Bleed brakes4 7111C1 BRACKET, REAR CALIPER ...... 0.45 711155 CALIPER, REAR BRAKE ...... 0.6.INCLUDES: Bleed brakes
Ref. No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 D 300A D	Parts catalogue code
1 06435-K04-931 PAD SET, RR.(NISSIN) ...... 06435-K04-701 ...... 2 06451-443-405 SEAL SET, PISTON ...... 3 43107-KT7-761 PISTON ...... 4 43110-KVZ-631 BRACKET COMP., RR. ...... 5 43150-KVZ-631 CALIPER SUB ASSY., RR. BRAKE (NISSIN) 6 43234-S04-003 COVER, DUST ...... 7 43235-HP1-006 PIN B ...... 8 43240-KSV-J01 BOLT, FLANGE, 8X26 ...... 9 43352-568-003 SCREW, BLEEDER(NISSIN) 10 43353-461-771 CAP, BLEEDER ...... 11 45131-ML7-921 BOLT A, PIN ...... 12 45133-MA3-006 BOOT B ...... 13 90132-MY2-000 BOLT, FLANGE, 8X50 ......	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2

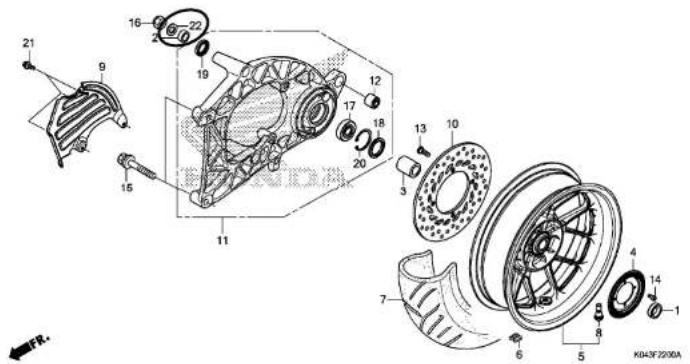

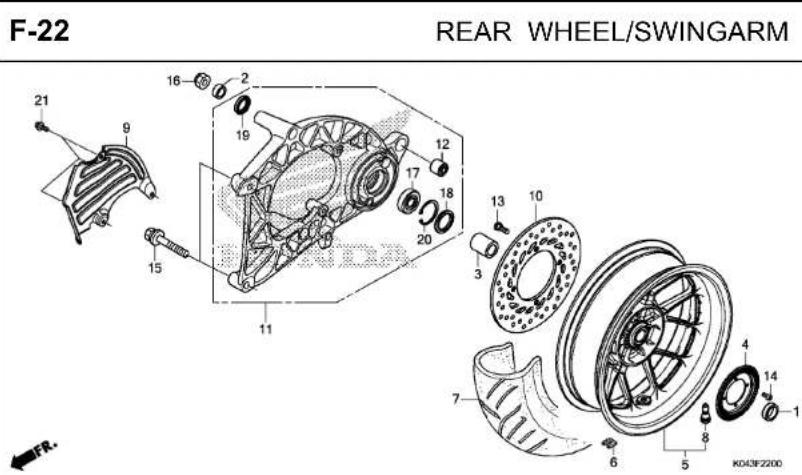

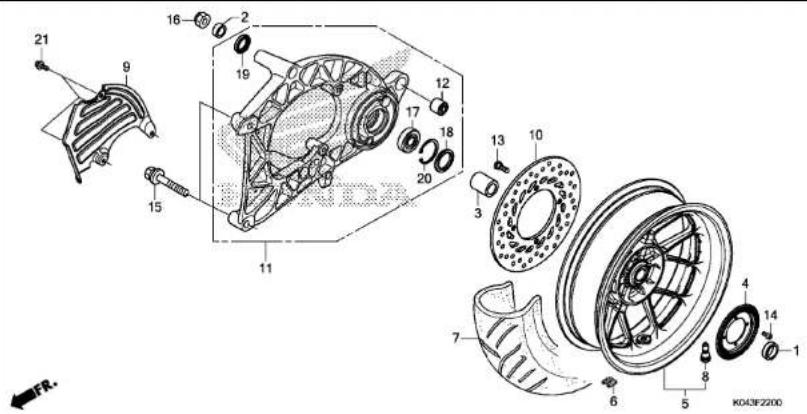

Ref. No. Part No. Description	Reqd. QTY			Paris catalogue code
	NSS 300 D	NSS 300A D	Serial No.
1 42311-KSV-J00 COLLAR, RR. WHEEL SIDE ....	1	1
2 42312-KEY-900 COLLAR B, RR. AXLE ....	1	1
3 42313-K04-930 COLLAR, RR. AXLE ....	1	1
4 42515-MER-D01 RING, RR. PULSER ....	-	1
5 42650-K04-93DZA WHEEL SUB ASSY., RR.*NH303M*MAT AXIS GRAY METALLIC	1	-
42650-K04-97DZA *NH303M*MAT AXIS GRAY METALLIC	-	1
6 42704-MER-D00 WEIGHT, BALANCE(10G) ....	N	N
42705-MER-D00 WEIGHT, BALANCE(20G) ....	N	N
42706-MER-D00 WEIGHT, BALANCE(30G) ....	N	N
7 42711-K04-931 TIRE, RR.(DUN)(140/70-13 M/C 61P)	1	1
8 42753-KWF-901 VALVE, RIM(TRITON) ....	1	1
9 43156-K04-930 PROTECTOR, RR. BRAKE HOSE ...	1	1
10 43251-K04-931 DISK, RR. BRAKE(NHK PRECISION)	1	1
11 52100-K04-930 SWINGARM ASSY. ....	1	1
12 52108-KTW-B00 BUSH, DAMPER ....	1	1
13 90105-KL8-741 BOLT, FR. DISK, 8X24(SAGA) ..	4	4
90105-MBB-000 BOLT, BRAKE DISK, 8X24 ....	4	4
14 90131-KPB-751 BOLT, TORX, 5X10 ....	-	4
15 90132-KSV-J00 BOLT-WASHER, 10X60 ....	2	2
16 90305-KWN-701 NUT, U, 16MM ....	1	1
17 91051-KS4-003 BEARING, RADIAL BALL, 6303 ..	1	1
18 91252-147-003 OIL SEAL, 34X47X5 ....	1	1

F-22 REAR WHEEL/SWINGARM H 2
Ref. No. Part No. Description Req'd. QTYNSS NSS300 300AD Serial No. Paris catalogue code
19 91258-HB3-0D3 DUST SEAL, 37X25X6 ...... 1 120 94520-47000 CIRCLIP, INTERNAL, 47MM ...... 1 121 95701-D6016-07 BOLT, FLANGE, 6X16 ...... 3 3

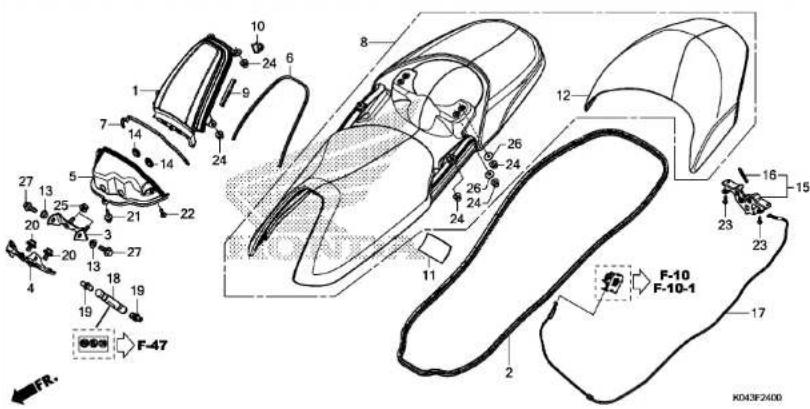

F-24 SEAT H 3
		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		1 4131BU HINGE, SEAT(A)....0.44 (3)4131P0 HINGE, SEAT....1.75 4131F9 COVER, SEAT UNDER....0.18 4131E4 SEAT :DOUBLE....0.212 4121A0 BACKREST....0.315 (16)4131E8 CATCH, SEAT :REAR SIDE....0.517 811175 CABLE, SEAT LOCK....1.718 4131K2 DAMPER, SEAT OPENER....0.7
Ref.No. Part No. Description	Reqd. QTYNSS NSS300 D 300AD Serial No. Parts catalogue code
1 77110-K04-930 HINGE A, SEAT....	1	1
2 77115-K04-930 RUBBER A, SEAL....	1	1
3 77121-K04-930 HINGE B, SEAT....	1	1
4 77122-K04-930 HINGE COMP., SEAT....	1	1
5 77160-K04-930 COVER, SEAT HINGE UNDER....	1	1
6 77175-K04-930 RUBBER B, SEAL....	1	1
7 77176-K04-930 RUBBER C, SEAL....	1	1
8 77200-K04-930ZA SEAT COMP., DOUBLE*TYPE1*....	1	1
9 77202-K04-930 COVER, SEAT HINGE....	2	2
10 77203-K04-930 CAP, HINGE NUT....	2	2
11 77205-K04-930 CUSHION, SEAT....	1	1
12 77210-K04-930ZA BACKREST ASSY.*TYPE1*....	1	1
13 77223-MFV-000 COLLAR, RR. COWL SETTING....	2	2
14 77225-K04-930 GROMMET, SEAT HINGE UNDER....	2	2
15 77230-K04-930 CATCH COMP., SEAT....	1	1
16 77234-GN2-000 SPRING, SEAT LOCK....	1	1
17 77240-K04-931 CABLE COMP., SEAT LOCK....	1	1
18 83590-K04-931 DAMPER, OPENER....	1	1
19 90108-KWR-003 STUD, BALL....	2	2
20 93404-D8016-08 BOLT-WASHER, 8X16....	2	2
21 93891-D5016-18 SCREW-WASHER, 5X16....	1	1
22 93903-25380 SCREW, TAPPING, 5X16....	2	2
23 93903-34380 SCREW, TAPPING, 4X12....	2	2

F-24 SEAT H 4
Ref. No. Part No. Description Req'd. QTY NSS NSS Serial No. No. D D No.	Parts catalogue code
24 94D50-D6000 NUT, FLANGE, 6MM ...... 10 1025 94D50-D8080 NUT, FLANGE, 8MM ...... 2 226 94103-D6000 WASHER, PLAIN, 6MM ...... 4 427 95701-D8020-08 BOLT, FLANGE, 8x20 ...... 2 2

F-26 FUEL TANK H 5
				Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
				1 (8,14)310120 PUMP ASSY., FUEL ...... 0.83 (2)3101C7 FILTER, FUEL ...... 0.86 310100 TANK, FUEL ...... 2.79 413185 COVER, FUEL TANK CENTER ...... 1.212 310162 HOSE, FUEL FEED ...... 0.618 (19)617105 FUEL TANK SENDING UNIT ...... 0.6
Ref.No. Part No. Description	Reqd. QTY			Parts catalogue code
	NSS300D	NSS300AD	Serial No.
1 16700-K04-931 PUMP ASSY., FUEL ......	1	1
2 16706-KVB-S51 O-RING(P7) ......	1	1
3 16707-K04-931 FILTER SET ......	1	1
4 17416-K04-930 TUBE, BREATHER ......	1	1
5 17417-K04-930 TUBE, AIR BREATHER ......	1	1
6 17510-K04-930 TANK COMP., FUEL ......	1	1
7 17517-K04-930 RETAINER, FUEL PUMP ......	2	2
8 17518-GGL-J00 DUST SEAL ......	1	1
9 17520-K04-930 COVER, FUEL TANK ......	1	1
10 17525-K04-930 TRAY, FUEL ......	1	1
11 17525-KBN-900 JOINT, FUEL TUBE ......	1	1
12 17528-K04-931 HOSE COMP., FUEL FEED ......	1	1
13 17568-KRJ-900 CLAMPER, FUEL HOSE ......	2	2
14 17572-GGL-J00 O-RING, FUEL PUMP ......	1	1
15 17620-KWN-981 CAP COMP., FUEL FILLER ......	1	1
16 17632-383-831 PACKING, FUEL FILLER CAP ......	1	1
17 36191-KV3-700 JOINT, AIR FILTER ......	1	1
18 37800-K04-931 FUEL UNIT(NIPPON SEIKI) ......	1	1
19 37801-GA7-700 PACKING, BASE ......	1	1
20 37802-KTL-740 RETAINER, FUEL UNIT ......	1	1
21 90116-KVB-900 BOLT, FLANGE, 6MM ......	2	2
22 90659-KG4-000 CLAMP, WIRE, 8MM ......	6	6
23 94050-D6000 NUT, FLANGE, 6MM ......	4	4
24 95001-35260-40 TUBE, 3.5X260 ......	1	1
25 95003-25040-31 TUBE, VINYL, 9X11X400 ......	1	1

F-26 FUEL TANK H 6

Ref. No. Part No. Description Req'd. QTY NSS NSS Serial No. Parts catalogue codeNSS NSS 300 300A D D

26 95701-D6014-00 BOLT, FLANGE, 6X14 2 227 95701-D8014-00 BOLT, FLANGE, 8X14 4 4

2013.04.10 E

Ref. No. Part No. Description	Reqd. QTY		Serial No.
	NSS 300 D	NSS 300A
1 17208-6R1-01D COLLAR, AIR CLEANER SETTING · 3 32 1721D-K04-93D ELEMENT COMP., AIR CLEANER · 1 13 17213-KTW-90D SEAL, AIR CLEANER ········ 1 14 17215-K04-93D DUCT, AIR CLEANER ········ 1 15 17218-KFG-00D SEAL, AIR CLEANER ········ 1 16 17218-K04-93D TUBE, BREATHER ········ 1 17 17225-K04-931 CASE SUB ASSY., AIR CLEANER · 1 18 17235-K04-93D COVER SUB ASSY., AIR CLEANER 1 19 17236-KVB-90D PLUG, AIR CLEANER DRAIN ····· · 1 110 17253-K04-931 TUBE, AIR CLEANER CONNECTING 1 111 17255-K04-93D BAND, AIR CLEANER CONNECTING TUBE(52) 1 112 17261-KSV-J0D TUBE, DRAIN ········ 1 113 90661-GHB-63D CLAMP B, TUBE, 14.5MM ········ 1 114 90682-SAD-671 CLAMP, CANISTER HOSE ········ 1 115 91406-MS8-00D CLAMP, TUBE(D14.5) ········ 1 116 93404-06030-00 BOLT-WASHER, 6X30 ········ 3 317 93903-25480 SCREW, TAPPING, 5X20 ········ 10 1018 95002-80000 CLIP, TUBE(C12) ········ 1 1			Paris catalogue code

F-28-10 AIR INJECTION SOLENOID VALVE H 8
				Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
				9 314130 VALVE, SECONDARY AIR CONTROL - 0.6
Ref. Part No. Description Req'd. QTY Serial No. Parts catalogue codeNo. D D
1 17724-102-700 CLIP, SUB TANK HOSE 4 42 18651-KTW-900 TUBE A, AIR INJECTION CONTROLVALVE 1 13 18652-KTW-900 TUBE B, AIR INJECTION CONTROLVALVE 1 14 18655-K04-930 STAY COMP., AIR INJECTIONSOLENOID VALVE 1 15 18656-K04-930 STAY, AIR INJECTION CONTROLVALVE TUBE 1 16 19342-K04-930 BAND, AIR INJECTION CONTROLVALVE 1 17 19343-KTW-900 CAP, AIR INJECTION CONTROLVALVE 1 18 30520-K04-930 COVER, IGNITION COIL 1 19 36450-KTW-901 VALVE ASSY., AIR INJECTIONSOLENOID 1 110 43516-MR5-000 RUBBER, MOUNTING 1 111 50324-425-010 COLLAR, 6.3X13 1 112 61104-428-000 COLLAR, FR. FENDER 2 213 84703-K04-930 RUBBER C, MOUNTING 2 214 93404-06025-07 BOLT-WASHER, 6X25 3 315 94050-06000 NUT, FLANGE, 6MM 1 116 95701-D6014-00 BOLT, FLANGE, 6X14 2 217 95801-D6014-08 BOLT, FLANGE, 6X14 1 1

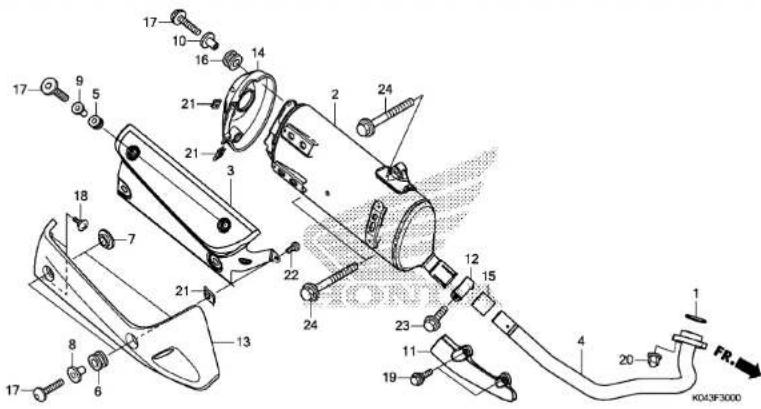

F-30 EXHAUST MUFFLER H 9
		Ref. No. L.O.N. (Relative ref. Number) Description F.R.T.
		1 3131B4 GASKET, EXHAUST PIPE ...... 0.42 313120 MUFFLER ...... 0.43 (13)313121 PROTECTOR, MUFFLER ...... 0.24 313110 PIPE, EXHAUST ...... 0.411 3131A6 PROTECTOR, EXHAUST PIPE ...... 0.114 3131F2 CAP, MUFFLER END ...... 0.215 3131C4 GASKET, MUFFLER ...... 0.2
Ref.No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 D 300A D	Parts catalogue code
1 18291-MN4-920 GASKET, EX. PIPE ......	1 1
2 18300-KD4-930 MUFFLER COMP., EX. ......	1 1
3 18318-KD4-930 PROTECTOR A, MUFFLER ......	1 1
4 18320-KD4-930 PIPE COMP., EX. ......	1 1
5 18345-MBT-610 RUBBER, PROTECTOR MOUNTING ..	2 2
6 18346-KTW-900 RUBBER, PROTECTOR MOUNTING ..	2 2
7 18347-KD4-930 COLLAR, PROTECTOR MOUNTING ..	2 2
8 18348-KD4-930 COLLAR, MUFFLER PROTECTOR ...	2 2
9 18352-KD4-930 COLLAR, PROTECTOR SETTING ...	2 2
10 18353-KD4-930 COLLAR, TAIL CAP MOUNTING ...	3 3
11 18360-KD4-930 PROTECTOR, EX. PIPE ......	1 1
12 18373-KD4-930 BAND, EX. PIPE ......	1 1
13 18380-KTW-900 PROTECTOR SUB ASSY., MUFFLER	1 1
14 18381-KTW-900 COVER SUB ASSY., TAIL CAP ...	1 1
15 18391-MN1-670 PACKING, MUFFLER ......	1 1
16 80107-GEO-710 RUBBER, RR. FENDER SETTING ..	3 3
17 90103-KD4-930 SCREW, PAN, 5X20 ......	7 7
18 90104-KD4-930 SCREW, SPECIAL, 5MM ......	2 2
19 90107-KTW-900 BOLT, SPECIAL, M6 ......	2 2
20 90304-KPH-700 NUT, HEX. CAP, 8MM ......	2 2
21 90677-KAN-961 NUT, CLIP, 5MM ......	3 3
22 93500-D5012-0A SCREW, PAN, 5X12 ......	1 1
23 95701-D8035-02 BOLT, FLANGE, 8X35 ......	1 1
24 95701-10050-07 BOLT, FLANGE, 10X50 ......	3 3

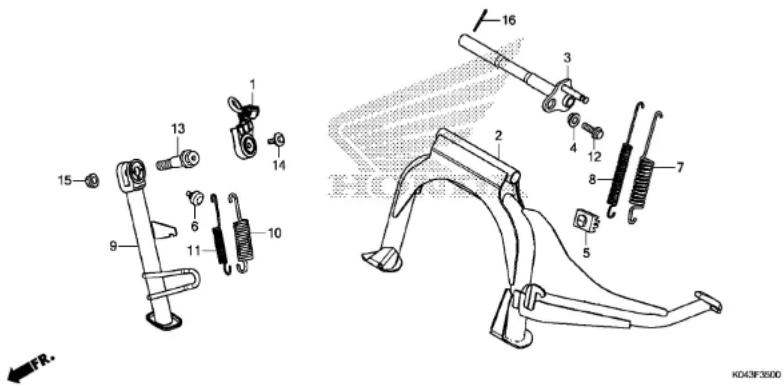

F-35 STAND H10
				Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
				1 615195 SWITCH, SIDE STAND 0.22 (3)410175 STAND, MAIN 0.47 (8)410176 SPRING, MAIN STAND 0.2NOTE: Same time for two units9 410180 BAR, SIDE STAND 0.210 (11)410182 SPRING, SIDE STAND 0.1NOTE: Same time for two units
Ref.No. Part No. Description	Reqd. QTY			Parts catalogue code
	NSS300D	NSS300AD	Serial No.
1 35700-K04-931 SWITCH ASSY., SIDE STAND ....	1	1
2 50500-K04-93D STAND COMP., MAIN ....	1	1
3 50503-K04-93D SHAFT, MAIN STAND ....	1	1
4 50504-K04-93D COLLAR, MAIN STAND SHAFT ....	1	1
5 50505-GR1-71D RUBBER, STAND STOPPER ....	1	1
6 50505-K04-93D RUBBER, STAND STOPPER ....	1	1
7 50522-K04-93D SPRING, MAIN STAND ....	1	1
8 50523-K04-93D SUB SPRING, MAIN STAND ....	1	1	---- E,ED,F
9 50530-K04-93D BAR COMP., SIDE STAND ....	1	1
10 50541-KPH-970 SPRING, SIDE STAND ....	1	1
11 50542-KPH-970 SUB SPRING, SIDE STAND ....	1	1	---- E,ED,F
12 90105-K04-93D BOLT-WASHER, 8x25 ....	1	1
13 90108-MK6-670 BOLT, SIDE STAND PIVOT ....	1	1
14 90147-MCE-950 BOLT, SPECIAL, 6x16 ....	1	1
15 90203-MF9-710 NUT, SIDE STAND ....	1	1
16 94201-25250 PIN, SPLIT, 2.5x25 ....	1	1

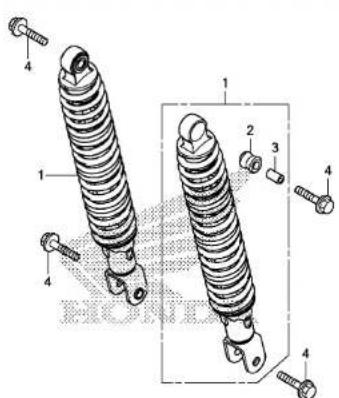

F-36 REAR CUSHION H11
K049F3600		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		1 5121B6 CUSHION ASSY., REAR :LEFT .... 0.25121B7 CUSHION ASSY., REAR :RIGHT .... 0.25121B8 CUSHION ASSY., REAR :BOTH .... 0.3
Ref. No. Part No. Description Reqd. QTYNSS NSS Serial No. No. Part No. Description NSS NSS300 300AD D Parls catalogue code
1 52400-K04-931 CUSHION ASSY., RR.(SHOWA) ... 2 22 52485-088-901 BUSH, RR. CUSHION RUBBER (SHOWA) 2 23 52486-6A7-003 COLLAR, RUBBER BUSH(SHOWA) ... 2 24 95801-10040-08 BOLT, FLANGE, 10x40 ...... 4 4

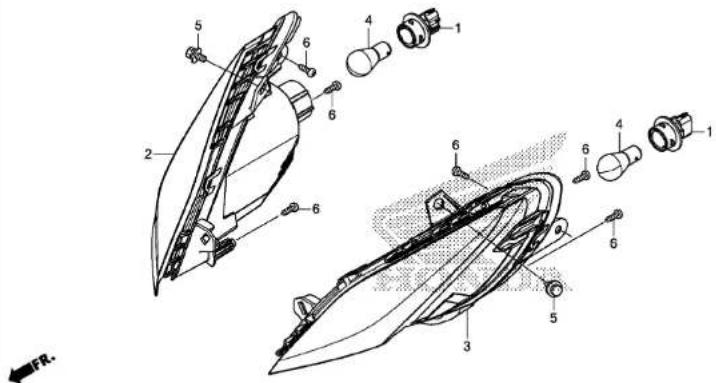

F-37-10 FRONT WINKER H12
K03F3710		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		2 6161C4 WINKER :RIGHT FRONT ...... 0.83 6161C3 WINKER :LEFT FRONT ...... 0.86161C5 WINKER :BOTH FRONT ...... 0.94 (1)616133 BULB, WINKER :FRONT ...... 0.1NOTE: Same time for two units6161GO BULB, WINKER :FOR 1 VEHICLE .. 0.2
Ref.No. Part No. Description Req. QTYSS NSS Serial No.NSS NSS300 300AD D Parls catalogue code
1 33406-K04-931 SOCKET, BULB ...... 2 22 3342D-K04-931 WINKER UNIT, R. FR. ...... 1 13 3347D-K04-931 WINKER UNIT, L. FR. ...... 1 14 34906-KSS-C01 BULB, TAILLIGHT(12V 21/5w)(KOITO) 2 25 93404-06014-00 BOLT-WASHER, 6x14 ...... 2 26 93903-35320 SCREW, TAPPING, 5x16 ...... 6 6

F-38-10 REAR COMBINATION LIGHT H13
K043F3810		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		3 6161E7 SOCKET, TAILLIGHT ...... 0.64 6161D5 TAILLIGHT UNIT ...... 0.65 616139 BULB, WINKER :REAR ...... 0.1NOTE: Same time for two units6161GO BULB, WINKER :FOR 1 VEHICLE .. 0.26 6161M5 BULB, TAILLIGHT :UPPER ...... 0.1NOTE: Same time for two units7 6161M7 BULB, TAILLIGHT :LOWER ...... 0.1NOTE: Same time for two units6161J1 BULB, TAILLIGHT :FOR 1 VEHICLE 0.1
Ref. No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS NSS300 300AD D	Paris catalogue code
1 33705-K04-930 RUBBER A, TAILLIGHT MOUNTING 2 22 33707-K04-930 COLLAR, TAILLIGHT ...... 2 23 33708-K04-931 CORD COMP., RR. COMBINATIONLIGHT 1 14 33710-K04-931 TAILLIGHT UNIT ...... 1 15 34904-K04-931 BULB(12V 21W)(KOITO)(AMBER) · 2 26 34905-K04-931 BULB(T16)(12V 16W)(KOITO) ... 2 27 34906-K04-931 BULB(12V 5W)(KOITO) ...... 2 28 90106-MM9-000 BOLT, FR. FENDER FIXING ...... 1 19 90302-SA4-003 NUT, SPRING, 4MM ...... 1 110 93903-34380 SCREW, TAPPING, 4X12 ...... 2 211 95701-D6022-00 BOLT, FLANGE, 6X22 ...... 2 2

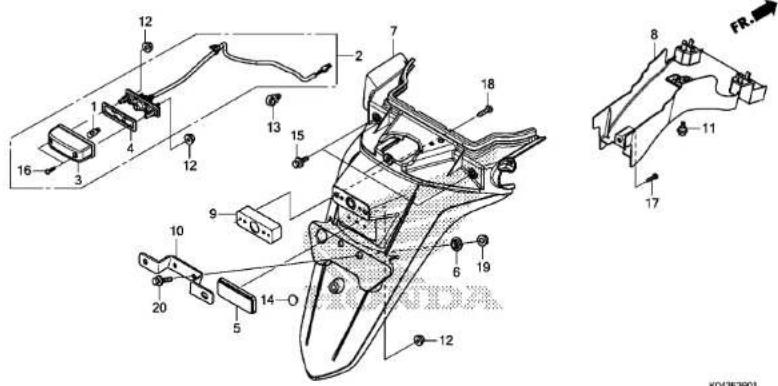

F-39 REAR FENDER(E/ED/F/U) H14
			Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
			1 (3,4)6161F3 BULB, LICENSE LIGHT 0.12 6161D8 LIGHT, LICENSE 0.88 413102 FENDER, REAR 0.89 413110 FENDER B, REAR 0.6
Ref. No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 300AD D		Parts catalogue code
1 33301-SAD-741 BULB(12V 5W)(STANLEY) 1 1 E,ED,F,U2 33720-KD4-931 LIGHT ASSY., LICENSE(12V 5W) 1 1 E,ED,F,U3 33722-KD4-931 COVER COMP., LICENSE 1 1 E,ED,F,U4 33729-MCZ-003 PACKING, LENS 1 1 E,ED,F,U5 33741-KTG-U01 REFLECTOR, FR. REFLEX(AMBER) 2 2 E,ED,F,U6 33741-KWN-901 REFLECTOR, REFLEX 1 1 E,ED,F,U7 44125-MN5-000 COLLAR, FR. WHEEL COVER 2 2 E,ED,F,U8 80105-KD4-930 FENDER, RR. 1 1 E,ED,F,U9 80107-KD4-930 FENDER B, RR. 1 1 E,ED,F,U10 84700-KD4-930 BRACKET, NUMBER PLATE 1 1 E,ED,F,U11 90116-KVB-900 BOLT, FLANGE, 6MM 1 1 E,ED,F,U12 90301-KGH-901 NUT, U, 6MM(FUJI SEIMITSU) 2 2 E,ED,F,U13 90301-KWN-901 NUT, U, 5MM 3 3 E,ED,F,U14 90507-KRP-980 COLLAR, M6 1 1 E,ED,F,U15 90683-SAD-003 CLIP, WIRE HARNESS, 25MM 1 1 E,ED,F,U16 93404-06012-08 BOLT-WASHER, 6X12 3 3 E,ED,F,U17 93901-24480 SCREW, TAPPING, 4X16 2 2 E,ED,F,U18 93903-34380 SCREW, TAPPING, 4X12 1 1 E,ED,F,U19 94050-06080 NUT, FLANGE, 6MM 2 2 E,ED,F,U20 95701-06016-08 BOLT, FLANGE, 6X16 2 2 E,ED,F,U

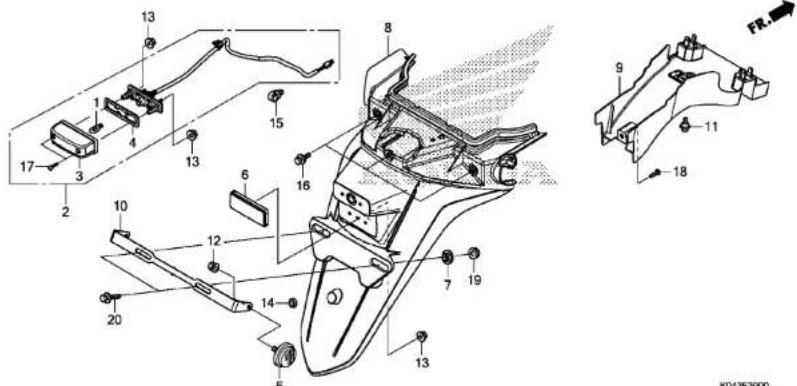

F-39-1 REAR FENDER(KO) H15
			Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
			1 (3,4)6161F3 BULB, LICENSE LIGHT 0.12 6161D8 LIGHT, LICENSE 0.87 413102 FENDER, REAR 0.88 413110 FENDER B, REAR 0.6
Ref.No.	Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 300A D D		Paris catalogue code
1	33301-SAD-741 BULB(12V 5W)(STANLEY)	1	1	K0
2	33720-KD-931 LIGHT ASSY., LICENSE(12V 5W)	1	1	K0
3	33722-KD-931 COVER COMP., LICENSE	1	1	K0
4	33729-MCZ-003 PACKING, LENS	1	1	K0
5	33741-KWN-901 REFLECTOR, REFLEX	1	1	K0
6	44125-MN5-000 COLLAR, FR. WHEEL COVER	2	2	K0
7	80105-KD-900 FENDER, RR.	1	1	K0
8	80107-KD-930 FENDER B, RR.	1	1	K0
9	80201-KD-900 BRACKET, LICENSE LIGHT	1	1	K0
10	84700-KD-A00 BRACKET, NUMBER PLATE	1	1	K0
11	90116-KVB-900 BOLT, FLANGE, 6MM	1	1	K0
12	90301-KWN-901 NUT, U, 5MM	3	3	K0
13	90683-SAD-003 CLIP, WIRE HARNESS, 25MM	1	1	K0
14	90852-KPP-TDD PLUG, HOLE	1	1	K0
15	93404-D6012-08 BOLT-WASHER, 6X12	3	3	K0
16	93901-24480 SCREW, TAPPING, 4X16	2	2	K0
17	93903-34380 SCREW, TAPPING, 4X12	1	1	K0
18	93903-35310 SCREW, TAPPING, 5X16	2	2	K0
19	94050-06080 NUT, FLANGE, 6MM	2	2	K0
20	95701-06016-08 BOLT, FLANGE, 6X16	2	2	K0

F-40 BATTERY H16
		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		1 610100 BATTERY ...... 0.22 610110 CABLE, NEGATIVE BATTERY ...... 0.94 615113 SWITCH, STARTER MAGNETIC ...... 0.37 410185 BOX, BATTERY ...... 0.6
Ref.No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS 300 300AD D	Parts catalogue code
1 31500-K04-931 BATTERY ASSY.(FTZ12S)(FURUKAWA) 1 1 ---- E,ED,F31500-MGS-D31 BATTERY(YTZ12S)(GS YUASA) ... 1 1 ---- E,ED,F31500-K04-A01 BATTERY ASSY.(FTZ12S)(FURUKAWA) 1 1 ---- KO31500-K04-901 ....... 1 1 ---- U31500-MCF-643 BATTERY(YTZ12S)(GS YUASA) ... 1 1 ---- U2 32610-K04-930 CABLE, BATTERY EARTH ... 1 13 32611-K04-930 CLAMP, BATTERY EARTH CABLE ... 1 14 35850-MR5-007 SWITCH ASSY., STARTER MAGNETIC 1 15 35856-K04-931 RUBBER, SHOCK ....... 1 16 50328-KSV-J00 TAPE, BATTERY LIFT ....... 1 17 80140-K04-930 BOX COMP., BATTERY ....... 1 18 81258-K04-930 HEAT GUARD, LUGGAGE BOX .... 1 19 90111-MR5-000 BOLT, SOCKET, 5X9 ....... 2 210 90305-GEE-710 NUT, CLIP, 6MM ....... 4 411 90380-GM9-740 SCREW, SPECIAL, 6X15 ....... 2 212 95701-06016-00 BOLT, FLANGE, 6X16 ....... 2 213 98200-33000 FUSE, BLADE(30A) ....... 2 2

F-41 WIRE HARNESS I 1
				Ref. L.O.N. (Relative ref. Number) No. Description F.R.T.
				1 614105 COIL, IGNITION 0.85 6131B2 RECTIFIER, REGULATE 0.46 6131B3 RECTIFIER, SILICON 0.37 611100 HARNESS, WIRE 2.513 617125 SENSOR, BANK ANGLE 0.316 616169 HORN 0.117 6111C3 RELAY, WINKER 0.319 6111D9 RELAY, FAN CONTROL 0.36111G1 RELAY, FUEL PUMP 0.3611155 RELAY, MAIN 0.320 618135 ENGINE CONTROL MODULE(ECM) 0.6
Ref.No. Part No. Description Reqd. QTY NSS NSS Serial No. Parts catalogue code
1 30510-K04-931 COIL COMP., IGNITION(TOYO) .. 1 12 30511-K04-930 CLAMPER, HIGH TENSION CORD .. 1 13 30520-GFM-900 SPACER, IGNITION COIL ...... 2 24 30700-KTW-901 CAP ASSY., NOISE SUPPRESSOR . 1 15 31600-MJJ-D31 RECTIFIER ASSY., REGULATOR .. 1 16 31700-MM8-610 RECTIFIER COMP., SILICON .... 1 17 32100-K04-930 HARNESS, WIRE ...... 1 - E,ED,F32100-K04-A00 ...... 1 - K0,U32100-K04-970 ...... - 1 - E,ED,F32100-K04-A50 ...... - 1 - K0,U8 32150-KCR-J11 COUPLER, JOINT(WPC 2P 090 M) (NATURAL) 1 19 32406-KAZ-010 COVER, STARTER MAGNETIC TERMINAL 1 110 32414-MZ5-000 COVER, BATTERY TERMINAL ...... 1 111 32605-GEV-761 CAP, DUMMY(WPC 4P 090 M) (NATURAL) 1 1 12 32606-MEL-D01 CAP, DUMMY(6P)(NATURAL) .... 1 1 13 35160-KPP-T01 SENSOR ASSY., BANK ANGLE .... 1 114 35162-MGC-003 COLLAR ...... 2 215 35163-MGC-003 GROMMET ...... 2 216 38110-K04-931 HORN COMP.(HIGH) .... 1 1 138110-K04-A01 .... 1 1 17 38301-KTF-671 RELAY COMP., WINKER .... 1 118 38306-KK4-000 SUSPENSION, WINKER RELAY (MITSUBA) 1 1
[F-GW4X]
Ref. No. Part No. Description	Reqd. QTY
	NSS 300 D	NSS 300A D	Serial No. Parts catalogue code
19 38501-KV2-631 RELAY ASSY., POWER (MICRO ISO 4P)(MITSUBA)	3	3
20 38770-KD4-931 PGM-FI UNIT	1	1	E,ED,F
38770-KD4-A01	1	1	K0,U
21 38771-GGL-J00 SUSPENSION, ENGINE CONTROL	UNIT	1	1
22 50345-KD4-930 HOLDER, RELAY	1	1
23 90302-KWW-A00 NUT, SPRING, 4MM	2	2
24 91533-SDA-003 CLIP, COUPLER(BEIGE)	1	1
25 92101-06020-4J BOLT, HEX., 6X20	2	2
26 93403-06025-00 BOLT-WASHER, 6X25	2	2
27 93903-34480 SCREW, TAPPING, 4X16	2	2
28 95701-D6012-00 BOLT, FLANGE, 6X12	1	1
29 95701-D6016-00 BOLT, FLANGE, 6X16	2	2
30 95701-D6022-00 BOLT, FLANGE, 6X22	2	2
31 95701-08012-07 BOLT, FLANGE, 8X12	1	1
32 98200-40500 FUSE, MINI(5A)	5	6	E,ED,F
33 98200-41000 FUSE, MINI(10A)	6	4	5 K0,U
34 98200-41500 FUSE, MINI(15A)	3	3
35 98200-43000 FUSE, MINI(30A)	2	4

F-42 FRAME BODY I 3
		Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
		2 410100 BODY, FRAME...... INCLUDES: Engine removal andinstallation4 411105 STAY, FRONT COVER ...... 1.7411105C .ABS add ...... 0.35 4101L4 BRACKET B, ENGINE HANGER ...... INCLUDES: Engine removal andinstallation9 4101L3 BRACKET A, ENGINE HANGER ...... INCLUDES: Engine removal andinstallation10 4101X7 ROD, SWING ...... 2.511 4101D2 STAY, FLOOR :RIGHT ...... 0.512 4101D1 STAY, FLOOR :LEFT ...... 0.54101P3 STAY, FLOOR :BOTH ...... 0.9
Ref.No. Part No. Description	Reqd. QTYNSS NSS Serial No.NSS D 300A D	Parts catalogue code
1 42301-K04-930 AXLE, RR. WHEEL ...... 1 12 50100-K04-930 BODY COMP., FRAME ...... 1 13 50250-K04-930 BRACKET, CENTER CROSS ...... 1 14 50310-K04-930 STAY, FR. COVER ...... 1 -50310-K04-970 STAY, FR. COVER(ABS) ...... - 15 50349-K04-930 BRACKET SUB ASSY. B, ENGINEHANGER 1 16 50352-KTW-900 COLLAR B, ENGINE HANGER ...... 1 17 50354-428-000 RUBBER B, STOPPER ...... 1 18 50354-K04-930 COLLAR, ENGINE PIVOT DISTANCE 1 19 50360-K04-930 BRACKET ASSY. A, ENGINE HANGER 1 110 50380-K04-930 ROD COMP., SWING ...... 1 111 50610-K04-930 STAY COMP., R. FLOOR ...... 1 112 50620-K04-930 STAY COMP., L. FLOOR ...... 1 113 52144-GF5-003 DUST SEAL, 31x38.5x7(NOK) ... 2 214 61304-415-000 RUBBER, HEADLIGHT CASE MOUNTING 3 315 64216-GJ2-730 RUBBER, SCREEN SETTING ...... 2 216 90101-K04-930 BOLT, FLANGE, 12x360 ...... 1 117 90103-KTW-900 BOLT, FLANGE, 12x280 ...... 1 118 90304-KGH-901 NUT, U, 10MM ...... 2 219 90306-KFO-003 NUT, FLANGE, 12MM(FUSERASHI) 3 320 90443-KTM-970 NUT, CAP, 8MM ...... 1 121 91071-KS6-004 BEARING, SWINGARM PIVOT(NTN) 2 222 94102-10000 WASHER, PLAIN, 10MM ...... 1 1
F-42 FRAME BODY 14
Ref. No. Part No. Description Req. QTY
23 95701-D8014-00 BOLT, FLANGE, 8X14 ....	8	8
24 95801-D8040-00 BOLT, FLANGE, 8X40 ....	2	2
25 95801-10065-00 BOLT, FLANGE, 10X65 ....	1	1
26 95801-10075-00 BOLT, FLANGE, 10X75 ....	1	1

2013.04.10 E

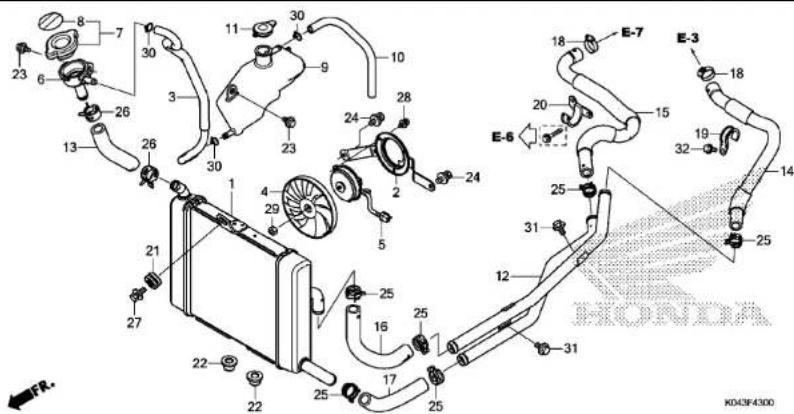

Ref.No.	Part No. Description	Reqd. QTY		Serial No.
		NSS300D	NSS300AD
1	19010-K04-931	RADIATOR COMP.(T.RAD)	1	1
2	19015-K04-931	SHROUD COMP.	1	1
3	19017-K04-930	TUBE, FILLER	1	1
4	19020-KVZ-631	FAN COMP., COOLING	1	1
5	19030-K04-931	MOTOR ASSY., FAN(T.RAD)	1	1
6	19035-K04-931	NECK, FILLER	1	1
7	19037-MCA-661	CAP COMP., RADIATOR	1	1
	19037-MCJ-K00		1	1
8	19046-MCA-661	LABEL, RADIATOR CAP	1	1
	19055-MBR-870	SEAL, RADIATOR CAP(KOREAN)	1	1
9	19101-K04-930	TANK, RESERVE	1	1
10	19102-K04-930	TUBE, RESERVE TANK	1	1
11	19109-KBP-900	CAP, RESERVE TANK	1	1
12	19120-K04-930	PIPE COMP., WATER	1	1
13	19126-K04-930	HOSE, FILLER	1	1
14	19501-K04-930	HOSE A, WATER	1	1
15	19502-K04-930	HOSE B, WATER	1	1
16	19503-K04-930	HOSE C, WATER	1	1
17	19504-K04-930	HOSE D, WATER	1	1
18	19507-KA3-830	CLAMP B, WATER HOSE	2	2
19	19531-KTW-900	CLAMPER A, WATER HOSE	1	1
20	19532-KTW-900	CLAMPER B, WATER HOSE	1	1
21	61304-415-000	RUBBER, HEADLIGHT CASE	MOUNTING	1
22	64415-KGH-900	BOOTS, BODY COVER	2	2

F-43 RADIATOR 16

Ref. No. Part No. Description Req'd. QTY NSS NSS Serial No. Parts catalogue code

23 90116-KVB-900 BOLT, FLANGE, 6MM ...... 2 224 90120-GHB-601 BOLT-WASHER, 6X12 ...... 2 225 90701-KWN-901 CLAMP, WATER HOSE, 24MM ...... 6 626 90701-MF5-003 CLAMP, WATER HOSE, 21MM ...... 2 227 93404-D6012-00 BOLT-WASHER, 6X12 ...... 1 128 93891-04006-07 SCREW-WASHER, 4X6 ...... 3 329 94001-03000-0S NUT, HEX., 3MM ...... 1 130 95002-02120 CLTP, TUBE(B12) ...... 3 331 95701-06010-00 BOLT, FLANGE, 6X10 ...... 2 232 95701-06012-00 BOLT, FLANGE, 6X12 ...... 1 1

2013.04.10 E

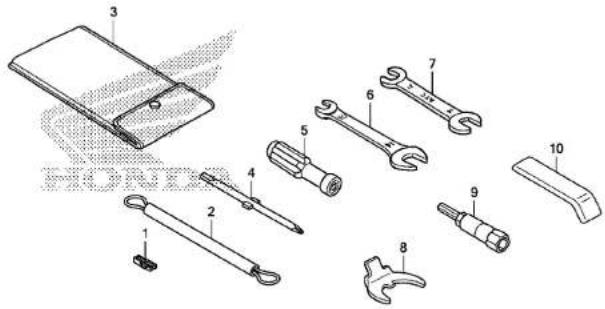

F-46 TOOLS
KD3F4600				Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.NO INFORMATION ......
Ref.No. Part No. Description	Reqd. QTY			Partis catalogue code
	NSS300D	NSS300AD	Serial No.
1 38235-S04-003 PULLER, MINI FUSE(SUMITOMO) ·	1	1
2 77236-K04-930 WIRE, HELMET SETTING ......	1	1
3 89101-MC7-000 BAG, TOOL ......	1	1
4 89102-538-000 DRIVER, SCREW(NO.2 + -) ......	1	1
5 89103-538-000 GRIP ......	1	1
6 89211-KWW-640 SPANNER, 10X14 ......	1	1
7 89213-KWW-601 SPANNER, 12X14(ATC) ......	1	1
8 89215-KSV-J00 SPANNER, PIN ......	1	1
9 89216-K04-930 WRENCH, BOX(P14) ......	1	1
10 89219-KSV-J00 HANDLE, EYE WRENCH ......	1	1

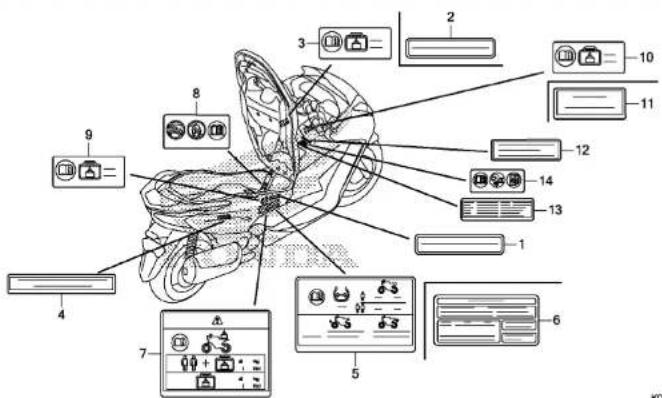

F-47CAUTION LABEL18
				Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.
				NO INFORMATION·········
_03F4700
Ref.No. Part No. Description	Reqd. QTY			Paris catalogue code
	NSS300D	NSS300AD	Serial No.
1 81218-KPB-B21 LABEL, CARGO LIMIT(10KG)(KOREAN) 1 1 ---- KO2 81219-KPB-B21 LABEL, CARGO LIMIT(1.5KG)(KOREAN) 1 1 ---- KO3 81219-KTW-A60 LABEL, CARGO LIMIT(1.5KG) ... 1 1 ---- E,ED,F,U4 87125-6B0-900 PLATE, NAME ...... 1 1 ---- KO5 87505-K04-930 LABEL, TIRE ...... 1 1 ---- E,ED,F,U6 87505-K04-A00 LABEL, TIRE(KOREAN) ...... 1 1 ---- KO7 87512-K04-930 LABEL, ACCESSORIES & LOADING 1 1 ---- E,ED,F,U8 87516-MCA-G60 LABEL, RR. DAMPER(PICTOGRAPH) 1 1 ---- E,ED,F9 87520-GEZ-D00 LABEL, CARGO LIMIT(10.0) ... 1 1 ---- E,ED,F,U10 87525-KTW-A60 LABEL, CARGO LIMIT(0.5KG) ... 1 1 ---- E,ED,F,U11 87525-MCA-K00 LABEL, CARGO LIMIT(0.5KG)(KOREAN) 1 1 ---- KO12 87560-MBR-871 LABEL, DRIVE CAUTION(KOREAN) 1 1 ---- KO13 87562-K04-920 LABEL, FRENCH TRANSLATION ... 1 1 ---- F14 87586-MGN-D00 LABEL, FUEL & DRIVE(PICTOGRAPH) 1 1 ---- E,ED,F,U

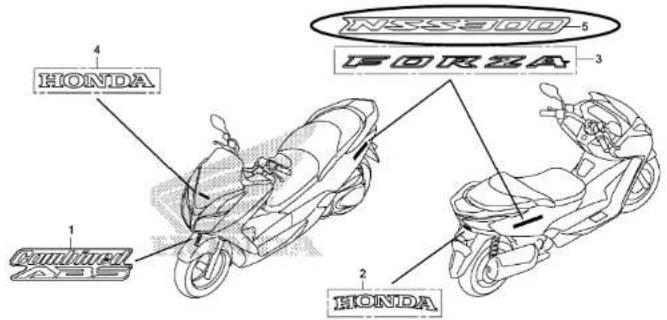

F-48MARK/EMBLEM
KD0F4800					Ref. L.O.N. (Relative ref. Number)No. Description F.R.T.NO INFORMATION ....
Ref.No.	Part No. Description	Reqd. QTY		Serial No.	Parts catalogue code
		NSS300D	NSS300A
1 61105-KVZ-660ZA	MARK, COMBINED ABS*TYPE1*....	-	1
61105-KVZ-660ZB	*TYPE2*....	-	1
2 86101-K04-930ZA	EMBLEN, HONDA(80MM)*TYPE1*....	1	1
3 86831-K04-930ZA	EMBLEN(FORZA)*TYPE1*....	2	2
4 87125-MCN-850ZA	MARK, HONDA*TYPE1*....	1	1

J 1PART NO. INDE

Part Number

Address

Page

Ref.

Part Number

Address

Page

Ref.

Part Number

Address

Page

Ref.

Part Number

Address

Page

Ref.

06000

13217-MW4-000

E5 48 6

14918-KT7-013

D5 32 16

15135-K04-930

D11 38 5

17528-K04-931

H5 86 12

13218-MW4-000

E5 48 6

14919-KT7-013

D5 32 16

15141-K04-931

D11 38 6

17565-K04-930

E6 49 14

06431-MA3-405

G14

79

1

13310-KTW-900

E5 48 8

14920-KT7-013

D5 32 16

15153-HN7-000

E3 46 10

17568-KRJ-900

H5 86 13

06435-K04-701

G16

81

1

13312-KTW-901

E2 45 8

14921-KT7-013

D5 32 16

15155-300-000

E3 46 11

17571-K04-930

E6 49 15

06435-K04-931

G16

81

1

13313-KTW-901

E2 45 8

14922-KT7-013

D5 32 16

15155-HPO-A00

E3 46 12

17572-GGL-J00

H5 86 14

06451-443-405

G16

81

2

13314-KTW-901

E2 45 8

14923-KT7-013

D5 32 16

15220-KTW-900

E3 46 13

17620-KWN-981

H5 86 15

06451-MZ2-405

G14

79

2

13315-KTW-901

E2 45 8

14924-KT7-013

D5 32 16

15231-413-020

E3 46 14

17652-383-831

H5 86 16

06453-KVZ-661

G14

79

3

13316-KTW-901

E2 45 8

14925-KT7-013

D5 32 16

15410-MFJ-D01

E3 46 15

17724-102-700

H8 89 1

06453-MCW-H01

G14

79

4

13317-KTW-901

E2 45 8

14926-KT7-013

D5 32 16

15421-K04-930

E3 46 16

17910-K04-931

F4 53 1

06455-K04-701

G14

79

5

13318-KTW-901

E2 45 8

14927-KT7-013

D5 32 16

15651-K04-930

D9 36 3

17920-K04-931

F4 53 2

06455-K04-931

G14

79

5

13319-KTW-901

E2 45 8

14928-KT7-013

D5 32 16

15711-KTW-900

D11 38 7

13322-KTW-901

E2 45 9

14929-KT7-013

D5 32 16

18000

11000

13323-KTW-901

E2 45 9

14930-KT7-013

D5 32 16

16000

13324-KTW-901

E3 46 9

14931-KT7-013

D5 32 16

18291-MN4-920

H9 90 1

11100-K04-932

E2

45

1

13325-KTW-901

E3 46 9

14932-KT7-013

D5 32 16

16060-GFZ-003

E6 49 1

18300-K04-930

H9 90 2

11103-K04-930

E2

45

2

13326-KTW-901

E3 46 9

14933-KT7-013

D5 32 16

16081-KPH-701

E6 49 2

18318-K04-930

H9 90 3

11104-K04-930

E2

45

3

13327-KTW-901

E3 46 9

14934-KT7-013

D5 32 16

16082-KPH-701

E6 49 3

18320-K04-930

H9 90 4

11105-KTW-900

E2

45

4

13328-KTW-901

E3 46 9

14935-KT7-013

D5 32 16

16083-KTR-941

E6 49 4

18345-MBT-610

H9 90 5

11110-KTW-901

E2

45

5

13329-KTW-901

E3 46 9

14936-KT7-013

D5 32 16

16106-KW7-900

D8 35 5

18346-KTW-900

H9 90 6

11200-K04-931

E2

45

6

14937-KT7-013

D5 32 16

16169-K04-931

E6 49 5

18347-K04-930

H9 90 7

11205-KTW-900

E2

45

7

14000

14938-KT7-013

D5 32 16

16196-KTW-901

E6 49 6

18348-K04-930

H9 90 8

11300-K04-931

D9

36

1

14939-KT7-013

D5 32 16

16222-MV4-300

D2 29 4

18352-K04-930

H9 90 9

11341-K04-931

D13

40

1

14100-K04-930

D4 31 4

14940-KT7-013

D5 32 16

16400-K04-931

E6 49 7

18353-K04-930

H9 90 10

11350-K04-930

D13

40

2

14321-K04-930

D4 31 5

14941-KT7-013

D6 33 16

16410-K04-931

E6 49 8

18360-K04-930

H9 90 11

11355-KWN-700

D13

40

3

14401-KFB-751

D7 34 1

14942-KT7-013

D6 33 16

16430-KTW-911

E6 49 9

18373-K04-930

H9 90 12

11356-KWN-700

D13

40

4

14430-KWR-000

D4 31 6

14943-KT7-013

D6 33 16

16432-GFM-901

E6 49 10

18380-KTW-900

H9 90 13

11394-KTW-901

D9

36

2

14440-KWR-000

D4 31 7

14944-KT7-013

D6 33 16

16433-HN8-A61

E6 49 11

18381-KTW-900

H9 90 14

11395-KTW-900

D13

40

5

14451-KVZ-630

D4 31 8

14945-KT7-013

D6 33 16

16450-MGC-D21

E6 49 12

18391-MN1-670

H9 90 15

14510-K04-930

D7 34 2

14946-KT7-013

D6 33 16

16472-KPC-D50

E6 49 13

18601-K04-931

D8 35 6

12000

14531-KTW-900

D7 34 3

14947-KT7-013

D6 33 16

16700-K04-931

H5 86 1

18651-KTW-900

H8 89 2

14550-KVZ-631

D7 34 4

14948-KT7-013

D6 33 16

16706-KVB-S51

H5 86 2

18652-KTW-900

H8 89 3

12100-K04-930

D8

35

1

14552-KVZ-631

D7 34 5

14949-KT7-013

D6 33 16

16707-K04-931

H5 86 3

18654-K04-930

F11 60 1

12191-KTW-901

D8

35

2

14553-KVZ-631

D7 34 6

14950-KT7-013

D6 33 16

F12 61 1

12200-K04-931

D2

29

1

14555-K04-931

D7 34 7

14951-KT7-013

D6 33 16

17000

18655-K04-930

H8 89 4

12204-KTW-900

D2

29

2

14610-KTW-901

D7 34 8

14952-KT7-013

D6 33 16

18656-K04-930

H8 89 5

12208-MLO-721

D4

31

1

14642-KTW-900

D4 31 9

14953-KT7-013

D6 33 16

17111-K04-930

D2 29 5

12209-MLO-722

D4

31

2

14711-KTW-900

D4 31 10

14954-KT7-013

D6 33 16

17112-KTW-900

D2 29 6

19000

12251-KTW-901

D2

29

3

14721-KWR-000

D4 31 11

14955-KT7-013

D6 33 16

17119-KTW-900

D2 29 7

12311-K04-930

D1

28

1

14751-KTW-901

D4 31 12

14956-KT7-013

D6 33 16

17208-GR1-010

H7 88 1

19010-K04-931

I5 102 1

12315-K04-930

D8

35

3

14771-KW3-900

D4 31 13

14957-KT7-013

D6 33 16

17210-K04-930

H7 88 2

19015-K04-931

I5 102 2

12321-KVZ-630

D4

31

3

14775-K04-930

D4 31 14

14958-KT7-013

D6 33 16

17213-KTW-900

H7 88 3

19017-K04-930

I5 102 3

12341-MAT-750

D8

35

4

14781-MLO-720

D4 31 15

14959-KT7-013

D6 33 16

17215-K04-930

H7 88 4

19020-KVZ-631

I5 102 4

12391-K04-930

D1

28

2

14901-KT7-013

D4 31 16

14960-KT7-013

D6 33 16

17218-K04-930

H7 88 6

19030-K04-931

I5 102 5

14902-KT7-013

D4 31 16

14961-KT7-013

D6 33 16

17218-KF6-000

H7 88 5

19035-K04-931

I5 102 6

13000

14903-KT7-013

D4 31 16

14962-KT7-013

D6 33 16

17225-K04-931

H7 88 7

19037-MCA-661

I5 102 7

14904-KT7-013

D4 31 16

14963-KT7-013

D6 33 16

17235-K04-930

H7 88 8

19037-MCJ-KOO

I5 102 7

13011-KTW-900

E5

48

1

14905-KT7-013

D4 31 16

14964-KT7-013

D6 33 16

17236-KVB-900

H7 88 9

19046-MCA-661

I5 102 8

13021-KTW-900

E5

48

1

14906-KT7-013

D4 31 16

14965-KT7-013

D6 33 16

17253-K04-931

H7 88 10

19055-MBR-870

I5 102 8

13031-KTW-900

E5

48

1

14907-KT7-013

D4 31 16

14966-KT7-013

D6 33 16

17255-K04-930

H7 88 11

19101-K04-930

I5 102 9

13101-K04-930

E5

48

2

14908-KT7-013

D4 31 16

14967-KT7-013

D6 33 16

17256-KTW-900

D2 29 8

19102-K04-930

I5 102 10

13102-K04-930

E5

48

2

14909-KT7-013

D4 31 16

14968-KT7-013

D6 33 16

17261-KSV-J00

H7 88 12

19109-KBP-900

I5 102 11

13103-K04-930

E5

48

2

14910-KT7-013

D4 31 16

14969-KT7-013

D6 33 16

17416-K04-930

H5 86 4

19120-KD4-930

I5 102 12

13111-K04-930

E5

48

3

14911-KT7-013

D4 31 16

17417-K04-930

H5 86 5

19126-KD4-930

I5 102 13

13210-KTW-901

E5

48

4

14912-KT7-013

D5 32 16

15000

17510-K04-930

H5 86 6

19215-KTW-900

D9 36 4

13213-ML7-020

E5

48

5

14913-KT7-013

D5 32 16

17517-K04-930

H5 86 7

19217-MAL-300

D9 36 5

13214-MM4-000

E5

48

6

14914-KT7-013

D5 32 16

15100-KTW-900

D11 38 1

17518-GGL-J00

H5 86 8

19220-K04-930

D9 36 6

13215-ML7-000

E5

48

7

14915-KT7-013

D5 32 16

15121-MG3-000

D11 38 2

17520-KO4-930

H5 86 9

19226-KTW-900

D9 36 7

13215-MM4-000

E5

48

6

14916-KT7-013

D5 32 16

15122-MG3-000

D11 38 3

17525-KO4-930

H5 86 10

19241-KD4-930

D9 36 8

13216-MM4-000

E5

48

6

14917-KT7-013

D5 32 16

15134-KO4-930

D11 38 4

17525-KBN-900

H5 86 11

19300-KGF-911

D2 29 9

2013.04.10 E

PART NO. INDEX
Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.
19315-K04-930	D2	29	10	28125-HN5-671	D10	37	1	35000				35500-MEH-661	E3	46	19
19342-K04-930	H8	89	6	28131-K04-930	D12	39	4					35700-K04-931	H10	91	1
19343-KTW-900	H8	89	7	28333-300-000	G9	74	1	33102-K04-931	F1	50	2	35850-MRS-007	H16	97	4
19411-K04-930	D13	40	6	28810-R90-013	E3	46	17	33112-KWR-003	F1	50	3	35856-K04-931	H16	97	5
19412-KTW-900	D13	40	7					33301-SA0-741	H14	95	1
19414-KTW-901	D13	40	8	30000					H15	96	1	36000
19415-KTW-900	D13	40	9					33406-K04-931	H12	93	1
19416-KEY-900	D13	40	10	30430-K04-305	F14	63	1	33420-K04-931	H12	93	2	36191-KV3-700	H5	86	17
19501-K04-930	15	102	14	30510-K04-931	I1	98	1	33470-K04-931	H12	93	3	36450-KTW-901	H8	89	9
19502-K04-930	15	102	15	30511-K04-930	I1	98	2	33705-K04-930	H13	94	1	36531-K04-931	D2	29	13
19503-K04-930	15	102	16	30520-GFM-900	I1	98	3	33707-K04-930	H13	94	2	36533-K04-931	D2	29	14
19504-K04-930	15	102	17	30520-K04-930	H8	89	8
19507-KA3-830	15	102	18	30700-KTW-901	I1	98	4	33708-K04-931	H13	94	3
19527-KTW-900	D9	36	9					33710-K04-931	H13	94	4	37000
19531-KTW-900	15	102	19	31000					H14	95	2
19532-KTW-900	15	102	20					33722-K04-931	H14	95	3	37100-K04-701	F2	51	1
				31110-K04-931	D10	37	2					37100-K04-711	F2	51	1
				31120-K04-931	D10	37	3					37100-K04-911	F2	51	1
21000				31200-KTW-B01	D12	39	5					37100-K04-931	F2	51	1
				31201-MEW-921	D12	39	6					37100-K04-951	F2	51	1
				31202-MEW-921	D12	39	7					37100-K04-A31	F2	51	1
22000				31203-MEW-921	D12	39	8					37100-K04-A81	F2	51	1
				31204-MEW-921	D12	39	9					37110-K04-701	F2	51	2
22011-K04-930	D14	41	1	31205-HP5-601	D12	39	10	34000				37110-K04-711	F2	51	2
22100-KFG-000	D15	42	1	31206-MEW-921	D12	39	11					37110-K04-911	F2	51	2
22102-KTW-900	D14	41	2	31207-HP5-601	D12	39	12	34901-KZL-841	F1	50	4	37110-K04-931	F2	51	2
22104-KSV-J20	D14	41	3	31208-MEW-921	D12	39	13	34904-K04-931	H13	94	5	37110-K04-951	F2	51	2
22123-KVZ-640	D14	41	4	31209-MEW-921	D12	39	14	34905-K04-931	H13	94	6	37110-K04-971	F2	51	2
22130-KTW-901	D14	41	5	31210-MEW-921	D12	39	15	34906-K04-931	H13	94	7	37110-K04-A31	F2	51	2
22131-KTW-900	D14	41	6	31331-K04-930	D2	29	11	34906-KSS-C01	H12	93	4	37110-K04-A81	F2	51	2
22350-KFG-000	D15	42	2	31500-K04-901	H16	97	1					37202-KSV-J20	F2	51	3
22361-KFG-000	D15	42	3	31500-K04-931	H16	97	1					37211-KSV-J20	F2	51	4
22401-KEY-900	D15	42	4	31500-K04-A01	H16	97	1					37212-KSV-J21	F2	51	5
22535-KVZ-630	D15	42	5	31500-MCF-643	H16	97	1	35010-K04-900	F16	65	1	37213-K04-931	F2	51	6
22804-6BZ-000	D15	42	6	31500-MGS-D31	H16	97	1	35011-K04-305	F16	65	2	37800-K04-931	H5	86	18
				31600-MJJ-D31	I1	98	5					37801-GA7-700	H5	86	19
				31700-MM8-610	I1	98	6					37802-KTL-740	H5	86	20
				31908-KTW-901	D2	29	12					37870-MBG-003	D2	29	15
23000
23100-K04-931	D15	42	7
23205-KTW-900	D15	42	8	32000
23224-KTW-900	D15	42	9
23225-KM1-010	D15	42	10	32100-K04-930	I1	98	7
23226-KM1-010	D15	42	11	32100-K04-970	I1	98	7
23233-KTW-900	D15	42	12	32100-K04-A00	I1	98	7
23236-KSV-J10	D15	42	13	32100-K04-A50	I1	98	7
23237-KSV-J10	D15	42	14	32102-K04-930	F1	50	1
23238-KSV-J10	D15	42	15	32105-K04-930	E3	46	18
23239-KSV-J10	D15	42	16	32107-K04-930	G5	70	1
23411-K04-930	E1	44	2	32112-K04-930	D13	40	11
23415-KVZ-K10	D15	42	17	32150-KCR-J11	I1	98	8
23421-K04-930	E1	44	3	32161-367-690	F13	62	1
23422-K04-930	E1	44	4	32406-KAZ-010	I1	98	9
23430-K04-930	E1	44	5	32414-MZS-000	I1	98	10
				32605-GEV-761	I1	98	11
				32606-MEL-D01	I1	98	12
				32610-K04-930	H16	97	2
28000
28102-ME9-000	D12	39	1
28110-K04-930	D12	39	2
28115-KTW-900	D12	39	3

PART NO. INDEX
Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.
44000				F10 59 9	51414-MBV-711	G13 78 5		61000			64520-K04-930 G3 68 7
44125-MN5-000	H14 95 7			45521-HA2-006 F5 54 13	51415-MBV-711	G13 78 6
	H15 96 6				51416-461-003	G13 78 7		61000-K04-970ZH G2 67 1			67000
44301-K04-930	G15 80 6				51420-K04-931	G13 78 8		61000-K04-970ZK G2 67 1
44311-K04-930	G15 80 7				51432-MJ6-003	G13 78 9		61000-K04-970ZL G2 67 1			67100-K04-700ZA G3 68 8
44620-K04-930	G15 80 8			45530-471-831 F9 58 11	51437-461-003	G13 78 10		61100-K04-930ZB G2 67 2			67103-K04-700 G3 68 9
44650-K04-930ZA	G15 80 9				51440-K04-931	G13 78 11		61100-K04-930ZC G2 67 2
44650-K04-970ZA	G15 80 9			45530-KVY-911 F5 54 14	51447-KTW-902	G13 78 12		61100-K04-930ZD G2 67 2			77000
44711-K04-931	G15 80 10				51449-KTW-901	G13 78 13		61104-428-000 H8 89 12
45000				46000	51455-KTW-902	G13 78 14		61105-KVZ-660ZA I9 106 1			77110-K04-930 H3 84 1
					51456-KTW-901	G13 78 15		61105-KVZ-660ZB I9 106 1			77115-K04-930 H3 84 2
45107-MAJ-G41	G14 79 8				51490-K04-931	G13 78 16		61304-415-000 I3 100 14			77121-K04-930 H3 84 3
45108-MBT-D52	G14 79 9			46300-MGS-D81 F11 60 9	51500-K04-931	G13 78 17		I5 102 21			77122-K04-930 H3 84 4
45111-MAJ-G41	G14 79 10				51520-K04-931	G13 78 18		61304-958-003 G2 67 3			77160-K04-930 H3 84 5
45112-M22-006	G14 79 11			50000	52000			64000			77175-K04-930 H3 84 6
45125-K04-931	F5 54 2			50100-K04-930 I3 100 2	52100-K04-930	H1 82 11		64216-GJ2-730 I3 100 15			77200-K04-930ZA H3 84 8
45125-K04-971	F7 56 2			50211-K04-930 F14 63 10	52108-KTW-B00 E4 47 22			64300-K04-930ZB G3 68 1			77202-K04-930 H3 84 9
45126-K04-930	F5 54 3				H1 82 12			64300-K04-930ZD G3 68 1			77203-K04-930 H3 84 10
45126-K04-970	F7 56 3			50250-K04-930 I3 100 3	52144-GF5-003 I3 100 13			64300-K04-930ZF G3 68 1			77205-K04-930 H3 84 11
45127-K04-970	F7 56 4			50306-GN5-900 F14 63 11	52400-K04-931 H11 92 1			64306-K04-930 G3 68 2			77210-K04-930ZA H3 84 12
45128-K04-931	F5 54 4				52485-088-901 H11 92 2			64311-K04-930 G7 72 1			77223-MFV-000 H3 84 13
	F7 56 5			50310-K04-930 I3 100 4	52486-GA7-003 H11 92 3			64321-K04-930 G7 72 2			77225-K04-930 H3 84 14
45131-ML7-921	G14 79 12			50310-K04-970 I3 100 4				64322-K04-930 G7 72 3			77234-GN2-000 H3 84 16
	G16 81 11			50324-425-010 H8 89 11	53000			G12 77 1			77234-KYZ-900 G5 70 14
45132-166-016	G14 79 13			50328-KSV-J00 H16 97 6				64323-K04-930 G7 72 4			77236-K04-930 I7 104 2
45133-MA3-006	G14 79 14			50345-K04-930 I2 99 22	53100-K04-930 F13 62 2			64325-K04-930 G7 72 5			77240-K04-931 I3 84 17
	G16 81 12			50349-K04-930 I3 100 5	53104-K04-930 F13 62 3			64326-K04-930 G7 72 6			77504-SJ6-013 G5 70 15
45135-KVZ-630	F5 54 5			50352-KTW-900 I3 100 6	53110-K04-930 F13 62 4			64336-K04-930 G3 68 3			77507-K04-930 G5 70 16
45135-KVZ-660	F7 56 6			50354-428-000 I3 100 7	53113-MCT-010 F14 65 12			64337-K04-930 G5 70 4
45160-KVZ-660	F7 56 7			50354-K04-930 I3 100 8	F16 65 11			64338-K04-900 G5 70 5			80000
45161-KVZ-630	F5 54 6			50360-K04-930 I3 100 9	53131-K20-900ZB F13 62 5			64338-K04-930 G5 70 5
45215-MBT-D51	G14 79 15			50380-K04-930 I3 100 10	53132-K04-930 F13 62 6			64339-K04-930 G5 70 6			80103-K04-930 G12 77 2
45218-MAJ-G41	G14 79 16			50500-K04-930 H10 91 2	53140-KYJ-900 F4 53 5			64351-K04-930 G7 72 7			80104-K04-930 G12 77 3
45250-KVZ-631	G14 79 17			50503-K04-930 H10 91 3	53166-KYJ-900 F4 53 6			64360-K04-930 G7 72 8			80105-K04-900 H15 96 7
45250-KVZ-661	G14 79 17			50504-K04-930 H10 91 4	53175-K04-931 F5 54 15			64405-K04-930 G5 70 7			80105-K04-930 H14 95 8
45251-K04-931	G15 80 11			50505-GR1-710 H10 91 5	F7 56 16			64415-KGH-900 I5 102 22			80107-GEO-710 H9 90 16
45504-410-003	F5 54 7			50505-K04-930 H10 91 6	53178-K04-931 F9 58 12			64422-K04-930 G5 70 8			80107-K04-930 H14 95 9
	F7 56 8			50522-K04-930 H10 91 7	F10 59 12			64431-K04-930ZB G7 72 9			H15 96 8
	F9 58 5			50523-K04-930 H10 91 8	53205-K04-930 F13 62 7			64431-K04-930ZC G7 72 9			80121-K04-930 G12 77 4
	F10 59 5			50530-K04-930 H10 91 9	53213-MB4-771 F14 63 13			64431-K04-930ZD G7 72 9			80130-K04-930 G12 77 5
45510-K04-931	F5 54 8			50541-KPH-970 H10 91 10	F16 65 12			64432-K04-930ZB G7 72 10			80140-K04-930 H16 97 7
	F7 56 9			50542-KPH-970 H10 91 11	53214-MR7-003 F14 63 14			64432-K04-930ZC G7 72 10			80201-K04-900 H15 96 9
45512-MA6-006	F5 54 9			50610-K04-930 I3 100 11				64432-K04-930ZD G7 72 10
	F7 56 10			50620-K04-930 I3 100 12	53219-K04-930 F14 63 15			64440-K04-930 G5 70 9			81000
	F9 58 6			50711-K04-930 G9 74 2	F16 65 14			64441-K04-930 G7 72 11
	F10 59 6			50712-K04-930 G9 74 3	53220-KYJ-900 F14 63 16			64442-K04-930 G7 72 12			81110-K04-930 G5 70 17
45513-KK1-771	F5 54 10			50713-K04-930 G9 74 4	F16 65 15			64443-KVG-900 G5 70 10			81140-K04-930 G5 70 18
	F7 56 11			50721-K04-930 G9 74 5	53255-K04-930 F13 62 8			64450-K04-930 G5 70 11			81150-K04-930 G5 70 19
	F9 58 7			50722-K04-930 G9 74 6				64455-K04-931 G5 70 12			81151-K04-930 G5 70 20
	F10 59 7			50723-K04-930 G9 74 7	57000			64485-K04-931 G5 70 13			81160-K04-930 G5 70 21
45517-166-006	F5 54 11							64501-K04-930ZB G3 68 4			81218-KPB-B21 I8 105 1
	F7 56 12			51000	57101-MER-D21 F12 61 11			64501-K04-930ZC G3 68 4			81219-KPB-B21 I8 105 2
	F9 58 8				57103-SDA-003 F12 61 12			64501-K04-930ZD G3 68 4			81219-KTW-A60 I8 105 3
	F10 59 8			51400-K04-931 G13 78 1				64502-K04-930ZB G3 68 5			81240-K04-930 G5 70 22
45520-MG7-006	F5 54 12			51401-K04-931 G13 78 2				64502-K04-930ZC G3 68 5			81241-K04-930 G5 70 23
	F7 56 13			51410-K04-931 G13 78 3				64502-K04-930ZD G3 68 5			81243-K04-930 G5 70 24
	F9 58 9			51412-422-003 G13 78 4				64510-K04-930 G3 68 6			81244-K04-930 G6 71 25

2013.04.10 E

PART NO. INDEX
Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.	Part Number	Address	Page	Ref.	Part Number	Address
81245-K04-930	66 71	26		86150-GFC-902	F13 62 9			F12 61 14		F9 58 14		90603-KSV-J10	D15 42 19
81248-K04-930	66 71	27		86831-K04-930ZA	I9 106 3		90071-MB0-000	D12 39 16		F10 59 14		90605-166-720	D15 42 20
81249-K04-930	66 71	28					90083-KTW-900	D6 33 18		F11 60 11		90651-MA5-671	F5 54 19
81255-K04-930	66 71	29		87000			90084-KWA-930	D9 36 13		F12 61 15			F7 56 20
81258-K04-930	H16 97	8					90085-K04-930	D13 40 18		90147-MCE-950	H10 91 14		F9 58 16
81260-K04-930	G12 77	6		87125-GB0-900	I8 105 4		90101-K04-930	I3 100 16		90202-KM1-000	D15 42 18		F10 59 16
81262-K04-930	G12 77	7		87125-MCN-850ZA	I9 106 4		90101-MT4-000	F14 63 17		90203-MF9-710	H10 91 15		90659-KG4-000
81264-K04-930	G12 77	8		87505-K04-930	I8 105 5			F16 65 16		90301-KGH-901	H14 95 12		90661-GHB-630
81272-K04-930	G12 77	9		87505-K04-A00	I8 105 6		90102-KVZ-630	F14 63 18		90301-KWN-901	H14 95 13		90661-MGS-D71
81280-K04-930	66 71	30		87512-K04-930	I8 105 7			F16 65 17			H15 96 12
81281-K04-930	66 71	31		87516-MCA-660	I8 105 8		90102-MCT-000	F13 62 10		90302-GGE-900	G3 68 12		90677-KAN-961
81288-K04-930	66 71	32		87520-GEZ-D00	I8 105 9		90103-K04-930	H9 90 17			G7 72 16		90678-MR1-690
81291-K04-930	66 71	33		87525-KTW-A60	I8 105 10		90103-KTW-900	I3 100 17		90302-KWW-A00	G3 68 13		90682-SA0-671
81293-K04-930	66 71	34		87525-MCA-000	I8 105 11		90103-KZR-701	F3 52 5			G6 71 37		90683-GAZ-003
81300-K04-930	G12 77	10		87560-MBR-871	I8 105 12		90104-K04-930	G11 76 11			G7 72 17		90683-SAD-003
81360-K04-930	66 71	35		87562-K04-920	I8 105 13			H9 90 18			G11 76 13
				87586-MGN-D00	I8 105 14		90105-K04-930	H10 91 12			G12 77 12		90701-KWN-901
							90105-KL8-741	G15 80 12			I2 99 23		90701-MF5-003
83000				88000				H1 82 13		90302-KZR-701	F3 52 6		90741-HN5-670
83534-K04-931	66 71	36					90105-MA6-750	G13 78 19		90302-SA4-003	H13 94 9		90852-KPP-T00
83550-K04-930ZA	G10 75	1		88114-KWN-900	F3 52 1		90105-MBB-000	G15 80 12		90304-GEB-003	F13 62 13
83550-K04-930ZC	G10 75	1		88115-KWN-900	F3 52 2			H1 82 13		90304-KGH-901	I3 100 18		91000
83550-K04-930ZD	G10 75	1		88210-K04-930	F3 52 3		90106-MM4-000	G9 74 8		90304-KPH-700	H9 90 20
83551-GE2-000	G7 72	13		88220-K04-930	F3 52 4		90106-MM9-000	H13 94 8		90305-GEE-710	G12 77 13		91002-GA7-701
		G10 75	2				90107-K04-930	F13 62 11			H16 97 10		91002-GA7-702
83590-K04-931	H3 84	18		89000			90107-KTW-900	H9 90 19		90305-KWN-701	H1 82 16		91002-KPB-003
83650-K04-930ZA	G10 75	3					90107-MBG-000	F14 63 19		90306-KFO-003	I3 100 19		91005-KPB-003
83650-K04-930ZC	G10 75	3		89101-MC7-000	I7 104 3			F16 65 18		90380-GM9-740	H16 97 11		91006-KAB-004
83650-K04-930ZD	G10 75	3		89102-538-000	I7 104 4		90107-MCT-771	F13 62 12		90401-KTW-900	D14 41 8		91007-KD4-931
83660-K04-930ZA	G10 75	4		89103-538-000	I7 104 5		90107-MT3-003	G14 79 18		90402-KTW-900	D10 37 6		91008-KD4-931
83660-K04-930ZC	G10 75	4		89211-KWN-640	I7 104 6		90108-KO4-930	G2 67 4		90411-KTW-B00	E1 44 6		91015-KT8-005
83660-K04-930ZD	G10 75	4		89213-KWN-601	I7 104 7		90108-KWR-003	H3 84 19		90412-KO4-930	E1 44 7
83701-K04-930ZB	G10 75	5		89215-KSV-J00	I7 104 8		90108-MK6-670	H10 91 13		90421-KAB-003	D7 34 9		91016-MR7-003
83701-K04-930ZC	G10 75	5		89216-KO4-930	I7 104 9		90111-KO4-930	G3 68 10		90423-KJ9-000	D9 36 14
83701-K04-930ZD	G10 75	5		89219-KSV-J00	I7 104 10		90111-MR5-000	H16 97 9		90441-706-000	D2 29 19		91051-KS4-003
83751-K04-930ZB	G10 75	6					90112-KO4-930	G12 77 11			D9 36 15		91051-MGZ-J01
83751-K04-930ZC	G10 75	6		90000			90114-MA5-671	F5 54 16		90443-KTM-970	I3 100 20		91054-MT6-831
83751-K04-930ZD	G10 75	6						F7 56 17		90454-MC7-000	D2 29 20		91059-KY2-711
83801-K04-930ZB	G10 75	7		90001-KO4-930	D13 40 12			F9 58 13		90456-333-000	D11 38 8
83801-K04-930ZC	G10 75	7		90002-KO4-930	D13 40 13			F10 59 13		90474-333-000	E4 47 26		91071-KS6-004
83801-K04-930ZD	G10 75	7		90002-KTW-900	E4 47 23		90116-KTW-901	G13 78 20		90501-KO4-930	G3 68 14		91102-GE1-711
				90002-KVZ-630	D10 37 4		90116-KVB-900	G7 72 14		90506-MCT-000	F14 63 20		91105-KTW-901
				90002-MEB-670	D1 28 3			H5 86 21			F16 65 19		91106-KM1-013
				90002-PA6-003	E4 47 24			H14 95 11		90507-KRP-980	G2 67 6		91201-KD4-931
				90004-GHB-620	D6 33 17			H15 96 11			H14 95 14		91202-KTW-901
				90004-GHB-710	D2 29 16			I6 103 23		90543-MV9-670	D1 28 4		91203-KSV-J21
						D13 40 14				90544-283-000	G13 78 21		91211-KM1-005
				90004-GHB-730	D13 40 15			G7 72 15		90545-300-000	F5 54 18		91251-KPB-003
				90005-MEL-J-000	D2 29 17			G11 76 12			F7 56 19		91251-KSV-J11
				90006-KO4-930	D13 40 16			90118-MEL-000	G2 67 5		F9 58 15		91252-147-003
				90007-KO4-930	D13 40 17			90120-GHB-601	I6 103 24		F10 59 15		91253-KM1-003
				90007-MCT-000	D2 29 18			90123-KO4-930	F1 50 5		F11 60 12		91253-KZJ-901
				90010-KO4-930	D9 36 10			90131-KO4-930	G9 74 9		F12 61 16		91254-434-003
				90011-KO4-930	D9 36 11			90131-KPB-751	G15 80 13		90599-767-C10	D9 36 16
				90013-KO4-930	D9 36 12				H1 82 14			90601-KO4-930	E4 47 27
				90019-MGZ-J00	E4 47 25			90132-KSV-J00	H1 82 15		90601-PV3-003	G4 69 15
				90023-MV9-670	D10 37 5			90132-MY2-000	G16 81 13		90601-SJA-003	G4 69 16
								90145-MS9-612	F5 54 17			G6 71 38
									F7 56 18			G11 76 14
91304-K04-930	E4	47	34	93903-25480	H7	88	17	95002-02120	I6	103	30	95701-10050-07	H9 90 24
91305-K04-930	E4	47	35	93903-34380	G6	71	40	95002-41000-08	E4	47	44	95801-06014-08	F11 60 19
91307-035-000	D9	36	20			G8	73	19	95002-80000	H7	88	18
91307-K04-930	E4	47	36			H3	84	23	95003-25040-31	H5	86	25
91309-425-003	D12	39	17			H13	94	10	95005-55120-20	E4	47	45	95801-08040-00
91309-PX4-003	E4	47	37			H14	95	18	95701-06010-00	I6	103	31	95801-10040-08
91313-K04-930	E4	47	38			H15	96	17	95701-06012-00	D2	29	24	95801-10065-00
91320-MB0-000	D12	39	18	93903-34480	D13	40	20			D8	35	8	95801-10075-00
91352-KM1-003	D16	43	25			G4	69	17		I2	99	28
91352-KM1-005	D16	43	25			G6	71	41		I6	103	32	96000
91356-KTW-901	G13	78	23			G8	73	20	95701-06012-07	F5	54	23
91406-MS8-000	H7	88	15			G11	76	15		F7	56	24	96001-06014-07
91456-371-770	F13	62	14			I2	99	27	95701-06012-08	F11	60	14	96001-06016-00
91533-SDA-003	I2	99	24	93903-35180	G9	74	10			G12	77	16	96001-06016-07
				93903-35280	G9	74	11	95701-06014-00	D12	39	20	96001-06022-07	F6 55 27
92000				93903-35310	H15	96	18			H6	87	26
				93903-35320	F1	50	7			H8	89	16
92101-06020-4J	I2	99	25			F2	51	8	95701-06016-00	E4	47	46	96001-06032-00
92900-08022-OE	D2	29	22			H12	93	6		H16	97	12	96211-08000
				93903-35380	G8	73	21			I2	99	29	96220-30178
93000				94000				95701-06016-07	F5	54	24	96220-40158	D11 38 13
									F8	57	25
93403-06012-00	F15	64	24						F11	60	15	96600-08032-00	F13 62 15
	G1	66	23	94001-03000-0S	I6	103	29			F12	61	19
93403-06025-00	I2	99	26	94001-12200-0S	D16	43	26			H2	83	21	98000
93404-06012-00	G6	71	39	94021-05070-0S	G6	71	42	95701-06016-08	H14	95	20
	G7	72	18	94050-06000	F5	54	22			H15	96	20	98200-33000
	I6	103	27			F7	56	23	95701-06018-07	F11	60	16	98200-40500
93404-06012-08	G12	77	15			F9	58	19		F12	61	20	98200-41000
	H14	95	16			F10	59	19	95701-06020-00	D2	29	25	98200-41500
	H15	96	15			H4	85	24		D8	35	9	98200-43000
93404-06014-00	F1	50	6			H5	86	23	95701-06022-00	D7	34	10
	H12	93	5			H8	89	15		H13	94	11
93404-06025-00	F12	61	18	94050-06080	H14	95	19			I2	99	30
93404-06025-07	H8	89	14			H15	96	19	95701-06025-00	D12	39	21
93404-06030-00	H7	88	16	94050-08080	H4	85	25			E6	49	19
93404-08016-08	H3	84	20	94101-05800	E6	47	39	95701-06025-08	F6	55	25
93500-03008-OA	D11	38	9	94102-10000	I3	100	22			F8	57	26
93500-05010-1H	E6	49	17	94103-04000	G6	71	43			F11	60	17
93500-05012-OA	H9	90	22	94103-06000	H4	85	26			F12	61	21
93600-04012-1G	F5	54	20	94109-12000	E4	47	40	95701-06028-00	D2	29	26
	F7	56	21	94201-25250	H10	91	16			D8	35	10
	F9	58	17	94301-08140	D9	36	21	95701-06030-00	D11	38	11
	F10	59	17			D11	38	10	95701-06032-08	F11	60	18
93891-04006-07	I6	103	28			D13	40	21		F12	61	22
93891-05016-18	H3	84	21	94301-10160	D9	36	22			F6	55	26
93892-05012-08	D12	39	19			E4	47	41		F8	57	27
93892-05012-18	E6	49	18	94301-12160	E1	44	13			95701-06050-00	D11	38 12
93892-05020-07	F4	53	7	94301-12200	D2	29	23			95701-06055-00	E4	47 47
93893-04012-17	F5	54	21			D8	35	7		95701-06080-00	E4	47 48
	F7	56	22	94520-12000	E4	47	42			95701-08012-00	E4	47 49
	F9	58	18	94520-47000	H2	83	20			95701-08012-07	I2	99 31
	F10	59	18	94540-04018	G9	74	12			95701-08014-00	H6	87 27
93901-24320 F15	64	25				94601-16000	E4	47 43			I4	101 23
	G1	66	24			94601-17000	E5	48 10			95701-08020-08	H4 85 27
93901-24480 H14	95	17								95701-08025-00	E4	47 50
	H15	96	16							95701-08030-00	G11 76 16
93903-22420 F2	51	7								95701-08035-02	H9 90 23
93903-25380 H3	84	22								95701-08060-00	E4 47 51

2013.04.10 E

PART NAME INDEX
Part name	Address	Page	Ref.	Part name	Address	Page	Ref.	Part name	Address	Page
[A]				BEARING, RADIAL BALL, 6303....	H1 82 17			BOLT, FLANGE, 6X14......	D6	33
				BEARING, RADIAL BALL, 6303UU...	G15 80 14				D12 39 20
ADJUSTER, CAM CHAIN......	D7 34 4			BEARING, RADIAL BALL, 6902U...	D15 42 21				F11 60 19
ARM COMP., EX. VALVE ROCKER ...	D4 31 7			BEARING, SWINGARM PIVOT......	I3 100 21				F12 61 23
ARM COMP., IN. VALVE ROCKER ...	D4 31 6			BELT, DRIVE......	D15 42 7				G15 80 16
AXLE, FR. WHEEL......	G15 80 6			BODY COMP., FRAME......	I3 100 2				H6 87 26
AXLE, RR. WHEEL......	I3 100 1			BODY SET......	E6 49 8				H8 89 16
[B]				BOLT-WASHER, 10X60......	H1 82 15
				BOLT-WASHER, 4X8......	E4 47 24			BOLT, FLANGE, 6X16......	D10	37
				BOLT-WASHER, 6X12......	F15 64 24				E4 47 46
BACKREST ASSY......	H3 84 12				G1 66 23
BAG, TOOL......	I7 104 3				G6 71 39				F5 54 24
BALL, STEEL, #8......	G9 74 13				G7 72 18				F8 57 25
BAND, AIR CLEANER CONNECTING					G12 77 15				F11 60 15
TUBE H7 88 11					H14 95 16				F12 61 19
BAND, AIR INJECTION CONTROL					H15 96 15				H2 83 21
VALVE H8 89 6					I6 103 24				H14 95 20
BAND, EX. PIPE......	H9 90 12					27			H15 96 20
BAND, INSULATOR......	D2 29 8			BOLT-WASHER, 6X14......	F1 50 6				H16 97 12
BAND, WIRE......	F13 62 1				H12 93 5				I2 99 29
BAR COMP., SIDE STAND......	H10 91 9			BOLT-WASHER, 6X25......	F12 61 18			BOLT, FLANGE, 6X18......	F11	60
BASE COMP., CONTACT......	F14 63 4				H8 89 14				F12 61 20
F16 65 4					I2 99 26			BOLT, FLANGE, 6X20......	D2	29
BATTERY......	H16 97 1			BOLT-WASHER, 6X30......	H7 88 16				D8 35 9
BATTERY ASSY......	H16 97 1			BOLT-WASHER, 8X16......	H3 84 20			BOLT, FLANGE, 6X22......	D7	34
BEARING A, CONNECTING ROD ...	E5 48 6			BOLT-WASHER, 8X25......	H10 91 12				F6 55 27
BEARING A, CRANKSHAFT L. SIDE E2 45 9				BOLT-WASHER, 9X155......	D2 29 18				F8 57 28
BEARING A, CRANKSHAFT R. SIDE E2 45 8				BOLT A, PIN......	G14 79 12				F9 58 20
BEARING B, CONNECTING ROD ...	E5 48 6				G16 81 11				F10 59 20
BEARING B, CRANKSHAFT L. SIDE E2 45 9				BOLT B, ADAPTER, 10MM......	F3 52 5				H13 94 11
BEARING B, CRANKSHAFT R. SIDE E2 45 8				BOLT, BRAKE DISK, 8X24......	G15 80 12				I2 99 30
BEARING C, CONNECTING ROD ...	E5 48 6				H1 82 13			BOLT, FLANGE, 6X25......	D12	39
BEARING C, CRANKSHAFT L. SIDE E3 46 9				BOLT, CONNECTING ROD......	E5 48 5				E6 49 19
BEARING C, CRANKSHAFT R. SIDE E2 45 8				BOLT, DRAIN PLUG, 12MM......	E4 47 23				F6 55 25
BEARING D, CONNECTING ROD ...	E5 48 6			BOLT, FLANGE, 10MM......	D10 37 5				F8 57 26
BEARING D, CRANKSHAFT L. SIDE E3 46 9					D14 41 7				F11 60 17
BEARING D, CRANKSHAFT R. SIDE E2 45 8				BOLT, FLANGE, 10X40......	H11 92 4				F12 61 21
BEARING E, CONNECTING ROD ...	E5 48 6			BOLT, FLANGE, 10X45......	F14 63 18			BOLT, FLANGE, 6X28......	D2	29
BEARING E, CRANKSHAFT L. SIDE E3 46 9					F16 65 17				D8 35 10
BEARING E, CRANKSHAFT R. SIDE E2 45 8				BOLT, FLANGE, 10X50......	H9 90 24			BOLT, FLANGE, 6X30......	D11 38 11
BEARING F, CRANKSHAFT L. SIDE E3 46 9				BOLT, FLANGE, 10X65......	I4 101 25			BOLT, FLANGE, 6X32......	D9	36
BEARING F, CRANKSHAFT R. SIDE E2 45 8				BOLT, FLANGE, 10X75......	I4 101 26				D10 37 8
BEARING G, CRANKSHAFT L. SIDE E3 46 9				BOLT, FLANGE, 12X280......	I3 100 17				D13 40 17
BEARING G, CRANKSHAFT R. SIDE E2 45 8				BOLT, FLANGE, 12X35......	F13 62 10				F11 60 18
BEARING H, CRANKSHAFT L. SIDE E3 46 9				BOLT, FLANGE, 12X360......	I3 100 16				F12 61 22
BEARING H, CRANKSHAFT R. SIDE E2 45 8				BOLT, FLANGE, 6MM......	G7 72 14			BOLT, FLANGE, 6X40......	D2	29
BEARING HEAD PIPE......	F15 64 22				H5 86 21				D9 36 11
	G1 66 21				H14 95 11				D13 40 14
BEARING, HEAD PIPE UPPER......	F15 64 21				H15 96 11				F6 55 26
	F16 65 20				I6 103 23				F8 57 27
BEARING, NEEDLE, 14X22X16 ...	E1 44 10			BOLT, FLANGE, 6X10......	I6 103 31			BOLT, FLANGE, 6X50......	D11	38
BEARING, NEEDLE, 14X22X20 ...	E4 47 30			BOLT, FLANGE, 6X12......	D2 29 24				D13 40 15
BEARING, NEEDLE, 25X33X18 ...	D15 42 22				D8 35 8			BOLT, FLANGE, 6X55......	E4 47 47
BEARING, RADIAL BALL,6205-2NSG E1 44 8					F5 54 23			BOLT, FLANGE, 6X75......	D9 36 12
BEARING, RADIAL BALL, 60D4UU - D13 40 19					F7 56 24			BOLT, FLANGE, 6X80......	E4 47 48
BEARING, RADIAL BALL, 62D4 ... E4 47 29					F11 60 14			BOLT, FLANGE, 8X12......	E4	47
BEARING, RADIAL BALL, 62D5SPL E4 47 28					G12 77 16				I2 99 31
BEARING, RADIAL BALL, 63D2 ... E1 44 9					I2 99 28			BOLT, FLANGE, 8X14......	H6	87
					I6 103 32				I4 101 23

2013.04.10 E

PART NAME INDEX
Part name	Address	Page	Ref.	Part name	Address	Page	Ref.	Part name	Address
BOLT, FLANGE, 8X20	H4 85 27			BOOT, MIRROR	F3 52 1			CAP, FR. FORK TOP	G13 78 13
BOLT, FLANGE, 8X25	E4 47 50			BOOT, PIN BUSH	G14 79 13			CAP, FUEL LID LOCK	G5 70 10
BOLT, FLANGE, 8X26	G16 81 8			BOSS B, DRIVE FACE	D14 41 3			CAP, HINGE NUT	H3 84 10
BOLT, FLANGE, 8X30	G11 76 16			BOSS, OIL FILTER	E4 47 25			CAP, LOCK NUT	F3 52 2
BOLT, FLANGE, 8X32	G14 79 18			BOX ASSY., TOOL	G12 77 5			CAP, MASTER CYLINDER	F5 54 10
BOLT, FLANGE, 8X35	H9 90 23			BOX COMP., BATTERY	H16 97 23				F7 56 11
BOLT, FLANGE, 8X40	I4 101 24			BOX COMP., LUGGAGE	G12 77 6				F9 58 7
BOLT, FLANGE, 8X50	G16 81 13			BOX, OWNERS MANUAL	G12 77 8				F10 59 7
BOLT, FLANGE, 8X60	E4 47 51			BRACKET ASSY. A, ENGINE HANGER	I3 100 9			CAP, RESERVE TANK	I5 102 11
BOLT, FR. DISK, 8X24	G15 80 12			BRACKET COMP., RR.	G16 81 4			CAP, SOCKET BOLT	F13 62 14
	H1 82 13			BRACKET SUB ASSY. B, ENGINE				CARTRIDGE, OIL FILTER	E3 46 15
BOLT, FR. FENDER FIXING	H13 94 8			HANGER	I3 100 5			CASE COMP., MISSION	E1 44 1
BOLT, HANDLE LEVER PIVOT	F5 54 16			BRACKET SUB ASSY., R. FR.	G14 79 3			CASE SUB ASSY., AIR CLEANER	H7 88 7
	F7 56 17					4		CASE, LOWER	F2 51 4
	F9 58 13			BRACKET, CENTER CROSS	I3 100 3			CASE, L. FR. BOTTOM	G13 78 18
	F10 59 13			BRACKET, LICENSE LIGHT	H15 96 9			CASE, R. FR. BOTTOM	G13 78 8
BOLT, HEADLIGHT	F1 50 5			BRACKET, NUMBER PLATE	H14 95 10			CATCH COMP., SEAT	H3 84 15
BOLT, HEAD COVER	D1 28 3				H15 96 10			CHAIN, CAM	D7 34 1
BOLT, HEX., 6X2D	I2 99 25			BRUSH SET A, CARBON	D12 39 6			CHAIN, OIL PUMP	D11 38 6
BOLT, KNOCK, 6MM	D6 33 18			BRUSH SET B, CARBON	D12 39 7			CIRCLIP	F5 54 19
BOLT, OIL, 10X22	F5 54 17			BULB	H13 94 5				F7 56 20
	F7 56 18					6			F9 58 16
	F9 58 14					7			F10 59 16
	F10 59 14				H14 95 1			CIRCLIP, 7MM	D15 42 20
	F11 60 11				H15 96 1			CIRCLIP, INTERNAL, 12MM	E4 47 42
	F12 61 15			BULB, HEADLIGHT	F1 50 4			CIRCLIP, INTERNAL, 28MM	D15 42 19
BOLT, ONE-WAY, 8MM	F14 63 19			BULB, TAILLIGHT	H12 93 4			CIRCLIP, INTERNAL, 47MM	H2 83 20
	F16 65 18			BUSH, DAMPER	E4 47 22			CIRCLIP, INTERNAL, 65	E4 47 27
BOLT, RECESSED, 5X22	D2 29 17				H1 82 12			CLAMPER A, BRAKE HOSE	F5 54 5
BOLT, SCREEN STAY	G3 68 10			BUSH, GUIDE	G13 78 5			CLAMPER A, WATER HOSE	I5 102 19
BOLT, SETTING	D12 39 10			BUSH, INNER ENGINE HANGER	E2 45 4			CLAMPER B, BRAKE HOSE	F5 54 6
BOLT, SIDE STAND PIVOT	H10 91 13			BUSH, L. OUTER ENGINE HANGER	E2 45 3			CLAMPER B, WATER HOSE	I5 102 20
BOLT, SOCKET, 5X9	H16 97 9			BUSH, RR. CUSHION RUBBER	H11 92 2			CLAMPER COMP. A, BRAKE HOSE	F7 56 6
BOLT, SOCKET, 6MM	D10 37 4			BUSH, R. OUTER ENGINE HANGER	E2 45 2			CLAMPER COMP. B, BRAKE HOSE	F7 56 7
BOLT, SOCKET, 6X18	D13 40 12			BUSH, SLIDER	G13 78 6			CLAMPER, FUEL HOSE	H5 86 13
BOLT, SOCKET, 6X22	D13 40 13							CLAMPER, HIGH TENSION CORD	I1 98 2
BOLT, SOCKET, 8X20	G13 78 20							CLAMP B, TUBE, 14.5MM	H7 88 13
BOLT, SOCKET, 8X28	G13 78 19			[C]				CLAMP B, WATER HOSE	I5 102 18
BOLT, SOCKET, 8X32	F13 62 15			CABLE COMP. A, THROTTLE	F4 53 1			CLAMP, BATTERY EARTH CABLE	H16 97 3
BOLT, SPECIAL FLANGE, 6X25	F11 60 10			CABLE COMP. B, THROTTLE	F4 53 2			CLAMP, BRAKE PIPE	F11 60 13
	F12 61 14			CABLE COMP., SEAT LOCK	H3 84 17			F12 61 17
BOLT, SPECIAL OIL PUMP	D11 38 5			CABLE, BATTERY EARTH	H16 97 2			CLAMP, CANISTER HOSE	H7 88 14
BOLT, SPECIAL, 6X16	H10 91 14			CABLE, FUEL LID	G5 70 12			CLAMP, TUBE	E4 47 44
BOLT, SPECIAL, 6X17	G2 67 4			CABLE, L. LID OPENER	G5 70 13				H7 88 15
BOLT, SPECIAL, 6X18	D13 40 16			CALIPER SUB ASSY., RR. BRAKE	G16 81 5			CLAMP, WATER HOSE, 21MM	I6 103 26
BOLT, SPECIAL, 6X22	D13 40 18			CALIPER SUB ASSY., R. FR.	G14 79 17			CLAMP, WATER HOSE, 24MM	I6 103 25
BOLT, SPECIAL, M6	H9 90 19			CAMSHAFT COMP.	D4 31 4			CLAMP, WIRE, 8MM	H5 86 22
BOLT, STUD, 8X22	D2 29 22			CAP ASSY.	G5 70 2			CLIP B, TUBE	D8 35 5
BOLT, TENSIONER PIVOT	D7 34 3			CAP ASSY., NOISE SUPPRESSOR	I1 98 4			CLIP, AIR INTAKE DUCT PUSH	G4 69 15
BOLT, TERMINAL	D12 39 11			CAP COMP., FUEL FILLER	H5 86 15			CLIP, BUMPER SEAL	G3 68 11
BOLT, TORX, 5X10	G15 80 13			CAP COMP., RADIATOR	I5 102 7				G7 72 15
	H1 82 14			CAP, 14MM	D9 36 13				G11 76 12
BOOTS, BODY COVER	I5 102 22			CAP, AIR INJECTION CONTROL				CLIP, COUPLER	I2 99 24
BOOT B	G14 79 14			VALVE	H8 89 7			CLIP, HOSE	D9 36 17
	G16 81 12			CAP, BLEEDER	G14 79 7			CLIP, PISTON PIN, 16MM	E4 47 43
BOOT COMP.	F5 54 7				G16 81 10			CLIP, PISTON PIN, 17MM	E5 48 10
	F7 56 8			CAP, DUCT COVER	D13 40 8			CLIP, SNAP FITTING	G4 69 16
	F9 58 5			CAP, DUMMY	I1 98 11				G6 71 38
	F10 59 5					12			G11 76 14

PART NAME INDEX
Part name	Address	Page	Ref.	Part name	Address	Page	Ref.	Part name	Address	Page Ref.
CLIP, SUB TANK HOSE	H8 89 1			COVER, BATTERY TERMINAL	I1 98 10			DISK, FR. BRAKE	G15 80 11
CLIP, TRIM	G12 77 14			COVER, CABLE	F14 63 8			DISK, RR. BRAKE	H1 82 10
CLIP, TUBE	H7 88 18				F16 65 7			DOWEL PIN, 10X16	D9 36 22
	I6 103 30			COVER, CYLINDER HEAD	D1 28 1				E4 47 41
CLIP, WIRE HARNESS, 25MM	H14 95 15			COVER, DUST	G16 81 6			DOWEL PIN, 12X20	D2 29 25
	H15 96 13			COVER, FR. CENTER	G3 68 6				D8 35 7
COIL COMP., IGNITION	I1 98 1			COVER, FR. HANDLE	F13 62 7			DOWEL PIN, 8X14	D9 36 21
COLLAR	D13 40 10			COVER, FR. LOWER	G3 68 7				D11 38 10
	F12 61 12			COVER, FUEL TANK	H5 86 9				D13 40 21
	I1 98 14			COVER, GRAB RAIL CENTER	G11 76 10			DRIVER, SCREW	I7 104 4
COLLAR A, SPRING GUIDE	D15 42 15			COVER, IGNITION COIL	H8 89 8			DUCT COMP., BELT COVER	D13 40 6
COLLAR B, ENGINE HANGER	I3 100 6			COVER, L.	D13 40 1			DUCT, AIR CLEANER	H7 88 4
COLLAR B, RR. AXLE	H1 82 2			COVER, L. FR. SIDE	G3 68 5			DUST SEAL	H5 86 8
COLLAR B, SPRING GUIDE	D15 42 16			COVER, L. PILLION STEP LOWER	G9 74 6			DUST SEAL, 31X38.5X7	I3 100 13
COLLAR, 6.3X13	H8 89 11			COVER, L. PILLION STEP UPPER	G9 74 5			DUST SEAL, 34X46X8	E1 44 11
COLLAR, AIR CLEANER SETTING	H7 88 1			COVER, L. RR. SIDE	G7 72 12			DUST SEAL, 35MM	G13 78 22
COLLAR, DRIVE SHAFT	D15 42 17			COVER, L. SIDE	G7 72 10			DUST SEAL, 37X25X6	H2 83 19
COLLAR, ENGINE PIVOT DISTANCE	I3 100 8			COVER, METER PANEL	G5 70 5			DUST SEAL, STEERING HEAD	F14 63 14
COLLAR, FR. AXLE DISTANCE	G15 80 8			COVER, REED VALVE	D8 35 3			DUST SEAL, STEERING UPPER	F16 65 13
COLLAR, FR. FENDER	H8 89 12			COVER, RR. BODY UPPER	G10 75 6				F14 63 13
COLLAR, FR. WHEEL COVER	H14 95 7			COVER, RR. GARB RAIL	G11 76 9				F16 65 12
	H15 96 6			COVER, RUBBER	F1 50 3			[ E ]
COLLAR, FR. WHEEL SIDE	G15 80 7			COVER, R. FR. SIDE	G3 68 4			ELEMENT COMP., AIR CLEANER	H7 88 2
COLLAR, LOCK PIN	G5 70 8			COVER, R. PILLION STEP LOWER	G9 74 3			ELEMENT, BELT COVER DUCT	D13 40 7
COLLAR, L. SIDE OUTER COVER	D13 40 3			COVER, R. PILLION STEP UPPER	G9 74 2			EMBLEM	I9 106 3
COLLAR, M6	G2 67 6			COVER, R. RR. SIDE	G7 72 11			EMBLEM, HONDA	I9 106 2
	H14 95 14			COVER, R. SIDE	G7 72 9			EMBLEM, KEY	F14 63 5
COLLAR, MAIN STAND SHAFT	H10 91 4			COVER, SEAT HINGE	H3 84 9			EMBLEM, PRODUCT	F13 62 9
COLLAR, MUFFLER PROTECTOR	H9 90 8			COVER, SEAT HINGE UNDER	H3 84 5			E-RING, 4MM	G9 74 12
COLLAR, O-RING	E3 46 11			COVER, SPRING	G6 71 32
			12	COVER, STARTER MAGNETIC				[ F ]
COLLAR, PROTECTOR MOUNTING	H9 90 7			TERMINAL	I1 98 9			FACE COMP. B, MOVABLE DRIVE	D14 41 5
COLLAR, PROTECTOR SETTING	H9 90 9							FACE SET, DRIVEN	D15 42 8
COLLAR, RR. AXLE	H1 82 3			COVER, THERMOSTAT	D2 29 10			FACE SET, MOVABLE DRIVEN	D15 42 9
COLLAR, RR. COWL SETTING	H3 84 13			CRANKCASE COMP., L.	E2 45 6			FACE, DRIVE	D14 41 2
COLLAR, RR. WHEEL SIDE	H1 82 1			CRANKCASE COMP., R.	E2 45 1			FAN COMP., COOLING	I5 102 4
COLLAR, RUBBER BUSH	H11 92 3			CRANKSHAFT	E5 48 8			FENDER B, RR.	H14 95 9
COLLAR, SEAL	D15 42 14			CUSHION ASSY., RR.	H11 92 1			FENDER SET, FR.	G2 67 1
COLLAR, TAILLIGHT	H13 94 2			CUSHION, SEAT	H3 84 11			FENDER, FR.	G2 67 2
COLLAR, TAIL CAP MOUNTING	H9 90 10			CYLINDER COMP.	D8 35 1			FENDER, RR.	H14 95 8
CORD COMP., OXYGEN SENSOR	D2 29 14			CYLINDER SET, MASTER	F5 54 14				H15 96 8
CORD COMP., RR. COMBINATION					F7 56 15
LIGHT	H13 94 3				F9 58 11
COTTER, VALVE	D4 31 15				F10 59 11
COUPLER, JOINT	I1 98 8			CYLINDER SUB ASSY., FR. BRAKE				FILTER SET	H5 86 3
COVER ASSY., INNER	G5 70 17			MASTER	F5 54 8			FLYWHEEL COMP.	D10 37 2
COVER ASSY., R.	D9 36 1				F7 56 9			FORK ASSY., L. FR.	G13 78 17
COVER COMP., LICENSE	H14 95 3			CYLINDER SUB ASSY., RR. BRAKE	F9 58 4			FORK ASSY., R. FR.	G13 78 1
	H15 96 3			MASTER	F10 59 4			FUEL UNIT	H5 86 18
COVER COMP., L. SIDE OUTER	D13 40 2							FUSE, BLADE	H16 97 13
COVER COMP., UNDER	G7 72 8							FUSE, MINI	I2 99 32
COVER COMP., WATER PUMP	D9 36 6			[ D ]						33
COVER SET, L. BODY	G10 75 3
COVER SET, RR. BODY LOWER	G10 75 4			DAMPER, L. LID	G6 71 36					34
COVER SET, RR. HANDLE	F13 62 8			DAMPER, OPENER	H3 84 18					35
COVER SET, R. BODY	G10 75 1			DIAPHRAGM	F5 54 12
COVER SUB ASSY., AIR CLEANER	H7 88 8				F7 56 13			[ G ]
COVER SUB ASSY., TAIL CAP	H9 90 14				F9 58 9
COVER, ACCESSORY SOCKET	G5 70 1				F10 59 9			GARNISH SET, SCREEN	G3 68 1

PART NAME INDEX
Part name	Address	Page	Ref.	Part name	Address	Page	Ref.	Part name	Address
GASKET, CAM CHAIN ADJUSTER ...	D7 34 7			HOSE COMP. E, FR. BRAKE ......	F7 56 5			LID COMP., BATTERY......	G12 77 10
GASKET, CYLINDER ......	D8 35 2			HOSE COMP. G, RR. BRAKE ......	F11 60 5			LID, FUEL......	G5 70 7
GASKET, CYLINDER HEAD ......	D2 29 3				F12 61 6			LID, L. OUTER......	G5 70 23
GASKET, EX. PIPE ......	H9 90 1			HOSE COMP. J, RR. BRAKE ......	F11 60 7			LID, PLUG MAINTENANCE......	G7 72 4
GASKET, HEAD COVER ......	D1 28 2				F12 61 8			LID, RESERVE TANK MAINTENANCE......	G7 72 3
GASKET, L. CRANKCASE COVER ...	D13 40 5			HOSE COMP., FUEL FEED ......	H5 86 12				G12 77 1
GASKET, OIL PATH ......	E2 45 7			HOSE C, WATER ......	I5 102 16			LID, R. OUTER......	G5 70 22
GASKET, R. CRANKCASE COVER ...	D9 36 2			HOSE D, WATER ......	I5 102 17			LIGHT ASSY., LICENSE......	H14 95 2
GASKET, WATER PUMP COVER ...	D9 36 7			HOSE E, RR. BRAKE ......	F11 60 4				H15 96 2
GAUGE, OIL LEVEL ......	D9 36 3				F12 61 4			LOCK, L. LID......	G5 70 21
GEAR COMP., FINAL ......	E1 44 5			HOSE, FILLER ......	I5 102 13			LOCK, R. DOCUMENT......	G5 70 16
GEAR COMP., STARTER DRIVEN ...	D12 39 2			HOSE, WATER BYPASS ......	D9 36 9			[ M ]
GEAR, COUNTER ......	E1 44 4			[ I ]				MARK, COMBINED ABS......	I9 106 1
GEAR, STARTER REDUCTION ......	D12 39 4			IMPELLER, WATER PUMP ......	D9 36 4			MARK, HONDA......	I9 106 4
GRIP ......	I7 104 5			INJECTOR ASSY., FUEL ......	E6 49 12			MAT, LUGGAGE BOX......	G12 77 9
GRIP COMP., THROTTLE ......	F4 53 5			INSULATOR ......	D12 39 13			MAT, L. FLOOR......	G7 72 6
GRIP, L. HANDLE ......	F4 53 6			INSULATOR, IN. PIPE ......	D2 29 7			MAT, R. FLOOR......	G7 72 5
GROMMET ......	I1 98 15			INSULATOR, THROTTLE BODY ......	D2 29 6			METER ASSY., COMBINATION......	F2 51 1
GROMMET, AIR CLEANER CASE ...	G7 72 13			[ J ]				METER COMP., COMBINATION......	F2 51 2
GROMMET, SEAT HINGE UNDER ...	H3 84 14			JOINT COMP., INJECTOR ......	E6 49 14			MIRROR COMP., L. ......	F3 52 4
GUARD B, SPLASH ......	G12 77 2			JOINT, AIR FILTER ......	H5 86 17			MIRROR COMP., R. ......	F3 52 3
GUARD, SPLASH ......	G12 77 3			JOINT, FUEL TUBE ......	H5 86 11			MODULATOR ASSY., ABS......	F12 61 13
GUIDE COMP., RR. BRAKE HOSE ...	F11 60 8			[ K ]				MOTOR ASSY., FAN......	I5 102 5
	F12 61 9							MOTOR ASSY., STARTER......	D12 39 5
GUIDE, CAM CHAIN ......	D7 34 8							MUFFLER COMP., EX......	H9 90 2
GUIDE, OIL PRESSURE SWITCHCORD E4 47 21								[ N ]
GUIDE, SENSOR CORD ......	G15 80 1			KEY SET ......	F14 63 2			NECK, FILLER......	I5 102 6
GUIDE, STARTING DRIVEN GEAR ...	D12 39 3				F16 65 1			NUT-WASHER, 6MM......	D12 39 16
GUIDE, VALVE ......	D2 29 2			KEY SET, SHUTTER ......	F16 65 2			NUT, CAP, 5MM......	G6 71 42
[ H ]				KEY, BLANK ......	F14 63 6			NUT, CAP, 8MM......	I3 100 20
HANDLE, EYE WRENCH ......	I7 104 10			KEY, SPECIAL WOODRUFF, 25X14...	E5 48 9			NUT, CLIP, 5MM......	H9 90 21
HARNESS, WIRE ......	I1 98 7			[ L ]				NUT, CLIP, 6MM......	G12 77 13
HEADLIGHT UNIT ......	F1 50 2								H16 97 10
HEAD COMP., CYLINDER ......	D2 29 1			LABEL, ACCESSORIES & LOADING...	I8 105 7			NUT, CONNECTING ROD......	E5 48 7
HEAT GUARD, LUGGAGE BOX ......	H16 97 8			LABEL, CARGO LIMIT ......	I8 105 1			NUT, FLANGE, 12MM......	I3 100 19
HINGE ASSY., FUEL LID ......	G5 70 11							NUT, FLANGE, 6MM......	F5 54 22
HINGE A, SEAT ......	H3 84 1								F7 56 23
HINGE B, SEAT ......	H3 84 3								F9 58 19
HINGE COMP., SEAT ......	H3 84 4								F10 59 19
HOLDER, BRUSH ......	D12 39 8							H4 85 24
HOLDER, HANDLE PIPE UPPER ...	F13 62 5							H5 86 23
HOLDER, HANDLE UNDER ...	F13 62 6			LABEL, DRIVE CAUTION ......	I8 105 12			H8 89 15
HOLDER, MASTER CYLINDER ...	F5 54 11			LABEL, FRENCH TRANSLATION ......	I8 105 13			H14 95 19
	F7 56 12			LABEL, FUEL & DRIVE ......	I8 105 14			H15 96 19
	F9 58 8			LABEL, RADIATOR CAP ......	I5 102 8			NUT, FLANGE, 8MM......	H4 85 25
	F10 59 8			LABEL, RR. DAMPER ......	I8 105 8			NUT, HEX. CAP, 8MM......	H9 90 20
HOLDER, RELAY ......	I2 99 22			LABEL, TIRE ......	I8 105 5			NUT, HEX., 10MM......	F3 52 6
HORN COMP. ......	I1 98 16							NUT, HEX., 12MM......	D16 43 26
HOSE A, WATER ......	I5 102 14			LENS ASSY..	F2 51 5			NUT, HEX., 3MM......	I6 103 29
HOSE B, WATER ......	I5 102 15			LEVER, L. HANDLE ......	F9 58 12			NUT, SIDE STAND......	H10 91 15
HOSE COMP. A, FR. BRAKE ......	F5 54 2				F10 59 12			NUT, SPECIAL, 30MM......	D15 42 18
	F7 56 2			LEVER, R. HANDLE ......	F5 54 15			NUT, SPECIAL, 6X7......	G2 67 3
HOSE COMP. A, RR. BRAKE ......	F9 58 2			LID ASSY., L. INNER ......	F7 56 16			NUT, SPRING......	G3 68 12
	F10 59 2			LID ASSY., R. INNER ......	G6 71 29				G7 72 16
HOSE COMP. E, FR. BRAKE ......	F5 54 4				G6 71 26			NUT, SPRING, 4MM......	G3 68 13

2013.04.10 E

PART NAME INDEX
Part name	Address	Page	Ref.	Part name	Address	Page	Ref.	Part name	Address
NUT, SPRING, 4MM	G6 71 37			PANEL, R. FLOOR SIDE	G10 75 5			POCKET, L. UPPER	G5 70 18
	G7 72 17			PANEL, R. FR.	G6 71 30			POST COMP., HANDLE	F13 62 4
	G11 76 13			PGM-FI UNIT	I2 99 20			PROTECTOR	F5 54 9
	G12 77 12			PICK UP ASSY.	E3 46 17				F7 56 10
	H13 94 9			PIECE SET, SLIDE	D14 41 1				F9 58 6
	I2 99 23			PIECE, OIL LOCK	G13 78 9				F10 59 6
NUT, SQUARE, 5MM	D2 29 4			PIN ASSY., FUEL LID LOCK	G5 70 9			PROTECTOR A, MUFFLER	H9 90 3
NUT, STEERING STEM LOCK	F14 63 11			PIN A, DOWEL, 12X16	E1 44 13			PROTECTOR SUB ASSY., MUFFLER	H9 90 13
	F16 65 10			PIN B	G16 81 7			PROTECTOR, EX. PIPE	H9 90 11
NUT, U, 10MM	F13 62 13			PIN, 10X44	D12 39 1			PROTECTOR, RR. BRAKE HOSE	H1 82 9
	I3 100 18			PIN, HANGER	G14 79 15			PROTECTOR, SPEED SENSOR	D13 40 11
NUT, U, 16MM	H1 82 16			PIN, PILLION STEP	G9 74 9			PULLER, MINI FUSE	I7 104 1
NUT, U, 5MM	H14 95 13			PIN, PISTON	E5 48 3			PUMP ASSY., FUEL	H5 86 1
	H15 96 12			PIN, ROLLER GUIDE	D15 42 10			PUMP ASSY., OIL	D11 38 1
NUT, U, 6MM	H14 95 12			PIN, SPLIT, 2.5X25	H10	91 16
				PIPE COMP. B, FR. BRAKE	F5 54 3			[R]
[0]					F7 56 3
				PIPE COMP. B, RR. BRAKE	F9 58 3			RADIATOR COMP.	I5 102 1
OIL SEAL, 12X26X5	D9 36 18				F10 59 3			RAIL, RR. GRAB	G11 76 8
OIL SEAL, 25X35X5	E4 47 32			PIPE COMP. C, FR. BRAKE	F7 56 4			RECEIVER UNIT SET	F14 63 1
OIL SEAL, 25X47X6.5	G15 80 15			PIPE COMP. C, RR. BRAKE	F11	60 2		RECTIFIER ASSY., REGULATOR	I1 98 5
OIL SEAL, 30X37X3.5	D14 41 9				F12 61 2			RECTIFIER COMP., SILICON	I1 98 6
OIL SEAL, 33X64X7	E4 47 31			PIPE COMP. D, RR. BRAKE	F11	60 3		REFLECTOR, FR. REFLEX	H14 95 5
OIL SEAL, 34X47X5	H1 82 18				F12 61 3			REFLECTOR, REFLEX	H14 95 6
OIL SEAL, 34X52X5	E1 44 12			PIPE COMP. F, RR. BRAKE	F12	61 5			H15 96 5
O-RING	H5 86 2			PIPE COMP. H, RR. BRAKE	F11	60 6		RELAY ASSY., POWER	I2 99 19
O-RING, 13.8X2.5	D9 36 19				F12 61 7			RELAY COMP., WINKER	I1 98 17
O-RING, 14.7X2.2	E4 47 38			PIPE COMP., EX.	H9 90 4			RETainer, BRACKET	G14 79 11
O-RING, 14.8X2.4	E4 47 33			PIPE COMP., FR. FORK	G13 78 3			RETainer, FUEL PUMP	H5 86 7
O-RING, 15.8X2.4	E4 47 34			PIPE COMP., WATER	I5 102 12			RETainer, FUEL UNIT	H5 86 20
O-RING, 16X2.1	E4 47 37			PIPE, IN.	D2 29 5			RETainer, VALVE SPRING	D4 31 13
O-RING, 16.5X1.5	D16 43 24			PIPE, SEAT	G13 78 11			RING	D12 39 12
O-RING, 16.5X2.5	E4 47 35			PIPE, STEERING HANDLE	F13 62 2			RING SET, PISTON	E5 48 1
O-RING, 18X3	D9 36 20			PISTON	E5 48 2			RING, BACK UP	G13 78 4
O-RING, 24.4X3.1	D12 39 17				G16 81 3			RING, OIL SEAL STOPPER	G13 78 12
O-RING, 26.2X2.4	G13 78 23			PISTON A, 22X27	G14 79 8			RING, PISTON	G13 78 10
O-RING, 47X1.9	D16 43 25			PISTON B, 27X35	G14 79 16			RING, RR. PULSER	G15 80 3
O-RING, 4X2	D12 39 18			PLATE ASSY., REFLECTING	F2 51 6				H1 82 4
O-RING, 6.3X2.2	E6 49 16			PLATE COMP., DRIVE	D15	42 2		RING, SEAL	E6 49 13
O-RING, 9.8X2.4	E4 47 36			PLATE, CAM STOPPER	D4 31 3			RING, STOPPER	G13 78 15
O-RING, FUEL PUMP	H5 86 14			PLATE, CLUTCH SIDE	D15	42 3			G14 79 10
O-RING, IN. PIPE	D2 29 21			PLATE, DIAPHRAGM	F5 54 13			ROD ASSY., CONNECTING	E5 48 4
O-RING, THROTTLE BODY	E6 49 4				F7 56 14			ROD COMP., SWING	I3 100 10
OUTER COMP., CLUTCH	D15 42 1				F9 58 10			ROD, SWITCH EXTENSION	F2 51 3
OUTER COMP., STARTING CLUTCH - D10 37 1					F10 59 10			ROLLER SET, WEIGHT	D14 41 4
[P]				PLATE, IDLE AIR CONTROL VALVE	E6 49 10			ROLLER, 3X17.8	E4 47 53
				PLATE, L. HINGE	G5 70 24			ROLLER, 4X15.8	D11 38 13
				PLATE, L. LOWER POCKET	G5 70 20			ROLLER, GUIDE	D15 42 11
				PLATE, L. PILLION STEP	G9 74 7			ROTOR, INNER	D11 38 2
				PLATE, NAME	I8 105 4			ROTOR, OUTER	D11 38 3
				PLATE, OIL SEPARATOR	D11 38 7			RUBBER A, SEAL	H3 84 2
				PLATE, PORT	D8 35 4			RUBBER A, TAILLIGHT MOUNTING	H13 94 1
				PLATE, RAMP	D14 41 6			RUBBER B, SEAL	H3 84 6
				PLATE, R. PILLION STEP	G9 74 4			RUBBER B, STOPPER	I3 100 7
				PLUG, ADJUSTER	D7 34 5			RUBBER C, MOUNTING	H8 89 13
				PLUG, AIR CLEANER DRAIN	H7 88 9			RUBBER C, SEAL	H3 84 7
				PLUG, HOLE	H15 96 14			RUBBER, CLUTCH DAMPER	D15 42 6
				PLUG, SPARK	D2 29 12			RUBBER, GARNISH	G3 68 2
				POCKET, L. LOWER	G5 70 19

PART NAME INDEX
Part name	Address	Page Ref.	Part name Address Page Ref.
RUBBER, HEADLIGHT CASEMOUNTING I3 100 14I5 102 21RUBBER, L. SIDE OUTER COVER - D13 40 4RUBBER, MOUNTING - D1 28 4F12 61 11H8 89 10RUBBER, PROTECTOR MOUNTING - H9 90 5RUBBER, RR. FENDER SETTING - H9 90 16RUBBER, SCREEN SETTING - I3 100 15RUBBER, SHOCK - H16 97 5RUBBER, STAND STOPPER - H10 91 5RUBBER, UNDER COVER - G7 72 7RUBBER, VISOR - G3 68 9[ S ]SCREEN, OIL FILTER - E3 46 16SCREW-WASHER, 4X12 - F5 54 21F7 56 22F9 58 18F10 59 18SCREW-WASHER, 4X6 - I6 103 28SCREW-WASHER, 5X12 - D12 39 19E6 49 18SCREW-WASHER, 5X16 - H3 84 21SCREW-WASHER, 5X20 - F4 53 7SCREW, BATTERY LID - G12 77 11SCREW, BLEEDER - G14 79 6G16 81 9SCREW, FLAT, 4X12 - F5 54 20F7 56 21F9 58 17F10 59 17SCREW, OVAL, 6X35 - F13 62 12SCREW, PAN, 3X8 - D11 38 9SCREW, PAN, 5X10 - E6 49 17SCREW, PAN, 5X12 - H9 90 22SCREW, PAN, 5X20 - H9 90 17SCREW, PAN, 6X14 - G9 74 8SCREW, PAN, 6X17 - F13 62 11SCREW, PAN, 6X20 - G2 67 5SCREW, SCREEN SETTING - F14 63 17SCREW, SPECIAL, 5MM - G11 76 11H9 90 18SCREW, SPECIAL, 6X15 - H16 97 11SCREW, TAPPING, 3X16 - F2 51 7F15 64 23G1 66 22SCREW, TAPPING, 4X12 - F15 64 25G1 66 24G6 71 40G8 73 19H3 84 23H13 94 10H14 95 18	SCREW, TAPPING, 4X12 - H15 96 17SCREW, TAPPING, 4X16 - D13 40 20G4 69 17G6 71 41G8 73 20G11 76 15H14 95 17H15 96 16I2 99 27SCREW, TAPPING, 5X10 - G9 74 10SCREW, TAPPING, 5X12 - G9 74 11SCREW, TAPPING, 5X16 - F1 50 7F2 51 8G8 73 21H3 84 22H12 93 6H15 96 18SCREW, TAPPING, 5X20 - H7 88 17SCREW, TORX - E6 49 11SCREW, TORX, 5X17 - E6 49 3SEAL SET, FR. FORK - E6 49 2SEAL SET, PISTON - G13 78 16SEAL SET, PISTON - G14 79 1SEAL, AIR CLEANER - H7 88 3SEAL, BELT COVER DUCT - D13 40 9SEAL, DRIVEN FACE, 40X47X4 - D16 43 23SEAL, EX. VALVE STEM - D4 31 1SEAL, HANDLE POST - F14 63 12SEAL, INNER COVER - G6 71 33SEAL, L. LID INNER - G12 77 7SEAL, MECHANICAL - D9 36 5SEAL, RADIATOR CAP - I5 102 8SEAL, R. LID INNER - G6 71 27SEAL, TOOL BOX - G12 77 4SEAL, VALVE STEM - D4 31 2SEAT B, SPRING - G13 78 14SEAT COMP., DOUBLE - H3 84 8SEAT, DRIVEN FACE SPRING - D15 42 13SEAT, VALVE SPRING - D4 31 14SENSOR ASSY., BANK ANGLE - I1 98 13SENSOR ASSY., WATER TEMP - D2 29 15SENSOR SET - E6 49 1SENSOR, FR. WHEEL SPEED - G15 80 2SENSOR, OXYGEN - D2 29 13SENSOR, RR. WHEEL SPEED - E3 46 20SHAFT, COUNTER - E1 44 3SHAFT, DRIVE - E1 44 2SHAFT, L. LID INNER - G6 71 25SHAFT, MAIN STAND - H10 91 3SHAFT, ROCKER ARM - D4 31 8SHAFT, WATER PUMP - D9 36 8SHIM, TAPPET - D4 31 16D5 32 16D6 33 16	SHROUD COMP. - I5 102 2SOCKET ASSY. - G5 70 3SOCKET, BULB - H12 93 1SPACER, IGNITION COIL - I1 98 3SPANNER, 10X14 - I7 104 6SPANNER, 12X14 - I7 104 7SPANNER, PIN - I7 104 8SPRING, CAM CHAIN ADJUSTER - D7 34 6SPRING, CARBON BRUSH - D12 39 9SPRING, CLUTCH - D15 42 4SPRING, DRIVEN FACE - D15 42 12SPRING, FR. FORK - G13 78 2SPRING, GLOVE BOX - G5 70 15SPRING, KICK STARTER STOPPER - G9 74 1SPRING, MAIN STAND - H10 91 7SPRING, PAD - G14 79 9SPRING, POCKET - G6 71 34SPRING, REBOUND - G13 78 7SPRING, ROCKER ARM SIDE - D4 31 9SPRING, SEAT LOCK - G5 70 14SPRING, SIDE STAND - H3 84 16SPRING, VALVE - D4 31 12SPROCKET, CAM - D4 31 5SPROCKET, OIL PUMP DRIVEN - D11 38 4STAND COMP., MAIN - H10 91 2STATOR COMP. - D10 37 3STAY COMP., AIR INJECTION SOLENOID VALVE H8 89 4STAY COMP., INNER - F14 63 10STAY COMP., L. FLOOR - I3 100 12STAY COMP., RR. BRAKE HOSE - F11 60 1STAY COMP., R. FLOOR - I3 100 11STAY, AIR INJECTION CONTROL VALVE TUBE H8 89 5STAY, FR. COVER - I3 100 4STAY, FUSE - G6 71 35STAY, HARNESS - E6 49 15STAY, HARNESS CLAMPER - E6 49 6STAY, WIRE - E6 49 5STAY, WIRE HARNESS - D2 29 11STEM SUB ASSY., STEERING - F14 63 15STEP, L. FLOOR - G7 72 2STEP, R. FLOOR - G7 72 1STOPPER, TERMINAL - D12 39 14STRAINER, OIL - E3 46 10STUD, BALL - H3 84 19SUB CORD, ENGINE - E3 46 18SUB CORD, HEADLIGHT - F1 50 1SUB SPRING, MAIN STAND - H10 91 8SUB SPRING, SIDE STAND - H10 91 11SUSPENSION, ENGINE CONTROL UNIT I2 99 21SUSPENSION, WINKER RELAY - I1 98 18SWINGARM ASSY. - H1 82 11

2013.04.10 E

PART NAME INDEX
Part name	Address	Page	Ref.	Part name	Address	Page	Ref.	Part name	Address
SWITCH ASSY., COMBINATION &LOCK F14 63 3F16 65 3SWITCH ASSY., ENGINE STOP .... F4 53 3SWITCH ASSY., FR. STOP ...... F5 54 1F7 56 1F9 58 1F10 59 1SWITCH ASSY., FUEL LID & SEATOPENER F14 63 7F16 65 6SWITCH ASSY., L. LID OPENER ... F14 63 9F16 65 8SWITCH ASSY., OIL PRESSURE ... E3 46 19SWITCH ASSY., SIDE STAND .... H10 91 1SWITCH ASSY., STARTER MAGNETIC H16 97 4SWITCH ASSY., WINKER ...... F4 53 4[ T ]TAILLIGHT UNIT ...... H13 94 4TANK COMP., FUEL ...... H5 86 6TANK, RESERVE ...... I5 102 9TAPE, BATTERY LIFT ...... H16 97 6TENSIONER, CAM CHAIN ...... D7 34 2THERMOSTAT ...... D2 29 9THREAD COMP., STEERING HEADTOP F14 63 16F16 65 15THROTTLE BODY ASSY. ...... E6 49 7TIRE, FR. ...... G15 80 10TIRE, RR. ...... H1 82 7TRAY, FUEL ...... H5 86 10TUBE A, AIR INJECTION CONTROLVALVE H8 89 2TUBE B, AIR INJECTION CONTROLVALVE H8 89 3TUBE, 3.5X260 ...... H5 86 24TUBE, 5.3X120 ...... E4 47 45TUBE, AIR BREATHER ...... H5 86 5TUBE, AIR CLEANER CONNECTING . H7 88 10TUBE, BREATHER ...... H5 86 4TUBE, DRAIN ...... H7 88 12TUBE, FILLER ...... I5 102 3TUBE, RESERVE TANK ...... I5 102 10TUBE, VINYL, 9X11X400 ...... H5 86 25[ V ]VALVE ASSY., AIR INJECTIONSOLENOID H8 89 9VALVE ASSY., DELAY ...... F11 60 9F12 61 10VALVE ASSY., IDLE AIR CONTROL E6 49 9VALVE ASSY., RELIEF ...... E3 46 13VALVE COMP., REED ...... D8 35 6E2 45 5VALVE, EX. ...... D4 31 11				VALVE, IN. ...... D4 31 10VALVE, RELIEF ...... E3 46 14VALVE, RIM ...... G15 80 5H1 82 8VISOR SET, METER ...... G3 68 8[ W ]WASHER ...... D12 39 15WASHER, 10MM ...... D10 37 6WASHER, 10.5X29X4 ...... D14 41 8WASHER, 14X42X1 ...... E1 44 6WASHER, 7.2X13X1.2 ...... D9 36 14WASHER, DRAIN PLUG, 12MM ...... E4 47 40WASHER, LOCK NUT ...... F14 63 20WASHER, OIL BOLT ...... F5 54 18F7 56 19F9 58 15F10 59 15F11 60 12F12 61 16WASHER, PLAIN, 10MM ...... I3 100 22WASHER, PLAIN, 4MM ...... G6 71 43WASHER, PLAIN, 5MM ...... E4 47 39WASHER, PLAIN, 6MM ...... H4 85 26WASHER, SCREEN SETTING ...... G3 68 14WASHER, SEALING, 11X19X2 ...... D7 34 9WASHER, SEALING, 6MM ...... D2 29 19WASHER, SEALING, 8MM ...... E4 47 26WASHER, SIDE, 14MM ...... E1 44 7WASHER, SPECIAL, 12MM ...... D2 29 20WASHER, SPECIAL, 8MM ...... G13 78 21WASHER, THRUST, 11MM ...... D11 38 8WASHER, THRUST, 12X23X2 ...... D9 36 16WEIGHT SET, CLUTCH ...... D15 42 5WEIGHT, BALANCE ...... G15 80 4H1 82 6WEIGHT, HANDLE ...... F13 62 3WHEEL SUB ASSY., FR. ...... G15 80 9WHEEL SUB ASSY., RR. ...... H1 82 5WINKER UNIT, L. FR. ...... H12 93 3WINKER UNIT, R. FR. ...... H12 93 2WIRE, HELMET SETTING ...... I7 104 2WRENCH, BOX ...... I7 104 9

1 FOREWORD INDEX
2 ENGINE GROUP
3 FRAME GROUP
4 PART NUMBER INDEX
5 PART NAME INDEX

HONDA

The Power of Dreams

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd.

Customer Service Technology Development Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

May 03, 2013

CODE NO.	13K04D01
PARTSCATALOGUENEWS	NSS300/ANSS300DNSS300AD
EWS NO. 001

(TH-KD)K04

Block No.	Ref. No.	Note Part No.	Description		Read. QTY		Serial No.	Parts catalogue code
					NSS300D	NSS30943
F-41	20	E	38770-K04-A01	*PARTS NO. DELETION
		A	38770-K04-A02	PGM-FI UNIT	1	1	----	K0.U

NOTE A: PART NO. CHANGE D: NEWLY PROVIDED E: PART NO. DELETION K: REQUIRED NO. CORRECTION L: APPLICATION SERIAL NO. CORRECTION

M:PART DESCRIPTION CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd.

Customer Service Technology Development Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

May 19, 2013

CODE NO.	13K04D01
PARTSCATALOGUENEWS	NSS300/ANSS300DNSS300AD
EWS NO. 002

(TH-KD)K04

Block No.	Ref. No.	Note Part No.	Description		Reqd. QTY		Serial No.	Parts catalogue code
					MSS300	MSS300A
					D	D
F-12	14	E	90501-K04-930	*PARTS NO. DELETION
		A	90501-K04-931	WASHER, SCREEN SETTING(A)....	4	4

NOTE A: PART NO. CHANGE D: NEWLY PROVIDED E: PART NO. DELETION K: REQUIRED NO. CORRECTION L: APPLICATION SERIAL NO. CORRECTION

M:PART DESCRIPTION CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd.

Customer Service Technology Development Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

June 02, 2013

CODE NO.	13K04D01
PARTSCATALOGUENEWS	NSS300/ANSS300DNSS300AD
EWS NO. 003

(TH-KD)K04

Block No.	Ref. No.	Note Part No.	Description	Read. QTY		Serial No.	Parts catalogue code
				NSS 300 D	NSS 300A
E-8	1 M	28125-HN5-671	OUTER COMP., STARTING CLUTCH. (NSK)	1	1
		D 28125-K04-932	OUTER COMP., STARTING CLUTCH. (TSUBAKI EMERSON)	1	1
F-13	3	E 39624-SZ3-931	*PARTS NO. DELETION
		A 39624-SZ3-L01	SOCKET ASSY	1	1

NOTE A: PART NO. CHANGE D: NEWLY PROVIDED E: PART NO. DELETION K: REQUIRED NO. CORRECTION L: APPLICATION SERIAL NO. CORRECTION

M:PART DESCRIPTION CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd.

Customer Service Technology Development Division

Printed in Japan

(TH-KD)K04

June 17, 2013

CODE NO.	13K04D01
PARTSCATALOGUENEWS	NSS300/ANSS300DNSS300AD
EWS NO. 004

NEW MODEL NSS300D-MA AND NSS300AD-MA TYPES COMPONENT PARTS-MARKETED

This Parts News NSS300D-MA and NSS300AD-MA types parts exclusively and respectively are based NSS300D-ED and NSS300AD-ED types listed on the NSS300/A Parts Catalogue.

All other parts not listed herein are the same as NSS300D-ED and NSS300AD-ED types parts.

Model	Area code	Type	Applicable engine serial No.	Applicable frame serial No.	Applicable throttle body identification No.
NSS300D	MA Malaysia	NF04E20000	01~ MLHNF049*D5000001~	GQBHA A
NSS300AD	MA Malaysia	NF04E20000	01~ MLHNF049*D5000001~	GQBHA A

NSS300 (NSS300D).....MA

No. Name of colored parts Basic part No. NHA35 NHA87 NHA14			NSS300D
			Asteroid black metallicNH-A35M N	Pearl himalayas whiteH-A87P NH-A14M	Seal silver metallicM	Applicable model		Applicable block No.	Ref. No.
						Initial applicable model	Final applicable model
1 BACKREST COMP. 77210-K04-930 ZA ZA 12
2	COVER SET, L. BODY	83650-K04-A20	ZC	ZB	ZA			F-15	3
3	COVER SET, R. BODY	83550-K04-A20	ZC	ZB	ZA			F-15	1
4	COVER SET, RR. BODY LOWER	83660-K04-930	ZD	ZC	ZA			F-15	4
5	COVER, GRAB RAIL CENTER	84160-K04-930	ZC	ZB	ZD			F-15	10
6	COVER, L. FR. SIDE	64502-K04-930	ZC	ZB	ZD			F-12	5
7	COVER, L. SIDE	64432-K04-930	ZC	ZB	ZD			F-14	10
8	COVER, R. FR. SIDE	64501-K04-930	ZC	ZB	ZD			F-12	4
9	COVER, R. SIDE	64431-K04-930	ZC	ZB	ZD			F-14	9
10	COVER, RR. BODY UPPER	83751-K04-930	ZC	ZB	ZD			F-15	6
11	COVER, RR. GARB RAIL	84150-K04-930	ZC	ZB	ZD			F-15	9
12	EMBLEM, HONDA	86101-K04-930 ZA 2	ZA ZA F-48 2
13	FENDER, FR.	61100-K04-930	ZC	ZB	ZD			F-11	2
14	GARNISH SET, SCREEN	64300-K04-930	ZD	ZB	ZF			F-12	1
15	HOLDER, HANDLE PIPE UPPER	53131-K20-900	ZB	ZB	ZB			F-9	5

BOOKNo.:13K04D01

PARTS CATALOGUE NEWS

NSS300 (NSS300D)......MA

No. Name of colored parts Basic part No. NHA35 NHA87 NHA14			NSS300D
			Asteroid black metallicNH-A35M N	Pearl himalayas whiteH-A87P NH-A14M	Seal silver metallicM	Applicable model		Applicable block No.	Ref. No.
						Initial applicable model	Final applicable model
16 MARK 86831-K04-A20 ZA ZA ZA F-48 5
17 MARK, HONDA		87125-MCN-850	ZA ZA ZA	F-48 4
18 PANEL, L. FLOOR SIDE		83801-K04-930 ZC	ZB ZD	F-15 7
19 PANEL, R. FLOOR SIDE		83701-K04-930 ZC	ZB ZD	F-15 5
20 SEAT ASSY., DOUBLE		77200-K04-930	ZA ZA ZA	F-24 8
21 VISOR SET, METER		67100-K04-700	ZA ZA ZA	F-12 8
22 WHEEL SUB ASSY., FR.		44650-K04-930	ZA ZA ZA	F-20 9
23 WHEEL SUB ASSY., RR.		42650-K04-932	ZA ZA ZA	F-22 5

NSS300A (NSS300AD)......MA

No. Name of colored parts Basic part No. NHA35 NHA87 NHA14			NSS300AD
			Asteroid black metallicNH-A35M N	Pearl himalayas whiteH-A87P NH-A14M	Seal silver metallicM	Applicable model		Applicable block No.	Ref. No.
						Initial applicable model	Final applicable model
1 BACKREST COMP. 77210-K04-930 ZA ZA 12
2	COVER SET, L. BODY	83650-K04-A20	ZC	ZB	ZA			F-15	3
3	COVER SET, R. BODY	83550-K04-A20	ZC	ZB	ZA			F-15	1
4	COVER SET, RR. BODY LOWER	83660-K04-930	ZD	ZC	ZA			F-15	4
5	COVER, GRAB RAIL CENTER	84160-K04-930	ZC	ZB	ZD			F-15	10
6	COVER, L. FR. SIDE	64502-K04-930	ZC	ZB	ZD			F-12	5
7	COVER, L. SIDE	64432-K04-930	ZC	ZB	ZD			F-14	10
8	COVER, R. FR. SIDE	64501-K04-930	ZC	ZB	ZD			F-12	4
9	COVER, R. SIDE	64431-K04-930	ZC	ZB	ZD			F-14	9
10	COVER, RR. BODY UPPER	83751-K04-930	ZC	ZB	ZD			F-15	6
11	COVER, RR. GARB RAIL	84150-K04-930	ZC	ZB	ZD			F-15	9
12	EMBLEM, HONDA	86101-K04-930 ZA 2	ZA ZA F-48 2
13	FENDER SET, FR.	61000-K04-970	ZL	ZK	ZH			F-11	1
14	GARNISH SET, SCREEN	64300-K04-930	ZD	ZB	ZF			F-12	1
15	HOLDER, HANDLE PIPE UPPER	53131-K20-900	ZB	ZB	ZB			F-9	5

BOOKNo.:13K04D01

PARTS CATALOGUE NEWS

NSS300A (NSS300AD)......MA

No. Name of colored parts Basic part No. NHA35 NHA87 NHA14			NSS300AD
			Asteroid black metallicNH-A35M N	Pearl himalayas whiteH-A87P NH-A14M	Seal silver metallic	Applicable model		Applicable block No.	Ref. No.
						Initial applicable model	Final applicable model
16 MARK 86831-K04-A20 ZA ZA ZA F-48 5
17	MARK, COMBINED ABS	61105-KVZ-660	ZA	ZB	ZA			F-48	1
18 MARK, HONDA	87125-MCN-850	ZA ZA ZA	F-48 4
19	PANEL, L. FLOOR SIDE	83801-K04-930	ZC	ZB	ZD			F-15	7
20	PANEL, R. FLOOR SIDE	83701-K04-930	ZC	ZB	ZD			F-15	5
21 SEAT ASSY., DOUBLE	77200-K04-930	ZA ZA ZA	F-24 8
22 VSOR SET, METER	67100-K04-700	ZA ZA ZA	F-12 8
23 WHEEL SUB ASSY., FR.	44650-K04-970	ZA ZA ZA	F-20 9
24 WHEEL SUB ASSY., RR.	42650-K04-972	ZA ZA ZA	F-22 5

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Base Part No.	Parts catalogue code
				NSS 300 D	NSS 300A D
F-15	1	83550-K04-A20ZA	COVER SET, R. BODY (WL)*TYPE3*	1	1		MA
		83550-K04-A20ZB	COVER SET, R. BODY (WL)*TYPE2*	1	1	83550-K04-930ZC	MA
		83550-K04-A20ZC	COVER SET, R. BODY (WL)*TYPE1*	1	1	83550-K04-930ZD	MA
		COVER SET, R. BODY (NL)*TYPE4*		0	0	83550-K04-930ZA	MA
	3	83650-K04-A20ZA	COVER SET, L. BODY (WL)*TYPE3*	1	1		MA
		83650-K04-A20ZB	COVER SET, L. BODY (WL)*TYPE2*	1	1	83650-K04-930ZC	MA
		83650-K04-A20ZC	COVER SET, L. BODY (WL)*TYPE1*	1	1	83650-K04-930ZD	MA
		COVER SET, L. BODY (WL)*TYPE4*		0	0	83650-K04-930ZA	MA

REAR WHEEL/SWINGARM F-22

Technical diagram of a mechanical assembly with numbered components and exploded view

PARTS CATALOGUE NEWS

Block No.	Ref.No.	Part No.	Description			Reqd. QTY		Base Part No.	Parts catalogue code
						MSS300D	MSS300A
F-22	2	42312-K04-930	COLLAR B. RR. AXLE......	1	1	42312-KEY-900		MA
	3	42313-K04-932	COLLAR. RR. AXLE......	1	1	42313-K04-930		MA
	5	42650-K04-932ZA	WHEEL SUB ASSY.. RR.*NH303M*.MAT AXIS GRAY METALLIC					42650-K04-930ZA
					1	-			MA
		42650-K04-972ZA	WHEEL SUB ASSY.. RR.*NH303M*.MAT AXIS GRAY METALLIC					42650-K04-970ZA
					-	1			MA
	22	90505-K04-930	WASHER 16MM......		1	1	MA

F-48 MARK/EMBLEM

HONDA 1 Cylinder ABS 2 HONDA 3 FORZA 4 HONDA 5

K043F4800A

F-48	3	EMBLEM (FORZA)	*TYPE1*	0	0	86831-K04-930ZA	MA
	5	86831-K04-A20ZA	MARK (NSS300)*TYPE1*	2	2		MA
