Frost Watcher FW600 - Heizung DIMPLEX - Kostenlose Bedienungsanleitung

Produkttyp	Frostwächter-Heizgerät
Marke	Dimplex
Modell	Frost Watcher FW600
Heizleistung	600 W
Spannung	230 V / 50 Hz
Schutzart	IP24 (spritzwassergeschützt)
Abmessungen (B x H x T)	ca. 15 x 20 x 10 cm
Gewicht	ca. 0,8 kg
Heizstufen	2 (Lüfter ohne Heizung, Heizung)
Thermostat	Einstellbarer Thermostat (ca. 0°C – 20°C)
Kontrollleuchte	Betriebsanzeige (grün)
Sicherheitsfunktionen	Überhitzungsschutz, Kippschutz
Kabellänge	ca. 1,5 m
Einsatzbereich	Innenräume, frostgefährdete Bereiche (Keller, Garage)
Montage	Freistehend oder Wandmontage (Halterung nicht im Lieferumfang)
Reinigung	Gehäuse mit feuchtem Tuch abwischen, Lufteinlass regelmäßig saugen
Entsorgung	Elektrogeräte gehören nicht in den Hausmüll, gemäß WEEE-Richtlinie
Garantie	2 Jahre (bei sachgemäßer Nutzung)

Häufig gestellte Fragen - Frost Watcher FW600 DIMPLEX

Wie schließe ich den Frost Watcher FW600 an?

Kann der FW600 im Außenbereich verwendet werden?

Wie stelle ich die gewünschte Temperatur ein?

Warum schaltet sich das Gerät während des Betriebs aus?

Wie reinige ich das Gerät richtig?

Kann ich den FW600 über Nacht laufen lassen?

Ist das Gerät für den Einsatz in Feuchträumen geeignet?

Welche Garantie habe ich auf den Frost Watcher?

Kann ich das Gerät an der Wand montieren?

Was bedeuten die Kontrollleuchten?

BEDIENUNGSANLEITUNG Frost Watcher FW600 DIMPLEX

Contact Details

Please note that some of the contact details on this PDF document may not be current.

Please use the following details if you need to contact us:

Telephone: [phone] Email: [e-mail]

The customer support section of our website also features a wide range of information which may be of use to you and is available 24 hours a day. It includes:

• Operating and installation instructions
• Easy 'How to use' guides for storage heaters
  • Service and repairs
  • Where to buy our products
  • Literature downloads
  • Heating requirement calculator

Visit - www.dimplex.co.uk/support

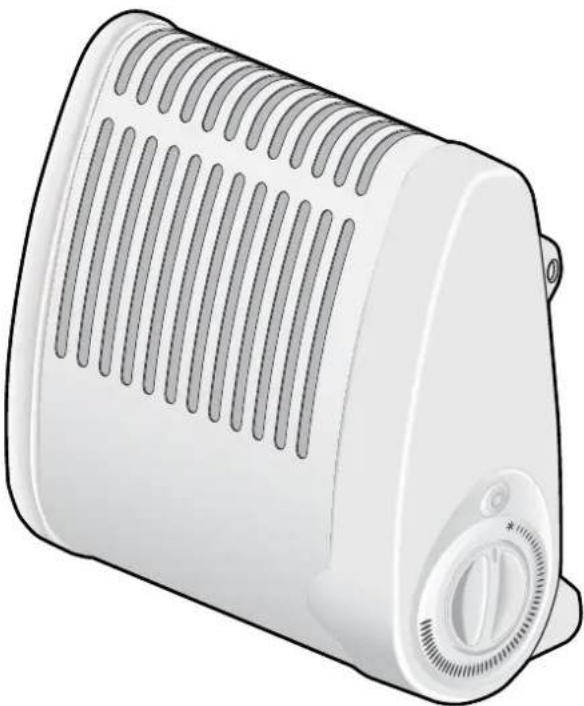

Illustration of a white portable electric heater with ventilation grilles and a control knob (no text or symbols)

MODEL: FW600

WARNING

THIS PRODUCT MUST ONLY BE USED WHEN MOUNTED UPRIGHT ON A VERTICAL SURFACE WITH THE WALL BRACKET AND TOP OF THE PRODUCT HORIZONTAL.

CORRECT FITTING UPRIGHT HORIZONTAL 90° Min. 100 mm 90° Min. 200 mm

INCORRECT FITTING EXAMPLES

08/51025/0 Issue 2

T ①

min. 300 mm min. 100 mm max. 1500 mm min. 300 mm min. 200 mm ②

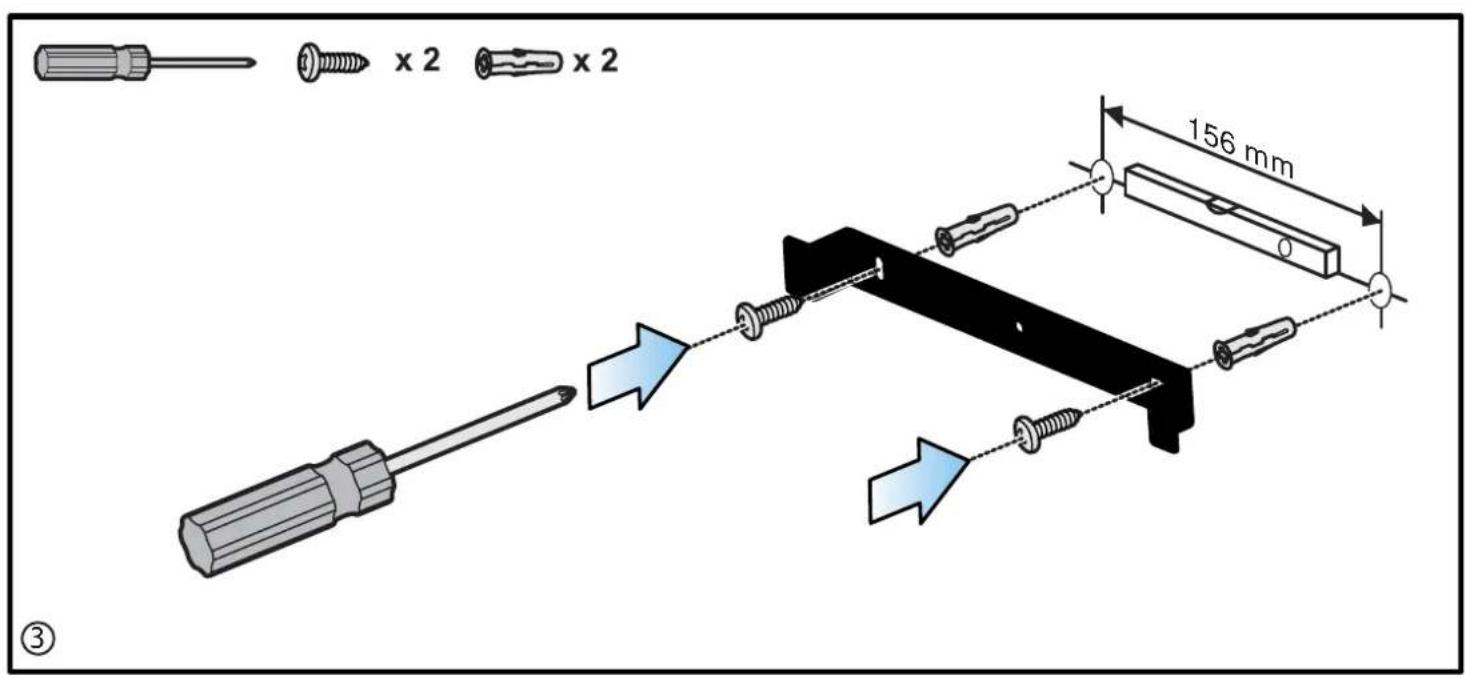

x 2 x 2 156 mm ③

④ x 2 A B C

Circular industrial control knob with gradient fill and asterisk marking (no text or symbols)

Dear Customer,

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Attention! The appliance may only be used for normal domestic use and not for industrial purposes.

Important safety advice

- The appliance must only be used as described in the instructions for use! Use for any other purpose is forbidden! Any damage resulting from improper use and non-observance of the safety information will invalidate any liability and warranty!

- All liability is disclaimed for any frost damage caused by a heating capacity that is insufficient for the room size, bad heat insulation of the room, incorrect use or force majeure (e.g. power failure).

- Only connect the appliance to A.C. mains as specified on the rating plate!

- Never touch live parts! Danger to life!

- Never operate the appliance with wet hands! Danger to life!

- The appliance must be placed in a way that the control elements cannot be touched by persons who are in bath, shower, or any other water-filled receptacle.

- Do not use the appliance in rooms with bath, shower or swimming pool or in the vicinity of wash basins or water connections!

- Do not expose the appliance to rain or other moisture! The appliance is not for outdoor use. The appliance must only be stored indoors!

- Never use the appliance if the appliance or cord is damaged. Risk of injury!

- Check the power cord regularly for damage.

- If the power cord or the appliance is damaged to the extent that electrical parts are exposed, disconnect it immediately from the mains and see your authorised retailer!

- Improper repairs can expose the user to considerable danger.

- The appliance may only be opened up and repaired by authorised qualified personnel.

- Do not store or use any flammable materials or sprays in the vicinity of the appliance when the appliance is in use. Fire hazard!

- Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or spray cans)! Explosion and fi re hazard!!

- The appliance should not be used in the vicinity of combustible materials, or in areas which are considered a fire risk.

- Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!

- The appliance air inlet and outlet openings must not be obstructed in any way!

- Place the appliance so that it cannot be touched by accident. Risk of burns!

- WARNING: IN ORDER TO AVOID OVERHEATING, DO NOT COVER THE HEATER. The heater carries the Warning symbol indicating that it must not be covered.

• The appliance is not intended for use by young children or infirm persons without supervision!
• Young children should be supervised to ensure that they do not play with the appliance!
• Attention! To avoid any danger due to unintentionally resetting the thermal cut-out, the appliance must not be supplied via a timer.
• The appliance is not suitable for animal breeding purposes!
• The instruction leafl et belongs to the appliance and must be kept in a safe place. When changing owners, the leafl et must be surrendered to the new owner!

Packaging

• After unpacking the appliance, check the same for transport damage and the contents for completeness! In the event of damage or an incomplete delivery, contact your authorised retailer!
• Do not discard the original box! It can be used for storage and dispatch to avoid transport damage!
• Dispose of the packaging material in a proper manner! Plastic bags should be kept away from children!

Location

• The appliance should be placed with a minimum distance of 500mm from fl ammable objects and a minimum of 100mm from walls or other structures!
• The appliance openings must not be obstructed in any way!
• Do not locate the appliance immediately below a fixed socket outlet or connection box.

Electrical

WARNING - THIS APPLIANCE MUST BE EARTHED

• The electrical installation must be carried out by a competent electrician, and be in strict accordance with the current I.E.E. regulations for Electrical Equipment in Buildings.
• The heater is fitted with a length of flexible cable type H05VV-F size 3 x 0.75mm ^2 , for connection to the fixed wiring of the premises through a suitable connection box positioned adjacent to the heater.
• The supply cord to the heater must incorporate a double pole isolating switch having a contact separation of at least 3mm.

THIS APPLIANCE IS ONLY SUITABLE FOR WALL MOUNTING!

Mounting

• THIS PRODUCT MUST ONLY BE USED WHEN MOUNTED UPRIGHT ON A VERTICAL SURFACE WITH THE WALL BRACKET AND TOP OF THE PRODUCT HORIZONTAL.
• The minimum distance must be observed (Figs. 2 and 3).
• When wall mounting, care must be taken not to damage concealed cables. For this reason, no holes must be made above or below wall power sockets.

Start up

- After switching on the appliance for the first time and after an extended period of non-use, a smell may be noticed for a short time.

Frost protection

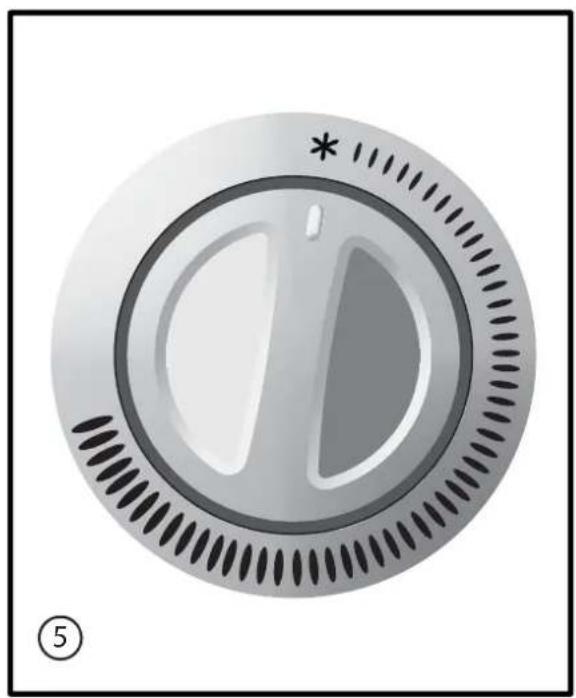

• Position the thermostat control T on the marking (Fig. 5).
• When the temperature falls below +6^ C +9^ C the appliance turns on automatically.
• If necessary the thermostat should be set higher.

Overheat cut-out

The built-in overheat cut-out switches off the appliance automatically in the event of a fault! Disconnect the electricity supply to the appliance. After a short cooling down phase, the appliance is ready for use again! If the fault should occur again, see your local dealer!

Cleaning

• Switch off the appliance first and allow it to cool.
• Clean the housing with a moist cloth, vacuum cleaner or brush.
• Do not use any abrasive or caustic cleaning agents!
• Do not use any flammable cleaning agents e.g. petrol or spirit for cleaning the appliance.
• Never immerse the appliance in water! Danger to life!
• Air inlet-and outlet area should be cleaned with a vacuum cleaner regularly.
• If the appliance is not used for extended periods, it must be protected against excessive dust and dirt.

Recycling

For electrical products sold within the European Community. At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice in your country.

After sales service

Your product is guaranteed for one year from the date of purchase.

Within this period, we undertake to repair or exchange this product free of charge provided it has been installed and operated in accordance with these instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee.

Should you require after sales information or assistance with this product please go to www.gdcgroup.co.uk or ring our helpdesk on 0845 600 5111 (UK) or 01 842 4833 (R.O.I).

Please retain your receipt as proof of purchase.
