BEDIENUNGSANLEITUNG Ultimate Folding Screen Draper

Assembly Instructions Ultimate Folding Screen Dress Kit by Draper

① Attach Valance Bar to frame (see Fig. 1).

Pure structural bracket diagram without any text, numbers, or symbols

Figure 1

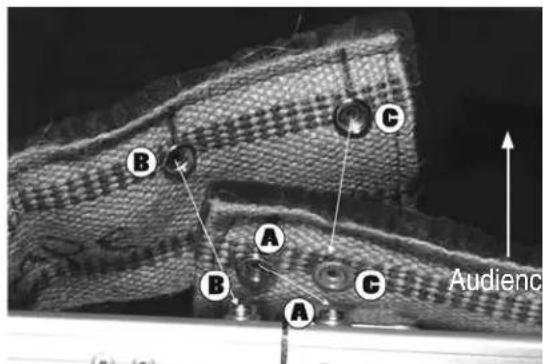

② Valance and Drapes snap onto Mounting Bars as shown below. Please Note: The valance will likely show some fullness (see Fig. 2).

Figure 2

③ Drapery Bars mount to Valance Bar and lock using a ball detent (see Fig. 3).

Close-up of two metallic structural components with mounting holes and mounting holes (no text or symbols visible)

Figure 3

Caution: Beware of pinch points.

Illustration of two hands using a tool to tighten or knock, with starburst background (no text or symbols)

④ For adjustable skirt bar, see box below. For standard skirt attachment: The skirt attaches to snaps located along the bottom black border of the viewing surface. (see Fig. 4)

DRAPER®

411 S. Pearl St., Spiceland, IN 47385 USA ■ 765-987-7999

www.draperinc.com ■ fax [phone]

Copyright © 2011 Draper Inc. Form UFS-DressKit_Inst11 Printed in U.S.A.

Black and white photo of a projector screen with frayed edges (no text or symbols visible)

Figure 4

Adjustable Skirt Bar for multiple formats

For the ability to change from one viewing format to another (for instance, form NTSC 4:3 to HDTV 16:9), use Draper's Adjustable Skirt Bar

Attach one end of skirt bar to either leg by placing the outer plate on the outside of the leg/frame, and placing the handy crank and washer on the inside. Run the handy crank through the gap between the leg and frame (gap between leg and frame), then attach the other end to the other leg. The skirt then attaches to snaps located along the skirt bar.

Empty whiteboard with black frame and metal stand (no text or symbols)

Close-up of a metallic door with a black handle and mounting holes (no text or symbols visible)

Close-up of a metallic bracket with mounting holes and a central switch (no text or symbols visible)

If adjustable skirt bar is provided with a Middle Support, place in center of bottom frame and use adjustment knob to set to the proper height (see pictures below).

Please Note: Middle Support height should be set so the bottom of the screen frame is supported, but is not pushed upward so that it bows up in the center.

Person using a screwdriver to install a metal bracket (no text or symbols visible)

Close-up of a metallic vertical metal frame with a small circular base, against a plain background (no text or symbols visible)

If you encounter any difficulty installing or servicing your Ultimate Folding Screen Dress Kit by Draper, call your dealer or Draper, Inc., Spiceland, Indiana, [phone] or fax [phone].
