CRB-818 - Radio DENVER - Kostenlose Bedienungsanleitung

Produkttyp	Bluetooth-Weckerradio
Marke	Denver
Modell	CRB-818
Stromversorgung	DC 5 V, 2 A über externes Netzteil (110–240 V ~ 50/60 Hz)
Lautsprecher	2 × 2 Zoll (ca. 5 cm)
Frequenzbereich FM	87,5 – 108 MHz
Bluetooth-Reichweite	ca. 10 m (30 Fuß)
Bluetooth-Version	Nicht angegeben (typisch 4.2/5.0)
Anzeige	Digitales LED-Display mit Helligkeitseinstellung (hoch/niedrig/aus)
Weckerfunktionen	2 Weckmodi (Summer/Radio), Schlummerfunktion (9 Minuten), Sleep-Timer (10–90 Minuten)
Radio-Speicherplätze	20 Festsender (FM)
Antenne	FM-Drahtantenne (abnehmbar/ausziehbar)
Anschlüsse	AUX-Eingang (3,5 mm), Kopfhöreranschluss (3,5 mm), USB-Ladeausgang (5 V)
USB-Ladefunktion	Ja, nur bei Netzbetrieb (Gerät eingesteckt)
Fernbedienung	Keine (Bedienung am Gerät)
Gehäusefarbe	Schwarz (typisch)
Abmessungen (ca.)	200 × 120 × 100 mm (B×H×T, geschätzt)
Gewicht (ca.)	400 g (geschätzt)
Lieferumfang	Netzteil, Bedienungsanleitung
Sicherheitshinweise	Nicht Flüssigkeiten aussetzen, nur mitgeliefertes Netzteil verwenden, keine eigenmächtigen Reparaturen
Reparatur und Ersatzteile	Keine vom Benutzer austauschbaren Teile; bei Defekt Fachpersonal kontaktieren

Häufig gestellte Fragen - CRB-818 DENVER

Wie stelle ich die Uhrzeit ein?

Schalten Sie das Gerät in den Standby-Modus. Halten Sie die CLK Set-Taste für 3 Sekunden gedrückt. Wählen Sie mit Back und Next die 12- oder 24-Stunden-Anzeige und bestätigen Sie mit CLK Set. Stellen Sie dann die Stunden und Minuten ein und bestätigen Sie jeweils mit CLK Set.

Wie stelle ich den Wecker ein?

Drücken Sie ON/OFF um in den Standby-Modus zu gehen. Halten Sie AL. Mode gedrückt. Wählen Sie mit Back/Next die gewünschte Weckzeit (Stunden, dann Minuten) und bestätigen Sie mit AL. Mode. Drücken Sie dann kurz AL. Mode mehrmals, um den Weckmodus (Summer bb oder Radio FM) auszuwählen. Das Symbol AL zeigt an, dass der Wecker aktiv ist.

Wie verbinde ich mein Smartphone über Bluetooth?

Schalten Sie das Gerät mit ON/OFF ein. Drücken Sie FUNC. bis BT im Display erscheint. Die LED blinkt. Aktivieren Sie Bluetooth auf Ihrem Smartphone und suchen Sie nach Geräten. Wählen Sie DENVER CRB-818. Bei Passwortabfrage geben Sie 0000 ein. Nach erfolgreicher Kopplung leuchtet die LED dauerhaft.

Wie schalte ich das Radio ein und suche Sender?

Drücken Sie ON/OFF und dann mehrmals FUNC. bis FM angezeigt wird. Ziehen Sie die FM-Antenne aus. Für manuelle Sendersuche drücken Sie kurz Back oder Next; für automatische Suche halten Sie die Taste 2 Sekunden gedrückt. Die Frequenz wird im Display angezeigt.

Wie speichere ich Radiosender?

Stellen Sie den gewünschten Sender ein. Drücken Sie Memory bis P01 blinkt. Wählen Sie mit Back/Next einen Speicherplatz (P01-P20). Drücken Sie Memory erneut, um den Sender zu speichern. Zum Abrufen drücken Sie Memory und wählen mit Back/Next den gewünschten Speicherplatz.

Wie funktioniert die Schlummerfunktion?

Wenn der Wecker ertönt, drücken Sie einmal die Snooze/Dimmer-Taste. Der Wecker wird für 9 Minuten ausgesetzt und ertönt dann erneut. Dieser Vorgang kann bis zu 90 Minuten nach der ursprünglichen Weckzeit wiederholt werden.

Wie stelle ich die Helligkeit des Displays ein?

Drücken Sie im Standby- oder eingeschalteten Zustand wiederholt die Snooze/Dimmer-Taste. Sie können zwischen hoher Helligkeit, niedriger Helligkeit und Aus wählen. Nach einem Reset wird standardmäßig die hohe Helligkeit eingestellt.

Kann ich mein Gerät über USB aufladen?

Ja, das Gerät verfügt auf der Rückseite über einen USB-Ladeausgang (5 V). Schließen Sie Ihr Smartphone oder Tablet mit einem USB-Kabel an. Die Ladefunktion ist nur aktiv, wenn das Gerät über das Netzteil mit Strom versorgt wird, auch während der Wiedergabe.

Wie schalte ich das Gerät aus?

Drücken Sie die ON/OFF-Taste. Das Gerät wechselt in den Standby-Modus, das Display zeigt die Uhrzeit an. Um das Gerät vollständig vom Netz zu trennen, ziehen Sie das Netzteil aus der Steckdose.

Was ist der Sleep-Timer und wie stelle ich ihn ein?

Der Sleep-Timer schaltet das Gerät nach einer gewählten Zeit automatisch aus. Halten Sie im eingeschalteten Zustand die Snooze/Dimmer-Taste gedrückt, bis SL blinkt. Drücken Sie dann wiederholt die Taste, um die gewünschte Ausschaltzeit (90, 80, ..., 10 Minuten oder OFF) zu wählen. Das Gerät schaltet sich nach der eingestellten Zeit aus.

BEDIENUNGSANLEITUNG CRB-818 DENVER

OPERATING INSTRUCTIONS

Line drawing of a simple container with a handle and side compartments (no text or symbols)

Bluetooth Clock Radio

MODEL : DENVER CRB-818

	The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage" inside the product.
	WARNING:To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.
	CAUTION:The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product.
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING LIQUIDS.
THE AC/DC ADAPTOR IS USED AS THE DISCONNECT DEVICE AND IT SHALL REMAIN READILY OPERABLE. TO COMPLETELY DISCONNECT THE POWER INPUT, THE AC/DC ADAPTOR OF THE APPARATUS MUST BE DISCONNECTED FROM THE MAINS COMPLETELY. THE AC/DC ADAPTOR SHOULD NOT BE OBSTRUCTED OR SHOULD BE EASILY ACCESSED DURING INTENDED USE.
PLEASE NOTE: YOU WILL FIND THE RATING LABEL FOR THIS PRODUCT LOCATED ON THE REAR OF THE UNIT.		CAUTION DO NOT EXPOSE TO DRIPPING OR SPLASHING LIQUIDS!
CAUTION: GROUNDING OR POLARIZATION. THE PRECAUTIONS SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET".
NOTE: CAUTION SYMBOLS ARE PRINTED ON BOTTOM OF UNIT. PLEASE REFER TO INSTRUCTION MANUAL.

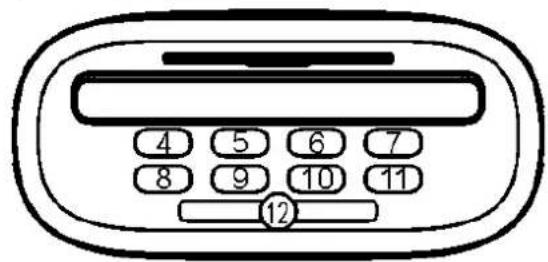

TOP VIEW:

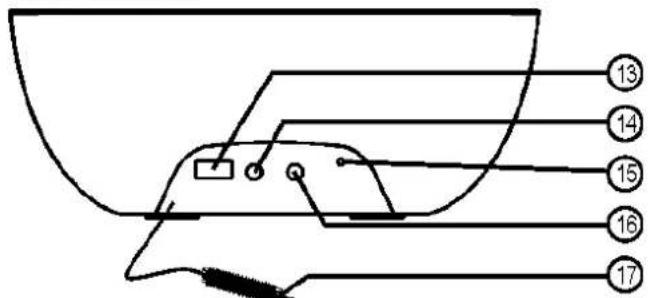

BACK VIEW:

LOCATION OF CONTROLS

1. Device rear support stand
2. Slot for placing your Device (Smartphone/ Tablet)
3. LED Display
4. Back key
5. Next key
6. Memory key
7. On/ Off key
8. Vol - / AL. Mode key
9. Vol+ / CLK Set key
10. Function key
11. Play/ Pair key
12. Snooze/ Dimmer key
13. USB output charger port
14. Aux-Input socket
15. DC Input socket (DC 5V)
16. Headphones socket
17. FM antenna wire

POWER SUPPLY

AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)

• THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING AC-ADAPTORS WITH A RATING OF DC = 5V, 2A, AND WITH A PLUG WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE)
• PLEASE USE ONLY THE SUPPLIED AC-ADAPTOR TO OPERATE THE UNIT. USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.
• PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET) ON THE REAR OF THE UNIT.
• INSERT THE PLUG OF THE AC-ADAPTOR INTO A WALL OUTLET WITH AC-POWER.
• PRESS THE "ON/OFF" KEY TO SWITCH ON THE UNIT.
• THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED "OFF".

IT WILL EITHER BE "ON" OR IN "STANDBY MODE".

• IN STANDBY MODE, THE BACK-LIGHT OF THE DIGITAL DISPLAY WILL BE DIMMED BUT THE DISPLAY WILL SHOW THE CURRENT TIME (CLOCK FUNCTION).
• ANYTIME DURING STANDBY MODE, YOU CAN SWITCH "ON" THE UNIT BY PRESSING THE "ON/ OFF" KEY.
• SAVE ENERGY BY SWITCHING THE SYSTEM TO "STANDBY" MODE WHEN NOT IN USE.

DIMMER FUNCTION

THIS SET HAS A DIMMER FUNCTION TO ADJUST THE BRIGHTNESS LEVEL OF THE DISPLAY BACKLIGHT. SIMPLY ADJUST IT AS DESIRED BY PRESSING THE SNOOZE/ DIMMER KEY REPEATEDLY (HI-BRIGHTNESS / LOW-BRIGHTNESS / OFF) THE DISPLAY BACKLIGHT WILL ALWAYS RETURN TO HI-BRIGHTNESS AS THE DEFAULT, AFTER THE UNIT BEEN RESET.

DIGITAL CLOCK FUNCTION

- THE SET HAS A BUILT-IN DIGITAL CLOCK.

(THE DISPLAY WILL CONTINUOUSLY SHOW THE CURRENT TIME).

HOW TO SET CORRECT TIME:

1. SWITCH UNIT TO "STAND-BY" MODE
2.	PRESS & HOLD CLK SET KEY FOR 3 SECONDS DISPLAY SHOWSHOUR OR HOUR (FLASHING)
3.	PRESS BACK AND NEXT KEY TO SELECT 12-HOUR OR24-HOUR CLOCK DISPLAY SYSTEM & PRESS CLK SET KEY TO CONFIRM YOUR SELECTION.
4.	PRESS BACK AND NEXT KEY TO SETTHE CORRECT HOUR IN THE DISPLAY & PRESS CLK SET KEY TO CONFIRM.
5.	PRESS BACK AND NEXT KEY TO SETTHE CORRECT MINUTE IN THE DISPLAY & PRESS CLK SET KEY TO CONFIRM.
6.	CORRECT TIME IS NOW SET & WILL BE SHOWN IN THE DISPLAY.

ALARM FUNCTION

- THIS SET IS EQUIPPED WITH 2 ALARM MODES: BUZZER AND RADIO. BEFORE SETTING THE ALARM, MAKE SURE TO SET THE CLOCK (SEE "DIGITAL CLOCK FUNCTION" IN THE PREVIOUS SECTION).

PREPARE FOR THE ALARM SETTINGS

A. "ALARM" TIME SETTING

1. PRESS THE ON/OFF KEY TO PUT THE SET INTO "STANDBY" MODE
2. PRESS AND HOLD AL. MODE KEY UNTIL THE DISPLAY WILL NOW SHOW:

1. PRESS BACK AND NEXT KEY TO REACH THE HOUR OF THE DESIRED WAKE UP TIME THEN PRESS AL. MODE KEY TO CONFIRM. THE DISPLAY WILL NOW SHOW:

1. PRESS BACK AND NEXT KEY TO REACH THE MINUTES OF THE DESIRED WAKE UP TIME, THEN PRESS THE AL. MODE KEY TO CONFIRM.

B. "ALARM" MODE SETTING

NOW SELECT THE SOURCE THAT YOU WISH THE UNIT TO PLAY AT THE "WAKE UP" TIME AS BELOW:

FOR RADIO :

PRESS THE ON/OFF KEY TO SWITCH ON THE SET (DISPLAY BACKLIGHT WILL BE "ON").

TUNE IN THE DESIRED STATION.

ADJUST THE VOLUME LEVEL AS DESIRED BY PRESSING VOL. UP + OR VOL. DN - KEY.

ONCE THE DESIRED SOURCE IS READY, PRESS THE ON/OFF KEY TO PUT THE SET INTO STANDBY MODE AND THEN SHORT PRESS THE AL. MODE KEY REPEATEDLY TO SELECT THE SOURCE AS DESIRED.

*REMARK: bb= BUZZER ALARM / FM = RADIO

1. THE ALARM TIME IS NOW FULLY PROGRAMMED AND THE ALARM SYMBOL WILL APPEAR TO INDICATE THAT THE ALARM FUNCTION IS "ACTIVE". (DISPLAY SHOWS AS FOLLOWS)

1. THE SET WILL NOW AUTOMATICALLY SWITCH "ON" AT THE WAKE-UP TIME AS YOU HAVE CHOSEN, AS LONG AS THE ALARM FUNCTION IS "ACTIVE".
2. TO TURN OFF THE UNIT AFTER IT HAS AUTOMATICALLY SWITCHED ON, SIMPLY PRESS THE ON/OFF KEY ONCE. THIS WILL SWITCH OFF THE SET BUT WILL NOT CLEAR THE ALARM SETTINGS, AND THE SET WILL SWITCH ON AGAIN AUTOMATICALLY ON THE NEXT DAY AT EXACTLY THE SAME PRESET TIME.
3. TO DEACTIVATE THE ALARM, PRESS & RELEASE THE AL. MODE KEY. THE ALARM SYMBOL "AL" DISAPPEARS FROM THE DISPLAY.
4. TO ACTIVATE THE ALARM AGAIN, REPEAT THE PROCEDURE OF "ALARM TIME SETTING" AS DESCRIBED.

SNOOZE FUNCTION

• WHENEVER THE ALARM COMES ON, IT CAN BE TEMPORARILY SUSPENDED FOR A SHORT PERIOD OF 9 MINUTES, BY PRESSING THE "SNOOZE/ DIMMER" KEY ONCE.
• THE ALARM WILL THEN AUTOMATICALLY COME ON AGAIN AFTER THE 9 MINUTES "SNOOZE" PERIOD HAS ENDED.
• THE PROCEDURE CAN BE REPEATED FOR APPROXIMATELY 90 MINUTES FROM ORIGINAL ALARM WAKE-UP TIME.

AUTOMATIC POWER OFF SLEEP FUNCTION

• THIS SET HAS A SPECIAL SLEEP TIMER FUNCTION WHICH CAN AUTOMATICALLY SWITCH OFF THE UNIT. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGHT.
• AT ANY TIME WHILE THE UNIT IS OPERATING, PRESS & HOLD THE SNOOZE/

DIMMER KEY

UNTIL THE "SL" SYMBOL FLASHES, THEN PRESS THE SNOOZE/ DIMMER KEY REPEATEDLY

TO CHOOSE THE AUTOMATIC POWER OFF TIME.

(*OFF MEANS SLEEP TIMER IS DEACTIVATED)

BLUETOOTH® WIRELESS PLAYBACK

THE UNIT CAN WIRELESSLY STREAM AUDIO FROM ANY BLUETOOTH® DEVICE WITHIN 30 FEET. SIMPLY PAIR THE DEVICE AND ENJOY WIRELESS PLAYBACK AND CONTROL FROM YOUR BLUETOOTH® DEVICE.

PREPARE THE UNIT:

• PRESS THE ON/STANDBY KEY TO TURN THE UNIT ON.
• PRESS THE FUNC. KEY UNTIL BT SYMBOL APPEASRS.
• THE LED INDICATOR WILL FLASH TO INDICATE THE UNIT IS ON AND WAITING FOR PARING.
• ON YOUR DEVICE, IN THE BLUETOOTH SETTINGS MENU, LOOK FOR THE BLUETOOTH DEVICE CALLED "DENVER CRB-818" AND SELECT IT TO CONNECT TO THE UNIT.
• THE LED INDICATOR WILL KEEP REMAIN LIT WHEN PAIRED.

\*NOTE ONLY ONE DEVICE CAN BE PAIRED AT ANY GIVEN TIME.

PREPARE YOUR PHONE OR OTHER BLUETOOTH® DEVICE:

• TURN ON THE BLUETOOTH® FUNCTION, THIS IS USUALLY FOUND UNDER GENERAL SETTINGS OR OPTIONS.
  *PLEASE REFER TO YOUR DEVICE'S MANUAL FOR FURTHER BLUETOOTH® DETAILS.

MAKE THE CONNECTION:

• GO TO YOUR DEVICE'S BLUETOOTH® SETTINGS
• ADD OR SEARCH FOR DEVICES
• IF ASKED FOR A PASS CODE, ENTER "0000"

*THIS IS A ONE-TIME EVENT PER DEVICE. TO PAIR YOUR UNIT TO ANOTHER

DEVICE, REPEAT THE ABOVE PREPARATION AND CONNECTION STEPS.

DISABLING THE CONNECTION:

TO UNPAIR A BLUETOOTH® DEVICE THAT IS ALREADY PAIRED, PRESS AND HOLD THE PAIR KEY FOR A FEW SECONDS.

VOLUME CONTROL:

INCREASE AND DECREASE VOLUME USING THE VOLUME UP AND VOLUME DOWN KEYS ON THE UNIT OR USING THE VOLUME CONTROLS ON YOUR BLUETOOTH® ENABLED DEVICE.

*NOTE THAT IF THERE IS NO PLAYBACK, ENSURE THAT NEITHER THE UNIT NOR YOUR BLUETOOTH® DEVICE ARE SET TO ZERO VOLUME AND THE CORRECT DEVICE FOR PLAYBACK IS PAIRED.

MUSIC PLAYBACK IN BLUETOOTH® MODE

- PRESS THE PLAY/PAUSE KEY TO START PLAYBACK.

- AT ANYTIME DURING PLAYBACK, PRESS THE PLAY/PAUSE KEY TO PAUSE OPERATION. PRESS AGAIN TO RESUME OPERATION AT THE SAME TRACK & POSITION.

- AT ANYTIME DURING PLAYBACK, "PRESS AND RELEASE" THE NEXT OR BACK KEY: ☐ TO SKIP BACKWARDS OR FORWARDS BY ONE TRACK, AS DESIRED.

USING THE AUDIO LINE IN CONNECTION (AUX-INPUT)

- YOU CAN CONNECT THE AUDIO OUTPUT OF AN EXTERNAL DEVICE SUCH AS A MP3 PLAYER TO THIS UNIT, TO LISTEN TO THE SOUND OF THAT DEVICE THROUGH THE HIGH QUALITY AMPLIFIER OF THIS MUSIC SYSTEM.

- TO CONNECT THE EXTERNAL DEVICE PLEASE USE A STANDARD STEREO HEADPHONE (3.5MM TO 3.5MM PLUGS) CABLE TO CONNECT THE "HEADPHONE-OUT OR AUDIO LINE-OUT" OF THE DEVICE TO THE AUX-INPUT SOCKET OF THIS UNIT.

- SELECT THE FUNCTION TO "AUX IN" BY PRESSING THE FUNCTION KEY ONCE.

- SWITCH ON THE EXTERNAL DEVICE (EG. MP3-PLAYER).

- START PLAYBACK OF THE EXTERNAL DEVICE AND ADJUST THE VOLUME CONTROL OF THE UNIT TO THE DESIRED LEVEL.

- REMEMBER TO SWITCH OFF THE UNIT AND THE EXTERNAL DEVICE WHEN YOU ARE FINISHED USING THE EXTERNAL DEVICE.

- SWITCH BACK TO BLUETOOTH® MODE ANYTIME BY PRESSING THE FUNCTION KEY AGAIN.

ELECTRONIC VOLUME CONTROL

- THIS UNIT USES AN ELECTRONIC VOLUME CONTROL (PUSH BUTTON TYPE) .

- TO INCREASE OR DECREASE THE LOUDNESS OF UNIT, PRESS THE VOLUME UP (VOL +) OR VOLUME DOWN (VOL -) KEYS RESPECTIVELY.

- RELEASE THE KEY WHEN VOLUME LEVEL IS AT THE DESIRED LOUDNESS.

- SOMETIMES, ESPECIALLY DURING LISTENING TO THE RADIO, YOU MAY NOTICE A "CLICK-CLICK-CLICK" (REPEATING) SOUND WHEN YOU ARE INCREASING OR DECREASING THE VOLUME. THIS IS A NORMAL CONDITION & THE SOUND WILL DISAPPEAR WHEN YOU RELEASE THE VOLUME KEY (WHEN YOU REACH THE DESIRED VOLUME LEVEL).

OPERATION OF RADIO

- PRESS THE "ON/OFF" KEY ONCE TO SWITCH ON THE UNIT.

- PRESS THE FUNCTION KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "FM".

- EXTEND AND ADJUST THE FM-WIRE ANTENNA TO OBTAIN THE BEST RECEPTION.

- USE THE PLAY/PAIR KEY TO SELECT THE DESIRED MODE (STEREO/ MONO). IN SOME CASES, WHERE RECEPTION IS POOR, IT MAY BE ADVISABLE TO SELECT "MONO" MODE, TO IMPROVE CLARITY OF THE RADIO SIGNAL.

MANUAL FREQUENCY ADJUSTMENT (SCAN MODE)

- PRESS (AND IMMEDIATELY RELEASE) THE BACK AND

NEXT ▶ KEYS TO "SCAN" (MANUALLY ADJUST) THE RADIO FREQUENCY "UP" OR "DOWN" BY 1-STEP AT A TIME.

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY AT EACH STEP'S POSITION.

- WHEN A DESIRED FREQUENCY OR STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE "MEMORY" POSITIONS. (SEE "RADIO MEMORY" SECTION).

AUTOMATIC FREQUENCY ADJUSTMENT (SEEK MODE)

- PRESS AND HOLD (FOR 2 SECONDS) THE BACK AND

NEXT ▶KEYS TO "SEEK" (AUTOMATICALLY ADJUST) THE RADIO FREQUENCY "UP" OR "DOWN" TO THE NEXT AVAILABLE RADIO STATION.

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY OF THE NEXT STATION THAT IS FOUND.

- WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE "MEMORY" POSITIONS. (SEE "RADIO MEMORY" SECTION).

RADIO MEMORY (STATION PRESET MEMORY STORAGE)

- AT ANY TIME, THE CURRENTLY DISPLAYED STATION OR FREQUENCY CAN BE STORED INTO ONE OF THE MEMORY POSITIONS.

- PRESS MEMORY KEY UNTIL "P01" FLASHES IN THE DISPLAY.

- PRESS BACK AND NEXT KEYS TO SELECT DESIRED MEMORY POSITION. (THERE ARE TOTAL 20 MEMORY POSITIONS).

- PRESS MEMORY KEY ONCE TO SAVE THE SELECTED STATION INTO THE SELECTED MEMORY POSITION.

- TO RECALL ANY SAVED MEMORY, SIMPLY PRESS MEMORY KEY ONCE THEN SELECT THE MEMORY POSITIONS BY BACK AND NEXT KEYS THE SAVED RADIO-BAND WILL BE RECALLED.

- TO CLEAR THE MEMORY OF ANY POSITION, SIMPLY SAVE A NEW STATION TO THE SAME MEMORY POSITION.

USB CHARGING FUNCTION

THIS UNIT IS EQUIPPED WITH A DC 5V USB CHARGING PORT ON THE BACK PANEL. TO UTILIZE THIS FEATURE, SIMPLY CONNECT THE DEVICE YOU WOULD LIKE TO CHARGE (EG. SMARTPHONE OR TABLET) TO A SUITABLE USB CABLE AND PLUG IT INTO THE USB CHARGING PORT. (THIS FUNCTION IS ONLY ACTIVE WHEN THE UNIT IS PLUGGED INTO AN AC ADAPTOR). THE EXTERNAL DEVICE WILL BE CHARGED AUTOMATICALLY WHEN IT IS SUCCESSFULLY CONNECTED, EVEN DURING PLAYBACK.

SPECIFICATIONS

POWER SUPPLY : ...... DC 5V, 2A THOUGH BUILT-IN DC JACK

EXTERNAL AC-DC POWER ADAPTOR 110V-240V \~ 50/60Hz

SPEAKER : ...... SPEAKER 2" X 2

FREQUENCY : FM 87.5 - 108 MHz
