BEDIENUNGSANLEITUNG MPLT62-G APART
MPLT32 / MPLT62
The MPLT is a 2 way music projector with long throw output performance in order to bring you quality sound over long distances and in wide areas. Thanks to the well-considered coverage range, high sensitivity, high output, low distortion and extended frequency response, this horn loaded 2 way speaker is the ideal loudspeaker for outdoor applications such as recreational facilities, schools, parking facilities, as well as large indoor applications such as sports centers, airports, exhibition halls ...
Compared to normal horns and sound projectors, our proprietary designed APart MPLT32 and MPLT62 have a very clear and high quality sound to make it useful for quality music reproduction, paging or voice alarm with perfect intelligibility, or even alarm tones.
The MPLT's cabinet is made of high impact ABS, supplied with a strong aluminium bracket
to avoid corrosion, making it fully weatherproof, according to IEC IP-66 Standards. The loudspeaker is equipped with a high quality 100 volt transformer with several power taps. The standard colour is light grey. From 12 pieces upward, the speaker can be supplied optionally in any RAL colour (Ref: PAINTMPLT).
An aluminium mounting bracket for mounting is included in the packing. The bracket allows you to rotate the speaker over a range of more than 180 degrees. Securely mount the bracket to a wall or other solid surface.
Connect the 100V speaker line to the connector accessible behind the weatherproof cover at the back and make sure to securely tighten the cable strain relief. Technical Specifications
Power Tappings
| COLOURMPLT32MPLT32MPLT62MPLT62 | ||||
| WHITE 4 | WATTS 2K5 | Ω 8 WATTS | 1K3 Ω | |
| GREEN 8 | WATTS 1K2 | Ω 16 WATTS | 625 Ω | |
| YELLOW 16 | WATTS 625 | Ω 32 WATTS | 312 Ω | |
| RED 32 | WATTS 312 | Ω 62 WATTS | 161 Ω | |
| BLACK COMMON COMMON | ||||
100 Volt Technology
Technical Specifications
- Type : 2 way exponential horn, long throw
- Woofer : 6.5 inch cone type
- Tweeter : 1 inch horn driver
• Standard colour : light gray - Rated power handling RMS : 32 W @ 100 volt (model32)
- Rated power handling RMS : 62 W @ 100 volt (model62)
- Transformer power taps : 32-16-8-4 W @ 100V (model32)
• Transformer power taps : 62-32-16-8 W @ 100V(model62) - SPL 1W/1m: 106 dB
- SPL max 120dB (model32)
- SPL max 123dB (model62)
• Frequency range: 75Hz - 18 kHz
• Dispersion (H x V): 110° x 80°
• IP Rating: 66 - Dim. without bracket (mm) HxWxL: 250 x 360 x 290
- Bracket W x D (mm): 285 x 210
• Weight including bracket : 4.90 Kg (model32)
• Weight including bracket : 5.00 Kg (model62) - Mounting holes: 3 × 10 ~mm , 60 ~mm spacing

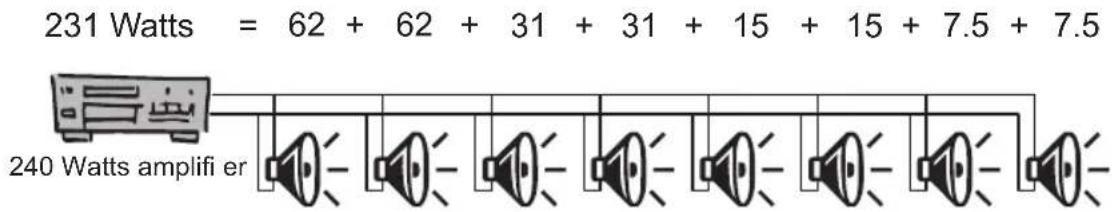

Amplifier power must be higher than total power of all speakers. Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers. La puissance de l'amplifi cateur doit être plus élevée que la puissance totale des haut parleurs.
