BRUGSANVISNING 24-414 Biltema

BILTEMA

  1. Ram
  2. Huvudenhet
  3. Skruv A
  4. Metallklämma
  5. Lock
  6. Skruv B

Biltema 24-414 - BILTEMA - 1

text_image Exploded view diagram of a mechanical assembly with numbered components

PREPARERA KOAXIALKABEL
Skala koaxialkabeln som bilden visar. Du kan använda koaxialkablar RG59 eller RG6 75 Ohm.

Biltema 24-414 - BILTEMA - 2

natural_image Close-up of a hand holding a pen with a lit candle, next to a small electronic device (no visible text or symbols)

PREPARERA RAMEN
Knipsa bort en bit av ramen.

Biltema 24-414 - BILTEMA - 3

natural_image Close-up of hands using a power tool to cut a piece of paper, with a magnified inset showing internal components (no visible text or symbols)

© 2008 Biltema Nordic Services AB

Art. 24-415

DRA KABELN GENOM RAMEN
Biltema 24-414 - Art. 24-415 - 1

natural_image Close-up of a hand holding a small white object with a pen, possibly part of a device or tool (no visible text or symbols)

FÄST KABELN I HUVUDENHETEN
Steg 1: För in kabeln

Biltema 24-414 - Art. 24-415 - 2

natural_image Close-up of a mechanical component with multiple circular features and metallic surfaces (no visible text or symbols)

Steg 2: Var säker på att kabeln är helt införd

Biltema 24-414 - Art. 24-415 - 3

natural_image Close-up of a mechanical component with bolts and a handle, no visible text or symbols

Steg 3: Skruva åt skruven på huvudenheten för att fästa kabeln.

Biltema 24-414 - Art. 24-415 - 4

natural_image Close-up of mechanical components with no visible text or symbols

Steg 4: Fäst metallklämman med skruv A.

Biltema 24-414 - Art. 24-415 - 5

natural_image Close-up of a mechanical assembly with metallic components and a tool (no visible text or symbols)

FÄST HUVUDENHETEN PÅ RAMEN
Steg 1: Placera huvudenheten I ramen som bilden visar.

Biltema 24-414 - Art. 24-415 - 6

natural_image Two views of an electrical socket with exposed wiring and a central connector (no text or symbols visible)

Steg 2: Skruva åt de två skruvarna som sitter diagonalt mot varandra på huvudenheten för att fästa huvudenheten på ramen.

Biltema 24-414 - Art. 24-415 - 7

natural_image Close-up of hands using a screwdriver to adjust or install electronic components (no visible text or symbols)

Biltema 24-414 - Art. 24-415 - 8
FÄST HELA ENHETEN PÅ VÄGGEN
Steg 1. Fäst hela enheten på väggen med två skruvar, se bild.

Biltema 24-414 - Art. 24-415 - 9

natural_image Close-up of a small electronic component with metallic and black wiring (no visible text or symbols)

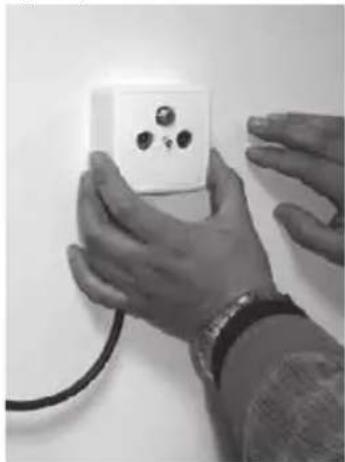

Steg 2: Sätt på locket med skruv B.

Biltema 24-414 - Art. 24-415 - 10

natural_image Close-up of hands installing or adjusting a white electrical socket on a wall (no text or symbols visible)

BILTEMA

  1. Ramme
  2. Hovedenhet
  3. Skrue A
  4. Metallklemme
  5. Lokk
  6. Skrue B

Biltema 24-414 - BILTEMA - 1

text_image Exploded view diagram of a mechanical assembly with numbered components

KLARGJ∅RE KOAKSIALKABEL
Avisoler koaksialkabelen som vist på bildet. Du kan bruke koaksialkabel RG59 eller RG6 75 ohm.

Biltema 24-414 - BILTEMA - 2

natural_image Close-up of a hand holding a lit candle with a spout, against a plain wall background (no visible text or symbols)

KLARGJ∅RE RAMMEN
Knips bort en bit av rammen.

Biltema 24-414 - BILTEMA - 3

natural_image Two-panel photo showing hands holding scissors and a small object inside a container (no visible text or symbols)

© 2008 Biltema Nordic Services AB

Art. 24-415

DRA KABELEN GJENNOM RAMMEN
Biltema 24-414 - Art. 24-415 - 1

natural_image Close-up of a hand holding a small white object with a pen, possibly part of a device or tool (no visible text or symbols)

FEST KABELEN I HOVEDENHETEN
Trinn 1: Før inn kabelen.

Biltema 24-414 - Art. 24-415 - 2

natural_image Close-up of a mechanical component with multiple circular features and mounting holes (no visible text or symbols)

Trinn 2: Forsikre deg om at kabelen er ført helt inn.

Biltema 24-414 - Art. 24-415 - 3

natural_image Close-up of a mechanical component with bolts and a central hub (no visible text or symbols)

Trinn 3: Skru til skruen på hovedenheten for å feste kabelen.

Biltema 24-414 - Art. 24-415 - 4

natural_image Close-up of mechanical components with no visible text or symbols

Trinn 4: Fest metallklemmen med skrue A.

Biltema 24-414 - Art. 24-415 - 5

natural_image Close-up of mechanical components with a tool interacting with them (no visible text or symbols)

FEST HOVEDENHETEN PÅ RAMMEN
Trinn 1: Plasser hovedenheten i rammen som vlist på bildet.

Biltema 24-414 - Art. 24-415 - 6

natural_image Two views of an electrical socket with exposed wires, one showing a plug and the other a socket (no text or symbols visible)

Trinn 2: Skru til de to skruene som sitter diagonalt mot hverandre på hovedenheten for å feste hovedenheten på rammen.

Biltema 24-414 - Art. 24-415 - 7

natural_image Close-up of hands using a screwdriver to adjust or install electronic components (no visible text or symbols)

FEST HELE ENHETEN PÅ VEGGEN
Trinn 1. Fest hele enheten på veggen med to skruer, se bilde.

Biltema 24-414 - Art. 24-415 - 8

natural_image Close-up of a small electronic component with metallic pins and a black cable (no visible text or symbols)

Trinn 2: Sett på lokket med skrue B.

Biltema 24-414 - Art. 24-415 - 9

natural_image Close-up of hands installing or adjusting a white electrical socket with three leads (no text or symbols visible)

Biltema 24-414 - Art. 24-415 - 10

BILTEMA

  1. Runko
  2. Pääyksikkö
  3. Ruuvi A
  4. Metallinen kiinnitin
  5. Kansi
  6. Ruuvi B

Biltema 24-414 - BILTEMA - 1

text_image Exploded view diagram of a mechanical assembly with numbered components

KOAKSIAALIKAAAPELIEN VALMISTELEMINEN

Kuori koaksiaalikaapeli kuvan osoittamalla tavalla. Voit käyttää RG59- tai 75 ohmin RG6 -kaapelia.

Biltema 24-414 - BILTEMA - 2

natural_image Close-up of a hand holding a lit candle with a spout, against a plain wall background (no visible text or symbols)

RUNGON VALMISTELEMINEN

Irrota pieni osa rungosta.

Biltema 24-414 - BILTEMA - 3

natural_image Two-panel photo showing hands holding scissors and a small object inside a container (no visible text or symbols)

© 2008 Biltema Nordic Services AB

Art. 24-415

PUJOTA KAAPELI RUNGON LÄPI
Biltema 24-414 - Art. 24-415 - 1

natural_image Close-up of a hand holding a small white object with a pen, possibly a tool or device (no visible text or symbols)

KIINNITÄ KAAPELI PÄÄYKSIKKÖÖN

Vaihe 1: Vie kaapeli sisään.

Biltema 24-414 - Art. 24-415 - 2

natural_image Close-up of a mechanical component with multiple circular features and mounting holes (no visible text or symbols)

Vaihe 2: Varmista, että kaapeli on kokonaan sisällä.

Biltema 24-414 - Art. 24-415 - 3

natural_image Close-up of a mechanical component with bolts and a central hub (no visible text or symbols)

Vaihe 3: Kiinnitä kaapeli ruuvaamalla ruuvi pääyksikköön.

Biltema 24-414 - Art. 24-415 - 4

natural_image Close-up of mechanical components with no visible text or symbols

Vaihe 4: Kiinnitä ruuvi A metallisella kiinnittimellä.

Biltema 24-414 - Art. 24-415 - 5

natural_image Close-up of mechanical components with a tool interacting with them (no visible text or symbols)

KIINNITÄ PÄÄYKSIKKÖ RUNKOON

Vaihe 1: Aseta pääyksikkö runkoon kuvan osoittamalla tavalla.

Biltema 24-414 - Art. 24-415 - 6

natural_image Two views of an electrical socket with exposed wiring and a central connector (no text or symbols visible)

Vaihe 2: Kiinnitä pääyksikkö runkoon kiristä-mällä kaksi ruuvia, jotka sijaitsevat pääyksikössä vlnosuunnassa toslinsa nähden.

Biltema 24-414 - Art. 24-415 - 7

natural_image Close-up of hands using a screwdriver to adjust or install electronic components (no visible text or symbols)

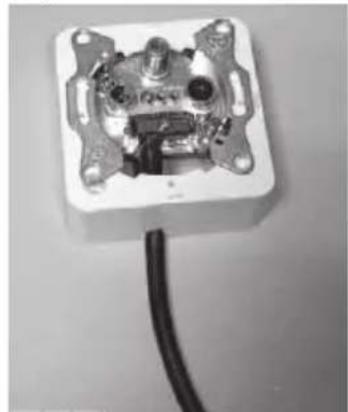

KIINNITÄ KOKO YKSIKKÖ SEINÄÄN

Vaihe 1: Kiinnitä koko yksikkö seinään kahdella ruuvilla kuvassa näkyvällä tavalla.

Biltema 24-414 - Art. 24-415 - 8

natural_image Close-up of a small electronic component with metallic and black wiring (no visible text or symbols)

Valhe 2: Kiinnitä kansi ruuvin B avulla.

Biltema 24-414 - Art. 24-415 - 9

natural_image Close-up of hands installing or adjusting a white electrical socket with three leads (no text or symbols visible)
