SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS		REVISED BULLETIN	DATEOct. 2020
PACKOUTTM Rolling Tool Box Assembly
CATALOG NO. 48-22-8426	SERIALNUMBER	WIRING INSTRUCTION

48-22-8426 Includes:

48-22-8425	PACKOUTTM Large Tool Box Assembly	Page 3
48-22-8424	PACKOUTTM Medium Tool Box Assembly	Page 3
48-22-8430	PACKOUTTM Organizer Assembly	Page 4
48-22-8435	PACKOUTTM Compact Organizer Assembly	Page 4
48-22-8310	PACKOUTTM Small 10" Storage Tote	Page 5
48-22-8315	PACKOUTTM Medium 15" Storage Tote	Page 5
48-22-8320	PACKOUTTM Large 20" Storage Tote	Page 5

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 43-62-8400T Retractable Handle Grip Service Kit (1)
2	----	Screw (2)
3	43-62-8400	Retractable Handle Service Assembly (1)
4	----	Screw (2)
5	43-62-8426	Side Handle Svc. Kit (Contains 2 Side Handles and 4 Pins) (1)
6	----	Pin (4)
7	45-94-8426	Wheel Svc. Kit (Contains 2 Wheels and 2 Locking Hex Nuts) (1)
8	----	Locking Hex Nut (2)
9	44-20-8400	Latch Service Assembly (Set of 2) (1)
10	31-01-8400	Storage Tray (1)
11	43-44-8400	Lid Gasket (Not Shown) (1)
12	42-12-8426	Axle Svc. Kit (Contains 1 Axle and 2 Locking Hex Nuts) (1)

*See page 6 thru 13 for Additional Storage Products:

48-22-8431	PACKOUTTM S-Organizer Assembly	Page 6
48-22-8436	PACKOUTTM S-Organizer Compact Assy.	Page 6
48-22-8450	PACKOUTTM Tool Box Assembly	Page 7
48-22-8321	PACKOUTTM Medium 15" Tool Bag	Page 8
48-22-8322	PACKOUTTM Large 20" Tool Bag	Page 8
48-22-8300	PACKOUTTM Tech Bag	Page 9
48-22-8301	PACKOUTTM Jobsite Backpack	Page 9
48-22-8302	PACKOUTTM Jobsite Cooler	Page 9

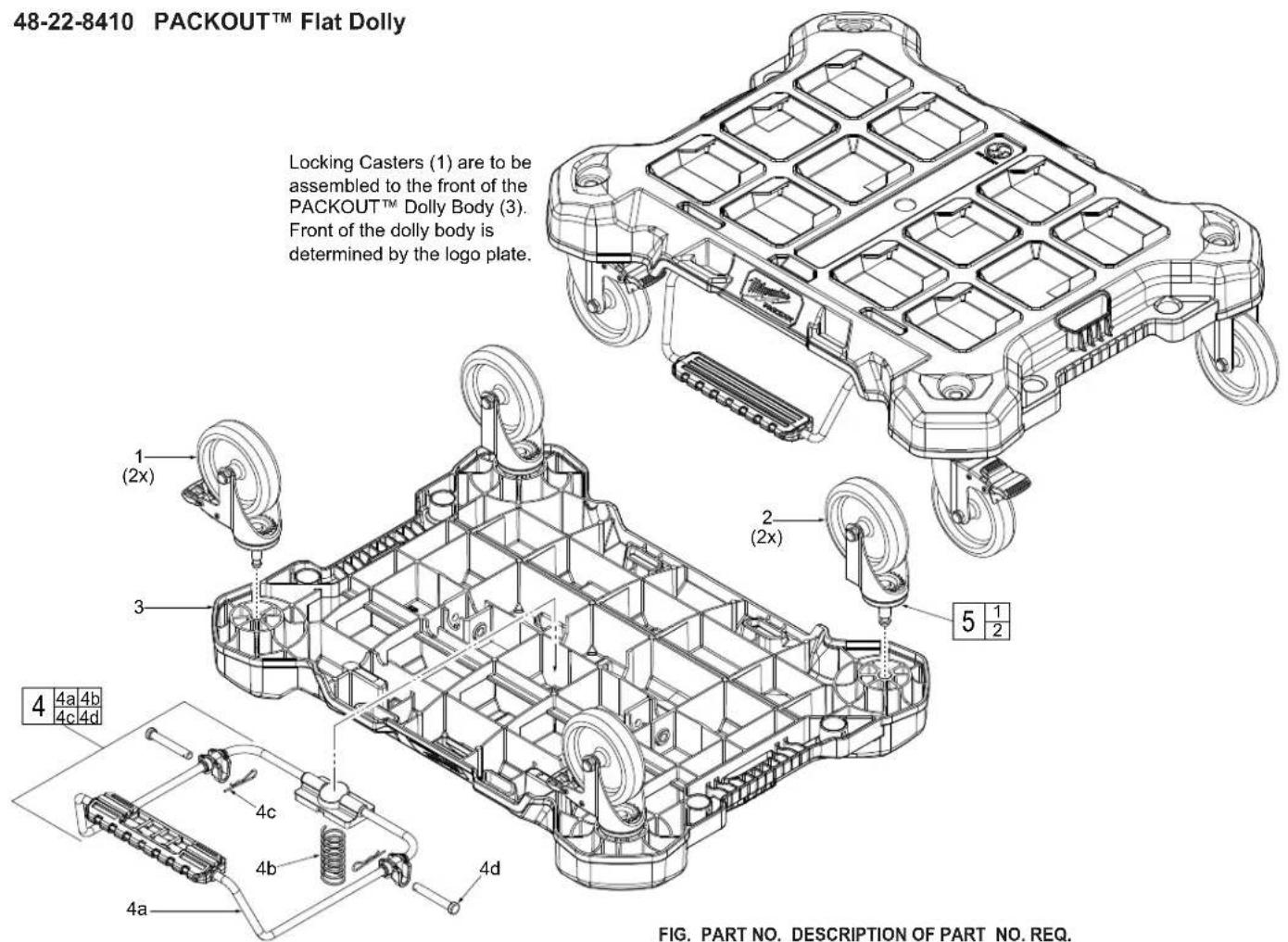

48-22-8410	PACKOUTTM Flat Dolly	Page 10
48-22-8422	PACKOUTTM Compact Toolbox	Page 11
48-22-8460	PACKOUTTM Compact Cooler	Page 11
48-22-8488	PACKOUTTM Customizable Work Surface	Page 12
48-22-8415	PACKOUTTM 2 Wheeled Dolly Page 13

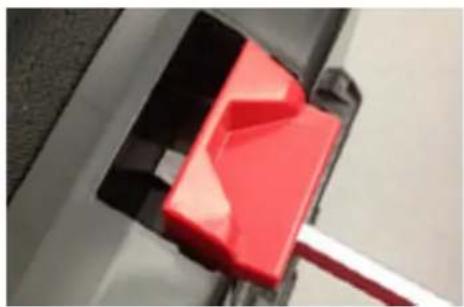

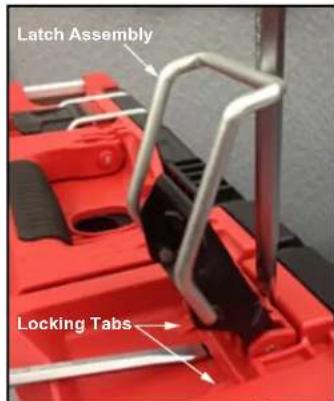

As an aid to removing a damaged Latch Assembly (9), use two large flat blade screwdrivers. Push blades between parts as shown. Twist both screwdrivers at same time to force the blades into opening and work the latch assembly over the two locking tabs.

To install a new latch assembly, position entire latch assembly over locking tabs with the two top lugs partially inserted in 'catch cavity' of main housing. Engage latch bar onto lid and gently press latch lever to slide assembly over two locking tabs and into place.

This removal and installation process will be the same where other service latches are offered in this system.

MILWAUKEE TOOL • www.milwaukeetool.com

13135 W. LISBON RD., BROOKFIELD, WI 53005

Drwg. 7

EXAMPLE:

Component Parts (Small #) Are Included When Ordering The Assembly (Large #).

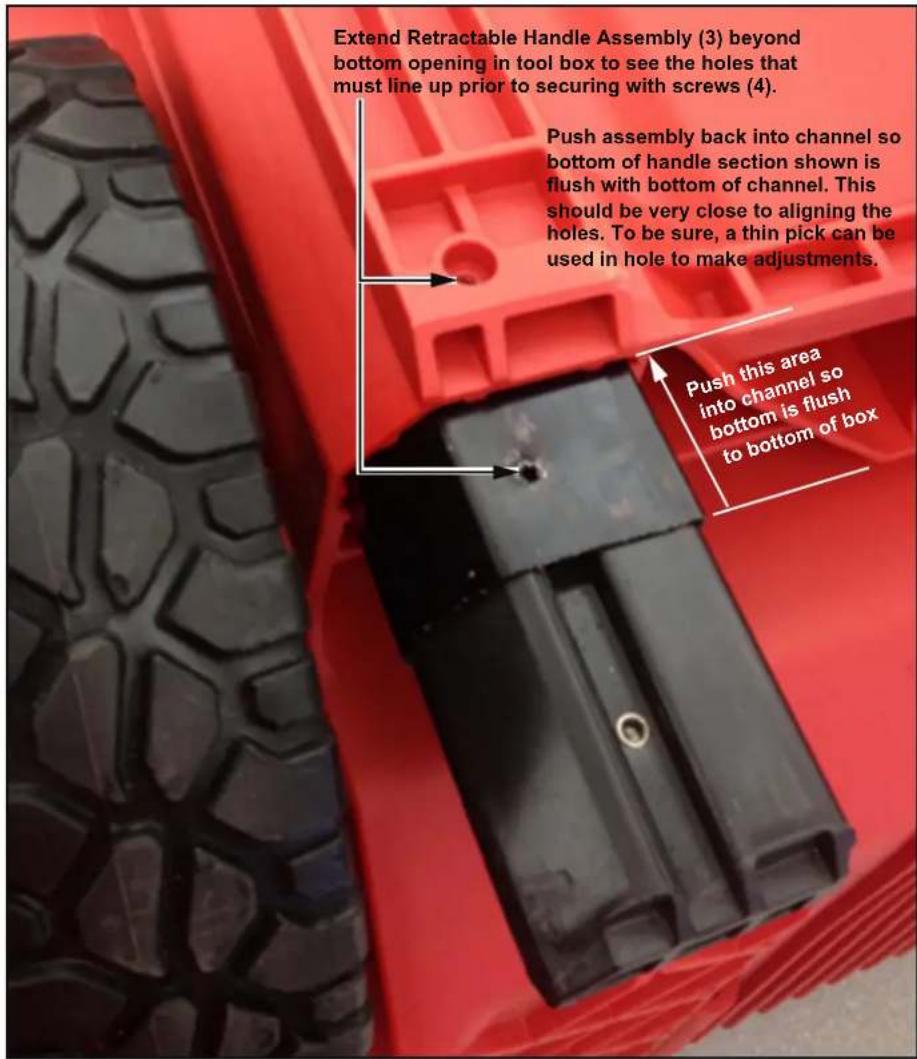

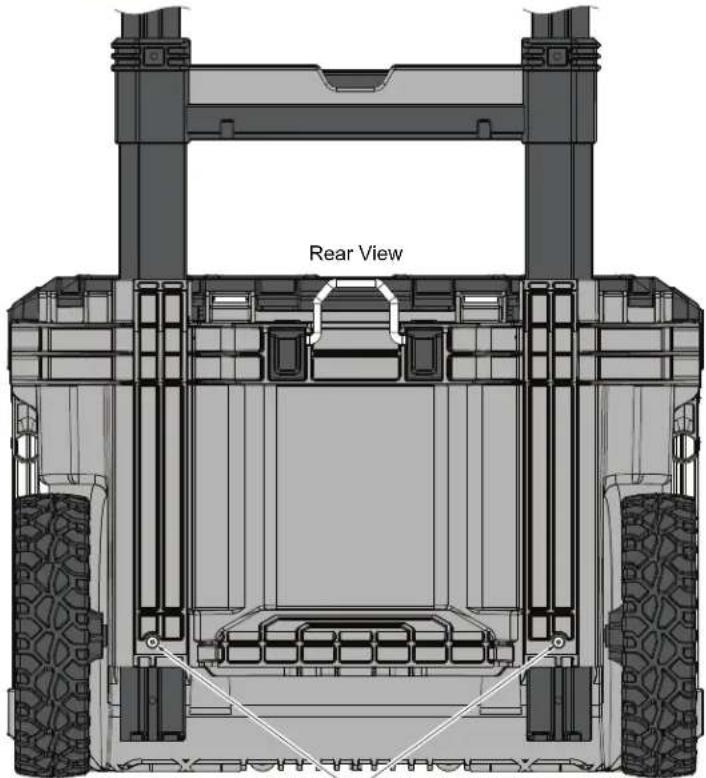

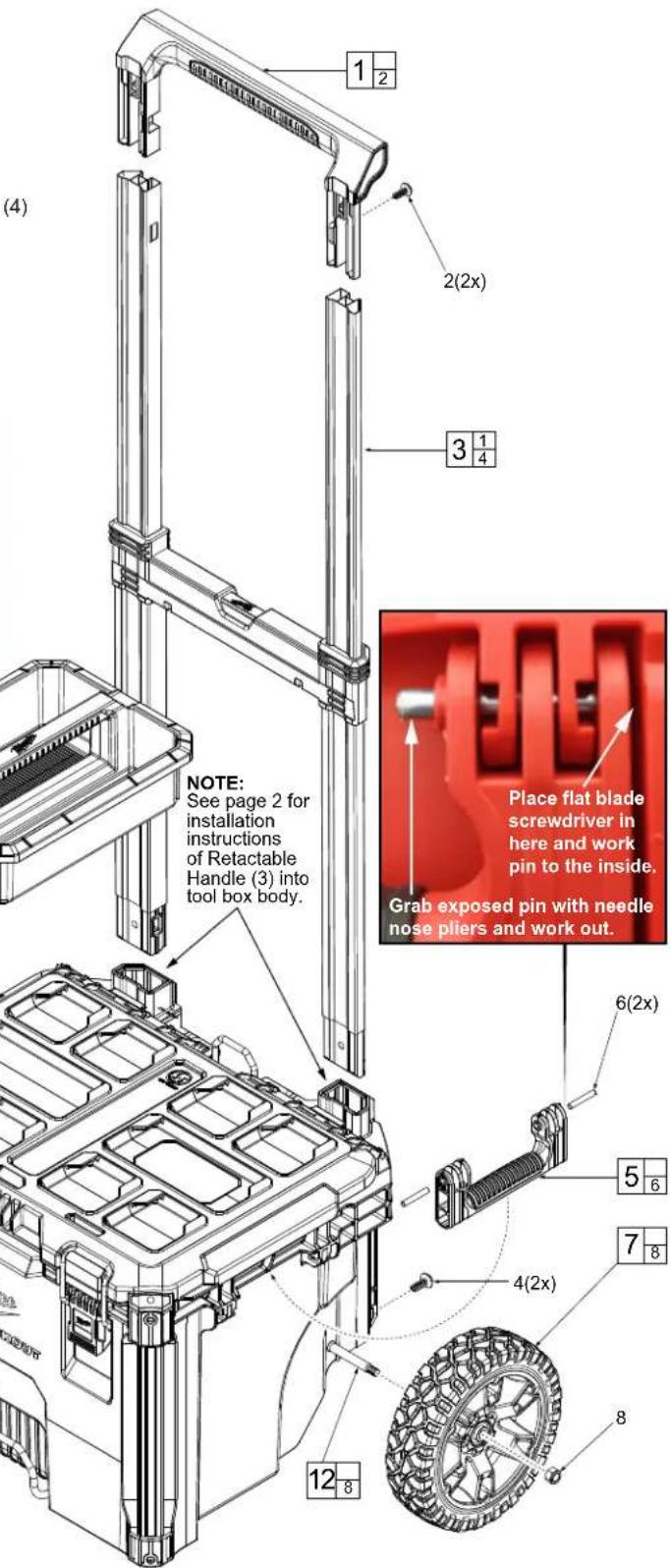

As an aid to installation, collapse the Retractable Handle Assembly (3).

Properly orient the assembly and insert both sides into tool box channels.

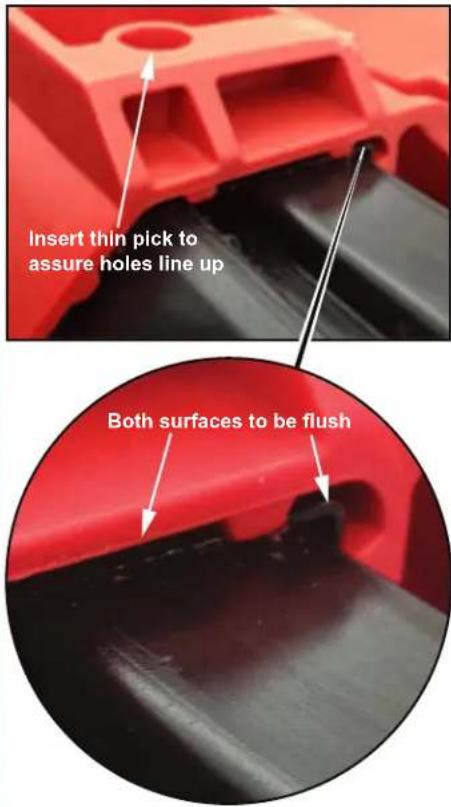

Holes of Retractable Handle Assembly (3) must line up with holes on the back of tool box body prior to securing with screws (4).

Screws (4)

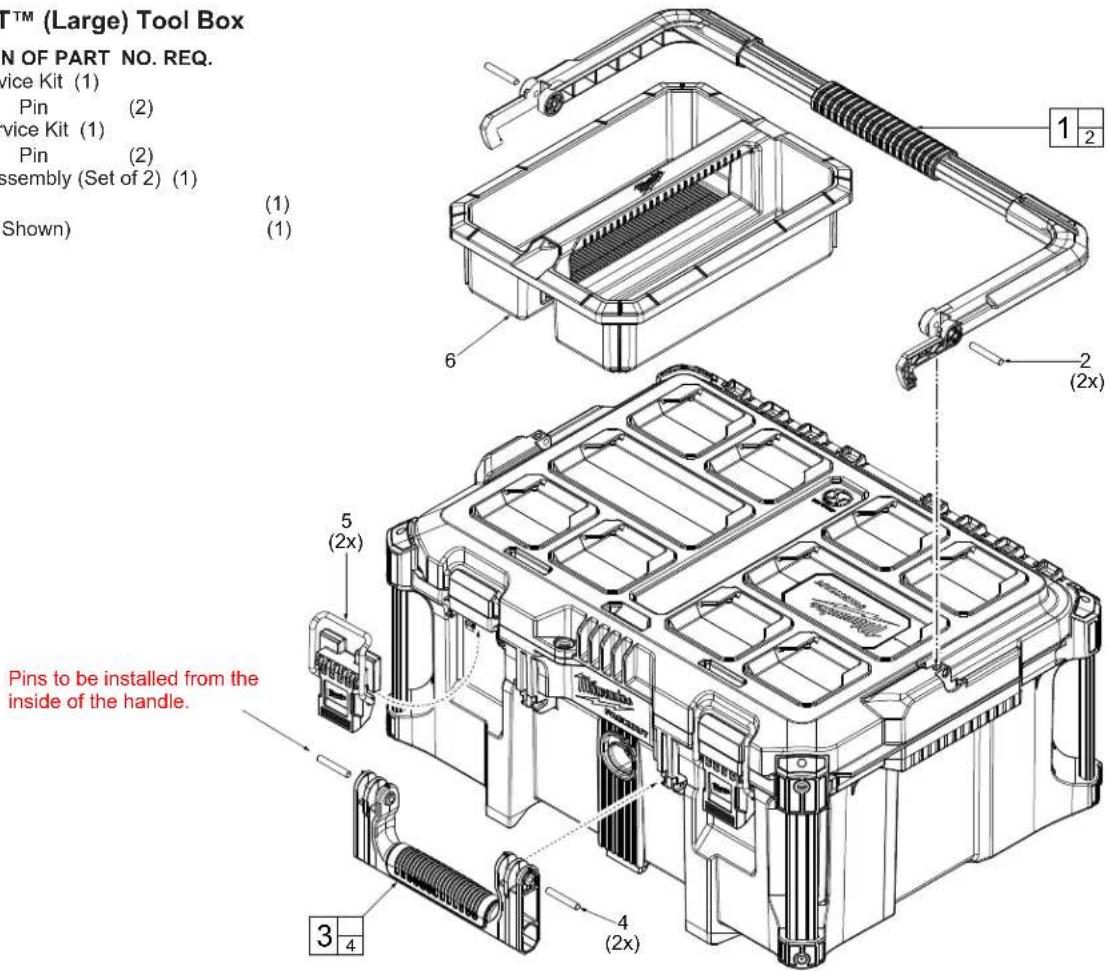

48-22-8425 PACKOUT™ (Large) Tool Box

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 43-62-8425 Top Handle Service Kit (1)
2 Pin (2)
3 43-62-8424 Side Handle Service Kit (1)
4 Pin (2)
5 44-20-8400 Latch Service Assembly (Set of 2) (1)
6 31-01-8400 Storage Tray (1)
7 43-44-8400 Lid Gasket (Not Shown) (1)

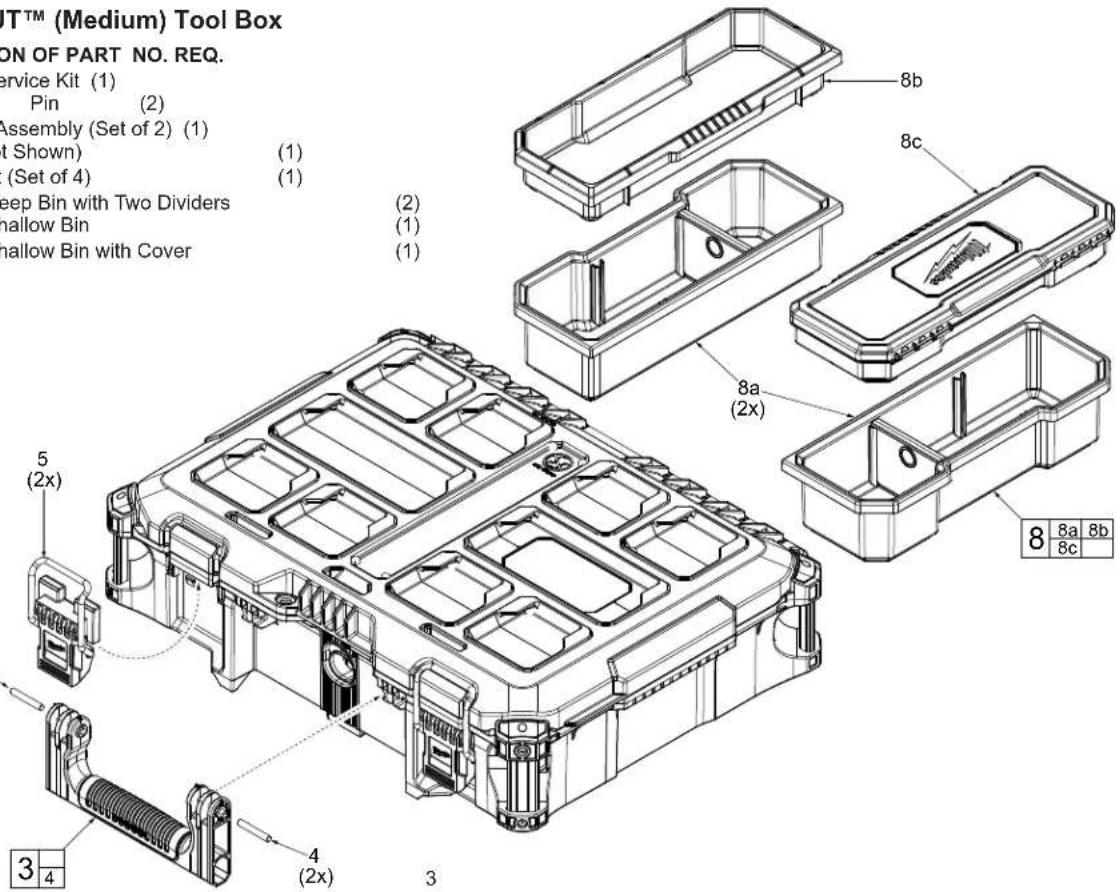

48-22-8424 PACKOUT™ (Medium) Tool Box

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

3 43-62-8424 Side Handle Service Kit (1)
4 Pin (2)
5 44-20-8400 Latch Service Assembly (Set of 2) (1)
7 43-44-8400 Lid Gasket (Not Shown) (1)
8 31-01-8424 Storage Bin Kit (Set of 4) (1)

8a Deep Bin with Two Dividers (2)
8b ---- Shallow Bin (1)
8c ---- Shallow Bin with Cover (1)

Pins to be installed from the inside of the handle.

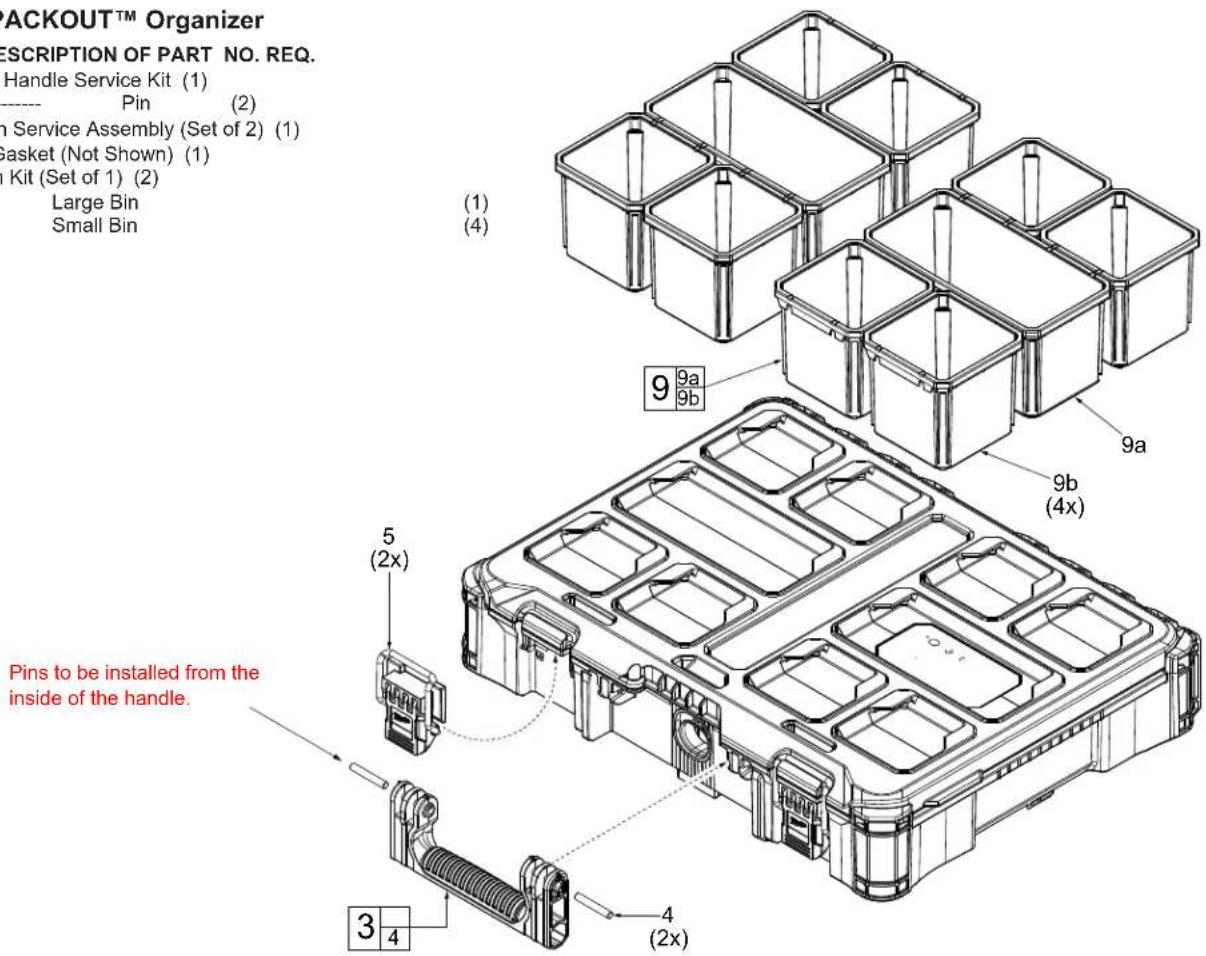

48-22-8430 PACKOUT™ Organizer

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

3 43-62-8430 Side Handle Service Kit (1)

4 Pin (2)

5 44-20-8430 Latch Service Assembly (Set of 2) (1)

7 43-44-8430 Lid Gasket (Not Shown) (1)

9 31-01-0501 5 Bin Kit (Set of 1) (2)

9a Large Bin

9b Small Bin

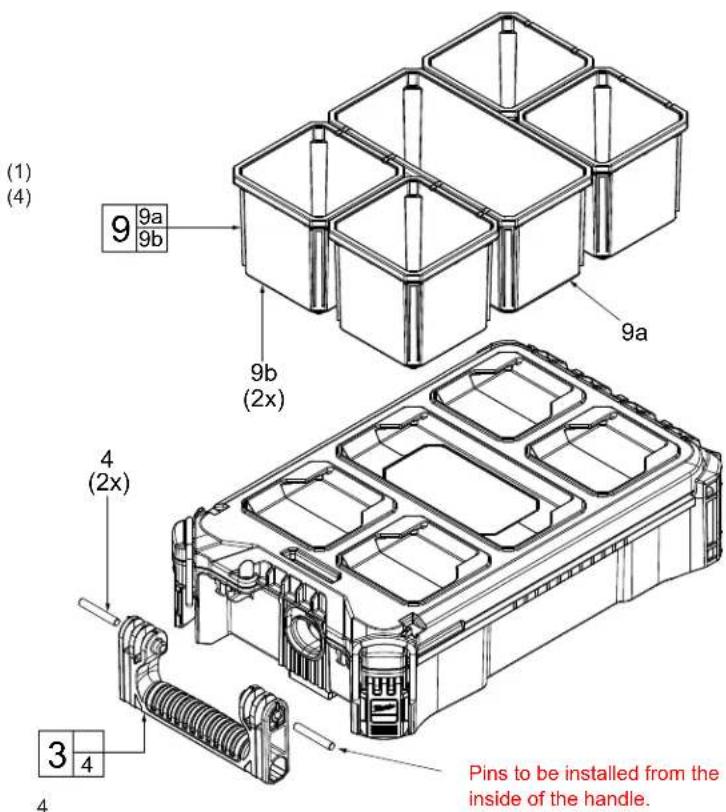

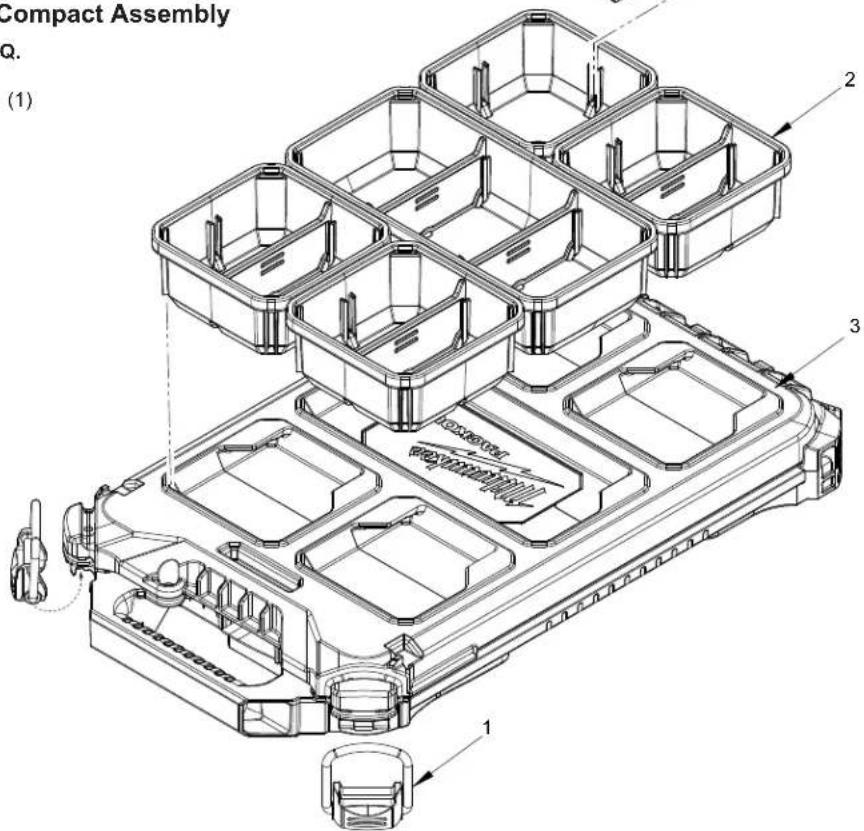

48-22-8435 PACKOUT™ Compact Organizer

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

3 43-62-8435 Side Handle Service Kit (1)

4 Pin (2)

7 43-44-8435 Lid Gasket (Not Shown) (1)

9 31-01-0501 5 Bin Kit (1)

9a Large Bin

9b Small Bin

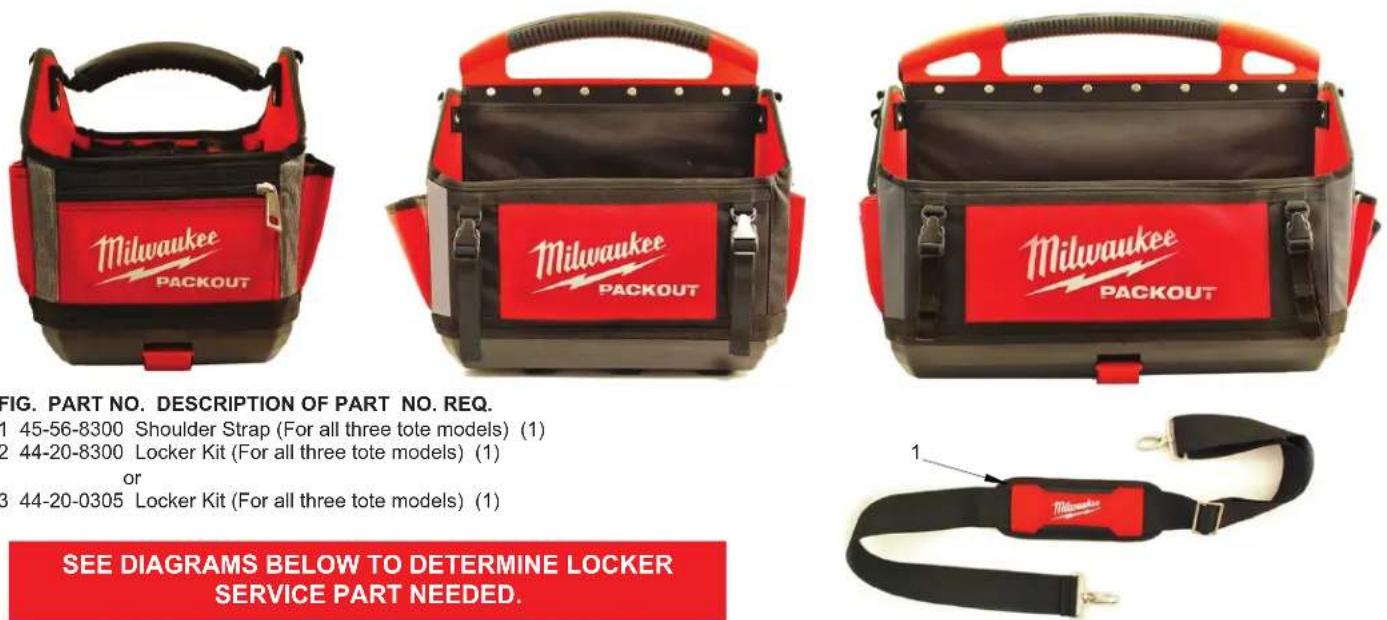

48-22-8310 10" PACKOUT™(Small) Storage Tote 48-22-8315 15" PACKOUT™ (Medium) Storage Tote 48-22-8320 20" PACKOUT™ (Large) Storage Tote

1 45-56-8300 Shoulder Strap (For all three tote models) (1)
2 44-20-8300 Locker Kit (For all three tote models) (1)
or
3 44-20-0305 Locker Kit (For all three tote models) (1)

Close-up of a red, glowing object resembling a mechanical component or tool (no visible text or symbols)

To remove a damaged locker system, flip tote upside down and approach tote from the bottom of base. Insert a large flat blade screwdriver in middle of locking carriage as shown. Lightly pry carriage upward out of base opening. Remove and discard old locking carriage and spring.

No. 44-20-8300
Locker Kit
For early production PACKOUT™
Storage Totes

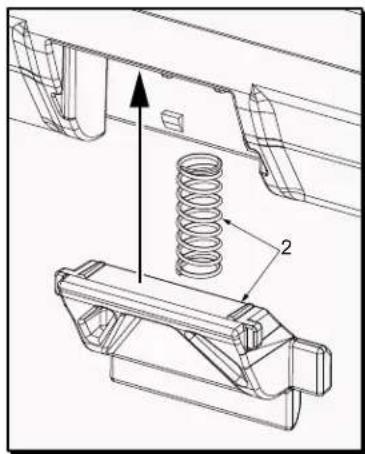

To install a Locker Kit (2), align spring as shown and guide the tabs of locking carriage in channels of tote base. Push locking carriage upward to snap into place.

Close-up of a red abstract geometric object mounted on a black stand (no text or symbols visible)

Close-up of a red 3D cube being inserted into a black plastic component (no text or symbols visible)

To remove a damaged locker system, flip tote over on the side and approach tote from the bottom of base. Insert a large flat blade screwdriver in middle of locking carriage as shown. Lightly pry carriage upward out of base opening. Remove and discard old locking carriage.

Technical line drawing of a mechanical assembly with no visible text or symbols

No. 44-20-0305
Locker
For later production PACKOUT™
Storage Totes
To install a new Locker (3), guide the tabs of locking carriage in channels of tote base. Push locking carriage forward to snap into place.

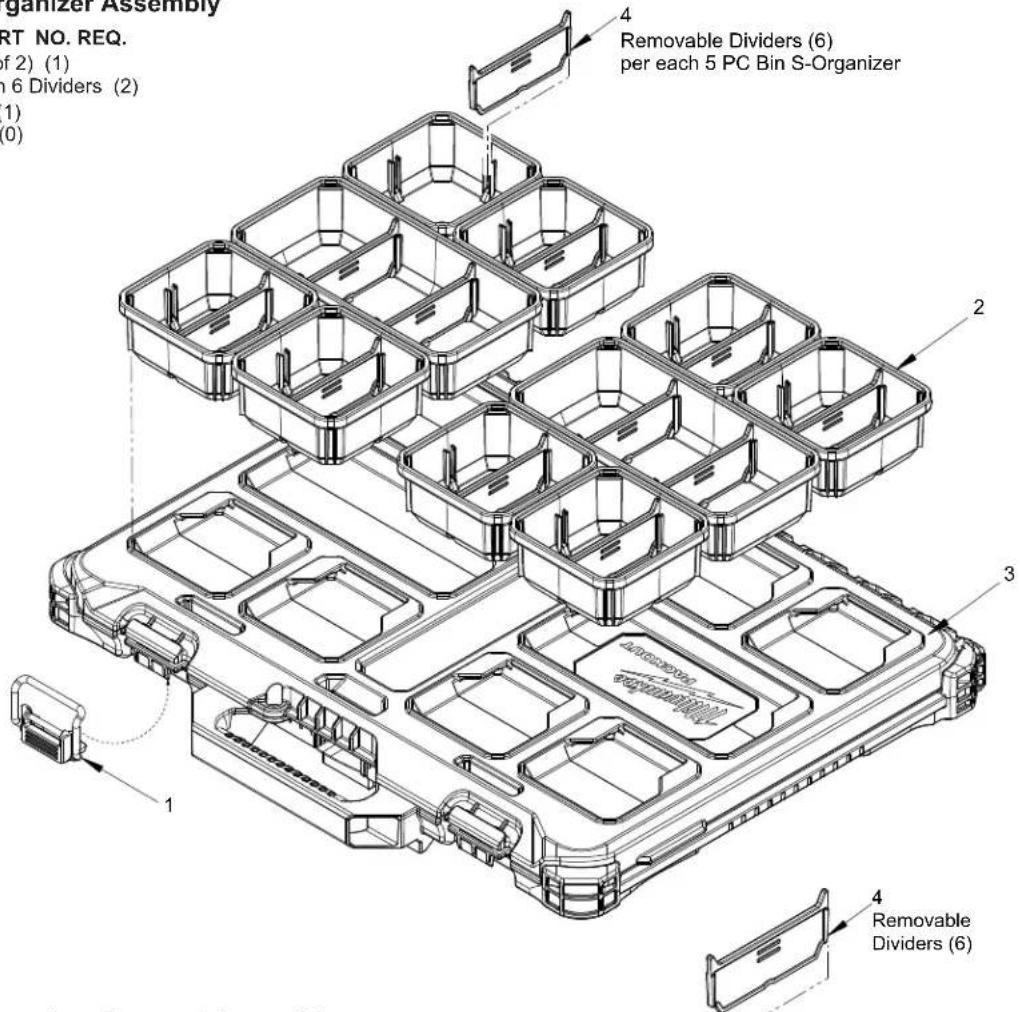

48-22-8431 PACKOUT™ S-Organizer Assembly

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 44-20-8431 LP Organizer Latch (Set of 2) (1)
2 31-01-0502 5 PC Bin S-Organizer with 6 Dividers (2)
3 43-44-8430 Lid Gasket (Not Shown) (1)
4 31-01-0503 Spare Divider Kit, 6 pcs. (0)

48-22-8436 PACKOUT™ S-Organizer Compact Assembly

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 44-20-8436 LP Compact Org Latch (Set of 2) (1)
2 31-01-0502 5 PC Bin S-Organizer with 6 Dividers (1)
3 43-44-8435 Lid Gasket (Not Shown) (1)
4 31-01-0503 Spare Divider Kit, 6 pcs. (0)

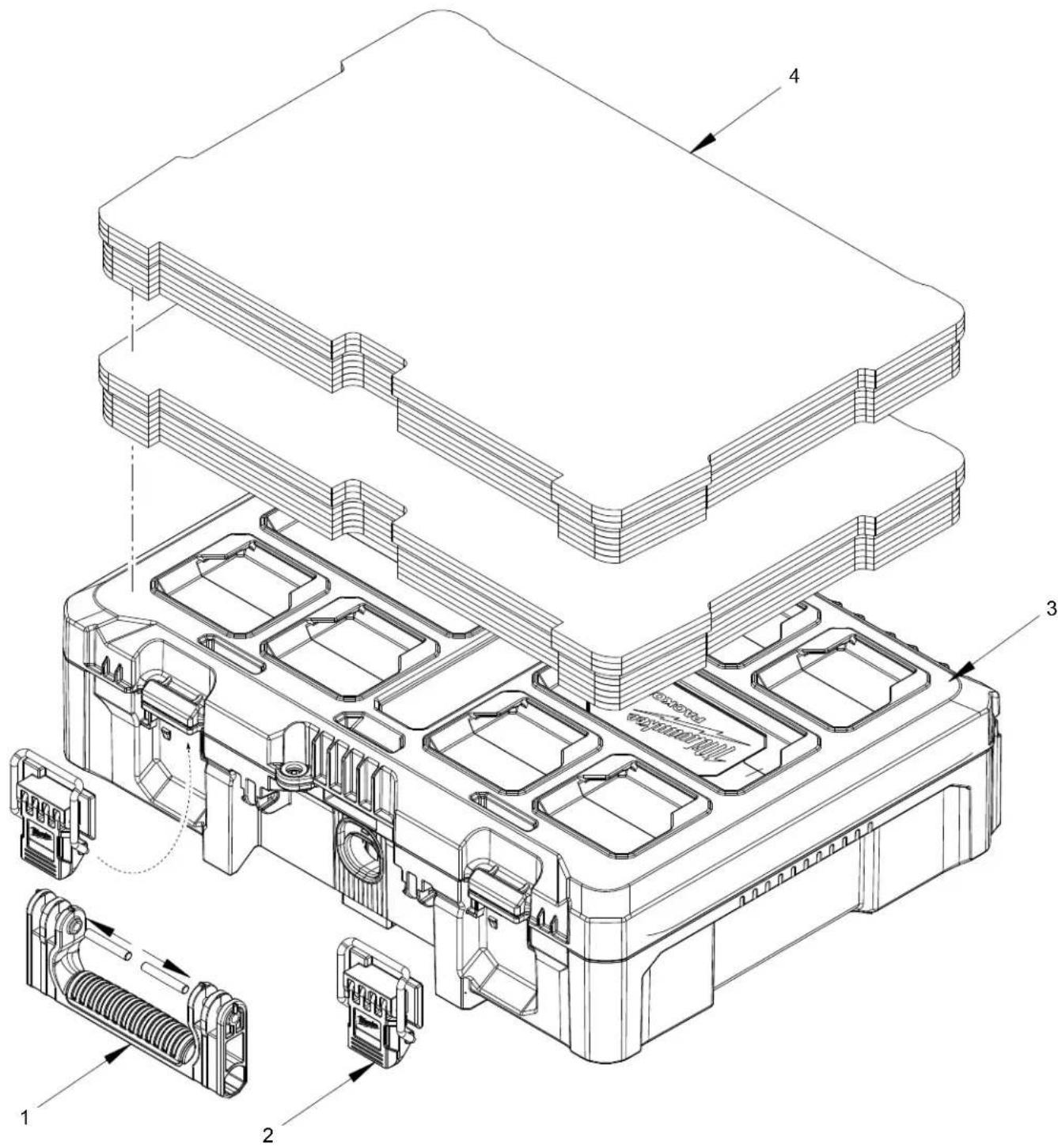

48-22-8450 PACKOUT™ Tool Box Kit with Foam Dividers

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 43-62-8450 Kit Box Mono Block Handle with 2 Pins (1)
2 44-20-8430 Latch Service Assembly (Set of 2) (2)
3 43-44-8400 Lid Gasket (Not Shown) (1)
4 48-22-8455 Foam Insert for PACKOUT™ Kit Box (Set of 2) (1)

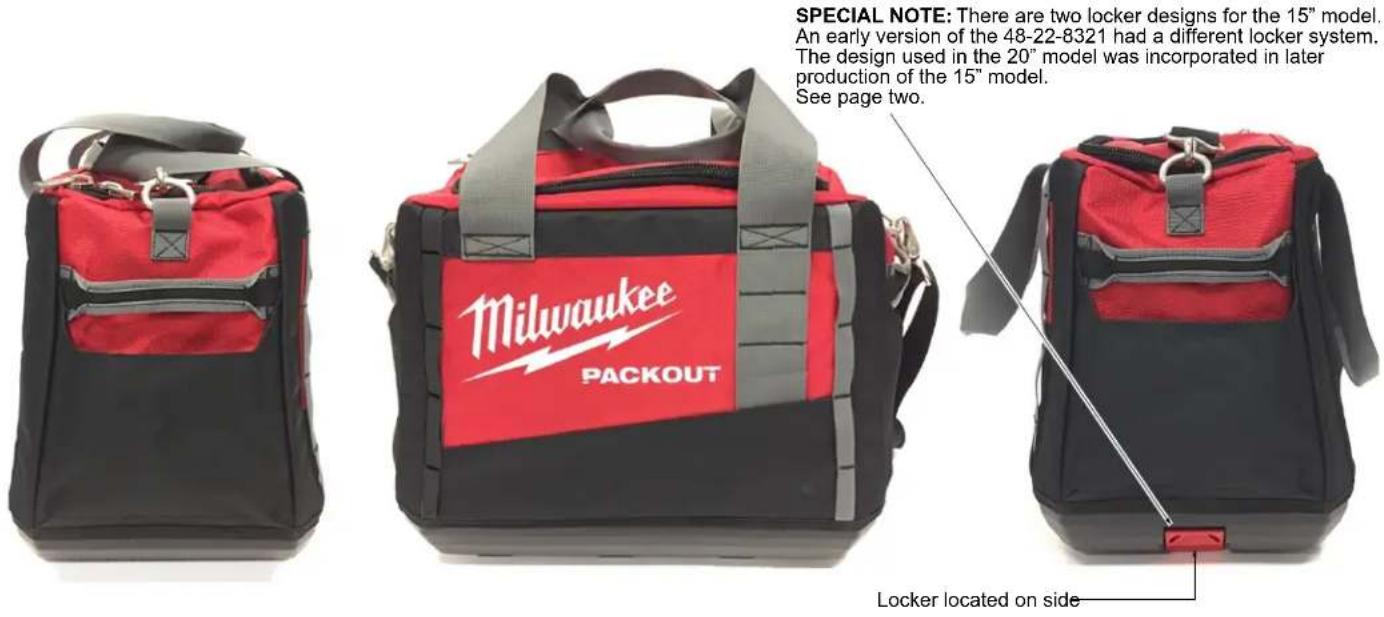

48-22-8321 15" PACKOUT™ (Medium) Tool Bag*

48-22-8322 20" PACKOUT™ (Large) Tool Bag*

*48-22-8321 15" PACKOUT™ (Medium) Tool Bag

*48-22-8322 20" PACKOUT™ (Large) Tool Bag

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 45-56-8300 Shoulder Strap (For both tote models) (1)
2 44-20-8300 Locker Kit (For early versions of 48-22-8321)
See page two (1)

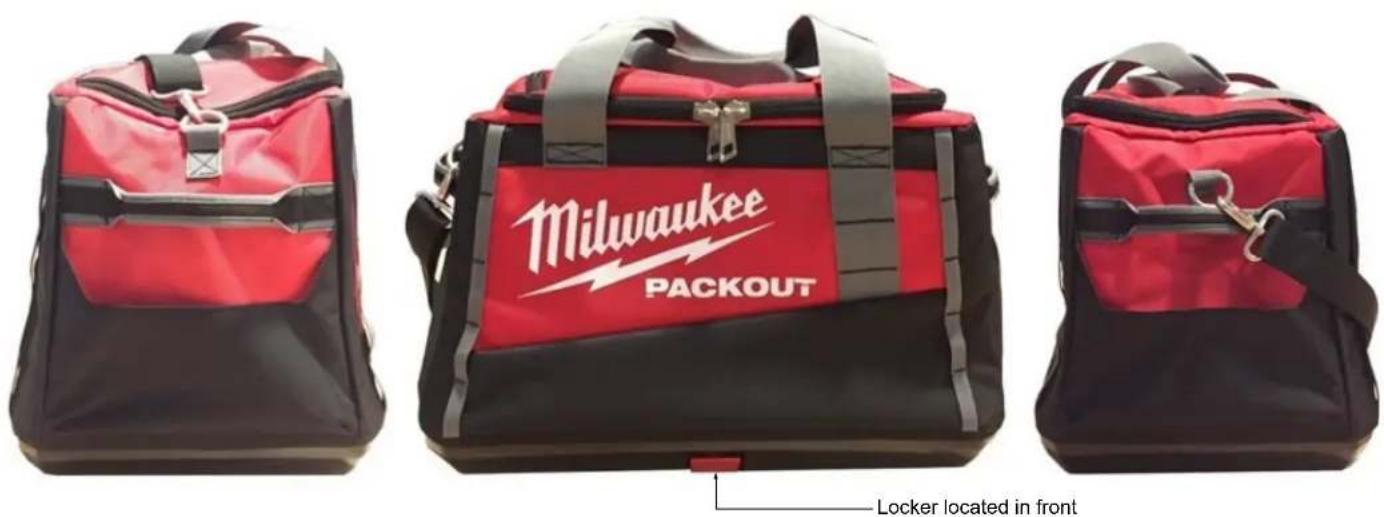

3 44-20-0305 Locker (For 48-22-8322 and later versions of 48-22-8321) See page 5 (1)

SEE PAGE 5 FOR INSTRUCTIONS ON REMOVING SELECTION AND INSTALLING BOTH LOCKER SYSTEMS

Black and red striped fabric belt with attached clips, no visible text or symbols

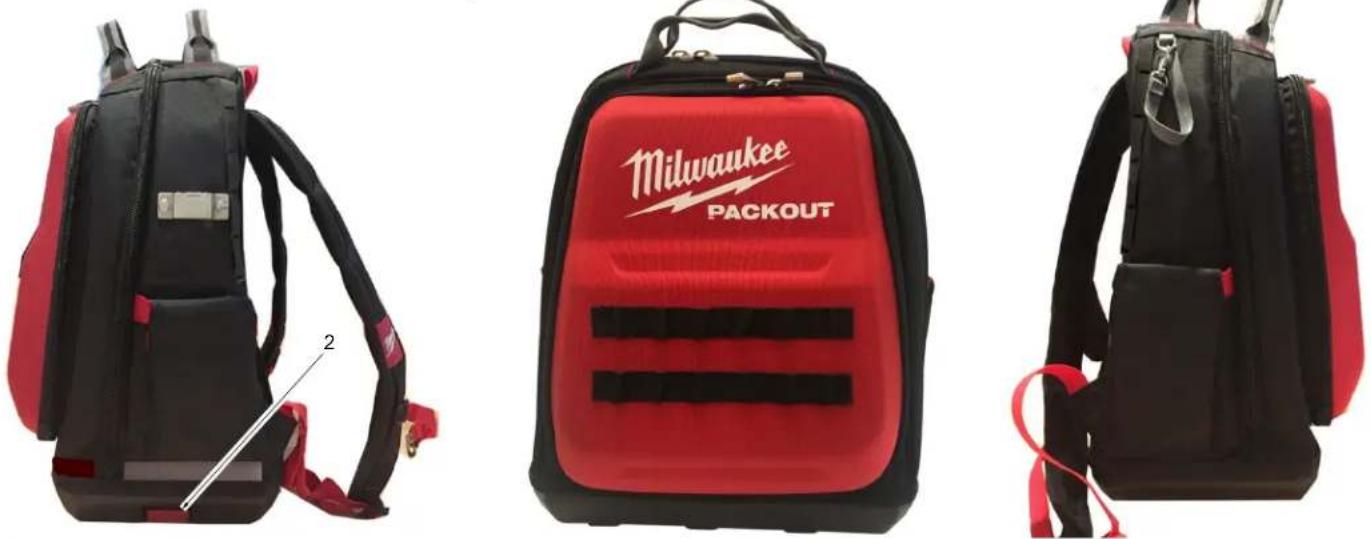

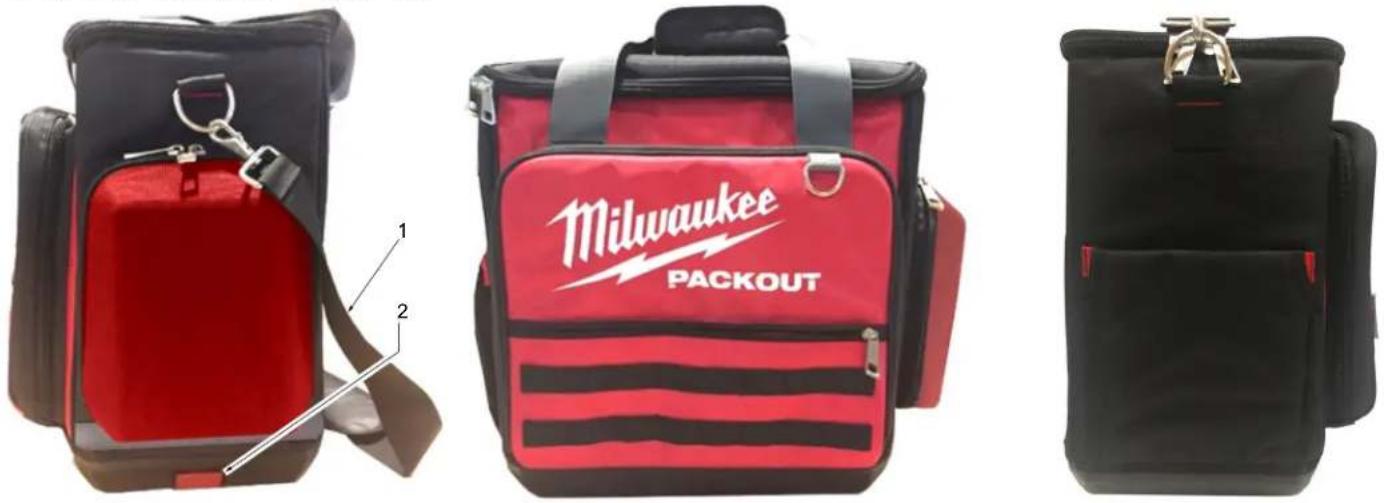

48-22-8300 PACKOUT™ Tech Bag

48-22-8301 PACKOUT™ Jobsite Backpack

48-22-8302 PACKOUT™ Jobsite Cooler

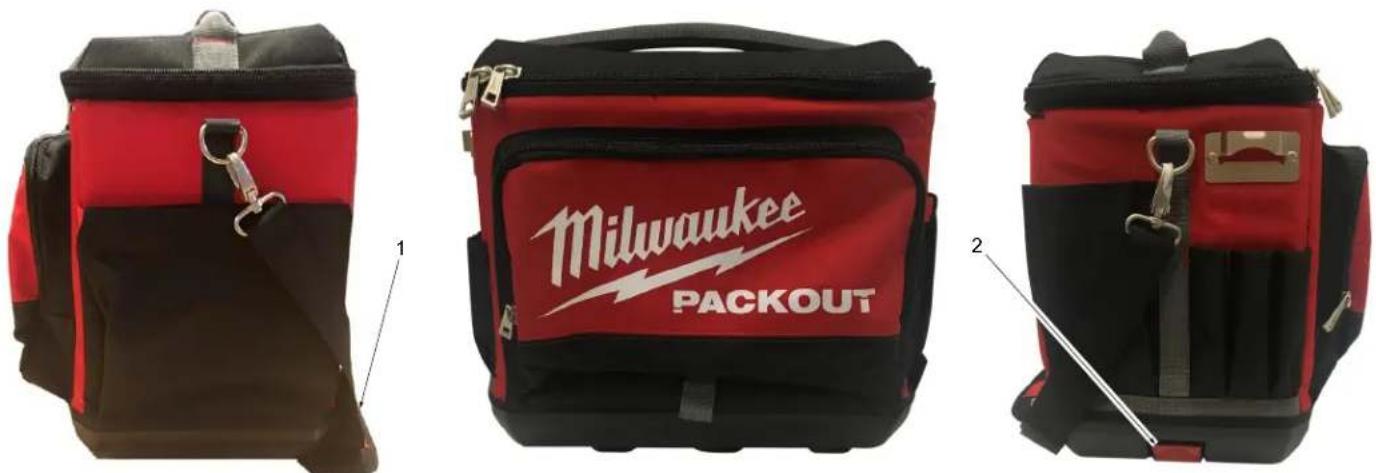

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

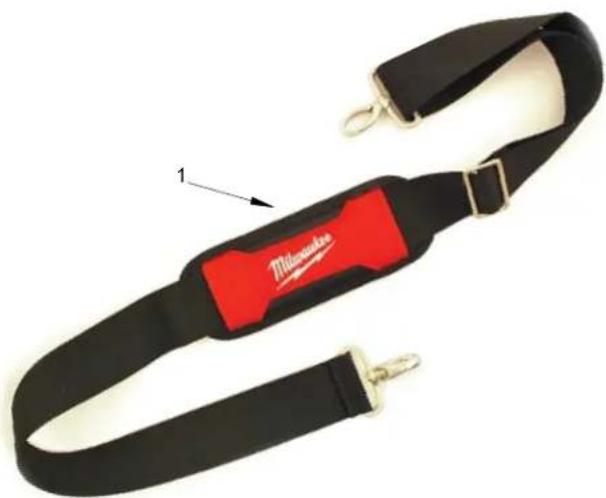

1 45-56-8300 Shoulder Strap (For Cooler & Tech Bag) (1)
2 44-20-0305 Locker System (1)

SEE PAGE 5 FOR INSTRUCTIONS ON REMOVING AND INSTALLING BOTH LOCKER SYSTEMS

Black and red fitness belt with attached straps and connector pins (no text or symbols visible)

1 ---- Locking Swivel Caster (2)

2 Swivel Caster (2)

3 Dolly Base (1)

4 14-04-8410 Dolly Foot Brake Kit (1)

4a Dolly Foot Brake (1)

4b Spring (1)

4c ———— Cotter Pin (2)

4d Retaining Pin (2)

5 45-94-8410 Swivel Caster Kit (Set of 4) (1)

Note:

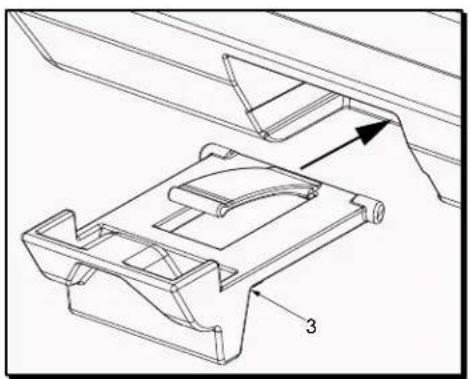

Procedure for removal and installation of the 44-20-8422 Latch (1).
Removal:
1. Undo latch from PACKOUT lid.

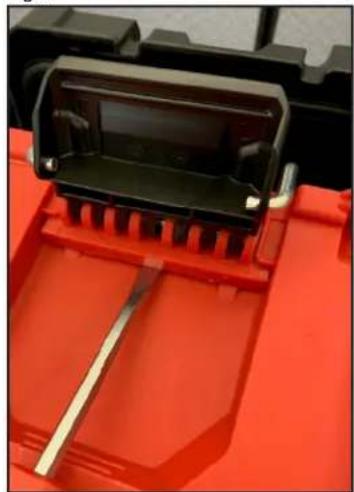

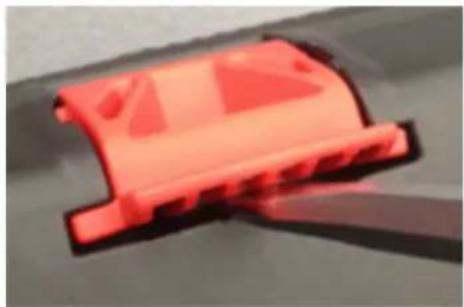

2. Insert a flathead screwdriver in-between latch assembly and PACKOUT base to pry over the tabs. (Fig.1)
3. Pull metal latch down to remove.
Installation:
1. Insert Latch Assembly into channel.

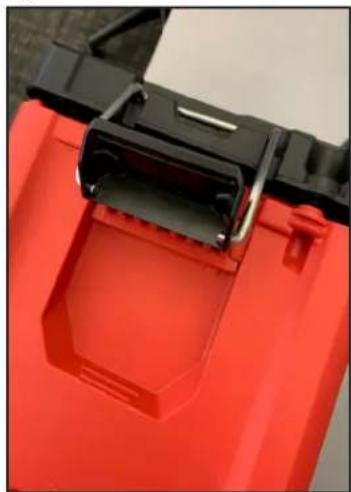

2. Attach the metal latch to the lid. (Fig.2)
3. Close latch to secure Latch Assembly in place inside the channel.

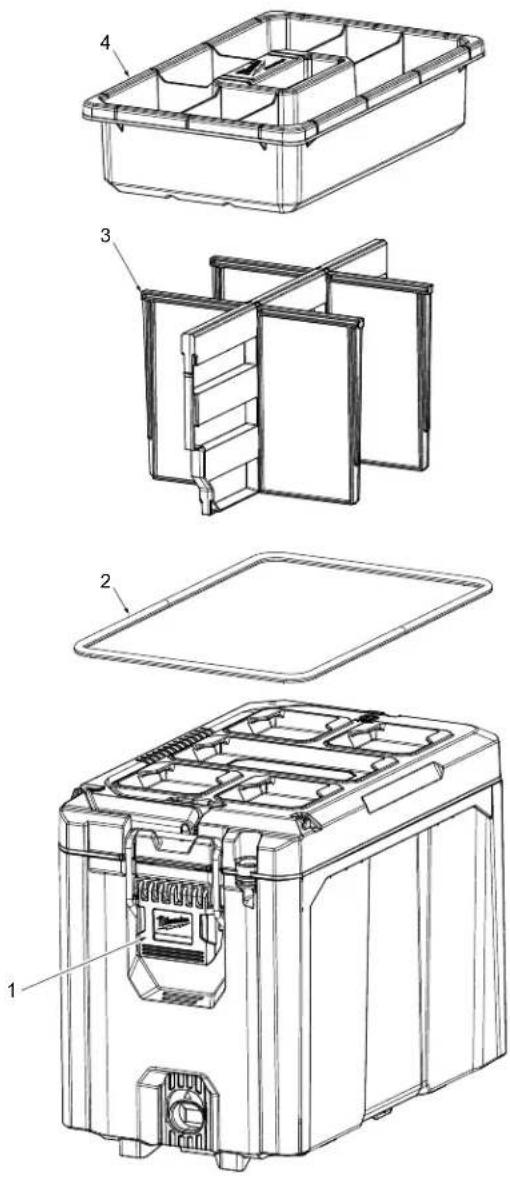

48-22-8422 PACKOUT™ Compact Toolbox
FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1	44-20-8422	Latch Assembly	(1)
2	43-44-8422	Gasket
3	31-01-8423	Dividers	(1)
4	31-01-8422	Tray	(1)

Fig.1

Close-up of a red plastic electronic component with a black connector and a metallic rod inserted (no visible text or symbols)

Fig. 2

Close-up of a red plastic container with black plastic clip and metal bracket (no visible text or symbols)

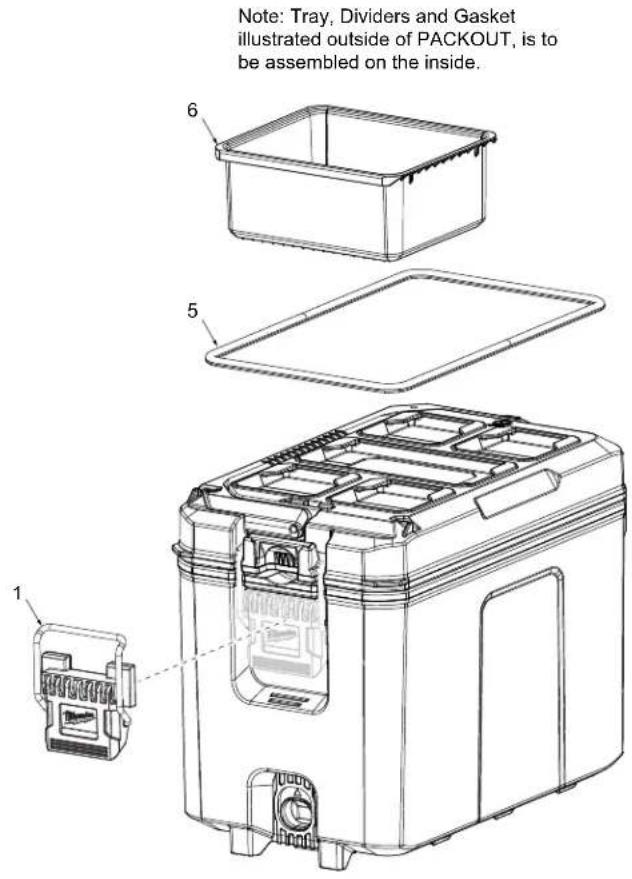

48-22-8460 PACKOUT™ Compact Cooler

FIG. PART NO. DESCRIPTION OF PART		NO. REQ.
1	44-20-8422 Latch Assembly	(1)
5	31-01-8460 Tray	(1)
6	43-44-8460 Gasket	(1)

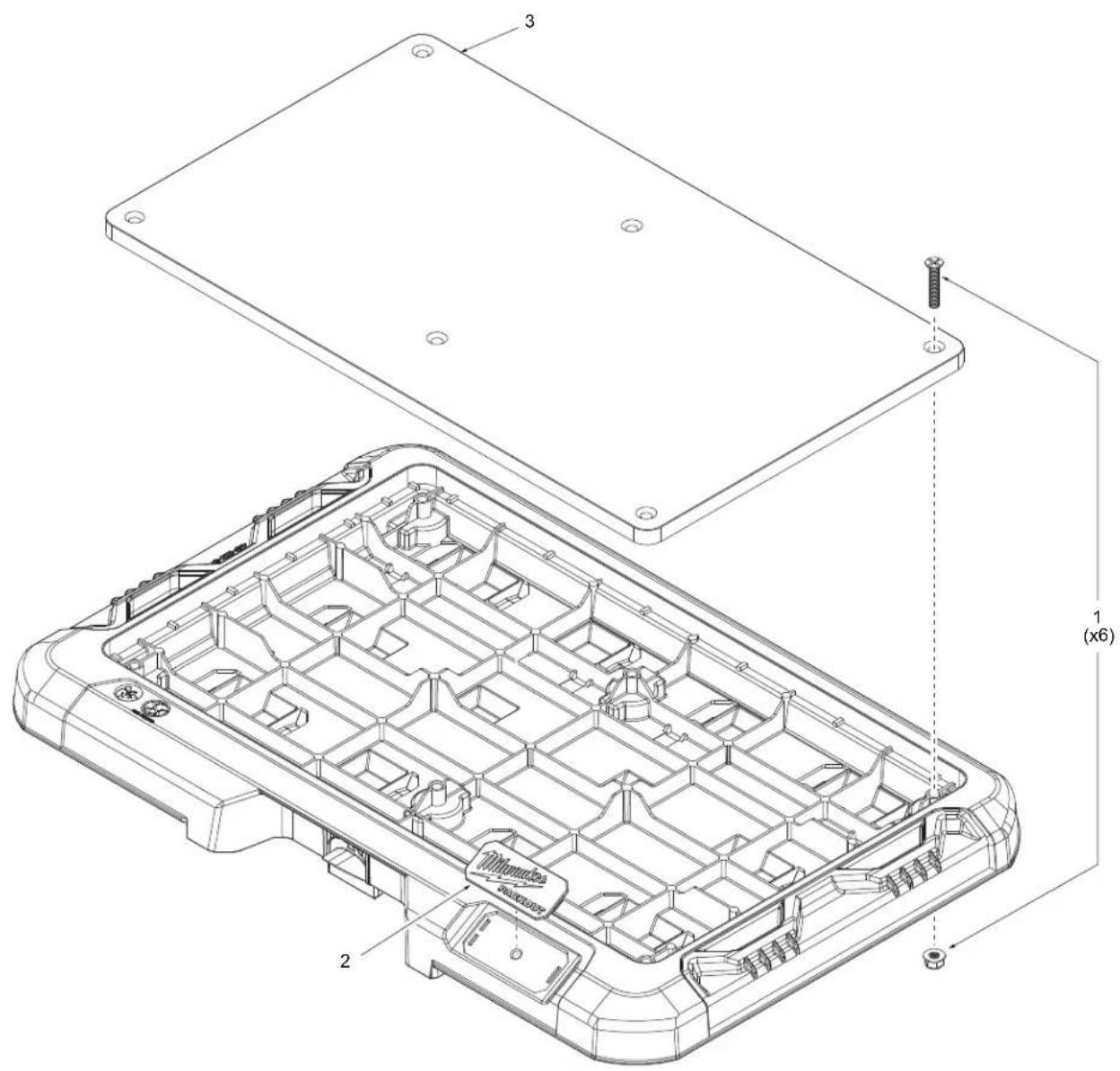

48-22-8488 PACKOUT™ Customizable Work Surface

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 14-46-8488 Hardware Kit 6 sets (1)

2 31-01-8488 Logo Plate (1)
3 45-64-8488 Wood Top (1)

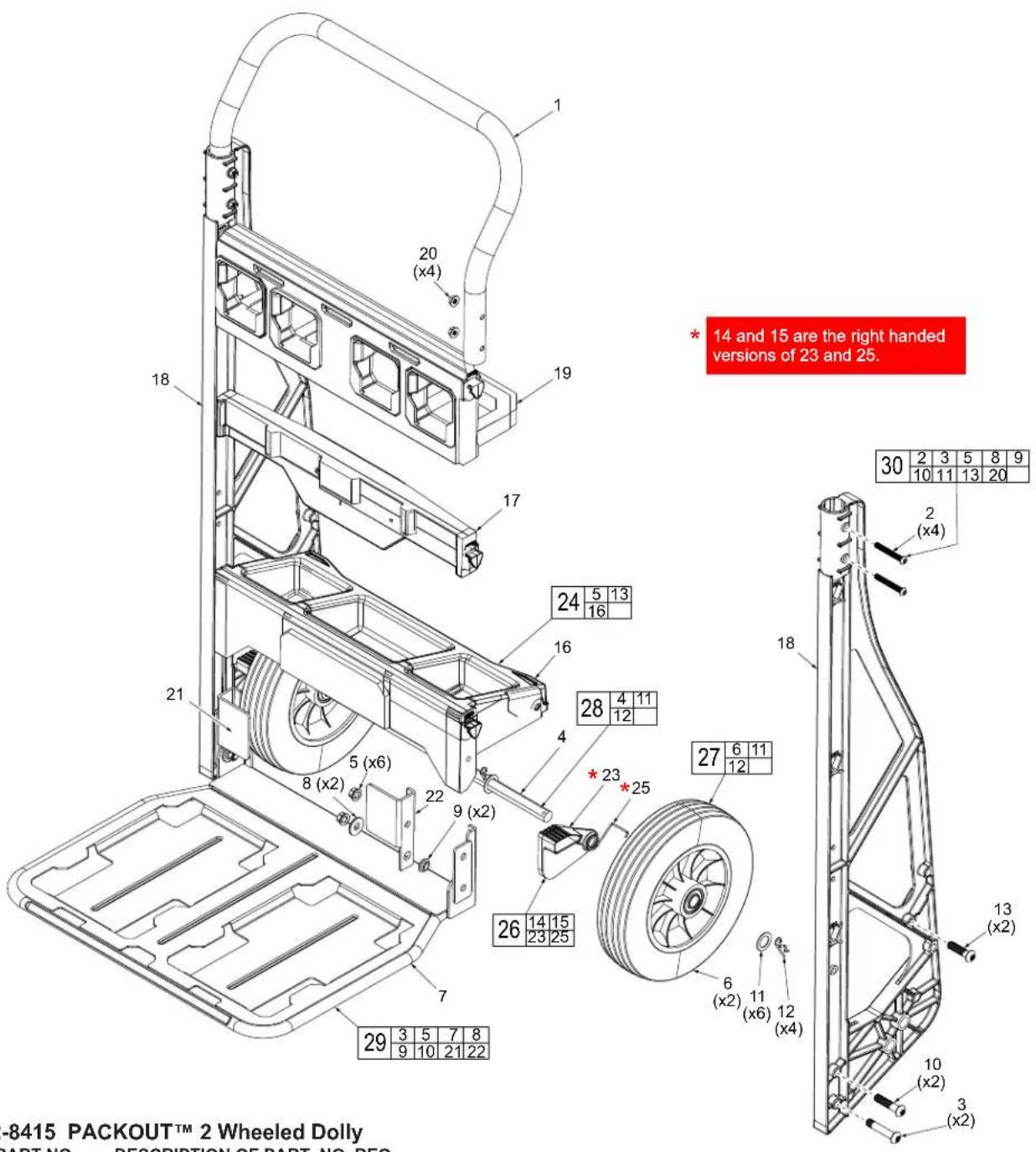

48-22-8415 PACKOUT™ 2 Wheeled Dolly

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1	Handle (1)
2	20 x 1.875" Bolts (4)
3	3/8-16 x 2 Bolts (2)
4	Axle (1)
5	3/8-16 Lock Nut (6)
6	Wheel (2)
7	Base Plate (1)
8	Washer (2)
9	Nylon Shoulder Washer (2)
10	3/8-16 x 1.75" Bolts (2)
11	5/8" Bushing Washers (6)
12	Hitch Pin (4)
13	3/8-16 x 1.5" Bolts (2)
14	Right Spring (Not Shown) (1)
15	Toe Plate Lock Right (Not Shown) (1)
16	31-01-8415 Bottom Tray (1)
17	31-86-8415 Logo Cross Member (1)
18	Side Frame (2)
19	31-10-8415 PACKOUT Cross Member (1)
20	Handle Nut (4)
21	Right Lock/Fender Assembly (1)

FIG.	PART NO.	DESCRIPTION OF PART NO. REQ.
22	----	Left Lock/Fender Assembly	(1)
23	----	Toe Plate Lock Left	(1)
24	31-01-8415	Bottom Tray Kit	(1)
25	----	Left Spring	(1)
26	31-52-8415	Toe Plate Lock Kit	(1)
27	45-94-8415	Wheel Kit	(1)
28	42-12-8415	Axle Kit	(1)
29	42-36-8415	Toe Plate Kit	(1)
30	14-46-8415	Hardware Kit	(1)
