BRUGSANVISNING 48-22-4210 MILWAUKEE

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS RATCHETING PIPE CUTTER

REVISED BULLETINDATEMay 2017
rFor the following materials:PVC, CPVC, PEX, ABS andRubber Hose
CATALOGNO.48-22-42101-5/8" OD Ratcheting Pipe Cutter
48-22-42152-3/8" OD Ratcheting Pipe Cutter

Place blade return spring (2) into the channel of housing. Rotate the spring arm as shown until it catches raised ledge.

channel of housing. Rotate the spring arm as shown until it catches raised ledge. WARNING! Cutting blade (5) is very sharp. Care must be taken when installing or removing. 4 1 2 3 1 (3x) With the arm of blade return spring (2) resting on ledge in left housing, place round hole of blade (5) onto top…

Prior to installing right housing, be sure blade (5) is positioned as shown, with inside corner of blade against bottom blade pin (3) and blade return spring (2) engaged in tear shaped hole. Place right housing onto left housing/blade assembly. Secure with three screws (1) and tighten to 15-16 kg-cm (13-14 in-lbs).

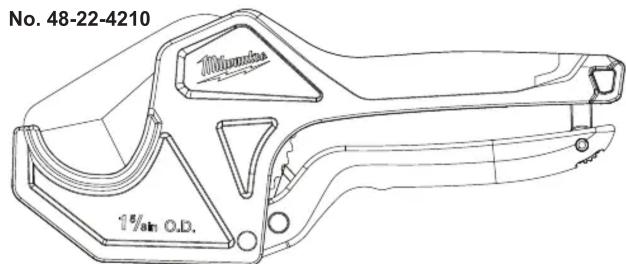

No. 48-22-4210 1/1m O.D.

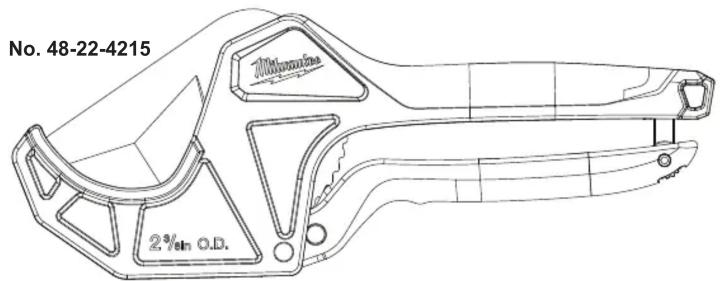

No. 48-22-4215 2½/10 O.D.

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 M4 x 16mm Pan Hd. Phillips Screw (3)

2 ---- Blade Return Spring (1)

3 Blade Pin (2)

4 14-46-4210 Hardware Kit (1)

5 48-22-4211 1-5/8" Ratcheting Pipe Cutter

Replacement Blade (Accessory) (1)

48-22-4216 2-3/8" Ratcheting Pipe Cutter Replacement Blade (Accessory) (1)
