The CookCentre Deluxe with Quad Oven
Giving you 4 independent ovens in the one range cooker


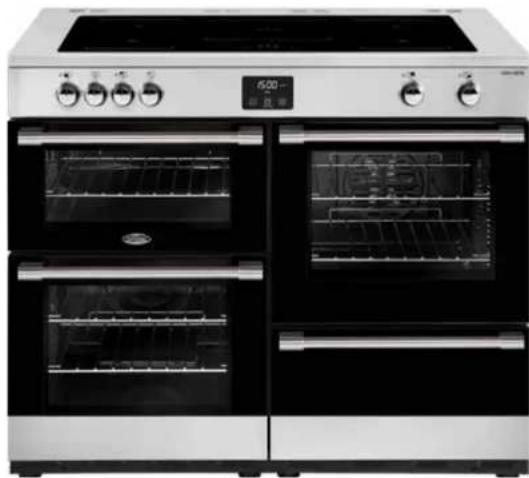

Exterior view of a stainless steel double boiler oven with open doors and control knobs (no visible text or symbols)Colours
Black: BCC1100IB | Stainless Steel: BCC1100ISS
Features & Benefits
Huge 224L Capacity
Maximum capacity, endless results. Creating as much space as possible, our combined 224L capacity ovens give you the versatility of cooking the largest roast and baking desserts for the masses all at once.
Oven 1: 41L Compact Oven with Grill
Perfect for efficiently cooking small meals, the small oven combines a conventional oven with a multi-function grill.
Oven 2: 71L Multi-function Oven for Perfect Results
With 13 settings to choose from such as Fan and Conventional options, Pizza function, Grill settings and more, you can perfectly cook anything from pavlova to pastizzi with ease.
Oven 3: 71L Equiflow™ Oven
Features 5 essential settings: Equiflow™ Fan Forced Cooking, Slow Cook, Keep Warm, Bread Proving and Light.
Oven 4: 41L Slow Cook Oven
A dedicated Slow Cook Oven perfect for using your favourite cast iron dish to cook tender and tasty slow cooked meals. Also ideal to use as a plate warmer.
Induction Cooktop
5 zone induction hotplate with EuroKera glass and a digital display. Touch slide controls and 10 power levels including boost. Induction features include Timer, Child Safety Lock, Pan Detection, Overheat Pan Detection, Individual Residual Heat Indicators and preset functions.
Additional Features
Includes removable double extending telescopic runners, a large easy to read white LED display and touch control screen, full width oven pans, premium knobs and rear wheels.
Functions
Top Left
Bottom Left


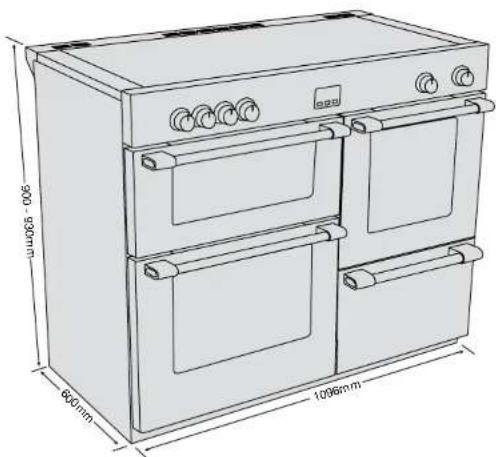

500 - 100 500mm 800mm 1096mmIf this appliance is installed near vinyl wrapped surfaces, we strongly recommend using an installation kit available from the vinyl-wrap supplier. Belling cannot accept any responsibility for damage caused due to installation into cabinets with low temperature tolerances.
COOKCENTRE DELUXE BCC1100I
| COOKTOP | |
| No. of elements | 5 |
| Fuel | Electric |
| INDUCTION COOKTOP | |
| Element 1 (kW) | Medium (1.6 - 3.0 Soos) |
| Element 2 (kW) | Medium (1.6 - 3.0 Soos) |
| Element 3 (kW) | Large (2.3 - 3.7 Boost) |
| Element 4 (kW) | Small (1.15 - 2.2 Boost) |
| Element 5 (kW) | Medium (1.4 - 3.0 Soos) |
| Central on/off key | Yes |
| Individual residual heat indicators | Yes |
| CAVITY 1 | |
| Position Top left | |
| Function Conventional oven and grill | |
| ELECTRIC OVEN / BRILL | |
| Variable rate dual circuit electric grill | Yes |
| Conventional electric oven | Yes |
| CAVITY 1 FEATURES | |
| Airfoil capacity (inches) 41 | |
| Power (kW) Oven (1.4) & Grill (2.7) | |
| No. of shelves 1 | |
| No. of shelf positions 2 | |
| Full width oven pane with reversible intake 1 | |
| Door opening Drop-down | |
| Energy rating A | |
| CAVITY 2 | |
| Position Bottom left | |
| Function Multi-function over | |
| ELECTRIC OVEN | |
| Variable rate electric grill | Yes |
| Conventional electric oven | Yes |
| Fanned electric oven Yes | |
| Defrost | Yes |
| Intensive coke (top, bottom & fan) | Yes |
| Top heat only | Yes |
| Base heat only | Yes |
| Base heat with fan | Yes |
| Ball with fan | Yes |
| Slow cook | Yes |
| Pizza | Yes |
| Keep warm Yes | |
| Bread proving Yes | |
| CAVITY 2 FEATURES | |
| Gross capacity (litres) 71 | |
| Power (kW) Oven (2.3) & Grill (1.7) | |
| No. of shelves 2 | |
| No. of shelf positions 6 | |
| Full width oven pans with reversible inlet 1 | |
| Telescopic shelves 1 double extending, renovable | |
| Oven light Yes | |
| Programmable timer Yes | |
| Door opening Side opening | |
| Energy rating A | |
| CAVITY 3 | |
| Position Top right | |
| Function Fan forced oven | |
| ELECTRIC OVEN | |
| Fenned electric oven Yes | |
| Slow cook | Yes |
| Knip warm Yes | |
| Bread orving Yes | |
| CAVITY 3 FEATURES | |
| Gross capacity (litres) 71 | |
| Power (kW) 2.0 | |
| No. of shelves 2 | |
| No. of shelf positions 6 | |
| Oven Light | Yes |
| Door opening Side opening | |
| Energy rating A | |
| CAVITY 4 | |
| Position Bottom right | |
| Function Slow cook oven | |
| Fuel | Electric |
| CAVITY 4 FEATURES | |
| Gross capacity (litres) 41 | |
| Power (kW) 0.18 | |
| Door opening Drop-down | |
| TIMER | |
| Minute minder | Yes |
| Key lock feature | Yes |
| INSTALLATION | |
| Minimum gap required to fit appliance (mm) | 1106 |
| Power supply 250V single phase/3 phase | |
| Fuse size (mm) | 65 |
| Total electrical power load (kW) | 15.53 |
| DIMENSIONS (PRODUCT) | |
| Height x Width x Depth (mm) | 950 - 930 x 1096 x 800 |
Additional accessories available - please see belling.com.au for more information
