HP ProLiant ML115 - Dual-Core Opteron 1210 1.8 GHz - 512 MB - 160 GB

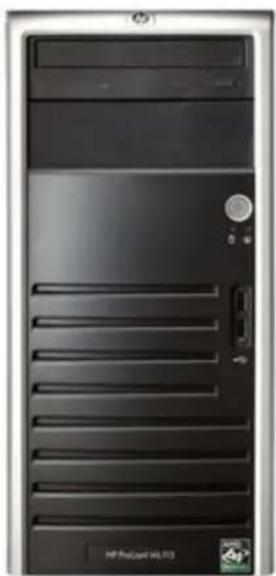

Front view of a black HP RoCLiert HLS13 desktop computer tower (no visible text or labels on the cabinet body)

GENERAL

- Packaged Quantity

• 1

- Recommended Use

• corporate business, small business

• Product Form Factor

- Micro tower

- Server Scalability

1-way

- Internal Bays Qty

4

• Front Accessible Bays Qty

• 2

- Manufacturer

HP

●

PROCESSOR / CHIPSET

• CPU

• AMD Dual-Core Opteron 1210 / 1.8 GHz

CACHE MEMORY

- Installed Size

L2 cache - 2 MB

- Cache Per Processor

- 2 MB (2 x 1 MB)

STORAGE

- RAID Level

• RAID 0, RAID 1, RAID 10

- Interface Type

- Serial ATA-150

- Type

none

- Read Speed

• 48x

RAM

- Memory Speed

667 MHz

• Memory Specification Compliance
PC2-5300
- Features
- unbuffered
- Configuration Features
1 x 512 MB

MEMORY

• Max Supported Size
• 8 GB
- Form Factor
• DIMM 240-pin
- Slots Qty
4
- Empty Slots
3

ENVIRONMENTAL PARAMETERS

• Humidity Range Operating

10 - 90%

HARD DRIVE

• Interface Type
• SATA 1.5Gb/s
• Spindle Speed
• 7200 rpm

STORAGE CONTROLLER

- Channel Qty

4

STORAGE CONTROLLER (2ND)

- Type

- 1 x IDE - integrated

PROCESSOR

- Installed Qty

• 1

• Max Supported Qty

• 1

- Upgradability

- upgradable

FLOPPY DRIVE

- Type

none

NETWORKING

• Data Link Protocol

- Ethernet, Fast Ethernet, Gigabit Ethernet

• Remote Management Protocol

IPMI 2.0

- Form Factor

- integrated

- Compliant Standards

• IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

- Interface (Bus) Type

- PCI Express x1

- Ethernet Controller(s)

HP NC320i

- Features

- Wake on LAN (WoL)

MISCELLANEOUS

- Features

• power-on password, system password

- Compliant Standards

- ACPI 2.0

MONITOR

- Monitor Type

- None.

GRAPHICS CONTROLLER

- Form Factor

- integrated

- Video Memory

• 2 MB DDR SDRAM

- Video Interfaces

• VGA

DIMENSIONS & WEIGHT

- Width

6.9 in

• Depth
  • 16.8 in
• Height
  • 14.4 in

MANUFACTURER WARRANTY

• Type
  • 1 year warranty

PRINTER

• Type
  none

PHYSICAL CHARACTERISTICS

• Form Factor
• micro tower
• Weight
  • 23.15 lbs

POWER

• Type
• power supply
• Installed Qty
  • 1
  • Max Supported Qty
  • 1
  • Min Operating Temperature
• 50 °F

• Max Operating Temperature

95 °F

OPERATING SYSTEM / SOFTWARE

- OS Certified

- Microsoft Windows Server 2003 Enterprise 64-bit Extended, Microsoft Windows Small Business Server 2003, Red Hat Enterprise Linux, SuSE Linux Enterprise Server
