BRUGSANVISNING WMT 70840 WH TEKA

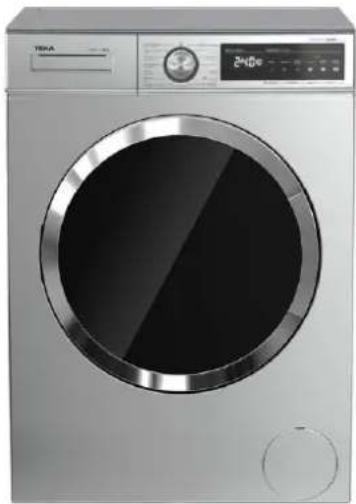

Exterior view of a silver washing machine (no visible text or symbols)

Quick Cycle

DESCRIPTION

LIFE STYLE Maestro

COLOURS

REFERENCE

PremiumCare Series Free Standing Washing Machine with 15 washing programs

REF. 113900004 EAN. 8434778016611

FEATURES

ExpertCare series

Free standing Washing Machine

Electronic control panel with display

Washing capacity: 8 kg

15 washing programs

Fast program: 15 minutes

ECO mode program

Wool care program

Delicate program

Anti-allergies mode

Delay timer function

Speed wash function

Easy ironing function

Anti-allergies function

Extra rinse function

SmartWash system

Maximum spinning speed: 1400 RPM

Automatic water regulation

Automatic door lock safety system

Child lock

Balance control system

SoftCare drum

Delay timer: 1-24 hours

30 cm wide porthole door

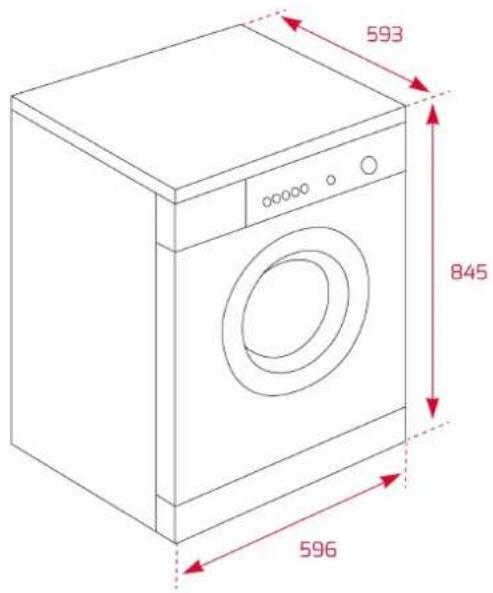

DIMENSIONS

Product height (mm): 845

Product width (mm): 596

Product depth (mm): 593

Product length (mm):

Net weight (Kg): 72

TECH SPECS

PRODUCT SHEET

Type of installation: Free standing

Energy consumption (kWh/year): 115

Water consumption (litres/year): 9680

POWER SUPPLY

Frequency (Hz): 50

Power rate (V): 220-240

Plug type: EU

Cable Connection Length (cm): 160

Maximum Nominal Power (W): 2200

Nominal power motor (W): No

Power of heating element (W): 1850

Water outlet hose length (m): 1.635

Water inlet hose length (m): 1470

PARTICULAR

CHARACTERISITICS

Stainless Steel Drum: Yes

Glass door diameter (cms): 47

Number of programs: 15

Control panel: ELECTRONIC

Electronic washing management: Yes

CONTROL INDICATOR LIGHTS

SPECIAL FUNCTIONS

EQUIPMENT

PRODUCT INFORMATION SHEET (UE) 2019/2014

Child lock: Yes

Auto lock door: Yes

Cancel spin cycle button: Yes

Removable work top: Yes

Selected program indicator: Yes

Remaining time: Yes

Fast program: Yes

Fast program (minutes): 12

Economic program: Yes

Delicate fabrics: Yes

Adjustable Feet Back: Yes

Adjustable feet front: Yes

Supplier's name or trade mark : TEKA

Supplier's address : C/Cajo, 17, 39011, Santander, Spain

Model identifier : WMT 70840 SS

General product parameters

Rated capacity for the eco 40-60 programme (Kg) : 8

Dimensions (cm)

Height : 84,5

Width : 59,6

Depth: 59,3

Consumption and efficiency

Energy Efficiency Index (a): 60

Energy efficiency class (a): B

Washing efficiency index (a): 1,04

Rinsing effectiveness (g/kg) (a): 5

Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.: 0,545

Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.: 48

Maximum temperature inside the treated textile (a) (°C)

Remaining moisture content (a) (%)

Spin speed (a) (rpm)

Rated capacity: 1330

Half: 1330

Quarter: 1330

Spin-drying efficiency class (a): B

Eco 40-60 programme duration (a) (h:min)

Other

Type: Free standing

Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW): 75

Airborne acoustical noise emission class (a) (spinning phase): B

Off-mode (W): 1

TECHNICAL DOCUMENTATION (UE) 2019/2014

Standby mode (W): 1

Delay start (W) (if applicable): 4

Networked standby (W) (if applicable): 2

Minimum duration of the guarantee offered by the supplier (b): 2

This product has been designed to release silver ions during the washing cycle YES/NO: 0

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(a) for the eco 40-60 programme.

(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Rated capacity for the eco 40-60 programme, at 0,5 kg intervals (c): 8

Energy consumption of the eco 40-60 programme at rated capacity (EW,full): 0,81

Energy consumption of the eco 40-60 programme at half rated capacity (EW, 12 ): 0.48

Energy consumption of the eco 40-60 programme at quarter rated capacity (EW,1/4): 0,3

Weighted energy consumption of the eco 40-60 programme (EW): 0,542

Standard energy consumption of the eco 40-60 programme (SCEW): 0,909

Energy Efficiency Index (EEIW): 59,6

Water consumption of the eco 40-60 programme at rated capacity (WW,full): 49

Water consumption of the eco 40-60 programme at half rated capacity (WW, 12 ): 44

Water consumption of the eco 40-60 programme at quarter rated capacity (WW,1/4): 41

Weighted water consumption (WW): 45

Washing efficiency index of the eco 40-60 programme at rated capacity (lw): 1,05

Washing efficiency index of the eco 40-60 programme at half rated capacity (lw): 1,06

Washing efficiency index of the eco 40-60 programme at quarter rated capacity (lw): 1,06

Rinsing effectiveness of the eco 40-60 programme at rated capacity (IR): 4,8

Rinsing effectiveness of the eco 40-60 programme at half rated capacity (IR): 4,6

Rinsing effectiveness of the eco 40-60 programme at quarter rated capacity (IR): 4,5

Spin speed in the spinning phase of the eco 40-60 programme at rated capacity (S): 1331

Spin speed in the spinning phase of the eco 40-60 programme at half rated capacity (S): 1332

Spin speed in the spinning phase of the eco 40-60 programme at quarter rated capacity (S): 1335

Airborne acoustical noise emissions during eco 40-60

programme (spinning phase): 75

Power consumption in 'off mode' (Po): 0,5

Power consumption in 'standby mode' (Psm): 1

Power consumption in 'standby mode' (Psm) in condition of networked standby (if applicable): 2

Power consumption in 'delay start' (Pds) (if applicable): 4

Additional information:

(c) where appropriate, the references of the harmonised standards

applied;

(d) where appropriate, the other technical standards and specifications used;
(e) the details and the results of calculations performed in accordance with Annex IV;
(f) a list of all equivalent models including the model identifier.

ENERGY LABEL
