Printing a Mounting Template

NOTICE

It is not recommended that you print a mounting template on your own. Use the template that came in the product box.

If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

1 Select File > Print.

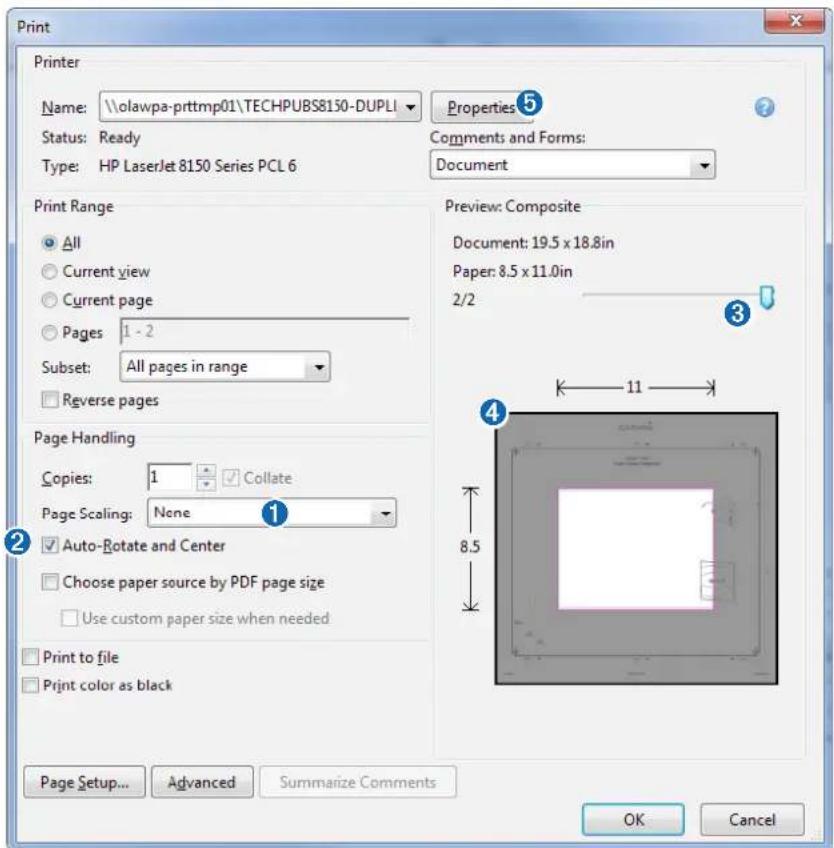

Print Printer Name: \olawpa-prttmp01\TECHPUBS8150-DUPLI Status: Ready Type: HP LaserJet 8150 Series PCL 6 Properties 5 Comments and Forms: Document Print Range All Current view Current page Pages 1 - 2 Subset: All pages in range Reverse pages Preview: Composite Document: 19.5 x 18.8in Paper: 8.5 x 11.0in 2/2 Page Handling Copies: 1 Collate Page Scaling: None Auto-Rotate and Center Choose paper source by PDF page size Use custom paper size when needed Print to file Print color as black 8.5 11 4 Page Setup... Advanced Summarize Comments OK Cancel

2 Select None for Page Scaling ①.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.

In this example, the paper is not larger than the template.

5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.

NOTICE

Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.

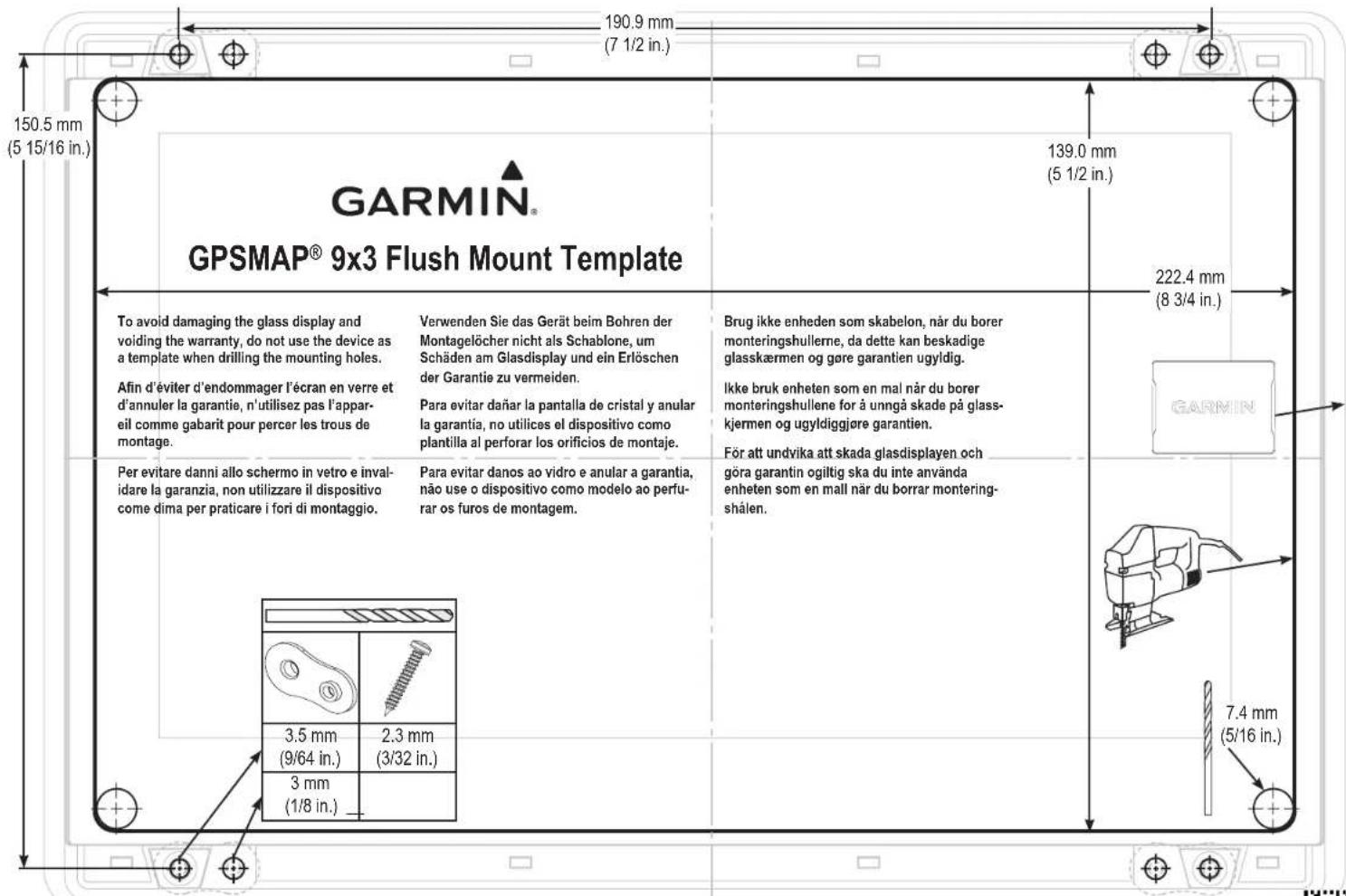

150.5 mm (5 15/16 in.) GARMIN® GPSMAP® 9x3 Flush Mount Template 190.9 mm (7 1/2 in.) 139.0 mm (5 1/2 in.) 222.4 mm (8 3/4 in.) To avoid damaging the glass display and voiding the warranty, do not use the device as a template when drilling the mounting holes. Afin d'éviter d'endommager l'écran en verre et d'annuler la garantie, n'utilisez pas l'appar- eil comme gabarit pour percer les trous de montage. Verwenden Sie das Gerät beim Bohren der Montagelöcher nicht als Schablone, um Schäden am Glasdisplay und ein Erlöschen der Garantie zu vermeiden. Para evitar dañar la pantalla de cristal y anular la garantía, no utilices el dispositivo como plantilla al perforar los orificios de montaje. Brug ikke enheden som skabelon, när du borer monteringshullerne, da dette kan beskadige glasskærmen og gøre garantien ugyldig. Ikke bruk enheten som en mal när du borer monteringshullene for å unngå skade på glass- kjermen og ugyldiggjøre garantien. För att undvika att skada glasdisplayen och göra garantin ogiltig ska du inte använda enheten som en mall när du borrar montering- shålen. Per evitare danni allo schermo in vetro e inval- idare la garanzia, non utilizzare il dispositivo come dima per praticare i fori di montaggio. Para evitar danos ao vidro e anular a garantia, não use o dispositivo como modelo ao perfu- rar os furos de montagem.
