BRUGSANVISNING IC-M85 ICOM

OPTIONS

BATTERY PACK AND CASE
BP-290RechargeableIon batterywith intelligentreporting,1910 mAh (min),2010 mAh (typ.),IP67 Waterproof	BP-291Battery caseLR6 (A-A) 5,IP54 Waterresistance

CONNECTABLE TYPE CHARGER

BC-228BC-226

Connects up to six BC-226 units Charges the PB

INTELLIGENT CHARGER DESKTOP CHARGERS

BC-225 BC-123S* Shows the charging information with LED lighting. Charges the BP-290 in 2.5 hours. (approx.)

BC-227 BC-123S* Charges the BP-290 in 2.7 hours. (approx.)

BC-219N BC-123S* Charges the BP-290 in 2.5 hours. (approx.)

* SE for Europe plug. SUK for UK plug. SV for Australia plug.

BELT CLIPS		BELT HANGERS		ACC ADAPTOR
MBB-3Alligator type.	MB-136Swivel type.	MB-96NSwivel type.	MB-96FFixed type.	MB-96FLLong type.
				AD-11814-pin multi-corrector to6-pin Hirose connector

SOFTWARE

• RS-BC225 : Intelligent charger software for Windows. * PC. For use with BC-225.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. AQUAQUAKE is a trademark of Icom Incorporated. Windows is either a registered trademark or a trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks are the properties of their respective holders.

Icom Inc.

1-1-32, Kamiminami, Hirano-Ku, Osaka 547-0003, Japan Phone: [phone] Fax: [phone] www.icom.co.jp/world

Count on us!

Icom America Inc.

12421 Wilcox Road NE.

Kirkland, WA 98034, U.S.

Phone: [phone]

Fax: [phone]

E-mail: sales@icomamer URL: http://www.jocmam

。

Icom Canada

Glenwood Centre #150-6168

Highway 17A, Delta, B.C.,

V4K 5B8, Canada Phone: [phone]

Fax: [phone]

E-mail: info@icomcanada

DHL: http://www.iescma

Icom Brazil

Rua Hororó, 444 Padre

Belo Horizonte MG,

CEP: 30720-450, Brazil Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Icom (Europe) GmbH

Communication Equipment

Auf der Krautweide 24

65812 Bad Boden am Taunus, Germany

Phone: [phone] Fax: [phone]

E-mail: [e-mail]

URL: http://www.jcomeurope.com

Icom Spain S.L

Ctra. Rubi, No. 88 "Edificio Can Castanyer"

Bajos A 08174, Sant Cugat del Valles,

Barcelona, Spain Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

loom (UK) Ltd

Icon (OK) Ltd.

Blackdale House, Altra Park, Heme Bay, Kent. CT8 6GZ, UK

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Your local distributor/dealer:

[Non-Text]

17NHH522A © 2017 Icom Inc. Printed in Japan

ICOM

IC-M85

VHF MARINE TRANSCEIVER

A Marine and Land Mobile Radio Combined in One

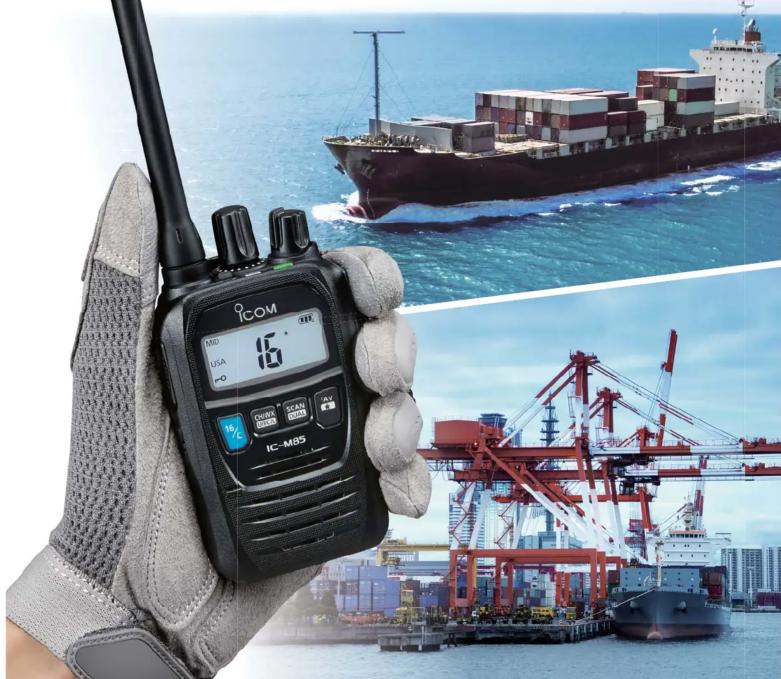

Hand holding a 9COM radio station with a cargo ship and port cranes in the background (no readable text or symbols on main subjects)

Ultra Compact and Powerful Marine Handheld with Land Mobile Features

Compact and Lightweight

The IC-M85 is the most compact (W×H×D: 56 × 92 × 29 mm; 2.2 × 3.6 × 1.1 in) and lightweight (weight: 246 g; 8.7 oz (with BP-290, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio in the world*. * As of November 2017, researched by Ionom

Covering 136–174 MHz Land Mobile Frequency

In addition to VHF marine channels, the IC-M85 covers 136–174 MHz land mobile channels. Up to 100 programmable channels are available for land mobile use. Each channel is programmable with CTCSS and DTCS tone.

700 mW Powerful Audio

Despite its compact body, the IC-M85 delivers 700 mW of loud audio. Clear communications is vital in noisy environments.

Private Conversation

The radio has a built-in Voice Scrambler and provides private communication between stations (32-code, compatible with UT-112 voice scrambler unit).

Automated Emergency Alarm

The IC-M85 has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.

Instant Operation with Multi-Function Button

Channel group changing (marine land mobile) or the scrambler function ON/OFF can be assigned

in the multi-function button on the top panel*. The Key lock function can be activated by holding the button.

* Ask your dealer for details.

Multi-function button

IP67 and MIL-STD Rugged Construction

The IC-M85 is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.

And More

“AquaQuake” prevents audio degradation from a water-logged speaker

Internal VOX capability for hands-free operation

14 hours of long battery life (TX: RX: Standby=5:5:90.)

5 W output power (land mobile channels for USA: 2 W)

Weather channel receiving

The self check function checks internal temperature, and connected

battery voltage (over voltage detection)

Monitor function Priority scan function

Dual/Tri-watch function for monitoring CH16 and/or call channel

Favorite channel function for quick access to often used channels

Supplied accessories;

VHF MARINE TRANSCEIVER

IC-M85

* SA for USA plug. SE for Europe plug.

Variety of Audio Accessories

Submersible Speaker-Microphones

Hands-Free Operation with Headsets

Earphones and Speaker Microphones for Noisy Environments

* With 3.5 mm plug.

Stylish Operation with Tie-Clip Microphone and Earphones

* With 2.5 mm plug.

Covert Earphone
