BRUGSANVISNING PCI 18S1 PRIVILEG

THANK YOU FOR BUYING OUR PRODUCT

Before using the appliance carefully read the Safety Instruction.

PRODUCT DESCRIPTION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. Position the antibacterial anti-odour filter in the fan as demonstrated in the filter packaging (if available). If the audible signal sounds, it means that the temperture alarm has intervened: press the button to switch off the acoustic alarms.

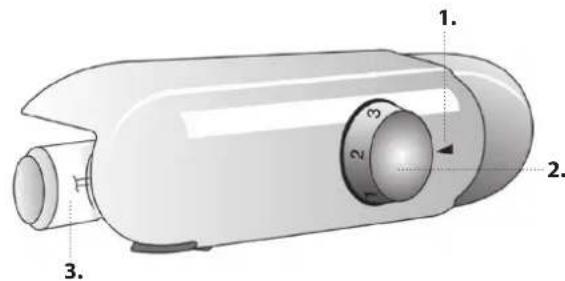

CONTROL PANEL

1. 2. 3.

FREEZING FRESH FOOD

Place the fresh food to be frozen in the FREEZING ZONE in the freezer compartment avoiding the direct contact with the food that is already frozen. To optimize the freezing speed, the lower drawer can be removed and the food can be placed directly on the bottom of the compartment.

FAN\*

You can turn the Fan on/off by pressing the button on the base (as shown in the figure). If the ambient temperature

exceeds 27°C, or if drops of water are present on the glass shelves, it is essential that the fan is on to ensure the proper preservation of the food. Deactivation of the fan allows energy consumption to be optimised.

FREEZER AND REFRIGERATOR COMPARTMENT TEMPERATURE

This Fridge/Freezer is switched on using the thermostat located inside the refrigerator compartment. The temperature of both compartments is adjusted by turning the thermostat knob.

Thermostat set to 1/2 : minimum refrigeration (less cold)

Thermostat set to 3-5 : medium refrigeration

Thermostat set to 6/7 : maximum refrigeration (colder)

Setting the Thermostat knob to • turns the whole appliance off (no refrigeration, no light).

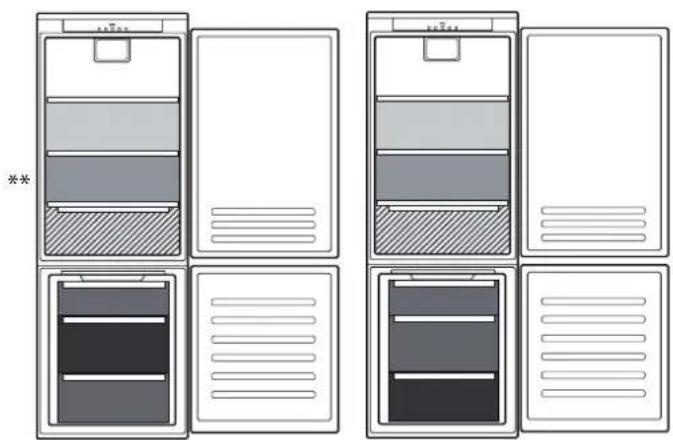

HOW TO STORE FOOD AND BEVERAGE

***

***

** For models with "0 ° ZONE" COMPARTMENT the "coolest area" is the one highlighted in the legend
*** Only for CB310 e CB380 models (refer to the Rating plate located at side of Fruit and vegetable drawer)

Legend

TEMPERATE ZONE

Suggested for the storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for the storage of cheese, milk, daily food, delicatessen, yogurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

FRUIT & VEGETABLE DRAWER

FREEZER DRAWERS

FREEZING ZONE DRAWER

(Max cool zone)

Suggested to freeze fresh/cooked food.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The appliance doesn't work.	There may be an appliance power supply problem.	Make sure:there is not a power outage;the plug is properly inserted in the power socket and the double-pole switch (if present) is in the correct position (on);the household electrical system protection devices are efficient;the power cable is not damaged;the thermostat knob is not turned to “•”.
The inside light does not work.	It may be necessary to replace the light bulb.	Disconnect the appliance from the power supply and contact the Technical Assistance Service if you need a replacement.
The internal temperature of the compartments is not cold enough.	The reasons could vary (see “Solution”) column.	Check that:the doors are closed properly;the appliance is not installed near a heat source;the temperature is appropriately set;the circulation of air through the ventilation grilles on the base of the appliance is not obstructed.
There is water on the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrosting water drain (see section “Cleaning and Maintenance”).
Excessive amount of frost in the freezer compartment.	The door to the freezer compartment is not closed properly.	Check that there is nothing preventing the door from closing properly.Defrost the freezer compartment.Make sure the appliance has been correctly installed.
The front edge of the appliance that the door gaskets seal against is hot.	This is not a problem. It prevents condensation from forming.	A solution is not needed.
The temperature of the refrigerator compartment is too cold.	The set temperature is too cold.A large amount of fresh food may have been placed in the freezer compartment.	Try to set a less cold temperature.If fresh food has been put in the freezer compartment, wait until the freezing has been completed.Turn off the fan (if present) described in the paragraph “FAN”.

You can obtain the Safety Instructions, User Manual, Product Fiche and Energy data contacting our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
