BRUGSANVISNING TL-ANT2412D TP-LINK

2.4Hz 12dBi Outdoor Omni-directional Antenna

MODEL: TL-ANT2412D

Features

-12dBi Omni-directional operation highly enlarges the wireless coverage
-N female connector, compatible with most of the wireless equipments
-Weather proof design, suitable for all weather condition
-Provided mounting kits enable easy installation for various environments

Description

TL-ANT2412D operates in the 2.4-2.5 GHz band and provides 12dBi

Omni-directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the N female connector guaranteeing wider compatibility with most of the wireless equipments. Also, the weather proof design ensures that it can work normally for various demanding outdoor solutions.

Radiation Patterns

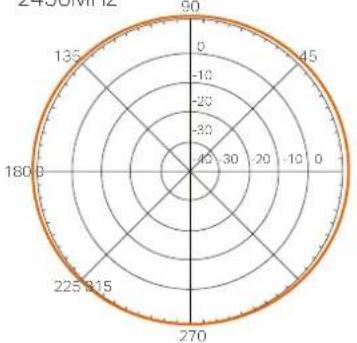

H-Plane Co-Polarization Pattern 2450MHz
TP-LINK TL-ANT2412D - Radiation Patterns - 1

radar | Angle | Value | |-------|-------| | 0° | 90 | | 45° | 45 | | 90° | 0 | | 135° | -30 | | 180° | -30 | | 225° | -30 | | 270° | -30 |

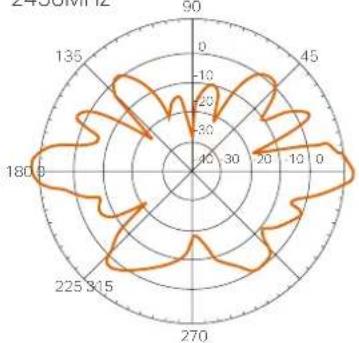

V-Plane Co-Polarization Pattern 2450MHz
TP-LINK TL-ANT2412D - Radiation Patterns - 2

radar | Angle | Value | |-------|-------| | 0 | 90 | | 45 | 135 | | 90 | 180 | | 135 | 225 | | 180 | 270 | | 225 | 315 | | 270 | 360 |

TP-LINK TL-ANT2412D - Radiation Patterns - 3

Specifications

Frequency Range 2.4GHz~2.5GHz
S.W.R. <= 2.0
Antenna Gain 12 dBi
Polarization Linear
Impedance 50 Ohms
Application Outdoor
HBBW @ H-Plane 360 Degree Omni-Directional
HPBW @ E-Plane <= 12 Degree
Material of Radiator Cu & Zn-Alloy
Material of Plastic Body Glass Fiber
Connector Type N Jack
Operation Temperature - 40 °C ~ + 65 °C
Standards RoHS, WEEE

Diagram

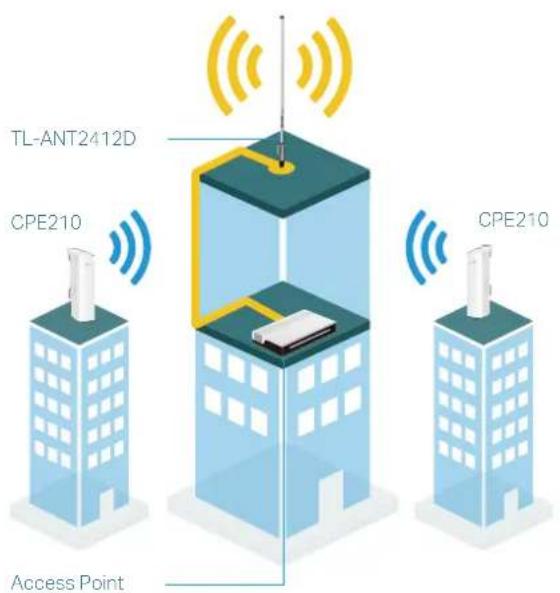

Point to Multi-Point Application(PTMP)
TP-LINK TL-ANT2412D - Diagram - 1

text_image TL-ANT2412D CPE210 Access Point CPE210

Package

  • 12Bi Outdoor Omni-directional Antenna
  • Installation mounting kits
  • User Guide

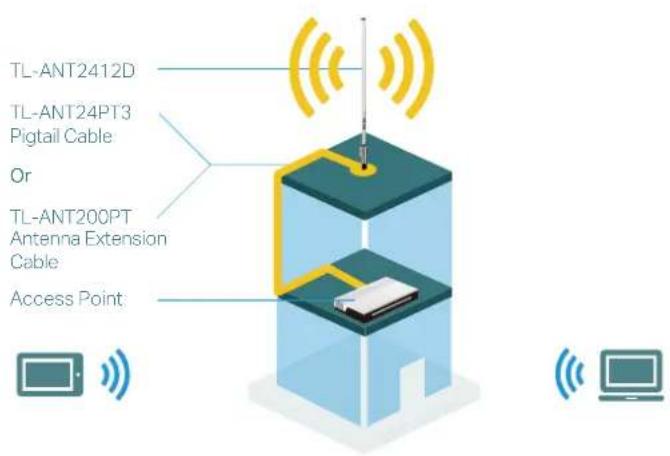

Wi-Fi Coverage Application
TP-LINK TL-ANT2412D - Package - 1

text_image TL-ANT2412D TL-ANT24PT3 Pigtail Cable Or TL-ANT200PT Antenna Extension Cable Access Point
  • 2.4GHz 150Mbps Outdoor Wireless Access Point TL-WA7210N
  • 150Mbps Wireless N Access Point TL-WA701ND
