BRUGSANVISNING TL-ANT2409A TP-LINK

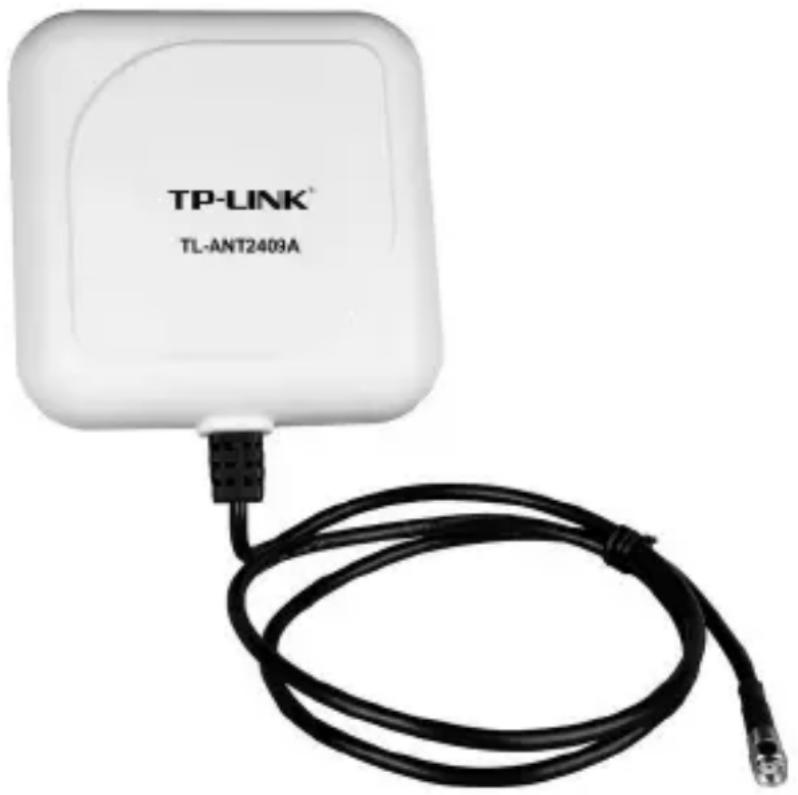

User Guide

TL-ANT2409A

2.4GHz 9dBi Directional Antenna

EAC

REV1.0.2 7106506238

Specifications are subject to change without notice. TP-LINK ^® is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.

TP-LINK TL-ANT2409A - COPYRIGHT & TRADEMARKS - 1

natural_image White TP-LINK TL-ANT2409A wireless router with black cable (no visible text or symbols on device body)

Specification

Electrical Properties:

➢ Frequency Range: 2.4GHz \~ 2.5GHz
▶ Impedance: 50Ω Nominal
VSWR: 1.92 Max.
▶ Return Loss: -10dB Maximum
Radiation: Directional
Gain: 9dBi
Admitted Power: 1W

Physical Properties:

Cable: CFD-200 Coaxial Cable
Antenna Cover: ABS
➢ Operating Temp: -20°C \~ +65°C
Storage Temp: -30°C \~ +75°C
Color: Gray
Connector: RP-SMA Plug (male)

Website: http://www.tp-link.com

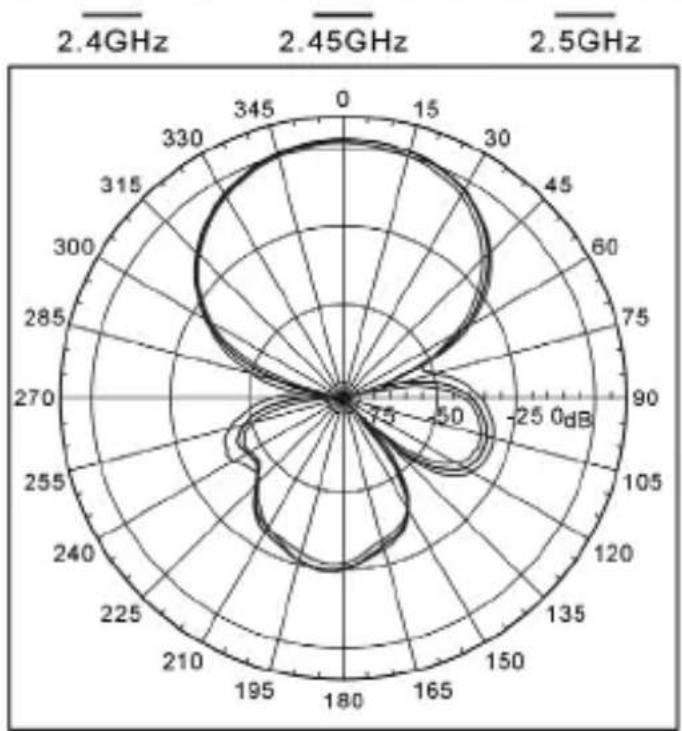

Field Pattern

Far-field amplitude of MGS-DS-09-H-2-5.nsi
TP-LINK TL-ANT2409A - Field Pattern - 1

radar | Frequency | Value | | --------- | ----- | | 2.4GHz | -75 | | 2.45GHz | -25 | | 2.5GHz | -25 |

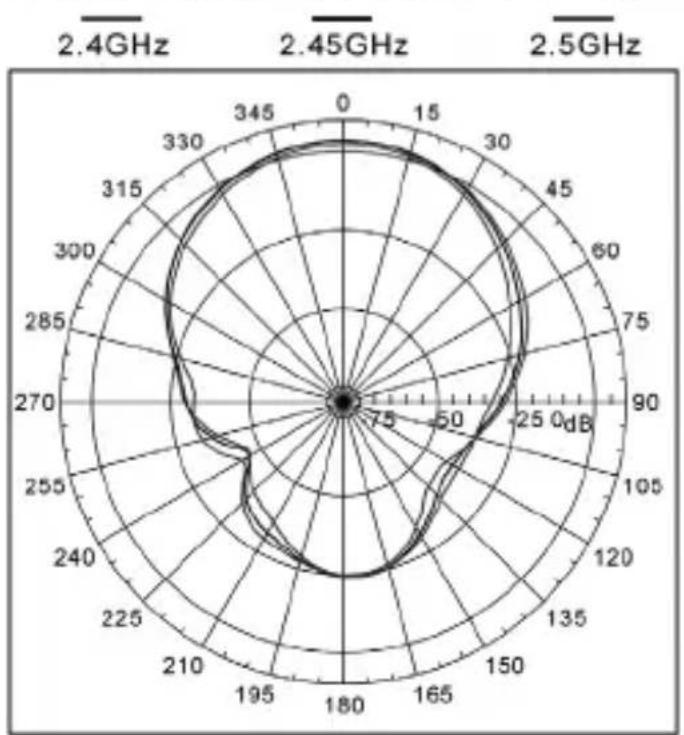

Far-field amplitude of MGA-DS-09-V-X2-4.nsi
TP-LINK TL-ANT2409A - Field Pattern - 2

radar | Frequency | Value (dB) | | --------- | ---------- | | 2.4GHz | -75 | | 2.45GHz | -50 | | 2.5GHz | -25 |

Installation

There are two methods to install the antenna:

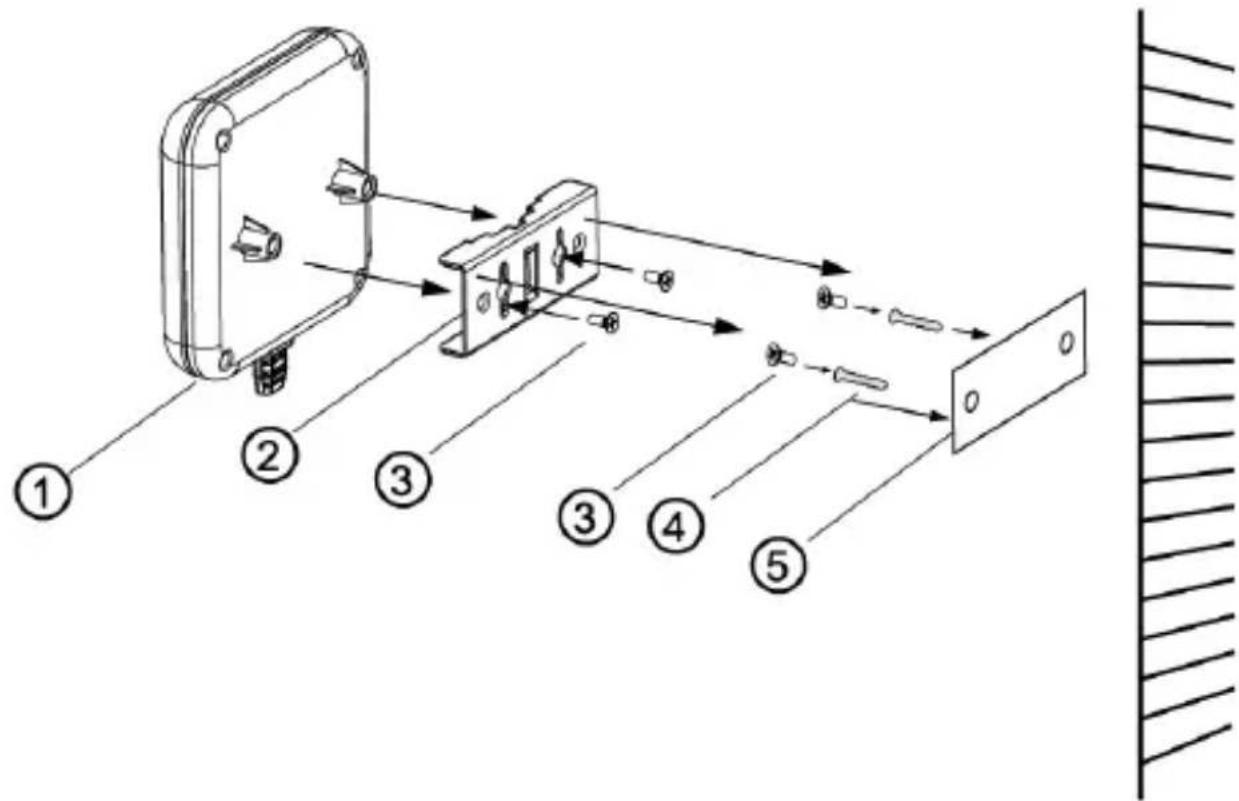

1. Wall Mounting

① Antenna 1 pc
② Holder 1 pc
③ Screws 4 pcs
④ Plastic Fixings 2 pcs
⑤ Sticker 1 pc

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

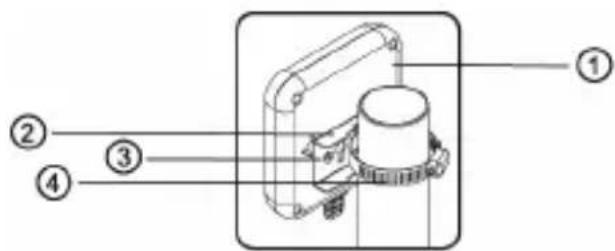

2. Pole Mounting

① Antenna 1 pc
② Holder 1 pc
③ Screws 2 pcs
④ Hose Clamp 1 pc

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

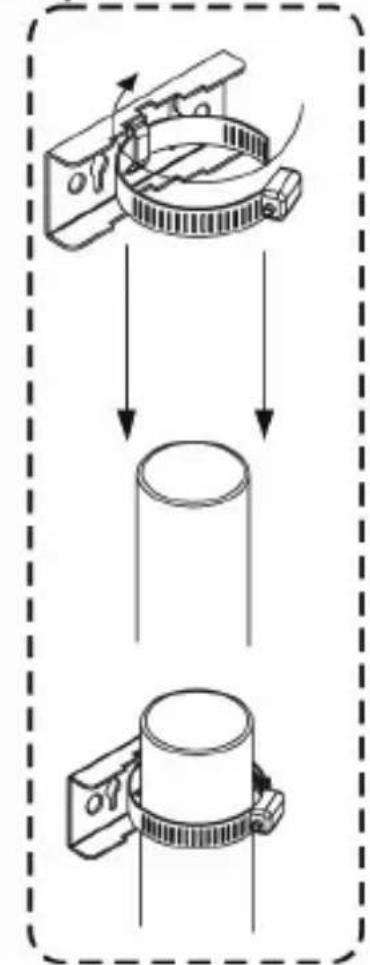

Step 1
TP-LINK TL-ANT2409A - Pole Mounting - 2


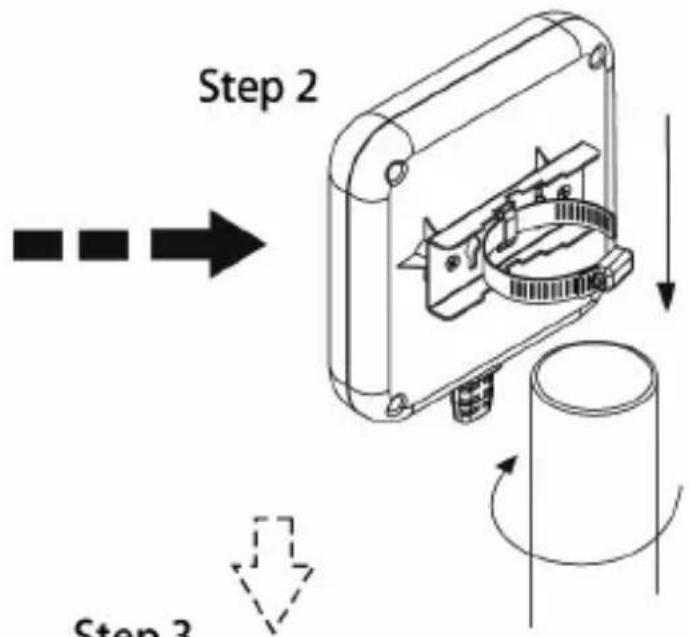

Step 2 Step 3

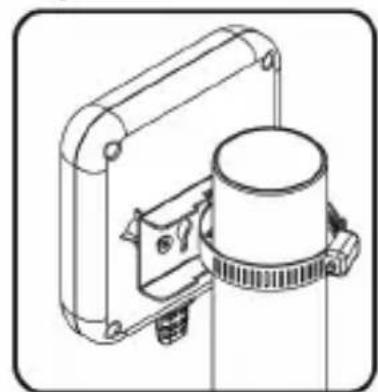

Step 3
TP-LINK TL-ANT2409A - Pole Mounting - 4

natural_image Technical line drawing of a mechanical component with no visible text or symbols

Finish
TP-LINK TL-ANT2409A - Pole Mounting - 5

natural_image Pure mechanical assembly diagram with no text, numbers, or symbols
