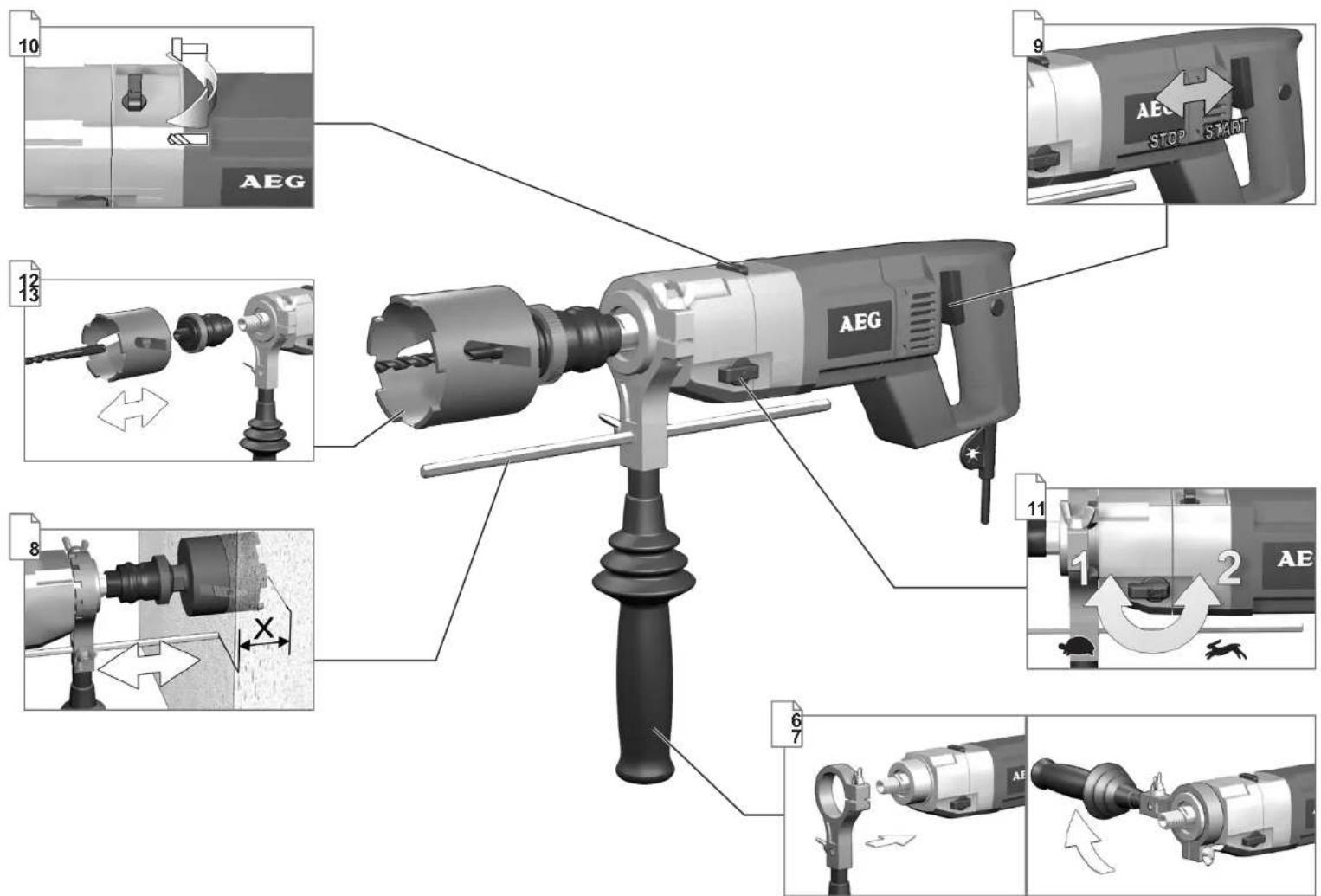

TECHNICAL DATA

Rated input	1510 W
Output	820 W
No-load speed, 1st gear	0-1500 min-1
No-load speed, 2nd gear	0-3000 min-1
Speed under load max., 1st gear	890 min-1
Speed under load max., 2nd gear	1770 min-1
Percussion rate max.	48000 min-1

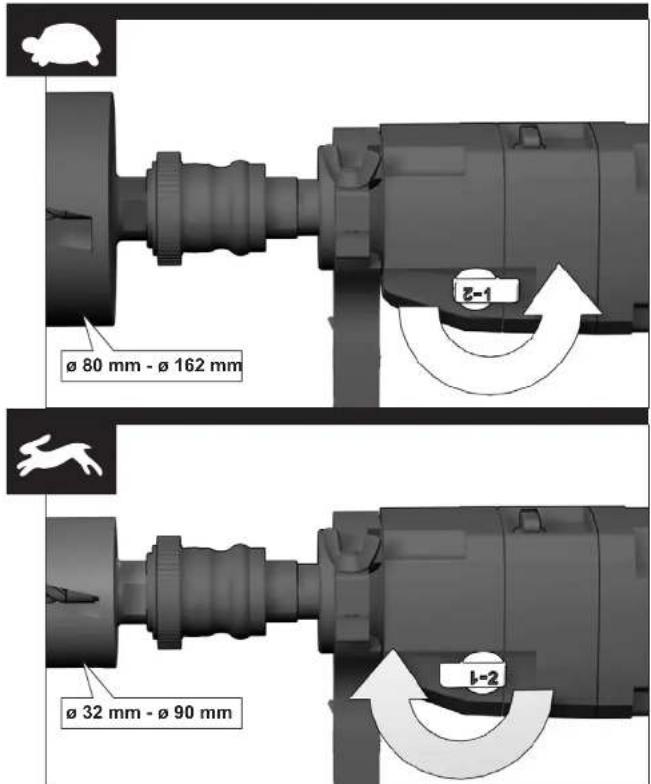

Drilling capacity, 1st gear	80-162 mm
Drilling capacity, 2nd gear	32-90 mm
Drive shank	M18
Gear neck diameter	57 mm
Weight without cable	4,2 kg
Typical weighted acceleration in the hand-arm area	12 m/s-1
Typical A-weighted sound levels:
Sound pressure level (K = 3 dB(A))	100 dB (A)
Sound power level (K = 3 dB(A))	111 dB (A)
Measured values determined according to EN 60 745.

⚠ WARNING! Read all safety warnings and all instructions, including those given in the accompanying brochure. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

SAFETY INSTRUCTIONS

Wear ear protectors. Exposure to noise can cause hearing loss.

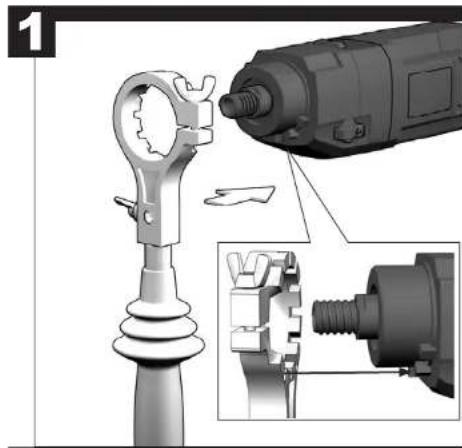

Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Contact with a „live“ wire will also make exposed metal parts of the power tool „live“ and shock the operator.

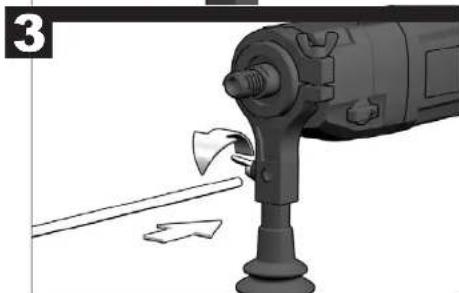

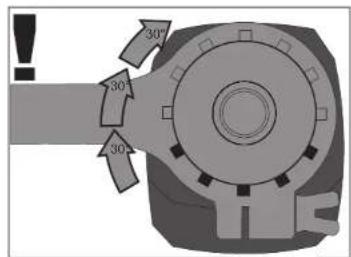

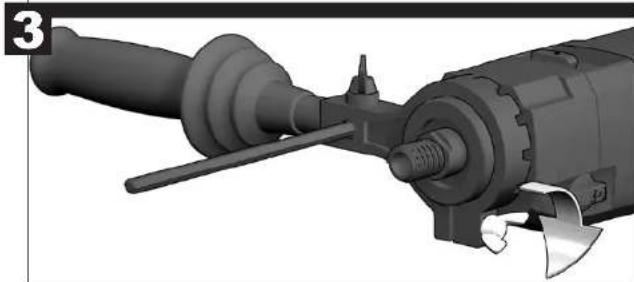

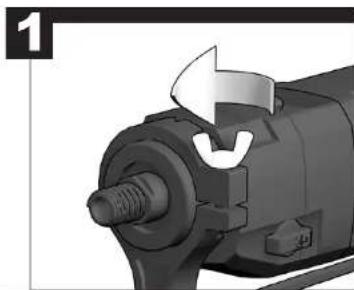

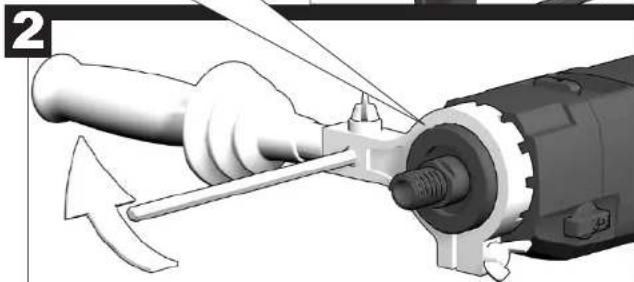

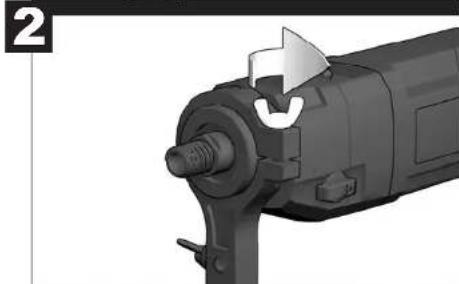

When working with large drill diameters, the auxiliary handle must be fastened in a right angle with the main handle (see illustrations, section "Twisting the handle").

The built-in friction clutch only reacts to jerky locking, which is why you should always use the additional handle.

Appliances used at many different locations including open air must be connected via a current surge preventing switch.

Always wear goggles when using the machine. It is recommended to wear gloves, sturdy non slipping shoes and apron.

Sawdust and splinters must not be removed while the machine is running.

The dust that arises when working with this tool can be detrimental to health and therefore not reach the body. Wear a suitable dust protection mask.

Always disconnect the plug from the socket before carrying out any work on the machine.

Only plug-in when machine is switched off.

Keep mains lead clear from working range of the machine. Always lead the cable away behind you.

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

SPECIFIED CONDITIONS OF USE

The diamond drill can be used to drill with diamond dry drill bits. With drill chuck mounted the machine is suitable for percussive drilling in rock and drilling holes in wood and steel. The machine is not suitable for wet drilling in concrete. Do not use this product in any other way as stated for normal use.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents. EN 60745, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, in accordance with the regulations 98/37/EC, 2004/108/EC

Winnenden, 2009-01-05

Rainer Kumpf r Product Development

MAINS CONNECTION

Connect only to single-phase a.c. current and only to the system voltage indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.

PROTECTION OF MOTOR IN CASE OF OVERLOAD

Motor protection device controlled by motor load. The machine will slowly continue to run in order to cool the motor down. After sufficient cooling machine can be restarted by switching off and on again.

SOFT PERCUSSION

Depending on the material that is to be machined, soft percussion may result in a sharp reduction in drilling time or a longer tool life for the diamond segments.

ADVICE FOR OPERATION

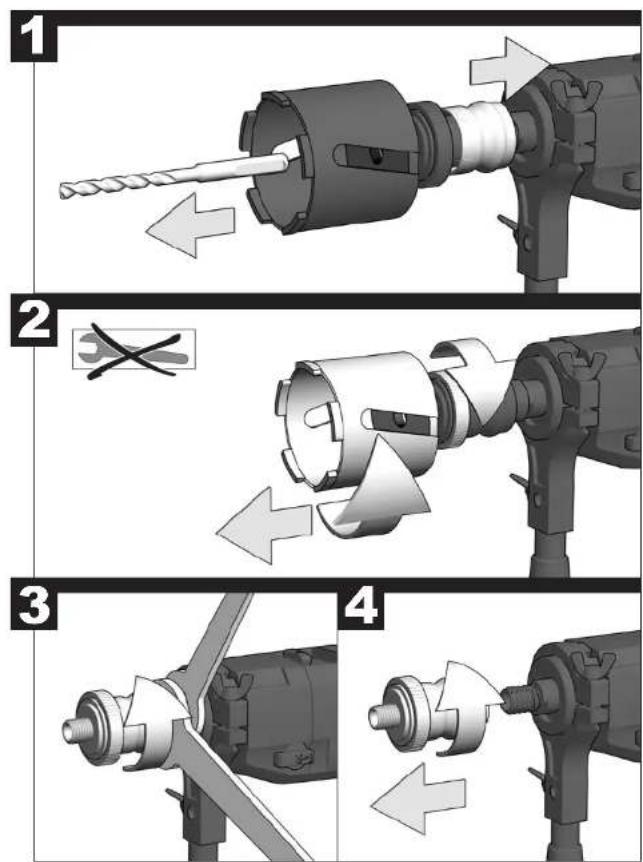

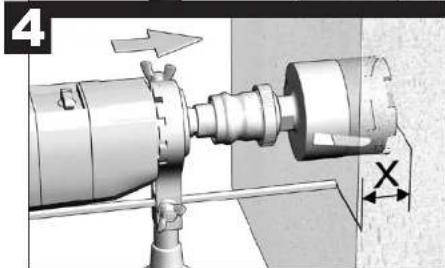

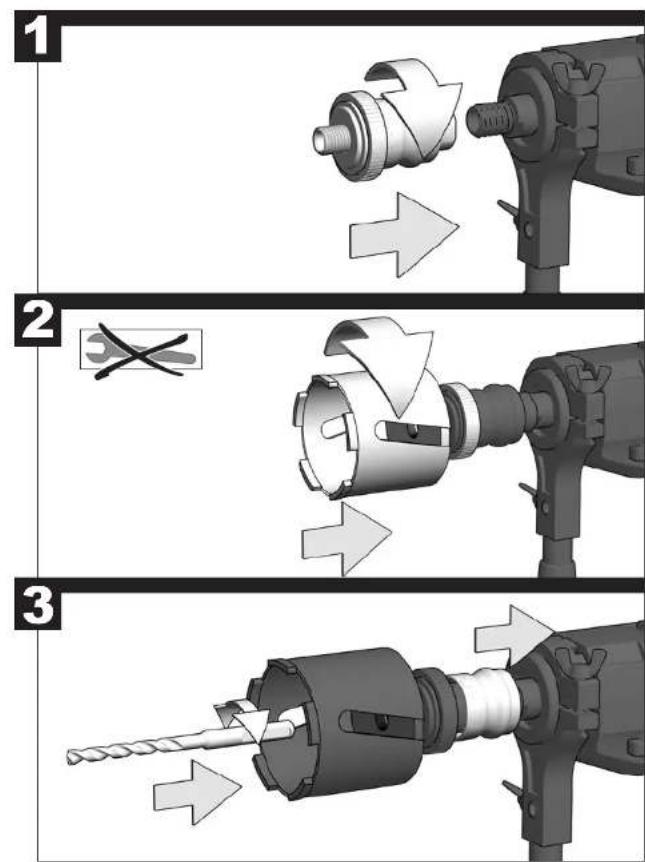

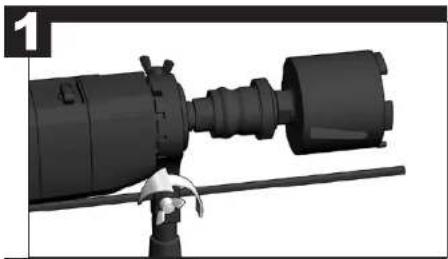

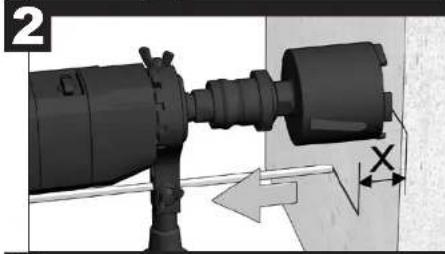

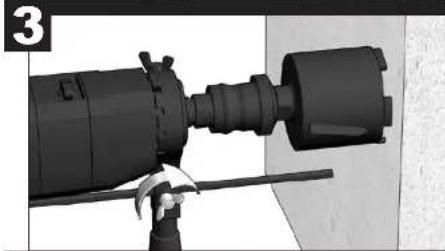

To gain a better drill progress take out the centre bit after having reached a depth of about 10-15 mm. Insert core cutter into the existing groove and let machine run up smoothly.

Bore-holes which don't have to be applied exactly can be drilled without a centre bit. For that purpose apply the core cutter slantingly and put the machine slowly straight when a depth of about 5 mm has been reached. (This is only possible when using short core cutters!)

If drill cores should come loose, take core cutter from the material and remove drill cores.

For best performance the diamond segments should be "roughed-up" to expose the fragments of diamond: To expose the diamond fragments rub surface of segments with stone

MAINTENANCE

The ventilation slots of the machine must be kept clear at all times.

Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: AEG Elektrowerkzeuge, Max-Eyth-Straße 10, D-71364 Winnenden, Germany.

SYMBOLS

Please read the instructions carefully before starting the machine.

Always disconnect the plug from the socket before carrying out any work on the machine.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

14 16NGLISH ENGLISH

TECHNISCHE DATEN

Nennaufnahmeleistung	1510 W
Abgaboleistung	820 W
Leerlaufdrehzahl im 1. Gang	0-1500 min
Leerlaufdrehzahl im 2. Gang	0-3000 min
Lastdrehzahl max. im 1. Gang	890 min
Lastdrehzahl max. im 2. Gang	1770 min
Leerlaufschlagzahl max.	48000 min
Bohr-ø im 1. Gang	80-162 mm
Bohr-ø im 2. Gang	32-90 mm
Bohrspindel	M18
Spannhalssø	57 mm
Gewicht ohne Netzkabel	4,2 kg
Typisch bewertete Beschleunigung im Hand-Arm-Bereich	12 m/s
Typische A-bewertete Schallpegel:
Schalldruckpegel (K = 3 dB(A))	100 dB (A)
Schalleistungspegel (K = 3 dB(A))	111 dB (A)
Messwerte ermittelt entsprechend EN 60 745.

⚠️WARNUNG! Lesen Sie alle Sicherheitshinweise und Anweisungen, auch die in der beiliegenden Broschüre. Versäumnisse bei der Einhaltung der Sicherheitshinweise und Anweisungen können elektrischen Schlag, Brand und/oder schwere Verletzungen verursachen. Bewahren Sie alle Sicherheitshinweise und Anweisungen für die Zukunft auf.

SPEZIELLE SICHERHEITSHINWEISE

Tragen Sie Gehörschutz. Die Einwirkung von Lärm kann Gehörverlust bewirken.

Benutzen Sie die mit dem Gerät gelieferten Zusatzhandgriffe. Der Verlust der Kontrolle kann zu Verletzungen führen.

Halten Sie das Gerät an den isolierten Griffflächen, wenn Sie Arbeiten ausführen, bei denen das Einsatzwerkzeug verborgene Stromleitungen oder das eigene Kabel treffen kann. Der Kontakt mit einer spannungsführenden Leitung setzt auch die metallenen Geräteteile unter Spannung und führt zu einem elektrischen Schlag.

Bei großen Bohrdurchmessem muss der Zusatzhandgriff rechtwinklig zum Haupthandgriff befestigt werden (siehe auch im Bildteil, Abschnitt "Handgriff verdrehen").

Die eingebaute Rutschkupplung spricht nur bei ruckarligem Blockieren an, deshalb Zusatzhandgriff immer benutzen. Steckdosen in Außenbereichen müssen mit Fehlerstrom-Schutzschaltern ausgerüstet sein. Das verlangt die Installationsvorschrift für Ihre Elektroanlage. Bitte beachten Sie das bei der Verwendung unseres Gerätes.

Beim Arbeiten mit der Maschine stets Schutzbrille tragen. Schutzhandschuhe, festes und rutschsicheres Schuhwerk und Schürze werden empfohlen.

Späne oder Splitter dürfen bei laufender Maschine nicht entfernt werden.

Beim Arbeiten entstehender Staub ist oft gesundheitsschädlich und sollte nicht in den Körper gelangen. Geeignete Staubschutzmaske tragen. Vor allen Arbeiten an der Maschine Stecker aus der Steckdose ziehen.

Maschine nur ausgeschaltet an die Steckdose anschließen. Anschlußkabel stets vom Wirkungsbereich der Maschine fernhalten. Kabel immer nach hinten von der Maschine wegführen.

Beim Arbeiten in Wand, Decke oder Fußboden auf elektrische Kabel, Gas- und Wasserleitungen achten.

BESTIMMUNGSGEMÄße VERWENDUNG

Die Diamantbohrmaschine ist einsetzbar zum Bohren mit Diamant-Trockenbohrkronen. Mit aufgesetztem Bohrfutter ist die Maschine geeignet zum Schlagbohren in Gesteln und zum Bohren in Holz und Stahl. Die Maschine ist nicht geeignet zum Nassbohren in Beton.

Dieses Gerät darf nur wie angegeben bestimmungsgemäß

CE-KONFORMITÄTSERKLÄRUNG

Wir erklären in alleiniger Verantwortung, dass dieses Produkt mit den folgenden Nomen oder normativen Dokumenten übereinstimmt. EN 60745, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, gemäß den Bestimmungen der Richtlinien 98/37/EG, 2004/108/EG

Winnenden, 2009-01-05

Rainer Kumpf Manager Product Development

NETZANSCHLUSS

Nur an Einphasen-Wechselstrom und nur an die auf dem Leistungsschild angegebene Netzspannung anschließen. Anschluss ist auch an Steckdosen ohne Schutzkontakt möglich, da ein Aufbau der Schutzklasse II vorliegt.

BELASTUNGSABHÄNGIGER MOTORSCHUTZ

Bei hoher Motorüberlastung wird der Überlastschutz ausgelöst. Die Maschine läuft langsam weiter zum Kühlen der Motorwicklung. Erst nach ausreichender Kühlung ist ein Einschalten der Maschine möglich, hierzu Maschine aus- und wieder einschalten.

SOFTSCHLAG

Abhängig vom zu bearbeitenden Werkstoff, kann der Softschlag eine deutliche Reduzierung der Bohrzeit oder eine längere Standzeit der Diamantsegmente bewirken.

ARBEITSHINWEISE

Zum Erreichen eines größeren Bohrfortschritts nach ca 10-15 mm Bohrtiefe den Zentrierbohrer herausnehmen, Bohrkrone in vorhandene Rille einsetzen und Maschine langsam anlaufen lassen.

Bohrungen welche nicht exakt angesetzt werden müssen, können ohne Zentrierbohrer durchgeführt werden. Hierzu die Bohrkrone schräg ansetzen und ab einer Bohrtiefe von ca. 5 mm die Maschine langsam gerade richten. (Nur bei kurzen Bohrkronen möglich).

Sollten sich Bohrkerne lösen, Bohrkrone aus dem Material herausziehen und Bohrkerne entfernen.

Eine geschärfte Bohrkrone erleichtert die Anwendung und den Bohrfortschnitt. Schärfmöglichkeiten: In Kalksandstein oder in einer Schärfplatte

WARTUNG

Stets die Lüftungsschlitze der Maschine sauber halten. Nur AEG Zubehör und Ersatzteile verwenden. Bauteile, deren Austausch nicht beschrieben wurde, bei einer AEG Kundendienststelle auswechseln lassen (Broschüre Garantie/Kundendienstadressen beachten).

Bei Bedarf kann eine Explosionszeichnung des Gerätes unter Angabe der Maschinen Type und der zehnstelligen Nummer auf dem Leistungsschild bei Ihrer Kundendienststelle oder direkt bei AEG Elektrowerkzeuge, Max-Eyth-Straße 10, D-71364 Winnenden, Germany angefordert werden.

SYMBOLE

Bitte lesen Sie die Gebrauchsanweisung vor Inbetriebnahme sorgfältig durch.

Vor allen Arbeiten an der Maschine Stecker aus der Steckdose ziehen.

Zubehör - Im Lieferumfang nicht enthalten, empfohlene Ergänzung aus dem Zubehörprogramm.

Werfen Sie Elektrowerkzeuge nicht in den Hausmüll! Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Allgerate und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechten Wiederverwertung zugeführt werden.

16 1 DEUTSCH DEUTSCH

제품사양

정격 출력	1510 W
정격 출력	820 W
무부하 회전수, 1단	0-1500 min ^-1
무부하 회전수, 2단	0-3000 min ^-1
최대 부하 회전수, 1단	890 min ^-1
최대 부하 회전수, 2단	1770 min ^-1
임 Ped트 가능	48000 min ^-1
전공능력 1단 기어	80-162 mm
전공능력 2단 기어	32-90 mm
드라이브 심크	M18
천문량	57 mm
케이프 세의 총량	4,2 kg
임비적으로 측정된 송판의 진동	12 ms ^-1
임비적인 A- 측정소용리벨
표주 소유레벨 (K = 3 dB(A))	100 dB (A)
적립시 최대 소유리벨 (K = 3 dB(A))	111 dB (A)
측정값은 EN60 745 에 의해 결정한 갈돌입니다.

경고! 안전사항과 사용방법, 동봉된 CAPSPLELET까지 모두 읽어 주십시오. 안전사항과 사용방법을 이행하던 중의 실수는 감전, 화재 그리고/또는 심각한 부상까지 발생시킬 수 있습니다. 모든 안전사항과 사용방법은 나중을 위해서 보관하십시오.

사용상 주의사항

구마개를 착용하십시오. 소음에 노출되는 것은 징력손상의 원인이 될 수 있습니다. 공구와 함께 공급된 보즈행들을 사용하십시오. 콘트를 의성십은 부상의 원인이 될 수 있습니다. 작업을 하는 동안에 보즈기계가 잠재된 전기를 보낼 수 있으므로 전기가 동하지 않는 기계 손잡이를 합으십시오. 전말이 중하는 전선과 당양을 경우 급속기계부분에도 전압이 불러 MAX전을 일으킬 수 있습니다.

큰 지름의 드림비트 사용시 보조핸들을 사용자의 편의에 따른 위치에 확신히 조여 사용하십시오 (보기"핸들 조이기" 참조)

장착된 완전 클릭치는 남이 깨었을 때만 착동하며 이것이 항상 보조현을 사용해만 만하는 이유 입니다. 옥외 및 여러 다른 장소에서 사용되는 장치들은 전류급증방지 스위치를 동하여 연결되어야만 합니다. 기계사용시 환상 보안경을 착용하십시오. 장갑, 든른한 미끄럽 방지와 왈치마를 착용하시기를 권합니다. 기계작등중이 코크리트 가루나 조각들을 제거해서는 안됩니다.

이 공구를 사용할때 발생하는 민지는 인체에 해로을 수 있습니다. 음에 당게 하지 마시고 적절한 방진 마스크를 착용하십시오. 기계에 어떤 작업을 하시기 전에 향상 플러그를 배십시오. 스위치가 꺼진 상태에서관 플러그를 연결하십시오. 작업 반경내에 크트선을 두지 마십시오. 크트전선은 작업자의 뒤어 옆도록 하십시오. 벽, 전장 또는 배닥을 않을 때 전선, 가스 배관 또는 수도관을 피해도록 주의 하십시오.

사용조건

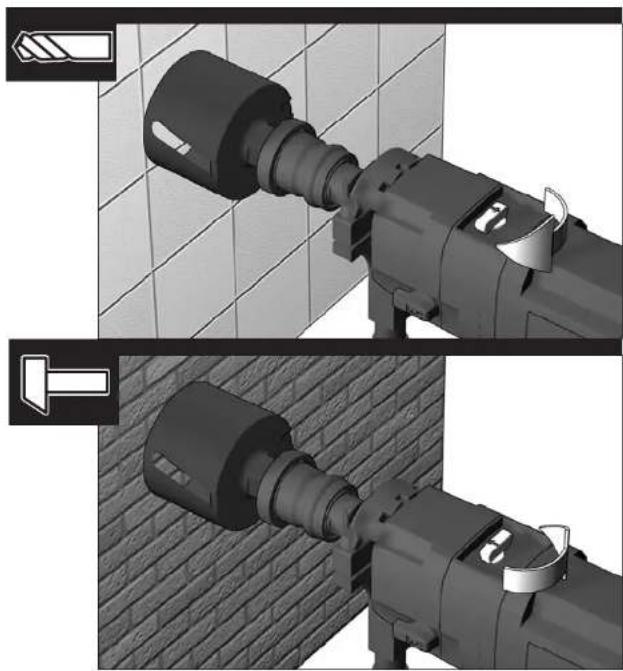

다이아몬드 드림은 건식 다이아몬드 드림 비트와 함께 사용할 수 있습니다. 기계에 장학된 드림 척은 석제에 진동 드림링과 나무와 스팀의 드림림에 적합합니다. 폰크리트의 습식 작업에 부석합한 기계입니다. 인급된 정상적인 용도 이외의 다른 방법으로 제품을 사용하지 마십시오.
