BRUGSANVISNING ICF-CD873 SONY

FM/AM CD Clock Radio

Operating Instructions

VOICE plus

ICF-CD873

Sony Corporation © 1999 Printed in Malaysia

http://www.world.sony.com/

WARRANTY 4-557-145-01(T1)

Owner's Record

The model number and the serial number are located on the rear.

Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ICF CD073

Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitudes to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

* The graphical symbols are on the rear of the enclosure.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant in Part 15 of the FCC Rules. These limits are designed to provide reasonable problems against harmful interference in a residential installation. This equipment generates use, and can radiate radio frequency to detect the requirements of the local and national level according with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to reduce or leak distant reception, which can be exceeded by burning the equipment, off and on the user is encouraged to try to connect the interference by one or more of the following

Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio TV technician for help.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Before You Begin

I thank you for choosing the Sony CD clock radio! It will give you many hours of reliable service and listening pleasure. Before operating the unit, please read these instructions thoroughly and retain them for future reference.

Features

1. 3D sound system: In addition to the left and right speakers, the center woocker provides rich bass sound for enhanced listening quality.
2. Vencephos: announces the time, guiding setting of alarm, etc., with talking voice.
3. Nature around alarm: wake up in the sound of streaming cream or red rock.
4. Rollie's CD Player with Sound/Replact function.
5. You can wake up to any stock of a CD.
6. random stations presents.
7. A powerful rose is produced with the MBGA BASS sound system.
8. FLL (Frame Locked Loop) Synthesized Tumer with a random memory price, for easy and purton tuning.
9. Summer time (daylight saving time) calculation.

Precautions

• Operate the unit on the power sources

specified in specifications.

The Minneapolis/I Rooming Village, etc. is located at the rear

• Disconnect the mains lead by gramping the

plug. Never pull it by the cord. • Do not leave the unit in a location near a heat source such as a radiator or air duct, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

- Allow adequate air circulation to prevent.

Internal heat built-up. Do not place the unit on a surface (a rug, a blanket, etc.) or near materials (a curtain) which might block the ventilation holes.

- Should any liquid or solid object fall into the unit, unplug (or remove batteries from) the unit and have it checked by a qualified personnel before operating it further.

- When the casing becomes soiled, clean it with a soft cloth dampened with a mild detergent solution. Never use abrasive cleansers or

- The unit is not disconnected from the AC power source (mairs) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

If you have any question, please consult your nearest Sony dealer.

Troubleshooting

Should any problem occur with the unit, make the following checks to determine whether or not servicing is required. If the problem persists, consult the nearest Sony dealer.

The clock does not show the current time.

- Has an electrical power outage lasting more than one minute occurred?

The radio or sound alarm does not sound at

the preset alarm time. • It has the desired radio and/or sound alarm mode been activated with the ALARM MODE button? (i.e. Is the B RADIO or B SOUND indicator is on the display?)

The 5D player does not operate

- Did you close the CD lid? - Did you place the disc correctly? The disc should be placed with the labeled side up.

• Dusty or defective disc—Clean the disc with an optional cleaning cloth. Wipe the disc from the center out.

• Take out the CD and leave the CD compartment open for about an hour to get and of moisture condensation.

Sporadic loss of sound in CD operation. • Thusly or defective disc—Clean or replace the disc.

• Volume tan high—Reduce the volume. • Strong vibration.

Specifications

CD player section

System: Compact disc digital audio system

Laser diode properties: Material: GeAlAs

Wavelength: 780 nm Emission duration: Continuous Laser output: Less than 14.6 μV (This output is the value measured at a distance of about 200 nm from the objective lens surface on the optical pick up block with 7nm aperture.)

Frequency response: 20-20,110 Hz, dB Wow and flutter: Below measurable limit

Radio section

Frequency range: FM: 87.5-118 MHz AM: 530-1.710 kHz

Channel step: FM: 0.1 MHz (fixed) AM: 10 kHz (fixed)

General

Time display:

12-hour system

Speaker: Front speakers: 6 cm (2 ^1 / _2 inches) - 2. 8 inches

Wooer: 9 cm (3 /2 inches) ohms

Power outputs:

Front speakers: 1.2W + 1.2W (at 10% harmonic distortion) Wooler: 4.3 W (at 10% harmonic distortion)

Power requirements

120V AC, 50 Hz

Dimensions: Approx. 304 - 125 - 233.5 mm(w/h/d) (Aprox. 12 - 5 - 9/4 inches) incl. projecting parts and controls

Masa: Approx. 3.5 kg (7 lb 12 oz)

Design and specifications are subject to change without notice.

IMPORTANT SAFEGUARDS

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and in the operating instructions, and adhere to them.

INSTALLATION

Water and Moisture

Do not use powerline operated appliances near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Do not place the appliance near or over a radiator or heat register, or where it is exposed to direct sunlight.

The slats and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation at the appliance, and to protect it from overheating, these slats and openings must never be locked or pruned.

Never cover the slots and openings with a cloth or other materials. - Never block the slots and openings by placing the appliance on a bed, sofa, rug or other similar surface.

- Never place the appliance in a confined space, such as a breakcase, or hull-in cabinet, unless proper ventilation is provided.

Do not place the appliance an an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only a curl, stand, tripod, bracket, or table recommended by Snow.

- An appliance and cart combination should be moved with care. Quick steps, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

If your appliance can be mounted to a wall or ceiling, must it only as recommended by Sany.

USE

Power Source

This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For these appliances designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization

This appliance is equipped with a polarized AC power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below.

-For the appliance with a polarized AC power cord plug:

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

-For the appliance with a three-wire grounding type AC plug:

This plug will only hit into a grounding-type power outlet. This is safely suitable. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.

Overloading

Do not overload wall bullets, extension curves or convenience receptacles beyond their capacity, since this can result in line or electric shock.

When not in use

Unplug the power cord of the appliance from the outlet when left unused for a long period of time. To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.

Route the power cord so that it is not likely to be walked on or pinched by items placed upon an against item, paying particular attention for the plugs, exceptacks, and the point where the cord ends from the appliance.

Lightning

For added protection for this appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the sentence or cable system. This will prevent damage to the appliance due to lightning and proceeding surges.

Object and Liquid Entry

Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

Cleaning

Unplug the appliance from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly campered with water for cleaning the exterior of the appliance. Clean the appliance only as recommended by Story.

Attachments

Do not use attachments not recommended by Sony, as they may cause hazards.

ANTENNAS

Outdoor Antenna Grounding

If an outdoor antenna or cable system is installed, follow the provisions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN, INSTALLING AN OUTDOCK ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 811 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an electromagnetic discharge unit, size of grounding conductors, location of electromagnetic energy unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code

SERVICE

Damage Requiring Service

Unplug the appearance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power card or plug is damage or trayed.

-If liquid has been spilled or alkyls have taken into the appliance. If the appliance has been opened in pure water.

- The appliance does not appear to operate normally or exhibits a marked change in performance.

-If the appliance does not operate normally when following the operating instructions, adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often acquire extensive work

by a qualified technician to restore the appliance to normal operation.

- In the application has both subject to excessive shock by being dropped, in the cabinet has both dismounted.

Servicing

Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, be sure the service technician has used replacement parts specified by Sceny that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check

Upon completion at any service or repairs to the appliance, ask the service technician to perform routine safety checks (as specified by Sany) to determine that the appliance is in safe operating condition.

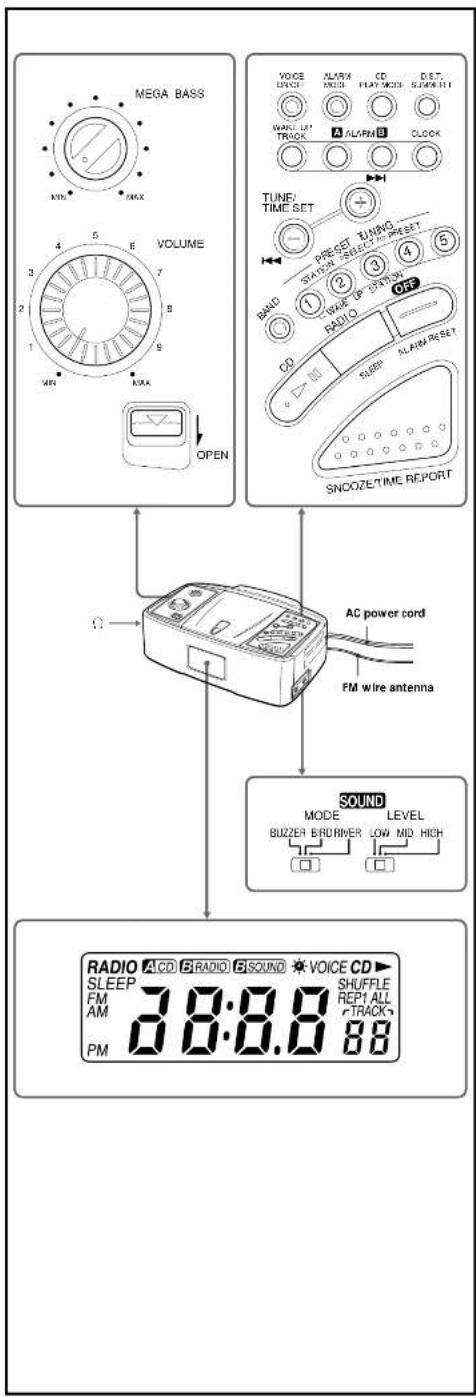

MEGA BASS VOLUME OPEN VOICE DIRECT ALARM HIGH CD PLAY/WAY D.S.T. SLIKING WANG, LIF TRACK ALARM B CLOCK TUNE: TIME SET PRESET TUNNO STATION SELECT TO RESET BAND 1 2 3 4 5 WAVE UP STRIP RADIO OFF CD SLEEP ALARM RESET SNCOZE/TIME REPORT AC power cord FM wire antenna SOUND MODE BUZER BAD RIVER LEVEL LOW MID HIGH RADIO A CD B RADIO C SOUND V OICE CD ▶ SLEEP FM AM PM 3.8:8.8 8.8 SHUFFLE REPT ALL TRACK

Activating/Deactivating Voiceplus

The Voiceplus function provides time announcements and/or reminders: - when the power is turned on for the last time - when you press SNOOZE/TIME REPORT - at the start of the alarm - after the clock, the alarm time or the alarm mode as set

To adjust the Voiceplus talking voice volume, adjust SOUND LEVEL. To deactivate Voiceplus, press VOICE ON/OFF. Press the button again to resactivate the function. Note • When the power is turned on after you have removed the AC power cord (i.e., during power backup), the voiceplus function is not activated.

Setting the Clock

1 Plug in the unit. "AM 1200" flashes on the display. 2 Press CLOCK for a few seconds until you hear a beep. The hour starts to flash on the display. 3 Press TUNE/TIME SET + or - until the correct hour appears.

4 Press CLOCK once.

5 Repeat steps 3 and 4 to set the minute. After setting the minute, press CLOCK again. Two short beeps sound, and the counting of the seconds starts.

- To set the current time rapidly, hold down the + or - button. - To set the current time from zero seconds, release CLOCK with the time signal at step 5. - For vocal announcement of the current time, press SNOOZE/TIME REPORT.

To adjust the current time to daylight saving time (summer time) Press D.S.T./SUMMER T. " Appears on the display and the current time is adjusted to the daylight saving time. To deactivate the function, press D.S.T./SUMMER T. again.

Playing a Disc

An 6 cm (3 inch) CD can be played without an adapter.

1 Slide OPEN in the direction of the arrow to open the CD compartment lid and place in a CD.

2 Close the CD compartment lid.

3 Press CD ▶II. "CD ▶" and "01" appear on the display to indicate that track 1 of the CD is playing. 4 Turn VOLUME to adjust the volume.

To Press
Power CD ➕B
Resume play after pause	CD ➕B again
Locate the beginning ➕◄◄► of the current track (AMS*)
Locate the next ➕◄◄► track (AMS)
Go back at high speed Hold down ➕◄◄►
Go forward at high Held down ➕◄◄► speed
Locate the previous ➕◄◄ repeatedly▼ track (AMS)
Locate the succeeding ➕◄◄ repeatedly▼ track (AMS)
Stop play OFF-ALARM RESET
* AMS = Automatic Music Sense**These operations are possible during both play and pause

• In handle compact discs

Handle the disc by its edge.

Incorrect

Do not touch the surface

Do not stick paper or tape nor write anything on the surface.

。

Notes

- If you press CD ▶II when there is no disc in the CD compartment, "O" flashes far about 5 seconds on the display and the unit turns off automatically.

- There will be no sound from the speakers when the headphones (not supplicated) are plugged in.

Various Modes of CD

Playback

You can play tracks repeatedly or in random order.

I'tress CD PLAY MODE

Each press changes the play mode as follows:

Display

indication mode

none (normal play)

All the tracks are played once.

"REF 1" (single repeat)

A single track is played repeatedly.

"REP A.I.J." (all repeat)

All the tracks are played repeatedly.

(四)表决情况及表决意见

"SHUFFLE REP" (shuffle repeat)

All the tracks are played repeatedly in random order.

(二)本次股东大会决议的有效

"SHUFFL F" (shuffle play)

All the tracks are played once in random order.

Playing the Radio

Manual Tuning

1 Press RADIO·SLEEP to turn on the radio.

2 Select FM or AM by pressing BAND. Repeated pressing of BAND switches between the hands.

3 Tune in to a station by pressing TUNE/TIME SET + or -. The channel step is set to 11 MHz for EM and to 10 kHz for AM. To change the frequency rapidly, press down TUNE/TIME SET + or -. When the end of the band is reached, two beeps sound, and the unit automatically continues to scan from the other end of the band.

4 Turn VOLUME to adjust the volume.

• To turn off the radio, press OFF-ALARM

• To improve radio reception FM: Extend the FM wire antenna fully to increase reception sensitivity. AM: Rotate the unit horizontally for optimum reception. A ferrite bar antenna is built into the unit. Do not operate the unit over a steel desk or metal surface, as this may lead to interference of reception.

- When you release TUNE/TIME SET + or - after locating your desired station, the display switches back to the current time after a few seconds. To check the frequency of the heated-in station, press RADIO-SLEEP gently and the frequency appears for about 5 seconds.

Preset Tuning

You can preset up to 5 stations; one station for each preset button-1 to 5, for one-smuch tuning.

Presetting a station

Example: To preset AM 1280 kHz delta preset button 2.

1 Press RADIO-SLEEP to turn on the radio.

2 Tune in to the station on AM 1260 kHz (See "Manual Tuning").

3 Press down the desired STATION·SELECT/PRESET button until you hear two beeps

The frequency remains on the display for a few seconds, and then the display returns to the current time.

- When using the radio alarm, preset the station you wish to serve as the alarm (WAKE UP STATION) onto preset button 1.

To change the preset station Press the preset number again after turning in manually to a different station. The previous station is replaced by the new one.

Tuning in to a preset station 1 Press RADIO·SLEEP to turn on the radio.

2 Press the STATION·SELECT/PRESET button where the desired station is stored.

3 Adjust the volume using VOLUME. After a few seconds, the display returns to the current time but the preset button number remains.

Note • There will be no sound from the speakers when the headphones (not supplied) are plugged in.

Setting the Alarm

This radio is equipped with 3 main alarm modes - CD, radio and sound. Under sound alarm, you can choose from BUZZER, BIRD or RIVER. Before setting the alarm, make sure to set the clock (see "Selling the Clock"). For the radio alarm, make sure to preset a radio station on a press button 1.

Setting the Alarm Time To set the A CD alarm:

1 Press ALARM A for a few seconds

until you hear a beep. “A CD” and the hour flashes on the display.

2 Press TUNE/TIME SET + or - to set the desired hour.

3 Press ALARM A again.

4 Repeat steps 2 and 3 to set the minute. Two short beeps sound to confirm the setting. After a few seconds, the display returns to the current time.

Setting the wake up track

1 Press WAKE UP TRACK for a few seconds until you hear a beep. The track number flashes on the display.

2 Press TUNE/TIME SET + or - to select the desired track number.

3 Press WAKE UP TRACK again. Two short beeps sound to confirm the setting.

Note When you change the CD, the WAKE UP TRACK number will be canceled. Set it again.

To set the B RADIO / B SOUND alarm:

1 Press ALARM B for a few seconds until you hear a beep. “B RADIO” and “R sound” flashes on

the display.

2 Press TUNE/TIME SET + or - to set the desired hour.

3 Press ALARM B again.

4 Repeat steps 2 and 3 to set the minute. Two short keeps sound to confirm the setting.

Setting the Alarm Mode Before setting the alarm mode, be sure to set the alarm time (See "Setting the Alarm Time") Press ALARM MODE repeatedly until the desired mode appears on the display.

Each press of ALARM MODE changes the indication on the display as follows:

No alarm.

Selecting the sound alarm

To select one of the 3 sounds to wake up to, set the SOUND MODE switch to:

BUZZER for buzzer

BIRD for bird song

RIVER FOR FLOWING ALBEM.

Adjusting the alarm volume

To adjust the volume of the alarm and the Voiceplus talking voice, set SOUND LEVEL for LOW for low.

MID for medium

HIGH for loud

• In stop the alarm, press OFF-ALARM RESET. The alarm will sound at the same time the next day.

- To cancel the alarm, press ALARM MODE repeatedly until there is no alarm indication on

the display. • To check the alarm time you have set, press ALARM A or ALARM B.

Notes

• The alarm does not function unless you set the

- If you set the CD alarm and radio or sound alarm to the same time, the CD alarm takes precedence.

- If you set the CD alarm and there is no disc in the CD player, the buzzer alarm will sound in

- The radio, sound alarms and CD alarms will activate for 60 minutes.

- When the radio alarm is activated, "B RADIO" flashes on the display. If you wish to listen to the radio on the radio mode instead of the radio alarm mode, press RADIO-SLEEP. "B RADIO" stops flashing and

To Doze for a Few More Minutes

Press SNOOZE/TIME REPORT. The CD, radio or sound alarm turns off, but will be activated automatically after about 8 minutes. You can repeat this process as many times as necessary.

- When the SNOOZE/TIME REPORT function is activated, the alarm indication flashes.

Setting the Sleep Timer

You can enjoy falling asleep to the radio using the built-in sleep timer that turns off the radio automatically after a preset duration.

Press RADIO-SLEEP repeatedly until the desired countdown duration appears. When RADIO-SLEEP is pressed once, "On" appears on the display. Subsequent pressing of RADIO-SLEEP shows the following countdown durations:

Radio an → 90 min → 68 min → 30 min (Sleep timer oil) 15 min

- To turn off the radio before the cauldawn duration has elapsed, press OFF-ALARM RESET.

To use both the sleep timer and the alarm

You can enjoy falling asleep to the radio and be awakened by the CD, radio or sound alarm.

1 Set the alarm. (See "Setting the Alarm".)

2 Set the sleep timer. (See "Setting the Sleep Timer".)

Other Useful Functions

For Enhanced Bass

The "MEGA BASS" function intensities the bass sound for richer quality audio reproduction.

Turn MEGA BASS toward MAX to increase the bass emphasis.
