BRUGSANVISNING M15ORW09 MATSUI

Safety First!

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

- Read all the instructions carefully before using the appliance and keep them for future reference.

- Retain the manual. If you pass the appliance onto a third party make sure to include this manual.

- Check that the voltage marked on the rating label matches your mains voltage. - Do not kink or wrap the mains cable and plug around the appliance, as this may cause the insulation to weaken and split, particularly where it enters the appliance.

- Ensure the mains cable is fully extended before use and arrange it so that it is not in contact with any part of the appliance.

- Do not pull on the mains cable. Never move, carry or hang the appliance by the mains cable.

- Avoid the use of an extension cables as they may overheat and create a potential fire risk.

- Always position the appliance with the mains plug in an accessible position. Never position the appliance below a mains socket.

• In order to avoid overheating, do not cover the appliance.

• The appliance must have a minimum 50 cm clearance around all sides of the appliance.

- Do not place flammable items near the appliance.

- Do not use the appliance in wardrobes or near fabrics or clothing. Do not stand the appliance on deep pile carpets.

- Do not use the appliance in areas such as garages where petrol, paints or other flammable substances are used or stored.

- Do not use in very dusty areas as dust may accumulate on the heating elements and cause overheating.

• To avoid personal injury or property damage, never insert fingers, pencils or any other objects through the air inlet or outlet openings.

• To reduce the risk of electric shock, do not immerse or expose the appliance or mains cable to rain, moisture or any other liquid.

- Do not use in the bathroom, shower or near a swimming pool. Do not use your appliance where it could be splashed on by water or fall into water.

- Keep hands, hair, and clothing, well away from the hot surface of the appliance while it is in operation.

- Avoid touching hot surfaces, always use the handles.

- Do not use the appliance with an external programmer, timer or any device that switches the appliance on automatically, to prevent a fire risk if the appliance is covered or positioned incorrectly when it switches back on.

- Do not use the appliance for any other use than its intended one.

• This appliance is intended for normal indoor domestic / household use only.

• This appliance is not intended for use by person (including children) with

The appliance is not interested for use by patient (including children), with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be kept away from the appliance when it is hot.

• Children should be supervised to ensure that they do not play with the appliance.

- Do not leave the appliance unattended when switched on - Switch off and unplug the appliance when not use.

- Do not operate the appliance if it is malfunctioning, contact your service agent.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be performed by an authorised, qualified technician who should be contacted if there is an oil leakage

- When scrapping the appliance, follow the local regulations concerning the disposal of oil.

Unpacking

Remove all packaging from the oil filled radiator. Retain the packaging. If you dispose of it please do so according any local regulations.

The packing includes

• One main unit

• Two "U" shaped with butterfly nuts • Four wheels

- Two 6 shaped with butterfly nuts - Four wheels If items are missing or damaged, please contact Portmaster (UK only)

If items are missing or damaged, Tel: [phone] for assistance.

Specifications

Rated Voltage: 230V\~

Rated Frequency : 50Hz

Input Power: 1500W

No of Fins : 7

NO OF THIS .7

We continually strive to improve our products, specifications may change without prior notice.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Partmaster

CO.uk

Visit Partmaster.co.uk today for the easiest way to buy

electrical spares and accessories.

With over 1 million spares and accessories available

we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk

Or call

0870 6001 338

(UK customers only)

Calls charged at National Rate.

DSG Retail Ltd. Maylands Avenue Hemel Hempstead

Hertfordshire HP2 7TG England

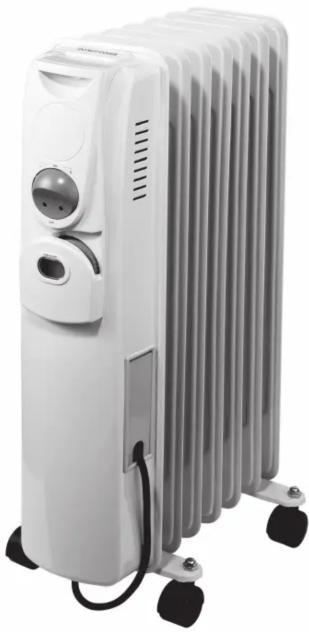

MATSUI

M15ORW09

OIL FILLED RADIATOR

INSTRUCTION MANUAL

White and gray industrial water heater with cooling wheels (no visible text or symbols)

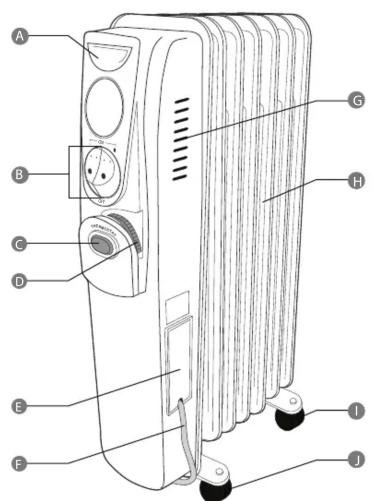

Your Radiator - Product Overview

A. Carry Handle
B. Power Switches (with indicator)
C. Display Window
D. Thermostat Control
E. Mains Cable Holder
F. Mains Cable
G. Vent
H. Radiator Fins
I. Rear Whe
J. Front Wheel

Assembly

Butterfly nut
Supporting plate "U" shaped screw
In between the 1^st & 2^nd radiator fins

Wheels
In between the 6 ^th & 7 ^th radiator fins

Do not plug your radiator into a mains socket, while you are assembling the product.

1. Install the 4 wheels onto the 2 supporting plates by using a spanner.
2. Turn the unit upside down.
3. Wrap the "U" shaped screw in between the 1^st and 2^nd radiator fins.
4. Hook the wheels and supporting plate into the screws.
5. Insert the butterfly nut and screw it tightly on
6. Repeat step 3-5 in between the 6^th and 7^th radiator fins.
7. Check the wheels have not become loose before each use.

It is hazardous if you turn on the radiator when it is upside down. Before use, remember to double check that the radiator is standing upright on a firm and level surface.

Using your Radiator

1. Position the radiator upright on the floor away from curtains, furniture or wallcoverings before plugging into the mains socket.
2. Turn the Power Switches to the "or " position. The radiator has 2 built-in heating elements. You can select turning on one or both heating elements simultaneously.
3. Turn the Thermostat Control to a desired position. It is recommended to select the highest setting to get the heater to pre-heat. It will take 5-10 minutes for the heater to fully heat up.
4. When the surrounding room temperature reaches to the desired temperature, turn the Thermostat Control slowly anti-clockwise until the indicator goes off with a "click" sound. The heater will temporarily go off.
5. If the surrounding room temperature falls below the desired temperature, the heater and indicator will turn on again until the room temperature reach the desired temperature.

Cleaning

1. Always remove the mains plug from the mains socket and allow the radiator to cool down before cleaning the radiator.
2. Wipe radiator with a soft damp (not wet) cloth.
3. Coil up the mains cable and place it in the mains cable holder. Store the radiator in a clean dry place.

Do not immerse the radiator in water. Do not use any cleaning chemicals such as detergents and abrasives.

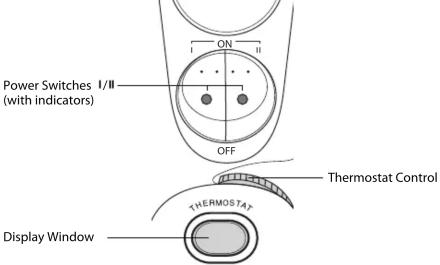

Control Panel

Safety Protective Devices

1. Overheat Protection System

The power to the radiator will automatically cut off if the temperature of the radiator exceeds a certain limit. In the event of overheating, the radiator will stop operating. Switch the radiator off and allow to cool. The radiator will then operate again as normal.

2. Tip-over Protective Switch

When you use the radiator in an upright position on a firm and level surface, the tip-over protect switch will be on. In the event the radiator is knocked over, the radiator will stop functioning automatically.

Hints and Tips

My radiator does not work when I turn it on

1. Check that your radiator is plugged in and the power is turned on at the socket.
2. Set the temperature to the highest setting.
3. Check if the thermostat setting is too low.
4. Try replacing the BSI or ASTS approved 13 Amp BS1362 fuse in the plug.
5. If the radiator still doesn't work, do not try to repair the radiator yourself, it may result in a fire hazard or electric shock. Please leave all maintenance work to qualified personnel.

If your radiator's power is automatically cut off follow the steps below:

1. Unplug your radiator and allow it to cool down.
2. Inspect your radiator.
3. Plug-in the radiator and switch it on again. If it cuts off again, move the radiator to a better ventilated location.
4. If there is any sign of physical damage (e.g. melting, or burning of the case), do not attempt to use your radiator. Contact your authorised service agent.
