BRUGSANVISNING DTB-134 DENVER

1. Control Elements

Front Panel

DENVER® 8888 POWER CH+ CH- MENU VOL- VOL+ OK

POWER Standby button

MENU Open and close the menu screen

OK Confirm a selection within a menu or enter channel list

Vol Volume down and up

CH Channel up and down

USB USB Port

Rear Panel

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CE ANT IN ANT OUT COAXIAL HD-OUT SCART ACHTING STRAWING/ANUFACTURING MULT OUTPUT

ANT IN

ANT OUT

COAXIAL

HD OUT

SCART

DC -12V for Powe Adapter

2.Remote Control

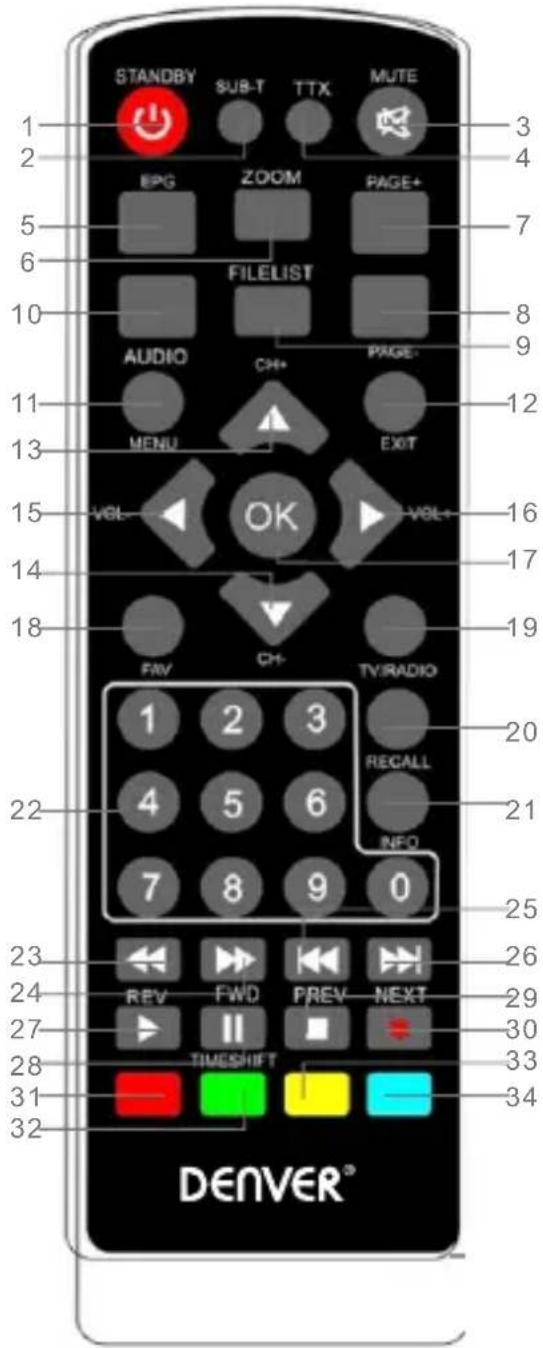

STANDBY SUB-T TTX MUTE 1 2 3 4 EPG ZOOM PAGE+ 5 6 FILELIST 7 8 9 AUDIO CH+ PAGE- 10 11 MENU EXIT 12 13 15 VOL- OK VOL+ 16 17 18 FNV CH- TV/RADIO 1 2 3 20 22 4 5 6 RECALL 21 7 8 9 0 25 23 REV FWD PREV NEXT 26 24 27 TIXSHIFT 29 30 28 31 33 34 32 DENVER®

1.STANDBY: Switch The Standby Mode
2.SUBTITLE:Select Subtitle Language
3.MUTE:Mute Or Restore Audio Output
4.TTX
5.EPG:Electronic Program Guide
6.ZOOM
7.P+:Page Up
8.P-: Page Down
9.FILELIST
10.AUDIO:Choose Audio language Or Audio Mode
11.MENU:Enter The Main Menu
12.Exit:Exit The Current Menu
13.CH+:Change Channel+
14.CH-: Change Channel-
15.16..V+/-:Change Vol
17.0K
18.FAV:Enter Favorite List
19.TV/RADIO
20. RECALL: Return To Last Playing Program Or Last Operation
21.INFO:Show The Current Program Information
22.Number(0\~9):Select A Channel Or Setting
23. REV: Return
24.FWD:Forward
25.PRVE:Return To Last Page
26.Next
27.28..Play/Pause
29. Stop
30.REC: Record Program
31.32.33.34. .Multi-Function Key

3. Basic Functions

3.1 First Installation

First installation shall setup some important configures. It contains several options shown as figures below:

Welcome Region United Kingdo Language English Display Mode 1080i@50HZ Aspect Mode Auto OK

User can select Region, Language, Display Mode, Aspect Mode from this menu, when it is complete, user can use "OK" to search channels as shown in the figure below:

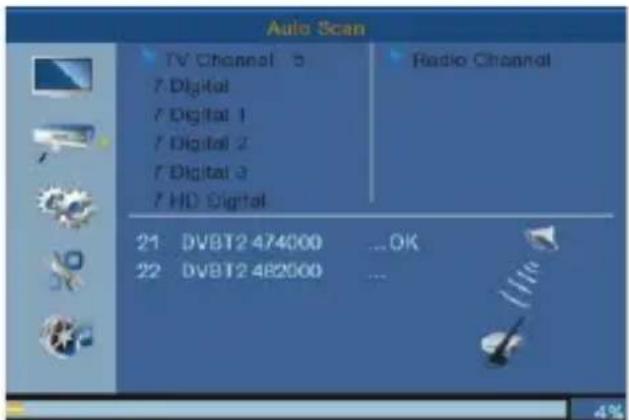

Auto Scan TV Channel 5 7 Digital 7 Digital 1 7 Digital 2 7 Digital 3 7 HD Digital Radio Channel 21 DVBT2 474000 ...OK 22 DVBT2 482000 ...

3.2 Display Information Of Programs

Press key "INFO" to show the information of current programs when it is in normal playing state.

0007 7 Digital 11/01 9:30:02 Now: 08:00-08:20 00:00-STOP Next: 08:30-08:00 SEVEN NEWS AT 4.36 100% MB GOVT APPOINT A MINISTER FOR BBING DEATH OF MAN IN GEELONG VIC GOVT APPOINT A MINISTER FOR

News T. Digital Annuity banking 47% 100% 100% RED V. NEW & 2366 P-200 Zigge Hedges 28% Zigge Hedges 100% OF SUEZ CANAL NEAR EGYPTIAN CAPITAL > SEVEN NEWS: SUNRISE FROM

4. Installation

There are two kinds of installation mode as follow:

1 DVBT channel Scan
2 DVBT Auto Scan

Installation Auto Scan Channel Scan Antenna Power LCN

You can press "Right" button to enter into this menu, then press "up/down/ right/left" to choose and change below functions:

DVBT channel Scan

DVBT Auto Scan

LCN \~ to be on or off

5. Tool

Parental Lock

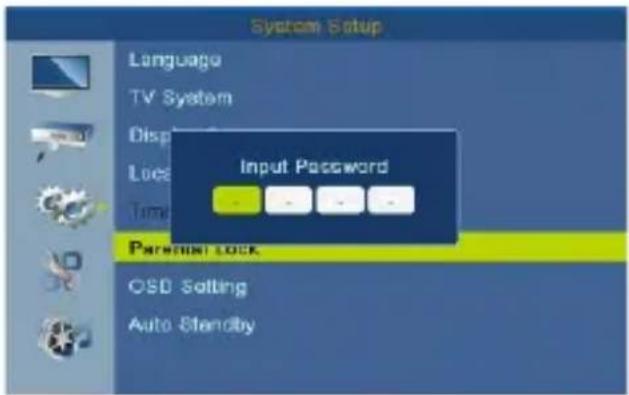

1. The input default password is "1234".
2. If "menu lock" on, You can lock the menu of channel edit and searching.
3. If parental rating choose "18 years", that can lock the adult channels.

System Setup Language TV System Display Loca Time Input Password - - - - Parahort Lock OSD Setting Auto Standby

Parental Lock Menu Lock Off Parental rating Off Now Password — Confirm Password —

6. System Setup

System setup menu can provide convenient system setup, as shown below:

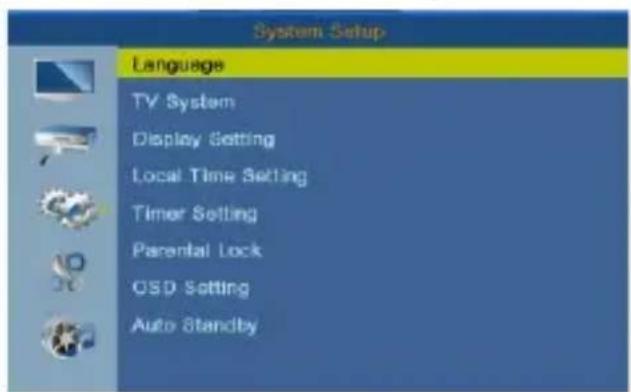

System Setup Language TV System Display Setting Local Time Setting Timer Setting Parental Lock QSD Setting Auto Standby

Press "Right" button to enter this menu and press up/down to choose and do the edit as you want.

Language

TV System

Display Setting

Local Time Setting

Timer Setting

Parental Lock

OSD Setting

7. Software Update

Upgrade by USB

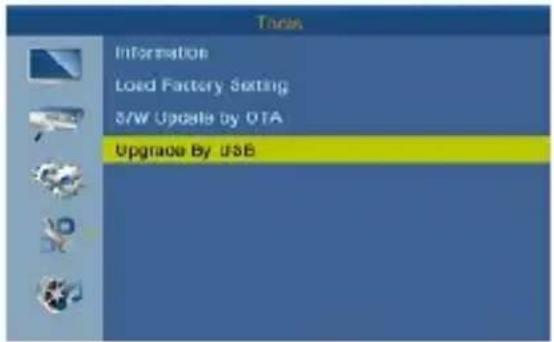

Tools Information Load Factory Setting 3/W Update by OTA Upgrade By USB

Please make sure don't shut down the power in the upgrade process; When upgrade finish, system will automatic restart with the new firmware

Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S
