BRUGSANVISNING Geforce 6GB D6 RTX 2060 Ventus XS 6G OC MSI

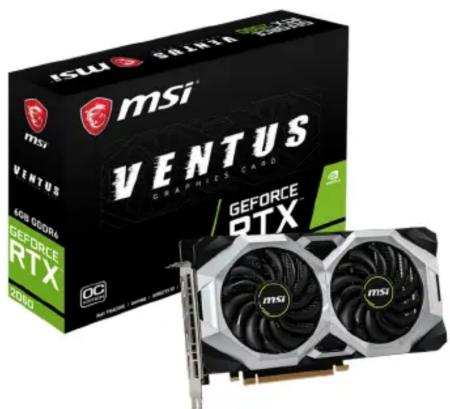

Front view of a MSCI drive fan with two black and silver cycles (no text or symbols visible)

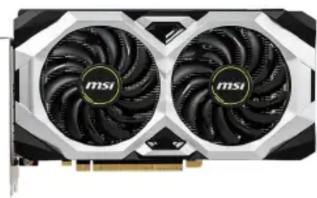

Close-up of a black GPU card with white circuit lines and 'msi' branding (no additional text or symbols visible)

SPECIFICATION

Model Name GeForce RTXTM 2060 VENTUS 6G OC
Graphics Processing Unit	NVIDIA® GeForce RTXTM 2060
Interface PCI Express x16 3.0
Cores 1920 Units
Core Clocks Boost: 1710 MHz
Memory Speed 14 Gbps
Memory 6GB GDDR6
Memory Bus 192-bit
Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP Support 2.2
Power consumption 160 W
Power connectors 8-pin x 1
Recommended PSU 500 W
Card Dimension(mm) 226 x 128 x 41 mm
Weight (Card / Package) 764 g / 1193 g
DirectX Version Support 12 API
OpenGL Version Support 4.5
Maximum Displays	4
VR Ready	Y
G-SYNCTM technology	Y
Digital Maximum Resolution	7680x4320

CONNECTIONS

FEATURE

TORX FAN 2.0

Award-winning fan design combining two different fin designs for cool & quiet gaming.

DUAL FAN THERMAL DESIGN

Dual fans covers more area of heatsink to take heat away more efficiently.

SOLID BACKPLATE

Increases toughness of the card to prevent bending while complementing the design.

OC PERFORMANCE

MSI OC graphics cards are equipped with higher clock speeds out of the box for increased performance.

MSI Afterburner

The ultimate overclocking software with advanced control options and real-time hardware monitor.

NVIDIA G-SYNC™

Gives you more of what you want in a gaming experience. Incredibly smooth, tear-free gameplay at refresh rates up to 240 Hz.
