BRUGSANVISNING Cargo 3 G3

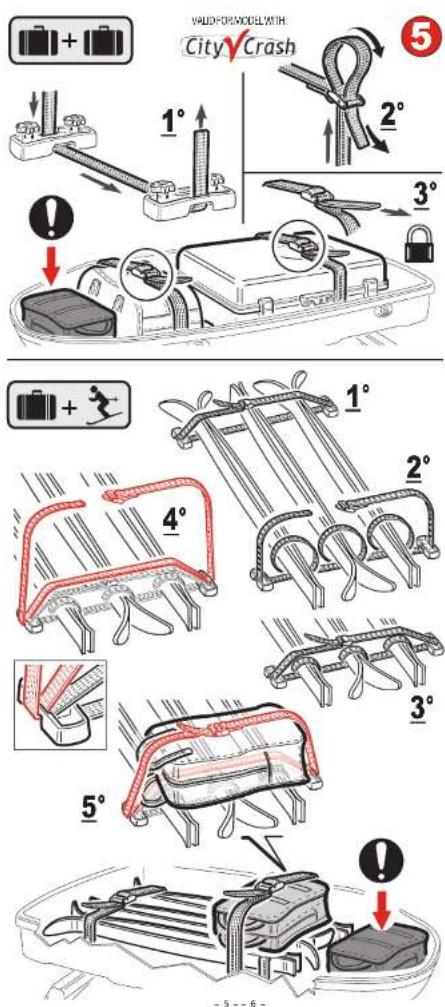

G3 Cargo 3 - 1

text_image VALID-FORMOBLWITH CityCrash 5 1° 2° 3° 4° 5° -5 - 6 -

piega
G3 Cargo 3 - 2

text_image MAX. 1/2 1/4 1/4 RE-CHECK 3° P P MAX 130 km/h MAX 80 mpa

G3 S.p.A. Via S. Allende, 15 42020 MONTECAVOLO DI QUATTRO CASTELLA (RE) - ITALY E-mail: info@g3spa.it - www.g3spa.it
piega

piega

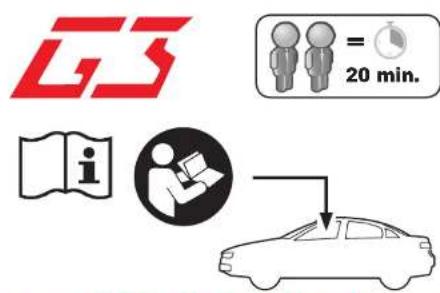

G3 Cargo 3 - 3

text_image GS = 20 min. i o d

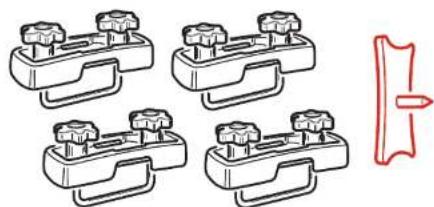

FIXING KIT - 1 (cod. K9.009)

G3 Cargo 3 - 4

natural_image Four identical mechanical clamp components with mounting holes, arranged in a 2x2 grid (no text or symbols)

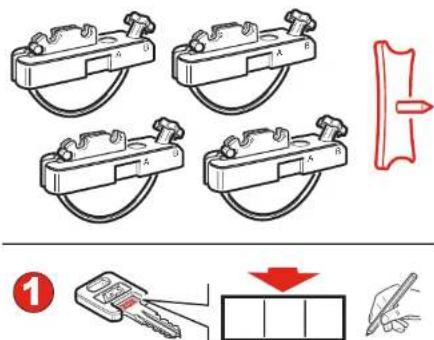

FIXING KIT-2 (cod. K9042)
G3 Cargo 3 - 5

text_image Diagram illustrating four different types of electrical switch components with a red arrow indicating direction and a numbered step showing the process.

-1-
piega

G3 Cargo 3 - 6
DUAL SET
SPARK 3207 kg / 15.43 lbs 50 kg / 110.23 lbs
SPARK 40010 kg / 22.04 lbs 75 kg / 165.34 lbs•
SPARK 42012 kg / 26.45 lbs 75 kg / 165.34 lbs•
SPARK 48013 kg / 28.66 lbs 75 kg / 165.34 lbs•
SPARK 520 all versions16.4 kg / 36.15 bc 75 kg / 165.34 lbs•
SPARK.ECO 3207.5 kg / 16.53 lbe 50 kg / 110.23 lbs
SPARK.ECO 40010 kg / 22.04 lbs 75 kg / 165.34 lbs
SPARK.ECO 48013 kg / 28.66 lbs 75 kg / 165.34 lbs
SPARK.ECO 52016 kg / 35.27 lbs 75 kg / 165.34 lbs
ABSOLUTE 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ABSOLUTE 40011 kg / 24.25 lbs 75 kg / 165.34 lbs•
ABSOLUTE 48013 kg / 26.66 lbs 75 kg / 165.34 lbs•
ALL-TIME 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ALL-TIME 40011 kg / 24.25 lbs 75 kg / 165.34 lbs
ALL-TIME 48013 kg / 26.66 lbs 75 kg / 165.34 lbs
REEF 2706.5 kg / 14.33 bbs 50 kg / 110.23 lbs
REEF 39010.5 kg / 23.14 lbs 75 kg / 165.34 lbs•
REEF 58016 kg / 35.27 lbs 75 kg / 165.34 lbs•
HELIOS 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
HELIOS 400 all versions10 kg / 22.04 lbs 75 kg / 165.34 lbs•
HELIOS 480 all versions13 kg / 26.66 lbs 75 kg / 165.34 lbs•
KRONO 320 all versions7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
KRONO 40010 kg / 22.04 lbs 75 kg / 165.34 lbs
KRONO 48013 kg / 26.66 lbs 75 kg / 165.34 lbs
ARJES 2809 kg / 19.84 lbs 50 kg / 110.23 lbs
ARJES 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ARJES 48013.5 kg / 20.76 lbs 75 kg / 165.34 lbs•
HYDRA 2809 kg / 19.84 lbs 50 kg / 110.23 lbs
HYDRA 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
HYDRA 48013.5 kg / 20.76 lbs 75 kg / 165.34 lbs
PEGASO 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
PEGASO 34010 kg / 22.04 lbs 75 kg / 165.34 lbs•
PEGASO 45013.5 kg / 20.76 lbs 75 kg / 165.34 lbs•
SIRIO 3207.5 kg / 16.53 lbs 50 kg / 110.23 lbs
SIRIO 34010 kg / 22.04 lbs 75 kg / 165.34 lbs
SIRIO 45013.5 kg / 29.76 bbs 75 kg / 165.34 lbs
CARGO 310.5 kg / 23.14 lbs 75 kg / 165.34 lbs
CARGO 411 kg / 24.25 lbs 75 kg / 165.34 lbs
CARGO 512.5 kg / 27.56 bbs 75 kg / 165.34 lbs
CARGO 616 kg / 35.27 lbs 75 kg / 165.34 lbs

-2-

piega

3

G3 Cargo 3 - 3 - 1

text_image MIN. = 570 mm / 22.44 inch MAX. = 840 mm / 33.07 inch

G3 Cargo 3 - 3 - 2

text_image Diagram illustrating vehicle safety conditions: warning, no protection, and no damage

4A

FIXING KIT-1
G3 Cargo 3 - 4A - 1

text_image MAX 45 mm 1.7 inch 20 + 60 mm 0.7+2.3 inch 4Nm

G3 Cargo 3 - 4A - 2

text_image G3

G3 Cargo 3 - 4A - 3

text_image Diagram showing three car safety symbols: no sign, crossed-out cross, and crossed-out cross with arrows indicating direction.

-3

piega

4B

FIXING KIT - 2

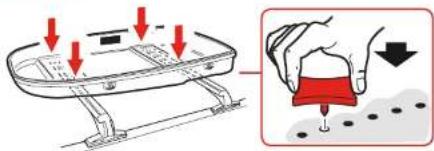

G3 Cargo 3 - 4B - 1

text_image Diagram illustrating a hand using a tool to press down a device with red arrows indicating downward motion.

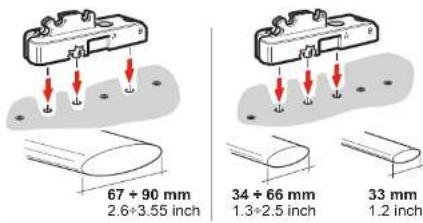

G3 Cargo 3 - 4B - 2

text_image 67 + 90 mm 2.6+3.55 inch 34 + 66 mm 1.3+2.5 inch 33 mm 1.2 inch

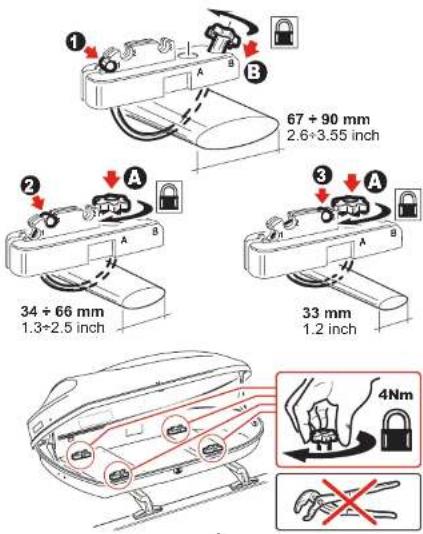

G3 Cargo 3 - 4B - 3

text_image 67 + 90 mm 2.6+3.55 inch 34 + 66 mm 1.3+2.5 inch 33 mm 1.2 inch 4Nm
