BRUGSANVISNING Absolute 480 G3

VALID FOR MODEL WITH: CityCrash 5 1° 2° 3° 4° 5° - 5 - - 6 -

piega

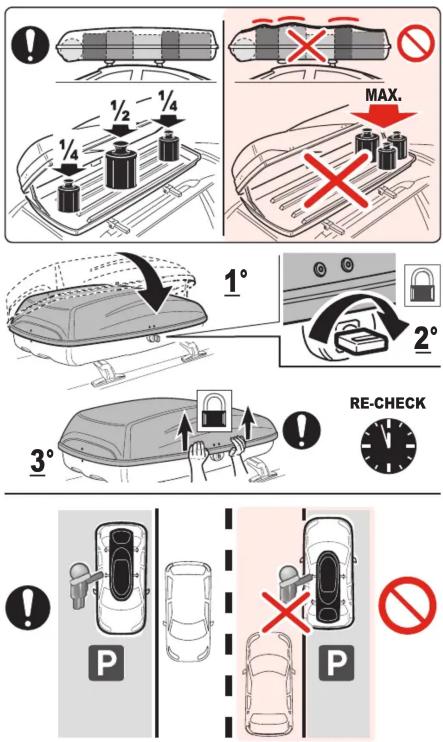

1/2 1/4 MAX. 1° 2° 3° RE-CHECK P P

+ MAX 130 km/h MAX 80 mph

G3 Absolute 480 - 4
G3 S.p.A.
Via S. Allende, 15
42020 MONTECAVOLO di QUATTRO CASTELLA (RE) – ITALY E-mail: info@g3spa.it – www.g3spa.it

piega

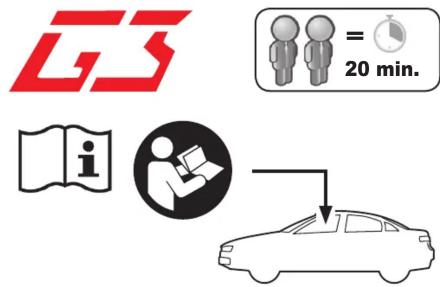

GS = 20 min. i I → Car

FIXING KIT - 1 (cod. K9.009)
G3 Absolute 480 - 6

FIXING KIT - 2 (cod. K9042)
Diagram illustrating four different types of electrical switch components with labeled terminals A and B, alongside a schematic showing a key being inserted into a box.

-1-
piega
piega

② MAX. ? 1° ? 2° MAX. ? 3° MAX.

		DUAL SIDE
SPARK 320	7 kg / 15.43 lbs 50 kg / 110.23 lbs
SPARK 400	10 kg / 22.04 lbs 75 kg / 165.34 lbs	•
SPARK 420	12 kg / 26.45 lbs 75 kg / 165.34 lbs	•
SPARK 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs	•
SPARK 520 all versions	16.4 kg / 36.15 lbs 75 kg / 165.34 lbs	•
SPARK.ECO 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
SPARK.ECO 400	10 kg / 22.04 lbs 75 kg / 165.34 lbs
SPARK.ECO 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs
SPARK.ECO 520	16 kg / 35.27 lbs 75 kg / 165.34 lbs
ABSOLUTE 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ABSOLUTE 400	11 kg / 24.25 lbs 75 kg / 165.34 lbs	•
ABSOLUTE 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs	•
ALL-TIME 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ALL-TIME 400	11 kg / 24.25 lbs 75 kg / 165.34 lbs
ALL-TIME 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs
REEF 270	6.5 kg / 14.33 lbs 50 kg / 110.23 lbs
REEF 390	10.5 kg / 23.14 lbs 75 kg / 165.34 lbs	•
REEF 580	16 kg / 35.27 lbs 75 kg / 165.34 lbs	•
HELIOS 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
HELIOS 400 all versions	10 kg / 22.04 lbs 75 kg / 165.34 lbs	•
HELIOS 480 all versions	13 kg / 28.66 lbs 75 kg / 165.34 lbs	•
KRONO 320 all versions	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
KRONO 400	10 kg / 22.04 lbs 75 kg / 165.34 lbs
KRONO 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs
ARJES 280	9 kg / 19.84 lbs 50 kg / 110.23 lbs
ARJES 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ARJES 480	13.5 kg / 29.76 lbs 75 kg / 165.34 lbs	•
HYDRA 280	9 kg / 19.84 lbs 50 kg / 110.23 lbs
HYDRA 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
HYDRA 480	13.5 kg / 29.76 lbs 75 kg / 165.34 lbs
PEGASO 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
PEGASO 340	10 kg / 22.04 lbs 75 kg / 165.34 lbs	•
PEGASO 450	13.5 kg / 29.76 lbs 75 kg / 165.34 lbs	•
SIRIO 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
SIRIO 340	10 kg / 22.04 lbs 75 kg / 165.34 lbs
SIRIO 450	13.5 kg / 29.76 lbs 75 kg / 165.34 lbs
CARGO 3	10.5 kg / 23.14 lbs 75 kg / 165.34 lbs
CARGO 4	11 kg / 24.25 lbs 75 kg / 165.34 lbs
CARGO 5	12.5 kg / 27.55 lbs 75 kg / 165.34 lbs
CARGO 6	16 kg / 35.27 lbs 75 kg / 165.34 lbs

-2-

piega

3

MIN. = 570 mm / 22.44 inch MAX. = 840 mm / 33.07 inch

Diagram showing car safety warning signs: one with warning symbol and another with no warning symbol, indicating vehicle hazard or absence.

4A

FIXING KIT - 1
MAX. 45 mm 1.7 inch 20 ÷ 60 mm 0.7÷2.3 inch 4Nm

Diagram showing three car safety symbols: no sign, crossed-out cross, and crossed-out cross with a height indicator.

-3

piega

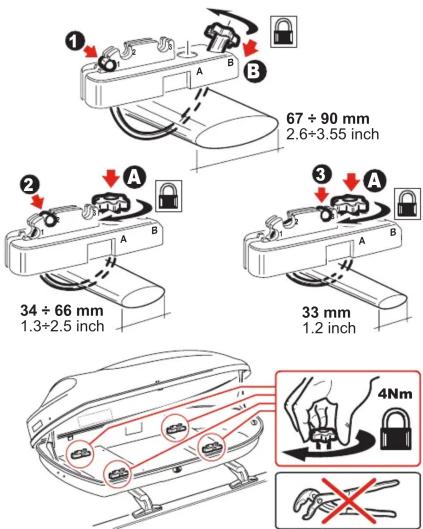

4B

FIXING KIT - 2
Diagram showing a hand using a tool to press down a device with red arrows indicating downward motion.

67 ÷ 90 mm 2.6+3.55 inch 34 ÷ 66 mm 1.3+2.5 inch 33 mm 1.2 inch

① 67 ÷ 90 mm 2.6+3.55 inch ② 34 ÷ 66 mm 1.3+2.5 inch ③ 33 mm 1.2 inch 4Nm

piega
