BRUGSANVISNING 40P Barkan

Fixed PRO LCD/PLASMA WALL mount

Assembly instructions

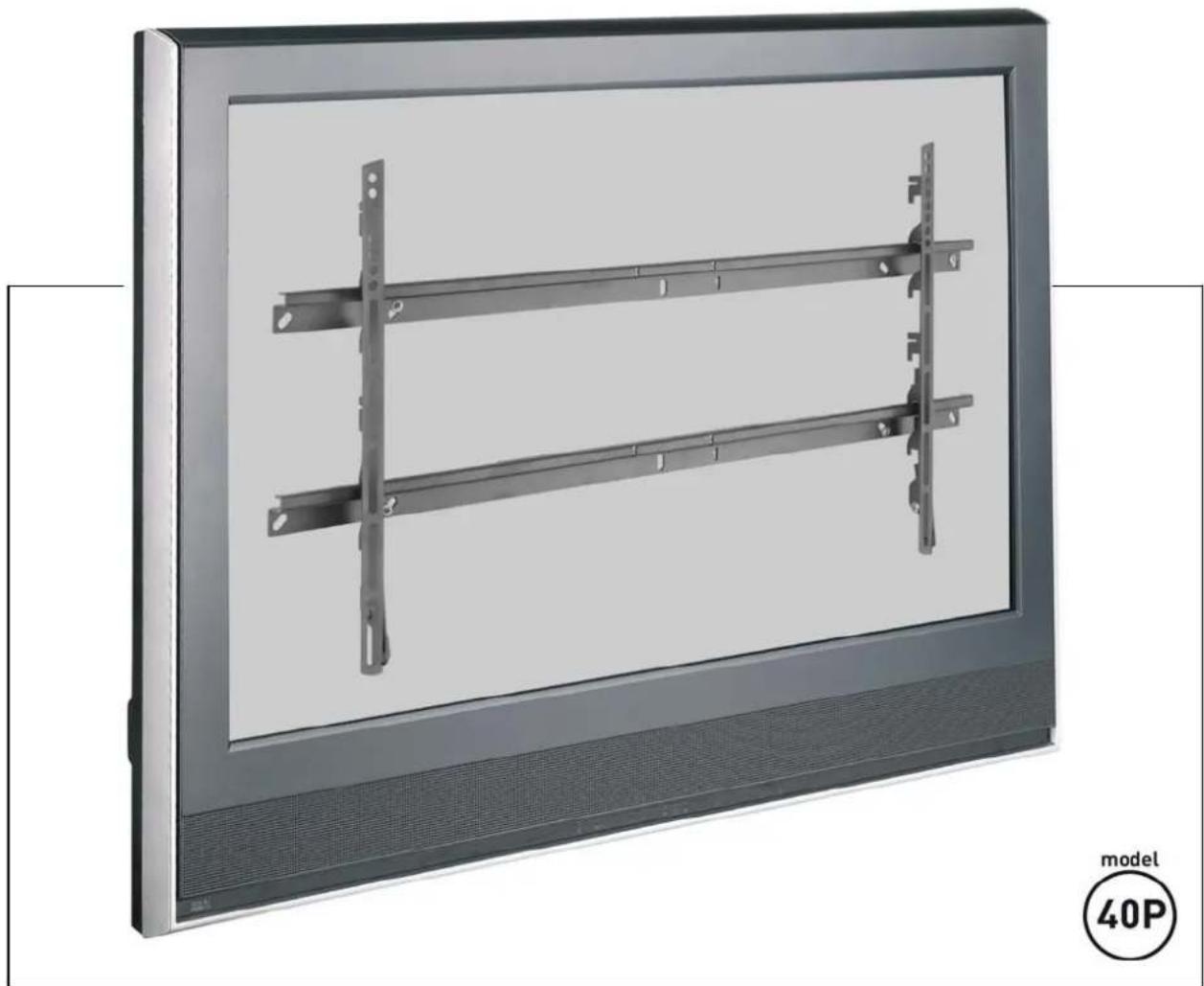

Barkan 40P - Fixed PRO LCD/PLASMA WALL mount - 1

CAUTION

- This LCD/Plasma mount is

intended for use only with the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

Fits Up to60" 152cmLCD/Plasma	Max
	US	EU
	176lbs	80kg

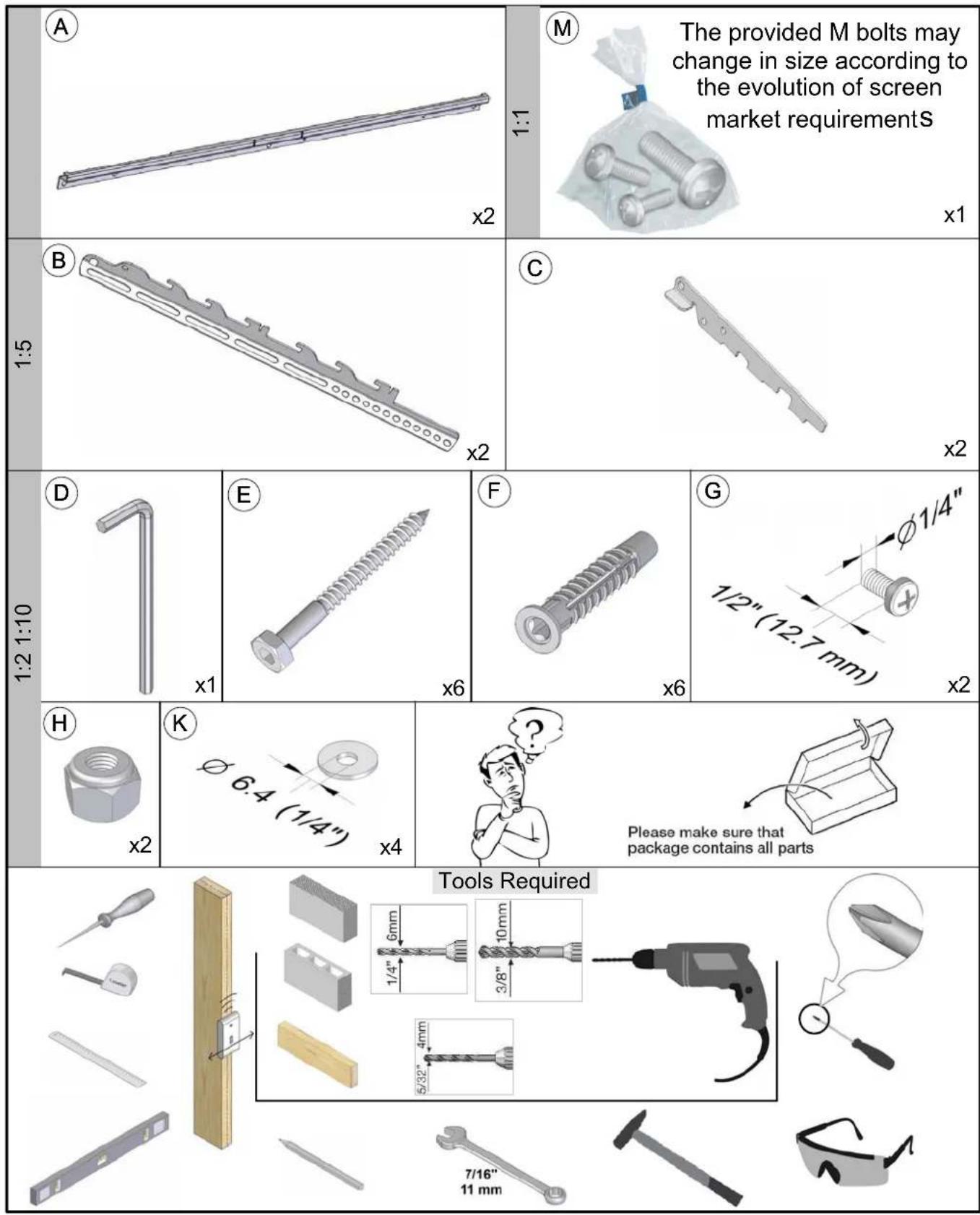

The provided M bolts may change in size according to the evolution of screen market requirementS x2 x1 x2 x6 x6 x2 x1 x2 x4 7/16" 11 mm Tools Required

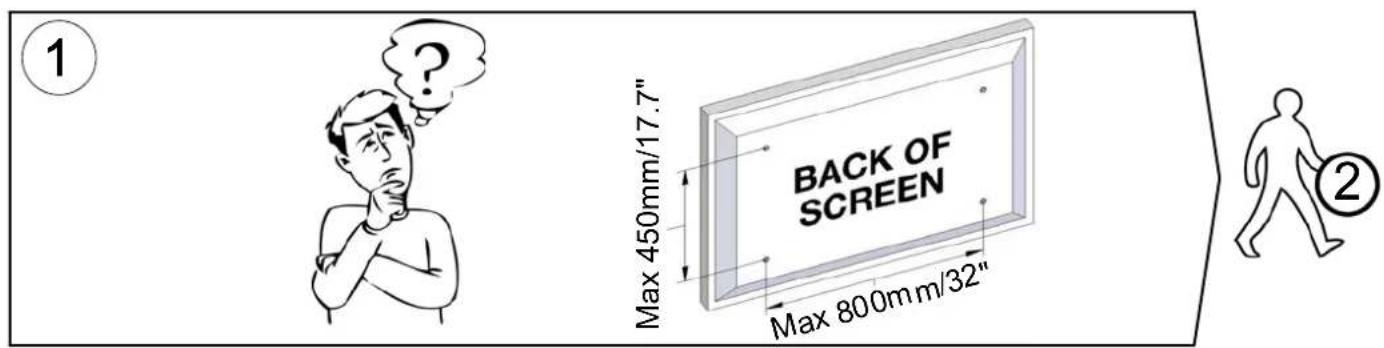

1 MAX 450mm/17.7" BACK OF SCREEN MAX 800mm/32" ②

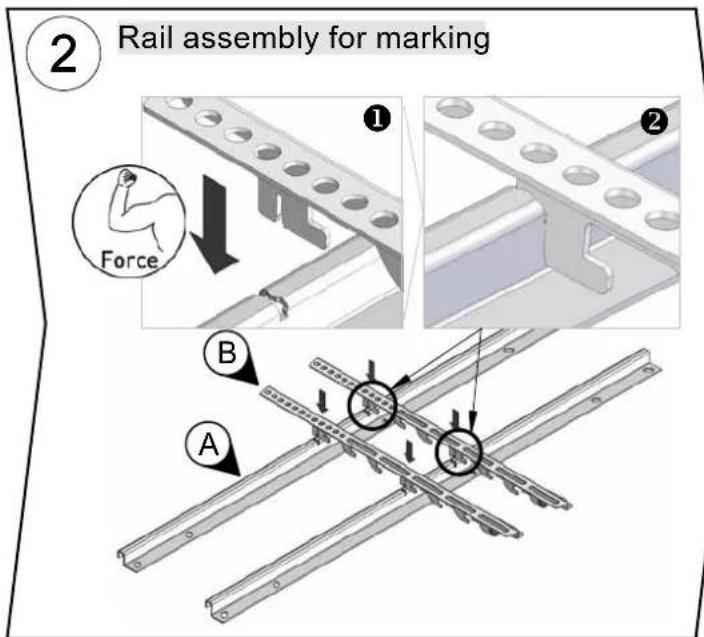

2 Rail assembly for marking Force B A

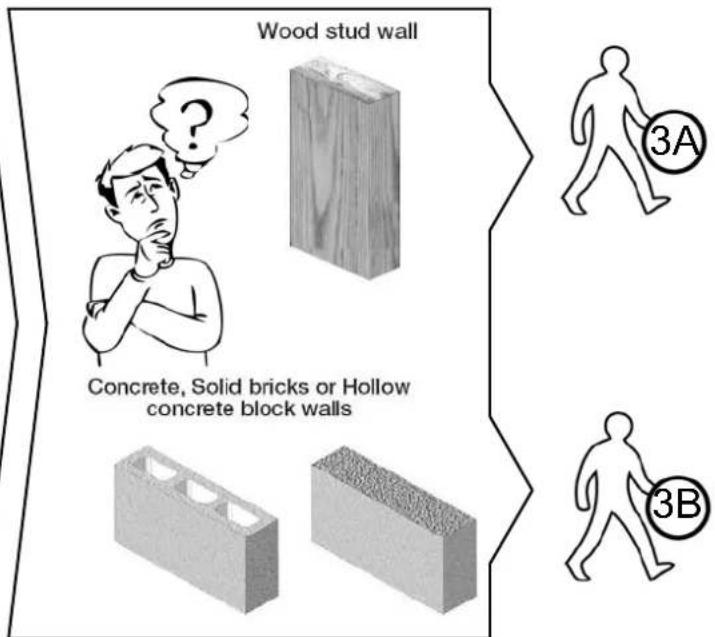

Wood stud wall Concrete, Solid bricks or Hollow concrete block walls

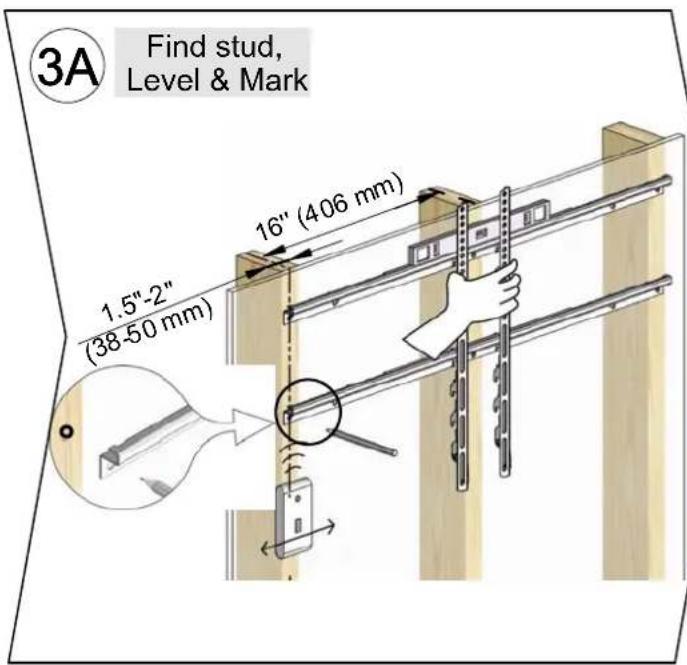

3A Find stud, Level & Mark 16" (406 mm) 1.5"-2" (38-50 mm)

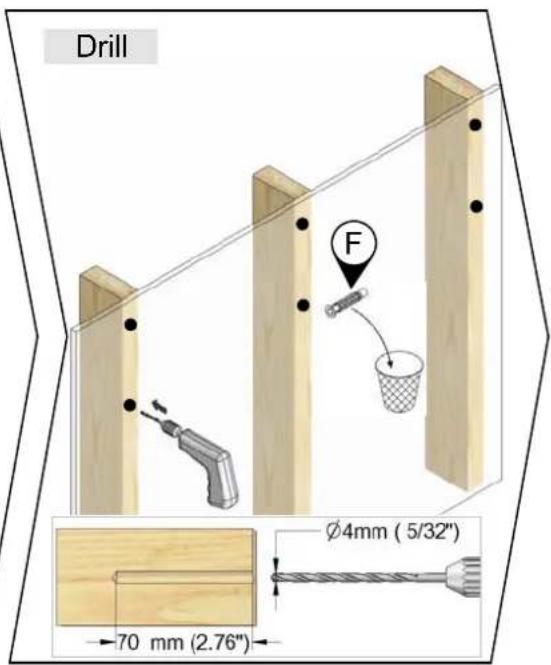

Drill F Ø4mm ( 5/32" ) 70 mm (2.76")

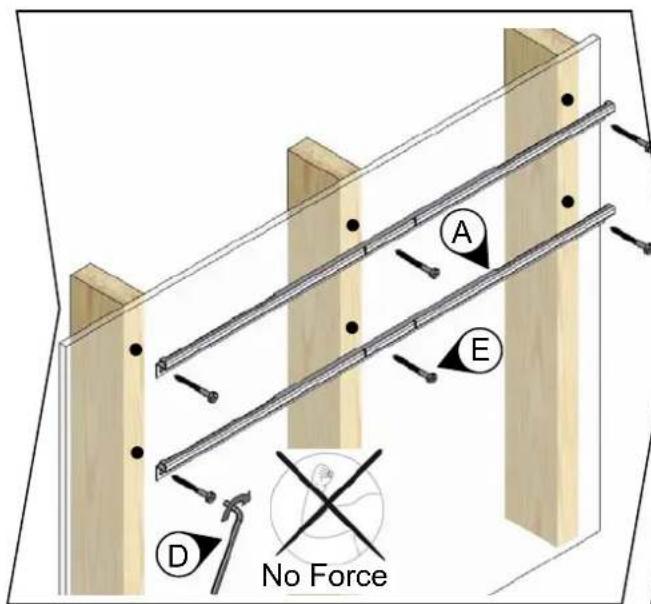

A E D No Force

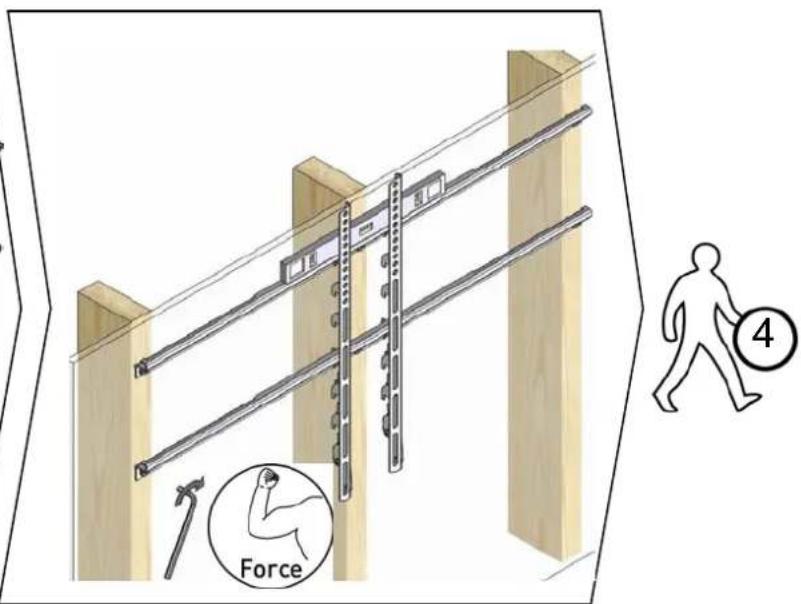

Force 4

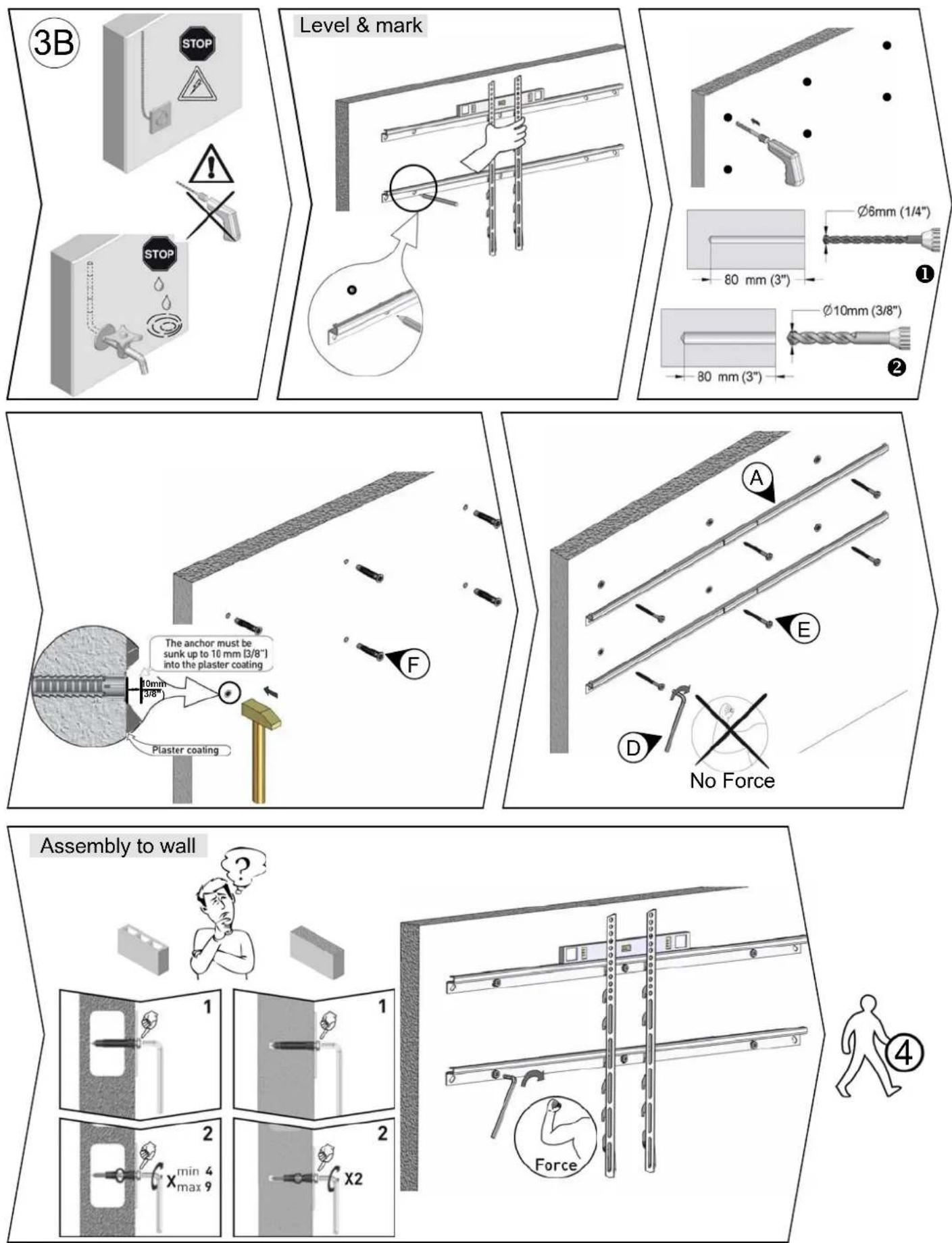

Barkan 40P - CAUTION - 9

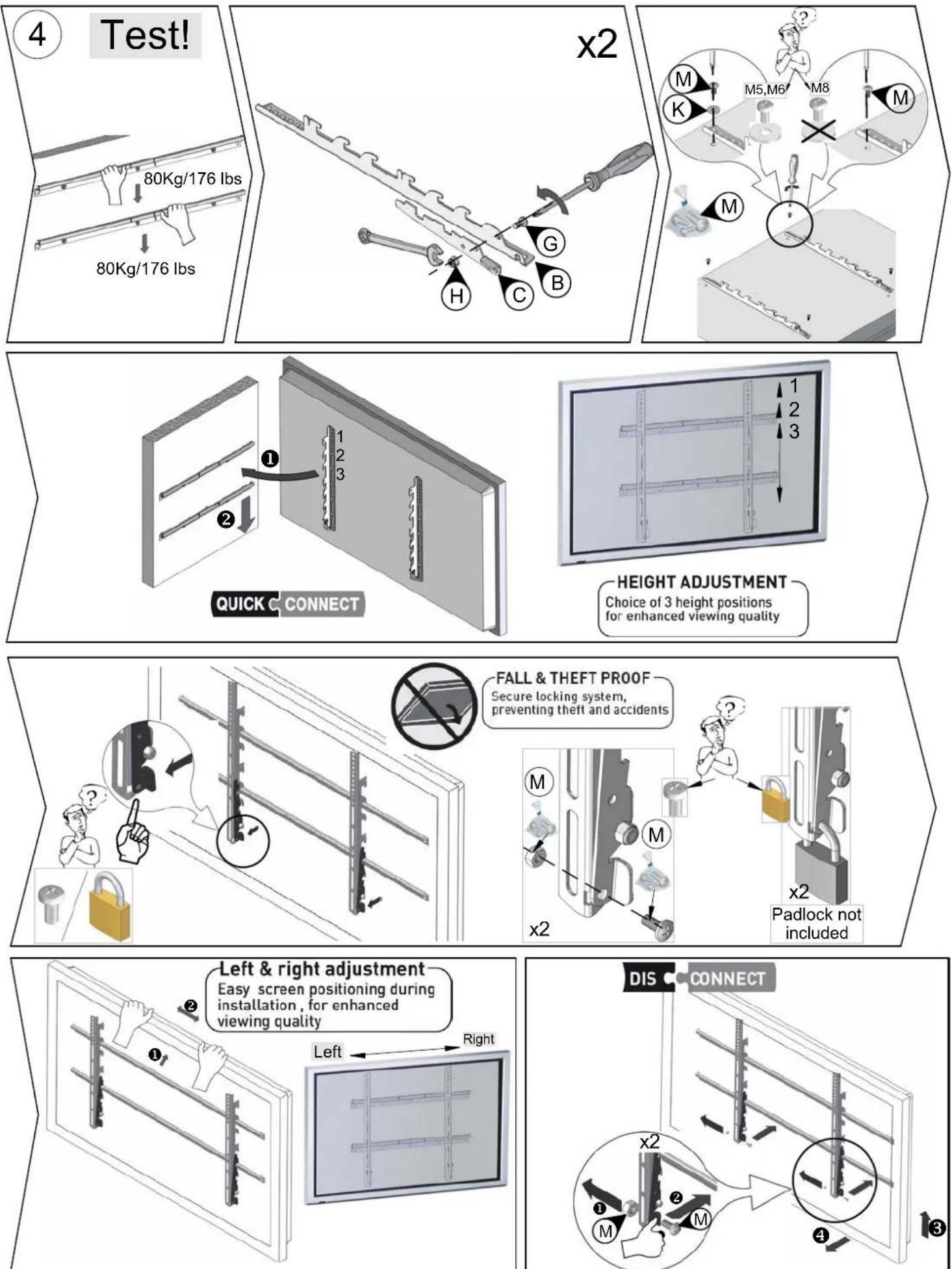

Barkan 40P - CAUTION - 10
Dear customer, we welcome your comments and suggestions to improve our products, ease of assembly and instructions. Please contact us through our website: www.barkanmounts.com
