BRUGSANVISNING 50B Barkan

Fixed

LCD/ PLASMA Wall Mount

Premium Series

Assembly instructions

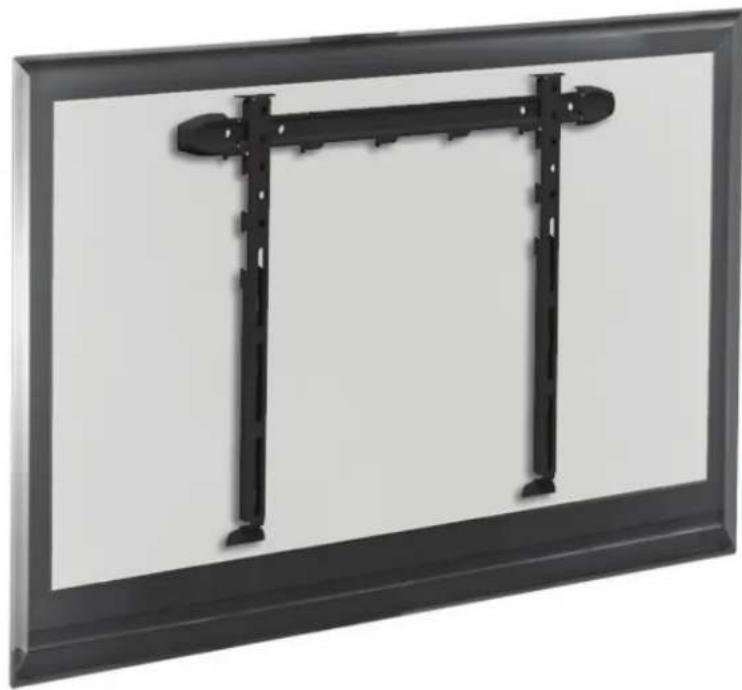

Barkan 50B - Premium Series - 1

natural_image Black metal frame with vertical supports and a rectangular frame on a plain background (no text or symbols)

50

CAUTION - This Mount is intended for use only with the maximum weight as indicated. Using heavier products, might cause injury.

Fits Up to 56" 142cm LCD/PlasmaMax
USEU
132lbs60kg

110050.2 31.12.09

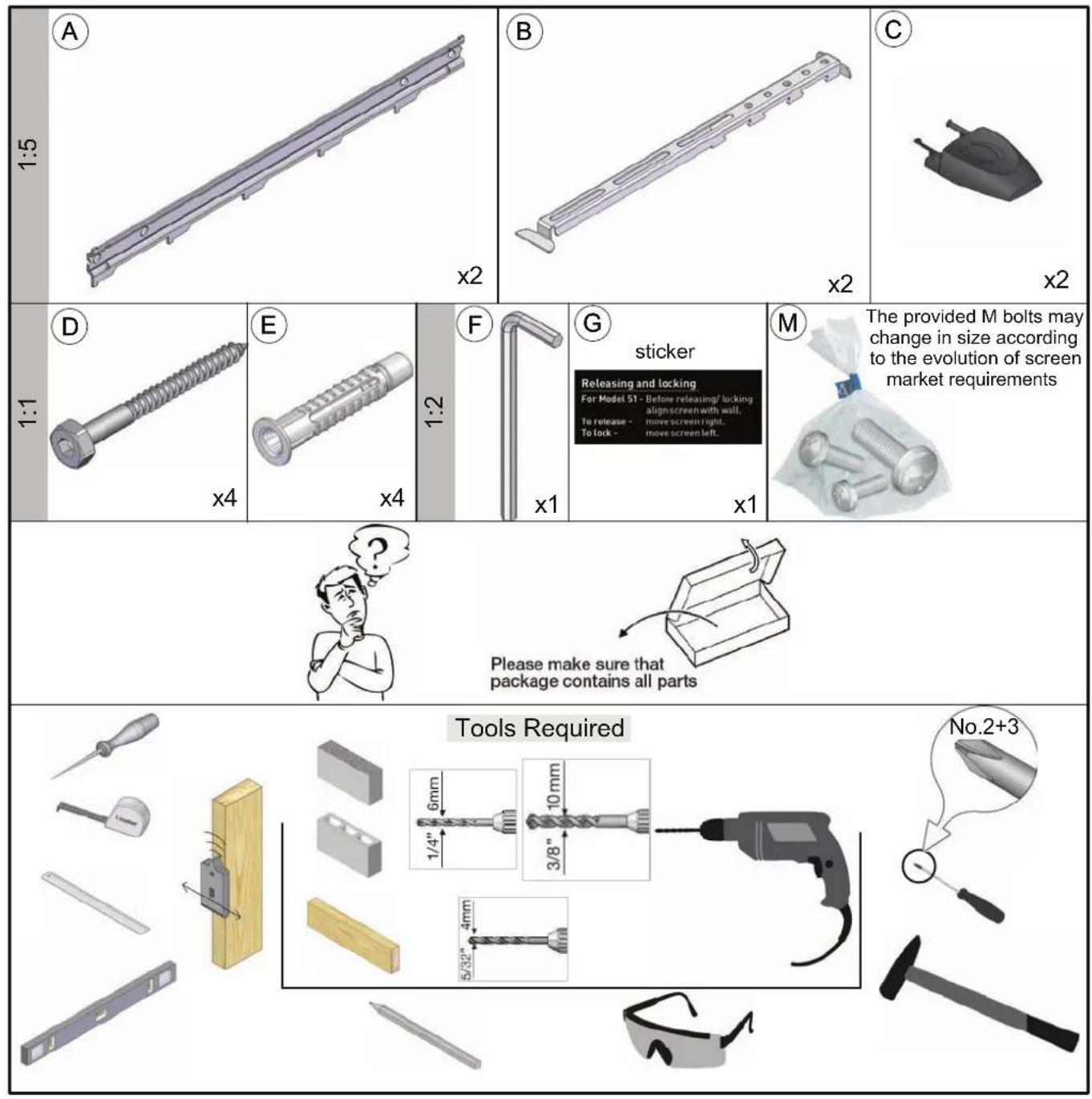

A 1:5 x2 B x2 C x2 D 1:1 x4 E x4 F x1 G sticker Releasing and locking For Model 51 - Before releasing/ locking align screen with wall. To release - move screen right... To lock - move screen left. M The provided M bolts may change in size according to the evolution of screen market requirements x1 Please make sure that package contains all parts Tools Required 6mm 1/4" 3/8" 10mm 4mm No.2+3

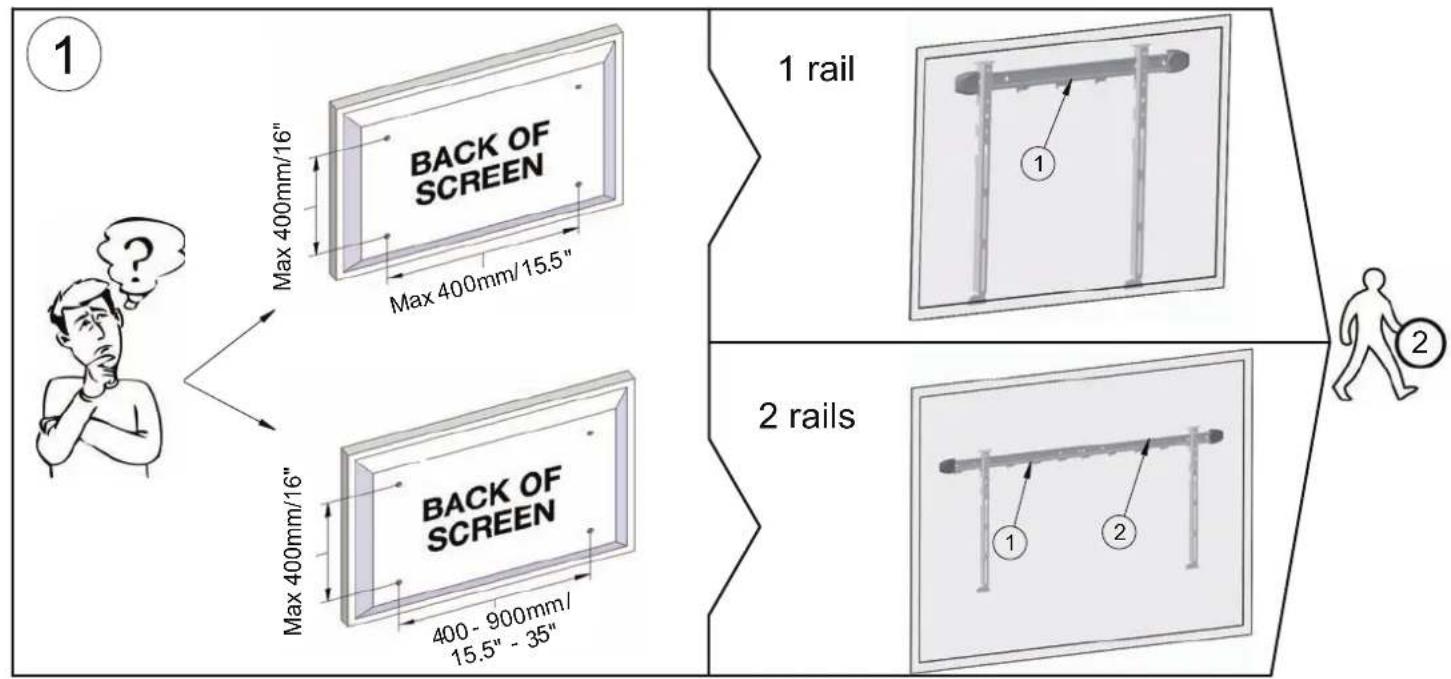

1 BACK OF SCREEN Max 400mm/16" Max 400mm/15.5" 1 rail 2 rails 2 1 2 400 - 900mm/ 15.5" - 35"

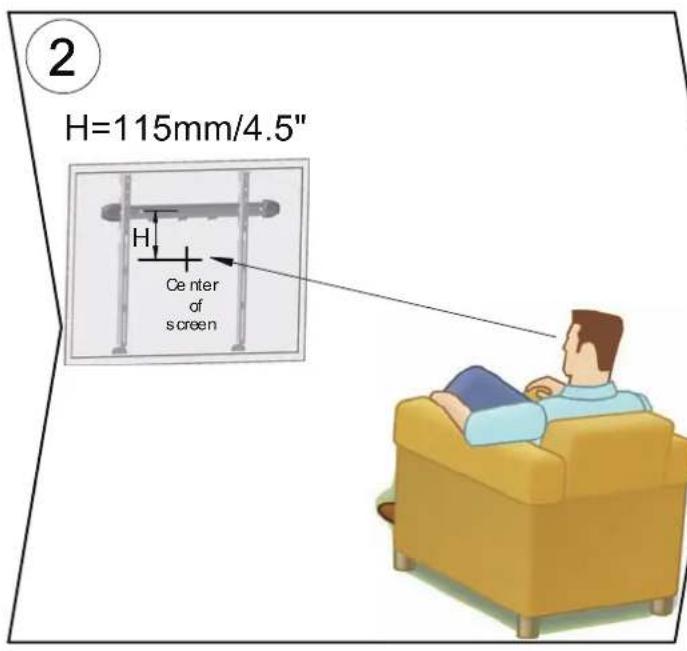

2 H=115mm/4.5" H Center of screen

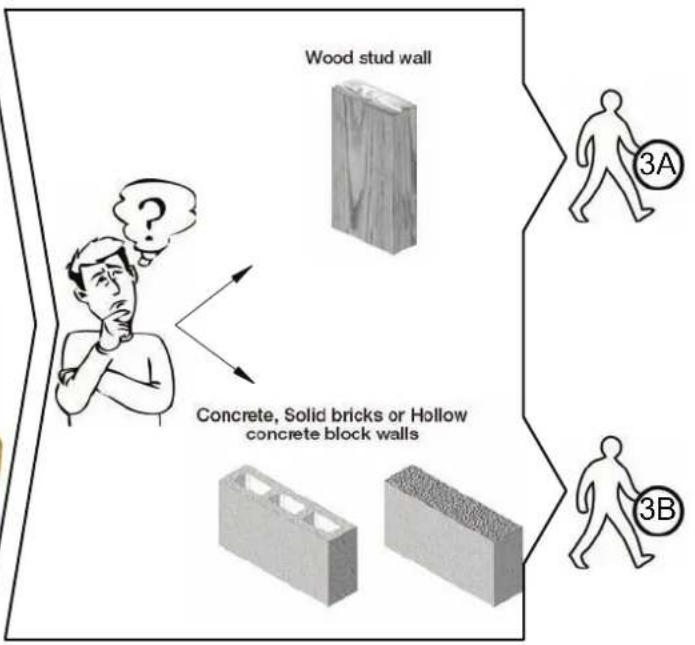

Wood stud wall Concrete, Solid bricks or Hollow concrete block walls 3A 3B

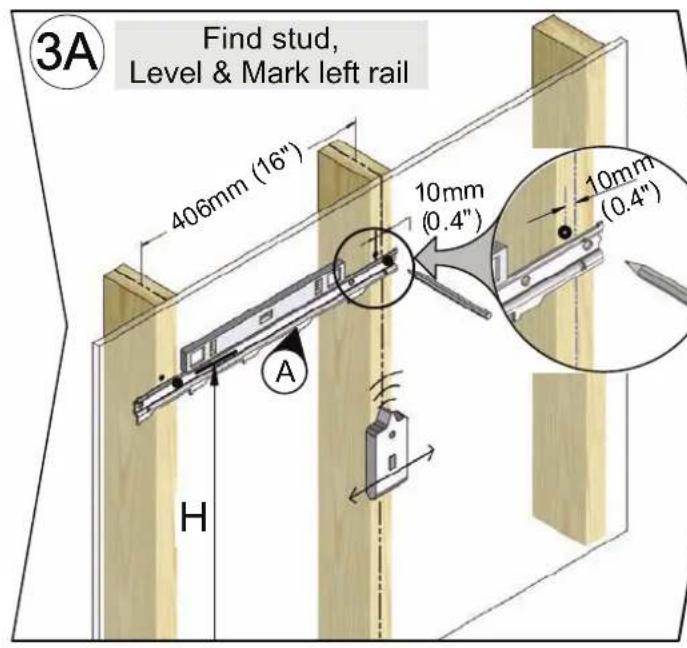

3A Find stud, Level & Mark left rail 406mm (16") 10mm (0.4") 10mm (0.4") A H

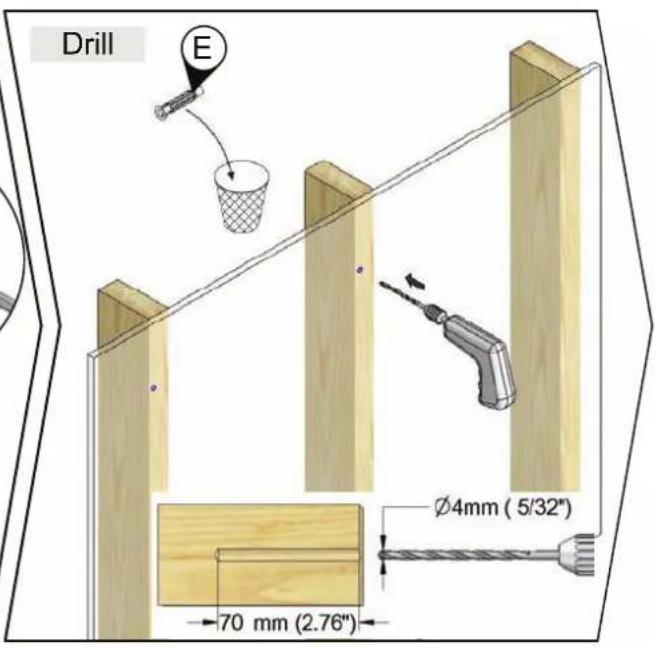

Drill E Ø4mm ( 5/32" ) 70 mm (2.76")

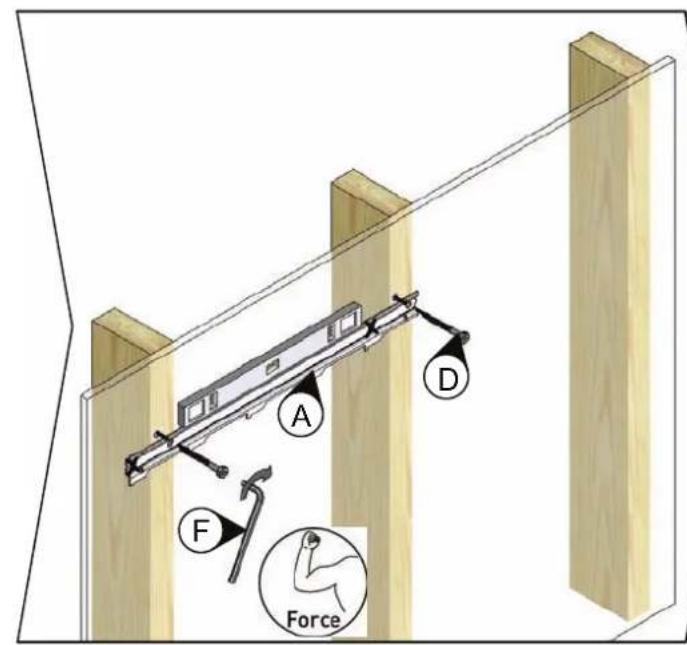

A D F Force

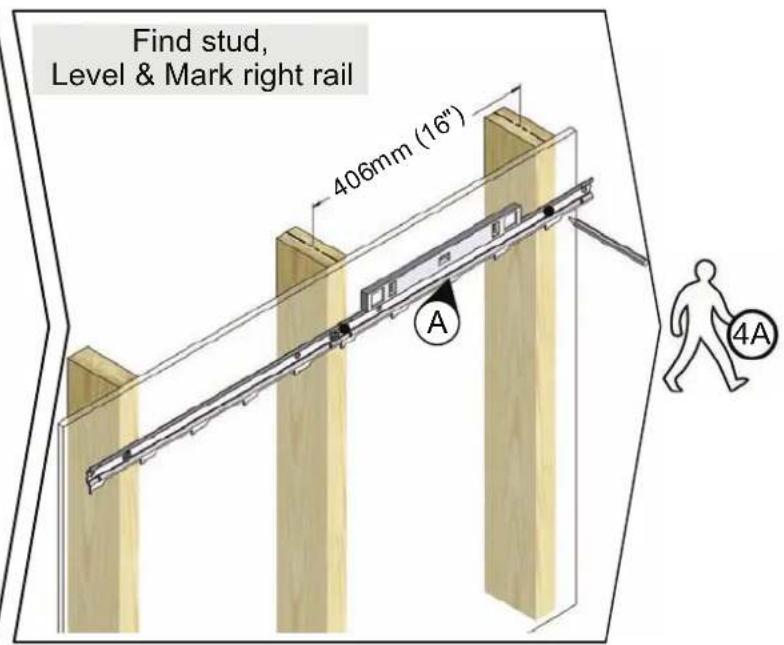

Find stud, Level & Mark right rail 406mm (16") A 4A

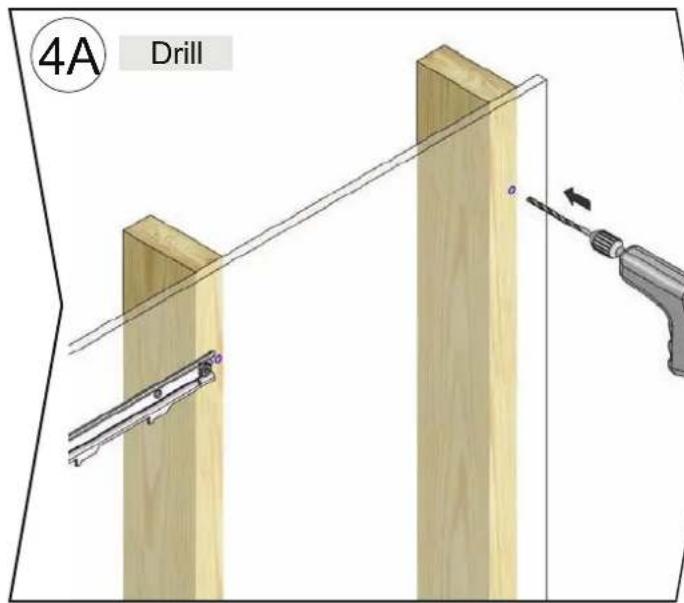

4A Drill

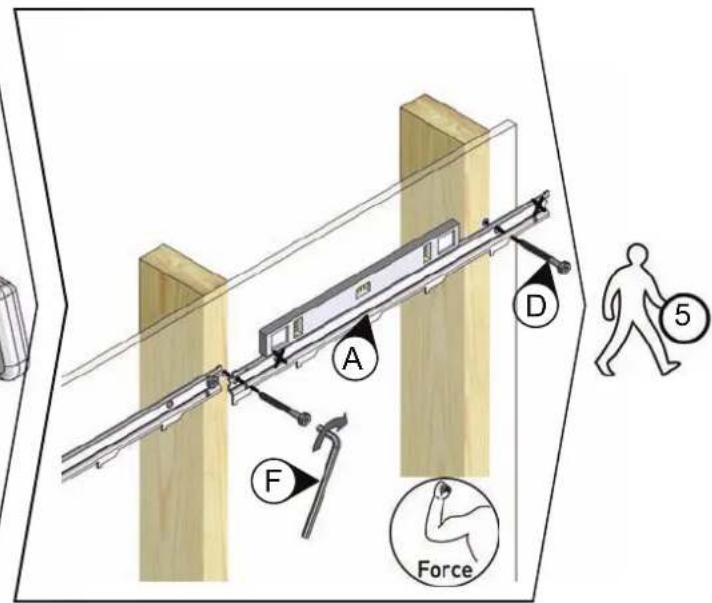

A D F Force 5

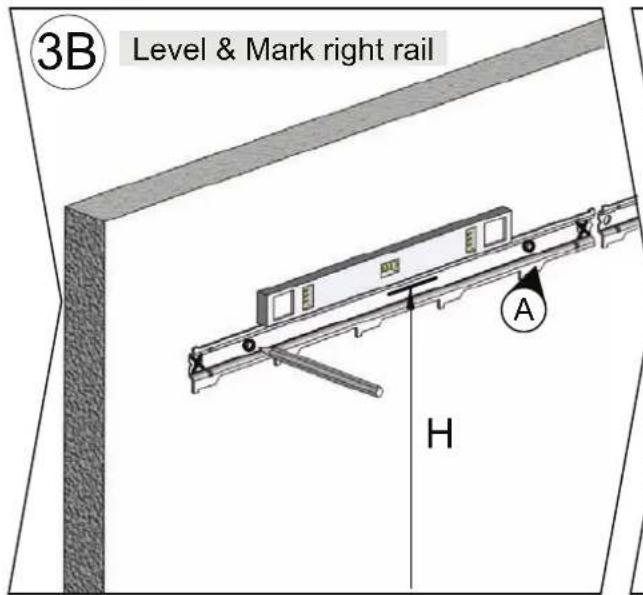

3B Level & Mark right rail A H

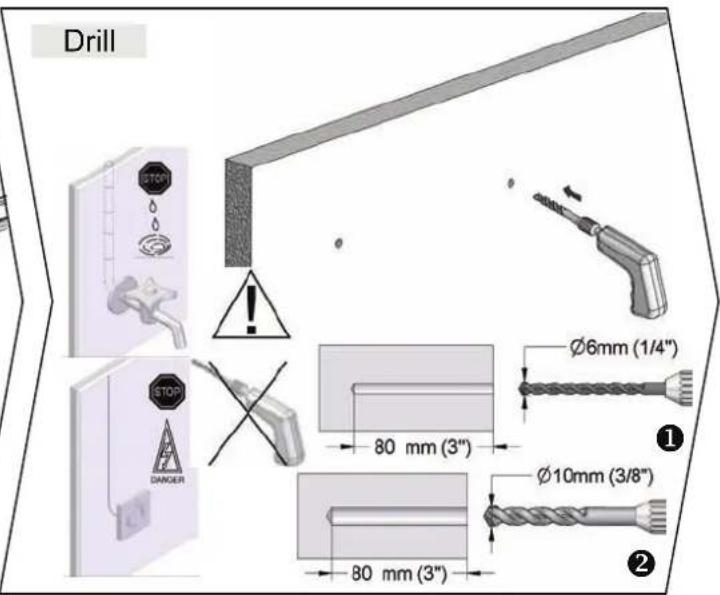

Drill STOP STOP DANGER Ø6mm (1/4") 80 mm (3") Ø10mm (3/8") 80 mm (3") ① ②

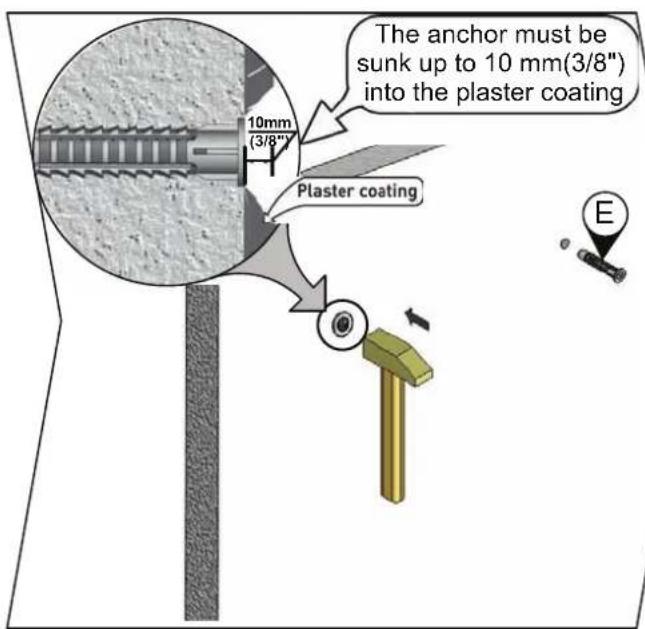

The anchor must be sunk up to 10 mm(3/8") into the plaster coating Plaster coating 10mm (3/8") E

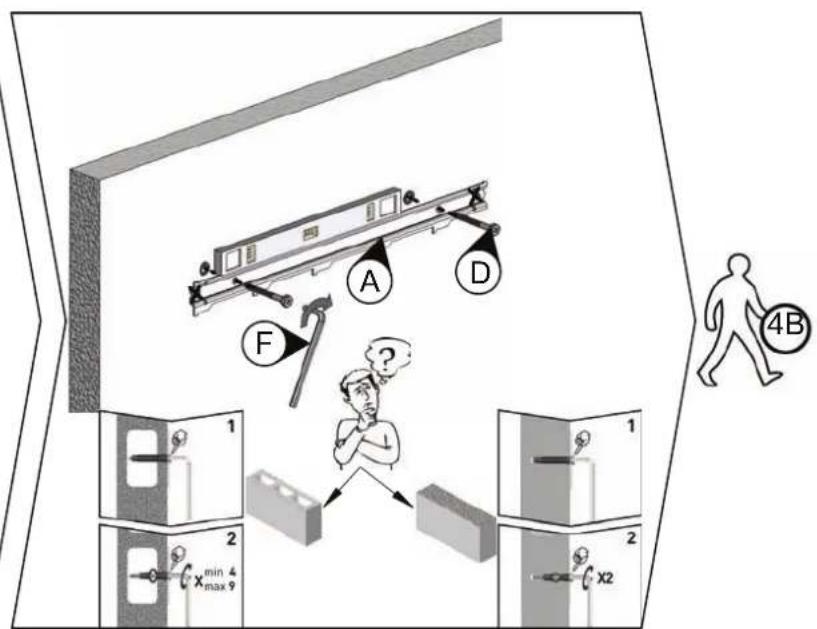

Diagram illustrating a mechanical system with labeled components (A, D, F) and a person confused, alongside three 3D bounding boxes labeled 1, 2, and 4B.

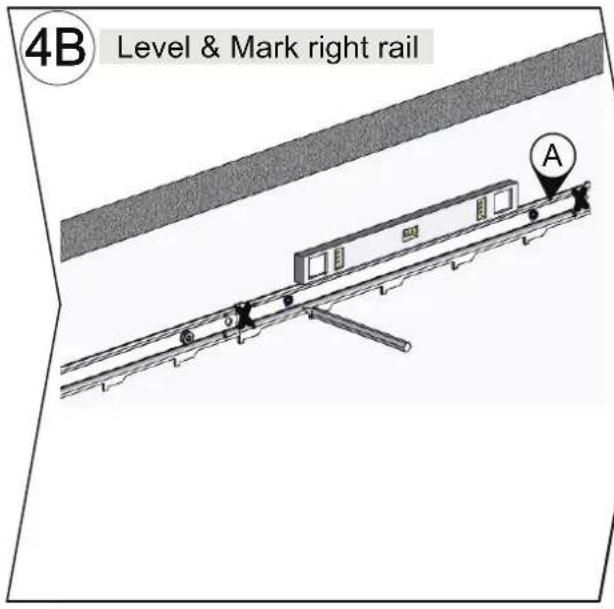

4B Level & Mark right rail A

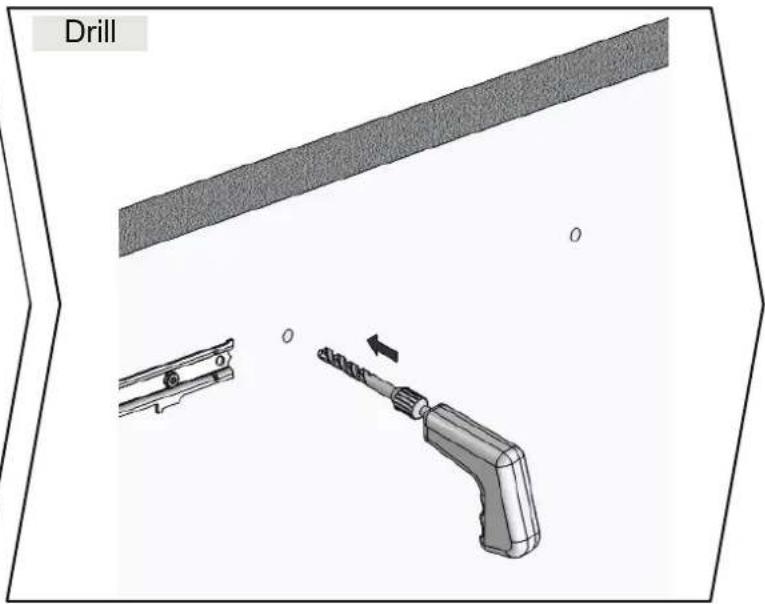

Drill

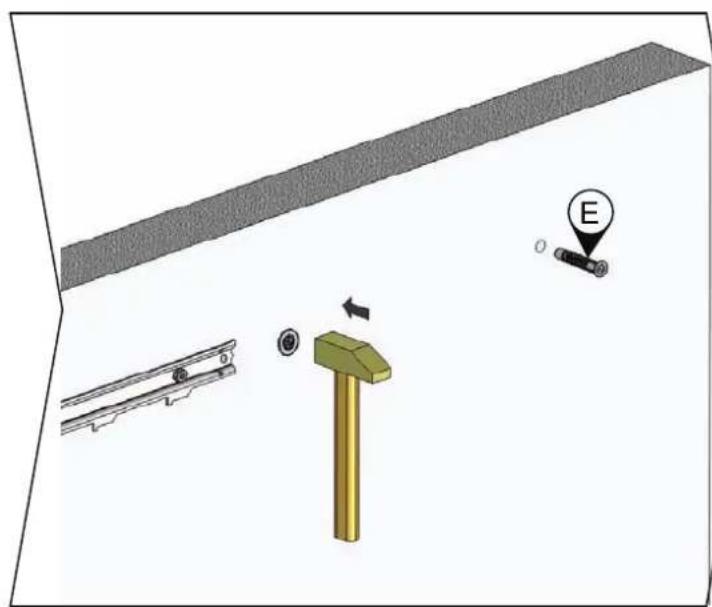

Diagram showing mechanical components and a labeled point 'E' with directional arrow and circular indicators

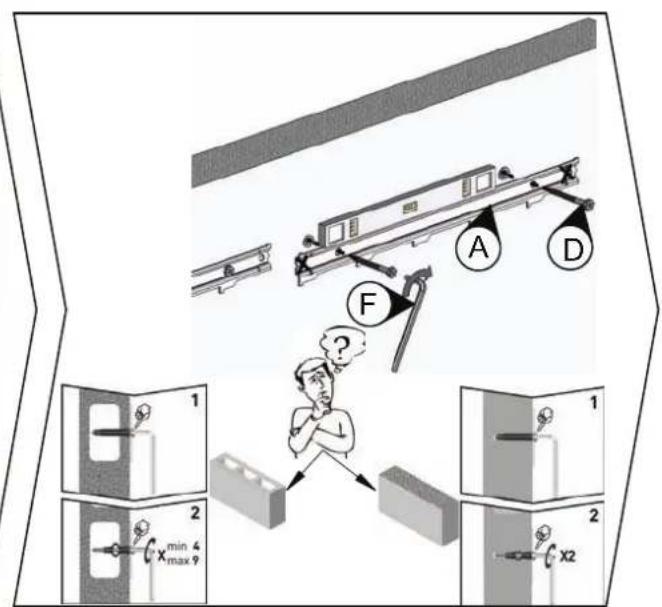

Diagram illustrating a mechanical system with labeled components (A, D, F) and zoomed-in views showing measurement ranges.

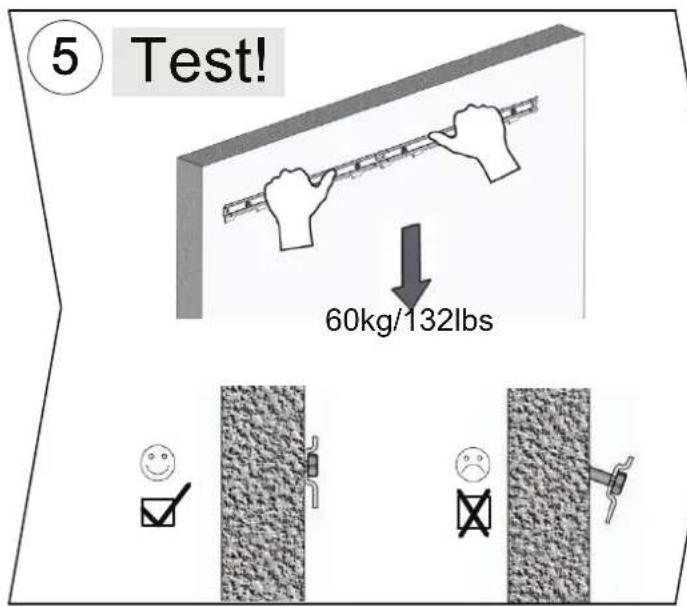

⑤ Test! 60kg/132lbs

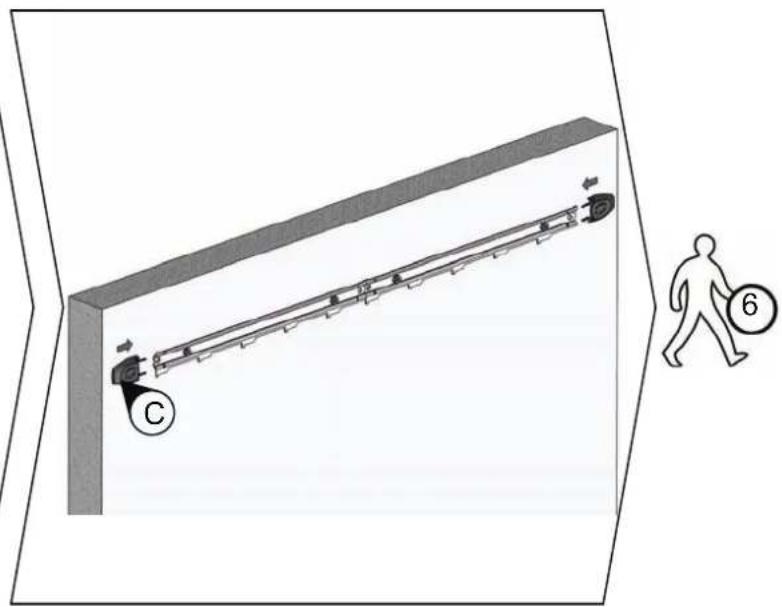

Diagram of a mechanical lifting system with labeled components and a person walking, showing motion path and component number 6.

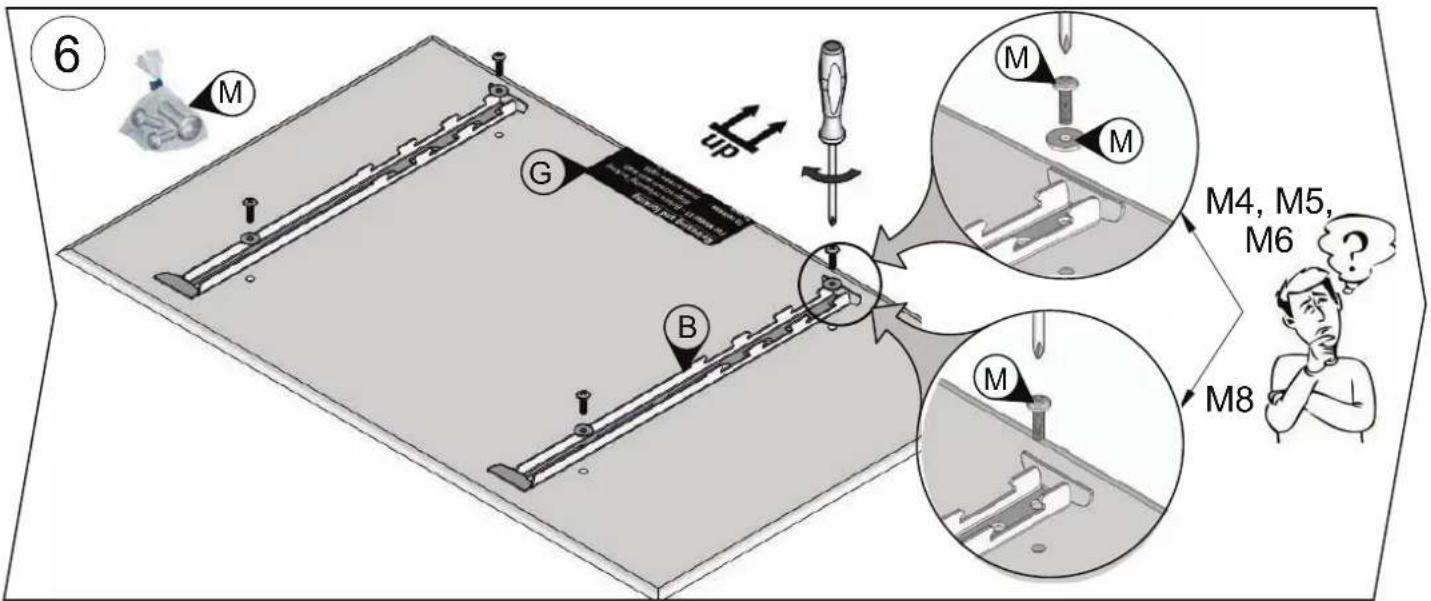

6 M G B M M M4, M5, M6 M8

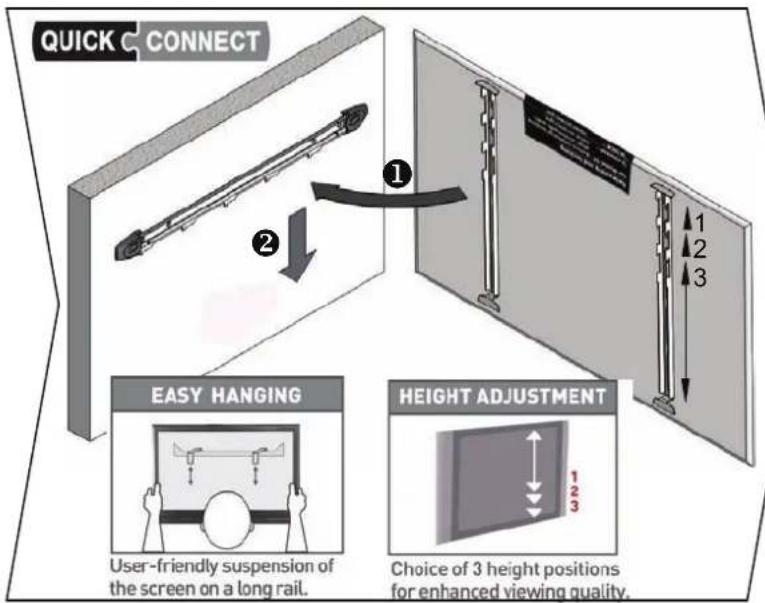

QUICK CONNECT EASY HANGING User-friendly suspension of the screen on a long rail. HEIGHT ADJUSTMENT Choice of 3 height positions for enhanced viewing quality.

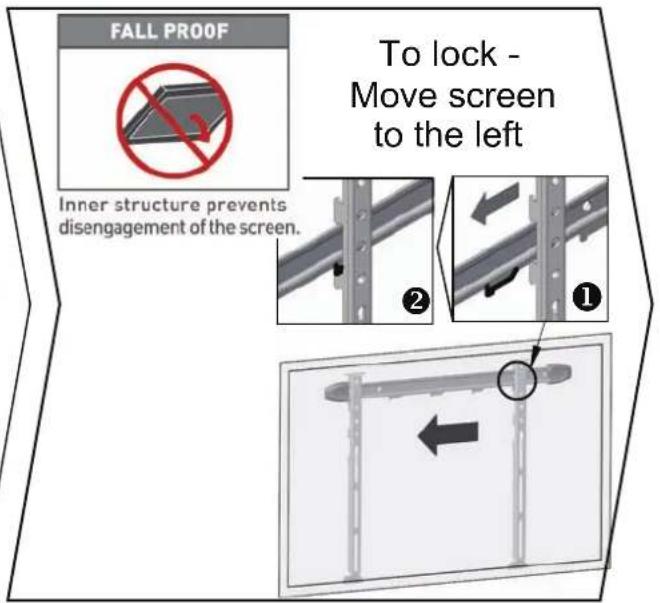

FALL PROOF Inner structure prevents disengagement of the screen. To lock - Move screen to the left

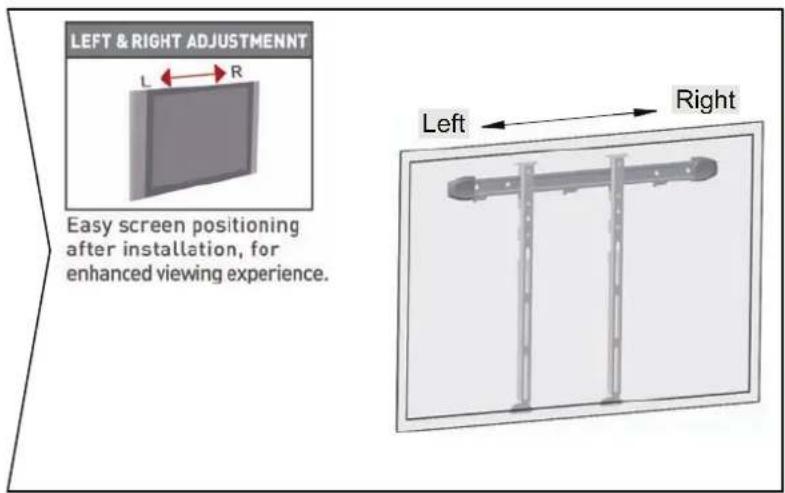

LEFT & RIGHT ADJUSTMENT L ← R Easy screen positioning after installation, for enhanced viewing experience. Left → Right

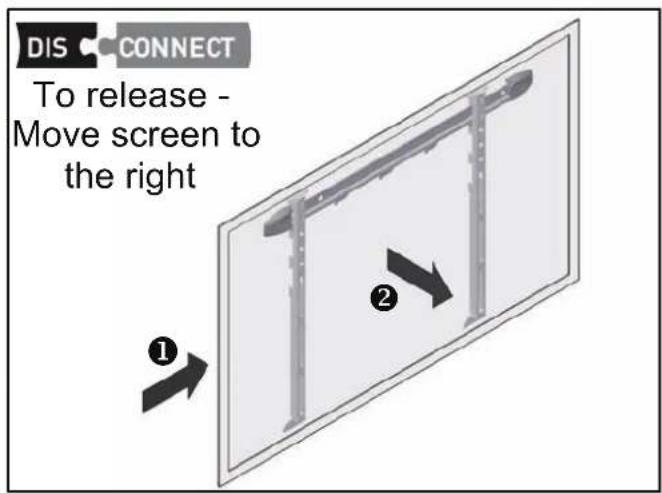

DIS CONNECT To release - Move screen to the right ① ②

Dear customer, we welcome your comments and suggestions to improve our products, ease of assembly and instructions. Please contact us via our website: www.barkanmounts.com
