BRUGSANVISNING MPRT Myson

MPRT

PROGRAMMABLE ROOM THERMOSTAT

USER INSTRUCTIONS

ABOUT YOUR MPR1

The MPRT is a programmable room thermostat. It measures the temperature of your room and then controls the heating to maintain the room at the chosen temperature.

MPORTANT : Do not fit the MPRT where it will be affected by heat from radiators, sunshine, or other heat source.

The MPRT is wired to your heating equipment by your electrician

f your MPRT has already been installed you need only follow the section 'THREE EASY STEPS, to operate your heating.

"THREE EASY STEPS"

On your MPRT unit you set the value of three temperatures, Low, Medium and High.

‘Low’ is typically a night setting, “Medium” an afternoon setting, and “High” a morning and evening setting.

Your MPRT will then operate your heating to maintain these temperature settings.

=follow steps 1 to 3 below.

① SETTING THE CLOCK

Hold down HEAT TIMES

for 5 seconds.

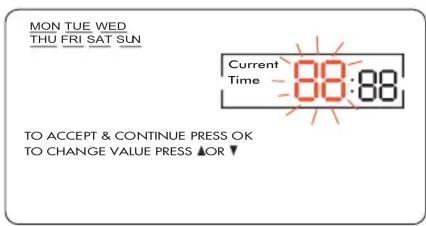

This screer appears:

Jse ▲ and ▼ to alter the blinking text (hours). Press OK to proceed to minutes and change using ▲ and ▼.

Press OK to proceed to day and change using ▲ and ▼. Press OK

The time is now set and the screen returns to normal.

② SETTING YOUR 3 TEMPERATURES

Press H.

This screen appears:

Jse ▲ or ▼ to set the "High" temperature.

Your have now set your high temperature

Press OK. The screen returns to normal.

To set your "Medium" temperature, follow the same procedure above except press M instead of H.

I to set your "Low" temperature, follow the same procedure as above except press L instead of H.

③ SETTING YOUR HEATING TIMES

Press HEAT TIMES

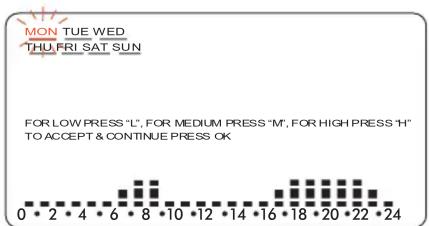

This screer appears.

NOTE:

If the screen above appears without the days of the week displayed it means the room unit has been set up to give the same temperatures every day. If you wish to change this set up to enter for individual days press OK

To exit. Then press ▲ and ▼ together and hold down for 10 seconds. Press HEAT TIMES to enable daily time settings. Press OK to accept.

Vow press THEAT TIMES and follow the instruction below. 'To revert to the same programme each day repeat the above process.

When the daily programme is enabled, we bar graph shows the temperatures for the 24 hours of Monday A Low temperature is indicated by -, a Mid temperature by ■, and a High temperature by ■. If you are happy with the temperatures entered for Monday, press OK.

Tuesday's temperatures appear

f you are happy with these temperatures press OK again, and so on to Sunday.

Press OK. The screen returns to normal.

If you are not happy with the temperature on any particular day you can change them. For example, in the figure below, to change the settings on the left (LLLLLLMHHLL) to those on the right you would press the button sequence LLLLLMMHHHH.

SMART START

"SMART START" varies the start-up times to ensure that the building achieves temperature by the required time.

The smart start system is continually learning the temperature rise requirement, delaying the start up of the system, therefore saving energy during milder weather.

SETUP FOR SMART-START.

To toggle the Smart-Start function between enabled and disabled, hold ▲ and ▼ down for 10 seconds.

The 1 Hr button can now be used to toggle Smart-Start between active and deactivated.

OTHER SIMPLE FUNCTIONS

ONE HOUR OF HIGH TEMPERATURE.

If you press 1 Hr you will get an hour of High heat, irrespective or whether your times are set for Low or Mid hea: If you want to cancel this function you simply press OF F MA N.

MANUAL OVERRIDE.

If you hold OFF MAN for 5 seconds, the room unit will go into manual mode. In this mode there is only one temperature Press either ▲ or ▼ to see this temperature change Set it to the temperature you require. The thermostat will continue to control your heating at this temperature until you deactivate manual override by pressing OFF MAN.

DEACTIVATING YOUR HEATING

If you press OF F. your heating will be deactivated. The screen will continue to indicate the room temperature but the heating will never come on To reactivate your heating simply press OFF MAN.

Note:

Provided you deactivate via the MPRT the system will have frose protection at 6°C. If the system is to be left shut down for a long period over winter ensure there is sufficient battery life t maintain protection..

MORE ADVANCED FUNCTIONS

KEYPAD LOCKING.

Hold L & OK for 5 seconds to lock the keypad The locked symbol appears on the screen 🔒. No changes can be made to the settings to unlock the screen hold L & OK for 5 seconds.

RETURN TO FACTORY SETTINGS.

Holding ▼ and OK down for 10 seconds returns the H, M and L temperatures to the values they had when they left the factory. It also returns the heating times to their factory values

COPY FUNCTION.

Pressing ▲ and OK for 5 seconds when setting your heating times (step 3), will copy the current day's times into the next day

HOLIDAY FUNCTION

Pressing H while holding OK puts the room unit into holiday mode. Press ▲ to enter the number of days you will be away on holidays. Press OK. Now press ▲ or ▼ to alter the room temperature you require while away on holidays. Press OK to accept and exit. The function can be cancelled by pressing OF F MA N.

SMART-START FUNCTION

The message "SMART START" displayed on the screen indicate that this function is operating

Smart-Start works by switching the heat on in advance - so that the room can warm up. As an example, lets say you get out of bed at 8am and you want the room to be warm at that time Without Smart-Start you must programme your High temperature for 7am. - See diagram below

With Smart-Start you need only programme your High temperature for 8am. - See diagram below

Smart-Starl will know that you want the room warm at 8am and bring the heating on before that

But Smart-Start is even more intelligent than thi. It remembers how cold it was on the previous mornings. Thus, in Winter it might state the heating 1 hour before 7a.m. and in Spring start half an hour before 7a.m. In this way it provides optimum comfort and energy saving

Note:

In extreme low temperatures and dependant on your heating system capability, the desired temperature set may not be reached by the so time. Thus an earlier higher temperature may need to be so

REPLACING THE BATTERIES IN YOUR MPRT.

Dependant on type and manufacturer the batteries in your MPR should last approximately 2 years

When they go low, a battery symbol appears on the LCD screen telling you to replace the batteries.

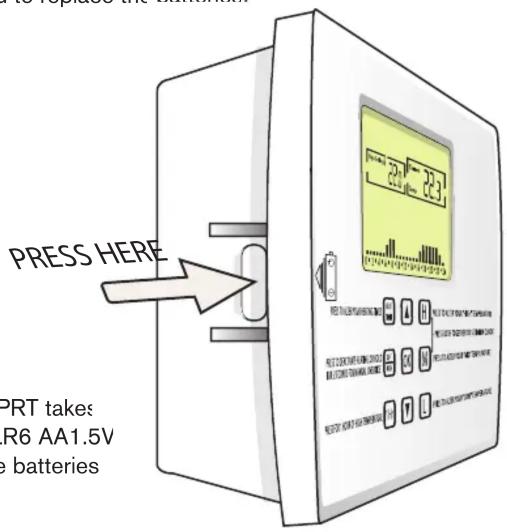

To access the batteries release the cover from the base by pressing the base at arrow shown above The batteries are then visible

NOTE: Changing the battery in 1 minute or less will retain all you settings. If it takes longer than 1 minute, you may have to re-ent your settings.

MYSON CONTROLS

MYSON LTD., EASTERN AVENUE

TEAM VALLEY, GATESHEAD

TYNE & WEAR, NE11 0PG

SALES OFFICE No. 0845 402 3434

IN ACCORDANCE WITH OUR POLICY OF CONTINUAL PRODUCT IMPROVEMENT WE RESERVE THE RIGHT TO AMEND THE SPECIFICATION OF THESE PRODUCTS WITHOUT PRIOR NOTIFICATION.
