BRUGSANVISNING Alpine 64 PLUS ARCTIC COOLING
DE Montageanleitung: www.arctic.ac/fileadmin/a64p/manual de.pdf
FR Guide d'installation: www.arctic.ac/fileadmin/a64p/manual fr.pdf
ES Manual de instalación: www.arctic.ac/fileadmin/a64p/manual es.pdf
PT Manual de Instalação: www.arctic.ac/fileadmin/a64p/manual_pt.pdf
SE Installationsmanual: www.arctic.ac/fileadmin/a64p/manual_se.pdf
CZ Instalační příručka: www.arctic.ac/fileadmin/a64p/manual_cz.pdf
HU Telepítési kézikönyv: www.arctic.ac/fileadmin/a64p/manual_hu.pdf
PL Instrukcja montażu: www.arctic.ac/fileadmin/a64p/manual_pl.pdf
NL Installatiehandleiding: www.arctic.ac/fileadmin/a64p/manual_nl.pdf
Uninstall AMD stock cooler

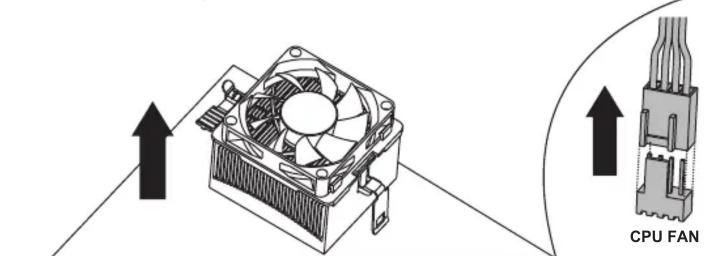

1 Remove the stock cooler and the plug carefully. If the stock cooler is attached to the CPU, rotate it slightly.

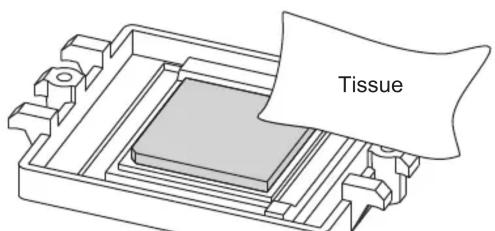

2 Clean the CPU carefully. Remove the residue paste by paper tissue carefully.

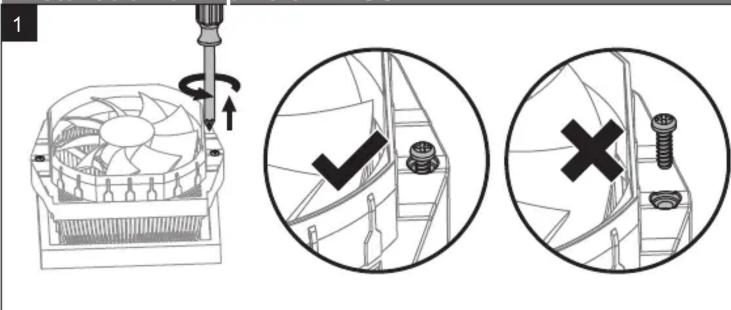

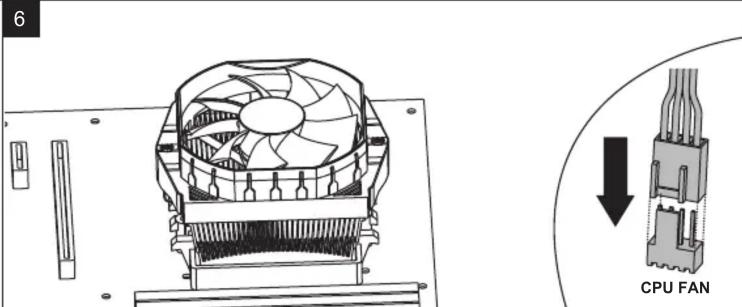

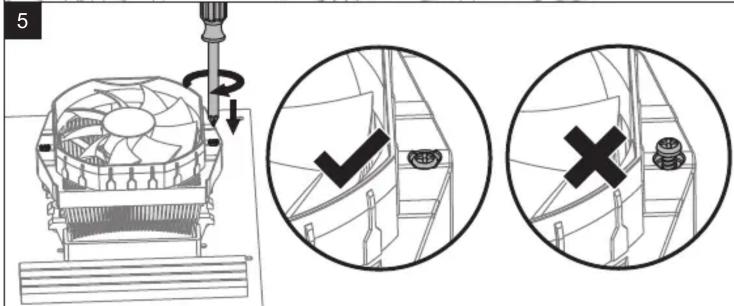

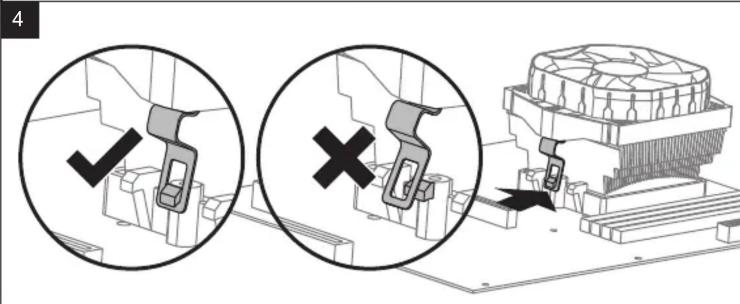

Installation of Alpine 64 PLUS
2 ⚠Caution: Do not touch the pre-applied thermal paste.


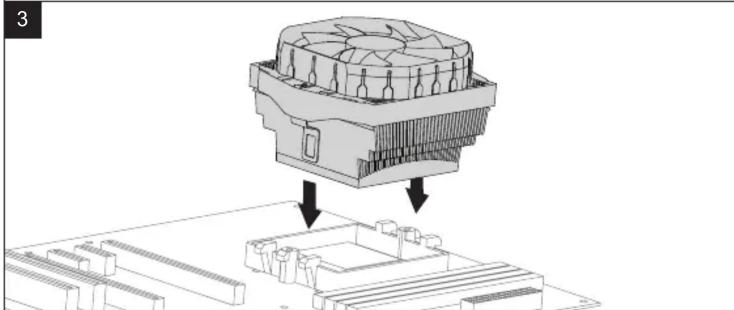

3D diagram of a computer motherboard with a heatsink and cooling fan component (no text or symbols)
Thermal Compound
The thermal compound is already pre-applied to the heatsink. If the cooler is installed for a second time, we highly recommend using MX-4 from ARCTIC. Only our compounds guarantee optimal performance in combination with the surface of our heatsinks.
Warranty
This ARCTIC Product includes a six-year limited warranty. Please visit warranty.arctic.ac for further details.
