BRUGSANVISNING KRWS 9010/1 KITCHENAID

KRWS 9010

Assembly instructions

KitchenAid®

FOR THE WAY IT'S MADE.®

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 2

Installation kit supplied 4

Wine drawer overall dimension 5

Installation kit 6

Preparation of the cabinet for inserting the wine drawer 8

Fitting the two brackets supplied in the installation kit 9, 10

Inserting the wine drawer in the cabinet 13

Inserting the corrugated plastic sheet covering 16

Installation completed 17

Installation kit supplied

The wine drawer is designed for built-in installation and must not be used as a free-standing unit. Installation and maintenance must be carried out by at least two qualified technicians.

INSTALL THE WINE DRAWER ONLY IN POSITION UNDER THE KITCHEN WORKTOP.

Make sure the wine drawer is fixed to the adjacent cabinet with the brackets supplied.

DO NOT INSTALL THE WINE DRAWER IN A COLUMN. DO NOT INSTALL THE WINE DRAWER ON ITS OWN OR IN A SINGLE CABINET.

Otherwise the wine drawer will be unstable, with risk of tipping over and consequent injury or damage.

Do not start this electrical appliance if it is damaged, does not work properly, is partially disassembled or if there are broken or missing components, including damaged cable or power socket.

Make sure the power cable is in a position where it cannot be trodden on, tripped over, damaged or undergo strain.

Do not install or store the appliance in places where it can be exposed to bad weather or temperatures below freezing.

The min. area in the base board for the passage of air must be at least 200 cm ^4 .

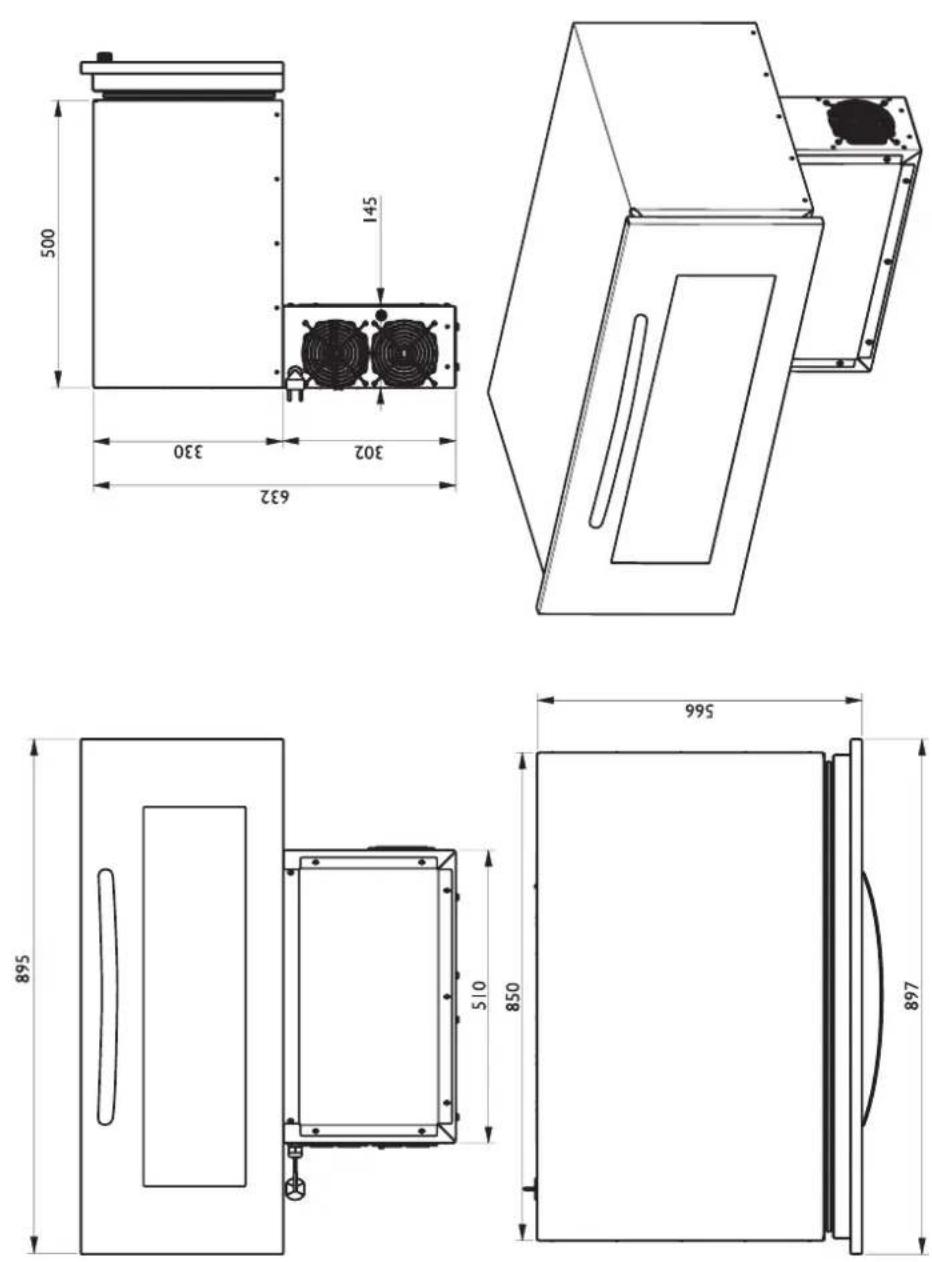

Wine drawer overall dimension
KITCHENAID KRWS 9010/1 - DO NOT INSTALL THE WINE DRAWER IN A COLUMN. DO NOT INSTALL THE WINE DRAWER ON ITS OWN OR IN A SINGLE CABINET. - 1

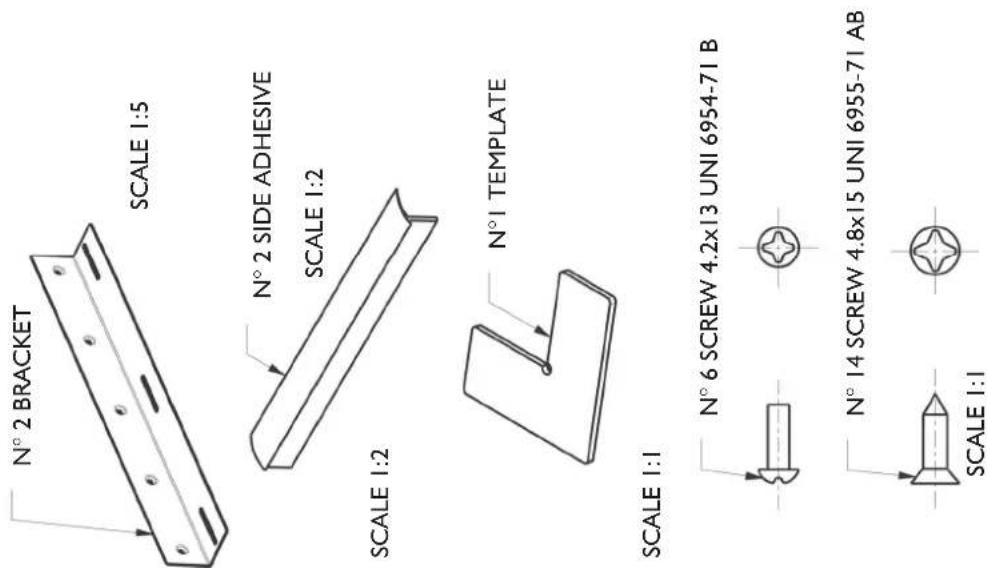

Installation kit
N° 2 BRACKET SCALE 1:5 N° 2 SIDE ADHESIVE SCALE 1:2 N°1 TEMPLATE SCALE 1:1 N° 6 SCREW 4.2x13 UNI 6954-71 B N° 14 SCREW 4.8x15 UNI 6955-71 AB SCALE 1:1

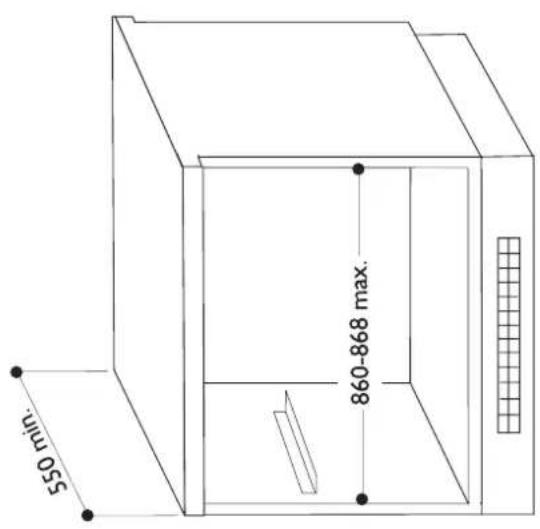

550 min. 860-868 max.

350 min. 850 5A7 302 330 145 510 900

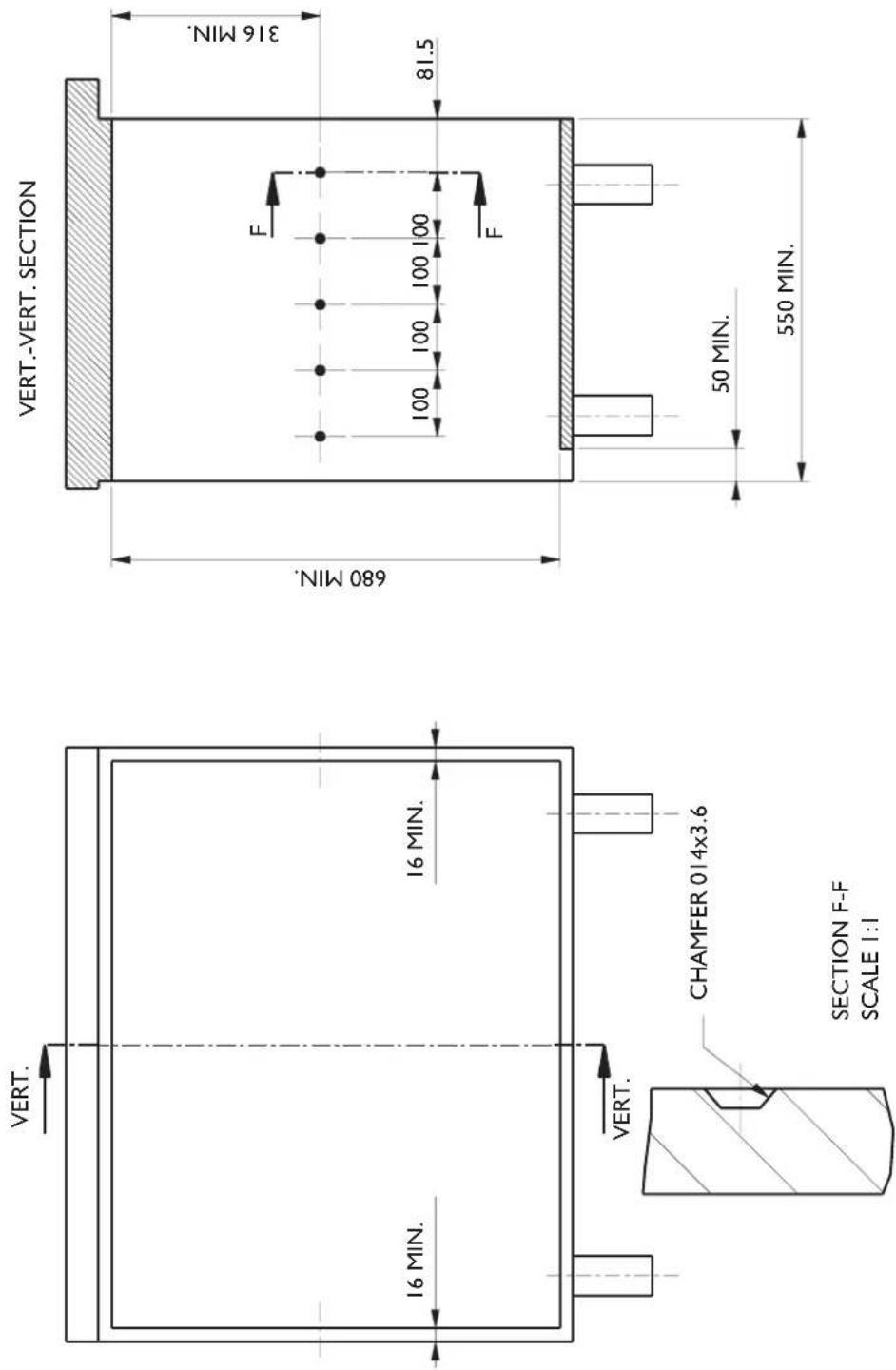

Preparation of the cabinet for inserting the wine drawer
VERT. 16 MIN. 16 MIN. VERT. CHAMFER 014x3.6 SECTION F-F SCALE 1:1 VERT.-VERT. SECTION 680 MIN. F 100 100 100 100 81.5 F 50 MIN. 550 MIN. 316 MIN.

Fitting the two brackets supplied in the installation kit

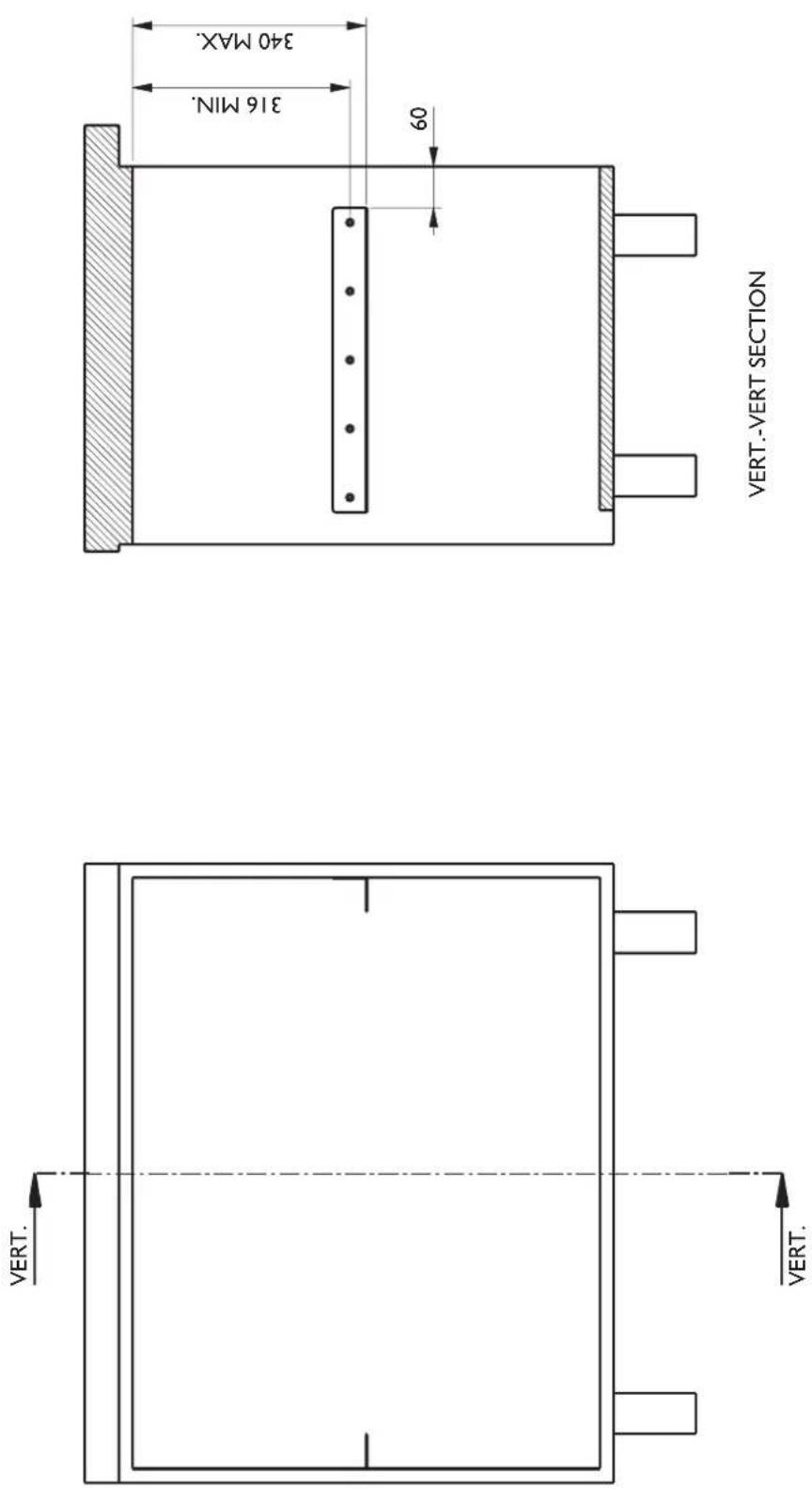

VERT. VERT. 316 MIN. 340 MAX. 60 VERT.-VERT SECTION

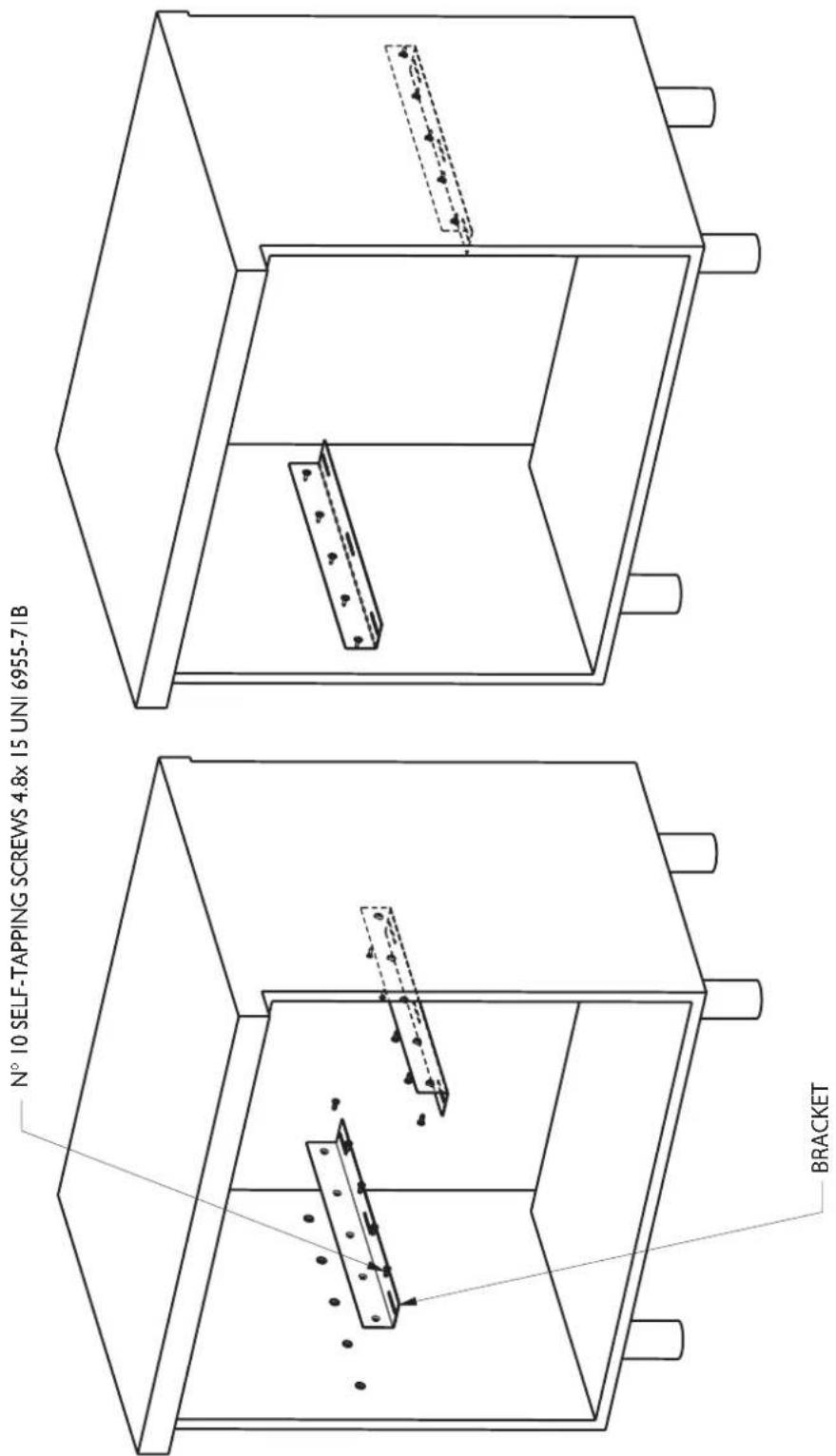

Fitting the two brackets supplied in the installation kit
N° 10 SELF-TAPPING SCREWS 4.8x 15 UNI 6955-71B BRACKET

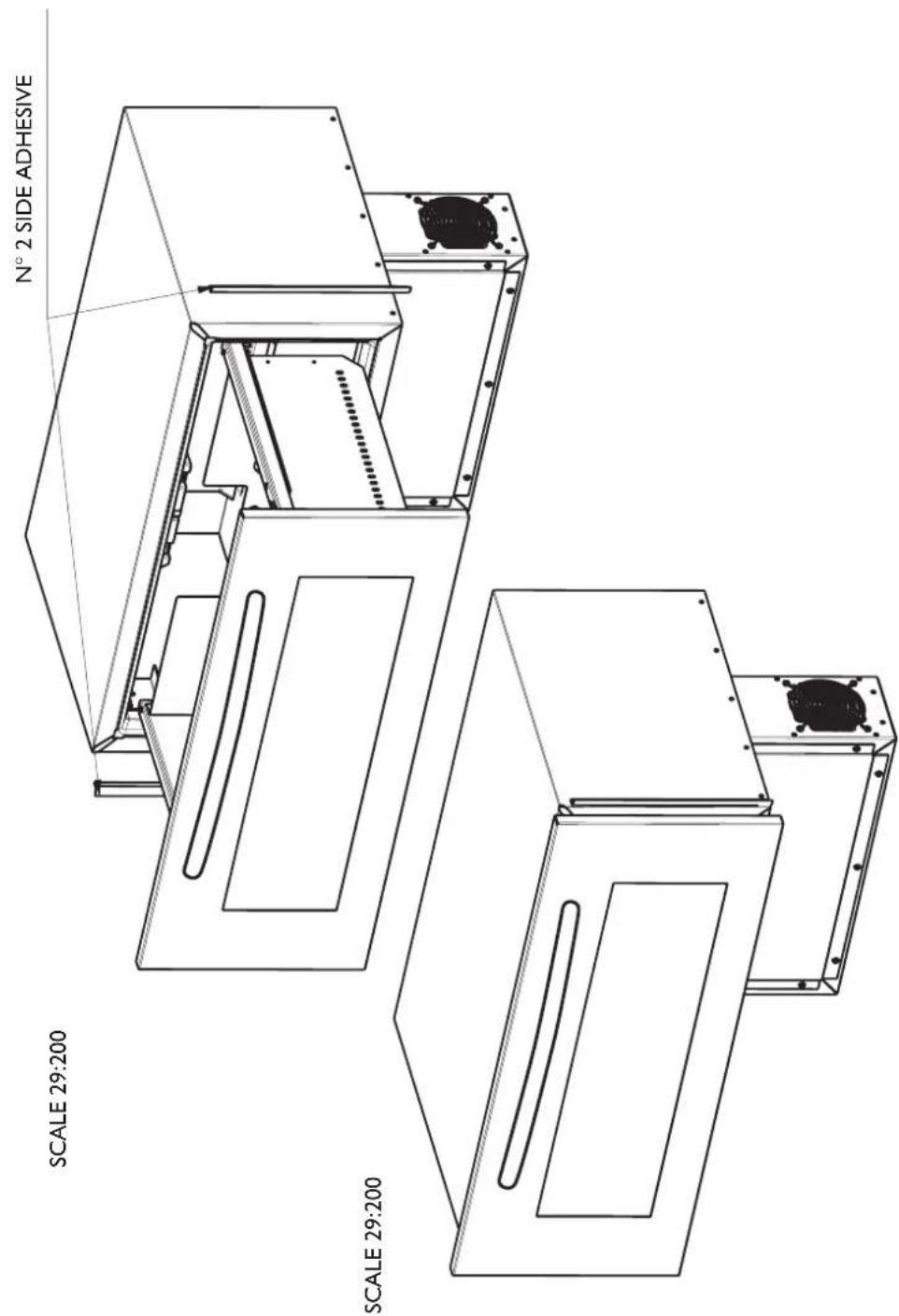

SCALE 29:200 N° 2 SIDE ADHESIVE SCALE 29:200

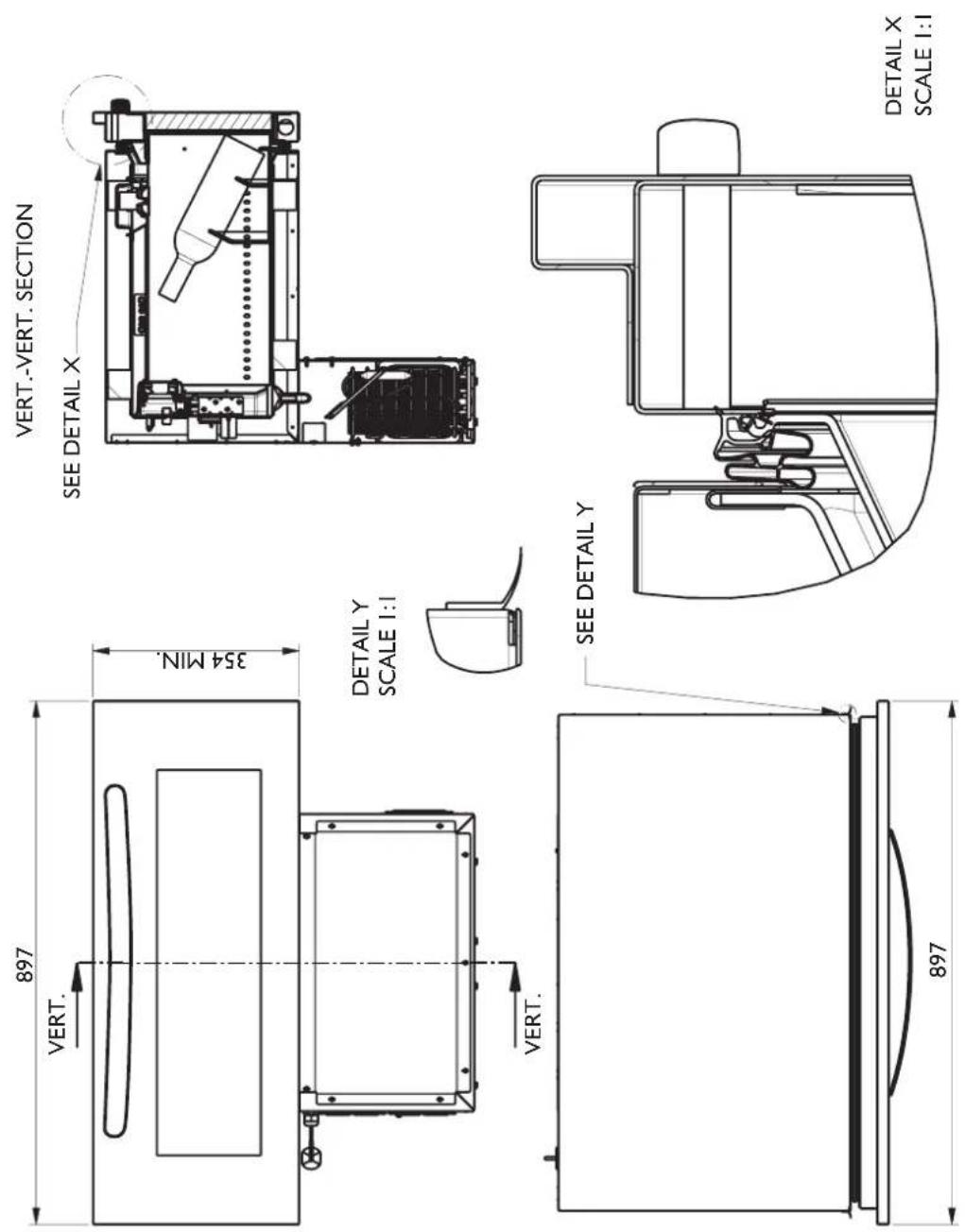

897 VERT. 354 MIN. VERT.-VERT. SECTION SEE DETAIL X DETAIL Y SCALE 1:1 VERT. SEE DETAIL Y 897 DETAIL X SCALE 1:1

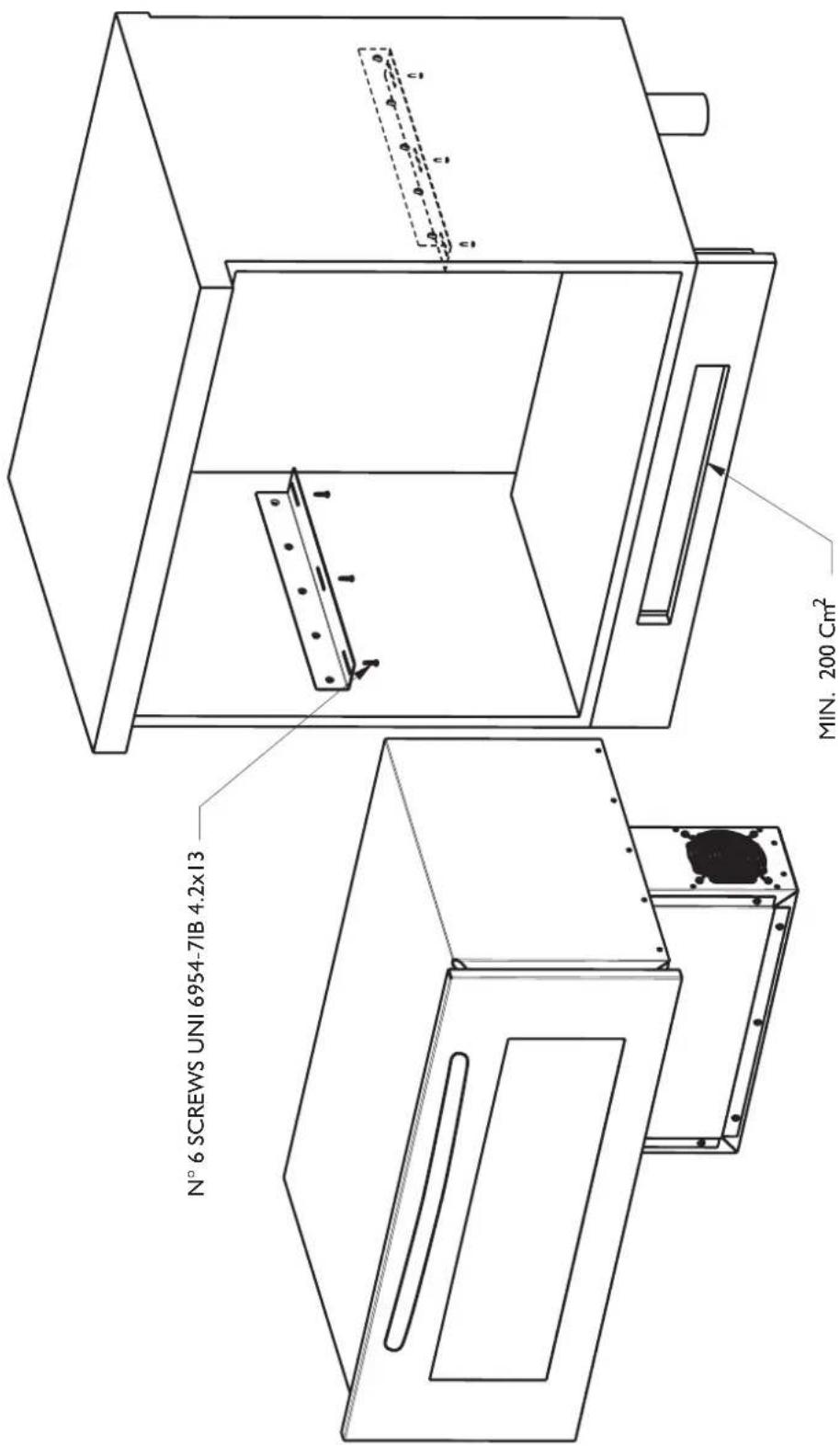

Inserting the wine drawer in the cabinet
N° 6 SCREWS UNI 6954-7IB 4.2x13 MIN. 200 Cm²

KITCHENAID KRWS 9010/1 - DO NOT INSTALL THE WINE DRAWER IN A COLUMN. DO NOT INSTALL THE WINE DRAWER ON ITS OWN OR IN A SINGLE CABINET. - 11

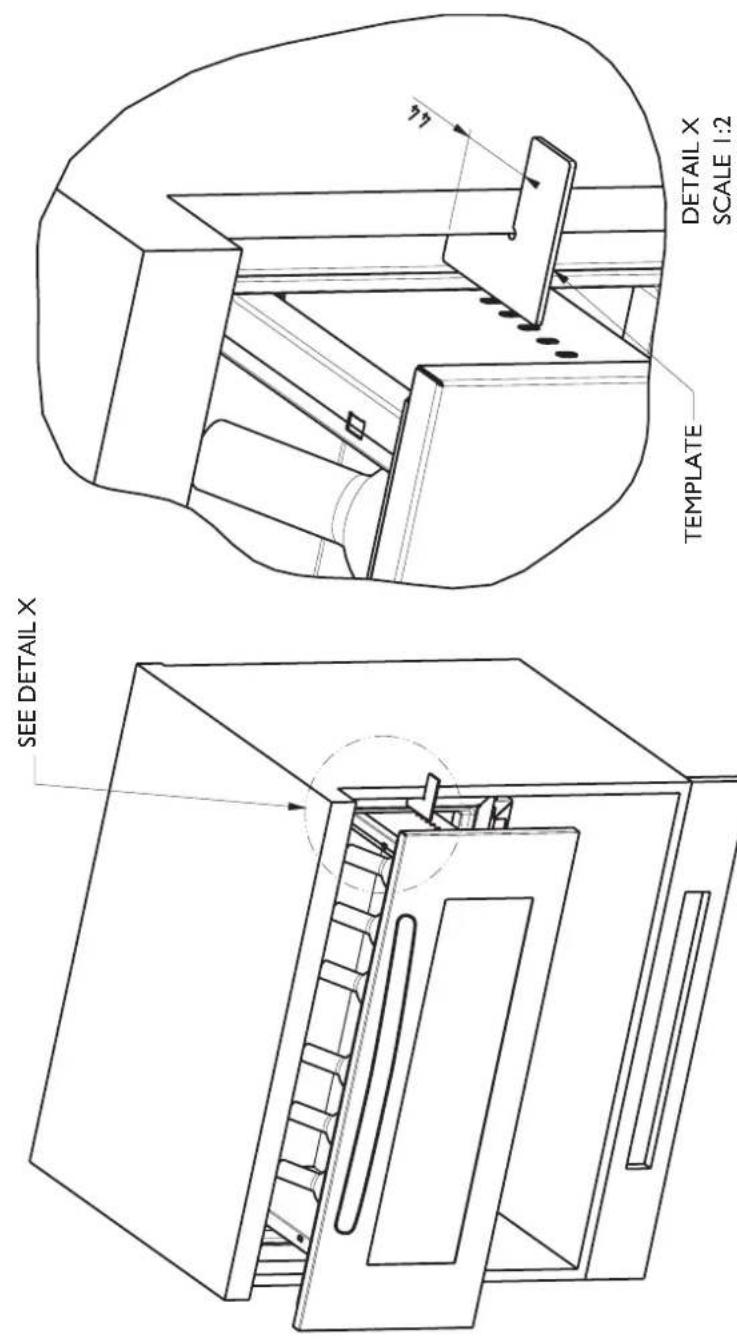

1. INSERT THE WINE DRAWER IN THE CABINET POSITIONING IT SO THAT THE DRAWER SEAL EDGE IS 44 mm. FROM THE FRONT SIDE OF THE CABINET USING THE SPECIAL TEMPLATE SUPPLIED. 2. THEN FIX THE WINE DRAWER TO THE CABINET WITH THE SCREWS SUPPLIED.

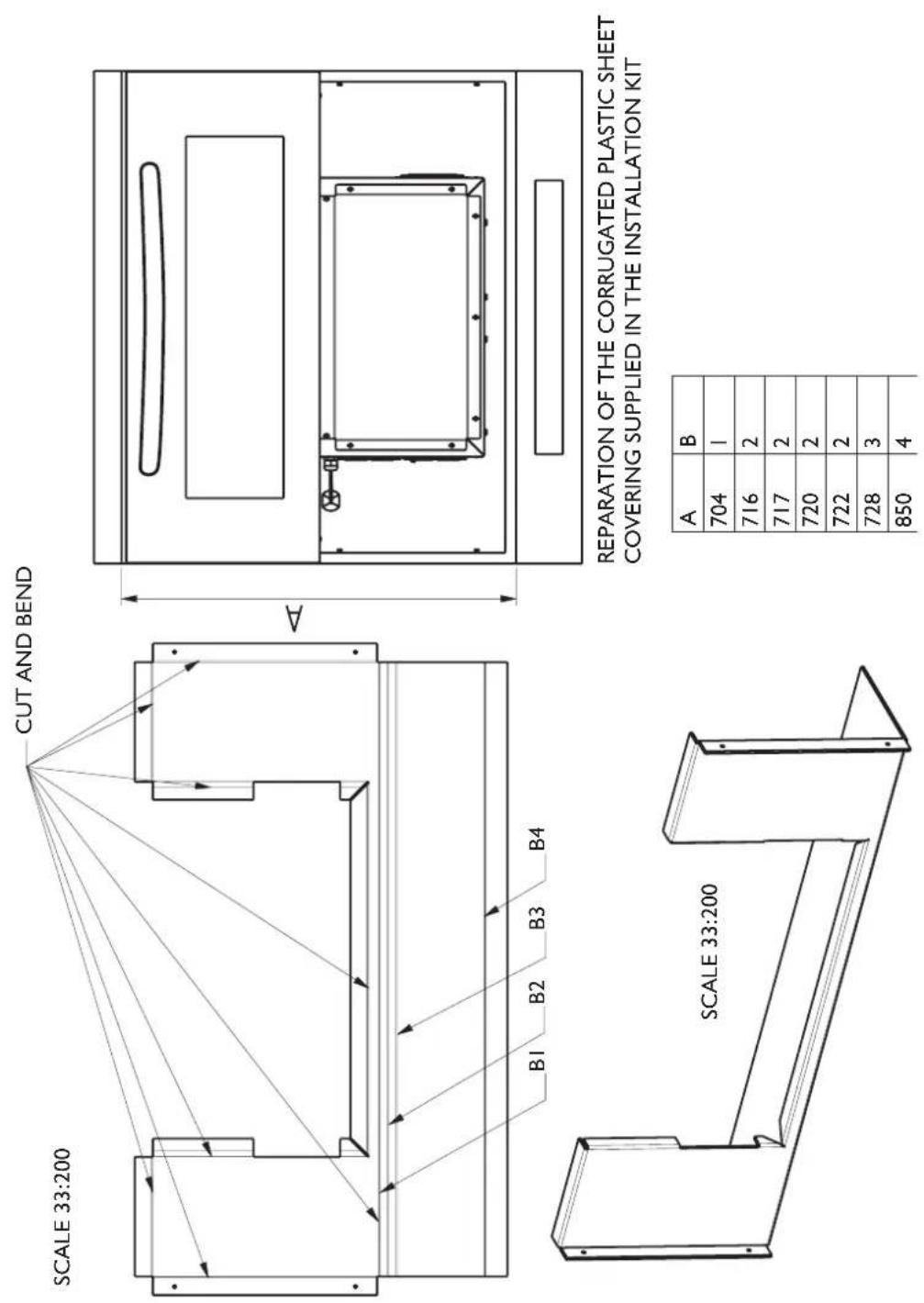

SCALE 33:200 CUT AND BEND A B1 B2 B3 B4 REPARATION OF THE CORRUGATED PLASTIC SHEET COVERING SUPPLIED IN THE INSTALLATION KIT SCALE 33:200 A B 704 1 716 2 717 2 720 2 722 2 728 3 850 4

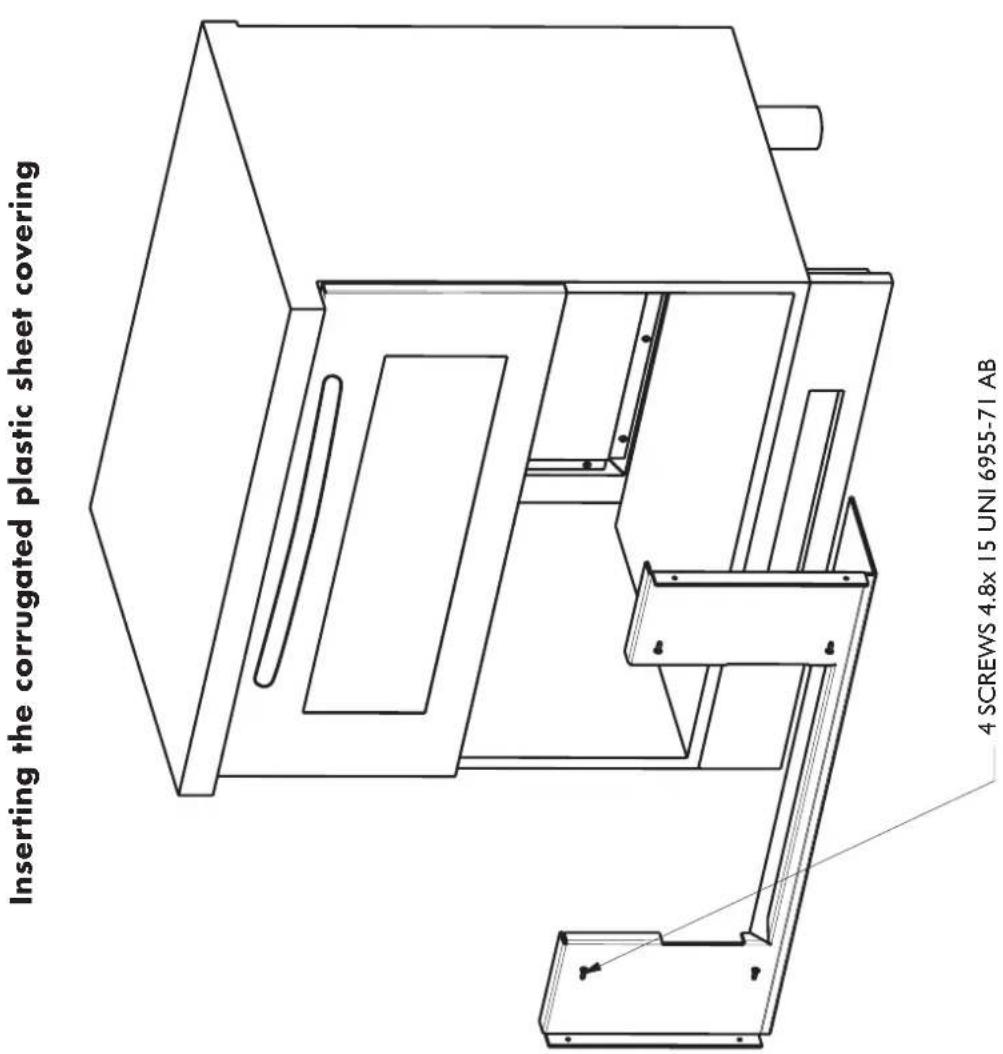

Inserting the corrugated plastic sheet covering 4 SCREWS 4.8x 15 UNI 6955-71 AB

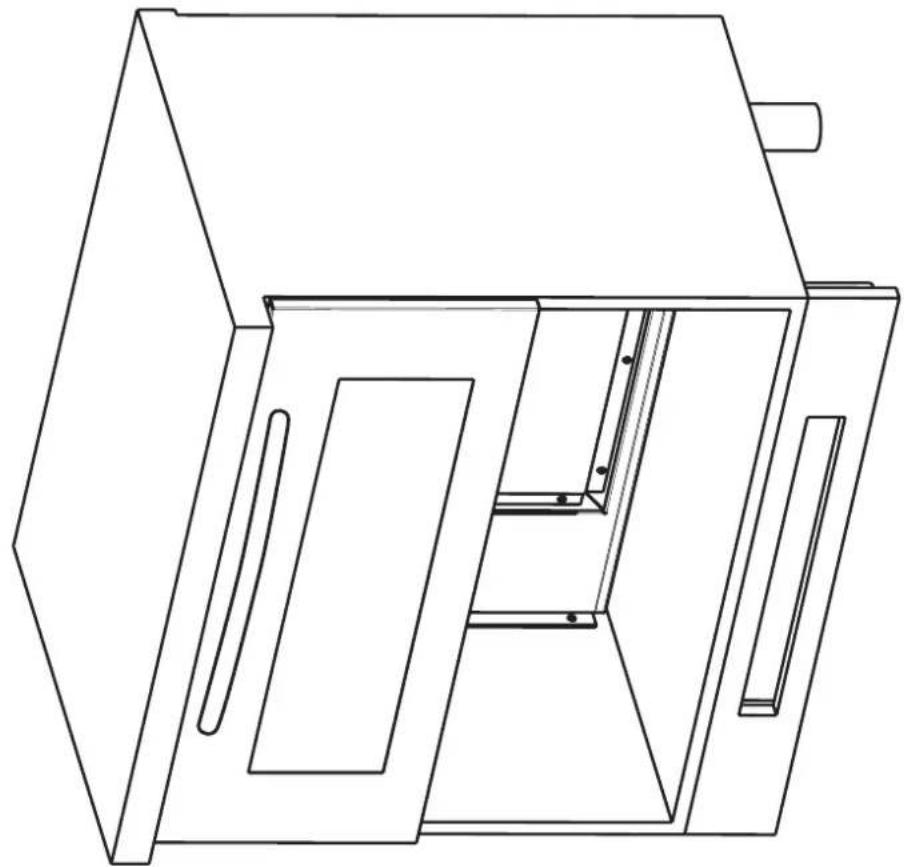

Installation completed
KITCHENAID KRWS 9010/1 - DO NOT INSTALL THE WINE DRAWER IN A COLUMN. DO NOT INSTALL THE WINE DRAWER ON ITS OWN OR IN A SINGLE CABINET. - 14
