BRUGSANVISNING 1517L Rev B ELO

DIMENSIONAL DRAWING, 1517L/1717L

SEE PG. 2 FOR 1717

SEE PG. 3 FOR 0700 MOUNTIING BRACKET,

VESA FILLER PLATE

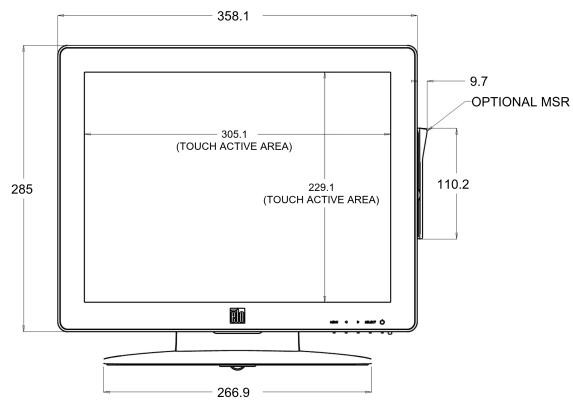

358.1 305.1 (TOUCH ACTIVE AREA) 229.1 (TOUCH ACTIVE AREA) 285 9.7 OPTIONAL MSR 110.2 266.9

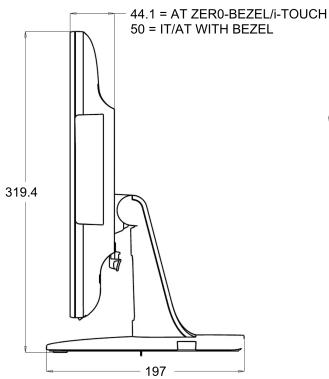

44.1 = AT ZERO-BEZEL/i-TOUCH 50 = IT/AT WITH BEZEL 319.4 197

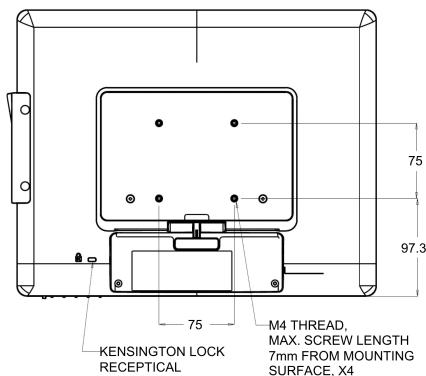

KENSINGTON LOCK RECEPTICAL 75 M4 THREAD, MAX. SCREW LENGTH 7mm FROM MOUNTING SURFACE, X4 75 97.3

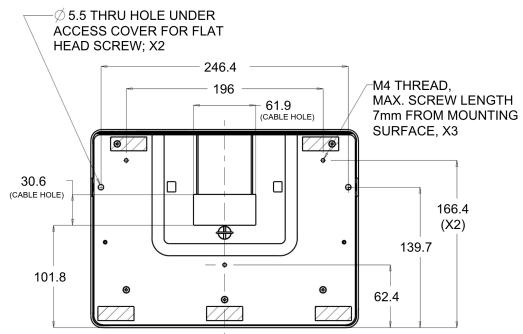

5.5 THRU HOLE UNDER ACCESS COVER FOR FLAT HEAD SCREW; X2 246.4 196 61.9 (CABLE HOLE) M4 THREAD, MAX. SCREW LENGTH 7mm FROM MOUNTING SURFACE, X3 30.6 (CABLE HOLE) 101.8 166.4 (X2) 139.7 62.4

1517 STAND BOTTOM VIEW

ELO 1517L Rev B - 5

natural_image Line drawing of a monitor stand with cable and stand (no text or symbols)

TILT -5° FROM VERTICAL

35 38.6

TILT 70° FROM VERTICAL

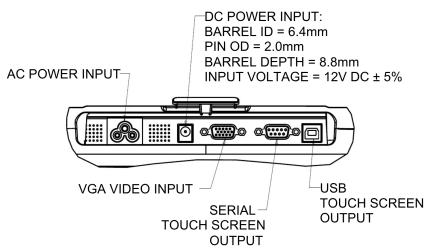

DC POWER INPUT: BARREL ID = 6.4mm PIN OD = 2.0mm BARREL DEPTH = 8.8mm INPUT VOLTAGE = 12V DC ± 5% AC POWER INPUT VGA VIDEO INPUT SERIAL TOUCH SCREEN OUTPUT USB TOUCH SCREEN OUTPUT

1517 / 1717 INPUTS / OUTPUTS

DIMENSIONS ARE IN MILLIMETERS

EIO
MS601505
DATE: 10/4/13
REV: A

DIMENSIONAL DRAWING, 1517L/1717L

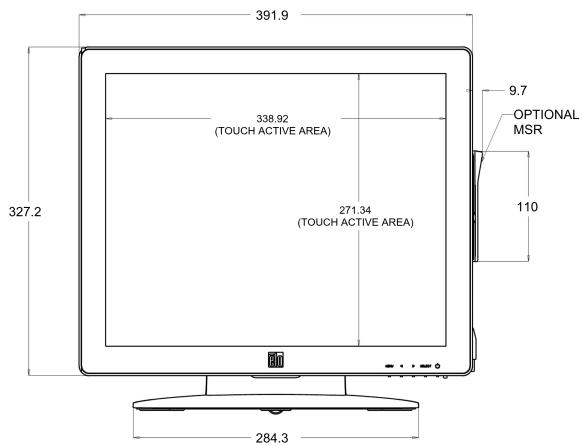

391.9 338.92 (TOUCH ACTIVE AREA) 271.34 (TOUCH ACTIVE AREA) 327.2 9.7 OPTIONAL MSR 110 284.3

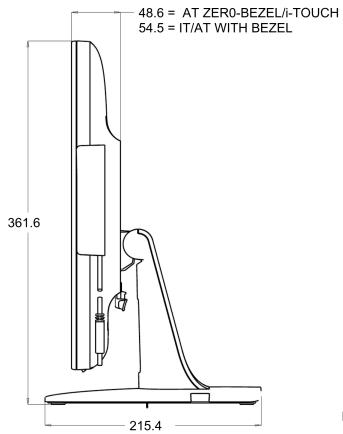

48.6 = AT ZERO-BEZEL/I-TOUCH 54.5 = IT/AT WITH BEZEL 361.6 215.4

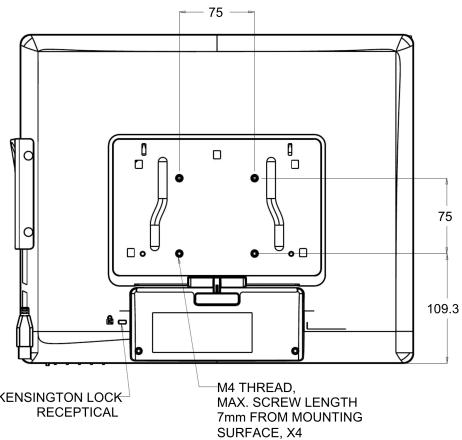

75 75 109.3 KENSINGTON LOCK RECEPTICAL M4 THREAD, MAX. SCREW LENGTH 7mm FROM MOUNTING SURFACE, X4

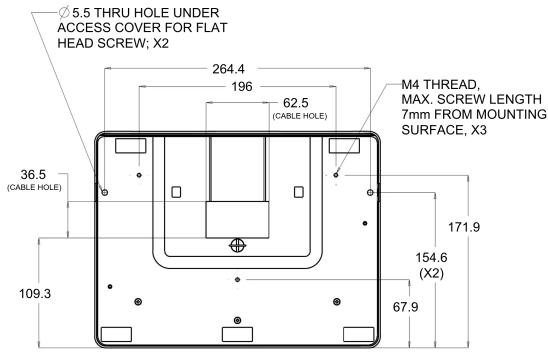

Ø 5.5 THRU HOLE UNDER ACCESS COVER FOR FLAT HEAD SCREW; X2 264.4 196 62.5 (CABLE HOLE) M4 THREAD, MAX. SCREW LENGTH 7mm FROM MOUNTING SURFACE, X3 36.5 (CABLE HOLE) 109.3 171.9 154.6 (X2) 67.9

1715 STAND BOTOM VIEW

ELO 1517L Rev B - 12

natural_image Line drawing of a vertical stand with a cable and connector, no text or symbols present

TILT -5° FROM VERTICAL

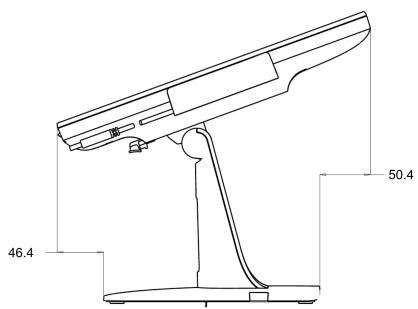

46.4 50.4

TILT 70° FROM VERTICAL

DIMENSIONS ARE IN MILLIMETERS

ēlo

MS601505

DATE: 10/04/13

REV: A

DIMENSIONAL DRAWING, 1517L/1717L

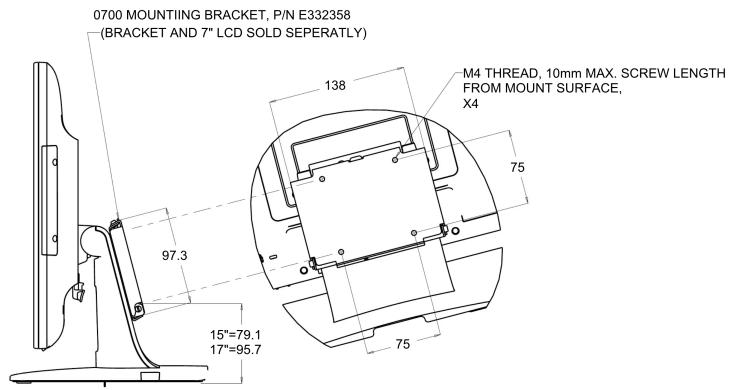

0700 MOUNTIING BRACKET, P/N E332358 (BRACKET AND 7" LCD SOLD SEPERATLY) 138 M4 THREAD, 10mm MAX. SCREW LENGTH FROM MOUNT SURFACE, X4 97.3 75 15"=79.1 17"=95.7 75

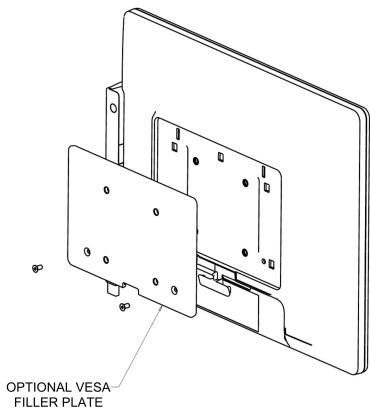

OPTIONAL VESA FILLER PLATE

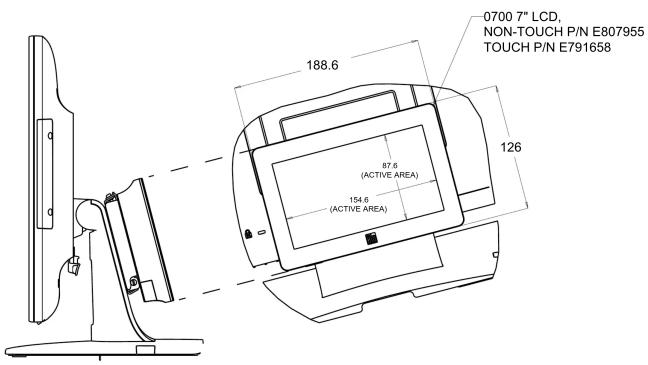

0700 7" LCD, NON-TOUCH P/N E807955 TOUCH P/N E791658 188.6 87.6 (ACTIVE AREA) 154.6 (ACTIVE AREA) 126

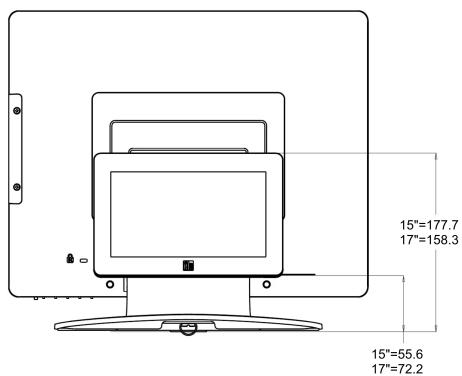

15"=177.7 17"=158.3 15"=55.6 17"=72.2

DIMENSIONS ARE IN MILLIMETERS

ELO 1517L Rev B - 18

MS601505

DATE: 10/04/13 REV: A

REV. A
