BRUGSANVISNING BOFT 800 Bavaria by Einhell
Router-Table BOFT 800
Art.-No.: 43.505.53
Bar code: 4006825528992
Sales unit: 1 pc
In connection with a router, the sturdy, small and handy router-table suits excellently for milling of grooves, angles and all kind of cut-outs. With its plenty of clever details, e.g. easy adjustable parallel stop, additional table-broadening and variable adjustable pressing relief, it allows secure, fast and accurate operations.

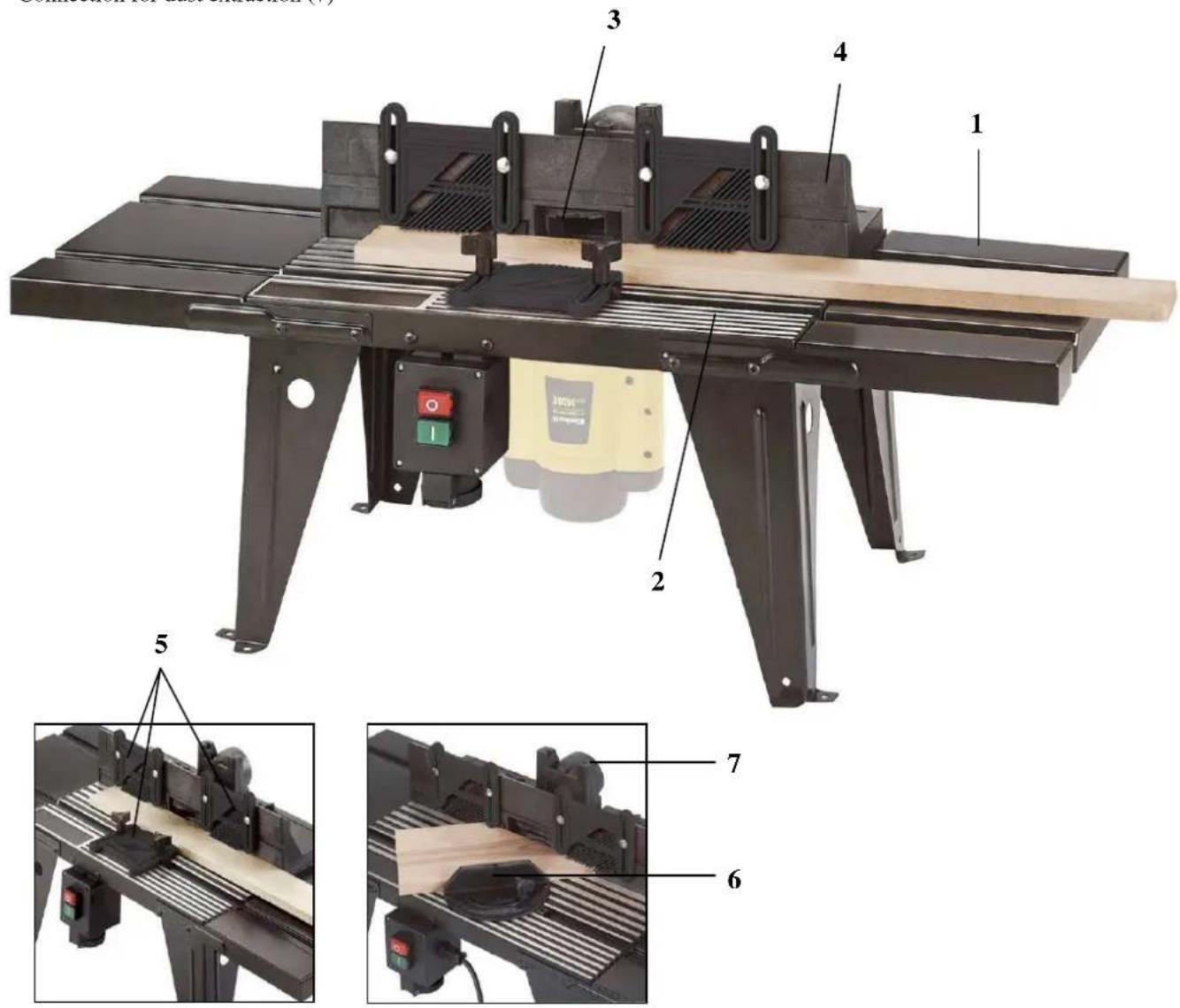

Features:
- Table extension (1)
- Sturdy worktop (2)
- Transparent router-cover (3)
- Longitudinal stop (4)
- Pressing relief (5)
- Angle stop (6)
- Connection for dust extraction (7)
Technical data:
- Mains: 230 V \~ 50 Hz
- Table height: 280 mm
- Worktop with extension: 860 x 335 mm
- Worktop: 450 x 335 mm
- Weight: 7.4 kg
- Packing dimensions: 470 x 150 x 350 mm
