BRUGSANVISNING BEH 750 Bavaria by Einhell
Electric planer BEH 750
Art.-No.: 43.452.60
Bar code: 4006825532418
Sales unit: 1 pc
Light and handy electric planer with integrated dust removal and a dust collection bag for quick and clean planning. A change over switch, which you need to define the direction of dust emission, makes comfortable working from every site sure. The carbide tipped planning knife and the continuously adjustable chipping depth ensure a clean working. With the adjustable folding depth and the serially parallel guide steps can be planned effortlessly.

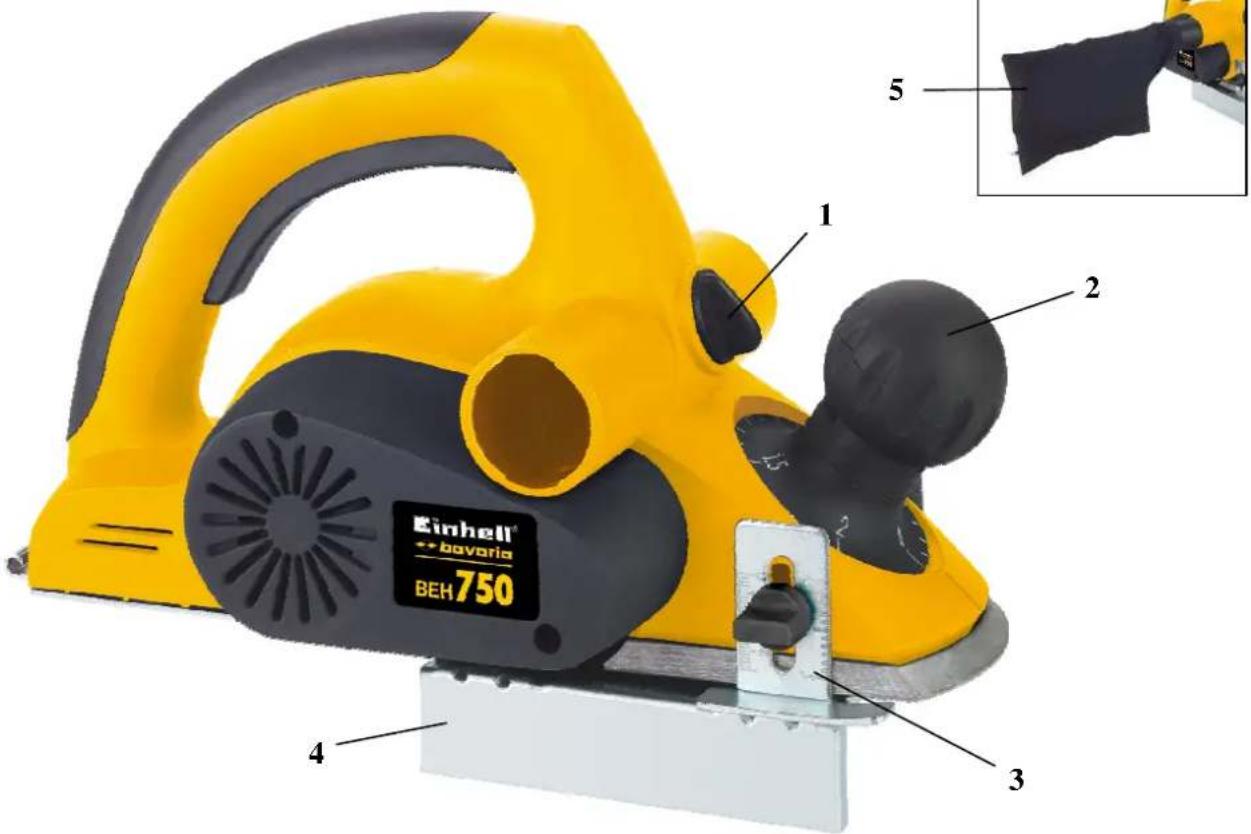

Features:
- Change over switch for direction of dust emission (1)
- Adjustable chipping depth (2)
- Carbide tipped planning knife
- Large cutter spindle for ideal working results
Standard accessory:
- Folding depth guide (3)
- Parallel guide (4)
- Dust collection bag (5)
Technical data:
- Mains: 230 V \~ 50 Hz
- Power: 750 watts
- Idle speed: 16,500 min
- Chipping depth: 0 - 2 mm
- Folding depth: 0 - 6 mm
- Planning width: 82 mm
- Weight: 3.22 kg
- Packing dimensions: 300 x 160 x 180 mm
Knife + Driving belt
Art.-No.: 43.102.20
Bar code: 4006825534405
