1 Features

1 - 1 ATXD-A

Siesta wall mounted unit providing high efficiency and comfort

1

Seasonal efficiency values: full range A+++ in cooling and heating
Space saving contemporary wall mounted design
Practically inaudible: the unit runs so quietly, you will almost forget it is there.
Onecta: control your indoor from any location with an app, via your local network or internet
3-D air flow combines vertical and horizontal auto swing to circulate a stream of warm or cool air right to the corners of even large spaces

The unit's compact dimensions makes it ideal for renovation projects, especially for above door installation

Voice command via Amazon Alexa or Google Assistant to control main functions such as set point, operation mode, fan speed, etc
Choosing for an R-32 product, reduces the environmental impact with 68% compared to R-410A and leads directly to lower energy consumption thanks to its high energy efficiency

White Daisin air conditioner unit with visible brand logo and control panel (no text or symbols on body)

2 Specifications

2 - 1 Specifications

Technical specifications ATXD25A ATXD35A
Power input	Cooling	Nom.	kW	0.020	0.032
	Heating Nom. kW 0.023 0.032
Casing Colour White
Dimensions	Unit	Height	mm	286
		Width	mm	770
		Depth	mm	225
	Packed unit	Height	mm	305
		Width	mm	830
		Depth	mm	360
Weight	Unit		kg	8.50	9.00
	Packed unit		kg	10.5	11.0
Packing	Weight		kg	2.0
Heat exchanger	Length		mm	610
	Rows	Quantity		2
	Fin pitch		mm	1.40
	Stages	Quantity		18
	Passes	Quantity		2.0
	Tube type			ø5 Hi-XB
	Fin	Type		ML fin (Multi louver)
Heat exchanger 2	Length		mm	600
	Rows	Quantity		1
	Fin pitch		mm	1.40
	Stages	Quantity		8
Fan	Type			Cross flow fan
	Quantity			1
	Air flow rate	Cooling	High	m3/min	9.5	11.0
				cfm	336.2	387.8
			Medium	m3/min	7.8	8.5
				cfm	275.9	298.6
			Low	m3/min	6.3	6.8
				cfm	223.3	241.6
			Silent operation	m3/min	4.9	5.4
				cfm	174.1	191.7
		Heating	High	m3/min	10.5	11.5
				cfm	372.2	404.7
			Medium	m3/min	8.6	9.4
Fan	Air flow rate	Heating	Medium	cfm	304.6	332.1
			Low	m3/min	7.2	7.7
				cfm	252.6	272.7
			Silent operation	m3/min	6.1	6.3
				cfm	214.6	223.8
Fan motor	Model			DFD03CIVB
	Speed	Steps		5 + silent, + auto
		Cooling	High	rpm	1,020	1,160
			Medium	rpm	840	890
			Low	rpm	680	720
			Silent operation	rpm	530	570
		Heating	High	rpm	1,080	1,160
			Medium	rpm	880	950
			Low	rpm	730	780
			Silent operation	rpm	620	640
	Output	Rated		W	22
Sound power level	Cooling		dBA	55	58
	Heating		dBA	55	58
Sound pressure level	Cooling	High	dBA	40	43
		Medium	dBA	33	34
		Low	dBA	26	27
		Silent operation	dBA	19	20
	Heating	High	dBA	40
		Medium	dBA	34	35
		Low	dBA	28	29
		Silent operation	dBA	21
Piping connections	Liquid	OD	mm	6
	Gas	OD	mm	9.50
	Drain			18
	Heat insulation			Both liquid and gas pipes
Air filter	Type			Removable / washable
Air direction control				Left, right, up and downwards
Temperature control				Microcomputer control
Control systems	Infrared remote control			ARC480A78
	Wired remote control			BRC944B2 / BRC073A1

Standard accessories: Installation manual; Quantity: 1;

2 Specifications

2 - 1 Specifications

Standard accessories: Operation manual; Quantity: 1;

Standard accessories; Infrared remote control; Quantity 1;

Standard accessories: AAA dry cell batteries; Quantity: 2;

Standard accessories: Remote control holder, Quantity: 1;

Standard accessories: Mounting plate; Quantity: 1;

Standard accessories: Titanium apatite deodorizing filter, Quantity: 1;

Standard accessories: Silver particle filter; Quantity:

Standard accessories: Indoor unit fixing screws; Quantity: 2;

Standard accessories: General safety precautions; Quantity: 1;

Electrical specifications ATXD25A ATXD35A
Power supply Phase 1~
	Frequency Hz 50
	Voltage V 220-240

Cooling: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB; equivalent piping length: 5m; level difference: 0m

Heating: indoor temp. 20°CDB, outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 5m (horizontal)

See separate drawing for electrical data

3 Options

3 - 1 Options

ATXD-A

		Factory	DTAS	DTAS
		Casing	BMS-R32	BMS-R32
		Class	25	35
		Applicable models	ATXD25A5V1B	ATXD35A5V1B
Option kit Product name Remark
Wi-Fi adaptor for smartphones (Onecta App Adapter "Cartridge") BRP069C47 1
Wired remote control BRC073A1 2 4			√	√
Wired remote control BRC944B2
Extension cord for wired remote control (-3-m) BRCW901A03			√	√
Extension cord for wired remote control (-5-m) BRCW901A08			√	√
Interface adaptor for wired remote control EKRP067A41 3			√	√
Interface adaptor for wired remote control KRP980B1 3			√	√
Interface adaptor for wired remote control	EKRP980B2
Centralised control board (up to -5- rooms) KRC72A
Wiring adaptor (normal open contact - normal open pulse contact) KRP413AB1S			√	√
Interligent Touch Manager DCM601A5A 2 4			√	√
Interface adaptor for DIII-NET KRP928BB2S 2 4			√	√
Central remote control	DCS302CA51	2 4	√	√
Unified ON/OFF controller	DCS301BA51/61	2 4	√	√
Schedule timer	DST301BA51/61	2 4	√	√
Titanium apatite deodorising filter without frame	KAF971A42
Titanium apatite deodorising filter without frame	KAF952B42
Titanium apatite deodorising filter without frame	KAF970A46 5		√	√
Honeycomb deodorising and air-purifying filter without frame	KAF968A42
Honeycomb deodorising filter with frame	KAZ917B41
Honeycomb deodorising filter without frame	KAZ917B42
Air-purifying filter with frame	KAF925B41
Honeycomb deodorising and air-purifying filter with frame	KAF046A41
Anti-theft protection for remote control	KKF910AA4
Anti-theft protection for remote control	KKF917AA4
Anti-theft protection for remote control	KKF936A4		√	√
Installation frame for floor-standing units	BKS028A4
Optional remote control BRC480A54 for heating-only indoor units	BRC54A		√	√
Silver particle filter (Ag-ion) with frame	KAF057A41		√	√
Modbus interface	EKMBDXA7V1	2 4	√	√
Modbus Gateway	RTD-RA	2 4	√	√
KNX interface	KLIC-DD	2 4	√	√

Notes

① Standard equipped
② To connect this option to the indoor unit, therefore Interface adaptor .EKRP067A41. (or .KRP980B1.) is required.
③ This option feature a(n) .S21. connector .EKRP067A41. is only .S21. PCB. .KRP980B1. is S21 PCB and adaptor casing - however adaptor plastic casing are not required for installation to the unit.
④ This option can not operate together with the wireless LAN functionality. When connecting this option to the indoor unit, turn off the indoor unit's wireless LAN functionality.
⑤ Standard accessory

3D144858

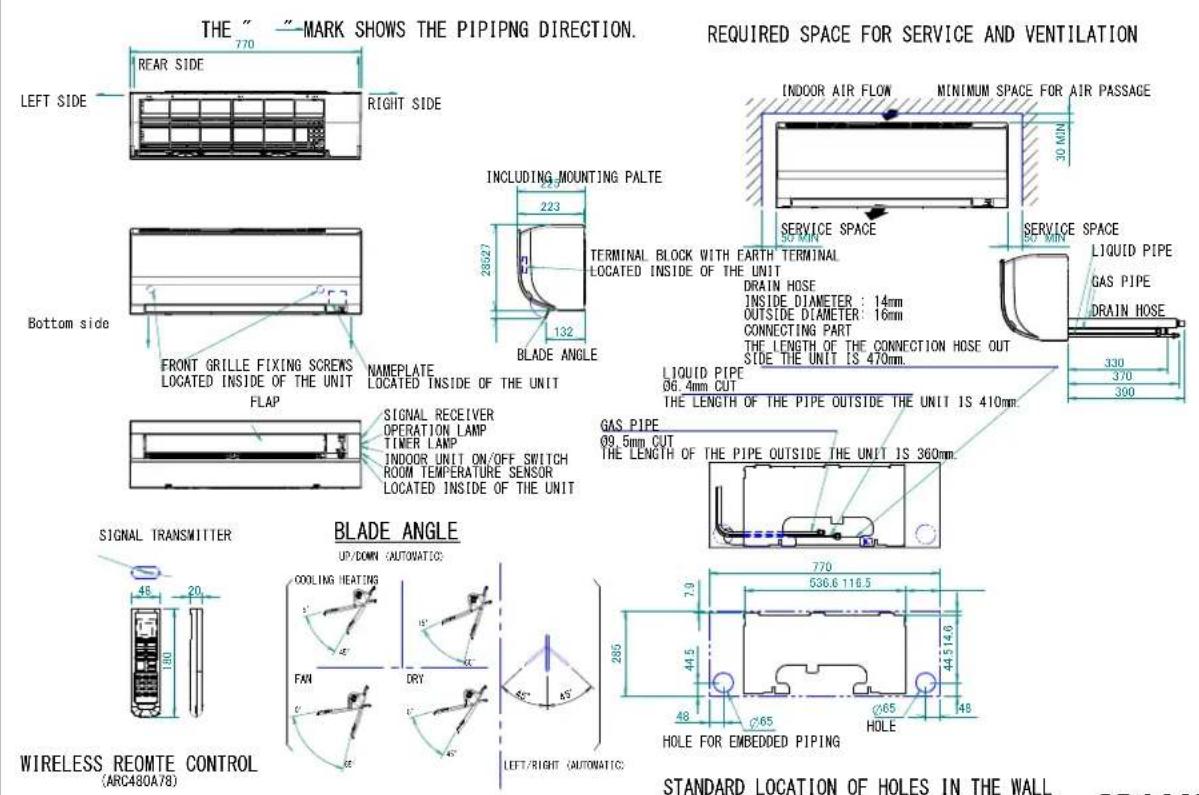

4 Dimensional drawings

4 - 1 Dimensional Drawings

ATXD-A

3D144255

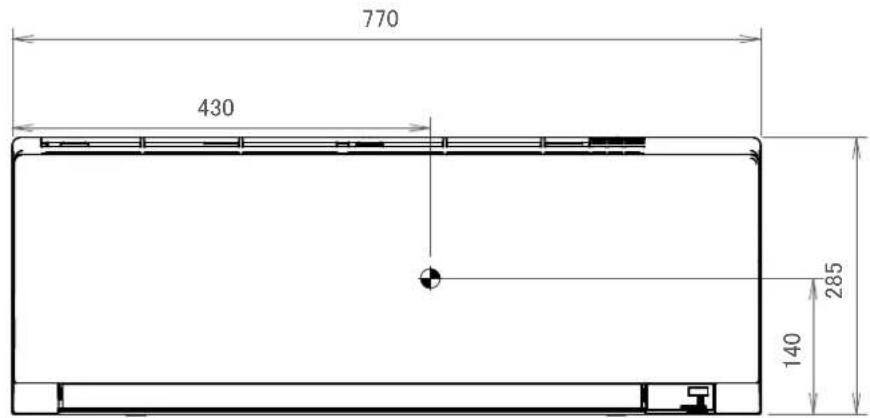

5 Centre of gravity

5 - 1 Centre of Gravity

ATXD-A

4D094235D

6 Piping diagrams

6 - 1 Piping Diagrams

6

ATXD-A

3D130682

7 Wiring diagrams

7 - 1 Wiring Diagrams - Three Phase

8 Sound data

8 - 1 Sound Power Spectrum

ATXD25A

Fan speed: High

Notes

1. dBA = A-weighted sound power level (A scale according to IEC).
2. Reference acoustic power 0 dB = 20 μPa
3. Measured according to ISO 3744

4D145078

ATXD35A

Fan speed: High

Notes

1. dBA = A-weighted sound power level (A scale according to IEC).
2. Reference acoustic power 0 dB = 20 μPa
3. Measured according to ISO 3744

4D145080

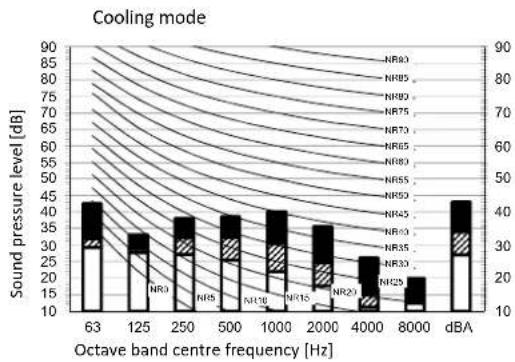

8 Sound data

8 - 2 Sound Pressure Spectrum

ATXD25A

Legend dBA = A-weighted sound pressure level (A scale according to IEC).

Cooling

A	B	C	D
dBA 40	33 26 dBA	40 34 28

Heating Total dBTotal dB

A	B	C	D

Notes

1. Operating conditions: power source 220-240 V/220 V 50/60 Hz; JIS standard
2. Background noise already taken into account.
3. Operating noise varies depending on operation and ambient conditions.
4. The operation noise measuring method is in accordance with JISC9612.
5. Measuring location: anechoic chamber

3D121481

ATXD35A

Legend

dBA = A-weighted sound pressure level (A scale according to IEC).

Cooling

A	B	C	D
dBA	43	34	27

Heating

A	B	C	D
dBA	40	35	29

Location of microphone

Notes

1. Operating conditions: power source 220-240 V/220 V 50/60 Hz; JIS standard
2. Background noise already taken into account.
3. Operating noise varies depending on operation and ambient conditions.
4. The operation noise measuring method is in accordance with JISC9612.
5. Measuring location: anechoic chamber

3D108791A
