BRUGSANVISNING MS-HF10000 Moonki

Thanks for purchase Subwoofer self-powered system.

Before you begin: important information.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during Lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. If service instruction in Owner's manual: "CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY, TO REDUCE THE RISK OF ELECTRONIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO."

16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.

17. WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

18. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

19. The main plug of the power supply cord shall remain readily operable. Section 2: Precautions

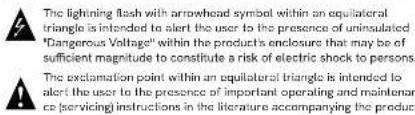

Watch for these symbols

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "Dangerous Voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the users to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.

AC Power requirements

Before plugging the subwoofer into an outlet, ensure that it is able to provide the appropriate AC power speaker systems have been designed to automatically detect 115V or 230V AC mains voltage 50/60Hz.

BEFORE CONNECTING THE AUDIO EQUIPMENT TO THE MAINS, IT IS MANDATORY TO CHECK THE POSITION OF THE VOLTAGE SELECTOR LOCATED ON THE BACK OF THE DEVICE. THIS SELECTOR ALLOWS YOU TO ADJUST THE EQUIPMENT TO OPERATE WITH DIFFERENT VOLTAGES DEPENDING ON THE AVAILABLE POWER GRID:

- 115V: For electrical networks with a nominal voltage of 100V to 120V.

- 230V: For electrical networks with a nominal voltage of 220V to 240V, Caution

In compliance with safety agency criteria and proper system operation, it is critical that the system installer observe all electrical safety practices at all times and provide proper earth grounding for all AC power connections. Subwoofer is not intended for fixed installation in outdoor environments. Moisture can damage the speaker cone and surround, cause corrosion of electrical contacts, and create an electrical shock hazard. Protect your speakers from moisture. Avoid exposing the speakers to direct moisture. Any electrically powered device can produce dangerous shock hazards when wet or exposed to moisture. Keep speakers out of extended or intense direct sunlight. The driver's integrity may be affected and finished surfaces will be degraded by long term exposure to intense ultraviolet (UV) light.

Stand mounting safety precautions

Subwoofer Includes a 36 mm receptacle cup to allow mounting on a pole over it. When using poles, be sure to observe the following precautions:

• Check the pole specification to be certain the device is designed to support the weight of the speaker. Observe all safety precautions specified by the manufacturer.
• Always verify that the stand (or subwoofer/pole) is placed on a flat, level, and stable surface and be sure to fully extend the legs of tripod-type stands.

- Position the stand so that the legs do not present a trip hazard.

- Route cables so that performers, production crew, and audience will not trip and topple the speakers over.

- Always be cautious in windy, outdoor conditions. It may be necessary to place additional weight (i.e., sandbags) on the base of the stand to improve stability. Avoid attaching banners or similar items to any part of a speaker system. Such attachments could act as a soil and lopple the system.

- Unless you are confident that you can handle the weight of the speaker, ask another person to help you get it onto the tripod stand or pole.

Recommends that no more than 70 lbs of weight be placed on a speaker pole that is mounted to this subwoofer.

Section 3: Box contents and quick start

-1x Subwoofer -1x Masl

-2x Satellite

-1x Warranty Card

- Tx User manual

-1x IEC cable

Specification
Subwoofer

System Type	Action 15", bass-reflex
Maximum SPL (1m)	119dB
Wooler	7.5 Lb
Valve coil	4" KSV
Impedance	80hm
Frequency Range (-3dB)	43-fz-300kHz
Frequency Response (-10dB)	38-fz-500kHz
Coverage Pattern	100"x60"
Amplifier Design	Class D
RMS Power	500 W
Cabinet material	Plywood with Polyurea painting
AC input	AC 115-230 V

Satellite (each)

System Type	Passive 8", base-reflex
Maximum SPL (1m)	109dB
Woofer	2.5 Lb
Voice coil	2.0 KSV
Impedance	8 ohm
Tweeler	25mmDriver × 2
Frequency Range (-10dB)	55Hz-20kHz
Frequency Response (-3dB)	68Hz-18kHz
Coverage Pattern	100"×10"
RMS Power	200 W
Cabinet material	Plywood with Polyurea painting

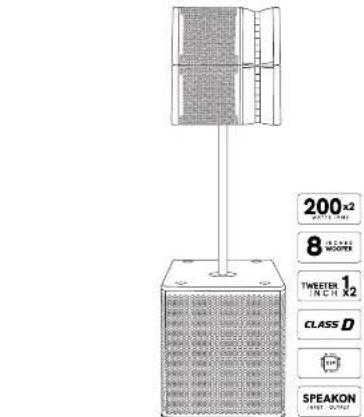

Music playback reinforcement with subwoofer

This is a very powerful but flexible combination, the subwoofer provides the extra low frequency extension and also serves as the base for the pole mount. You could choose a 12-inch or 15-inch satellite system according to the ambience.

Two speakers connected to a keyboard inside a microphone (no text or symbols visible)

