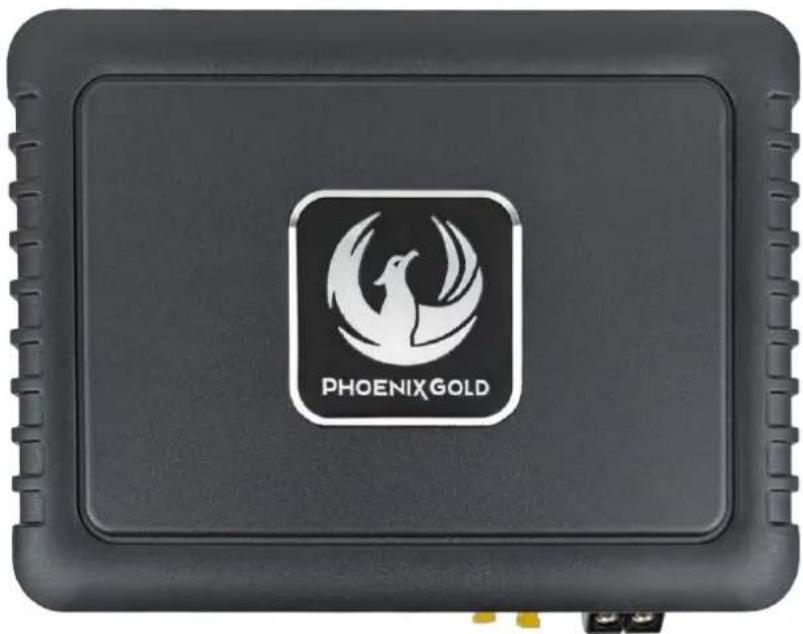

Black rectangular electronic device labeled 'PHOENIX GOLD' with a white bird logo on the front panel (no additional text or symbols visible)ZDA4.8 / ZDA6.8 / ZDA8.8
Plug & Play Optimized DSP Amplifiers
Features
• Class A/B Amplifier Designs
• APP Control for iOS & Android (Coming 2025)
- Bluetooth 5.0 Built-in
- Burr Brown DAC
- Input Priority
• OIS - OEM Impedance Simulation
- Plug & Play Optimised
HARDWARE SPECIFICATIONS
| Product: | ZDA4.8 ZDA6.8 ZDA8.8 | ||
| Type: | DSP Amplifier | ||
| Amplifier Class: | A/B | ||
| Amplified Channels: | 4 6 8 | ||
| DSP Channels: | 8 | ||
| Frequency Response (-3dB): 15Hz ~ 23kHz | |||
| MAX Power Rating: | 560W 520W | 480W | |
| RMS Power Rating (2Ω): | N/A N/A N/A | ||
| RMS Power Rating (4Ω): | 4 x 70W | 2 x 70W4 x 30W | 8 x 30W |
| RCA Voltage Output: | 4V | ||
| DAC: | Burr Brown PCM1681 | ||
| DSP Resolution: | 24 Bit | ||
| Sampling Rate: | 48kHz | ||
| SNR (Analogue/Digital Input): | -90dB | ||
| THD: | 0.1% | ||
| Crosstalk: | -60dB | ||
| Damping Factor: | 120 | ||
| High-Level Input: Yes | |||
| Auto Turn-On: Yes | |||
| Input Sensitivity (High-Level): 0.2V - 20V | |||
| Input Sensitivity (Low-Level): 0.2V - 5V | |||
| Operating Voltage: | 9V - 16V | ||
| Start-Stop Compatible: Yes | |||
| Idle Current: | 1.5A | ||
| Current Draw (MAX): | 30A | ||
| Total Efficiency (4Ω): | 60% | ||
| Power Terminal: | 10mm2 | ||
| Remote (Optional): | ZDAWCT | ||
| Low-Level Outputs (RCA): 8 | |||
| Analogue Inputs: | 6 x High-Level / 2 x Low-Level | ||
| Digital Inputs: | Bluetooth / Coaxial / USB / SPDIF | ||
| Remote Input: | Yes | ||
| Remote Output: | Yes | ||
| PC Connection Input: | USB-B | ||
| APP Control (Coming Soon): | Yes | ||
SOFTWARE SPECIFICATIONS
| Product: | ZDA4.8 / ZDA6.8 / ZDA8.8 |
| PC Software: | Yes (Windows 10, Windows 11) |
| APP: | Yes (Coming Soon) |
| Equalizer: | 31-Band |
| Phase Adjustments: | 0 or 180 degree |
| Filters: | High-Pass & Low-Pass |
| Filter Types: | Bessel, Butterworth, Linkwitz-Riley |
| Filter Slopes (Bessel/Butterworth): | Off, -6dB, -12dB, -18dB, -24dB, -36dB, -42dB, -48dB |
| Filter Slopes (Linkwitz-Riley): Off, -12dB, -24dB, -48dB | |
| Time Alignment: | 0 - 48ms (0 - 1632cm) |
| Bypass EQ: | Yes (Individual channels & ALL channels) |
| Mute: | Yes (Individual channels & ALL channels) |
| Input Priority: | Yes (2 Sources) |
| Turn-On Delay: Yes (5 - 30sec) | |
| Custom Signal Routing: | Yes |
| EQ Settings: | Graphic EQ / Parametric EQ |
| Delay Calculator: | Yes (cm and inches) |
| Delay Unit: | Centimeters / Inches / Milliseconds |
| Custom Link Settings: | Copy & Relate (Delay/EQ/Filters/Volume) |
| Input Setting (Input Sensitivity): | -6dB, -3dB, 0dB, +3dB, +6dB |
| Preset Password Protection: | Yes |
| Full Screen Mode: | Yes |
| EQ Band Gain: (Each EQ Band) | -12dB to +12dB |
| Adjustable Q Value: | 0.1 to 12 |
| Languages: | English, German, Spanish & Chinese |
| EQ Adjustable Frequency Range: | 20Hz - 20kHz |
| Individual Channel Gain: | 0dB to -59dB |
| Global Volume Gain: | 0dB to -28dB |
| Selectable Channel Names: | Yes, for each channel |

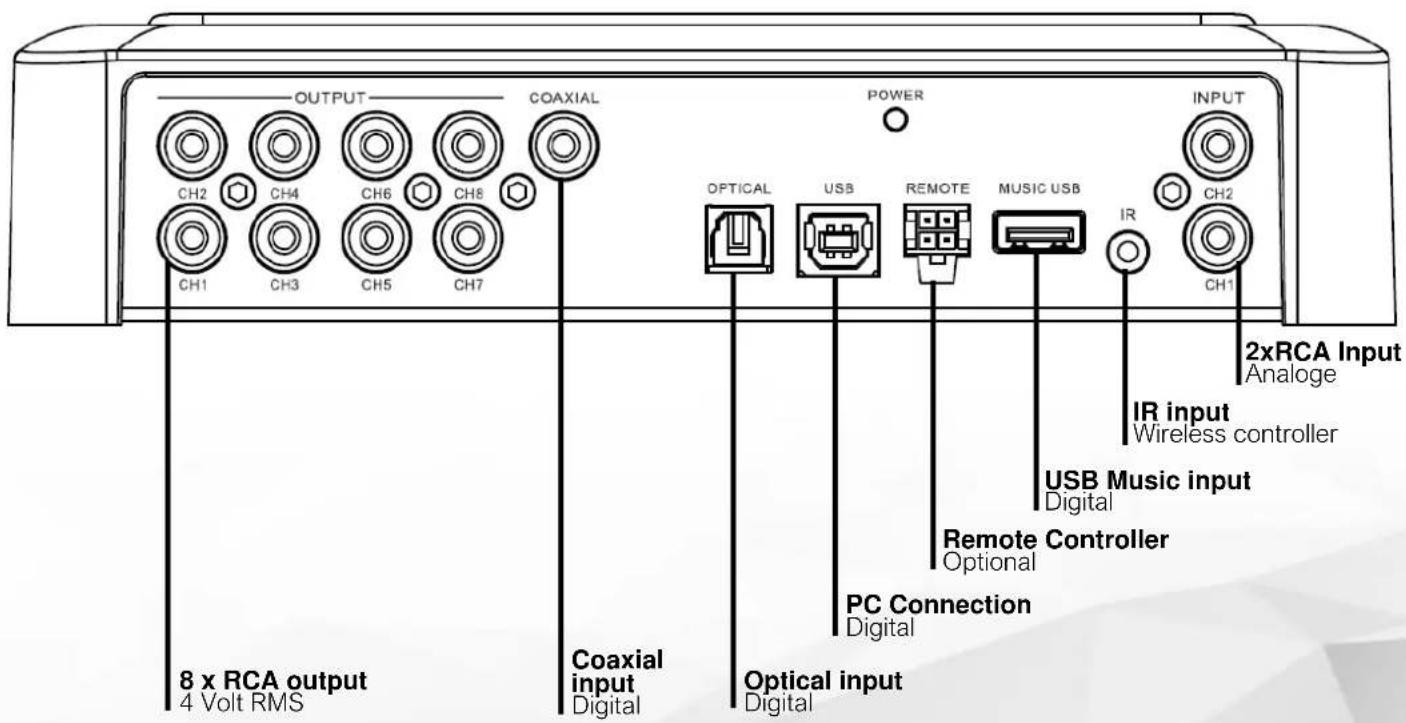

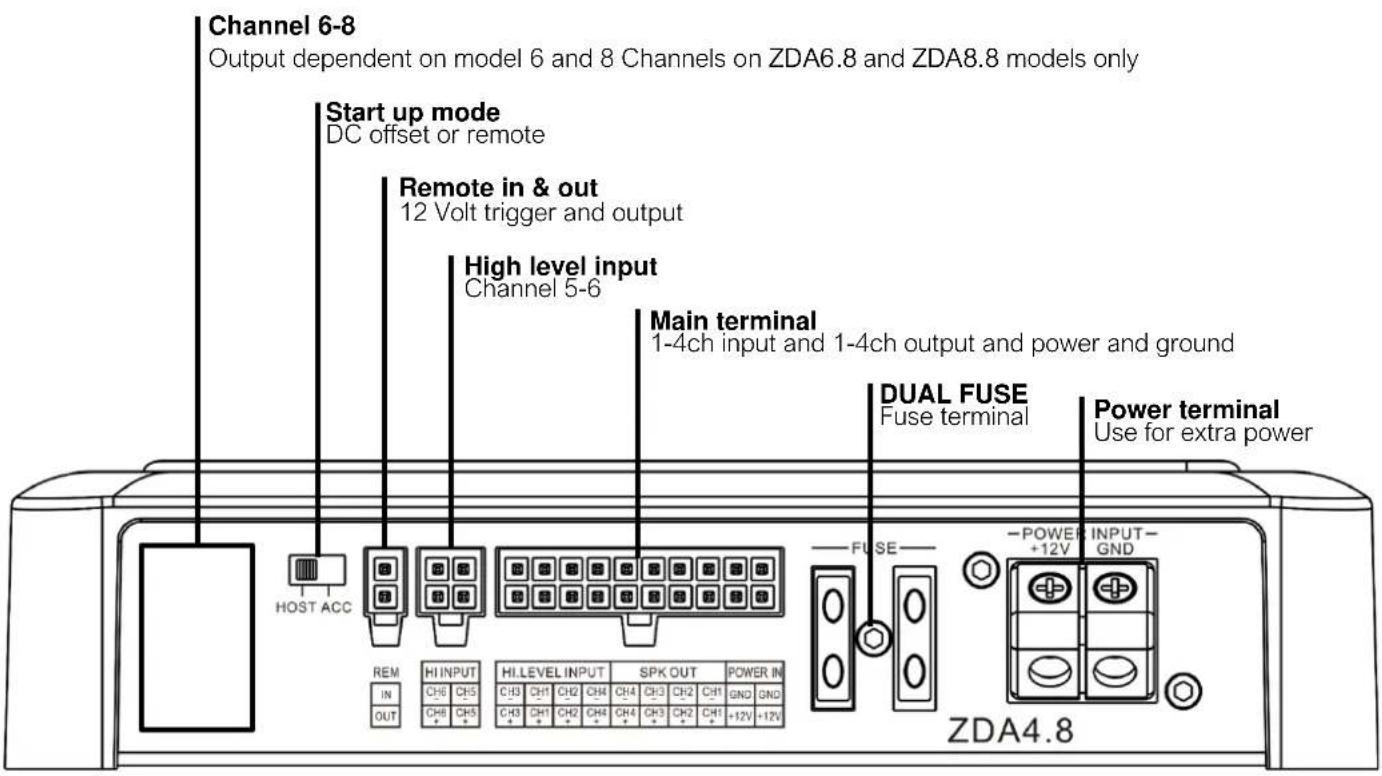

CONNECTORS

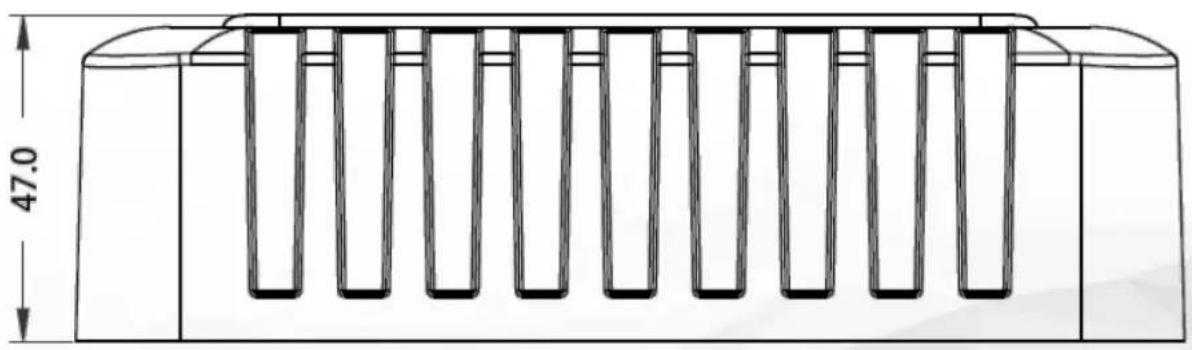

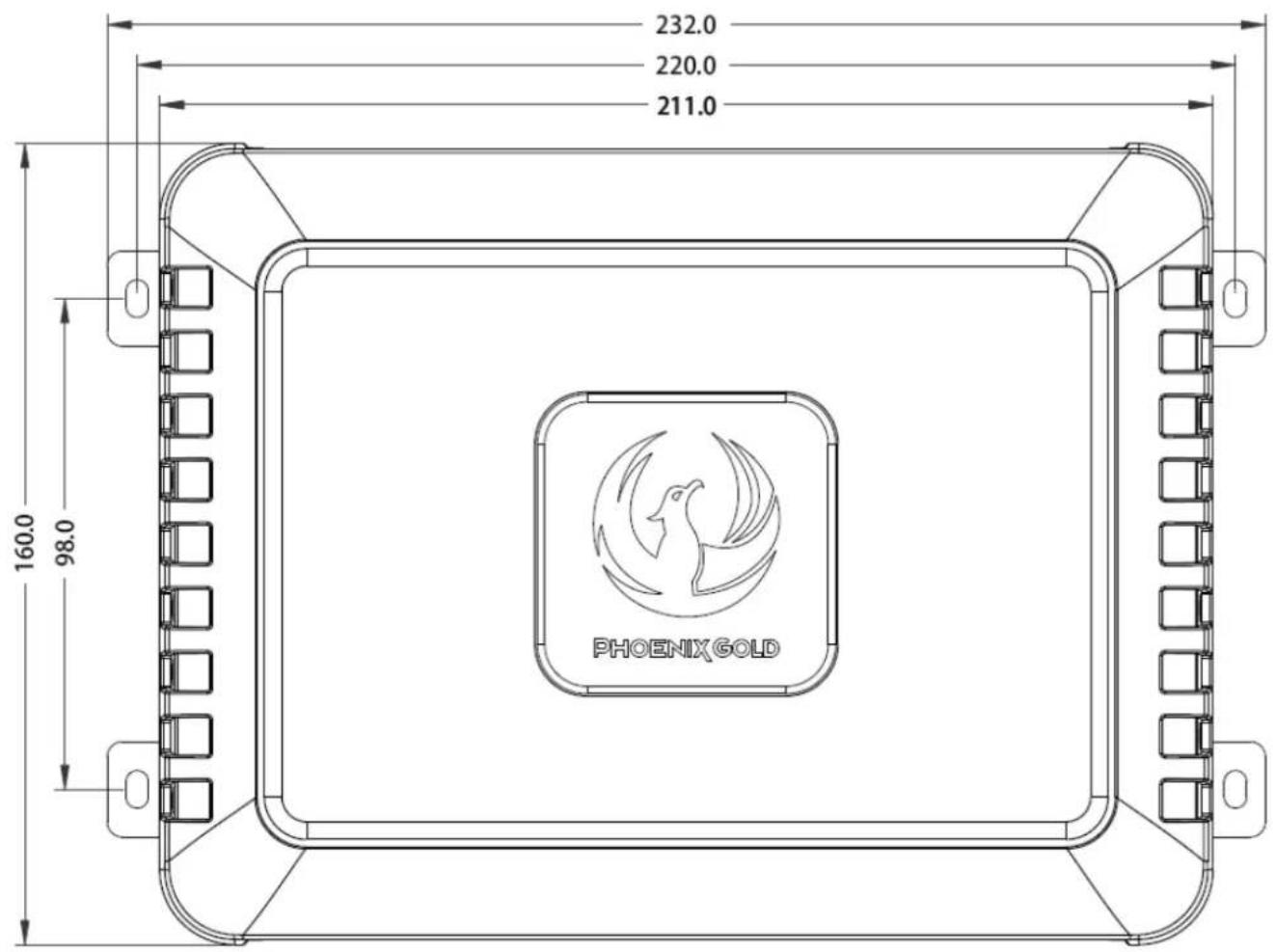

DIMENSION DRAWING

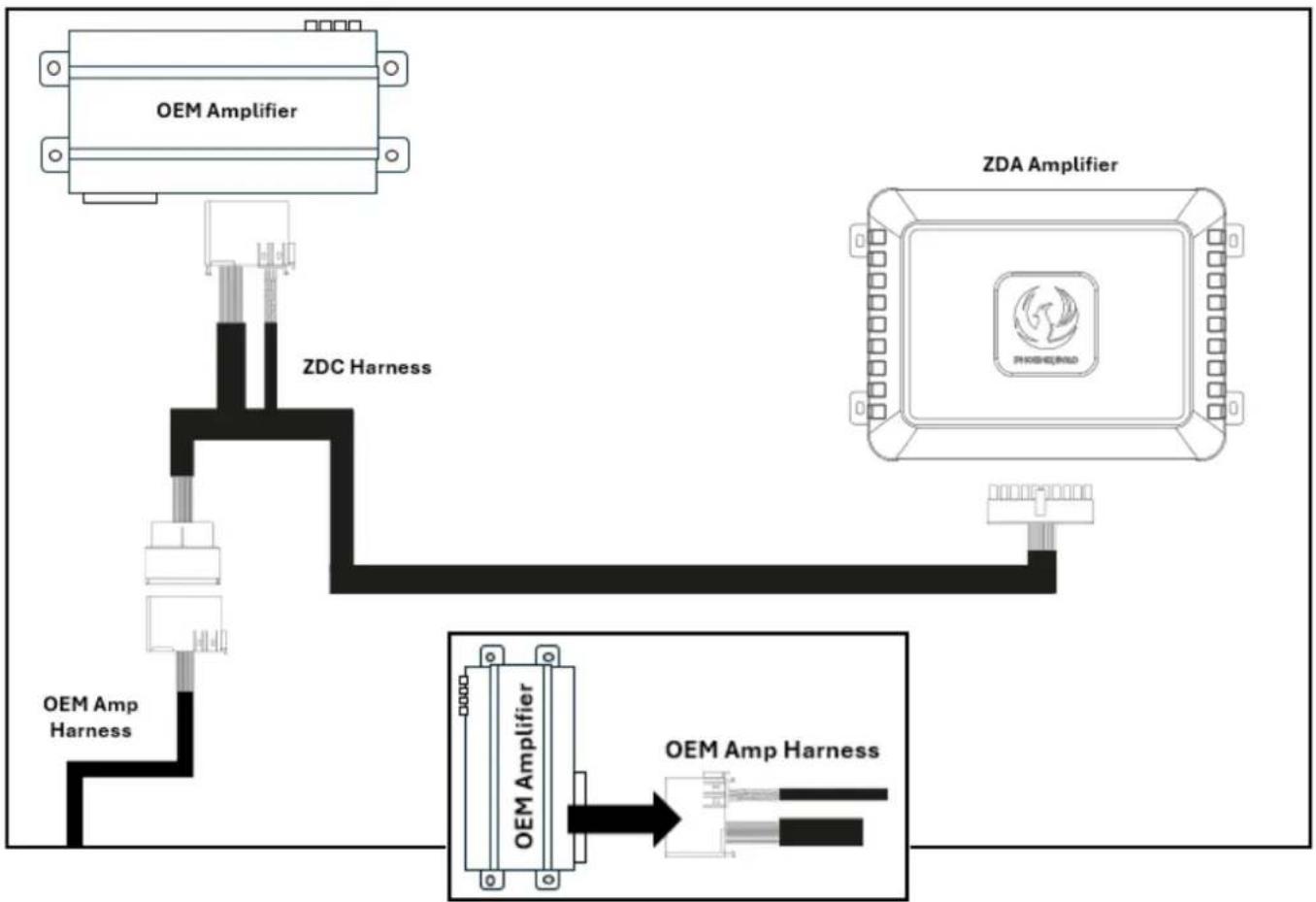

HOW TO USE IN PLUG & PLAY
Our ZDA amplifiers can be used with our plug & play ZDT and ZDC harnesses.


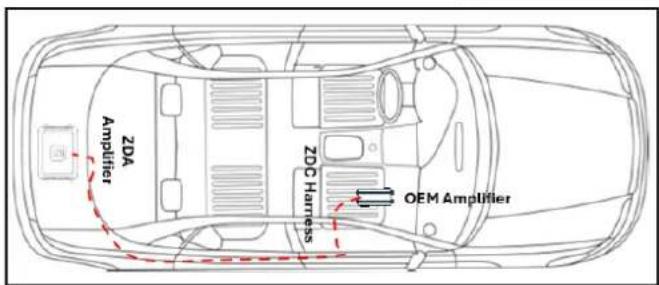

Example: OEM Amplifier located under front seat

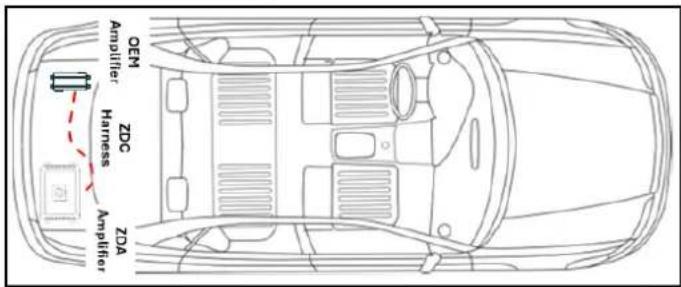

Example: OEM Amplifier located in the boot
VIEW THE FULL RANGE: PhoenixGold.com
Disclaimer
Always ensure the amplifier is securely attached and installed correctly. We would always recommend using a qualified auto electrician to carry out the work. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate installation of this product.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON AMPLIFIERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
