BRUGSANVISNING ZDSB200 PHOENIX GOLD
ZD series


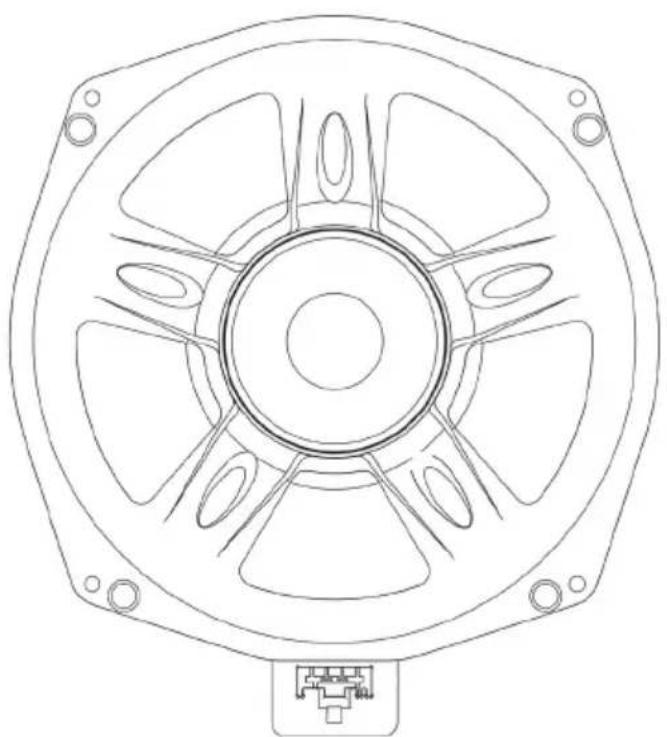

Technical line drawing of a speaker or fan assembly with no text or symbols
SUITABLE FOR SELECT BMW VEHICLES
Model: ZDSB200
SPECIFICATIONS
- 8" Subwoofer
- 2" Voice Coil
• 150W Max Power Output
- Rubber Surround
- Neodymium Motor
• Car Specific Connection
- Plug and Play
ZDSB200 - 8"/200mm Car Specific Subwoofer
| SPECIFICATION ZDSB200 | |
| Max Power (Watts) 150 Watts | |
| RMS Power (Watts) 75 Watts | |
| Nominal Impedance 3.6 Ohm | |
| Voice Coil (inch) 2" | |
| Basket Material Aluminium/Plastic | |
| Speaker Material Sandwich Composite Cone | |
| Speaker Surround Rubber | |
| Magnet Neodymium(N35) |
Installation
Lift seat to uncover original vehicle woofer. Disconnect the original woofer and place in storage. Connect the new woofer and use pre-existing screws to fix firmly into place. Replace cover and seat.
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount the woofer in such a way as to pinch or damage the wires.
Compatibility
- Mini: F54+, R55+ • 1-Series: E81+, F20+ • 2-Series: F22+, F45+, F87 • 3-Series: E90+, F30+, F80, G20, G21
• 4-Series: F32+, F82+ • 5-Series: E60+, F07+, G30+ • 6-Series: E63+, F06+, G32 • 7-Series: E65+, F01+, G11+
• 8-Series: G16 • X1: E84, F48+ • X2: F39 • X3: E83, F25, G01 • X4: F26, G02 • X5: E70, F15+, G05
• X6: E71, F16+, G06 • X7: G07 • Z4: E89, G29
Disclaimer
Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SPEAKERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country's Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country's reseller for information.
