BRUGSANVISNING Arabesque 41109-91 Livex Lighting

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed. However, the installation instructions do apply to this product.
41107 41108 41109 41111 41112 41113
◆ WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER. ◆ ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
- Shut off the power at the circuit breaker box. Remove old fixture and all hardware from Junction Box.
- Carefully unpack your new fixture and lay out all the parts on a clear area. Take care not to lose any small parts necessary for installation.
- Thread the two mounting screws about 1/4" into the pre-drilled holes in the mounting plate spaced the same distance apart as the holes in the canopy (I).
- Attach the mounting plate to the Junction Box with the two Junction Box Screws as shown. The side of the mounting plate marked "GND" must face out. The junction box is not included.
- Attach the tube(B) to the bottom center pipe nipple of the canopy(I), turn it until tighten. Attach assembly canopy to the top center pipe nipple of the shade (C), by turning it clockwise until tight.
- Thread the pipe nipple (D) into the bottom center coupling of the lamp holder and lock it securely with the hex nut.
- Install the light bulbs(Not included) in accordance with the fixture specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
- Raise the steel shim (E), glass (F) and plastic shim (G) to the bottom of the shade (C), aligning the hole with pipe nipple and screw it with the finial (H).
- While holding the shade assembly towards the ceiling, connect the electrical wires as Shown in Fig.2, making sure that all wire nuts are secured. You may have to wrap the connections with electrical tape. If your outlet has a ground wire (green or bare copper), connect the fixture ground wire to it. Otherwise connect fixture's ground wire directly to the mounting plate with the green screw provided. After wires are connected, tuck them carefully inside the Junction Box.
- Raise the shade assembly onto the junction box, aligning screws on mounting plate with mounting holes in canopy (I) and lock it securely with the ball nut (A).
Your installation is now complete. Return power to the junction box and test the fixture.

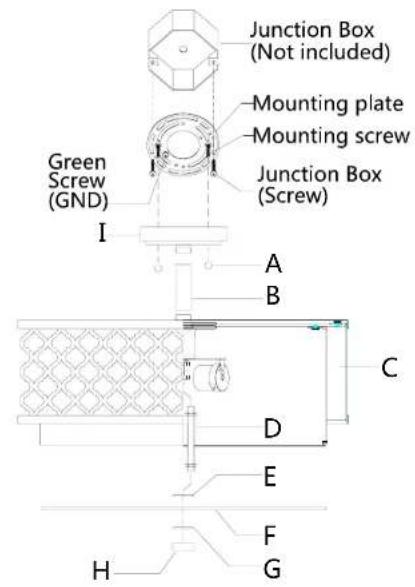

FIG.1

FIG.2
FIXTURE
WIRES
Black or
Smooth

HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed

HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)

HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us on-line at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC.
DOC20161241107
