Shock absorber retainer

Technical illustration of a rectangular mechanical part with three screws and two bolts, no text or symbols present.

FESTO

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

[phone]

www.festo.com

Assembly instructions

8174040

2022-11c

[8174042]

8174040

Translation of the original instructions

© 2023 all rights reserved to Festo SE & Co. KG

1 Applicable documents
□1
All available documents for the product → www.festo.com/sp.

Document Product Table of contents
Operating instruction Linear drive	DGC(I) -
Assembly instructions Stop KYC -
Operating instruction Intermediate	e-position module DADM-DGC-25...40	-

Tab. 1: Applicable documents

2 Safety

2.1 Safety instructions

• Only use the product in its original condition without unauthorised modifications.
  -Observe the tightening torques. Unless otherwise specified, the tolerance is ± 20%.

2.2 Intended use

The shock absorber retainer fastens shock absorbers YSR(W)-DGC to the slide of linear drives DGC-...-GF/-KF/-FA or DGCI. Use the shock absorber retainer only in combination with a counter part for the cushioning:

-Stop KYC

-Intermediate-position module DADM-DGC

3 Additional information

-Contact the regional Festo contact if you have technical problems

→ www.festo.com.

-Accessories → www.festo.com/catalogue.

4 Product Range Overview

4.1 Scope of delivery

1 Shock absorber retainer (1x)
2 Centring sleeve (2x)
3 Screw (2x), only with DADP-DGC- ... -KF
4 Screw (2x)

Fig.1

4.2 Not in scope of delivery

Technical line drawing of a linear mechanical component with a labeled dimension (no text or symbols present)

5 Linear drive (1x)

DGC-...-GF

DGC-...-KF

DGC-...-FA.

DGCI

6 Stop (1x/2x) KYC

Fig.2

Fig.3

Fig.4

Fig.5

5 Assembly

5.1 Preparation for DADP-DGC-18 ... -40

Fig.6

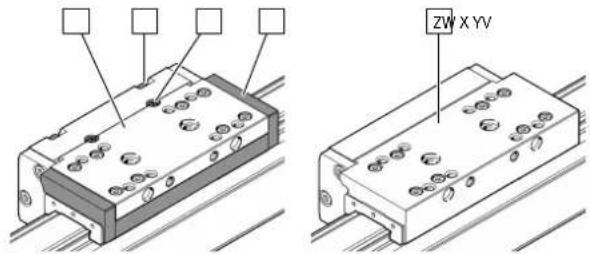

- Check the slide of the linear drive 5.

Steel slide:
-Multi-piece slide [V]
- Screws [W], spring pins [X] and plastic cover [Y]
Aluminium slide:
- One-piece slide [Z]

5.2 Mounting shock absorber retainer

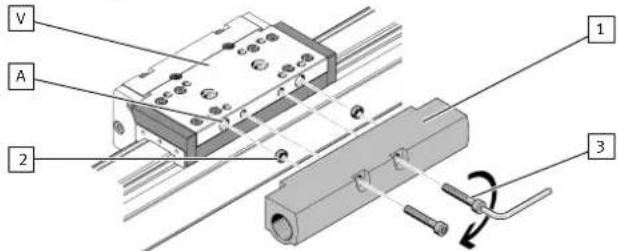

Fig. 7: Mounting on steel slide

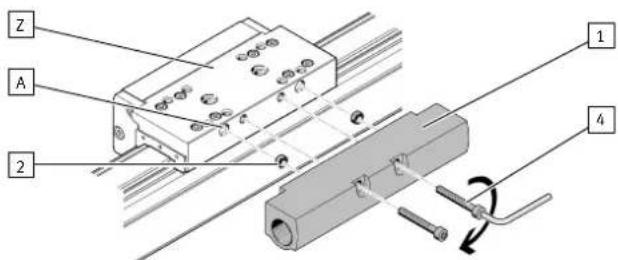

Fig. 8: Mounting on aluminium slide
1. Place the centring sleeves 2 in the seats [A].
2. Place the shock absorber holder 1 on the centring sleeves 2.
3. Select the appropriate screws 3/4:

- shorter screws 3 for multi-piece steel slide [V].

- longer screws 4 for one-piece aluminium slide [Z].

Two screws are left over with DADP-DGC- ... -KF.

1. Tighten the screws 3/4. Observe the tightening torque.

DADP-DGC	-18-GF	-25-GF	-32-GF	-18-KF	-25-KF	-32-KF
Screw 3 –	M5 x 30
Screw 4 M5 x 30	M5 x 35
[Nm]	4			6

DADP-DGC	-40-GF	-40-KF	-50	-63
Screw 3-	M6 x 35	-
Screw 4 M6 x 35	M6 x 45	M8 x 45
[Nm]	8	10	25

5.3 Mounting shock absorber

i

If available, shock absorbers from the end cap of the linear drive 5 can be used.

Fig.9

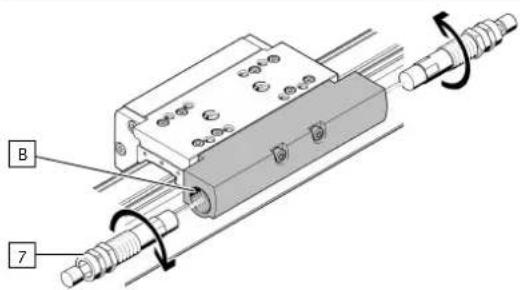

- Depending on requirements screw one or two shock absorbers 7 with stop sleeve and lock nut completely into the shock absorber retainer 1. Observe the tightening torque of the lock nut.

YSR(W)-DGC	-18-GF -25	GF -32-GF	-18-KF -25	-KF -32-KF
[Nm]	3 5 8 5 20 20
YSR(W)-DGC	-40-GF -40/50-B -63
[Nm]	20 35 30

5.4

Mounting stop elements

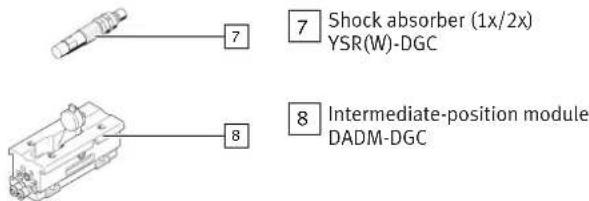

1. Mount one or two stops 6 depending on requirements → 1 Applicable documents.
2. Mount intermediate-position modules 8 depending on requirements → 1 Applicable documents.
