BRUGSANVISNING SASC-P4-A-M8-S Festo

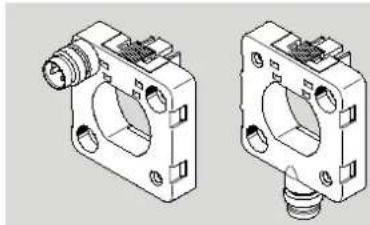

Electrical adapter SASC-P4-A-M8

Technical line drawing of two mechanical components with mounting holes and threaded fasteners (no text or symbols)

FESTO

Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany [phone]

www.festo.com

Instructions | Assembly

8083342

2018-02a

[8083344]

Translation of the original instructions

1 Further applicable documents

All available documents for the product → www.festo.com/pk.

Observe further applicable documents:

- Operating instructions for the pressure sensor

2 Safety

2.1 Safety instructions

– Before working on the product, switch off the power supply and secure it against being switched on again.

2.2 Intended use

Connection of connecting cables M8 to pressure sensors using connector L1.

3 Product range overview

3.1 Included in delivery of SASC-P4-A-M8-S

1 Adapter (1x)

3 Screw, M3x8 (2x)

4 Screw, M3x13 (2x)

Fig. 1

3.2 Included in delivery of SASC-P4-A-M8-A

Technical diagram of a mechanical component with two views (labeled 0 and 1), showing mounting holes and fasteners (no text or symbols present)

2 Adapter (1x)

3 Screw, M3x8 (2x)

4 Screw, M3x13 (2x)

Fig. 2

3.3 Not included in the delivery

5 Pressure sensor (1x) SPAN-....

6 Mounting bracket (1x) SAMH-PU-A

7 Wall mounting (1x) SAMH-PN-W

Fig. 3

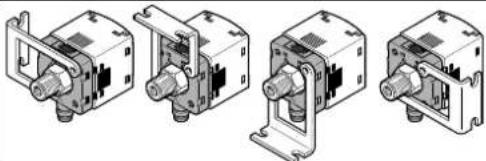

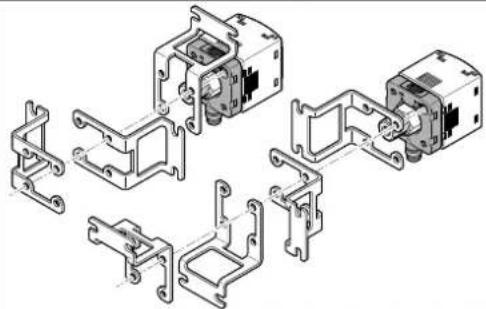

4 Assembly variants

Front-panel assembly is possible with either adapter 1/2 → Further applicable documents.

Adapter 1
Mounting bracket 6

Tab. 1 Assembly variants

Adapter 2
Threaded mounting via the supply port
Mounting bracket 6
Wall mounting 7

Tab. 2 Assembly variants

5 Mounting

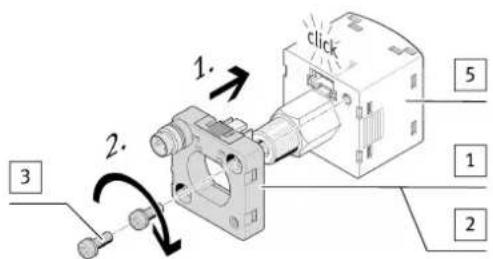

5.1 Without mounting attachment 6/7

Fig. 4

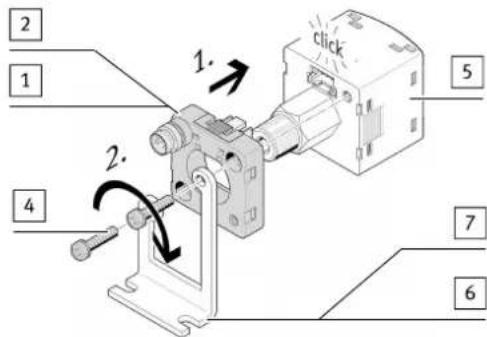

5.2 With mounting attachment 6/7

Fig. 5

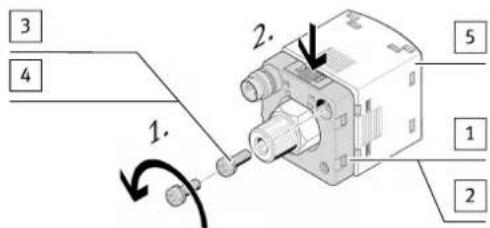

6 Dismounting

Fig. 6

7 Technical data

3 [Nm] 4 [Nm]
M3x8 0.5 ± 20 % M3x13	0.5 ± 20 %

Tab. 3 Screw sizes and tightening torques
