BRUGSANVISNING EDC1-DFT SureFire

MAINTENANCE

Wipe with a clean, dry cloth. For tips on maintaining your SureFire illumination tool, visit www.surefire.com/faqs-maintenance.

THE SUREFIRE NO-HASSLE GUARANTEE

We'll do what it takes to keep your SureFire gear running smoothly. SureFire warrants that if you — our customer — purchase one of our products, and we determine that it is defective in material and/or workmanship during your lifetime, we will repair or replace it — no hassle!

Our warranty does not cover consumables or normal wear-and-tear — things like batteries draining, headbands and headpads wearing out, mk cartridges running out, and switches wearing out — or damage resulting from abuse, alterations, unauthorized repairs, or use contrary to SureFire's user manuals.

Should you need a replacement product, SureFire reserves the right to replace an obsolete product with a current production, like model. In the event that any issue with a SureFire product is not covered under this warranty SureFire can arrange to have the product repaired for a reasonable fee.

STANDARD DISCLAIMER

Except as specified above or prohibited by applicable law, all express or implied conditions and warranties, including, without limitation, any implied warranty or condition of merchantability or fitness for a particular purpose, or accuracy of any informational content, are hereby excluded and disclaimed by SureFire; and in no event will SureFire be liable for any special, direct, indirect, consequential, incidental or punitive damages houseover arising and regardless of the theory of liability, even if advised of the possibility of such damages. Products, prices, availability, specifications, and offers are subject to change or cancellation at any time without notice.

WARRANTY CLAIMS

For claims, contact Customer Service at 714-545-5444 to obtain a Return Merchandise Authorization number (RMA#). Then package the unit carefully and send to (no CODs):

SureFire, LLC.

Repairs Department, RMA#_17680 Newhope Street, Suite B Fountain Valley, CA 92708

SureFire will pay any reasonable shipping costs to return the unit to you.

Revision 0 4-2022

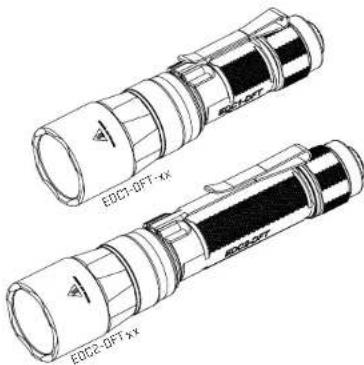

EOC7-OFT-xx, EOC2-OFT-xx

18300 MT. BALOY CIRCLE FOUNTAIN VALLEY, CA 92708-6122 WWW.SUREFIRE.COM

Patents: RE10125. 6547415. 8712485

SPECIFICATIONS	ECI-DFT/DCO-DFT
OUTPUT	SF1830, 650 / 25 lumens123A, 350 / 25 lumens	SF18690B, 700 / 25 lumens(2) 123A: 500 / 25 lumens
RUNTIME	SF1830, 45 minutes / 11 hours123A: 1 / 12 hours	SF18690B, 2.75 / 46.5 hours(2) 123A: 2 / 23 hours
PEAK BEAM INTENSITY	SF1830, 35,000 candela123A, 55,000 candela	SF18690B, 100,000 candela(2) 123A: 30,000 candela
DISTANCE	SF1830, 616 meters123A: 480 meters	SF18690B, 532 meters(2) 123A: 300 meters
CONSTRUCTION	Aluminum
FINISH	Hard Anodized MIL-A-8625 Type III Class 2I
WEIGHT (in/battered)	4.5 oz (112.9 g) 9.5 oz (118.8 g)
LENGTH	4.8 in (12.2 cm) 9.91 in (11 cm)
BEZEL DIAMETER	1.250 in (3.2 cm)
BATTERIES	(1) SF1830 (incl.) (1) 123A (1) SF18690B (incl.) (2) 123A
SWITCHING	Click Teloop

USER MANUAL

EDC SERIES

LOCKOUT TAILCAP (US PAT. RE40125)

To enable, rotate tailcap clockwise until light activates when tailcap pushbutton is pressed.

To lock out tailcap, rotate counterclockwise until light will not activate when pushbutton is pressed.

LIGHT OPERATION

Press or click pushbutton tailcap switch once for High output. Return to Off and press or click on again, within 2 seconds, for Low output.

BATTERY REPLACEMENT

To load or replace batteries:
1. Unscrew bezel counterclockwise and remove.
2. Remove old batteries and dispose of properly.

1. Insert new 123A lithium battery(ies) or one SF18350/SF18650B battery with the positive (+) terminal(s) oriented forward.
2. Replace bezel by screwing on clockwise. Press pushbutton (with tailcap enabled) to test.

BATTERY INFORMATION & WARNINGS

For complete battery information and warnings, reference the enclosed BATTERY INFORMATION / WARNING insert in your illumination tool's original packaging or visit www.surefire.com/batteries.

•

	SF8350SF78650E
VOLTAGE	3.7 V
CAPACITY	1.1 Ahr 3.5 Ahr
CHARGE END VOLTAGE	4.2 V
DISCHARGE END VOLTAGE	2.5 V
STANDARD CHARGE RATE	510mA (USB), External 1A/1C
DISCHARGE RATE	10 A 8-10 A
USB CHARGE VOLTAGE	5.0 V = 0.2 V
USB CHARGE CURRENT	600 mA + 100 mA

SAFETY

The internal protection circuit integrated within the battery assembly provides the following safety features; overcharge, overdischarge, short circuit, undervoltage, overvoltage.

ENVIRONMENTAL

Storage Temperature Range: 0-35°C. 60±25% RH

Charging: 0°C-45°C, 65%±25%RH

Discharging: -20°C-+60°C, 65%±25%RH

Note: The battery's metal button top also functions as a heatsink during USB charging, which may result in it being very warm to the touch during the high charge rate period.

The SF18350/SF18650B are Lithium Ion protected batteries with micro USB charge capability which allows the user to charge the batteries using USB power sources such as a USB well charger, computer, power bank, or automotive USB port. An external 18350/18650 compatible CC-CV cradle charger can be used to charge either battery; possibly at a faster rate if so equipped.

The SF18350/SF18650B can be charged directly through the MICRO-USB port, requiring no external charge cradle. The SF18350/SF18650B comes with a 6-inch USB type A plug to Micro USB type B plug, with the MICRO-USB plug being the end inserted into the battery. The battery side includes a MICRO-USB type B receptacle. Once the cable is plugged into the battery and a power source, the two LED indicators display the current charge state: RED for charging and GREEN for fully charged. The battery can be left connected to the charge source indefinitely as the internal charge algorithm will restart the charge cycle once the cell voltage drops below 4-5% of the float voltage. The charge time using the MICRO-USB port for a fully depleted battery can be >5 hours. An external charger can be used to shorten the total charge time. The batteries' protection circuit quiescent drain is 40uA, which in addition to the cell self-discharge, which allows a fully charged battery to maintain usable capacity for 2-3 years.
